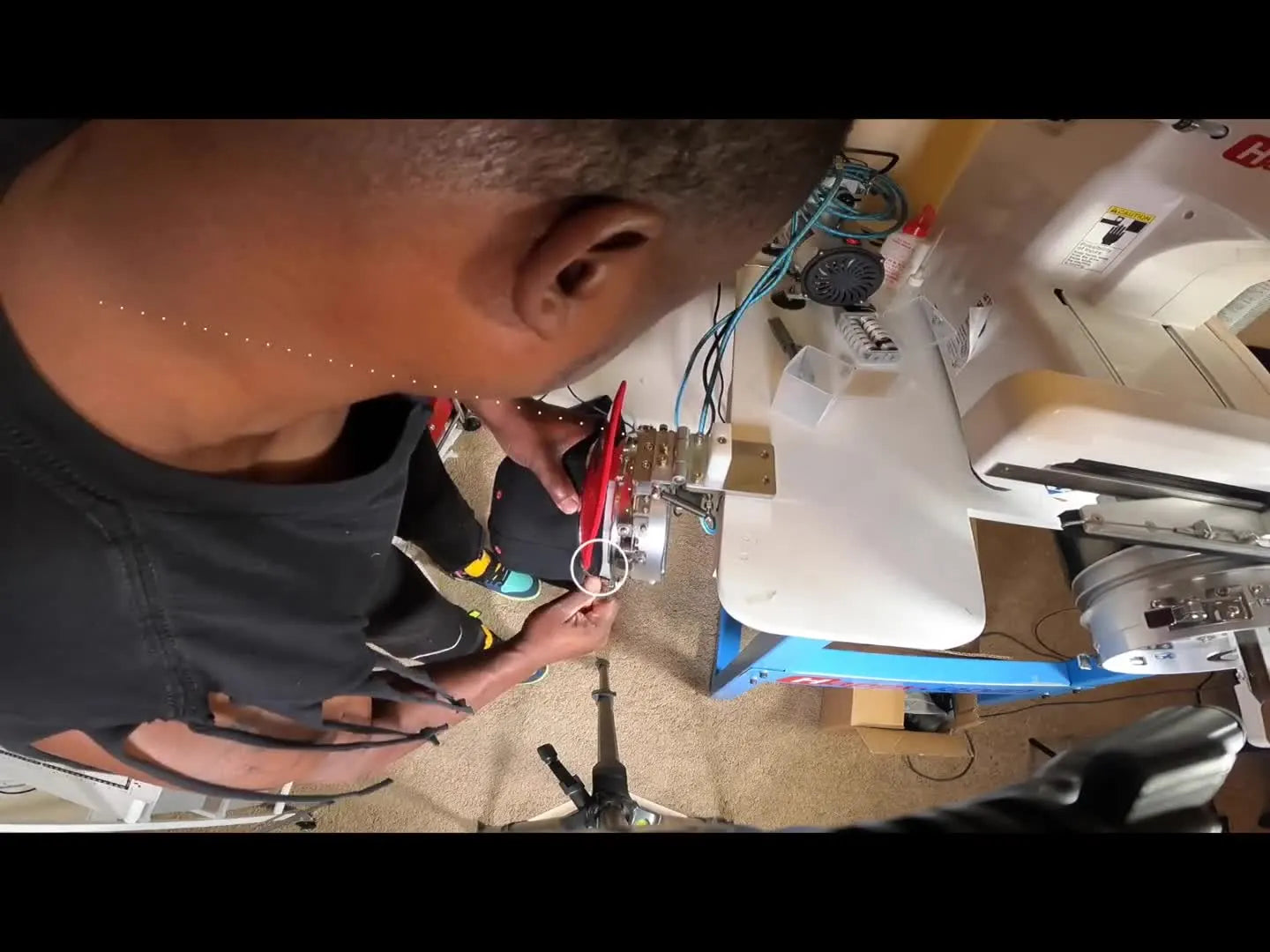

Stitching a Structured Snapback on the Happy Japan 12-Needle Voyager: Clean Center-Seam Hooping, Safe Tracing, and Fast Thread-Break Recovery

If you have ever watched a cap job go sideways—the design drifting off-center at 800 stitches per minute, the needle flirting dangerously with the hard plastic brim, or a sudden bird's nest right on the thick center seam—you already know the truth: hat embroidery is significantly less forgiving than flat garments.

In this "White Paper" grade walkthrough, I am rebuilding the specific workflow for a structured cap (using a "Squid Game" themed design) on a Happy Japan 12-needle Voyager. However, I am going beyond the video to add the sensory benchmarks and safety protocols that veteran operators use to prevent ruined inventory.

Whether you are using a commercial multi-needle beast or a home machine, the physics of needle deflection remain the same. Let’s calibrate your process for safety and precision.

Calm the Panic First: What a Happy Japan 12-Needle Voyager Cap Job Is *Supposed* to Feel Like

A structured cap run on a commercial machine isn't just about loading fabric; it is about rigid mechanical locking. When properly set up, the system should feel "dead solid"—no wiggles, no play.

If you are running a happy japan embroidery machine or any similar commercial unit in cap mode, the biggest mental shift is realizing you are sewing on a 3D shell under immense tension. The machine setup must be clinically precise because the viewer’s eye uses the hat’s brim and center seam as permanent "crosshairs." If your design is 1mm off, the human eye detects it instantly against those chaotic reference lines.

The "Non-Negotiable" Sensory Sequence:

• Visual: The center seam aligns perfectly with the red mark on the gauge.
• Tactile: The sweatband is flipped back cleanly, with no lumps under the clamping area.
• Auditory: The cap frame snaps onto the driver with a distinct, sharp metallic click.

If you don't hear that click or feel that lock, stop. Every subsequent step relies on this foundation.

The Hidden Prep That Saves the Job: Backing, Hat Anatomy, and a Quick Machine-Health Scan

Before you even touch the hat, we must address the "Hidden Consumables" and machine health. In a rush, novices skip this; in a professional shop, this is 80% of the quality control.

The "Hidden Consumables" Kit

Beyond the machine, ensure you have these within arm's reach:

• 75/11 Sharp Needles (Titanium coated): Structured caps contain buckram (stiffener) and glue. Standard ballpoint needles effectively "bounce" off the seam. Sharps penetrate.
• Tear-Away Cap Backing: As shown in the video, use specific cap backing. It should be wide enough to cover the rotation of the hat (ear-to-ear) to prevent flagging.
• Snips & Tweezers: For the inevitable thread clean-up.

Backing: The "Crunch" Test

The video uses a strip of tear-away backing. This is the industry standard for structured caps because the hat itself provides stability.

• Sensory Check: The backing should feel crisp, like cardstock. If it feels limp or soft like a tissue, do not use it for caps; it won't prevent the pushing and pulling forces of the needle.

Hat Anatomy: The "Speed Bump"

Structured snapbacks feature a fused buckram front panel and a thick center seam.

• The Risk: That seam is a "speed bump." As the needle approaches it, the thickness changes from 1mm to 4mm instantly. This causes needle deflection (bending), which leads to thread breaks or broken needles.

Warning: Mechanical Safety. Keep fingers, loose clothing, and tweezers at least 4 inches away from the needle bar area when the machine is live. A cap driver moves the hat rapidly along the Y-axis (front to back). A finger caught between the moving frame and the needle plate can suffer a crushing injury instantly.

Prep Checklist (Pre-Hooping):

• Consumables: Fresh 75/11 Sharp needle installed in the active color bar.
• Backing: Tear-away strip cut to size (approx 4" x 12" depending on cap profile).
• Hat Prep: Sweatband pulled out; cardboard insert removed; bill shaped slightly if needed.
• Machine Sound: Run a quick trim cycle. Listen for smooth actuation. Grinding noises mean "Maintenance Required" before you start a precise cap run.


The “Red Line” Moment: Aligning the Center Seam on a Cap Hooping Station Without Guesswork

The video demonstrates the "make-or-break" moment: aligning the hat’s center seam to the red indicator line on the metal cap gauge.

Here is the cognitive trap: Parallax Error. If you look at the red line from an angle, it will look centered when it is actually off by 2-3mm.

• The Fix: Stand directly over the cap gauge. Look straight down. The red line should disappear under the exact center of the seam stitching.

The "T-Shape" Visualization: Look at where the center seam meets the brim. It should form a perfect, 90-degree inverted "T". If the "T" is leaning, your design will stitch crooked, no matter how perfect the digitizing is.

If you are fighting this alignment daily, you are experiencing "Hooping Fatigue." In high-volume shops, this is where managers look for better tools. While traditional hooping stations are standard, the industry is seeing a shift toward magnetic assistance to reduce wrist strain.

Clamp It Like You Mean It: Locking the Metal Strap and Managing Hoop Tension on Structured Caps

In the video, the metal strap is latched firmly over the brim seam. This needs to be tight—much tighter than you would hoop a t-shirt.

The "Drum Skin" Test: Once clamped, tap on the front panel of the hat.

• It should sound like a dull thud or a drum.
• If it pushes in easily (spongy), the hat is loose. The needle will push the fabric into the throat plate hole, causing "flagging" and bird-nesting.

The "Pain Point" of Traditional Clamps: Traditional metal bands require significant hand force to latch. If you are doing 50 hats, your thumbs will ache. This physical pain often leads to "lazy clamping" on the last 10 hats, resulting in ruined inventory.

• Observation: This is a primary reason why many commercial production lines investigate magnetic embroidery hoops for their flat garment workflows to save their hands, even if they stick to mechanical straps for caps. Balancing operator fatigue is key to profit.


The Snap-On Test: Seating the Cap Frame on the Happy Japan Driver Without a Costly Misload

The video shows the hooped frame being rotated and snapped onto the driver.

The Sensory Anchor: The "Double Click" On many Happy Japan and similar Japanese machines, the cap frame connects at two points or with a locking bar.

1. Slide the frame onto the driver.
2. Rotate it until it matches the curvature.
3. Listen: You must hear a distinct metallic engagement.
4. Verify: Pull gently on the frame. It should move the entire X/Y carriage, not just the frame itself.

If you don't ensure this "marriage" between frame and driver, the frame will fly off at 800 RPM. This catastrophic failure usually destroys the hat, breaks the needle, and can damage the rotary hook.

Compatibility Note: If you are buying aftermarket accessories, such as happy japan hoops, verify the "Driver Cylinder Diameter." Not all cap drivers are the same size, even within the same brand.

Control Panel Reality Check: 180° Cap Orientation, Needle Selection, and Placement You Can Physically Verify

Caps are sewn "upside down" relative to the operator (brim facing the machine body). The machine must know this.

The "Upside Down" Rule: In the video, the design appears rotated 180 degrees on the screen.

• Check: Does the top of your design on the screen point toward the brim of the hat? If yes, you are safe.
• Disaster Prevention: If the design looks "right side up" on the screen (top of design away from brim), you are about to sew the logo upside down on the customer's forehead.

Multi-Needle Advantage: Running a 12 needle embroidery machine allows you to assign specific needles to the design.

• Tip: Assign the color to a needle closest to the center of the head if possible to reduce travel, though modern drivers handle the full width well.
• Video Context: Jamel selects Needle 3 for the red fill.


The Clearance Ritual: Tracing Over the Brim So You Don’t Learn the Hard Way

Tracing is your insurance policy. The video shows Jamel tracing the design to check the boundaries.

The "Pinky Gauge" (Safety Check): When the machine traces the bottom of the design (closest to the brim):

1. Stop the trace at the lowest point.
2. Can you fit the tip of your pinky finger between the needle bar and the plastic brim/metal clamp?
3. Standard: You need at least 10mm (about 1/2 inch) of clearance.
4. Why: As the hat spins, the curvature might bring the corners closer to the needle than the center.

Setup Checklist (The "Flight Check" - Do Not Skip):

• Orientation: Screen shows design rotated 180° (Top points to brim).
• Seating: Cap frame is locked onto the driver (Push/Pull test passed).
• Clearance: Trace complete; needle bar never touches the brim or clamp.
• Thread Path: No loose thread tails draped near the moving parts.
• Needle: Correct needle (Sharp) installed and verified straight.


Running at 700 SPM on a Structured Snapback: What to Watch While the Machine Does Its Job

The machine is set to run at 700 SPM (Stitches Per Minute).

The Beginner "Sweet Spot": While the Voyager can run faster, I recommend beginners start structured caps at 500-600 SPM.

• Why? Slower speeds reduce the impact force when the needle hits that thick center seam, reducing deflection and breakage.
• Experience: Once you hear the rhythm and know your stabilizer holds, bump it up to 700-800.

Listen to the Rhythm: A happy machine makes a rhythmic chug-chug-chug sound.

• Bad Sound: A sharp tick-tick-tick usually means the needle is grazing the metal throat plate or the cap frame. Stop immediately.


The Center Seam Is a Thread-Break Magnet: Why It Happens and How to Reduce Repeat Stops

The video captures a genuine moment: a thread break primarily caused by the thick center seam.

The Physics of the Break: The center seam is 4-6 layers of fabric plus buckram. The needle has to punch through, creating friction. This friction heats up the needle, which can melt polyester thread or shred rayon thread.

Solutions for the "Seam Stress":

1. Digitizing: Professional digitizers often reduce density or remove underlay exactly where the seam lies.
2. Lubrication: A tiny drop of silicone thread lubricant on the spool can help it slide through high-friction areas.
3. Needle: Again, a Titanium Sharp needle resists heat and deflection better than standard chrome.

Commercial Context: Frequent thread breaks kill profit margins. If you are battling this constantly, evaluate your equipment. High-end tension systems on machines like the SEWTECH commercial lines are designed to compensate for these sudden thickness changes better than entry-level gear. For general efficiency on non-cap items, many shops also adopt magnetic embroidery hoops to reduce hooping errors that lead to flagging and breaks.

Fast Recovery After a Thread Break: Re-Thread, Resume, and Don’t Lose Your Place

When the thread breaks, do not panic. Panic leads to "rage-threading" which causes missed guides.

The Recovery Protocol:

1. Clear the Path: Remove the shredded thread from the needle eye and the fabric. check under the throat plate for a "bird's nest."
2. Rethread: Follow the path meticulously. Missed eyelets are the #1 cause of immediate second breaks.
3. Back Up: Back the machine up 5-10 stitches. You want the new stitches to overlap the break point for a seamless lock.
4. Resume: Start slow (hit the slow button if available) for the first few stitches to ensure the lock holds.


Finishing the Black Outlines and Symbols: Keeping Registration Clean Through Color Changes

The video shows the machine moving to black outlines (Circle, Square, Triangle).

The Registration Challenge: "Registration" is how well the outline matches the color fill. On caps, the fabric wants to push away from the needle.

• If your outline has a gap: This usually means your hooping wasn't "drum tight," or your backing was too soft.
• The Fix: You cannot fix it mid-sew. You must note it for the next hat (use firmer backing or tighten the band).

For shops dealing with registration issues on flat goods (bags, shirts), this is where terms like magnetic hoops for happy embroidery machine often come up in search queries. While specific to your machine interface, magnetic clamping systems provide uniform pressure around the entire field, preventing the fabric shifting that causes outline gaps.

The Reveal Matters: Unloading the Cap Frame Without Distorting the Crown

Unlock the driver, remove the frame.

The Un-Hooping Technique:

1. Undo the massive latch slowly. Watch your fingers—it's under tension.
2. Slide the hat off the gauge.
3. Important: Do not crush the crown. The steam and heat from the needle friction make the fabric impressionable.
4. Finsihing: Snip the jump stitches close. Tear the backing away gently (support the stitches with your thumb so you don't distort the lettering).


A Simple Decision Tree: Backing and Workflow Choices for Structured Hats vs. Production Runs

Use this logic flow to make the right choices for your shop floor.

Decision Tree: The Cap Workflow

1. Is the Hat Structured (Hard Buckram front)?
   • Yes: Use Tear-Away Cap Backing + 75/11 Sharp Needle.
   • No (Unstructured/Dad Hat): Use Cut-Away Cap Backing (for stability) + 75/11 Ballpoint Needle.
2. Is the Design Crossing the Center Seam?
   • Yes: Reduce Speed to 600 SPM. Watch for flagging.
   • No: Run at 700-800 SPM.
3. Are you experiencing Wrist Pain or Hoop Burn on Flat items?
   • Yes: It is time to upgrade tools. Move to Magnetic Hoops for flats/bags.
   • No: Continue with standard mechanical hoops, but monitor fatigue.
4. Is Production Volume exceeding 50 hats/day?
   • Yes: It is time to scale. Consider adding a multi-head or a secondary SEWTECH multi-needle machine to double throughput.


Troubleshooting the Scary Stuff: Symptoms → Likely Cause → Fix

Diagnose issues before they ruin the second hat.

The Upgrade Path That Actually Makes Sense: Faster Hooping, Fewer Remakes, More Sellable Hats

The video proves you can produce a retail-quality "Squid Game" hat on a Voyager with standard tools. But as you scale, "time" becomes your most expensive consumable.

The Level-Up Logic:

• Level 1 (Technique): Master the "Drum Skin" hoop smoothness and the "Red Line" visual alignment. Use Titanium needles.
• Level 2 (Tooling): If you struggle with consistency on flats or need faster turnaround, investigate hoopmaster systems or Mighty Hoops creates a standard, repeatable process that doesn't rely on "eyeballing it."
• Level 3 (Capacity): When you are turning away orders because you can't stitch fast enough, that is the trigger for a new machine. A SEWTECH Multi-Needle machine offers the commercial stability required for structured caps without the massive overhead of industrial-only brands.

Warning: Magnetic Safety. If you upgrade to Magnetic Hoops (for flats/stations), be aware they use Neodymium magnets (N52). They can pinch skin severely (blood blister risk) and must be kept at least 6 inches away from pacemakers, insulin pumps, and credit cards.

Operation Checklist (Post-Production):

• Visual: Design is centered relative to seam and bill (check the "T").
• Tactile: No rough thread knots inside the hat rubbing the customer's forehead.
• Structural: Brim is not bent or warped from the clamp; Crown retains shape.
• Cleanliness: All backing torn away cleanly; jump stitches trimmed to <1mm.


By adhering to this strict sensory protocol—checking the "click," the "thud," and the "clearance"—you transform hat embroidery from a game of chance into a repeatable science. Keep your needles sharp and your clamps tight.

FAQ

• Q: What sensory checks confirm a Happy Japan 12-needle Voyager cap frame is correctly locked onto the cap driver before running 700–800 SPM?
  A: Stop and reseat the cap frame until the driver connection feels “dead solid” and you hear a distinct metallic click.
  • Slide the cap frame onto the driver, rotate to match the curvature, then seat it fully.
  • Pull gently on the frame to confirm the entire X/Y carriage moves with it (not just the frame).
  • Success check: a sharp metallic click (often feels like a “double engagement”) and zero wiggle/play.
  • If it still fails, do not run the job—verify the cap frame/driver compatibility (aftermarket parts may not match the driver cylinder size).
• Q: What needle and backing setup is a safe starting point for a structured cap on a Happy Japan 12-needle Voyager when the design crosses the center seam?
  A: Use a fresh 75/11 titanium-coated sharp needle with crisp tear-away cap backing, then slow down at the seam.
  • Install a new 75/11 Sharp (titanium coated) on the active color bar before hooping.
  • Cut tear-away cap backing wide enough to cover ear-to-ear rotation (a common starting cut is about 4" × 12", adjusted to cap profile).
  • Success check: backing passes the “crunch test” (feels crisp like cardstock, not limp like tissue).
  • If it still fails, reduce running speed (a safe starting point is 500–600 SPM for beginners) and review digitizing in the seam area (density/underlay may need adjustment).
• Q: How do operators prevent parallax error when aligning a structured cap center seam on a cap hooping station red line gauge?
  A: Align from directly above the gauge so the red line sits exactly under the center seam stitching—do not sight from an angle.
  • Stand over the hooping station and look straight down at the red indicator line.
  • Use the “T-shape” check where the center seam meets the brim; correct it before clamping.
  • Success check: the seam forms a true 90-degree “T” with the brim and the red line visually disappears under the seam.
  • If it still fails, re-hoop the next cap (misalignment cannot be corrected mid-stitch without visible crookedness).
• Q: What is the “drum skin” hoop tension test for structured cap embroidery, and what problem does a spongy cap front panel cause?
  A: Clamp much tighter than a t-shirt; a spongy front panel usually leads to flagging and bird-nesting.
  • Latch the metal strap firmly over the brim seam—commit to a tight clamp on structured caps.
  • Tap the front panel after clamping and compare the feel before starting the trace.
  • Success check: a dull “thud/drum” response and minimal push-in when pressed (not soft or bouncy).
  • If it still fails, change to correct cap backing (too-soft backing often allows movement) and recheck the clamp latch discipline, especially late in a long run.
• Q: How much clearance should a Happy Japan 12-needle Voyager cap embroidery trace show between the needle bar area and the brim/clamp to avoid a strike?
  A: Do a full trace and confirm at least about 10 mm (roughly 1/2 inch) clearance at the lowest point near the brim.
  • Trace the design boundary and pause at the lowest point closest to the brim.
  • Measure clearance using the “pinky gauge” as a quick physical reference before sewing.
  • Success check: the needle bar area never approaches the brim/clamp closer than ~10 mm during the trace, including corners (curvature can tighten clearance).
  • If it still fails, reposition the design, re-hoop for better seating/alignment, or reduce the design’s lower boundary to regain safe clearance.
• Q: What causes repeated thread breaks at the center seam on structured snapbacks, and what is the fastest practical fix during production?
  A: This is common on thick center seams; slow down and use a sharp titanium needle, then recover by rethreading cleanly and backing up 5–10 stitches.
  • Replace the needle with a 75/11 titanium-coated sharp if there is any doubt about straightness or heat wear.
  • Add a tiny amount of silicone thread lubricant to the spool if friction is high through the seam.
  • Success check: after rethreading, the first few slow stitches form a stable overlap with no immediate second break.
  • If it still fails, review the design’s seam-crossing area (density/underlay often needs reduction exactly over the seam).
• Q: What mechanical safety rule should operators follow when running cap embroidery on a commercial cap driver like a Happy Japan Voyager system?
  A: Keep hands, clothing, and tools at least 4 inches away from the needle bar area whenever the machine is live.
  • Remove tweezers/snips from the needle zone before pressing start or trace.
  • Manage thread tails so nothing drapes into moving parts during cap driver Y-axis motion.
  • Success check: no fingers/tools enter the cap frame travel path during trace or stitch-out (treat the driver area as a no-hand zone).
  • If it still fails, pause the job and reset the workstation layout so tools are not within reach of the moving frame area.
• Q: When should a commercial embroidery shop consider upgrading from technique fixes to magnetic embroidery hoops or a SEWTECH multi-needle machine based on cap and flatwork problems?
  A: Use a tiered decision: fix technique first, upgrade to magnetic hoops for flat-item consistency/fatigue next, and add capacity when volume forces it.
  • Apply Level 1 first: tighten cap clamping (“drum skin”), align the center seam on the red line, and use sharp titanium needles.
  • Move to Level 2 for flat goods when wrist pain or repeated hooping inconsistency causes remakes: magnetic hoops can reduce hooping errors by providing uniform clamping pressure (not typically used for cap straps).
  • Success check: fewer remakes and less operator fatigue across a full day’s run (especially the last 10–20 pieces).
  • If it still fails and orders exceed capacity (for example, production volume pushing beyond 50 hats/day), consider Level 3 capacity expansion with an additional commercial multi-needle unit such as a SEWTECH machine; always follow magnetic safety precautions (strong magnets can pinch and must be kept away from pacemakers and sensitive cards).
