StitchArtist Level 1 Digitizing That Actually Stitches Clean: Satin Borders, Fill Registration, and the Heat Map “Red Zone”

Digitizing is one of those skills that feels magical when it works—and brutally confusing when it doesn’t. If you’ve ever stared at StitchArtist settings thinking, “Okay… but what does that actually look like in thread?” you are exactly where you need to be.

This guide takes a practical tour of Embrilliance StitchArtist (Level 1) and rebuilds the process into a repeatable, professional-grade workflow. We will cover the specific settings for a line-art project and a filled character design, but more importantly, we will inject the quiet, experience-based details that prevent classic beginner disasters: gaps, thread nests, broken needles, and sloppy text.

The Mental Shift: Digitizing is Engineering, Not Drawing

The fastest way to master digitizing is to stop expecting your first design to stitch like a commercial file. Commercial files—like the ones you buy online—are tested, adjusted, and re-tested by professionals. Your job at the beginning is to build a workflow that makes testing cheap, fast, and informative.

Chelly’s demonstration uses Embrilliance StitchArtist Level 1. This is crucial because many beginners think they need expensive "Pro" software to start. Level 1 is sufficient to build clean outlines, fills, and text, provided you respect the physics of fabric.

The Golden Rule: Digitizing isn’t just drawing with stitches. It is planning how fabric will distort, push, and pull while a needle punches it thousands of times. A design that looks perfect on a stable denim jacket may look like a distorted mess on a stretchy performance tee.

The Stitch Sampler Habit: Build a Physical “Dictionary”

Before attacking a complex logo, beginners should create a "Stitch Sampler."

The Concept: Digitize a simple file containing basic elements—single lines, circles, a small fill block, and one text sample—and assign different properties to each (bean stitch, satin column, tatami fill). Stitch this out on scrap fabric.

Why this is mandatory: Software terms are abstract numbers. A “4-point density” is just math on a screen. But when you run your fingers over that stitch on fabric, you gain tactile feedback.

• Tactile Check: Does the satin stitch feel hard and bulletproof (too dense)? Or does it feel soft and pliable?
• Visual Check: Can you see the fabric color 'peppering' through the fill (too loose)?

Hidden Consumables Checklist (Don't Start Without These)

• Water-Soluble Pen/Chalk: For marking center points on your test fabric.
• Temporary Spray Adhesive (ODIF 505): Essential for floating fabric on stabilizer if you aren't hooping the garment directly.
• Sharp Appliqué Scissors: For trimming jumps closer than your machine's auto-trimmer can reach.
• Fresh Needles: A defined "Sharp" point for wovens, or "Ballpoint" for knits.


Lock the Hoop Size First (Grid Settings)

In the video, the reference image (JPG/PNG) is dragged directly into the StitchArtist grid. The very next step—before drawing a single node—must be setting the hoop size.

The Risk: If you digitize a design at 8x8 inches and later shrink it to fit a 4x4 hoop, the software may recalculate densities, crushing stitches together. This creates a "bulletproof patch" that breaks needles.

Action Steps:

1. Drag and drop the reference image into the StitchArtist canvas.
2. Go to Grid Settings (folder icon) → Hoops tab.
3. Select the physical hoop size you actually own and intend to use.

Commercial Reality: If you are digitizing for production, you must build the file for the specific hoop you will use. Often, the choice of hoop dictates the success of said design.

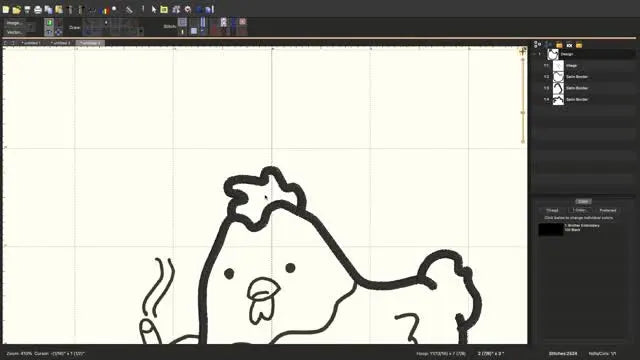

Draw With Points + Satin Border: Tracing for Flow

For the chicken outline, the tool used is Create → Draw with Points. The stitch type is set to Satin Border.

Here is the "Old Tech" advice that saves hours of editing: Node Economy. When placing points (nodes), you are defining the machine's travel path. Beginners often click every millimeter, creating a "shaky" line.

• The Fix: Use the absolute minimum number of points required to create the shape.
• Visual Check: A smooth curve should only have 2 or 3 points. If your curve looks like a stop-sign hexagon, you don't need more points; you need to adjust the bezier handles of the existing points.

Keyword Insight: Your choice of hardware impacts how well these outlines register. If you’re building a workflow around repeatable results, this is where machine embroidery hoops matter. The hoop stability dictates whether that perfect satin border lands where it should or shifts 2mm to the right.

Anatomy of a Satin Border: Width vs. Density

In the video, settings for the satin border are discussed. It is critical to distinguish between Width (how thick the line is) and Density (how close the stitches are packed).

• Standard Width: A 2.0 mm to 4.0 mm width is a sweet spot for borders. Anything thinner than 1.5 mm often sinks into the nap of fleece or terry cloth.
• Standard Density: In Embrilliance, a lower number often means higher density (points). A standard satin density is usually around 0.4mm (or 4 points).

Density Risk Analysis:

• Too Dense (e.g., 0.2mm): You will hear a heavy thump-thump-thump sound. The machine is struggling to penetrate the same hole twice. This creates needle heat and thread breaks.
• Too Loose (e.g., 0.6mm): The stitches look "stringy," and you can see fabric between the threads.

Pro Tip: If drawing on a black background, change your digital thread color to Hot Pink or Neon Green. You cannot fix alignment issues you cannot see. Switch it back to black before saving.

The "Perfect Circle" Shortcuts

For geometric shapes like the chicken’s glasses, do not freehand draw them. Use the Shapes Tool → Circle.

Commercial Logic: Consistency scans as "Quality." If you draw one lens manually and the other manually, the human eye will instantly detect the difference. Use Copy/Paste.

This consistency extends to the physical world. A perfect digital circle will look like an oval if the fabric is hooped poorly. Many small shops eventually move toward hooping stations because the "design is consistent" helps only if the garment is hooped with equal consistency every single time.

The Control Center: Sequencing for Speed

The Left Panel in StitchArtist is your command center. This is where you reorder objects.

The Physics of Stitch Order: Imagine you are the machine. You do not want to stitch the left eye, then the right foot, then the beak, then the left foot. That requires long "Jump Stitches."

• Bad Sequencing: Machine slows down, trims thread, moves, restarts. (Auditory cue: Lots of mechanical clicking and stopping).
• Good Sequencing: The machine flows from one object to the adjacent one. (Auditory cue: A steady, rhythmic humming).

Scale & Profit: Creating efficient stitch paths reduces run time. If you are running a commercial multi-needle machine like a SEWTECH multi-needle embroidery machine, saving 30 seconds per garment on an order of 100 shirts saves you nearly an hour of production time.

The Heat Map: Your Pre-Disaster Warning System

Chelly toggles the specific view that shows a "Heat Map" of stitch density.

• Blue/Green: Safe zone.
• Yellow: Caution.
• Red: Density overload.

Warning: Mechanical Safety Risk
If your heat map shows a bright red knot in a tight area, STOP.
Running a needle through 6+ layers of thread (heavy red zones) can cause the needle to deflect and strike the metal throat plate. This can shatter the needle found, sending metal shards flying, or burr the hook assembly, requiring a technician to fix.

Immediate Fixes for "Red" Zones:

1. Remove Hidden Layers: Did you accidentally duplicate an object underneath?
2. Increase Scale: Is the object too small for the detail?
3. Change Stitch Type: Switch from Satin to a humble Run Stitch for tiny details.


The Needle Simulator: The Digital Dress Rehearsal

Use the Needle Tab to watch a virtual playback. This is your "Pre-Flight Check."

What to look for:

1. Flying Jumps: Are threads crossing open areas you can't easily trim?
2. Order of Ops: Is the background stitching after the foreground text? (This creates gaps).

Tool Integration: If you are doing test stitch-outs on garments, consider using a stable hooping method so your test results are meaningful. Distorted fabric can look like a bad file. That’s one reason many embroiderers move toward magnetic embroidery hoops for tricky garments—less pulling and tugging during hooping means the file stitches exactly where you planned it.

Fill Stitches & The "Gap" Nightmare

For the "Earth Man" design, the technique switches to Fill (Tatami) stitches.

The Problem: Gaps. You stitch a circle with a border, and when it's done, there is a visible 1mm gap of white fabric between the fill and the border. The Cause: "Push and Pull." Stitches pull the fabric in (making the object narrower) and push fabric out (making it longer).

The Solution: Density vs. Compensation

• Density: Chelly lowers the density to prevent the fabric from bunching. A standard fill density is around 3.5 to 4.0 points (0.4mm).
• The Trap: Beginners try to fix gaps by increasing density. This usually makes it worse by creating more "Pull."


The Overlap Rule (The "Grout" Technique)

This is the single most actionable tip in the guide. Do not place vectors side-by-side. If you have a Green Fill and a Black Border, the Green Fill must extend underneath the Black Border.

Visual Guide:

• Imagine laying floor tiles. You need grout between them.
• In embroidery, the "Overlap" is your grout.
• Overlap your shapes by at least 1.0 mm to 1.5 mm. Run the border on top to hide the messy edge.

Success Metric: When you pull the fabric slightly, you should see no "gap halo."

Curved Text & Lettering Realities

Chelly demonstrates using the Circle Button to curve text.

The Reality of Small Text: Text under 5mm tall is the enemy of the beginner.

• Symptom: The letters look like blobs. The "e" and "a" holes close up.
• Prevention: Use a thin 60wt thread and a smaller 65/9 needle, OR increase the font size.

Stability Check: Curved text requires perfect tension. On stretchy knits, a shifting hoop will turn a perfect arc into a wavy line. Here, tools like a magnetic hoop for brother provide a practical upgrade path. The magnetic force clamps the fabric evenly without the "screw-tightening" distortion of traditional hoops, preventing the dreaded "hoop burn."

Library Shapes: The Shortcut

Importing pre-made shapes (like speech bubbles) saves time. Caution: Library shapes are generic. They don't know you are stitching on a flimsy t-shirt. Always check their properties. If a library shape has a dense underlay, you may need to lighten it for thin fabrics.

The Saving Protocol

The Rule of Two:

1. Save the Working File (.BE or .EMB) to your computer. This allows you to edit nodes later.
2. Save the Stitch File (.PES, .DST, .EXP) to your USB for the machine. The machine cannot read working files.

Operation Checklist (Pre-Stitch)

• Bobbin Check: Is the bobbin full? Running out mid-design on a single-needle machine creates a visible seam.
• Throat Plate: Remove the plate and blow out lint. Lint buildup affects tension.
• Simulation: Run the simulator one last time to catch jump stitches.
• Hoop Check: Ensure the hoop is firmly attached and "clicks" into the carriage.

Troubleshooting: From Symptoms to Solutions

When things go wrong, use this diagnostic table. Do not guess.

Warning: Magnet Safety
If you upgrade to embroidery hoops magnetic or similar strong magnetic frames, be aware these use industrial-strength Neodymium magnets.
* Pinch Hazard: They can snap together with enough force to bruise fingers.
* Medical Safety: Keep at least 6 inches away from pacemakers and implanted medical devices.

Stabilizer Decision Tree: Stop Guessing

The type of fabric dictates the stabilizer.

Decision Tree (Fabric → Stabilization Strategy)

1. Is the fabric stretchy (T-shirt, Hoodie, Knit)?
   • YES: You MUST use Cutaway Stabilizer. Tearaway will eventually distort and ruin the embroidery after one wash.
   • Upgrade: Use a magnetic hoop to prevent stretching while hooping.
2. Is the fabric stable (Denim, Canvas, Twill)?
   • YES: You can use Tearaway Stabilizer.
3. Is the fabric fluffy (Towel, Velvet, Fleece)?
   • YES: You need a "Topper" (Water Soluble Film) on top to prevent stitches from sinking, AND a stabilizer on the back.

The Commercial Upgrade Path: When to Switch Tools?

You can create beautiful work with basic tools. However, as you move from "Hobby" to "Hustle," specific bottlenecks will emerge. Here is how to diagnose when it is time to upgrade.

Scenario A: "I dread hooping because it hurts my hands / leaves marks."

• The Trigger: You struggle to tighten the screw or get "hoop burn" (shiny rings) on dark fabrics.
• The Solution: magnetic hoops for embroidery machines. They snap on automatically, adjust for thickness instantly, and leave zero burn marks.

Scenario B: "My designs are inconsistent."

• The Trigger: You are embroidering left-chest logos on 10 shirts, and they are all at slightly different heights.
• The Solution: A hooping station for embroidery. This fixture holds the garment in the exact same spot for every single hoop, removing human error.

Scenario C: "I have too many orders; hooping takes too long."

• The Trigger: You spend more time prepping shirts than the machine spends stitching.
• The Solution: High-volume shops use systems like hoopmaster to standardize production speed.

Setup Checklist (Before Digitizing Your Next Design)

• Hoop Lock: Did I select the correct hoop size in Grid Settings first?
• Sequence Plan: Did I think about the order (Background first, then detail)?
• Overlap Strategy: Did I ensure fills tuck under borders?

If you follow this "Sampler First, Physics Second" approach, you stop hoping for a good result and start engineering one. Digitizing is less about art and more about controlling variables. Control the variables, and the art takes care of itself.

FAQ

• Q: Which Embrilliance StitchArtist Level 1 file formats should be saved for future edits vs. for running on a Brother/Bernina/Janome embroidery machine?
  A: Save the working file to keep editability, and export a stitch file for the machine to run.
  • Save the Working File as .BE or .EMB on the computer so nodes, densities, and sequencing stay editable.
  • Save the Stitch File as .PES / .DST / .EXP to a USB for the embroidery machine (machines cannot read working files).
  • Success check: The embroidery machine recognizes the USB design and shows a stitch preview, while the computer file re-opens with editable objects.
  • If it still fails… Re-export the stitch file in the exact format required by the machine brand and confirm the USB is readable.
• Q: How do I prevent Embrilliance StitchArtist designs from becoming “bulletproof patches” after shrinking the design to fit a 4x4 hoop?
  A: Lock the physical hoop size first, then digitize at that size instead of shrinking later.
  • Set Grid Settings → Hoops to the exact hoop size owned and intended for stitching before placing nodes or objects.
  • Rebuild the design at the target size rather than relying on heavy downscaling that can crush density.
  • Success check: The stitched area feels pliable (not rigid) and the machine does not sound like it is hammering the same hole repeatedly.
  • If it still fails… Use the density heat map to find overloaded zones and reduce detail or change stitch types in tiny areas.
• Q: How do I fix bird’s nest tangles under the throat plate on a Brother/Bernina/Janome single-needle embroidery machine during a StitchArtist test stitch-out?
  A: Re-thread the top thread correctly with the presser foot up, then clean tension areas if needed.
  • Re-thread the TOP thread with the presser foot UP so the thread seats into the tension disks.
  • Inspect for lint buildup around the tension path and remove lint that can cause tension loss.
  • Success check: The stitch-out runs without a sudden thread wad under the plate, and the machine sound returns to a steady rhythm instead of laboring.
  • If it still fails… Stop and verify the bobbin area is clean and the bobbin is correctly installed before restarting the design.
• Q: How do I stop visible gaps between a tatami fill and a satin border in Embrilliance StitchArtist (push-pull “halo” around shapes)?
  A: Overlap the fill underneath the border by about 1.0–1.5 mm instead of trying to “fix gaps” by increasing density.
  • Extend the fill object so it tucks under the border rather than placing shapes edge-to-edge.
  • Keep fill density in a normal range (a safe starting point is around 3.5–4.0 points / 0.4 mm) and avoid over-densifying to chase gaps.
  • Success check: Lightly pull the fabric and no white “gap halo” appears between the fill and the border.
  • If it still fails… Upgrade stabilization strength for the fabric and re-test, because weak stabilization amplifies push-pull distortion.
• Q: What should I do immediately if the Embrilliance StitchArtist density heat map shows a bright red knot in a small area before stitching on a multi-needle embroidery machine?
  A: Do not stitch the red zone as-is—reduce layers or simplify that area first to prevent needle deflection and hardware damage.
  • Remove accidental duplicate objects or hidden layers underneath the visible shape.
  • Increase the object size if the detail is too small to stitch cleanly at the current scale.
  • Change tiny details from satin to run stitch where appropriate to reduce thread stacking.
  • Success check: The heat map shifts from red to safer colors (blue/green preferred), and the stitch simulator shows fewer repeated penetrations in one spot.
  • If it still fails… Run a small test stitch-out on scrap fabric and stop at the first sign of heavy thumping or repeated needle strikes.
• Q: How do I prevent unreadable curved text under 5 mm in Embrilliance StitchArtist on a stretchy knit garment, and when should a magnetic embroidery hoop be considered?
  A: Increase text size or use finer thread/needle, and stabilize/hoop to prevent shifting that turns arcs into waves.
  • Avoid text under 5 mm when possible; enlarge the lettering or choose a simpler font.
  • Use a thinner 60 wt thread and a smaller 65/9 needle when the machine and material allow (generally a helpful starting point; confirm with the machine manual).
  • Use proper stabilization for knits (cutaway) and minimize fabric distortion during hooping; magnetic embroidery hoops can help by clamping evenly without screw distortion.
  • Success check: The “e/a” counters stay open (not blobbed), and the curved baseline stitches as a smooth arc rather than a wavy line.
  • If it still fails… Add a water-soluble topper on fluffy or unstable surfaces and re-test the lettering at a larger size.
• Q: What safety precautions are required when using neodymium magnetic embroidery hoops on a Brother/Bernina/Janome embroidery machine?
  A: Treat magnetic embroidery hoops as pinch-hazard tools and keep them away from implanted medical devices.
  • Keep fingers clear when closing the magnetic frame because magnets can snap together with bruising force.
  • Keep magnetic frames at least 6 inches away from pacemakers and implanted medical devices.
  • Success check: The frame closes in a controlled way without finger pinches, and the garment is clamped evenly without “hoop burn” rings.
  • If it still fails… Slow down the handling process and separate the magnets carefully before repositioning to avoid sudden snaps.
