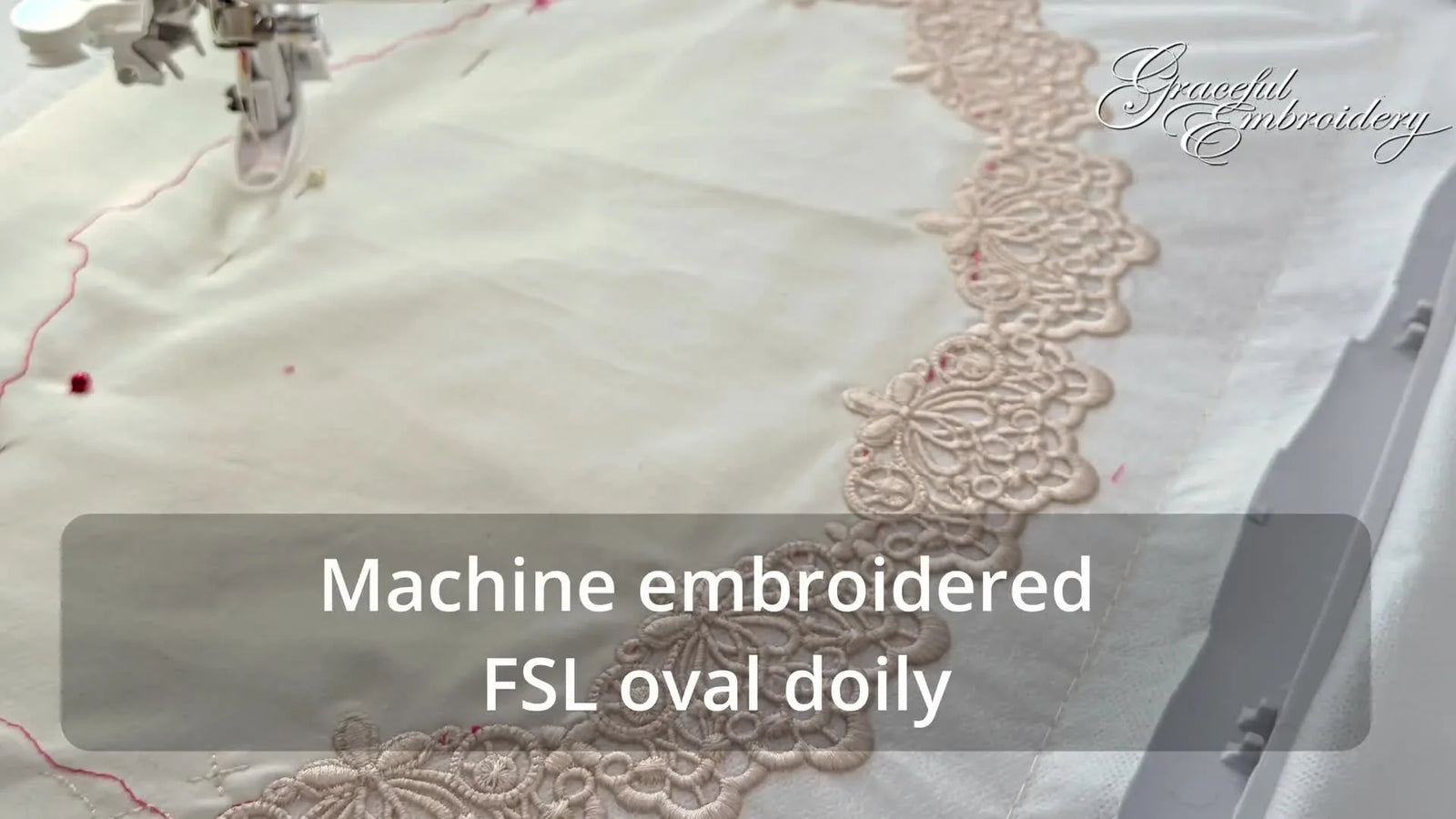

Stitch the Mansfield FSL Oval Doily in a 360×200 Hoop: Clean Split-Design Alignment on a Husqvarna Viking Epic 2 (Part 1)

The Ultimate Guide to Split Designs: Mastering the Mansfield FSL Oval Doily (Part 1)

If you’ve ever opened a gorgeous heirloom FSL (Freestanding Lace) file, checked the dimensions, and felt your stomach drop because your hoop isn’t wide enough—take a breath. We’ve all been there. This panic is a rite of passage for every embroiderer moving from hobbyist to artist.

The Mansfield freestanding lace oval doily is a massive design (360×260mm). Most standard single-needle machine hoops top out at 200mm to 260mm wide. But this limitations isn't a dead end; it's an invitation to learn the advanced skill of split designs.

In this industry-grade walkthrough, we are breaking down a 360mm design executed on a 360×200mm hoop. This requires a "Split Project" workflow: dividing the design into sectors and using precise alignment markers to stitch them seamlessly.

Read the Mansfield FSL Oval Doily file like a pro (360×260 design vs 360×200 hoop reality)

The first step in professional embroidery production is Constraint Analysis. The host in the reference video immediately identifies the conflict: the design requires 260mm of width, but the hoop offers only 200mm (8 inches).

Beginners often freeze here, hoping for a software hack to shrink the design. Do not shrink dense FSL. Shrinking lace increases stitch density to dangerous levels, leading to needle breaks and stiff, bulletproof lace.

Instead, adopt this Mental Model to navigate the split process:

1. The Master File: This is the visual target.
2. The Split Files (Part 1 & Part 2): These are your actual instructions. They are engineered to stop at logical seams.
3. The Outline File: This is your "Map." It is not wasted thread; it defines the physical boundaries for your fabric applique.
4. The Alignment Crosses: These are your "GPS Coordinates." They are the only thing that matters when you re-hoop for Part 2.

If you are looking to master multi hooping machine embroidery, you must treat these alignment crosses with the same reverence a printer treats registration marks. If they shift by even 1mm, your lace join will fail.

The “Hidden” prep that makes dense FSL behave: stabilizer choice, needle sanity, and hoop clearance

Successful FSL is 90% preparation and 10% stitching. This project utilizes a Hybrid Stabilizer Technique, which is critical for projects involving both fabric applique and pure lace.

The Stabilizer Sandwich

1. Base Layer (Hooped): Stitch and Tear (Tearaway). This provides a rigid "work surface" for the cotton outline.
2. Lace Layer (Floating/Added later): Wet and Gone (Water Soluble). This supports the 60,000+ stitches of lace structure.

Expert Note: Why not use Water Soluble for everything? Because standard soluble headers can stretch under the tension of a large hoop clamp. Tearaway offers superior rigidity for the initial outline, ensuring your geometry starts perfect.

The "Clearance" Check

A subtle but veteran move appears in the workflow: pushing the inner hoop slightly past the flush point.

• The Physics: Large 360mm hoops are heavy. As the pantograph (embroidery arm) moves to the extreme Y-axis limits, the back of the hoop can sometimes brush against the machine head or support arm.
• The Risk: Even a "micro-rub" creates friction that throws off registration.
• The Fix: Ensure your hoop has 100% free range of motion before hitting start.

Needle Protocol

The machine in the demonstration uses a fresh needle.

• Rule of Thumb: For a 60,000-stitch FSL design, install a specialized Topstitch 90/14 or Embroidery 75/11 needle.
• Sensory Check: Run your fingernail down the old needle tip. If you feel a "catch" or scratch, it is a microscopic burr. Throw it away. A burred needle will shred FSL thread instantly.

Warning: Physical Safety Hazard. Keep fingers, loose sleeves, and long thread tails at least 4 inches away from the needle area when test-stitching or restarting. Industrial and semi-industrial machines accelerate to 600-1000 SPM instantly. A "quick adjustment" while the machine is live is the fastest way to stitch your finger.

Prep Checklist (Do NOT skip)

• Hoop Check: Confirm hoop size is 360×200mm (or your machine's equivalent large hoop).
• File Check: Load the Split Part 1 file, not the master file.
• Consumable 1: One layer of high-quality Stitch and Tear stabilizer.
• Consumable 2: Water-soluble glue stick (avoid sprays near the machine).
• Fabric: White cotton fabric, pressed flat with starch.
• Tooling: Double-curved appliqué scissors (Duckbill) are mandatory for this workflow.
• Bobbin: Full bobbin of 60wt bobbin thread (white).
• Needle: New Embroidery 75/11 or Topstitch 90/14.


Hooping Stitch and Tear in the 360×200 hoop: tight, flat, and positioned so it won’t snag the machine

The foundation of this project is one layer of Stitch and Tear hooped securely.

The "Drum Skin" Standard

When looking for advice on proper hooping for embroidery machine technique, the gold standard is tactile feedback.

1. Tighten: Place the stabilizer. Tighten the screw finger-tight.
2. Sound Check: Tap the stabilizer rapidly with your fingernail. You should hear a distinct, drum-like "thump-thump" sound. If it sounds like paper rustling, it is too loose.
3. Feel Check: Push your thumb into the center. It should deflect slightly but snap back instantly. If it leaves a "bowl" shape, re-hoop.

Beginner Pitfall: Do not use pliers to overtighten the screw on plastic hoops. You will strip the screw or crack the outer ring. If you struggle to get tension without pain, this is a hardware limitation of standard plastic hoops (we will discuss solutions in the Upgrade Path section).

Glue stick dabs + cotton fabric smoothing: a clean alternative to spray adhesive mess

Adhesion is necessary to hold the cotton fabric during the outline stitch.

Why Glue Stick over Spray? Spray adhesives are airborne. Over time, they coat your machine's internal belts and sensors in a sticky residue. The Method:

1. Apply pea-sized dabs of washable glue stick to the corners and center of the stabilizer.
2. Press the cotton fabric down.
3. Smooth from the center out.
4. Visual Check: Look for "bubbles" or ripples. The fabric must be perfectly flat. Any ripple here becomes a permanent pucker in your lace.




Why this works (and where people go wrong)

Cotton shifts. It is a natural fiber that relaxes under needle penetration. The glue acts as a "tacking anchor," preventing the fabric from creeping as the foot travels.

• Avoid: Heavy-duty permanent craft glues. These will gum up your needle eye, causing thread shredding within minutes.

The “too quiet” moment: fixing the Epic 2 bobbin mistake without ruining your outline

In the source walkthrough, a common error occurs: The machine starts, the needle moves, but no stitch forms.

Sensory Diagnosis:

• Sight: No thread locking on the fabric.
• Sound: A rhythmic "clack-clack" instead of the softer "thump-thump" of a lockstitch forming. The machine sounds "hollow."
• Diagnosis: Missing bobbin.

The Recovery Protocol:

1. Stop Immediately. Do not let the machine punch holes in your stabilizer.
2. Insert Bobbin. Ensure it feeds in the correct direction (usually counter-clockwise/P-shape).
3. Backtrack. Use the machine interface to reverse 4-10 stitches to overlap the start point.
4. Restart.


Pro tip from the comments (and how to set expectations)

Many users assume "Combo Machines" (Sewing + Embroidery) operate intuitively. They do not. Switching modes often requires changing the needle plate, foot, and bobbin case tension.

• Action: If you are new to the platform, dedicate one afternoon solely to Mode Switching Drills. Time yourself switching from Sewing to Embroidery and back. Proficiency creates confidence.

Stitch the red outline template: the line you’ll thank yourself for when trimming inside the hoop

The machine stitches a Red Outline.

• Why Red? High contrast against white cotton. You need to see this line clearly for the trimming phase.
• Function: This is not part of the final visual design. It is a "Cut Line."

When browsing for embroidery hoops for husqvarna viking or similar machines, maximize your working area. You need a hoop large enough not just to hold the design, but to allow your hands access to trim this outline comfortably.

Split-file sanity check on the machine screen: pick the correct part and respect what won’t stitch yet

A "Split File" looks broken on screen. It is supposed to.

• Visual Check: You will see "floating" elements or open ends. Do not panic. These open ends are designed to interlock with Part 2 later.
• Verify Crosses: Ensure the 4 orange alignment crosses are visible on the screen. These are critical.


The trimming ritual: applique scissors inside the hoop, close to the red line, stabilizer untouched

This is the highest-risk manual step in the Part 1 workflow. You must cut away the cotton fabric leaving the stabilizer intact.

Tool Requirement: Duckbill Applique Scissors.

• The "Bill": The wide paddle shape lifts the fabric and pushes the stabilizer down, creating a safety gap.

The Technique:

1. Lift: Pull the excess fabric gently upward.
2. Anchor: Rest the "Bill" of the scissors flat against the stabilizer.
3. Slice: Glide along the red thread line. You want to cut as close as possible (1-2mm) without cutting the red thread itself.






Warning: Stabilizer Puncture Risk. Even with duckbill scissors, angling the blade downward will slice your Stitch and Tear base. If you cut the stabilizer, you must start over. There is no repairing a cut stabilizer base for high-tension FSL work; the registration will fail.

Why trimming inside the hoop is harder than it looks (and how to keep the fabric from distorting)

Trimming requires you to apply pressure to the hoop. Standard hoop clamps rely on friction. If you push too hard, the fabric can slip out of the hoop, ruining tension.

The Fatigue Factor: If you are doing production runs (e.g., 50 doilies), the constant wrestling with screw-tightened hoops leads to wrist strain (Carpal Tunnel risk) and "Hoop Burn" (permanent creases on fabric).

The Solution: This is why professional shops transition to magnetic embroidery hoops.

• Mechanic: Powerful magnets clamp the fabric from the top without friction-burn.
• Benefit: They hold tension firmly but allow for easier adjustments. The flat surface makes in-hoop trimming significantly faster and safer.

Warning: Magnetic Safety. Powerful Neodymium magnets found in industrial hoops can pinch skin severely. Do not place fingers between the magnets. Keep these hoops at least 6 inches away from pacemakers or sensitive electronics.

Stitch the orange alignment crosses: four marks now, fewer headaches later

Once trimmed, the machine stitches four Orange Crosses directly onto the stabilizer.

• Function: These marks remain on the stabilizer after you un-hoop. In Part 2, you will align your needle perfectly over these crosses to ensure the two halves of the lace join without a visible seam.


Setup Checklist (Pre-Flight for Section 1)

• Cut Check: Fabric is trimmed clean; no loose threads interfering with the lace area.
• Base Check: Stabilizer is intact (no accidental cuts).
• Cross Check: All alignment crosses stitched clearly.
• Bobbin Load: Is your bobbin at least 50% full? Do not start a 60k stitch file with a low bobbin.

Starting the 60,000-stitch FSL run: pull up the bobbin thread or you’ll invite a bird’s nest

The Crime: Pressing "Start" immediately. The Consequence: The "Bird's Nest." The loose bobbin tail gets sucked into the race hook, tangling into a knot that can jam the cutter and ruin the garment.

The Fix: The "Pull-Up" Ritual

1. Needle Down/Up: Manually drop the needle and raise it.
2. Sweep: Pass scissors or a finger under the presser foot to catch the loop of bobbin thread.
3. Pull: Pull both the top thread and bobbin thread tails to the surface.
4. Hold: Hold these tails gently for the first 5-10 stitches until the machine locks the knot.




Speed Settings: The video shows the machine running at maximum speed.

• Expert Advice: For beginners, cap your speed at 600-700 SPM.
• Why: Slower speeds reduce friction and heat on the needle, lowering the chance of thread breakage during dense lace formation.




The “Why” behind pulling up bobbin thread (so you don’t just memorize a ritual)

It’s about tension differentials. At the first stitch, the bobbin has zero tension on it. By bringing the tail to the top, you create immediate back-pressure, ensuring the very first stitch is tight and secure. This eliminates the "slubs" or loose loops often seen on the back of amateur embroidery.

When thread breaks or you get a bird’s nest: the safe recovery sequence shown in the video

If the thread snaps (listen for a sharp pop and the machine stopping):

1. Do NOT yank the hoop.
2. Clear the Path: Remove the hoop. Check the underside. Trim any nests.
3. Rewind: On the screen, back up the stitch count by roughly 10-20 stitches to ensure overlap.
4. Check the Needle: A break often means a bent needle. If in doubt, replace it.
5. Restart: Using the "Pull-Up" ritual again.

Stabilizer decision tree: Stitch and Tear vs Wet and Gone (and when to add layers)

Choosing stabilizers is not guesswork; it is engineering.

Decision Tree (Fabric/Stage → Stabilizer Choice)

• Step 1: Is the object purely lace (no fabric)?
  • YES: Use heavy-duty Water Soluble (Wet and Gone). (2 Layers recommended for designs >20,000 stitches).
  • NO: Go to Step 2.
• Step 2: Are you stitching a fabric applique base (like this doily outline)?
  • YES: Use Stitch and Tear (Tearaway). It provides the rigidity needed for outlining.
  • NO: Go to Step 3.
• Step 3: Is the fabric stretchy (Knits/Jersey)?
  • YES: Use Cutaway (Mesh). Tearaway will explode under stretch.
  • NO: Tearaway is acceptable.

The upgrade path that actually makes sense: reduce hooping fatigue, speed up repeats, and scale beyond one doily

Completing one Mansfield Doily is a triumph. Making 20 for a wedding or sale requires a change in strategy.

The Hobbyist Workflow:

• High manual effort (gluing, careful trimming, slow speeds).
• Great for learning, bad for profit.

The Production Workflow Upsell:

1. Level 1 (Tools): Switch to a magnetic hoop for husqvarna viking.
   • Why: It eliminates the "unscrew-tighten-pray" cycle. You simply snap the fabric in. This reduces "Hoop Burn" marks on white cotton and guarantees consistent tension for split designs.
2. Level 2 (Software): Use software to add "basting boxes" to automate the glue-down phase.
3. Level 3 (Hardware): Sewtech Multi-Needle Solutions.
   • Why: A single-needle machine requires a manual thread change for every color. A multi-needle machine changes colors automatically and holds much larger hoops (up to 360x500mm often), allowing you to stitch this entire doily without splitting the file at all. If you are serious about selling lace, this is your eventual destination.

Operation Checklist (Before walking away)

• Tails Up: Both threads pulled to top.
• Clearance: Space behind the machine is clear.
• Speed: Set to "Safe Mode" (600-700 SPM).
• Noise Check: Listen for the first 30 seconds. A rhythmic, solid thumping sound equals success.

What Part 1 should look like when it’s right (and what you’re setting up for in Part 2)

When the machine stops, you should see:

1. A white cotton shape with clean edges (no fraying).
2. A dense, rigid lace structure attached to that cotton.
3. Four distinct orange crosses stitched on the stabilizer.

Do not un-hoop yet! In Part 2, we will use those crosses to perform the "Impossible Join."

Comparing husqvarna embroidery hoops and aftermarket options serves one purpose: giving you the stability to perform these precision maneuvers. Master the setup in Part 1, and the rest is just watching the machine work its magic.

FAQ

• Q: Why should Husqvarna Viking embroidery users avoid shrinking dense FSL split designs like the 360×260mm Mansfield FSL oval doily?
  A: Do not shrink dense FSL lace files; shrinking often makes stitch density dangerously high and can cause needle breaks and stiff lace.
  • Load: Use the split Part 1 and Part 2 files designed for a 360×200mm hoop instead of resizing the master file.
  • Verify: Confirm the split files show intentional “open ends” that will join later.
  • Success check: The machine preview shows the alignment crosses and the design edges stop cleanly at a logical seam (not random cut-offs).
  • If it still fails: Re-check that the correct split file (Part 1) is loaded, not the master file.
• Q: How can Husqvarna Viking embroidery users confirm correct hooping tension for Stitch and Tear stabilizer in a 360×200mm hoop?
  A: Hoop Stitch and Tear to a “drum skin” tightness—firm, flat, and springy, not slack.
  • Tighten: Secure the stabilizer finger-tight on the hoop screw (avoid pliers on plastic hoops).
  • Tap: Flick the hooped stabilizer with a fingernail to listen for a clear “thump-thump,” not a paper-rustle sound.
  • Press: Push a thumb into the center; it should deflect slightly and snap back (no bowl-shaped dip).
  • Success check: The stabilizer surface stays flat with no ripples and rebounds immediately after pressing.
  • If it still fails: Re-hoop from scratch; inconsistent tension will ruin split-design registration later.
• Q: What is the best way for Husqvarna Viking embroidery users to secure cotton fabric for an FSL outline without using spray adhesive near the machine?
  A: Use washable glue stick dabs and smooth the cotton from the center outward to keep the fabric perfectly flat.
  • Apply: Dab pea-sized glue spots at corners and center of the hooped stabilizer.
  • Place: Press the pressed cotton down, then smooth from center to edges to remove bubbles.
  • Avoid: Skip spray adhesives near the machine; overspray residue can build up over time.
  • Success check: The cotton lies glass-flat with zero bubbles or ripples before stitching the outline.
  • If it still fails: Re-press the fabric and reduce glue amount—excess or uneven glue can cause shifting and puckers.
• Q: Why does a Husqvarna Viking Epic 2 embroidery machine sometimes run but form no stitches at the start of an outline, and how can users recover cleanly?
  A: This is commonly a missing bobbin—stop immediately, insert the bobbin correctly, then backtrack a few stitches and restart.
  • Stop: Halt the machine right away to avoid punching useless holes into stabilizer.
  • Insert: Install the bobbin in the correct feed direction (often counter-clockwise/P-shape).
  • Backtrack: Reverse 4–10 stitches on the machine screen to overlap the starting area.
  • Success check: The restart produces a normal lockstitch sound and visible thread locking on the fabric.
  • If it still fails: Re-seat the bobbin and re-thread the top path; then test a few stitches before continuing.
• Q: How can embroidery users prevent a bird’s nest when starting a 60,000-stitch FSL run on a Husqvarna Viking embroidery machine?
  A: Always pull up the bobbin thread and hold both thread tails for the first few stitches before running the full design.
  • Needle: Manually needle down/up to catch the bobbin loop.
  • Pull: Bring bobbin thread to the top and pull both top and bobbin tails clear.
  • Hold: Hold the tails gently for the first 5–10 stitches, then trim.
  • Success check: The start area looks tight and clean underneath—no loose loops getting sucked into the hook race.
  • If it still fails: Stop, remove the hoop, clear the nest underneath, back up 10–20 stitches, and restart with the pull-up ritual again.
• Q: What is the safest way to trim cotton appliqué fabric inside the hoop for the Mansfield FSL oval doily without cutting the Stitch and Tear stabilizer?
  A: Use duckbill (double-curved) appliqué scissors and keep the stabilizer untouched—cut 1–2mm from the red cut line without nicking the thread.
  • Lift: Gently lift the excess fabric upward to create separation.
  • Anchor: Keep the duckbill paddle flat against the stabilizer to shield it.
  • Glide: Cut along the red outline smoothly; do not angle blades downward.
  • Success check: Cotton is removed cleanly while the stabilizer remains uncut and the red outline thread is intact.
  • If it still fails: If the stabilizer is cut, restart—cut stabilizer bases typically cannot hold registration for high-tension FSL.
• Q: What safety rules should embroidery users follow when test-stitching or restarting dense FSL designs on semi-industrial embroidery machines running 600–1000 SPM?
  A: Keep hands, sleeves, and thread tails well away from the needle area—dense designs can accelerate instantly and cause serious injury.
  • Clear: Keep fingers and loose clothing at least 4 inches from the needle/presser-foot zone during starts and restarts.
  • Pause: Stop the machine fully before making any “quick adjustments” near the needle.
  • Control: Use a beginner-safe speed cap of 600–700 SPM as a safe starting point (then adjust per machine manual).
  • Success check: The first 30 seconds sound rhythmic and solid, and no one’s hands are near moving parts.
  • If it still fails: If the machine behavior feels unpredictable during restarts, practice controlled stop/start drills and follow the machine’s official safety guidance.
