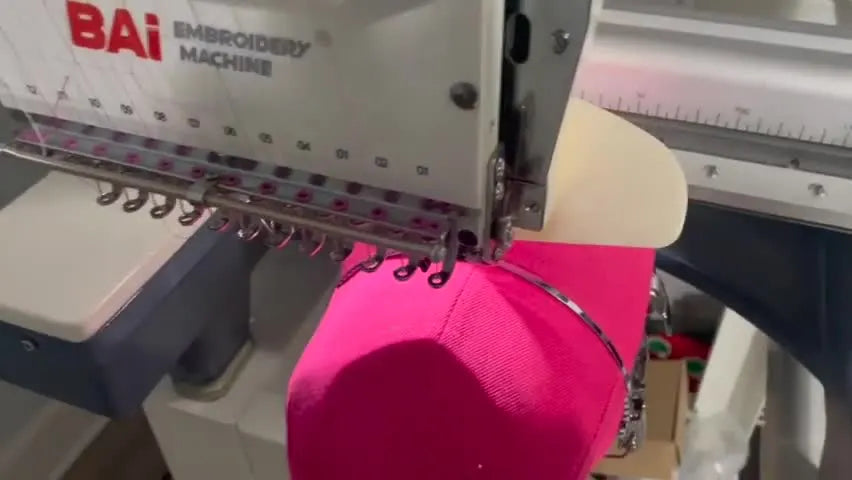

Stitch Lower on Hats with a BAI Mirror: The “Other Hoop” Hack (and How to Not Smash Your Cap Driver)

If you have ever stared at a finished cap and thought, “Why is my design floating so high above the brim?”—you are not imagining it. You are experiencing the "Safety Zone" frustration. On the BAI Mirror (and many similar machines), the factory cap settings can leave a noticeable, often unprofessional gap—sometimes up to an inch—and the machine will literally “snap” your design back up the moment you try to jog it lower.

This post breaks down a proven workaround: switching the hoop type from Cap to “Other,” rotating the design back, and tracing like your machine’s life depends on it—because, quite frankly, it does.

The Annoying Gap on a BAI Mirror Cap Driver: Why Your Design Won’t Go Lower (Even When You Jog It)

When you are on the BAI interface, you might try to drag the design down on-screen. You watch the coordinates change, and then—BEEP—the arrows turn red and the design jumps back up automatically.

That isn't a glitch. It is a digital guardrail. The machine is actively protecting its needle bar and presser foot from striking the metal strap of the standard cap driver.

The Reality Check: In the video demo, the “lowest allowed” placement still leaves roughly a finger-width to an inch of space above the brim. For a corporate logo on the center forehead, this is acceptable. For modern aesthetics, calligraphy scripts, or designs that need to hug the bill, it looks “homemade.”

The Factory Cap Boundary Exists for a Reason: What the BAI Safety Limit Is Preventing

Let’s say the quiet part out loud: the cap driver has hard metal in the stitch field. When you push a design too low, you are playing a game of chicken between a hardened steel needle moving at 800 stitches per minute and a solid metal bracket.

If the needle strikes that bracket, three things happen instantly:

1. The Sound: You will hear a sickening CRUNCH, unlike any thread break you’ve heard before.
2. The Damage: Measurements will be thrown off, the needle will shatter (sending shards into the rotary hook), and you may scar the driver.
3. The Recalibration: You are now looking at hours of timing adjustments.

That is why standard cap hoop for embroidery machine settings are conservative. They are designed for legally safe repeatability across 10,000 caps, not for squeezing every last millimeter toward the brim for a custom look.

When you override that boundary, you are taking full responsibility for:

• Clearance: Ensuring the presser foot clears the metal.
• Design Shape: The "lowest point" of your design (like the tail of a letter 'y') matters more than the center point.
• Hooping Consistency: If one cap sits 3mm lower than the next, that 3mm is the difference between specific success and catastrophic failure.


The “Other Hoop” Hack on a BAI Embroidery Machine: The Exact Menu Move That Unlocks Lower Placement

This is the core workaround. We are going to trick the machine into thinking it is stitching on a flat surface, thereby disabling the "Cap Safety Zone."

Action Steps:

1. Exit Embroidery Status: Take the machine out of "Ready" mode so settings can be changed.
2. Navigate to Hoop Select: Go to the Change Hoop menu.
3. Select "Other": Instead of selecting the standard Cap letters (A/B/C), choose “Other” (often utilized for flat hoops or sash frames).

The Result: That single change silences the proximity alarm. The machine will now allow you to position the design as low as you want—even directly over the metal bar (which you obviously don't want to do).

Warning: COLLISION HAZARD. This override removes the collision safeguard. If the needle bar or presser foot hits the metal cap driver strap, you can break needles, damage the reciprocating bar, or destroy the rotary hook. Do not proceed unless you are already consistently successful with hats in normal cap mode.

If you are shopping for accessories and see terms like bai embroidery machine hoops, remember: the “hoop type” you select on-screen is not just a label—it changes the physics of what the machine believes is safe.

The Design Flip Gotcha: Rotate 180° After Switching Hoop Type (Or You’ll Stitch It Upside Down)

Here is the sensory disconnect: You are looking at a hat, but the machine thinks it is looking at a flat shirt hoop. Therefore, the orientation logic changes.

In the video, once “Other” is selected, the design orientation flips on the screen.

The Fix:

• Locate the Rotate Tool.
• Rotate 180°.
• Visual Check: Ensure the text or image appears "right side up" relative to the cap driver on the screen.

This is one of those mistakes that doesn’t look scary until it is too late. If you forget the rotation, you will stitch a perfect design… perfectly upside down on the forehead of the cap.

The “Hidden” Prep Before You Risk a Low-Brim Hat: Needle Choice, Thread, and a Quick Machine Reality Check

The presenter in the demo is running a specific setup. Before you push placement lower than factory limits, your prep must be boring and consistent. You are removing the safety net, so your equipment must be flawless.

The "Sweet Spot" Setup:

• Needle: Titanium Sharp, Size 75/11 or 80/12.
  • Why: Sharp needles pierce the hard buckram of structured hats cleanly. Ballpoints can deflect, causing the needle to bend—and when you are millimeters from a metal bar, a bent needle equals a collision.
• Thread: Standard 40wt Polyester.
• Lubrication: If your machine is prompting for oil, do it now. High-speed hat work creates immense friction on the reciprocating bar.

The Consistency Factor: If you are running a production setup with a hooping station for embroidery machine, your goal is consistency. You must ensure every cap is seated at the exact same depth on the driver. If one cap is loose and rides up 2mm, your "safe" low placement becomes a disaster.

Prep Checklist (Do this *before* you touch the hoop setting)

• Baseline Proof: Confirm you can stitch this design successfully in normal Cap mode first.
• Needle Check: Install a fresh Titanium Sharp needle (Size 12 is recommended for thick caps).
• Tactile Tension Check: Pull the thread; it should feel smooth like flossing teeth, not jerky or loose.
• Hardware Inspection: Check the cap driver strap area for burrs or sticky residue that could catch the fabric.
• Consumables: Have your small curved snips and a lighter/heat gun ready for finish work.


The Trace Isn’t Optional: How to Trace on a BAI Mirror Without Smacking the Metal Cap Driver

After switching to “Other” and rotating the design back, the video’s most important step is the trace. This is not just to see if it is centered; it is a safety clearance check.

How to Trace Like a Pro:

1. Initiate Trace: Start the trace command (usually the button that outlines the design area).
2. Eyes on the Foot: Do not look at the screen. Look at the Presser Foot and the Needle Bar.
3. Listen: As the machine moves to the bottom of the design, listen for any scraping sounds (stop immediately if heard).
4. The Gap: Visually confirm there is air between the foot and the metal strap at the lowest point of the trace.

Expert Nuance: The trace shows the boundary box, but your real risk is the combination of the machine’s moving parts and the cap’s curvature. The cap creates a "dome" that lifts fabric up toward the needle plate. A trace that looks clear on flat 2D logic might rub against the puffed 3D crown of the hat.

A Repeatable Placement Routine: Use the First Stitch Point to Confirm Where the Design Really Starts

Tracing gives you the boundary, but it doesn't always tell you exactly where the needle enters the fabric first. When working close to the brim, "close enough" gets needles broken.

The "First Stitch" Sanity Check:

1. Position the Design: Get it where you think it is safe.
2. Identify First Stitch: Use your machine's function to advance to "Stitch 1" (without sewing).
3. Drop the Needle (Manually): Turn the handwheel (or use the needle down button if safe) to bring the needle tip just above the fabric.
4. Measure: Visually assess exactly where that needle is landing relative to the seam and the brim.

This routine prevents the classic nightmare: "The trace looked fine, but the first stitch was a jump stitch that landed right on the metal bar."

If you are operating a bai embroidery machine, utilize this manual check as your final "Go/No-Go" gauge before hitting start.

Run the Hat at 800 RPM (As Shown): What to Watch While It Stitches

In the video, the machine stitches at 800 RPM. However, for your first attempt at this hack, I strongly recommend slowing down to the Beginner Sweet Spot: 500-600 RPM. Speed adds vibration, and vibration reduces accuracy.

Sensory Monitoring During the Run:

• Sight: Watch the cap flagging (bouncing up and down). If it bounces too high, it might hit the foot.
• Sound: You want a rhythmic thump-thump-thump. If you hear a sharp mechanical clack, stop immediately—your needle clamp might be hitting the driver.
• Touch: Do not touch. Keep your hands away.

Your Job: Do not "help" the machine by pulling the hat. If the cap is hooped correctly, the machine does the work. If you have to hold the hat to keep it straight, you need to fix your hooping technique, not hold it dangerously close to a moving needle.

Warning: Keep fingers, snips, and loose sleeves away from the needle area. At 800 RPM, the needle bar is invisible. It will stitch through a fingernail before your brain registers pain. Stop the machine completely before trimming threads.

Why This Hack Works (and Why It’s Risky): The Physics of Clearance, Curvature, and “Lowest Point” Designs

The machine didn’t suddenly become “better at hats.” You simply told it to stop enforcing the safety laws.

The Physics at Play:

• Curvature Steals Clearance: The center of the cap is higher than the sides. A design that clears the bar in the center might hit the bar on the sides as the driver rotates.
• The "Lowest Point" Dictates All: In the bow design shown, the tiny bottom "tip" of the ribbon is the limiting factor. The rest of the design has plenty of room, but that one tip determines how low you can go.
• Hooping = Safety: Once you override the software boundary, your physical hooping becomes your only safety system.

This reality often leads shops to explore different hat holding solutions. If your daily workflow depends on pushing low placement, it is worth evaluating whether your current standard cap driver or bai hat frame setup is the bottleneck limiting your creativity.

Standard vs. Hacked Placement: How to Measure the Difference and Decide If It’s Worth It

Is the risk worth it? The video ends with a side-by-side comparison using a clear ruler.

• Standard Cap Mode: Leaves about ~1 inch of dead space above the brim. It looks safe, but slightly "floating."
• Hacked "Other" Mode: Achieves a placement described as about a quarter-inch closer.

The Business Case: Visually, that quarter-inch is massive. It anchors the design to the product. In the retail world, a logo sitting too high signals "kiosk embroidery," while a logo resting naturally above the brim signals "brand quality."

Stabilizer Decision Tree for Finished Structured Caps: Pick the Backing Like You Want to Reorder the Same Hat Tomorrow

The video focuses on the machine hack, but hat quality lives and dies by stabilization. Use this decision tree to ensure your closer-to-the-brim design doesn't pucker.

Decision Tree: Stabilizer Choice

1. Is the Cap Structured (Stiff Buckram Front)?
   • YES: Use Tearaway (2 layers if thin) OR Cutaway (for best longevity). Expert Tip: Most pro shops use Cutaway on hats because it prevents the design from distorting over time, even on structured caps.
   • NO (Dad Hat/Unstructured): MUST use Cutaway. No exceptions. Unstructured hats will stretch and distort without permanent support.
2. Is the Design Dense (High Stitch Count)?
   • YES: Use Heavy Weight Cutaway. Dense stitches pull fabric; you need maximum resistance.
   • NO (Simple Text): Standard Tearaway is acceptable.
3. Is the Cap Material Slippery or Textured?
   • YES: Add a layer of Water Soluble Topping so stitches don't sink in, and use a temporary spray adhesive to bond the backing to the cap interior to prevent shifting.


Troubleshooting the Two Scariest Hat Moments: Screen Snap-Back and Metal-Bar Near Misses

Here is your breakdown of the specific failures shown in the tutorial.

Symptom 1: The "Snap Back"

• The Issue: You drag the design down, and it jumps back up automatically.
• Likely Cause: You are still in "Cap" mode (Safety Zone Active).
• The Fix: Change hoop selection to "Other".

Symptom 2: The "Upside Down" Preview

• The Issue: You switched to "Other" and now the logo is upside down.
• Likely Cause: "Other" mode assumes a flat hoop, which loads differently than a cap driver.
• The Fix: Rotate design 180°.

Symptom 3: Needle Bar Near-Miss during Trace

• The Issue: The presser foot looks like it will brush against the metal driver strap.
• Likely Cause: Design is placed too low, or the hat is hooped "high" on the driver.
• The Fix: Nudge the design up 2-3mm. Do not risk it. Alternatively, re-hoop the hat repeatedly until it sits deeper on the driver.


Where to Source Hats (and Why Consistent Blanks Matter More Than People Admit)

The creator shares that the pink hats in the video were from Amazon (likely a generic brand) and others from Epic Sports.

The Production Lesson: If you are trying to stitch extremely low near the brim, consistency is key. If you switch sticking suppliers, the distance between the crown and the brim might change by 5mm. A setting that was safe on an "Epic Sports" hat might be a collision on an "Amazon" hat.

Recommendation: Stick to one or two cap models (e.g., Richardson 112, Yupoong 6606). Standardize your blanks so you can standardize your machine settings.

The Upgrade Path When Low-Brim Hats Become Your Product: Faster Hooping, Less Hoop Burn, Better Throughput

This hack is brilliant for the BAI Mirror, but it is manual and risky. If your business grows, you will eventually tire of "fighting" the machine settings. Here is the logical progression of tool upgrades.

Level 1: The Struggle (Current State)

You are hacking menus, tracing three times, and holding your breath.

• Pain Point: Anxiety and slow setup time.

Level 2: The Tool Upgrade (Magnetic Frames)

If you struggle with hoop burn (marks left on the hat) or difficulty getting the hat straight/secure, consider upgrading to a magnetic system.

• Solution: Magnetic Hoops/Frames.
• Why: They offer a lower profile than some mechanical clamps and hold the hat firmly without the "tugging" that causes alignment issues. A bai magnetic embroidery frame setup can sometimes provide better physical clearance near the brim, making the software hack safer to execute.
• Trigger: When you are doing batches of 20+ hats and your hands hurt from clamping.

Warning: MAGNET SAFETY. Magnetic hoops are powerful. They can pinch fingers severely. More importantly, keep them away from pacemakers and implanted medical devices, as the strong magnetic field can interfere with their function.

Level 3: The Capacity Upgrade (Multi-Needle Production)

If you have mastered the hack and orders are piling up, a single-head machine becomes the bottleneck.

• Solution: SEWTECH Multi-Needle Machines.
• Why: True production machines often have more robust cap drivers and finer control over "Limit" settings without requiring "hacks." They are built to run hats all day at high speeds.

To navigate these choices, knowing your bai embroidery machine hoop sizes and compatibility is critical. Document your "hat recipe": Hoop Other -> Rotate 180 -> Speed 600 -> Needle #12 -> Brim Distance X mm.

Operation Checklist (The "Don't Break Anything" Run Card)

• Mode Check: Hoop type set to “Other” (Safety Off).
• Orientation: Design rotated 180° (Visual confirmation on screen).
• First Stitch: Needle manually dropped to stitch #1 position to verify start point.
• Clearance Trace: Run a full trace; LISTEN and WATCH the gap between foot and metal.
• Hands Off: Stitch at a controlled speed (Start at 600 RPM).
• Finish: Trim threads and inspect for any needle deflection marks.


The Payoff: Cleaner Low-Brim Placement You Can Repeat (Without Turning Every Hat into a Gamble)

The best part of the video is the honesty: the first attempt didn’t look dramatically different. The presenter had to push boundaries, learn the design’s limiting point, and repeat the process until the results were consistent.

That is exactly how advanced hat work looks in a real shop:

1. Baseline Success: Get a safe hat done first.
2. Incremental Risk: Move closer by 2mm. Trace. Test.
3. Standardize: Lock in that position.

Follow this protocol, and you will achieve that retail-ready “low on the brim” look your customers demand—without sacrificing your machine, your needles, or your sanity.

FAQ

• Q: Why does a BAI Mirror cap design “snap back” upward and refuse to jog closer to the brim in Cap mode?
  A: This is normal—the BAI Mirror is enforcing the factory cap “Safety Zone” to prevent the needle bar/presser foot from striking the metal cap driver strap.
  • Exit “Ready/Embroidery Status” so hoop settings can be changed.
  • Open the hoop selection menu and confirm the machine is still set to a Cap hoop (A/B/C), which keeps the safety limit active.
  • Switch hoop type only if you fully understand the collision risk (see the “Other” hoop workaround).
  • Success check: after confirming Cap mode is active, the on-screen jog limit will consistently stop at the same lower boundary and the machine will push the design back up.
  • If it still fails: stop and inspect the cap driver area—do not force placement lower in Cap mode.
• Q: How do you place a design lower on a BAI Mirror cap driver by switching hoop type to “Other” without breaking needles?
  A: Change the hoop type to “Other,” then treat clearance as your responsibility because the collision safeguard is disabled.
  • Exit “Ready/Embroidery Status,” then go to Change Hoop and select “Other.”
  • Rotate the design 180° (the orientation logic changes in “Other” mode).
  • Run a full trace while watching the presser foot and needle bar—not the screen.
  • Success check: during trace, there is visible air gap between the presser foot and the metal strap at the lowest point, with no scraping sounds.
  • If it still fails: nudge the design up 2–3 mm or re-hoop the cap deeper on the driver before stitching.
• Q: Why is the design upside down on a BAI Mirror screen after selecting “Other” hoop type for cap embroidery?
  A: “Other” hoop mode assumes a flat hoop orientation, so the preview flips—rotate the design 180° before stitching.
  • Find the Rotate function on the BAI interface.
  • Rotate the design exactly 180° until it looks right-side-up relative to the cap driver.
  • Re-check orientation before running trace and before pressing Start.
  • Success check: the text/image reads correctly on-screen when aligned to how the cap sits on the driver.
  • If it still fails: stop and re-verify hoop type is actually “Other,” then repeat the 180° rotation.
• Q: What needle and thread setup is a safe starting point before using the BAI Mirror “Other hoop” low-brim placement hack?
  A: Use a fresh Titanium Sharp needle (75/11 or 80/12) with standard 40wt polyester thread, and do basic machine readiness checks first.
  • Install a new Titanium Sharp needle (Size 12 is commonly used for thick structured caps).
  • Confirm the machine is lubricated if the machine prompts for oil before high-speed hat work.
  • Perform a tactile thread pull check for smooth, consistent resistance (not jerky, not sloppy).
  • Success check: the machine runs a baseline hat successfully in normal Cap mode before attempting the “Other” override.
  • If it still fails: do not proceed with “Other” mode—fix baseline cap-mode stitching first.
• Q: How do you safely trace a design on a BAI Mirror in “Other” mode to avoid hitting the metal cap driver strap?
  A: Trace is mandatory—use it as a clearance test, not just a centering tool.
  • Start the trace function that outlines the design area.
  • Watch the presser foot and needle bar as the machine moves to the lowest point of the trace.
  • Listen for any scraping/clacking and stop immediately if heard.
  • Success check: the trace completes with consistent clearance and no contact noises near the bottom edge.
  • If it still fails: raise the design slightly or re-hoop; do not “try anyway” near the strap.
• Q: How can a BAI Mirror operator confirm the true start position near the brim when trace looks okay but the first stitch might land too low?
  A: Use the “first stitch” routine: go to Stitch 1, then manually bring the needle down to verify the exact entry point.
  • Advance the design to Stitch 1 without sewing.
  • Lower the needle carefully (handwheel or needle-down function only if safe) until the tip is just above the fabric.
  • Visually verify the needle position relative to the brim and seams before starting.
  • Success check: the needle entry point is clearly within safe fabric area—not on or near the metal strap zone.
  • If it still fails: move the design up slightly or re-hoop the cap to sit deeper and more consistently.
• Q: What RPM should a BAI Mirror run for the first attempt of the cap “Other hoop” low-brim hack, and what warning signs require an immediate stop?
  A: Start slower (about 500–600 RPM) for the first attempt, and stop immediately if you hear sharp mechanical clacks or see excessive cap flagging.
  • Set speed down from the demo’s 800 RPM to reduce vibration while validating clearance.
  • Watch for cap flagging/bouncing that could lift into the presser foot path.
  • Listen for sharp clacks (possible needle clamp/driver contact) and stop instantly.
  • Success check: stitching sound stays rhythmic and consistent, and the cap stays stable without you touching or “helping” it.
  • If it still fails: re-check hooping consistency and repeat trace/first-stitch verification before increasing speed.
• Q: When low-brim cap placement on a BAI Mirror becomes daily production, what is a practical upgrade path from technique fixes to magnetic frames to a multi-needle machine?
  A: Use a tiered approach: optimize setup first, then consider magnetic frames for consistency/handling, and upgrade to a multi-needle machine when throughput becomes the bottleneck.
  • Level 1 (Technique): standardize your routine—baseline in Cap mode, then “Other” + rotate 180° + full trace + first-stitch check.
  • Level 2 (Tool): consider a magnetic frame system if clamp fatigue, alignment inconsistency, or hoop burn slows batching; magnetic systems may improve holding consistency and clearance in some setups.
  • Level 3 (Capacity): move to a production multi-needle platform when hat orders pile up and manual setup time becomes the limiter.
  • Success check: repeatability improves—less re-hooping, fewer near-misses during trace, and stable placement across batches.
  • If it still fails: document one “hat recipe” (hoop type, rotation, speed, needle size, placement distance) and refuse mixed hat blanks until results are consistent.
