Stitch a Waterproof ITH Mandala Coaster Without Metallic Thread Drama (5x7 Hoop, Clean Edges, Pro Finish)

The "Zero-Anxiety" Guide to ITH Mandala Coasters: Mastering Metallic Thread and Precision Hooping

If you’ve ever hit “start” on an In-the-Hoop (ITH) coaster and immediately felt that little spike of panic—Will the metallic thread shred? Is my stabilizer tight enough? Will the presser foot catch the backing and destroy the machine?—you are experiencing the "black box" fear of machine embroidery.

Here is the reality: Machine embroidery is 80% physics and 20% art. When you treat hooping, thread feed, and fabric control as a mechanical system rather than a craft project, the fear disappears.

This guide breaks down the Mandala Coaster project (specifically the Kreative Kiwi design) into an industrial-grade workflow used by professionals. We will focus on the "why," not just the "how," ensuring your coaster comes out perfectly flat, crisp, and commercial-ready.

1. The "Architecture" of a Perfect Coaster: Materials & Hardware

The video demonstrates this project in a 5x7 embroidery hoop. While you can use a smaller hoop if the file permits, the 5x7 gives you the "safe zones" needed for maneuvering tape and pins without risking needle collisions.

The "90% Success" Material Stack

Most failures happen because of material mismatches. Here is the verified loadout:

• Hoop: 5x7 Standard (or Magnetic - see below).
• Stabilizer: Two layers of fibrous Wash-Away (Vilene type is preferred over thin plastic film). Two layers prevent the "pulling" distortion common in dense patterns.
• Anchors: Glass-head pins (for stabilizer) and Masking Tape/Painter’s Tape (for fabric).
• Core: Batting (Fusible fleece is easier, but standard batting works if taped well).
• Fabrics: 100% Cotton for front and back (pre-washed to prevent shrinking later).
• Thread:
  • Decorative: Metallic Silver (40 wt).
  • Construction: Neutral Sewing Thread (matches fabric background).
• Needle: 90/14 Topstitch Needle. Do not ignore this. The larger eye reduces friction on metallic thread, preventing shredding.
• Hidden Consumables:
  • Isothermic Lining: Recycled from a thermal shopping bag (adds waterproofing).
  • Appliqué Scissors: For precise trimming near the stitch line.

The Tooling Decision: Standard vs. Magnetic

If you are making one coaster, a standard hoop is fine. However, if you are planning a production run of 20 gifts, standard hoops often leave "hoop burn" (friction shine) on delicate cottons and stress your wrists.

This is where professionals switch to magnetic embroidery hoops. They clamp the "sandwich" flat instantly without the need for screw-tightening gymnastics, eliminating hoop burn and significantly speeding up the batching process.

2. The "Hidden" Prep: Drum-Tight Stabilization

The foundation of embroidery is tension. If your stabilizer is loose, your perfect circle will become an oval.

The Physics of the "Drum Skin"

The video demonstrates a critical technique: Hooping two layers of wash-away stabilizer, and then pinning the perimeter.

How to verify tension (The Sensory Check):

1. Hoop strict and tight.
2. Tap the stabilizer with your fingernail. It should make a rhythmic thump-thump sound, like a drum. If it sounds dull or ripples under your finger, it is too loose. Re-hoop.

The Pinning Protocol

Wash-away stabilizer softens as it gets perforated. To counteract this "creep," pin the stabilizer to the fabric/hoop edge:

1. Place pins on the extreme outer edge of the inner hoop.
2. Push down, then back up, anchoring the stabilizer to the frame.

Warning (Mechanical Safety): Pins are dangerous in an embroidery field. Ensure heads are flush against the hoop frame, at least 20mm away from the stitch area. Before hitting start, manually rotate the handwheel to ensure the needle bar and foot clear all pinheads. A collision here can shatter a needle or throw off your machine's timing.

Prep Checklist (Pre-Flight)

• Stabilizer: 2 layers of Wash-Away, hooped drum-tight.
• Sound Check: Tapping produces a drum-like sound.
• Needle: Brand new 90/14 Topstitch installed.
• Bobbin: Clean, full bobbin (white or matching).
• Plan: Scissors and Tape within arm's reach.


3. Placement Line: The Blueprint

Load your design. The first stitch (Round 1) goes directly onto the stabilizer. This is the Placement Line.

Why this matters: Do not skip this or eyeball it. This stitched line is your absolute boundary. If your batting or fabric does not cover this line by at least 15mm (0.5 inches) on all sides, you will have raw edges in your final product.

Expert Note: If your machine jumps straight to the design without a placement line, check your file version. Different formats (.jef vs .pes) sometimes interpret color stops differently. Always watch the screen simulation before stitching.

4. The Fabric Sandwich: Taping Without Distortion

Once the placement line is stitched, you are building the core.

1. Batting: Center over the line.
2. Top Fabric: Center over the batting.
3. Secure: Tape the top and bottom edges to the stabilizer.

The "Floating" Technique: You are not hooping the fabric; you are "floating" it on top. This prevents the fabric from being stretched out of shape. Keep the tape taut, but do not pull the fabric so tight that it warps the stabilizer underneath.

Setup Checklist (Ready to Stitch)

• Fabric fully covers the placement stitch + 15mm margin.
• Tape is secure but not entering the stitch field.
• Fabric lies flat; run your hand over it to detect hidden wrinkles.

5. Metallic Thread: Taming the Beast

Metallic thread is composed of a nylon core wrapped in metal foil. It is stiff, wiry, and prone to "birdnesting." The video highlights the three levers of control: Needle, Speed, and Path.

The Speed Limit

Slow your machine down.

• Rookie Mistake: Running at 800+ SPM (Stitches Per Minute).
• Pro Sweet Spot: 350 - 600 SPM.

Listen to your machine. At 350 SPM, it should hum rhythmically. If it sounds frantic or loud, slow down. Friction heats the needle, melting the metallic thread. Speed brings heat; slowness brings quality.

The Thread Path Hack

Metallic thread twists. If it unspools off the top (like standard thread), it adds twist, causing kinks that snap at the needle eye. It must unspool from the side (rolling like a tire).

Many users search for terms like embroidery magnetic hoop thinking tools solve everything, but for metallic thread, a simple physics hack often solves the breakage issue.

The DIY "Beaker Stand":

1. Invert a plastic beaker or cup.
2. Chain three elastic bands to secure the spool and a pencil.
3. Force the spool to roll on its side.
4. Place this stand to the right of the machine, feeding the thread smoothly into the first guide.


Sensory Check: Pull the thread through the needle manually. It should flow with consistent, light resistance (like flossing precision teeth). If it jerks or snags, your path is wrong.

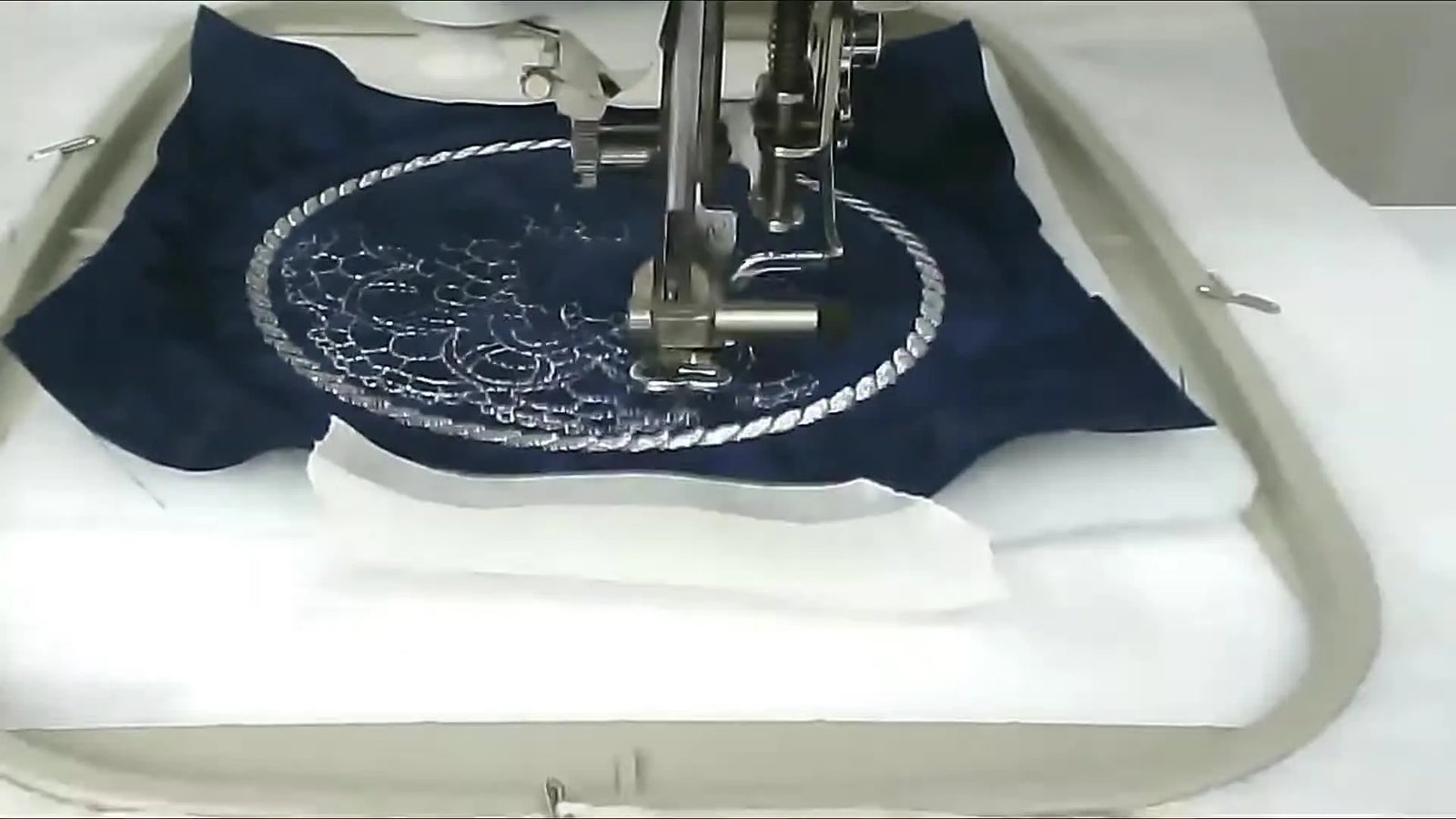

6. The Decorative Stitch-Out

Rounds 3 and 4 create the rope border and the Mandala center.

Visual Check: Watch the bobbin thread. If you see white bobbin thread poking up on top (loops), your top tension is too tight or the thread is snagged. If the metallic thread is looping loosely, top tension is too loose.

• Observation: Metallic thread often requires slightly lower top tension than polyester thread because it is stiffer.

7. Waterproofing: The Thermal Lining Trick

To make the coaster functional (absorbent yet waterproof), the creator adds a layer of "silver" thermal lining (recycled from a cooler bag) to the back.

1. Remove hoop (do not un-hoop material).
2. Flip over.
3. Tape the thermal lining face down over the stitch area.

Why: This reflects heat back up (good for hot mugs) and stops condensation from soaking through to the table.

8. The Envelope Backing: The Danger Zone

This is the step where needles break and timing gets knocked out using the "Envelope" method.

Process:

1. Fold your two backing fabric pieces in half (wrong sides together).
2. Place them on the front of the coaster (Right sides together with the coaster front).
3. Overlap the folded edges by 15-20mm in the center.




The Critical Risk: The presser foot can catch the raw edge of the top fabric fold as it travels. If it catches, it will pile up fabric and snap the needle.

The Fix: Tape the folded edges down securely at the sides, outside the stitch path. Rub the tape firmly.

Warning (Safety Check): Before running the final "construction" stitch (Round 5), stop. Perform a "Hand Turn" or "Trace" function. Watch the foot height. If it grazes the fabric folds, raise the foot height (presser foot pressure) slightly in your settings if possible, or press the fabric down flatter with steam before taping.

Switch to a Neutral Construction Thread (polyester or cotton) for this final round to ensure a strong seam.

Operation Checklist (The Final Round)

• Backing fabric overlaps in the center.
• Tape Check: No loose flaps that the foot could "toe-stub" against.
• Thread Check: Swapped to strong construction thread (not metallic).
• Clearance: Hand-traced to ensure smooth travel.

9. Finishing: Cut, Turn, Press

Pop the project out of the hoop. Tear away the excess stabilizer.

Trimming: Trim the excess fabric around the circle, leaving a 1/4 inch (6mm) seam allowance.

Notching vs. Pinking: You must reduce the bulk to get a smooth curve.

1. Notching (Preferred): Cut small "V" shapes out of the seam allowance every 10mm.
2. Pinking Shears: Faster, but less precise on tight curves.


Visual Check: Be careful not to snip the construction stitch!

Turning: Turn the coaster right-side out through the envelope slot. Use a chopstick or turning tool to push the curves out smoothly. Roll the seam between your thumb and index finger until the seam line sits exactly on the edge.

Pressing: Use a pressing cloth! Metallic thread can melt under direct iron heat.

10. The Stabilizer & Hoop Decision Tree

Choosing the right consumable is critical for different finishes.

Warning (Magnet Safety): If upgrading to hoopmaster hooping station or similar high-strength magnetic hoops, be aware of pinch hazards. These magnets are industrial strength. Keep fingers clear of the snap zone. Do not use if you have a pacemaker without consulting your doctor, as the magnetic field is significant.

11. Troubleshooting Guide: The "First Aid" Kit

12. Scaling Up: From Hobby to Production

If you make one coaster, technique matters most. If you make 50, tools matter most.

1. The Wrist Pain Trigger:
   If you find your hands aching from screwing and unscrewing hoops, or you are fighting to hoop thick layers (like the thermal lining), this is the physical signal to upgrade. Magnetic Hoops are the industry standard for arthritis prevention and speed.
2. The "Babysitting" Trigger:
   If you are tired of stopping every 2 minutes to change from Metallic Silver to White Thread, you have hit the ceiling of single-needle machines.
   • Solution: A Multi-Needle Machine (like the SEWTECH series). You load Silver on Needle 1, White on Needle 2, and the machine runs the entire coaster non-stop while you prep the next hoop.


Final Inspection

A commercial-quality coaster should lie dead flat on the table. The metallic thread should shine without fuzz, and the envelope back should cover the insert completely.

Mastering the mechanics of the "sandwich" and the physics of the thread feed will turn this project from a stressful gamble into a reliable, repeatable joy. Happy stitching!

FAQ

• Q: How do I hoop two layers of fibrous wash-away stabilizer drum-tight in a 5x7 embroidery hoop for ITH Mandala Coasters?
  A: Hoop both stabilizer layers very tight, then verify tension with a “drum thump” test before stitching.
  • Hoop: Align two layers together, seat the inner ring evenly, and tighten until the stabilizer feels firm across the full window.
  • Verify: Tap the hooped stabilizer with a fingernail and re-hoop if the sound is dull or the surface ripples.
  • Reinforce: Pin the stabilizer around the extreme outer edge of the inner hoop to reduce stabilizer “creep” during dense stitching.
  • Success check: The stabilizer makes a rhythmic thump-thump sound and stays smooth when you slide a finger across it.
  • If it still fails… Switch to fresh stabilizer (perforated stabilizer weakens) and re-check that both layers are hooped evenly with no slack pockets.
• Q: How do I pin wash-away stabilizer safely on an embroidery hoop without causing needle strikes during ITH coaster stitching?
  A: Pin only at the hoop’s extreme outer edge and confirm clearance with a manual handwheel turn before pressing start.
  • Place: Insert pins on the outermost edge of the inner hoop (well away from the stitch field) so pinheads sit flush against the hoop frame.
  • Clear: Keep pinheads at least 20 mm away from the stitching area and avoid any pin placement inside the design boundary.
  • Test: Manually rotate the handwheel (or use a trace function) to confirm the needle bar and presser foot clear every pinhead.
  • Success check: The needle path and presser foot travel freely with zero contact or “clicking” near pin locations.
  • If it still fails… Remove pins and rely on re-hooping tighter, or reposition pins farther outward until the clearance test is clean.
• Q: What is the easiest way to stop metallic embroidery thread shredding on ITH Mandala Coaster designs using a 90/14 Topstitch needle and slower speed settings?
  A: Reduce friction and twist: use a new 90/14 Topstitch needle, slow to 350–600 SPM, and side-feed the metallic spool.
  • Replace: Install a brand-new 90/14 Topstitch needle (the larger eye reduces metallic friction).
  • Slow: Run the design at 350–600 stitches per minute instead of high-speed stitching.
  • Side-feed: Make the spool unroll from the side (rolling like a tire) using a simple stand so the thread path stays smooth and untwisted.
  • Success check: The metallic thread pulls through the needle with light, consistent resistance and stitches without fuzz or frequent breaks.
  • If it still fails… Re-check the thread path for snag points and consider slightly lowering top tension (metallic often needs less top tension than polyester).
• Q: How can I diagnose top tension problems on an ITH Mandala Coaster when white bobbin thread shows on top or metallic thread loops loosely?
  A: Use the stitch appearance to choose the correction: bobbin showing on top usually means top tension is too tight or the thread is snagging; loose metallic loops usually mean top tension is too loose.
  • Inspect: Pause and look closely at the decorative area for white bobbin “pokes” on the surface versus loose top-thread loops.
  • Correct: If bobbin shows on top, check for snags in the top thread path and reduce unnecessary friction; if metallic loops, adjust toward slightly more control (often small changes).
  • Stabilize: Keep speed in the 350–600 SPM range to reduce heat and erratic feeding that mimics tension issues.
  • Success check: The top surface shows clean metallic coverage with no bobbin specks and no loose looping in curves or fills.
  • If it still fails… Re-thread completely (metallic is sensitive to missed guides) and confirm the metallic spool is feeding from the side, not twisting off the top.
• Q: How do I prevent the presser foot from catching the folded envelope backing edges during the final construction round of an ITH coaster?
  A: Tape the folded edges down outside the stitch path and run a hand-turn/trace clearance test before sewing the final round.
  • Tape: Secure the folded backing edges firmly at the sides so no flap can lift into the presser foot’s travel.
  • Check: Stop before Round 5 and hand-turn (or trace) to watch foot height over the thickest overlap area.
  • Switch: Change from metallic to a neutral construction thread for the final seam for strength and smoother feeding.
  • Success check: The presser foot glides over the overlap without grazing, tugging, or “toe-stubbing” the fold.
  • If it still fails… Flatten the folds more (press/steam before taping) and re-check that tape is not inside the stitch field where it can drag fabric.
• Q: How do I avoid hoop burn (shiny hoop ring) on cotton when making batches of ITH coasters with a standard embroidery hoop versus magnetic embroidery hoops?
  A: For small quantities, standard hoops work; for repeated hooping or delicate cotton, magnetic embroidery hoops often reduce pressure marks and speed up batching.
  • Diagnose: If a shiny ring appears after unhooping, the fabric experienced high friction/pressure during tightening.
  • Optimize: Use careful hooping pressure and consider washing/steaming the cotton to relax light marks.
  • Upgrade: If frequent hooping causes repeat marks or wrist strain, switch to magnetic embroidery hoops to clamp flat without screw-tightening.
  • Success check: After stitching and unhooping, the cotton surface shows minimal-to-no shiny ring and the coaster lies flat.
  • If it still fails… Review whether the fabric was over-tightened in the hoop and consider “floating” fabric on hooped stabilizer to reduce direct hoop pressure on the cotton.
• Q: What safety precautions should beginners follow when using high-strength magnetic embroidery hoops or a hooping station system for coaster production?
  A: Treat the magnets as industrial-strength tools: avoid pinch zones and do not use near pacemakers without medical guidance.
  • Protect: Keep fingers out of the snap zone when bringing magnetic parts together (pinch hazard is real).
  • Control: Set the hoop down on a stable surface before engaging magnets to prevent sudden slams and misalignment.
  • Restrict: Avoid use if a pacemaker is present unless a doctor confirms it is safe (magnetic fields can be significant).
  • Success check: The hoop closes smoothly without finger pinches, and the fabric/stabilizer stack stays clamped flat without shifting.
  • If it still fails… Slow down the clamping motion and re-align the stack before closing; rushed closing is a common cause of pinches and misclamps.
