Stitch a Gingerbread Boy ITH Towel Holder on a Baby Lock Visionary—No Fussy Appliqué Cutting, No Floppy Results

If you have ever pulled an In-The-Hoop (ITH) project out of your machine and thought, “Cute… but why does it feel like a floppy greeting card instead of a robust home decor item?”—you have hit the most common wall in machine embroidery construction.

Regina stitches this specific Gingerbread Boy towel holder design on a Baby Lock Visionary Embroidery Machine, and her workflow demonstrates the difference between "hobbyist guessing" and "structural engineering." She makes two critical choices that solve 90% of ITH headaches:

1. Structural Lamination: She builds body using a specific layering technique with two sheets of cutaway stabilizer.
2. The "Paper" Fabric Method: She uses starch to turn woven cotton into a paper-like material, allowing her to skip the tedious placement-cut-tack-down routine typical of appliqué.

Below is that full workflow, re-engineered from a simple tutorial into a production-grade Standard Operating Procedure (SOP). I have included the specific sensory checks (what it should feel/sound like) and the safety protocols needed to protect your fingers and your machine.

Don’t Panic: The Baby Lock Visionary ITH Workflow Is Forgiving—If You Control Shift and Stiffness

ITH projects often trigger anxiety in novices because you are performing construction (sewing seams) and embroidery (decoration) simultaneously. If the fabric shifts by even 2mm, your satin stitch border will miss the edge, exposing raw fabric and ruining the piece.

The good news: this design is incredibly forgiving if you preemptively control two physical variables:

• Shift (Lateral Movement): Fabric or stabilizer sliding under the presser foot due to loose hooping.
• Collapse (Vertical Weakness): A towel holder that buckles under the weight of the towel.

Regina’s method—heavily starched woven cotton + double cutaway stabilizer—targets both.

Expert Speed Setting: While machines like the Baby Lock Visionary can run at high speeds (up to 1,000 SPM), for ITH structural passes, speed is not your friend.

• Recommendation: Lower your machine speed to 600 SPM (Stitches Per Minute) for the structural outlines. This reduces the "push/pull" distortion that happens when the needle penetrates multiple thick layers.


The “Hidden” Prep That Makes This Gingerbread Towel Holder Stand Up (Stabilizer + Fabric Choices)

The difference between a towel holder that works and one that sags lies in the "substrate sandwich." Regina starts with one layer of cutaway stabilizer hooped tightly, but the magic happens when she adds a second "floating" layer after the first placement stitch.

Why Cutaway? Never use tear-away stabilizer for a project that needs to hold weight. Cutaway stabilizer contains long fibers that remain permanently behind the stitches, acting like a skeleton. Tearing it away removes that structural integrity.

The Starch Variable: Regina saturates her cotton fabric with starch (like Terial Magic or Best Press) and irons it until it is stiff.

• Tactile Check: When you hold the fabric by the corner, it should not drape; it should stand out almost horizontally, feeling like cardstock.

Hooping Dynamics: This project utilizes a "float" technique. If you regularly struggle keeping floated layers from creeping under the foot, this is where mastering the floating embroidery hoop concept becomes essential. In professional terms, "floating" means hooping only the stabilizer and laying the fabric on top. To do this successfully, your stabilizer must be drum-tight.

Prep Checklist (Pre-Flight Safety Check)

• Design Orientation: Confirm the design is right-side up relative to the hoop attachment (the towel opening must be at the bottom).
• Hoop Tension: Hoop one layer of cutaway stabilizer. Tap it; it should sound like a dull drum.
• Material Staging: Pre-cut a second piece of cutaway large enough to cover the placement outline with a 1-inch margin.
• Fabric Rigidity: Verify your cotton fabric is starched stiff (paper-like feel).
• Palette Prep: Pull thread colors (Regina uses tan/cream, black, green, red).
• Hardware: Keep masking tape (or painter's tape), embroidery scissors, and a rotary cutter within arm's reach.

Color Stop #1–#2 on the Baby Lock Visionary: Reinforce with a Second Cutaway Layer (Without Distorting the Hoop)

What happens in the video:

1. Stop 1: The machine stitches a placement stitch (a simple running stitch) on the single layer of hooped cutaway.
2. Action: Regina lays a second sheet of cutaway directly on top of that outline.
3. Stop 2: The machine tacks down that floating stabilizer layer.

The Engineering Logic: This is a lamination process. By stitching two layers of stabilizer together inside the hoop, you create a composite material that is stiffer than felt but thinner than cardboard.

Checkpoint (Visual & Tactile):

• After tack-down, the second stabilizer layer should be absolutely flat.
• Run your hand over it. If you feel "bubbles" or ripples, the stabilizer wasn't flat when stitched. Carefully unpick and redo, or the final product will be warped.

Warning: Major Safety Hazard
When holding a floating layer in place while the machine starts, keep your fingers at least 2 inches away from the needle bar. A 1000 SPM machine moves faster than your reflex arc. Do not use your fingers to smooth fabric near the needle; use the eraser end of a pencil or a chopstick.

Pro tip from Regina's technique: She applies gentle, outward pressure with her hands on the perimeter away from the needle to prevent the presser foot from flipping up the edge of the floating stabilizer. Do not pull or stretch the stabilizer, just hold it firm.

The Starched Fabric Trick: Lay One Big Piece and Skip Traditional Appliqué Cutting

Regina uses one full piece of starched fabric to cover the entire design area. Unlike standard appliqué, she does not trim this fabric after the tack-down stitch.

The "Raw Edge" Shortcut:

• The Standard Way: Stitch Placement $\rightarrow$ Lay Fabric $\rightarrow$ Stitch Tack-down $\rightarrow$ Stop & Trim Fabric $\rightarrow$ Satin Stitch.
• Regina’s Way: Stitch Placement $\rightarrow$ Lay Oversized Fabric $\rightarrow$ Stitch Tack-down $\rightarrow$ SKIP TRIM $\rightarrow$ Satin Stitch covers the raw edge later.

This works only because the final satin border is wide enough to encapsulate the raw edge.

Placement Logic: Because the fabric is oversized, you do not need to center it perfectly. You just need to ensure the fabric margin extends well past the placement lines on all sides.

Expected Outcome:

• Your fabric lies smooth and completely covers the design area.
• Because perfectly starched fabric doesn't fray easily, the final satin stitch will cover the edges cleanly without "whiskers" poking through.

Face Details (Eyes + Mouth): Don’t Let Bobbin Color Ruin a Cute Gingerbread Expression

Regina stitches the eyes and mouth in black thread. She candidly mentions a common mistake: forgetting to swap the bobbin thread.

The Contrast Rule: On a standalone item like a towel holder, the back is visible. If you stitch black eyes with white bobbin thread, you risk:

1. Pokies: The white bobbin thread pulling up to the top (visible on the face).
2. Backside Aesthetics: White dots on the back of the gingerbread head.


The 1/3 Rule (Tension Check): Flip your hoop over after stitching the eyes. You should see the top thread (black) pulled slightly to the back. Ideally, the white bobbin thread should occupy the center 1/3 of the satin column, with black thread visible on both sides. If you see only black thread on the back, your top tension is too loose. If you see white thread on the top, your top tension is too tight.

Decorative “Icing” + Bow Tie: How to Prevent Looping Thread Before It Becomes a Bird’s Nest

Regina stitches the zigzag "icing" details (file color is blue; she uses green) and then the bow tie in red. During the bow tie sequence, she notices the thread wanting to "loop up" or puddle on the surface.

Diagnostic Protocol: When you see looping on top, it is counter-intuitive: it usually means a Top Tension issue, not a bobbin issue. It often indicates the top thread has jumped out of the tension discs.

Immediate Action Plan:

1. PAUSE the machine immediately.
2. Rethread Upper Path: Do not just pull the thread; completely unthread and rethread with the presser foot UP. (Tension discs are open when the foot is up, allowing thread to seat deeply).
3. Check the Consumables: Is the spool cap too tight? Is the thread catching on a nick in the spool?

The Stability Factor: If you make ITH items in bulk, "thread looping" often stems from the hoop bouncing or vibrating at high speeds. This is why a dedicated hooping station is a standard fixture in commercial shops. It ensures every hoop is tensioned identically, reducing the vibration that causes thread feed issues.

Satin Stitch Outline: The Border That Hides a Multitude of Sins (and Why Starch Matters)

Regina runs a thick satin stitch outline in a cream/tan tone. This is the structural heavy lifter—it binds the fabric, the two layers of stabilizer, and creates the visual edge.

The Physics of Pull Compensation: Satin stitches effectively "shrink" the fabric width-wise. On soft, un-starched cotton, this heavy stitching would cause the fabric to pucker or "tunnel," leaving gaps between the fill and the outline.

• Why Starch Wins: The stiffened fabric resists this pulling force, keeping the outline perfectly matched to the fill layout.

The Hoop Burn Problem: To keep layers this thick from moving, users often overtighten traditional screw hoops, leading to "hoop burn" (permanent crushing of fabric fibers/nap). This is a primary reason why professionals switch to magnetic embroidery hoops. These frames use magnetic force to clamp the quilt sandwich evenly around the entire perimeter, rather than pinching it at a screw point. This prevents the fabric distortion that ruins satin precision.

Warning: Magnetic Force Hazard
If you upgrade to industrial-strength magnetic hoops, be aware they snap together with significant force (often 10-20 lbs of pressure). Keep fingers clear of the mating surfaces. Do not place magnets near pacemakers, credit cards, or computer hard drives.

The Pink Outline You Must NOT Stitch: Backing Placement on the Baby Lock Visionary

Regina highlights a critical "Red Light" moment in the digitizing sequence: Color stop 12 is a pink outline that serves ONLY as a placement guide. DO NOT STITCH IT.

Cognitive Chunking:

• Machine Stops: The needle moves to position and stops.
• You See: A placement line (often a running stitch) intended to show you where to put the back fabric.
• Action: If your machine does not have an auto-stop programmed, you must watch the screen. When you see this outline finish, you STOP.

Expected Outcome: You have a stitched outline on your stabilizer that matches the shape of your backing fabric. You are now ready to seal the back.

Backing Fabric Attachment: Tape It Flat, Keep It Out of the Stitch Path

Regina removes the hoop from the machine (carefully!), turns it over, and tapes the backing fabric (face out) to the underside of the stabilizer. She covers the ugly bobbin stitches with this backing.

The Tape Struggle: Gravity is your enemy here. Regina tapes the corners and edges to keep the fabric taut. She warns that as you slide the hoop back onto the machine, the backing fabric loves to curl up or snag on the throat plate.

• Tip: Use ample painter's tape or a specialized embroidery tape (which leaves less residue). Tape all four sides, not just corners.

Commercial Workflow Audit: Start a stopwatch. How long does it take you to tape the backing, smooth it, re-tape the curled edge, and slide it onto the machine? 2 minutes? If you are doing production runs, this "hoop flip and tape" dance is your biggest profit leak. This is the specific scenario where baby lock magnetic embroidery hoops shine. With a magnetic system, you can often "float" the backing by simply snapping it between the magnets without removing the entire frame assembly, or use the magnets to hold the backing taut without residue-laden tape.

Hidden Consumable: Keep a bottle of Odif 505 Temporary Spray Adhesive. A light mist on the wrong side of your backing fabric can help it stick to the stabilizer instantly, reducing the need for excessive taping.

The Final Construction Pass: Triple Bean Stitch That Leaves the Towel-Rod Opening

With the backing secured, the machine runs the final pass: a Triple Stitch (or Bean Stitch) around the perimeter.

Crucial Design Feature: This stitch line is not continuous. It leaves a deliberate gap (usually at the top or bottom, depending on the file orientation) to create the casing where the towel rod will slide in.

Operations Check:

• Listen: The machine sound will change. It will sound heavier, a distinct thud-thud-thud as it punches through: Top Fabric + Stabilizer 1 + Stabilizer 2 + Backing Fabric.
• Needle Choice: By this stage, your needle has dulled significantly. If you hear a "popping" sound, your needle is struggling to penetrate. For thick sandwiches like this, a Topstitch 90/14 needle is recommended over a standard 75/11.

Trimming Like a Pro: 1/4" First, Then 1/8" for Curves (Cleaner Edge, Less Fray)

Regina’s trimming method prevents the "jagged edge" look common in homemade crafts.

Step 1: The Rough Cut Use a rotary cutter and ruler to trim straight sections about 0.25 inch away from the stitch line. This ensures perfectly straight lines that scissors often fail to achieve.

Step 2: The Fine Cut Switch to sharp embroidery scissors for the curves. Trim these down to 0.125 inch (1/8th inch).

Technique Anchor: Regina’s golden rule: "Turn the fabric, not the scissors." Keep your scissor hand stationary and comfortable, and rotate the project into the blades. This yields a smooth, continuous curve.

Don't forget to cut the slit between the legs (the opening for the rod) cleanly. Use sharp point scissors or a seam ripper ball-point safe method to start the hole.

Operation Checklist (The Finish Line)

• Needle Clearance: Before the final stitch out, hand-crank the wheel (or use the check function) to ensure the needle won't hit the hoop frame.
• Tape Removal: Remove all tape from the back gently to avoid pulling satin stitches loose.
• Trimming: Execute the 1/4" linear cut followed by the 1/8" curved cut.
• The Rod Gap: Verify the opening for the towel rod is open and clear of stray threads.
• Jump Threads: Clip all jump threads flush to the surface using curved snips or tweezers.

Fabric-to-Body Decision Tree: Choose Stabilizer/Support Without Guessing

Don't guess on stability. Use this logic tree to determine how to build your ITH project:

START: What is your primary Face Fabric?

• 1. Stiffened Woven Cotton (Regina's Method)
  • Solution: 2 Layers of Cutaway Stabilizer.
  • Result: Excellent rigidity, holds shape perfectly.
• 2. Standard Quilting Cotton (No Starch)
  • Solution: Iron-on Fusible Interfacing (like Shape Flex) to back of fabric + 2 Layers Cutaway.
  • Result: Good rigidity, but adds an extra ironing step.
• 3. Felt or Vinyl
  • Solution: 1 Layer of Cutaway (or Tearaway for Vinyl if backing is covered) is usually sufficient implies the material supports itself.
  • Result: Softer finish; Felt provides its own bulk.
• 4. Knit / T-Shirt Material
  • Solution: Do Not Use for this project unless backed by heavy fusible interfacing (Deco Bond) + 2 Layers Cutaway.
  • Result: High risk of stretching/distortion without heavy intervention.

Setup Checklist (Machine configuration to prevent mid-design drama)

• Needle: Install a fresh size 90/14 Embroidery or Topstitch needle (Titanium coated is best for thick sandwiches).
• Bobbin: Clean the bobbin case area (remove lint) to ensure consistent tension. Check bobbin supply is >50%.
• Thread Path: Re-thread the top thread to ensure it is seated deeply in the tension discs.
• Stabilizer: Verify you have enough Cutaway stock for the double-layer technique.
• Hooping Strategy: Assess if your current hoop holds tight enough. If you struggle with screw tightening, evaluate babylock magnetic hoops for future projects to reduce hand strain.

The Upgrade Path (Without the Hard Sell): When Tape-and-Float Stops Being Fun

If you make one Gingerbread Boy a year, the tape-and-float method on a standard hoop is perfectly adequate.

However, if you start making seasonal sets for craft fairs (think: 50 reindeer, 50 snowmen), the friction points of this workflow become painfully obvious:

1. Wrist Strain: Tightening hoop screws 100 times.
2. Hoop Burn: Ironing out ring marks on every single item.
3. Backing Fiddle: The time lost taping backing fabric for every unit.

The Criteria for Upgrading:

• Level 1 (Tools): If you produce 10+ items/week, professional babylock hoops (magnetic style) clarify this workflow. They eliminate the screw-tightening strain and allow for faster backing placement, often shaving 2-3 minutes off per unit.
• Level 2 (Machinery): If you are receiving team orders or stocking a boutique, a single-needle machine requiring manual thread changes (Tan... stop... Black... stop... Red...) is a bottleneck. This is where moving to a SEWTECH multi-needle embroidery machine transforms your business. You set the colors once, press start, and walk away while it stitches the entire character automatically.

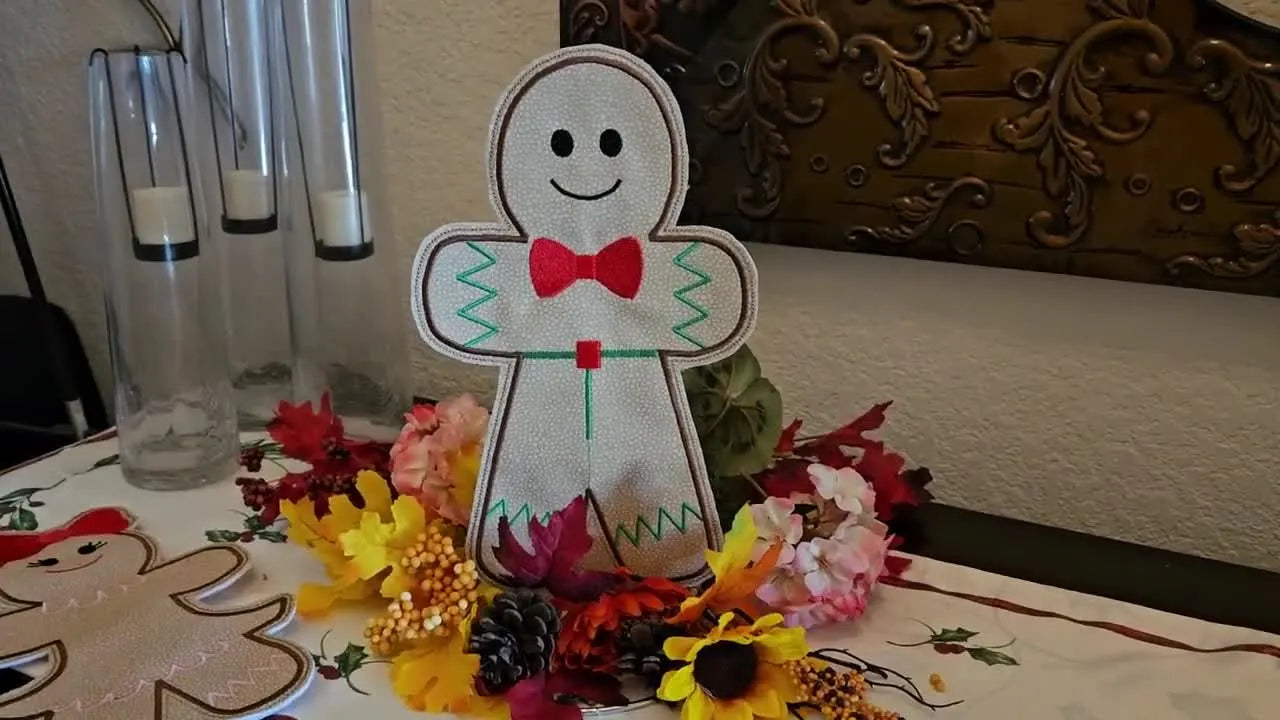

Final Reveal: What “Good” Looks Like When You Pull It Off

Your finished Gingerbread Boy should:

• Stand Erect: It should not flop forward when held upright.
• Edge Definition: The satin border should be dense and even, with no raw fabric hairs poking through.
• Clean Back: The backing fabric should be taut, with no wrinkles or "pillowing."
• Functional: It slides easily onto the paper towel holder rod through the intended opening.


Regina demonstrates the final result side-by-side with a matching Gingerbread Girl, showing that consistent starching and stabilizer use leads to identical, repeatable sizing—the mark of a professional stitch-out.

FAQ

• Q: How do I keep a Baby Lock Visionary ITH gingerbread towel holder from turning floppy instead of standing firm?
  A: Use the double-cutaway “lamination” method and stiffen the cotton with starch so the ITH piece has a real skeleton.
  • Hoop 1 layer of cutaway stabilizer drum-tight, then add a second floating cutaway layer after the first placement stitch and tack it down.
  • Saturate woven cotton with starch and iron until the fabric feels paper-like before stitching.
  • Lower stitching speed to about 600 SPM for structural passes to reduce push/pull distortion.
  • Success check: the hooped stabilizer taps like a dull drum, and the finished holder does not buckle when held upright.
  • If it still fails: switch from standard quilting cotton to starched cotton or add fusible interfacing behind the fabric, then repeat the double-cutaway build.
• Q: What is the correct “drum-tight” hooping standard for floating fabric on a Baby Lock Visionary embroidery hoop?
  A: Hoop only the cutaway stabilizer as tight as possible, then float layers on top without stretching anything.
  • Tap the hooped stabilizer before stitching and re-hoop if it feels soft or slack.
  • Keep floated stabilizer/fabric perfectly flat when the tack-down runs; do not pull—only hold it steady.
  • Use tape only as needed to prevent edges from flipping, keeping tape clear of the stitch path.
  • Success check: after tack-down, the floating layer is absolutely flat with no bubbles or ripples you can feel by hand.
  • If it still fails: slow down for the structural steps and re-do the tack-down sequence because ripples will warp the final outline.
• Q: How do I fix looping thread on top (puddling before a bird’s nest) on a Baby Lock Visionary during ITH bow-tie or satin stitching?
  A: Pause immediately and completely rethread the upper path with the presser foot UP because looping on top often means the thread is not seated in the tension discs.
  • Stop the machine as soon as looping starts—do not “let it run and hope.”
  • Unthread and rethread the top path with the presser foot up, then restart the section.
  • Inspect the spool area for catching (spool cap too tight or thread snagging).
  • Success check: stitches lay flat with no surface loops, and the stitch formation looks consistent through direction changes.
  • If it still fails: check for hoop vibration from running too fast on thick layers and reduce speed for the structural passes.
• Q: How can I prevent bobbin thread color from ruining the Baby Lock Visionary gingerbread face details (eyes and mouth)?
  A: Match bobbin thread thoughtfully and confirm balanced tension right after stitching the facial details.
  • Swap bobbin thread if needed before stitching black facial features on a standalone item where the back will show.
  • Flip the hoop and evaluate stitch balance using the “1/3 rule” after the eyes stitch out.
  • Adjust carefully if the wrong thread is pulling to the top or dominating the back.
  • Success check: the bobbin thread sits in the center of the satin column, with top thread visible on both sides and no contrasting “pokies” on the face.
  • If it still fails: rethread the upper path and recheck tension seating before making further adjustments.
• Q: What needle setup helps a Baby Lock Visionary stitch through thick ITH “sandwich” layers without popping or struggling?
  A: Start with a fresh 90/14 Embroidery or Topstitch needle for thick ITH stacks because dull needles struggle on the final construction pass.
  • Install a new needle before the project, especially if the design includes dense satin borders and a final triple/bean stitch pass.
  • Listen during the final perimeter pass; a heavier “thud-thud-thud” sound is normal as layers increase.
  • If a “popping” sound appears, stop and replace the needle rather than forcing the stitch-out.
  • Success check: penetration is consistent with no popping, skipped stitches, or visible deflection on thick seams.
  • If it still fails: reduce speed for structural steps and verify the hoop/frame clearance by hand-cranking/checking before continuing.
• Q: How do I safely hold floating stabilizer or fabric on a 1,000 SPM Baby Lock Visionary when the stitch-out starts?
  A: Keep fingers at least 2 inches away from the needle area and use a tool to smooth layers because the needle moves faster than reflexes.
  • Hold the perimeter away from the needle path to prevent edges from flipping up—do not reach near the needle bar.
  • Use the eraser end of a pencil or a chopstick to guide and flatten fabric instead of fingertips.
  • Pause if anything lifts, and reposition before continuing.
  • Success check: the floating layer stays flat at start-up with no sudden fold-over or snag under the presser foot.
  • If it still fails: tape the outer edges farther from the stitch field or re-hoop tighter so the foot cannot grab the floated layer.
• Q: What is the safest way to use magnetic embroidery hoops to reduce hoop burn and speed up ITH backing placement?
  A: Treat industrial-strength magnetic hoops as pinch hazards and keep magnets away from medical devices and sensitive items.
  • Keep fingers clear of the mating surfaces when snapping the frame together because the magnets can clamp with significant force.
  • Do not place magnetic hoops near pacemakers, credit cards, or computer hard drives.
  • Use magnetic clamping to reduce overtightening that causes hoop burn and to simplify holding backing fabric flat (often reducing reliance on heavy taping).
  • Success check: fabric is clamped evenly with fewer ring marks, and backing placement is faster without curling or snagging when re-mounting.
  • If it still fails: return to the tape-and-float method for that job and reassess fabric thickness and handling technique before changing more variables.
• Q: When does an ITH tape-and-float workflow justify upgrading from technique tweaks to magnetic hoops or a SEWTECH multi-needle embroidery machine?
  A: Upgrade when time loss and physical strain become measurable—start with process tweaks, then tools, then production machinery if volume demands it.
  • Level 1: Reduce speed for structural steps, use double cutaway lamination, and use starch to prevent shifting/collapse.
  • Level 2: If repeated screw-hooping causes wrist strain or hoop burn and backing taping is the slowest step, consider magnetic hoops to speed clamping and reduce fabric crushing.
  • Level 3: If manual color changes on a single-needle setup become the bottleneck for batches (seasonal sets, orders), a SEWTECH multi-needle machine can remove repeated stop-and-change downtime.
  • Success check: unit time drops (especially backing/taping time), and stitch-outs become repeatable with less rework.
  • If it still fails: time each step with a stopwatch to identify the true bottleneck before investing in new tools or equipment.
