Stitch a Bat ITH Hand Sanitizer Holder on a Brother PR655: Clean Pockets, Zero Bird’s Nests, and a Finish That Sells

If you’ve ever watched an In-The-Hoop (ITH) project stitch out perfectly, only to flip it over and discover a chaotic "bird’s nest" of thread tangled on the back, you are not alone. That sinking feeling in your stomach—the frustration of wasting expensive materials—is a rite of passage for every embroiderer.

But here is the truth: The difference between a "craft project" and a "product" isn't magic. It is process.

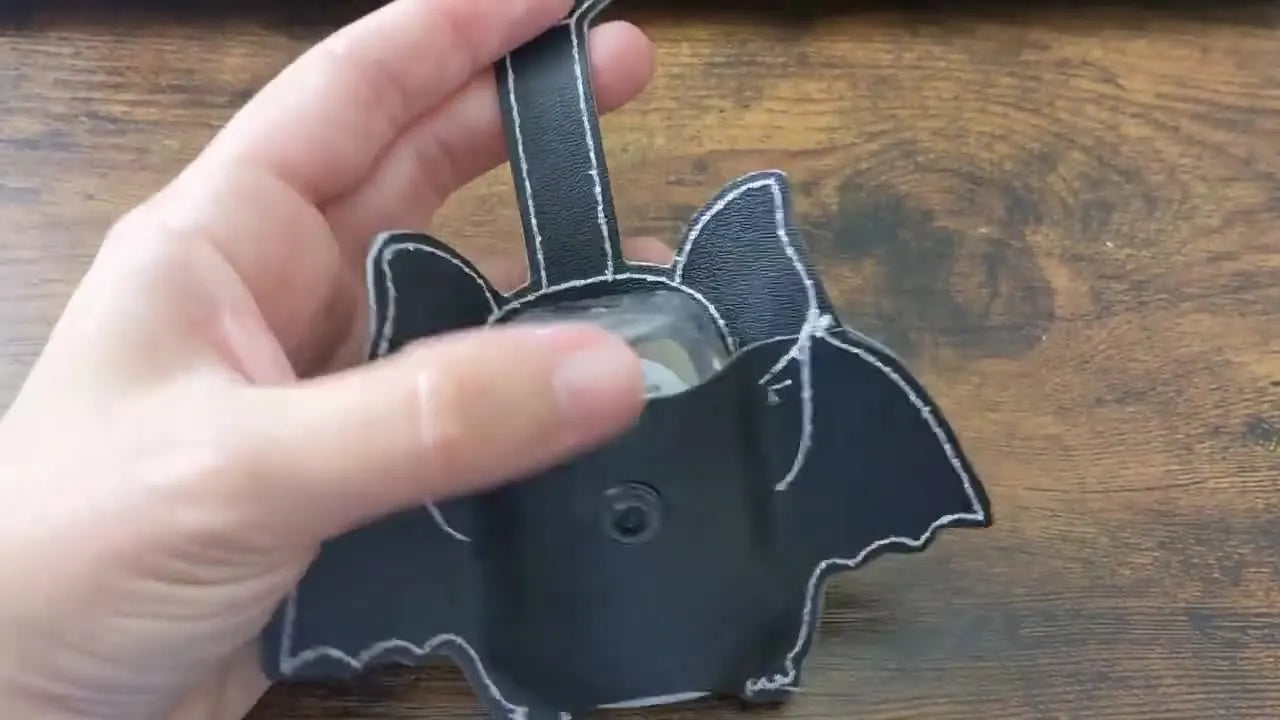

The bat hand sanitizer case is the perfect training ground. It looks sophisticated at a craft fair, but it operates on a strict, repeatable construction logic. In this white paper-style guide, we are rebuilding the workflow for the Brother PR655 (though applicable to most multi-needle machines) to move you from "hoping it works" to "knowing it will work."

We will cover the Snap-Tab Version (premium finish) and the Eyelet Version (speed production), calibrated with specific speed settings and tension checks to ensure your safety and success.

1. The Psychology of ITH: Why Vinyl Scares You (And Why It Shouldn't)

ITH vinyl projects feel intimidating because they combine three high-stress variables:

1. Material Risk: Vinyl is unforgiving. One wrong needle penetration leaves a permanent hole.
2. Layering Complexity: You are building structure, not just decorating.
3. Blind Spots: You cannot see the bobbin side while the machine runs.

On a multi-needle workhorse like the brother pr655 6 needle embroidery machine, the stitching itself is the easy part. The machine is precise. The human error usually happens in two places: Stabilization (how you hold it) and Start-Up (how you manage the first three stitches).

This guide creates a "safe zone" around those two risks. Whether you are using the premium snap-tab method or the rapid-fire eyelet method, the goal is confident, repeatable revenue.

2. Professional Preparation: The "Clean Start" Protocol

Before you even touch the power button, we must address your materials. The video demonstrates using blackboard/chalkboard vinyl. Why? Because it offers the "Goldilocks" zone of stiffness: it is rigid enough to hold the key fob shape but flexible enough to turn inside out without cracking.

Expert Calibration:

• Needle Choice: For this vinyl, use a 75/11 Sharp (not Ballpoint). Sharps cut cleanly through the vinyl coating. Ballpoints can drag, causing the machine to sound like a dull thud rather than a crisp snap.
• Speed Setting: Do not run at max speed. Set your machine to 600-700 SPM (Stitches Per Minute). Vinyl heats up due to friction; high speeds can cause the adhesive layers to melt and gum up your needle eye.

The "Hidden" Consumables List

Beginners often miss these, but they are essential for frustration-free production:

• Non-Permanent Adhesive Spray (Example: 505): Use sparingly.
• Wonder Clips: Absolute necessity. Pins destroy vinyl.
• Teflon/Non-Stick Needles (Optional): If you are doing a run of 50+, these reduce adhesive buildup.


Pre-Flight Checklist (Do NOT Skip)

• Material Count: Verify two vinyl pieces (front + backing) and one smaller pocket piece per unit.
• Hardware Check: Pre-sort snaps (Cap, Socket, Stud) and Eyelets + Clasps. Trying to find a matching socket while the machine waits is a recipe for errors.
• Thread Path: Check the bobbin area. Is there lint? Clean if necessary.
• Needle Check: Run your finger gently down the needle. If you feel a burr (like a tiny scratch), replace it immediately. A burred needle will shred vinyl.
• Visual Contrast: Select a high-contrast thread (e.g., White on Black) for placement lines to reduce eye strain.

Warning (Safety): When working with ITH projects requiring manual intervention (placing fabric), always keep your hands clear of the needle bar area. An awl or scissors inside the specialized safety zone of a moving machine is dangerous. Stop the machine completely before reaching in.

3. The "Floating" Technique: How to Hold Vinyl Without damage

The video utilizes durkee ez frames, which represents an "Open-Frame" system. This differs from traditional hooping where you trap the fabric between two rings.

The Physics of Flatness: Vinyl has "memory." If you force it into a standard round hoop and tighten the screw, you stretch the vinyl. When you un-hoop it later, it tries to shrink back to its original shape, causing your beautiful embroidery to pucker or warp (the "potato chip" effect).

The Solution: We "float" the material.

1. Stabilizer First: We clip the stabilizer (Tear-away or Cut-away) to the frame. It should be "drum tight"—flick it with your finger; it should sound like a dull drum.
2. Stitch Placement: The machine stitches the outline on the stabilizer.
3. Place Material: We lay the vinyl on top. No hoop burn, no stretching.


The Commercial Reality Check

If you are struggling with traditional hoops—fighting to tighten that screw or dealing with "hoop burn" marks that ruin the vinyl surface—it is time to analyze the cost of your struggle.

For hobbyists, binder clips are fine. However, if you are doing production runs, many professionals execute a search for how to use magnetic embroidery hoop tutorials for a reason. magnetic embroidery hoops allow you to slap the material down instantly without hand strain.

Warning (Magnetic Safety): If you upgrade to magnetic hoops, be aware they use powerful neodymium magnets. They can pinch fingers severely and must be kept away from pacemakers and magnetic media.

4. Phase One: Placement and Tacking

Action: Run the placement stitch on the bare stabilizer. Visual Check: Ensure the thread tension is balanced (no loops).

Step: Placing the Front Vinyl Place your blackboard vinyl right-side up over the stitched outline.

• The Anchor: Pin the corners outside the stitch area.
• Sensory Check: Run your hand over the vinyl. It must be perfectly flat. Any "bubble" now will become a permanent crease later.


Expert Note on Adhesive Spray: If you use spray to hold the vinyl, hold the can 12 inches away. You want a "mist," not a "puddle." Too much glue results in a rhythmic "slurping" sound as the needle lifts, which is a warning sign of impending thread breaks.

5. Phase Two: Detail Stitching and Monitoring

Now, let the machine do the work. The Brother PR655 will execute the bat’s details (belly, ears, wings, eyes, fangs).

The "Hover" Technique: Do not walk away. Watch the needle entry. If you see the vinyl "flagging" (lifting up with the needle), pause and add a Wonder Clip or tape near the area (safely away from the needle path) to hold it down. Flagging causes registration errors where outlines don't line up with the fill.

The Snap Placement Circle: The machine will stitch a tiny circle. Do not ignore this. This is your engineering blueprint for the hardware.

6. Phase Three: The Sandwich (The Critical Step)

This is where beginners fail. We are creating the back of the fob.

1. Remove the hoop/frame from the machine (do not remove the stabilizer from the hoop).
2. Flip the hoop over.
3. Place the backing vinyl against the underside of the stabilizer.
4. Orientation: Right side of the vinyl facing OUT (away from stabilizer).




Securing the Stack: Use tape or clips. Pins on the underside are dangerous—they can scratch the throat plate of your machine.

7. The Anti-Nesting Ritual: Preventing the "Bird's Nest"

This is the most valuable technique in this entire guide.

When you start stitching the outline that connects all layers, the machine has to push through stabilizer, vinyl, and backing. The top thread often gets dragged down, creating a tangled mess on the bobbin side (a bird's nest).

The Protocol:

1. Hold the top thread tail with your fingers (create slight tension).
2. Run ONE stitch (using the handwheel or single-stitch button).
3. Pull the top thread tail. You will see a loop of bobbin thread pop up to the top surface.
4. Grab that bobbin loop and pull the tail out completely.
5. Resume stitching.


By bringing the bobbin tail to the top, there is nothing loose underneath to tangle. This ensures your key fob back looks as professional as the front.

8. Phase Four: The Pocket

The machine stitches placement lines for the pocket.

• Note: The back will look messy with knots here. Ignore it. Why? Because this section of the stabilizer/backing is cut away later. Do not waste time cleaning up stitches that are structural and hidden.


Step: Aligning the Pocket Place your small folded pocket piece according to the guidelines. Tool Swap: Put away the pins. Use Wonder Clips. Why? The frame arms on a multi-needle machine often block you from pinning easily. Clips engage faster and hold thicker layers securely.

Operation Checklist (The "Sandwich" Check)

• Clearance: Check under the hoop. Is the backing vinyl still flat? It hasn't folded over on itself?
• Security: Are the Wonder Clips placed far enough back that the needle clamp won't hit them?
• Gap: Ensure the pocket opening is not taped shut. It needs to remain functional.

9. Final Assembly and Hardware

Run the final outline stitch (don't forget the Bobbin Pull-Up Trick again!). Remove from the hoop and trim.

The Trimming Art: Use sharp, serrated scissors. Leave a consistent 3mm (1/8 inch) margin.

• Visual Check: The margin should be even. Jagged cuts scream "amateur."
• Material Insight: Blackboard vinyl does not fray, so you do not need to seal the edges with heat.




Hardware Installation (Snap Press):

1. Use an awl to pierce the stitched placement circle.
2. Cap: Goes on the smooth side (exterior).
3. Socket/Stud: Goes on the pocket side.
4. Press: Ensure the KAMsnaps press is vertical. A tilted press creates a crushed snap that won't close.

• Auditory Check: A properly installed snap makes a solid click when closed, not a mushy thud.




10. The Eyelet Shortcut: Speed vs. Function

For the Eyelet version, the video offers a choice:

1. Full Construction: Pocket + Backing.
2. Production Shortcut: Skip the pocket placement. Stitch the outline, add a back, and install an eyelet.

Why choose the shortcut? If you are selling 50 units for a corporate event, the shortcut saves 3 minutes per unit. The eyelet goes through the tabs, and large lobster clasps are attached.

• Pro Tip: Always use Large Lobster Clasps rather than split rings. Customers hate breaking their fingernails on split rings. The clasp is a "usability upgrade" that justifies a higher price point.


11. Decision Tree: Stabilizer & Hooping Strategy

Use this logic flow to determine your setup for future batches:

Q1: Are you using an Open-Frame (Durkee/Fast Frames) or Standard Hoop?

• Open Frame: Proceed to Q2.
• Standard Hoop: Limit hoop tension. Do NOT stretch the vinyl tight; hooping it neutral is key.

Q2: Is the Vinyl thin/pliable or thick/rigid?

• Thin: Tear-away is acceptable.
• Thick: Use Cut-away stabilizer to support the needle penetration without ripping.

Q3: Are you experiencing physical wrist pain or "Hoop Burn" marks?

• Yes: It is time to upgrade. A magnetic frame for embroidery machine eliminates the screw-tightening motion and the friction that causes burn marks.
• No: Continue with clips, but monitor your hand fatigue.

12. Troubleshooting: The Symptom-Cure Matrix

13. The Commercial Upgrade Path

If you are a hobbyist making five of these for Christmas, the clips and standard frames are perfect.

However, if this project is the start of a business, you must calculate ROI (Return on Investment).

• The Bottle Neck: Hand-hooping vinyl takes 2-3 minutes per unit.
• The Solution: An embroidery hooping system that uses magnets can cut that to 30 seconds.
• The Scale: If you find your single-needle machine is taking 45 minutes to swap threads for a simple bat face, looking into established multi-needle solutions like SEWTECH equipment becomes a math problem, not a spending problem. The ability to set 6 colors and walk away is how you turn embroidery into income.

Final Thought: Reliability comes from consistent inputs. Use the same thread, the same stabilizer, and the same start-up ritual every time. That is how you stop hoping for a good result and start demanding one.

FAQ

• Q: What are the hidden consumables needed to stitch an ITH vinyl bat hand sanitizer case on a Brother PR655 without ruining vinyl?
  A: Use a minimal “clean start” kit so vinyl stays flat and thread does not break.
  • Use non-permanent adhesive spray (light mist only) to prevent shifting when floating vinyl.
  • Use Wonder Clips instead of pins to avoid permanent holes and faster handling.
  • Consider non-stick (Teflon) needles if running large batches to reduce adhesive buildup.
  • Success check: Vinyl surface shows no pinholes, and stitching runs without rhythmic “slurping” sounds.
  • If it still fails… Reduce spray amount and re-check needle condition for burrs or gummy residue.
• Q: What needle type and stitch speed should be used on blackboard/chalkboard vinyl for an ITH project on a Brother PR655?
  A: Start with a 75/11 Sharp needle and slow the Brother PR655 to 600–700 SPM to prevent heat and drag.
  • Install a fresh 75/11 Sharp (not ballpoint) for clean penetrations through vinyl coating.
  • Set speed to 600–700 SPM to reduce friction heat that can gum the needle eye.
  • Listen for needle sound changes; dull “thud” often indicates dragging or a dull/gummed needle.
  • Success check: The needle punch sounds crisp and the thread path stays smooth with no shredding.
  • If it still fails… Wipe/replace the needle and confirm adhesive spray was a mist, not a puddle.
• Q: How can a Brother PR655 operator judge stabilizer tension and “flatness” when floating vinyl in an open-frame system to prevent puckering?
  A: Make stabilizer drum-tight first, then lay vinyl on top without stretching it.
  • Clip stabilizer into the frame so it is taut before any stitching begins.
  • Flick the stabilizer surface to confirm it feels “drum tight” (firm, not slack).
  • Place vinyl after the placement stitch and smooth by hand to remove bubbles before stitching details.
  • Success check: Vinyl feels perfectly flat by touch with no bubbles, and embroidery does not warp into a “potato chip” shape after unframing.
  • If it still fails… Add more clips to prevent stabilizer slip, or move to a magnetic hoop system to reduce handling distortion.
• Q: How do you prevent a “bird’s nest” on the back when starting the outline stitch for an ITH vinyl sandwich on a Brother PR655?
  A: Use the bobbin pull-up start ritual so no loose thread remains underneath to tangle.
  • Hold the top thread tail with slight tension at the start.
  • Run exactly one stitch using the handwheel or single-stitch function.
  • Pull the top thread tail to bring the bobbin loop to the top, then pull the bobbin tail fully up.
  • Success check: The underside starts clean with no wad of thread forming in the first few stitches.
  • If it still fails… Re-thread the top path and re-check bobbin area for lint before restarting.
• Q: What should a Brother PR655 user do when skipped stitches happen on vinyl during ITH detail stitching?
  A: Treat skipped stitches as a needle contamination or wear issue first, then correct it immediately.
  • Pause the machine and inspect the needle for gummy buildup or a burr.
  • Wipe the needle with alcohol or replace it with a new 75/11 Sharp.
  • Resume at the controlled speed range (not max speed) to reduce friction and adhesive transfer.
  • Success check: Stitches form consistently with no gaps in the detail areas (eyes, wings, outlines).
  • If it still fails… Reduce adhesive spray usage and confirm vinyl is secured to prevent “flagging” that can disrupt stitch formation.
• Q: What does it mean when white loops appear on top stitching on a Brother PR655 during an ITH vinyl project, and how can it be fixed safely?
  A: White loops on top usually indicate bobbin tension is too loose; correct tension and clean lint first.
  • Remove the bobbin case area lint and re-seat the bobbin correctly.
  • Tighten the bobbin case screw slightly (about 1/8 turn) and test again.
  • Stitch a short test segment before committing to the full outline pass.
  • Success check: The top surface shows clean stitches with no bobbin thread looping up.
  • If it still fails… Stop and revert the adjustment, then follow the machine manual guidance for bobbin case handling.
• Q: What safety steps should be followed on a Brother PR655 when placing vinyl/pocket layers during ITH stops to avoid needle injuries?
  A: Stop the machine completely before hands enter the needle bar zone—this is common and worth slowing down for.
  • Wait until the needle bar is fully stopped before placing vinyl, pocket pieces, or clips.
  • Use Wonder Clips/tape rather than pins to avoid accidental contact and machine damage.
  • Keep tools (awl, scissors) out of the active needle area until the machine is fully stopped.
  • Success check: Hands never cross under the needle while the machine is moving, and placement is calm and controlled.
  • If it still fails… Rehearse the stop-place-check routine with the machine powered off to build safe muscle memory.
• Q: What are the key safety risks of using magnetic embroidery hoops for vinyl production, and when is the upgrade justified versus standard hoops and clips?
  A: Magnetic hoops reduce hooping time and hand strain but require strict pinch/pacemaker precautions; upgrade when hoop burn, wrist pain, or stabilizer slipping becomes a recurring production bottleneck.
  • Keep fingers clear when closing magnetic frames; neodymium magnets can pinch severely.
  • Keep magnetic hoops away from pacemakers and magnetic-sensitive items.
  • Choose standard hoops/clips for small hobby batches, and consider magnetic hoops when repeated hooping causes hoop burn marks or fatigue.
  • Success check: Hooping time drops noticeably while vinyl surface shows fewer handling marks and alignment stays stable.
  • If it still fails… Increase clipping/security first; if throughput is still limited by setup time, consider a production upgrade path (faster hooping system, then multi-needle capacity as volume grows).
