Stitch 5x12 Designs on a Brother PE-770: The A/B/C Multi-Position Hoop Method That Actually Lines Up

When you realize your Brother PE-770 (or any 5x7-limited single-needle machine) can’t natively stitch that “too-tall” design you bought… it’s easy to panic and assume you need a new machine immediately.

You don’t. Not yet.

A 5x12 multi-position hoop is one of the few specific workarounds that can genuinely expand what you can stitch—if you respect the mechanics, the templates, and the file order. I’ve spent two decades in this industry, and I’ve watched plenty of stitchers “almost” get it right, only to lose alignment on the second half by a millimeter, ruining a $20 garment and swearing off large hoops forever.

This post rebuilds Mary’s full process (Brother PE-770 + New Brothread 5x12 multi-position hoop + Embrilliance) into a clean, repeatable workflow. We will add the sensory checkpoints—what to hear, see, and feel—that prevent the classic heartbreak: a perfect top half and a shifted bottom half.

Don’t Panic: A 5x12 Multi-Position Hoop on a Brother PE-770 Is a Workaround, Not a Miracle

Let’s set the expectations correctly to avoid frustration. A multi-position hoop doesn’t magically turn a 5x7 machine into a 5x12 machine. The brain of your machine still only understands a 5x7 maximum field.

What this hoop does is let you stitch two separate 5x7 fields on the same continuous piece of hooped fabric by physically moving the hoop to different bracket positions on the machine arm.

That’s why people feel both excited and confused: the hoop is long physically, but the machine still thinks in disconnected 5x7 “windows.” Your job is to act as the bridge between the two. You must:

• Split the design into multiple files (Part 1 and Part 2) using software.
• Stitch Part 1 in the top bracket position.
• Slide the hoop to the bottom bracket position without unhooping the fabric.
• Load and stitch Part 2.

If you treat it like a normal hoop and “wing it” without precision, the alignment will punish you. There are no sensors to correct you; only physics.

The A/B/C Brackets Explained (and Why Most Alignment Problems Start Here)

Mary shows the key feature on the side of the 5x12 hoop: three distinct mounting positions (sets of clips). Understanding these is critical because they are your physical coordinate system.

• Position A (Top/Far Left Brackets): This positions the needle over the top portion of the long hoop area.
• Position B (Middle Brackets): This centers the design in the hoop (rarely used for split designs, mostly for small designs centered in a large frame).
• Position C (Bottom/Far Right Brackets): This positions the needle over the bottom portion of the long hoop area.

In her example, the design runs vertically long, so she uses A + C (stitch top half, move to stitch bottom half). Think of it as “tiling” two 5x7 stitch fields together vertically.

A common comment-question is basically: “How do you guarantee the second half will line up?” The honest answer is: you don’t guarantee it with hope—you guarantee it with mechanical repeatability. The bracket positions are rigid.

Expert Sensory Check: When you attach the hoop to the carriage arm, listen for a distinct clean click. Then, give the hoop a gentle lateral wiggle. It should feel solid, like it is welded to the embroidery arm. If you feel any "play" or wobble, stop. A 1mm wobble at Position A becomes a visible 3mm gap or overlap by the time you reach Position C.

The “Hidden” Prep: Fabric + Stabilizer Choices That Keep the Long Hoop From Shifting Mid-Job

Mary hoops flannel with a cutaway stabilizer. From an engineering standpoint, this is the correct pairing. Why? Because the bigger the hooped area (5x12 vs 5x7), the more leverage the fabric has to distort, warp, or "flag" (bounce up and down) while the needle is moving.

Here is the principle that applies to all brands (Brother, Baby Lock, Bernina): Long hoops amplify small errors. A stretchy interlock knit or a soft flannel wants to move. If you use a Tearaway stabilizer, the repeated needle penetrations of a large split design can perforate the paper, causing the fabric to loosen halfway through Part 2.

The Golden Rule: For split designs, always use Cutaway stabilizer (Mesh or Medium Weight 2.5oz). It acts as the permanent skeleton for your design. I also highly recommend using a temporary adhesive spray (like Odif 505) to bond the stabilizer to the fabric before hooping. This prevents the "fabric creep" that ruins alignment.

One sentence that matters if you’re still building fundamentals: hooping for embroidery machine success is less about "tight like a drum" (which distorts grainlines) and more about "even tension with no slack zones," especially on a lever-arm as long as this hoop.

Prep Checklist (Do this before you even touch the machine)

• Validation: Confirm your machine model is a 5x7 field limit (e.g., PE-770) and you are using the specific multi-position hoop meant for it.
• Stabilization: Apply Cutaway stabilizer. Use temporary spray adhesive to fuse it to the fabric before hooping to prevent shifting layers.
• Hidden Consumable: Have temporary masking tape or medical tape ready to secure your template.
• Hooping Tension: Hoop the fabric. Run your fingers down the length of the 5x12 area. It should feel taut and consistent, like a trampoline surface, from top to bottom.
• Thread Check: Ensure your bobbin is at least 50% full. Running out of bobbin thread during a split-design alignment is a nightmare you want to avoid.


Template Stacking That Saves You: Paper Design Template + Plastic Grid Template Alignment

Mary’s alignment method is manual but effective. Since the machine has no camera to "see" where you want the design, you must tell it physically.

1. Paper Template: Print your design at 100% scale from your software with crosshairs enabled. Trim the paper roughly to the design shape. Place this on your garment exactly where you want the embroidery to land. Tape it down.
2. Plastic Grid: Overlay the clear plastic grid template (that comes with the hoop) inside the inner hoop frame.
3. Crosshair alignment: Move the hoop mechanism until the grid's center crosshairs align perfectly with the paper template's crosshairs.

This is where many beginners get tripped up: they assume the software split is a “clean straight cut” like a guillotine. One commenter noticed (correctly) that splitting often means whole elements get assigned to one half or the other. That’s normal. The goal isn’t a straight cut—it’s that the two files share a consistent coordinate system (Center Point) so the final picture looks continuous.

Risk Mitigation: Watch out—if your paper template shifts even slightly while you are wrestling with the hoop, you can be “perfectly wrong.” This is why the tape is non-negotiable.

Software Reality Check: Embrilliance Modules, Split Files, and What “Split” Really Means

Mary uses Embrilliance and mentions the Enthusiast package. A viewer correctly pointed out that the basic module is Essentials. Both are capable, but Enthusiast offers more automated splitting tools.

What you should take from that exchange is practical: you need software that can export the split files specifically for the 5x12 hoop. You cannot just take a 5x12 design and send it to the machine; the machine will reject it as "Too Large." You must save it as "Design_Part1" and "Design_Part2."

When discussing tools for multi hooping machine embroidery, don’t judge your software by the shiny box art—judge it by whether it allows you to visualize the "Overlapping Zone." This overlap is crucial for ensuring no gaps appear between A and C.

Operational Takeaway: Your file order in the USB drive must match your bracket order. Label them clearly (e.g., Flower_PosA_01.pes and Flower_PosC_02.pes) to prevent loading errors in the heat of the moment.

Mount Position A on the Brother PE-770 Without Fighting the Carriage

Mary mounts the hoop using Position A (the far left set of brackets). This places the top half of the long hoop area under the needle bar.

Here’s the part that separates calm stitchers from frustrated ones: mount the hoop gently and deliberately. The carriage arm on a PE-770 involves gears and belts. If you "slam" the hoop in or force the brackets, you can strip a gear or flex the hoop frame.

The Tactile Cue: You should feel resistance as the clips engage, followed by a release of pressure as they lock in. If you have to use white-knuckle force, stop. Check if fabric/stabilizer is bunched up near the connection points.

Warning: Pinch Point Hazard. Keep fingers clear of the hoop latch mechanism and the needle zone when attaching or removing the hoop. Sudden carriage movement upon startup can crush fingers or puncture skin.

Before you stitch, Mary removes the templates. That is not optional.

The “Remove the Template” Moment (Yes, People Forget—Then Wonder Why the Needle Hits Plastic)

Mary physically removes the plastic grid template before starting.

This is one of those “so obvious it gets skipped” steps, especially when you’re excited to finally stitch bigger than 5x7. I have seen hundreds of needles broken because the operator hit "Start" with the hard plastic grid still inside.

Expected Outcome: Once templates are removed, the fabric should sit completely flat. Run your hand over the stitch area one last time to ensure no extra layers or paper tape are sticking up that could catch the presser foot.

Stitching Part 1 in Position A: What to Watch While the Top Half Runs

Mary stitches the first half (top floral elements and the first bird). She actively monitors and trims jump stitches.

Speed Recommendation: While your machine might go up to 650 SPM (Stitches Per Minute), for multi-position hoop work, I strongly recommend slowing down to 400-500 SPM. Why? High speed creates vibration. Vibration causes micro-shifting of the fabric in the hoop. On a split design, micro-shifts lead to macro-disasters at the join line.

Mary’s advice is straightforward: cut jump stitches early.

Why that matters (generally): Long jump stitches can get snagged by the moving thread path or presser foot area (the "toe"), and they can also pull on soft fabrics (puckering), subtly shifting the stitch-out.

One sentence that matters for tool selection: If you’re choosing a hoop for brother embroidery machine for large split designs, you want rigidity. The standard plastic hoops are fine, but ensure the screw is tightened (use a screwdriver, not just fingers) to prevent the "hourglass" effect where the sides bow inward.

Setup Checklist (Right before you press Start)

• Position Verify: Visually confirm the brackets are locked into Position A (Top).
• File Verify: Confirm Part 1 (Top file) is loaded on the LCD screen.
• Clearance: Needle area clear? Plastic grid removed? Paper template removed?
• Speed: Machine speed reduced to medium (400-500 SPM) to reduce vibration.
• Tools: Curved embroidery scissors (snips) within arm's reach.


The Mid-Project Pause: Trim Jump Stitches Before They Turn Into a Mess

Mary pauses to cut jump stitches, then continues through multiple colors.

This is where many people rush because they see “time lapse” energy in videos. In real life, this is the moment to slow down.

Pro tip from production: Trim at natural breaks (color changes). If you wait until the end, you risk accidentally snipping a specialized satin edge or leaving "tails" trapped under later stitches, which makes the final piece look amateur.

Sliding to Position C Without Unhooping: The Make-or-Break Move

After Part 1 is complete, Mary performs the critical maneuver:

1. Unlatch the hoop from the machine carriage.
2. CRITICAL: Do NOT loosen the hoop screw or unhoop the fabric. The fabric must stay frozen in the frame.
3. Slide the hoop to Position C (the far right bracket set).
4. Lock the hoop back onto the carriage.

This is the heart of the method: the fabric stays locked in the hoop, so the relationship between fabric and hoop doesn’t change—only the hoop’s relationship to the machine changes.

If you’re the person who commented “I’ve been driving myself crazy trying to figure out how to use the large hoop,” this is usually the missing mental model: you are not re-hooping; you are re-indexing.

Don’t Load the Wrong File: Matching “Part 2” to Position C

Mary explicitly loads the second file on the Brother PE-770 screen.

This is a classic failure point: someone stitches Part 1, slides to Position C, but forgets to load the new file. They hit start, and the machine happily stitches Part 1 again—right over the empty space where Part 2 should be, or worse, crashing into the frame limits.

Visual Check: When you load Part 2, the design on the screen should generally look like the bottom half of your image.

One sentence that matters if you’re considering upgrades later: Once you start doing repeat jobs (like team jerseys), your embroidery hooping system decisions become about consistency and speed. If you find yourself fighting the brackets every time, that is lost profit/time.

Stitching Part 2 in Position C: How the Bottom Half Finds the Top Half

Mary stitches the bottom half (birdhouse and second bird). The alignment relies entirely on the precise physical location of the hoop brackets.

Here’s the expert “why” in plain language: The hoop manufacturers (whether Brother or SeWTech/New Brothread) engineer the distance between Brackets A and C to match the distance defined in the software. If A is seated correctly and C is seated correctly, the machine’s 5x7 field lands in the exact calculated location relative to the first.

If you see a slight gap or overlap at the join line, the cause is usually physical:

• The hoop wasn’t clicked fully into place at A or C.
• The stabilizer was too weak (Tearaway), allowing the fabric to stretch during Part 1.
• The hoop screw wasn't tight enough, and the fabric slipped 1mm.




Safe Hoop Removal on the Brother PE-770: Release Tab, Lift, and Don’t Twist

Mary removes the hoop by pressing the release tab and lifting the frame straight up.

Do not twist or torque the hoop off. Twisting puts lateral stress on the carriage connectors. Over time, this bends the carriage arm slightly. A bent carriage arm means permanent misalignment for all future projects. Treat the hoop connection like a precision instrument, not a tupperware lid.

The Payoff: A Cleanly Aligned 5x12 Result (and What “No Missed Stitches” Really Tells You)

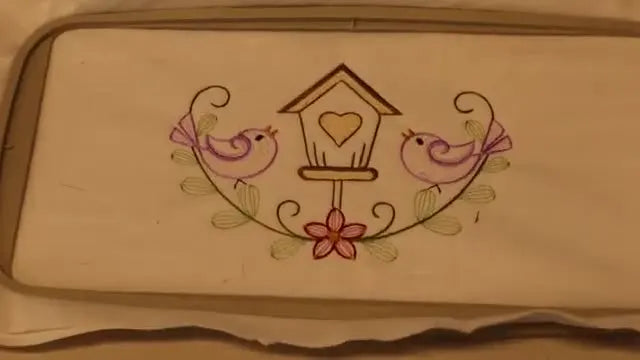

Mary shows the finished design. It’s clean, continuous, and aligned.

That’s not just a feel-good moment—it’s a diagnostic clue. When a long, multi-position job finishes cleanly, it validates your entire setup:

1. Stabilizer: Held firm (no puckering).
2. Tension: No birdnesting underneath.
3. Hooping: No slipping.

If you’re chasing professional-looking results, this is the standard you want before you start selling large split designs.

Troubleshooting the “Scary Stuff”: Symptoms → Likely Cause → Fix You Can Do Today

4) “Will this hoop work on my machine?” (PE900, SE700, F540E, etc.)

Different Brother models use different hoop attachment styles. The PE-770 uses a slide-in mechanism. Newer machines like the PE800 or SE1900 might use the same, but verify if your machine is "Type A" or "Type B" hoop mount before buying.

5) “How did you make the template guide?”

If your software doesn't print templates easily, you can print a PDF of the design at 100% scale. Ensure "Print Crosshairs" is checked in your print dialog settings.

The Upgrade Path (Without the Hard Sell): When a Magnetic Hoop Beats a Bracket Hoop

A bracket-based 5x12 hoop is a brilliant, low-cost hack to stitch big on a small machine. But let's be honest: screw-tightening is slow, and it can leave "hoop burn" (shiny crushed fabric rings) that is hard to remove.

Here’s a practical Decision Tree to help you decide if you need to optimize your toolset.

Decision Tree: Choose Your Hooping Strategy

• Scenario A: The Hobbyist Gift Maker
  • Task: Stitching one or two large garden flags a year.
  • Solution: Stick with the Standard Multi-Position Hoop. Focus on the tape/template method described above. It’s free (if you own the hoop) and effective.
• Scenario B: The "Hoop Burn" Hater
  • Task: Stitching on velvet, delicate towels, or performance wear where hoop marks ruin the item.
  • Pain Point: You are scrubbing fabric with water to remove ring marks.
  • Solution: Upgrade to a Magnetic Hoop.
  • Recommended: A magnetic hoop for brother pe770 or, if you have a newer machine, a brother pe800 magnetic hoop.
  • Why: Magnetic hoops grab the fabric firmly without crushing the fibers, virtually eliminating hoop burn and reducing wrist strain.
• Scenario C: The Scaling Business
  • Task: You have an order for 20 jackets with a large back logo.
  • Pain Point: Splitting files and re-positioning hoops 20 times is taking too long. You are losing money on labor.
  • Solution: It is time to graduate from the "Hack."
  • Recommended: Look at a multi-needle machine (like the SEWTECH authorized commercial machines). These allow for larger single fields and automatic color changes, increasing your output by 300-400%.

For many home users, a brother 5x7 magnetic hoop becomes the “daily driver” for most standard projects because it is so fast to load. But for the giant designs, the multi-position hoop remains your secret weapon until you are read to buy a bigger machine.

Warning: Magnetic Field Safety. Magnetic hoops contain powerful Neodymium magnets.
1. Keep them away from pacemakers, insulin pumps, and magnetic storage media.
2. Watch your fingers! These magnets snap together with significant force—do not get pinched.

Operation Checklist (End-of-job habits that prevent the next failure)

• Release: Remove the hoop using the release tab—lift straight up, no twisting.
• Inspect: Check the join area immediately. If there is a gap, don't unhoop! You might be able to manually add a few stitches if the fabric is still locked in.
• Clean: Trim all jump stitches and tails on the back of the hoop before removing the fabric.
• Conserve: Store your printed paper templates and plastic grids in a folder. Don't throw them away; you rarely stitch a great design just once.

By mastering the mechanical precision of the A and C brackets, you stop "hoping" for alignment and start "manufacturing" it. Happy stitching.

FAQ

• Q: How can a Brother PE-770 embroider a 5x12 design using a 5x12 multi-position hoop without getting a “Too Large” rejection?
  A: A Brother PE-770 cannot stitch a true 5x12 field in one file, so the design must be split into two separate 5x7-compatible files and stitched in bracket Positions A then C.
  • Split: Export two files from embroidery software (Part 1 for Position A, Part 2 for Position C).
  • Stitch: Mount the hoop in Position A, stitch Part 1, then slide the same hooped fabric to Position C (do not unhoop) and stitch Part 2.
  • Label: Name files clearly so the stitch order matches the bracket order (A first, C second).
  • Success check: The machine accepts each file normally (no “Too Large”), and the screen preview for Part 2 looks like the bottom half of the design.
  • If it still fails… Re-check that the export format and hoop setting in software matches the multi-position split for the PE-770 workflow.
• Q: What stabilizer and adhesive setup prevents fabric shifting when using a 5x12 multi-position hoop on a Brother PE-770?
  A: Use cutaway stabilizer (mesh or medium weight 2.5oz) and bond it to the fabric with temporary spray adhesive before hooping to reduce creep during Part 1 and Part 2.
  • Choose: Pick cutaway (not tearaway) for split designs on long hoops.
  • Spray: Lightly apply temporary adhesive to marry stabilizer and fabric before hooping.
  • Hoop: Tension evenly along the entire 5x12 length—avoid slack zones.
  • Success check: Run fingers top-to-bottom; the hooped area feels consistently taut like a trampoline, with no loose “soft spots.”
  • If it still fails… Tighten the hoop screw with a screwdriver (not fingers) and re-hoop to eliminate micro-slippage.
• Q: How can a Brother PE-770 user confirm the 5x12 multi-position hoop is fully seated in Position A or Position C to avoid alignment drift?
  A: Treat hoop mounting as a precision lock-in: seat the brackets until a clean click is felt/heard, then do a gentle wiggle check before stitching.
  • Attach: Mount the hoop gently—do not slam or force the brackets into the carriage.
  • Listen: Wait for a distinct “click” as the brackets lock.
  • Wiggle: Test slight lateral movement; stop immediately if any play is felt.
  • Success check: The hoop feels solid “like it is welded” to the embroidery arm with no wobble.
  • If it still fails… Remove and re-seat the hoop in the same position until the lock is repeatable, then proceed.
• Q: Why does the Brother PE-770 needle hit the hoop frame when using a 5x12 multi-position hoop, and what is the fastest safe fix?
  A: The most common cause is a wrong file/position match (stitching Part 1 while mounted in Position C, or loading Part 2 while in Position A), so stop immediately and verify bracket position and file on the screen.
  • Stop: Use Emergency Stop as soon as a strike risk is noticed.
  • Verify: Confirm the hoop is locked in the intended bracket position (A for Part 1, C for Part 2).
  • Reload: Load the correct file and visually confirm the preview looks like the correct half.
  • Success check: The needle path stays inside the hoop boundary during a cautious restart.
  • If it still fails… Re-check file naming/order on the USB drive to prevent accidental re-running of Part 1.
• Q: What machine speed and jump-stitch routine reduces vibration and shifting on a Brother PE-770 during multi-position (A+C) split embroidery?
  A: Slow the Brother PE-770 to about 400–500 SPM and trim jump stitches at natural breaks (especially color changes) to prevent snag-pull shifting.
  • Set: Reduce speed to medium (around 400–500 SPM) for multi-position work.
  • Trim: Pause at color changes and cut jump stitches early instead of waiting to the end.
  • Monitor: Keep snips within reach and watch for long floats that could catch and tug fabric.
  • Success check: The fabric stays flat with no visible tugging, and the join area remains clean without creeping gaps.
  • If it still fails… Re-check hoop tightness and stabilizer choice—vibration problems often reveal marginal hooping/stabilization.
• Q: What is the correct and safe way to attach/remove a Brother PE-770 hoop to prevent finger injury and long-term carriage misalignment?
  A: Keep fingers clear of pinch points, mount gently, and remove by pressing the release tab and lifting straight up—never twist the hoop off the Brother PE-770 carriage.
  • Protect: Keep hands away from the latch mechanism and needle area during attach/removal.
  • Attach: Guide brackets into place without forcing; stop if heavy resistance is needed.
  • Remove: Press the release tab and lift straight up (no torque).
  • Success check: The hoop comes off smoothly without a “bind,” and the carriage connection shows no new looseness.
  • If it still fails… Pause and inspect for bunched fabric/stabilizer near the connection points before trying again.
• Q: When should a Brother PE-770 user upgrade from a bracket-based 5x12 multi-position hoop to a magnetic hoop or a multi-needle machine for large designs?
  A: Upgrade based on the pain point: optimize technique first, move to a magnetic hoop for hoop burn/speed, and move to a multi-needle machine when repeated split-hooping labor becomes the bottleneck.
  • Level 1 (technique): Improve cutaway + spray adhesive + click/wiggle checks + correct file order to stabilize alignment.
  • Level 2 (tool): Choose a magnetic hoop if hoop burn, slow screw-tightening, or wrist strain is the recurring problem.
  • Level 3 (capacity): Choose a multi-needle machine if large split jobs are frequent (e.g., batches of jackets) and re-indexing time is hurting throughput.
  • Success check: The chosen upgrade removes the main constraint (fewer hoop marks, faster loading, or fewer re-hoop/reposition steps per order).
  • If it still fails… Track where time or defects occur (hooping marks vs alignment vs labor time) and upgrade the step that is actually causing the loss.
