Stipple Around Appliqué on Brother Luminaire / Baby Lock Solaris: Scan, Fill, Erase—Without Stitching Over Your Ghost

If you have ever watched your embroidery machine quilt confidently toward an appliqué edge and felt your heart rate spike, you are not alone. The fear is real: one caught edge can ruin a layered project in seconds.

This guide effectively demystifies the "In-the-Hoop" stippling method—specifically for Brother Luminaire and Baby Lock Solaris users utilizing My Design Center (MDC) or IQ Designer.

We are moving beyond basic instructions. We will cover the tactile "feel" of proper preparation, the safety margins that prevent needle breaks, and the workflow logic that turns a terrifying process into a relaxing afternoon.

The "Mental Model" Shift: Why Design Center Feels Weird

First, stop panicking. You haven't missed a step; you are just in a different environment.

My Design Center / IQ Designer is not Embroidery Mode. Think of it as a digitizing sandbox. In Embroidery Mode, the machine simply reads a map. In Design Center, you are drawing the map.

Here is the cognitive sequence (The Protocol) required for success:

1. Scan: Let the machine "see" the physical reality of your hoop.
2. Bound: Draw a shape to define where you want stitches.
3. Fill: Pour the stipple effect into that shape.
4. Protect: Use the eraser to tell the machine exactly where not to stitch (your appliqué).
5. Refine: Adjust density statistics last.

If you violate this order—specifically, if you adjust density before erasing—the machine will confuse you by resetting your work. Stick to the protocol.

Phase 1: The "Hidden" Prep (Where Success is Actually Determination)

Before you touch the LCD screen, you win or lose this battle at the ironing board.

The goal is absolute flatness. If your appliqué edge lifts even 1mm, the embroidery foot can slide under it, causing a collision that ruins the fabric or snaps the needle.

The "Fused Unit" Technique

Becky, our reference expert, uses a specific sandwich method to ensure safety:

1. Backing: She applies Fusible Fleece to the back of the block.
2. The Press: She presses firmly.
   • Sensory Check: When you run your fingernail over the appliqué edge, it should feel seamless, like a single piece of fabric. If you can flick the edge up, stop. Press it again.
3. Protection: She uses Parchment Paper (a hidden consumable hero) between the iron and the project to protect the delicate fusible web from scorching or sticking to the soleplate.

Warning: Physical Safety
Never attempt to hold down a lifting fabric edge with your fingers while the machine is running. 1,000 stitches per minute (SPM) means the needle moves faster than your reflexes. If an edge lifts, STOP the machine immediately, remove the hoop, and re-press or tape it down.

Pre-Flight Checklist: Preparation

• Bond Check: Run a finger over all appliqué edges; zero lift is permitted.
• Consumables: Parchment paper used? (Protects iron/fabric).
• Sizing: Is the Fusible Fleece cut larger than the block? (Ensures hoop grip).
• Thread: Bobbin thread checked? (Standard 60wt or 90wt pre-wound is recommended).
• Needle: Is the needle fresh? (A burred needle can snag fusible fleece).

Phase 2: The "Bridge" Hooping Technique

We often face a geometry problem: The quilt block is small, but the 10 5/8" x 16" hoop is massive. If you only hoop the center, the fabric is loose. Loose fabric equals distortion.

Becky uses a "Poly Mesh Extension Bridge."

1. The Gap: Place the block on the fusible fleece.
2. The Bridge: Where the block fails to reach the hoop edge, overlap a strip of Poly Mesh Stabilizer (No-Show Mesh).
3. The Grip: Hoop the entire sandwich. The hoop clamps the poly mesh, which pulls the block tight.
   • Tactile Check: When hooped, tap the center of the block. It should sound like a dull drum—taut, with no ripples.

If you struggle with this physical alignment—perhaps you have wrist pain or find standard hoops difficult to snap shut on thick fleece—this is a "Trigger Point" for upgrading your tools. Many production environments utilize a hoop master embroidery hooping station to ensure every block is centered identically without physical strain. This ensures repeatable accuracy for multi-block quilts.

Decision Tree: Fabric vs. Stabilizer Protocol

Use this logic to determine your sandwich stack.

Phase 3: The Digital Workflow (My Design Center)

Step 1: Scanning & The "Reality Check"

Select My Design Center. Choose your frame size. Press Scan.

• The Contrast Fix: If your scanned fabric looks washed out on screen, find the "scan background" settings (usually a slider) and darken the image until the appliqué edges are crisp.
• Expert Note: If the scan shows the fabric is crooked, do not rely on software rotation. Re-hoop it. Good input equals good output.


Step 2: The Red Square (Defining the Zone)

Use the Shapes Tool to draw a square (or rectangle) over the quilt block.

• Safety Margin: Ensure the red line is inside your fabric edges but outside the appliqué area. This line is the electric fence for your stippling.


Step 3: Flood Fill & Erosion

1. Select the Stippling Pattern.
   • Tip: Choose the "Single Run" stipple. Avoid "Run Pitch" or triple stitches for quilting—they are too heavy.
2. Use the Paint Bucket to fill the red square. It will look messy and cover your appliqué. Do not panic.

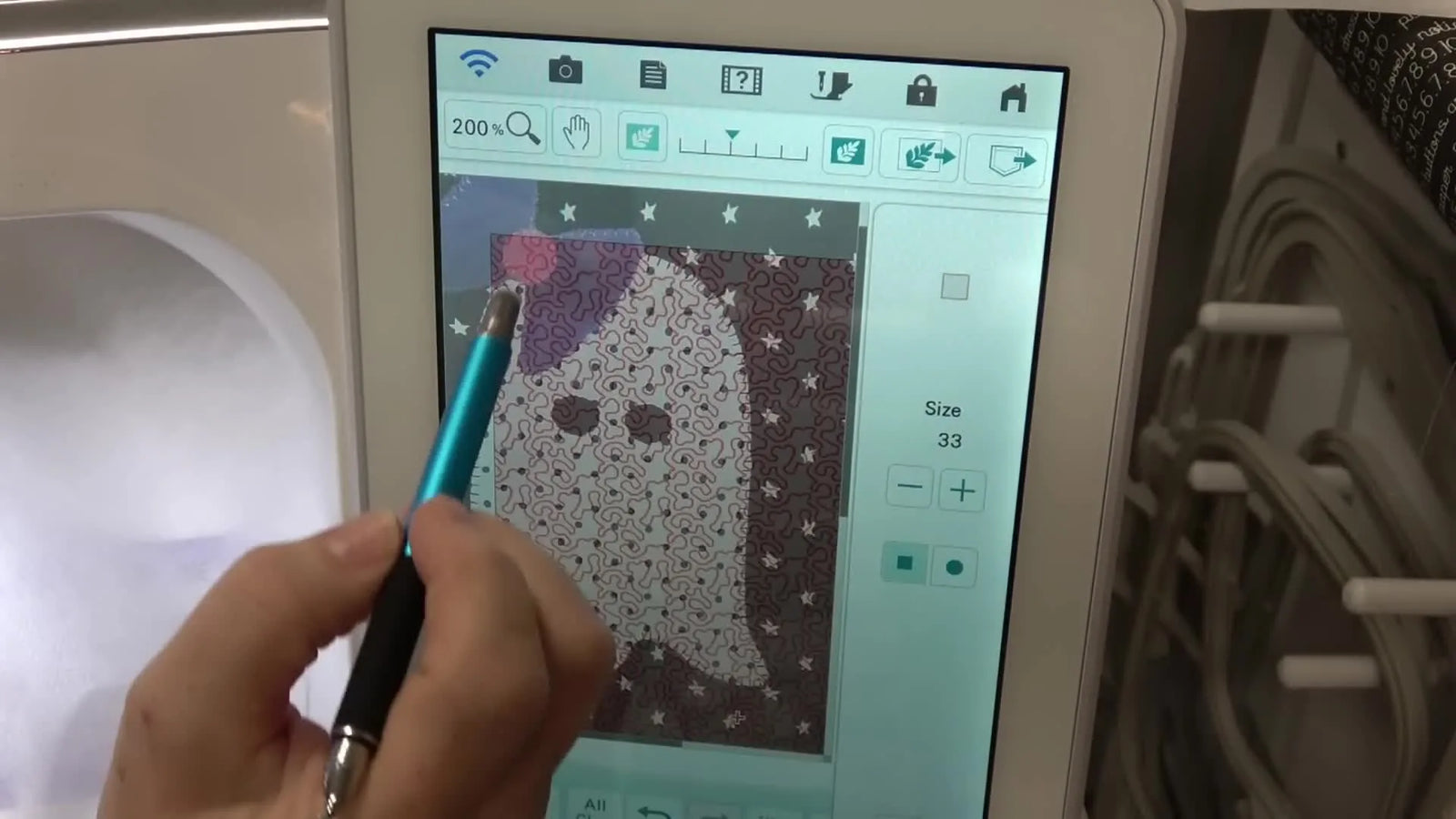

3. Select the Eraser Tool.
   • Zoom In: Go to 200% or 400%.
   • The Process: Erase the stippling stitches off the "ghost" image of your appliqué. Use a large square brush for the middle and a fine round brush for the edges.

Crucial Workflow Tip: Save your design to the machine's memory before you start erasing. If you accidentally erase too much, hitting "Undo" sometimes lags. Reloading the save file is safer.

For users tired of the "hoop drift" that ruins scanning accuracy, many professionals upgrade to magnetic hoops for brother luminaire. These frames hold thick quilt sandwiches firmly without the physical distortion of inner-ring friction, ensuring your visible scan matches the embroidery field perfectly.

Step 4: The Density "Sweet Spot"

Only after erasing do we adjust the stipple settings.

• Becky's Value: Spacing/Size at 0.600.
• The Industry Range:
  • 0.300 - 0.400: Very dense, creates a stiff "patch." Good for artistic texture, bad for soft quilts.
  • 0.500 - 0.700: The Goldilocks Zone. Soft hand feel, good washability.
  • 0.800+: Very loose. Be careful; large loops can snag on zippers or jewelry in the wash.


Setup Checklist: Digital Configuration

• Frame: Is the correct frame size selected in software?
• Boundary: Does the red shape stay safely inside the fabric raw edges?
• Clearance: Zoom to 400%: Is there a clear gap between the stipple lines and the appliqué satin stitch?
• Sizing: Is Stipple Density set between 0.500 and 0.700? (Becky uses 0.600).
• Save: Is the file saved to memory?

Phase 4: The Stitch Out Solution

The Cleanup

Before stitching, navigate to settings and Delete the Background Image.

• Why: Stitching over a faint background image on the screen is confusing. You need to see only the black stitch lines to spot potential errors.


The "Double Run" Trap

When you convert to Embroidery Mode, the machine often generates two color stops:

1. The Stipple Fill (The wiggly lines).
2. The Boundary Outline (A heavy satin or running stitch around the square).

You must skip the outline. We only want the texture, not a boxy border.

• Action: In the color change screen, identify the heavy border step and skip it, or deselect it in the generation phase if your software version allows.






Operation Checklist: The Active Stitch

• Sound Check: Listen for a rhythmic "thump-thump." A sharp "clack" means the needle is hitting something hard (hoop or foot).
• Visual Check: Watch the Bobbin thread. If white bobbin thread appears on top, your top tension is too tight or the sandwich is too thick.
• Border Watch: Ensure the machine is NOT stitching the heavy perimeter outline.

Phase 5: Re-Hooping & Troubleshooting

Quilting is rarely one-and-done. You will likely need to re-hoop to cover the next section.

The "Overlap" Secret: Do not try to lineup the new stipple square exactly edge-to-edge with the old one. You will fail, and there will be a visible gap.

• Solution: Overlap the new stipple zone slightly (1/4 inch) onto the previous stitching. The chaotic nature of stippling hides the overlap, creating a seamless look.

The Upgrade Path: Solving Physical Pain Points

If you are quilting a single Halloween tote, the standard hoops are fine. However, if you are moving into production (e.g., 50 quilt blocks or heavy winter jackets), standard tools often become the bottleneck.

Here is a symptom-based guide to upgrading your workflow:

1. Symptom: Hoop Burn & Wrist Pain.
   • Diagnosis: Traditional inner/outer rings require immense force to clamp thick fusible fleece, often leaving permanent “burn” marks on delicate fabrics or causing Carpal Tunnel strain.
   • Solution: magnetic embroidery hoops for babylock (or Brother equivalents). These use vertical magnetic force rather than friction. They clamp instantly, leave zero marks, and handle varying thicknesses automatically.
   • Impact: Reduces hooping time by ~40%.
2. Symptom: Scan Alignment Drift.
   • Diagnosis: Fabric shifts slightly after scanning because it wasn't clamped securely.
   • Solution: magnetic embroidery hoops for brother. The strong magnetic grip prevents the "waves" in fabric that confuse the camera scanner.
3. Symptom: Production Volume.
   • Diagnosis: A single-needle machine requires manual thread changes and is slow on fills.
   • Solution: SEWTECH Multi-Needle Setup. Moving to a multi-needle machine allows for faster speeds (1000 SPM+) and vastly superior suspension systems for heavy quilt blocks.

Warning: Magnetic Safety
Modern magnetic hoops use high-grade Neodymium magnets. They are incredibly strong.
* Pinch Hazard: Keep fingers clear when snapping frames together.
* Medical Device Safety: Keep magnets at least 6 inches away from pacemakers or insulin pumps.
* Electronics: Store away from credit cards and hard drives.

Final Thoughts: The Learning Curve

Your first attempt will not be perfect. That is acceptable.

Target for Attempt #1: The needle does not break, and the stitches do not hit the appliqué. Target for Attempt #10: Seamless overlaps and perfectly centered borders.

Treat the machine like a partner, not a printer. Listen to it, prep your materials with care, and use the right tools to protect your body and your fabric. Once you master the Scan-Fill-Erase workflow, you unlock the ability to turn any simple block into a custom-quilted masterpiece.

FAQ

• Q: In Brother Luminaire My Design Center or Baby Lock Solaris IQ Designer, why does the stippling area reset or change after adjusting density settings?
  A: Adjust stipple density only after erasing around the appliqué, because changing density too early can cause the system to overwrite or reset your edits.
  • Follow the order: Scan → draw the boundary shape → flood fill stipple → erase the appliqué area → adjust density last.
  • Save the design to the machine’s memory before starting the erasing step.
  • Re-load the saved file if Undo lags or you accidentally erase too much.
  • Success check: After changing density, the erased “no-stitch” area around the appliqué stays clean and does not refill.
  • If it still fails: Start a fresh scan and repeat the protocol without changing density until all erasing is finished.
• Q: In Brother Luminaire My Design Center or Baby Lock Solaris IQ Designer, how do I prevent the embroidery foot from catching a lifted appliqué edge during in-the-hoop stippling?
  A: Make the appliqué a fully fused, perfectly flat “unit” before stitching—zero edge lift is allowed.
  • Press the block firmly after applying fusible fleece, then re-press any edge that can be flicked up.
  • Use parchment paper between the iron and the project to protect fusible materials from scorching or sticking.
  • Stop the machine immediately if an edge lifts; remove the hoop and re-press or secure the edge before continuing.
  • Success check: Run a fingernail across the appliqué edge and it feels seamless, like one fabric layer (no catching, no lift).
  • If it still fails: Re-check that the needle is fresh, because a burred needle can snag fusible fleece and start lifting edges.
• Q: For the Brother Luminaire 10 5/8" x 16" hoop, how do I keep a small quilt block tight in the hoop without distortion using the Poly Mesh “extension bridge” method?
  A: Extend the hooping area with Poly Mesh stabilizer so the hoop clamps the mesh and pulls the small block taut.
  • Lay the quilt block onto the fusible fleece base.
  • Overlap Poly Mesh (No-Show Mesh) strips where the block does not reach the hoop edge.
  • Hoop the entire sandwich so the hoop grips the Poly Mesh and tensions the block evenly.
  • Success check: Tap the center of the hooped block— it should feel taut and sound like a dull drum (no ripples).
  • If it still fails: Re-hoop rather than trying to “fix” looseness on-screen, because loose fabric causes scan drift and stitch distortion.
• Q: In Brother Luminaire My Design Center or Baby Lock Solaris IQ Designer scanning, what should I do if the scanned fabric looks washed out or the appliqué edges are not crisp?
  A: Adjust the scan background/contrast so the appliqué edges appear clearly before drawing the boundary and erasing stitches.
  • Darken the scan background (use the scan background setting/slider) until edges are easy to see.
  • Re-hoop if the fabric appears crooked in the scan instead of relying on software rotation.
  • Zoom in (200%–400%) during erasing so the stipple is removed accurately off the appliqué.
  • Success check: The scanned image shows crisp appliqué edges, and the erased zone matches the appliqué outline without guessing.
  • If it still fails: Re-check hoop tension and sandwich stability, because fabric shifting after scanning is a common cause of mismatch.
• Q: In Brother Luminaire My Design Center or Baby Lock Solaris IQ Designer, why does the machine create a second “boundary outline” color stop after generating stippling, and how do I prevent stitching a box border?
  A: Skip the generated boundary outline step, because in-the-hoop stippling usually needs only the texture fill, not a perimeter box.
  • Identify the two steps in Embroidery Mode: the stipple fill and the heavy boundary outline.
  • Skip the heavy outline at the color-change screen (or deselect it during generation if your version allows).
  • Delete the background image before stitching so only stitch lines are visible and easier to verify.
  • Success check: The stitch-out shows only the stipple texture with no square/rectangle border around the block.
  • If it still fails: Stop and re-check the active color stop before resuming, because the outline can look deceptively “normal” until it starts forming a frame.
• Q: During Brother Luminaire or Baby Lock Solaris stippling stitch-out, what does white bobbin thread showing on top mean, and what is the safest first adjustment?
  A: White bobbin thread on top usually indicates top tension is too tight or the sandwich is too thick for the current setup.
  • Pause and inspect the thread path and the sandwich thickness before continuing.
  • Re-check bobbin thread choice (standard 60wt or 90wt pre-wound is commonly used in this workflow).
  • Listen while stitching: a sharp “clack” can signal a hard strike (hoop/foot contact) and needs an immediate stop.
  • Success check: The top thread covers the stitch line cleanly, with bobbin thread staying mostly on the underside.
  • If it still fails: Re-hoop to improve flatness and stability, because uneven thickness can exaggerate tension symptoms.
• Q: What needle-related safety rule should Brother Luminaire and Baby Lock Solaris users follow when an appliqué edge lifts during in-the-hoop stippling?
  A: Never hold down a lifting edge with fingers—stop the machine immediately and fix the fabric with the hoop removed.
  • Press Stop as soon as lifting is seen; do not try to “guide” fabric near the needle.
  • Remove the hoop and re-press the edge flat (or secure it) before restarting.
  • Replace the needle if it is not fresh, because a damaged needle can snag and worsen lifting.
  • Success check: The embroidery foot clears the appliqué area without catching, and stitching continues smoothly without sudden impact sounds.
  • If it still fails: Re-do the prep to achieve absolute flatness, because even ~1 mm of lift can cause a foot/edge collision.
• Q: What are the key magnetic hoop safety precautions when using magnetic embroidery hoops for Brother Luminaire or Baby Lock Solaris on thick quilt sandwiches?
  A: Treat magnetic hoops as high-force tools: protect fingers, keep magnets away from medical devices, and store them away from sensitive items.
  • Keep fingers clear when snapping the magnetic frame together to avoid pinch injuries.
  • Keep magnets at least 6 inches away from pacemakers or insulin pumps.
  • Store magnets away from credit cards and hard drives.
  • Success check: The hoop closes securely without forcing, and the fabric remains firmly clamped without shifting after scanning.
  • If it still fails: Use the Poly Mesh “bridge” hooping method or re-evaluate the sandwich thickness and hooping approach for better stability.
