Stipple Around Appliqué on a Brother Luminaire (My Design Center): Clean “No Sew” Boundaries, Zero Fill Leaks, and a Stitch-Out You’ll Actually Love

If you’ve ever stared at a quilt block and thought, “I want that soft stipple texture everywhere… except on my appliqué,” you are standing at the threshold of intermediate machine embroidery. The good news: on a Brother Luminaire, My Design Center (MDC) allows you to perform this "negative space quilting" beautifully. The bad news: one microscopic gap in your drawn boundary acts like a hole in a dam, turning your specific bucket fill into a full-screen flood of stitches.

As a seasoned embroiderer, I can tell you that machine quilting is a game of physics and geometry. I’m going to walk you through the exact workflow—scanning, drawing “No Sew” containment fences, troubleshooting microscopic leaks, and dialing in stippling density—plus the real-world sensory habits that prevent you from ruining a quilt sandwich you’ve already spent hours piecing.

The Calm-Down Moment: Your Brother Luminaire “Bucket Fill Flood” Isn’t a Disaster—It’s Just a Gap

First, let's address the panic. When you tap the bucket fill icon and the stippling preview suddenly devours the entire screen (covering your appliqué and the background), it feels like the machine is malfunctioning. It is not.

In the language of vector graphics, which MDC uses, the "flood" is a simple binary message: "This shape is not a closed loop."

Think of this technique as building a corral. You are constructing two fences:

1. The Outer Fence: Keeps the animals (stitches) inside the quilt block.
2. The Inner Fence: Keeps the animals out of your precious appliqué (the "Yard").

If there is a gap the size of a pixel in either fence, the animals escape. If you are working with a thick quilt sandwich in a brother luminaire magnetic hoop, you are already winning half the battle. Why? Because the magnetic clamping force creates a "drum-skin" tension that prevents the fabric from rippling, which causes the scanned image to match reality perfectly.

The “Hidden” Prep Before You Touch My Design Center: Quilt Sandwich + Bobbin Thread + Screen Setup

Beginners rush to the screen; experts focus on the physical setup. If your physical foundation—the "Quilt Sandwich"—is unstable, no amount of digital drawing will save the project.

The Physics of the Quilt Sandwich

Quilting puts immense stress on fabric because you are binding three layers (top, batting, backing) that all want to move at different rates.

• The Video Workflow: The user hoops the block (using a magnetic hoop) and immediately scans it.
• The Expert Adjustment: Before you scan, you must ensure the layers are married. If they aren't, the top layer will "creep" under the presser foot efficiently, distorting your block by the time you reach the final corner.

Warning: Mechanical Safety. Keep fingers, loose sleeves, and magnetic tools away from the needle area during the stippling stitch-out. Stippling involves rapid, multi-directional movement (often 600-800 stitches per minute). If you reach in to smooth a wrinkle while it’s moving, the carriage can trap your hand or the needle can puncture bone.

Prep Checklist (Do this OR Fail)

• Hoop Tension Check: Drum-skin tight. If using a standard hoop, tighten the screw, pull gently, then tighten again. If using a magnetic hoop, listen for the solid snap of the magnets engaging fully.
• Hidden Consumable Check: Do you have curved embroidery scissors and a fresh topstitching needle (Size 90/14)? Quilting dulls needles fast; a burred needle will snag your batting.
• Bobbin Capacity: Crucial. Is your bobbin at least 80% full? running out of bobbin thread in the middle of a stipple field leaves a visible "tie-off" knot that is hard to hide.
• Ergonomics: Move your chair. You need to sit directly fast-on to the screen to draw accurately.
• Stylus Condition: Is the tip clean? A gritty stylus tip drags on the screen, creating jerky lines.

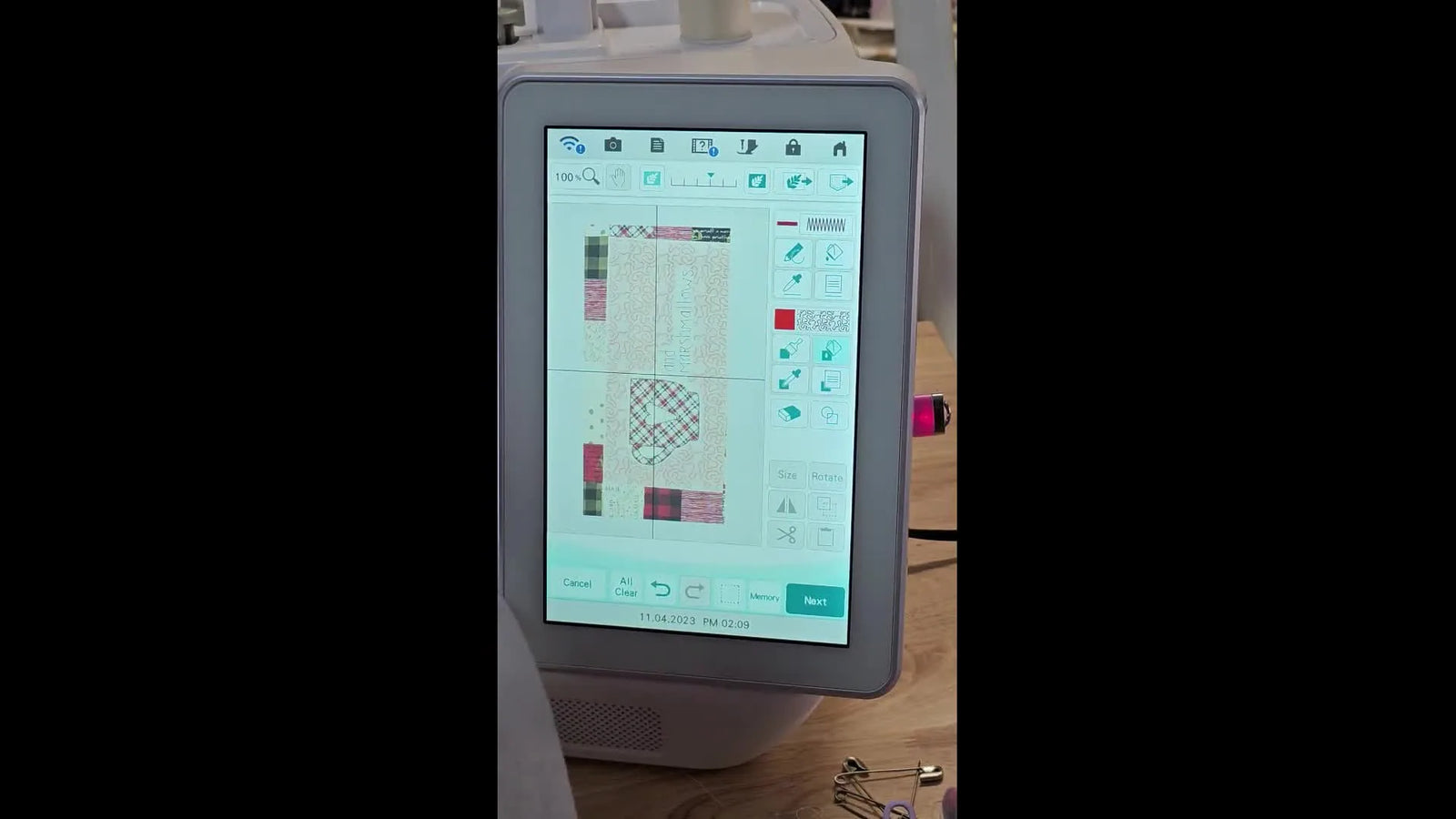

Image Scan in Brother Luminaire My Design Center: Capture the Real Fabric So Your Lines Land Where You Think They Will

On the Luminaire, we don't guess; we map.

1. Navigate to My Design Center.
2. Select Image Scan (distinguish this from "Background Scan"—Image Scan gives you the visual backdrop).
3. The Sensory Check: Watch the hoop move. It should move smoothly without jerking. If you hear a "grinding" sound, your hoop might be hitting a wall or an object on the table. Clear the deck!

The machine captures a high-resolution image of your specific fabric in the hoop. The video demonstrates darkening the scan background. Do not skip this. By dimming the background image, your bright red drawing lines stand out clearly, reducing eye strain and improving accuracy.

The “No Sew” Line Property Trick: Draw Boundaries That Contain Stippling Without Stitching a Satin Border

This is the intellectual core of the method. You are drawing invisible barriers.

• In the Line Property menu, you must select the icon that looks like a Ghost or Empty Border. This is the "No Sew" setting.

The "Why" behind the "What": If you leave the line property as a Running Stitch or Satin Stitch, two things happen:

1. The machine calculates the fill.
2. The machine also stitches a heavy outline around your stippling.

This often looks messy and makes the quilt block stiff. "No Sew" tells the processor: "Use this line for calculation only, then discard it."

Draw the Outer Boundary on the Scanned Quilt Block: Your Stippling Fence Near the Edge

You need to tell the machine where the world ends. In the video, the outer boundary is drawn just inside the raw edge of the quilt block to account for the eventual seam allowance (usually 1/4 inch).

The Action Plan

1. Select the Freehand Drawing Tool.
2. With No Sew active, draw a perimeter line inside your block's edge.
3. The Expert Nuance: Do not try to draw the whole box in one continuous breath. Draw a side, stop, rotate your view (virtually), and continue. But—and this is critical—ensure the new line crosses over the end of the previous line. Overlap is safety.

Many professionals investigating magnetic hoops for brother luminaire do so specifically for this step. When you use a screw hoop, the fabric often bows in the corners ("trampolining"). When you draw a straight line on a bowed surface, it becomes curved when the fabric relaxes. Magnetic hoops keep the sandwich perfectly flat, so the line you draw is the line you stitch.

The Leak Hunt: Fix “My Design Center Bucket Fill Leaking” by Zooming to 400% and Closing Micro-Gaps

You tap the bucket. The screen floods. Don't panic. You are now a Leak Hunter.

Symptom analysis

• Symptom: Red stippling covers the entire screen instead of just the border.
• Diagnosis: Your "No Sew" fence has a hole.
• The Physics: Even a 1mm gap allows the algorithm to "spill" pixels outward.

The 400% Solution (The Surgeon's Approach)

1. Undo the flood.
2. Zoom the screen to 400% (Maximum).
3. Pan along your drawn line (use the navigation window).
4. Visual Check: Look for "white space" between your line segments.
5. The Fix: Use the stylus to draw a tiny "bridge" across the gap. It doesn't need to be pretty; it just needs to seal the breach.

Pro-Tip: The most common leak points are the corners where you started and stopped drawing. Check those first.

Trace the Inner Boundary Around the Appliqué: Protect the Coffee Mug So Stippling Never Crosses It

Now, protect the artwork. You will draw a second "No Sew" barrier around your central design (the coffee mug).

Sensory Drawing Technique

• Anchor your hand: Do not float your hand in the air. Rest your pinky finger gently on the plastic bezel of the screen (not the touch area) to stabilize your muscles.
• The Buffer Zone: Do not trace exactly on the edge of the appliqué. Leave a 1mm to 2mm "breathing room."
  • Why? If the fabric shifts even slightly during stitching, a tight line might result in the needle piercing your appliqué fabric. A tiny buffer zone is your safety margin.

This back-and-forth between zooming, panning, and drawing is where the ergonomics of your setup matter. If you are doing a production run of 20 blocks, this is the bottleneck.

Bucket Fill Stippling Between Two Boundaries: The Tap That Makes It All Click

This is the "Magic Trick."

1. Select the Region Property (The Fill).
2. Choose Stippling (Meandering).
3. Select the Bucket Pour Tool.
4. The Action: Tap the empty space between your Outer Fence and your Inner Fence.

Success Metric: You should see the stippling pattern appear only in the background. The mug should remain clear. The outside of the block should remain clear.

If you are researching how to use magnetic embroidery hoop for quilting, you’ll find that the stability they provide makes this "click" moment much more consistent. Standard hoops often slip as you work on the screen, causing the physical fabric to misalign with your virtual drawing.

Dial In the Look: Stippling Size 300 and Distance 0.00 for a Clean Edge Near Your Drawn Line

Now we move from "Functional" to "Aesthetic." The video suggests specific numbers. Let's validate them.

Parameter 1: Stippling Size (Run Pitch/Scale)

• Video Suggestion: 300 (.300 inches approx).
• Expert Analysis: A size of 300 is a "Goldilocks" zone—large enough to keep the quilt soft, but small enough to secure the batting.
  • Go Lower (100-200): The quilt becomes stiff and cardboard-like. Good for art quilts, bad for bed quilts.
  • Go Higher (400+): The batting may shift over time during washing.

Parameter 2: Distance (Offset)

• Video Suggestion: 0.00 (Zero offset).
• Expert Analysis: This forces the stippling to touch your drawn line exactly.
  • Risk: If your drawing was slightly sloppy, or the fabric shifted, the needle will hit your appliqué.
  • Beginner Safe Zone: I recommend setting Distance to 0.040 - 0.080. This creates a tiny "moat" around the appliqué. It looks intentional and provides a critical safety buffer against error.


Setup Checklist (Before Converting)

• Visual Logic Check: Are there exactly TWO "No Sew" lines? (Outer + Inner).
• Fill Check: Is the stippling confined strictly to the donut shape between the lines?
• Parameter Check: Size = 300 (or preferred soft density). Distance = 0.040 (Safe) or 0.00 (Pro).
• Line Property Reset: Did you leave any lines as "Satin"? Use the bucket tool to ensure all outlines are set to "No Sew" (often shown as gray/invisible).

Convert to Embroidery on Brother Luminaire: “Next → Set → Embroidery” (and the One-Way Door You Must Respect)

1. Press Next. The machine calculates the vectors into stitch data.
2. Press Set.
3. Press Embroidery.

The One-Way Door: Once you press 'Embroidery', the vector data (editable lines) is converted into stitch data (fixed coordinates). You cannot easily go back and "redraw" a line line.

• Strategy: Save the design to Memory on the MDC screen before converting. If the test stitch fails, you can reload the drawing instead of starting from zero.


Stitch-Out Reality Check: Start the Stippling and Watch for the First 60 Seconds Like a Hawk

The video creator noted she should have checked her bobbin. Don't be that person.

The First 60 Seconds: Press start and do not walk away.

• Listen: You want a rhythmic thump-thump. A sharp slap suggests the thread is catching on the spool cap. A crunch means the needle is struggling to penetrate the layers (change to a larger needle!).
• Watch: Look at the appliqué edge. Is the stippling staying in the background? If it starts "biting" the appliqué, STOP immediately.


Operation Checklist (The Flight Check)

• Bobbin Status: Confirmed full? (Yes/No)
• Sandwich Flatness: Is the fabric "bubbling" in front of the foot? (If yes, pause and smooth).
• Sound Check: Rhythmic hum = Good. Clunking/Clicking = Stop.
• Safety: Hands clear of the moving arm.

Troubleshooting the Two Most Common Pain Points: Stylus Wobble and Fill Escaping the Boundary

Let's systematize the chaos.

The Fabric-and-Backing Decision Tree: Keep Quilt Sandwiches Flat So Stippling Looks Professional

The number one reason stippling fails isn't software—it's physics. The layers move.

Decision Tree: Do I need extra Stabilizer?

1. Is your batting thick/lofty?
   • YES: The batting itself acts as a stabilizer. Ensure tight hooping. Magnetic hoops are preferred here to avoid "hoop burn" (crushing the batting).
   • NO (Thin batting): Go to Step 2.
2. Is the backing fabric slippery (e.g., Minky, Silk)?
   • YES: Use a layer of Fusible Mesh or Tear-away behind the backing to grip the feed dogs.
   • NO (Cotton): Standard hoop tension should suffice IF you use temporary spray adhesive to bond the layers.

When a Magnetic Hoop/Frame Is a Real Upgrade (Not a Gadget): Speed, Consistency, and Less Hoop Burn

The instruction mentions using a magnetic hoop. Let's clarify why this isn't just a luxury purchase; for quilting, it's a functional necessity.

• The Problem (Trigger): Traditional screw hoops require two hands and significant force to clamp a quilt sandwich. This often shifts the top layer, creating wrinkles after you’ve hooped. Furthermore, the inner ring leaves permanent "crush marks" (Hoop Burn) on delicate batting.
• The Criteria: If you are quilting more than 3 blocks, or if you value your wrists, the physics of screws work against you.
• The Solution: magnetic embroidery hoops for brother use vertical magnetic force. They snap down flat.
  • Benefit: Zero layer shifting (better alignment with your scan).
  • Benefit: No forced abrasion on the batting (no hoop burn).

Warning: Magnet Safety. Industrial-strength magnetic hoops are powerful (clamping force ~10-20kg).
1. Pinch Hazard: Never place fingers between the magnets. They snap shut faster than you can react.
2. Medical Device: Keep at least 6 inches away from pacemakers.
3. Electronics: Keep away from credit cards and hard drives.

“I Don’t Have a Luminaire”: How to Translate This Method to Other Brother Machines or External Software

If you don't own the top-tier machine, the logic remains valid for users of the Dream Machine, Stellaire, or even PC-based software like PE Design.

The workflow is universal:

1. Import Background: (Photo or Scan).
2. Define Exclusion Zones: (The Appliqué).
3. Generate Fill: (The Stipple).

If you are using a machine with less advanced scanning, the physical stability of your hoop becomes even more critical because you are relying on blind coordinates. In these cases, consistent hooping with a magnetic hoop for brother dream machine or generic magnetic hoop for brother compatible frames ensures that X/Y coordinates in software match X/Y coordinates on the fabric.

The Finish That Makes It Look Like a Pro Quilt Block: Evaluate the Stipple Field, Not Just the Appliqué

Stitching is done. How do you judge success?

• The "Halo" Effect: A consistent unwanted gap around the appliqué means your "Distance" setting was too high.
• The "Bite" Mark: Needle holes in the appliqué mean your drawing was sloppy or the fabric shifted (Solution: Stabilize better next time).
• Texture: Run your hand over the stippling. It should feel pillowy, not hard. If it's hard, your Stippling Size (300) needs to be increased for the next block.


The Upgrade Path for People Who Want This Faster: From “One Cute Block” to Repeatable Studio Workflow

If you successfully stippled one block, you have a hobby. If you need to stipple a King Size quilt (40+ blocks), you need a production line.

Here is the hierarchy of efficiency upgrades:

1. Level 1: Consumable Upgrade. Use Temporary Spray Adhesive (Odif 505) to fuse your sandwich layers. This prevents the "creeping" that ruins alignment.
2. Level 2: Tool Upgrade. Switch to a magnetic hooping station or a dedicated hooping station for embroidery. These hold the hoop perfectly square while you load the fabric, cutting hooping time by 50% and ensuring every block is centered.
3. Level 3: Machine Upgrade. If you are doing this for profit, a single-needle machine is a bottleneck because of needle/bobbin changes. SEWTECH Multi-Needle Machines offer larger hoop areas and faster speeds, allowing you to quilt massive blocks without re-hooping.

Stippling in the hoop is a superpower. It allows you to achieve "Longarm Quilting" results on a domestic machine. Respect the physics, seal your gaps, and enjoy the texture.

FAQ

• Q: Why does Brother Luminaire My Design Center bucket fill stippling flood the entire screen instead of staying inside the quilt block boundary?
  A: This is almost always a micro-gap in a “No Sew” boundary line—close the loop and the fill will stay contained.
  • Undo the fill, then zoom to 400% and pan along the entire outer boundary (check start/stop corners first).
  • Draw a tiny “bridge” line across any visible white space between segments; overlap lines on purpose.
  • Repeat the same leak hunt on the inner appliqué boundary (you need two closed loops: outer + inner).
  • Success check: after tapping the bucket tool, stippling appears only in the donut-shaped background area, not over the appliqué and not outside the block.
  • If it still fails: re-check that the boundary lines are set to “No Sew” (not Run/Satin), because stitched line types can change the result.
• Q: How do I stop Brother Luminaire My Design Center from stitching a heavy outline around stippling when I only want “negative space quilting”?
  A: Set the boundary lines to the “No Sew” (ghost/empty border) line property so the lines calculate the fill but do not stitch.
  • Open Line Property and select the icon that indicates “No Sew” before drawing the outer and inner boundaries.
  • Use the bucket tool on the lines (not the region) to confirm all outlines are set to “No Sew” (often displayed as gray/ghosted).
  • Verify there are exactly two “No Sew” boundaries: one near the block edge and one around the appliqué.
  • Success check: the preview shows stippling only, with no visible running/satin border path scheduled to stitch.
  • If it still fails: return to MDC before converting and re-check any line segments that were accidentally left as Run or Satin.
• Q: What are the best Brother Luminaire My Design Center stippling settings to avoid the needle biting into appliqué when using bucket fill?
  A: Use stippling Size 300 as a solid baseline, and use a small Distance offset (0.040–0.080) as a safer starting point than 0.00.
  • Set Stippling Size to 300 for a balanced texture (soft but still secures batting).
  • Set Distance to 0.040–0.080 if protection is the priority; use 0.00 only if boundaries are extremely clean and fabric is stable.
  • Leave a 1–2 mm “breathing room” when drawing the inner boundary around the appliqué.
  • Success check: during the first minute of stitching, the stippling stays in the background and does not pierce the appliqué edge.
  • If it still fails: improve fabric stability (bond layers with temporary spray adhesive) and redraw the inner boundary with a slightly larger buffer.
• Q: What physical prep checks prevent puckering and misalignment when scanning a quilt sandwich in Brother Luminaire My Design Center?
  A: Stabilize the quilt sandwich before scanning—tight, even hooping and bonded layers matter more than perfect screen drawing.
  • Hoop the quilt sandwich drum-skin tight; if using a magnetic hoop, confirm a solid snap so the clamp is fully engaged.
  • Check the bobbin is at least ~80% full to avoid a mid-field run-out and visible tie-off in stippling.
  • Install a fresh topstitch needle (Size 90/14) and keep curved embroidery scissors ready for clean trimming.
  • Darken/dim the scanned background image so your drawing lines are easy to see and place accurately.
  • Success check: the hooped fabric feels evenly tight, looks flat (no bubbling), and the scan matches the real block edges and appliqué position.
  • If it still fails: bond layers with temporary spray adhesive between layers to reduce “creeping” under the foot.
• Q: What safety rules should be followed during Brother Luminaire stippling stitch-out on a thick quilt sandwich?
  A: Keep hands and tools completely clear once stippling starts—stippling moves fast in multiple directions and can trap fingers or cause needle injury.
  • Start the stitch-out and watch the first 60 seconds without reaching into the hoop area.
  • Listen for a steady rhythmic hum; stop immediately if you hear sharp slaps, crunching, clunking, or clicking.
  • Keep loose sleeves, jewelry, and any magnetic tools away from the needle and moving carriage.
  • Success check: the machine runs smoothly with consistent sound and the stitch path stays where expected near the appliqué edge.
  • If it still fails: stop the machine and correct the cause (thread catching, needle struggling through layers, or fabric shifting) before restarting.
• Q: What magnet safety rules apply when using an industrial-strength magnetic embroidery hoop for Brother quilting projects?
  A: Treat magnetic hoops as pinch-hazard tools and keep them away from sensitive devices.
  • Never place fingers between magnets when closing; magnets can snap shut faster than reaction time.
  • Keep magnetic hoops at least 6 inches away from pacemakers and similar medical devices.
  • Keep magnets away from credit cards and hard drives to prevent damage.
  • Success check: magnets close with a controlled snap while hands stay outside the clamp zone and the hoop seats flat without shifting layers.
  • If it still fails: reposition fabric and re-close magnets carefully—do not force a misaligned clamp.
• Q: What is the fastest upgrade path to make Brother Luminaire My Design Center stippling on multiple quilt blocks more consistent and less frustrating?
  A: Fix consistency in layers: start with bonding technique, then improve hooping stability, then consider a production-capacity machine if volume demands it.
  • Level 1 (Technique): Bond quilt layers with temporary spray adhesive to prevent layer creep and scan-to-stitch misalignment.
  • Level 2 (Tooling): Use a magnetic hoop and/or a hooping station to reduce shifting and speed up repeatable hooping.
  • Level 3 (Capacity): If doing paid or high-volume work, a multi-needle machine can reduce bottlenecks from frequent stops and changes.
  • Success check: the scan aligns reliably, bucket fill works on the first try more often, and stitch-outs start clean without re-hooping.
  • If it still fails: focus on the specific failure mode first (boundary leaks at 400% zoom, hoop tension, or bobbin/needle readiness) before upgrading again.
