Stabilizer-Free Felties on a Melco EMT 16X: Hoop 2mm Felt Fast, Stitch Clean, Cut Like a Pro

Mastering Embroidery Felties: The Zero-Friction Guide to High-Margin Patches

If you’ve ever watched a seasoned pro pop thick felt into a frame in three seconds and thought, "My fabric would slip, wrinkle, or leave a permanent hoop burn," you are not alone. You are experiencing the "friction gap" between hobbyist hesitation and production confidence.

Felties—small, embroidered patches often used as hair bow centers, badge reels, or planner clips—look deceptively simple. However, because they are small, every error is magnified. A 1mm slip looks like a mile on a 2-inch patch.

This guide is your operational blueprint. We will move beyond "hope and pray" stitching into a realm of predictable manufacturing. We will dissect the physics of 2mm felt, the "cheat code" of magnetic hooping, and the precise cutting techniques that separate a "craft project" from a "store-bought product."

The Business Case: Why Felties Are the Perfect "low-Risk" Inventory

A feltie is essentially a standalone embroidered element. In this workflow, we are creating heart-shaped centers for hair bows. But for you, the operator, felties represent repeatability.

Unlike embroidering a customer's expensive denim jacket (high risk), a feltie costs pennies in material. If you mess up, you toss it. This lowers the Fear Factor significantly.

The "Gateway" Strategy: Many of our SEWTECH users start with felties because they solve a catalog problem. If you sell bows, you need centers. Instead of buying plastic resins, you manufacture custom embroidered centers. This creates a vertical integration in your micro-business.

• Hobbyist View: "It's a cute heart."
• Business View: "It's a high-margin, batch-able asset that uses scrap material."


Material Science: The 2mm vs. 1mm Decision

Your success is determined before you even turn on the machine. The most common point of failure for beginners is choosing the wrong felt density.

Ashley, the demonstrator in our reference workflow, compares two types:

• 1mm Craft Felt: Thin, pliable, prone to stretching.
• 2mm "Stiff" Felt: Dense, structural, board-like.

The verdict is absolute: Use 2mm Felt.

Why? In embroidery physics, Stability = Clarity.

1. Self-Stabilizing: 2mm felt is approximately 400-500gsm. It is so dense that it acts as its own stabilizer. You do not need tear-away or cut-away backing for simple designs.
2. Stitch Loft: When the needle penetrates 2mm felt, the thread sinks slightly, creating a 3D "embossed" look that feels premium to the touch.
3. Edge integrity: When you cut it later, 2mm felt creates a solid "cookie" edge. 1mm felt leaves a floppy, ragged edge.

Procurement Note: Do not buy "soft" acrylic felt squares for 30 cents. Look for "Stiff Felt" or "Hard Felt."

The Magnetic Advantage: Removing Hoop Burn and Hand Strain

The traditional method involves loosening a screw, forcing an inner ring inside an outer ring, and tugging fabric until your wrists ache. This causes Hoop Burn—permanent crushing of the felt fibers.

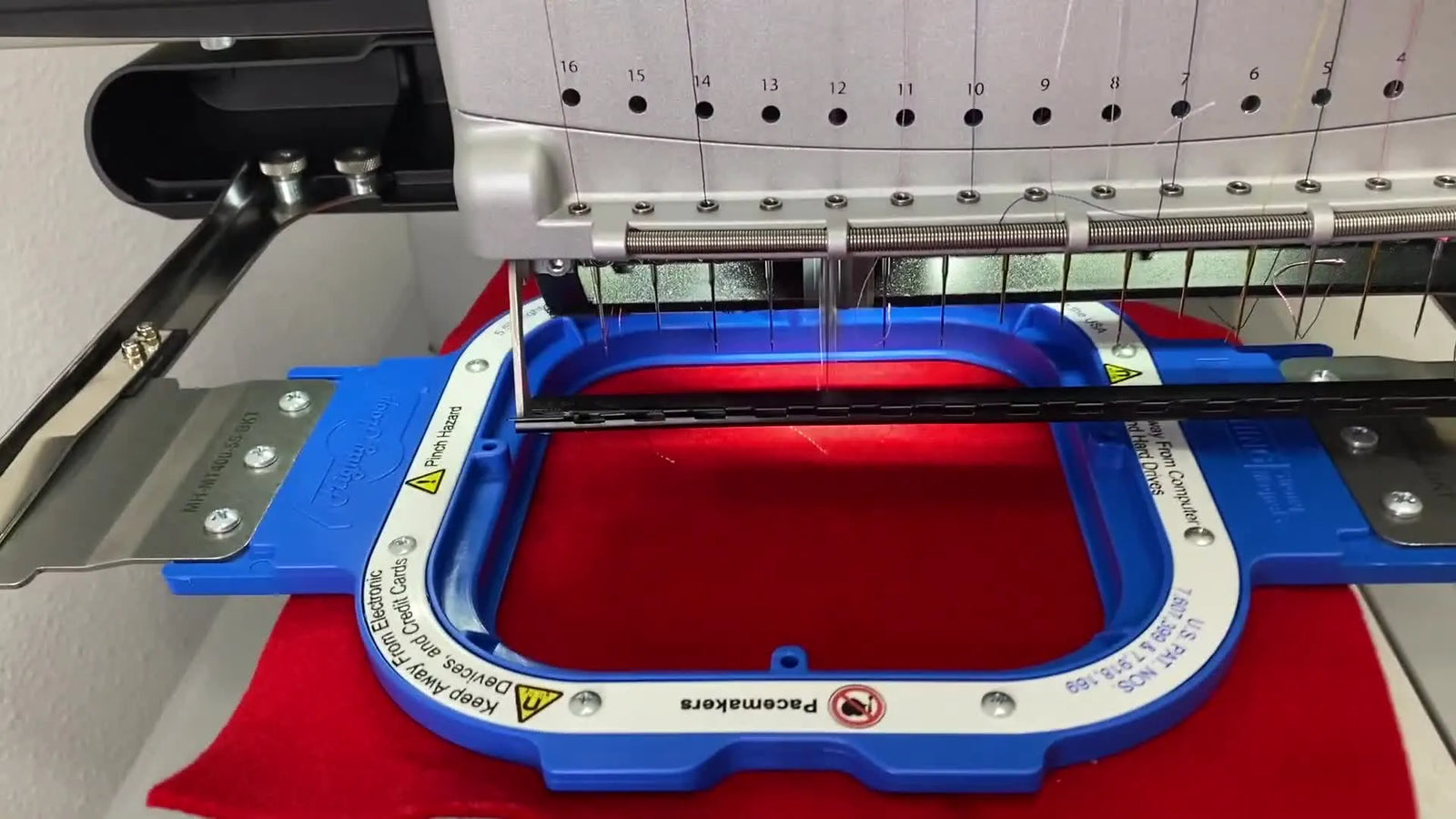

The solution shown here is the Magnetic Hoop (specifically a 5.5" Mighty Hoop, though SEWTECH offers compatible magnetic frames for various multi-needle machines).

The "Zero-Drag" Hooping Technique

1. The Base: Place the bottom metal bracket on a flat, hard table. Do not hoop in your lap.
2. The Float: Lay the 2mm felt sheet over the bracket. Smooth it with your palm. Sensory Check: It should lie dead flat.
3. The Snap: Align the top magnetic frame. Let it snap down. Auditory Check: You want to hear a solid, singular "CLACK". If it sounds like a double-tap, the magnet shifted.

By using a magnetic hoop embroidery system, you eliminate the friction that causes fabric drag. The felt is held by vertical clamping force, not horizontal tension. This guarantees the felt won't warp during stitching.

Warning: Magnet Safety
Magnetic hoops use industrial-strength Neodymium magnets.
Pinch Hazard: Keep fingers strictly on the outside* handles. Being pinched between two frames can cause severe bruising or blood blisters.
* Medical Safety: Keep frames at least 6 inches away from pacemakers or insulin pumps.
* Electronics: Do not place frames on top of laptops or near credit cards.

Expert Insight: If you feel the felt "bubbling" in the center after hooping, do not pull it taut. Lift the magnet and restricting. Pulling felt while clamped creates "trampolining," which causes registration errors later.

Prep Checklist: The Hidden Consumables

Before you start, ensure these items are within arm's reach. Searching for scissors mid-stitch breaks your flow.

• Substrate: 2mm Stiff Felt (Red).
• Needle: Size 75/11 Sharp (Ballpoints can deflect on stiff felt; Sharps pierce cleanly).
• Thread: 40wt Polyester fits standard setups.
• Adhesive (Optional): Temporary spray adhesive (like Odif 505) if you are layering fabrics (not needed for this specific single-layer project).
• The Hoop: Clean the magnetic surface. Debris reduces holding power.

Digital Layout: Batching for Profit

Ashley demonstrates putting two heart designs in one 5x5 hoop. Ideally, you want to fit as many as possible within your safety margin.

The "Air Travel" Rule: In commercial embroidery, the time spent changing hoops is "dead time."

• Amateur: 1 Feltie per hoop. (2 minutes stitch, 2 minutes hoop change).
• Pro: 4 Felties per hoop. (8 minutes stitch, 2 minutes hoop change).

If you are using a melco emt16x embroidery machine or a SEWTECH multi-needle, utilizing the full field is how you pay for the machine. Open your software, duplicate the design, and arrange them with at least 15mm clearance between them to allow for cutting.

The "Trace" Protocol: Your Insurance Policy

Never press "Start" blindly. Stiffness has a downside: if the needle hits the plastic hoop, the hoop won't bend—the needle will shatter.

The Mandatory Trace Algorithm:

1. Load Design: Orient correctly.
2. Select Needle: Ashley uses Needle 12. Ensure the path is clear.
3. Execute Trace: Watch the laser or needle bar move around the perimeter.
   • Visual Check: Is the presser foot at least 5mm away from the magnetic frame at the closest point?
4. Listen: Does the pantograph (the arm moving the hoop) make any grinding noises? If so, the hoop is hitting a limit.

Tracing is the physical confirmation of your digital plan. It prevents the dreaded "Bird's Nest" or a broken reciprocating bar.

Warning: Mechanical Safety
When the machine is tracing or stitching, keep hands at least 12 inches away from the moving hoop. A 1000 stitch-per-minute (SPM) machine moves faster than your reflex. If a needle breaks, fragments can fly at eye level—always wear safety glasses when operating industrial equipment.

Setup Checklist: Pre-Flight

• Bobbin check: Is there enough thread for the full batch?
• Needle check: Is the tip sharp? Run your fingernail down the tip; if it catches, change it.
• Clearance: Did the trace pass with >5mm safety margin?
• Speed: Set machine to 600-800 SPM. (Thick felt creates friction; running at 1000+ SPM can cause thread shredding due to needle heat).

Stitching: The "Boring" Part (That Should Be Boring)

Ashley runs a single-color white heart.

• The Sound of Success: You should hear a rhythmic thump-thump-thump.
• The Sound of Trouble: A sharp slap (thread too loose) or a grinding noise (needle dragging).

Because we are using 2mm felt and a hooping for embroidery machine technique that prioritizes stability, the stitch registration should be perfect. The border will line up with the fill.

If you see gaps between the outline and the center fill, your felt is shifting. Solution: Add a layer of sticky stabilizer or check your magnet grip.

Post-Stich Inspection: Reading the Back

Ashley flips the hoop. The back looks messy? The "Glued Surface" Exemption: For felties, the back will be glued to a hair bow clip. You do not need "pretty backs." You need "secure backs."

• Visual Check: Ensure there are no massive loops (bird nests) that would create a lump. Small tails are acceptable.
• Tactile Check: Run your finger over the back. It should feel relatively flat. If it feels like a pebble, you have a tension knot that will prevent the glue from setting flat.


The Art of the Cut: The 2-Stage Process

This is where the product is truly "made." A bad cut ruins a perfect stitch.

Tool: Use 4-inch double-curved embroidery scissors or Kai serrated scissors. Do not use bulky kitchen shears.

Step 1: The Rough Cut Slice the felt sheet to liberate the individual designs. Do not try to precision cut while the sheet is whole—it's too much bulk to manage.

Step 2: The Precision Glide

• The Grip: Hold the feltie in your left hand (if right-handed). Move the feltie, not the scissors.
• The Margin: Leave exactly 2mm to 3mm of felt around the stitching.
  • Too close (<1mm): You risk snipping the tie-off knots, causing the embroidery to unravel.
  • Too wide (>5mm): It looks amateur and bulky.
• The Flow: Cut in long, smooth motions. jagged "steps" in the felt edge catch light and look cheap.

Pro Tip: If you have sharp "pokey parts" (corners), round them off gently. Sharp corners on felt wear down quickly and look fuzzy; rounded corners stay neat.

Many professional shops create a dedicated magnetic hooping station where one person hoops and stitches, while another sits at a table just for cutting.

Operation Checklist: Quality Control

• Front Density: No felt color showing through the embroidery fill.
• Border Alignment: The satin stitch sits exactly on the edge of the fill.
• Edge Cut: Smooth, continuous 2-3mm felt margin. No "stair-step" cuts.
• Residue: No glue strings or loose thread tails visible.

Decision Tree: The Felt/Stabilizer Matrix

Use this logic flow to determine your setup. Do not guess.

Troubleshooting: The "Quick Fix" Protocol

The Logical Path to Tool Upgrades

You have mastered the feltie. Now, how do you scale?

When you reach the point where you are spending more time fighting the machine than creating products, it is time to upgrade.

1. The Agony of Hooping: If your wrists hurt or you are rejecting 20% of your items due to hoop burn, the data points to a Magnetic Hoop upgrade. This is the highest ROI tool for felties.
2. The Agony of Thread Changes: If you are making multi-color felties (e.g., a rainbow unicorn) on a single-needle machine, you are acting as the "color changer." A SEWTECH Multi-Needle Machine automates this, allowing you to walk away while the machine runs 12 colors for you.
3. The Agony of Volume: If you need to make 100 felties for a school fundraiser, a single needle setup is not viable. Commercial machines allow for larger hoops, meaning you can stitch 12 felties in one run instead of 2.

Start with the felt. Master the magnet. Then, let the volume dictate your machine. Happy stitching.

FAQ

• Q: For embroidery felties on 2mm stiff felt, do I need tear-away or cut-away stabilizer on a SEWTECH multi-needle embroidery machine?
  A: Usually no—2mm stiff felt can be hooped and stitched without backing for simple feltie designs.
  • Choose 2mm “stiff/hard” felt (not soft craft felt) before changing any other setting.
  • Hoop the felt flat and avoid pulling it tight while clamped.
  • Run a trace to confirm the design stays safely inside the hoop area.
  • Success check: The felt stays flat after hooping and the stitch-out shows clean edges without shifting.
  • If it still fails… Add a sticky stabilizer layer or re-check hoop grip if outlines and fills start separating.
• Q: How do I hoop 2mm stiff felt in a magnetic embroidery hoop without hoop burn or felt “bubbling”?
  A: Use a flat-table “float and snap” method—do not tension felt like fabric.
  • Place the bottom bracket on a hard, flat table (not on your lap).
  • Lay the felt sheet on top and smooth it with your palm before clamping.
  • Drop the top frame straight down and let the magnets seat fully.
  • Success check: The felt lies dead flat and the clamp seats with one solid “clack,” not a double-tap sound.
  • If it still fails… Lift the frame and re-seat it; do not pull on the felt while it is clamped (that can cause “trampolining” and registration issues).
• Q: What is the mandatory “trace” check before stitching felties in a magnetic hoop on a SEWTECH embroidery machine to prevent needle strikes?
  A: Always run a trace and confirm at least 5mm clearance from the magnetic frame at the closest point.
  • Load the design and confirm the orientation matches the hoop placement.
  • Run the machine’s trace function and watch the perimeter movement closely.
  • Listen for grinding or limit-contact noises during trace.
  • Success check: The presser foot stays at least 5mm away from the frame throughout the trace with no contact sounds.
  • If it still fails… Reposition the design in software (more margin) or reduce the number of designs in the hoop field.
• Q: What needle, thread, and speed are a safe starting point for stitching felties on 2mm stiff felt to avoid thread shredding?
  A: Start with a 75/11 Sharp needle, 40wt polyester thread, and 600–800 SPM to reduce heat and friction.
  • Install a fresh 75/11 Sharp (avoid ballpoint on stiff felt because it can deflect).
  • Set speed to 600–800 SPM for thick felt (faster speeds can build needle heat).
  • Switch to an 80/12 needle if thread shredding continues.
  • Success check: Stitching sounds rhythmic and steady, and thread does not fuzz/shred at the needle.
  • If it still fails… Slow further and replace the needle again; needle wear is a common cause on dense materials.
• Q: On felties, how should the back of the embroidery look, and what is an unacceptable “bird nest” on the underside?
  A: A slightly messy back is normal for felties, but large loops or hard knots that create bumps are not acceptable.
  • Flip the hoop and visually scan for big loops or tangled masses.
  • Feel the back surface with a fingertip to detect raised knots that will telegraph through glue.
  • Trim obvious long tails if they will interfere with gluing.
  • Success check: The back feels relatively flat (no “pebble-like” lump) and has no large looping nests.
  • If it still fails… Stop and correct thread path/tension before continuing the batch; continuing will multiply rejects.
• Q: Why do feltie outlines and fills separate by 1mm (gap between outline & fill) when stitching, and what is the fastest fix?
  A: The felt is shifting—fix hoop grip first and upgrade material to 2mm stiff felt if using 1mm.
  • Check that the hoop is fully seated and the magnetic surfaces are clean (debris reduces holding power).
  • Switch from 1mm soft felt to 2mm stiff felt to reduce stretch and distortion.
  • Add sticky stabilizer if the design is still creeping during stitch-out.
  • Success check: The border lands exactly on the fill edge with no visible offset.
  • If it still fails… Re-hoop using the flat-table method and reduce pulling/tensioning during clamping.
• Q: What safety rules prevent finger injuries and machine accidents when using magnetic embroidery hoops and high-speed stitching on a SEWTECH multi-needle machine?
  A: Treat magnetic frames and moving hoops as pinch-and-impact hazards—hands stay on handles and away from motion during trace/stitch.
  • Keep fingers on the outside handles when closing magnetic frames to avoid pinch injuries.
  • Keep magnetic hoops at least 6 inches away from pacemakers/insulin pumps, and away from laptops/credit cards.
  • Keep hands at least 12 inches away from the hoop during tracing and stitching; wear safety glasses in case of needle fragments.
  • Success check: No hand contact with moving parts during trace/stitch, and the hoop closes without any finger pinch points.
  • If it still fails… Stop the machine, reset your work area for more space, and only resume when hands can stay clear for the full run.
• Q: For scaling feltie production, when should a shop upgrade from technique tweaks to a magnetic hoop, and when does a SEWTECH multi-needle machine make sense?
  A: Use a tiered approach: fix hooping and setup first, add a magnetic hoop for repeatability, then move to multi-needle when color changes and volume become the bottleneck.
  • Level 1 (Technique): Batch multiple felties per hoop, run trace every setup, and keep hoop changes as low as possible.
  • Level 2 (Tool): Choose a magnetic hoop when hoop burn, hand strain, or felt shifting is causing measurable rejects.
  • Level 3 (Capacity): Choose a multi-needle machine when frequent color changes or large orders make single-needle workflows non-viable.
  • Success check: Reject rate drops and throughput increases mainly because hooping and color-change “dead time” decreases.
  • If it still fails… Track where time is lost (hooping, trimming, thread changes) and upgrade only the step that is consistently limiting output.
