Split Pumpkin Vinyl Appliqué on a Brother Single-Needle: Clean Satin Edges, Safer Tack-Down, and a Name That Sits Perfectly

Halloween orders have a relentless way of making you feel like you’re racing the calendar—especially when you’re attempting a material that looks easy but acts difficult, like embroidery vinyl. Take a deep breath: this split pumpkin appliqué is absolutely doable on a Brother single-needle machine. Once you understand the rhythm (placement → tack-down → trim → satin), it becomes a repeatable manufacturing process rather than a craft roulette.

This stitch-out follows a proven commercial workflow: a green vine motif stitched first, followed by a placement outline, then orange vinyl tacked down in two sequences, trimmed tight, sealed with satin “rinds” and outlines, then purple split bars, and finally, a custom name to anchor the design.

The Calm-Down Primer: Your Brother Single Needle Embroidery Machine Can Handle Vinyl Appliqué (If You Respect the Edges)

Let’s clarify the material science first. Embroidery vinyl (often marin vinyl or specific appliqué vinyl like "Oly-Fun") is not Heat Transfer Vinyl (HTV). It has a physical body, a distinct thickness, and a woven or felted backing. In this project, the goal is to stitch through it, not iron it on.

Here’s the veteran takeaway: Vinyl succeeds or fails at the edge.

Satin stitches act as a clamp. If your trimming is jagged, or your hoop tension is loose, the vinyl will retreat from the stitches (causing gaps) or bubble up against them (causing puckers). The satin stitch is the "lock," but your prep is the "key."

If you are new to the concept of magnetic embroidery hoops, keep reading. This specific project—layering a thick material over a woven base—is the exact scenario where hoop control defines success. Tension must be absolute, but traditional hoops often struggle to grip varying thicknesses without leaving "hoop burn" marks.

The “Hidden” Prep Before You Stitch: Vinyl, Stabilizer, and Hoop Tension Checks That Prevent Puckers

Preparation is where 90% of failures happen. You cannot fix a bad hoop job with software settings.

Drea’s setup is classic: Polka dot woven cotton as the base, orange embroidery vinyl, and stabilizer. However, "stabilizer" is a generic term. For designs with heavy satin density (like appliqué borders), the industry standard is Cutaway Stabilizer (2.5 - 3.0 oz). While Drea mentions options, cutaway provides the permanent lattice support needed to keep the pumpkin round, not oval, after washing.

The "Hidden Consumables" List

Don't start without these often-forgotten items:

• Needle Upgrade: Use a size 75/11 Embroidery Needle (Sharp). Ballpoints can struggle to pierce vinyl cleanly, while a sharp point punches a clean hole suitable for the thick satin cover.
• Curved Appliqué Scissors: Essential for getting close to the tack-down line without snipping your fabric.
• Spray Adhesive or Medical Tape: For holding the vinyl floating pieces.

Prep checklist (do this before the hoop goes on the machine)

• Hoop Size Check: Confirm the design fits the writable area of your hoop (usually a 5x7 for this scale).
• Material Sizing: Cut vinyl wedges at least 1 inch larger than the design area on all sides. You need "grip handles" for your fingers or tape.
• Stabilizer Bonding: If using woven cotton, lightly starching the fabric creates a better bond with the stabilizer.
• Bobbin Audit: Check your bobbin. Satin borders are thread-hungry. If you have less than 1/3 left, wind a new one now. Running out of bobbin thread on a satin border creates a weak point that is hard to hide.
• The Drum Test: Tap the hooped fabric. It should sound like a tight drum skin. If it "thuds" or feels spongy, re-hoop.

Warning: Mechanical Hazard. Throughout this project, your hands will be near the needle zone to place vinyl. Never place your fingers inside the hoop area while the machine is running. Always stop the machine completely before smoothing down material.

Stitch the Stem and Vine First: Green Thread Sets the Top Detail (and It’s a Great Machine Health Check)

The machine begins by stitching the decorative green vine directly onto the base fabric. This is your "Low-Risk" zone.

Use this step as a Sensory Machine Health Check:

1. Listen: The machine should produce a rhythmic, consistent purr. A harsh "clack-clack-clack" usually indicates the needle is dull or the hoop is hitting something.
2. Look: Flip the hoop over briefly after the first color change. The bobbin thread (usually white) should be visible as a thin strip down the center of the green satin columns (roughly 1/3 of the width). If you see no white, your top tension is too loose. If you see only white, your top tension is too tight.
3. Feel: Place a hand gently on the table (not the machine arm). Excessive vibration suggests the machine speed might be too high for the table stability. For satin work, dial your speed down to the 600-700 SPM (Stitches Per Minute) "Sweet Spot." You gain precision, not lost time.

Run the Placement Stitch: The Outline Is Your Map, and Thread Color Truly Doesn’t Matter Here

The machine now runs a "Placement Line" (a simple running stitch) in the shape of the pumpkin.

This outline is your Contract of Work. It defines the absolute boundary of the appliqué.

• Novice Mistake: Ignoring the placement line and cutting vinyl "just the right size."
• Pro Rule: Your vinyl must extend at least 0.5 inches past this line in every direction. The machine doesn't care if you missed the edge by 1mm; it will stitch on air, and your project will be ruined.

Tack Down the Vinyl in Two Halves: Control the Material, Don’t Let It Control You

Most split pumpkin designs tack down the left side, stop, and then tack down the right side. This allows you to use two smaller scraps of vinyl.

Drea demonstrates placing pieces individually. This is where "Material Flagging" (bouncing fabric) becomes an issue. Vinyl is stiff; if it isn't held flat, it can lift up and hit the presser foot.

The Fix:

1. Medical Tape: Tape the corners of the vinyl to the base fabric, well outside the stitch zone.
2. Magnetic Solutions: This process is the primary reason professionals research how to use magnetic embroidery hoop systems. A magnetic frame clamps the materials instantly along the entire perimeter with zero hoop burn. If you are struggling with "hoop pop" (where the inner ring pops out due to thickness), a magnetic hoop is the engineered solution.

Setup checklist (right before you run the tack-down)

• Coverage Verification: Visually confirm the vinyl covers the entire placement line + margin.
• Flatness Check: Press the vinyl down. If there is a bubble, the tack-down stitch will permanently sew a wrinkle into your pumpkin.
• Speed Reduction: Drop speed to 400-500 SPM for the tack-down. You want precise tracking, not speed.
• Guard Protocol: Keep hands clear.

Warning: Magnetic Safety. If you upgrade to magnetic hoops or stations, be aware they use high-power neodymium magnets. They can pinch skin severely. Keep them away from pacemakers, computerized machine screens, and credit cards.

Trim Like You Mean It: Appliqué Scissors, Tight Corners, and the “Don’t Nick the Tack-Down” Discipline

The machine stops. Now you must trim the excess vinyl. This is the manual skill that separates "Homemade" from "Handmade."

The Philosophy of the Gap: You are trimming the vinyl close to the tack-down stitch (the running stitch holding the vinyl).

• Target Distance: 1mm to 2mm away from the stitches.
• Too Close: If you snip the tack-down thread, the vinyl will peel up.
• Too Far: If you leave 5mm of vinyl, the satin stitch won't cover it, leaving an ugly raw edge sticking out.

Technique: Use Appliqué Scissors (Duckbill scissors). The paddle shape pushes the fabric down while the blade cuts the vinyl.

• Tip: Do not lift the fabric up to cut. Keep the hoop flat on a table. Rotate the hoop, not your wrist.
• If you find hoop rotation tiring, tools like a hooping station for embroidery can act as a stable third hand, though often just a clear flat table is sufficient for trimming.

Let the Satin Stitch Do Its Job: Clean Rinds and Outline Without Perforating the Vinyl

The machine now runs the heavy "Satin Column" stitches that cover the raw edges.

The Physics of Perforation: Vinyl is essentially plastic. If you punch too many holes in a straight line, you create a "tear strip" (like a postage stamp). To accept satin stitches without ripping:

1. Stabilizer: This is why we recommended Cutaway earlier. It bears the load of the perforation.
2. Density: If you digitized this yourself, set density to 0.4mm or 0.45mm. Standard 0.35mm density might cut the vinyl. If using a purchased file, stick to the stabilizer rule.
3. Hooping: If the material is bouncing, the needle enters at slightly different angles, shredding the vinyl. Consistent clamping pressure—often cited as a benefit of the brother 5x7 magnetic hoop—prevents this micro-movement.

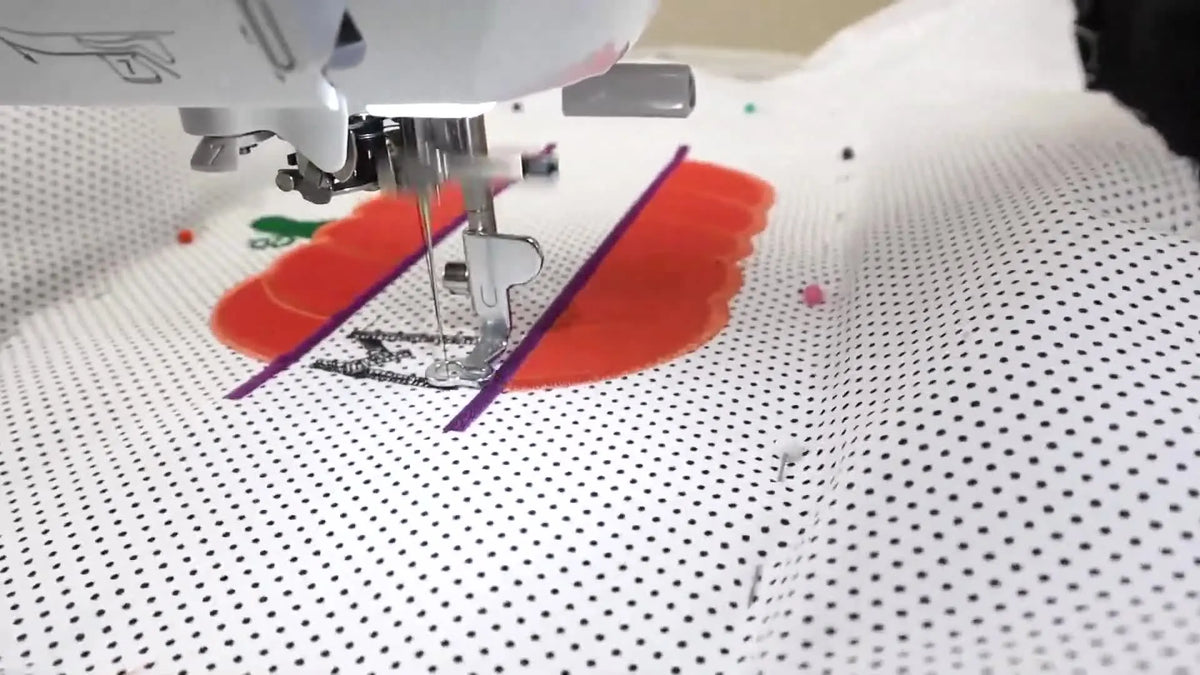

Stitch the Purple Split Bars: Small Detail, Big Impact on Readability

The machine stitches the horizontal bars.

Quality Check: Look at where the purple bars meet the orange pumpkin. Is there a gap?

• Cause: The fabric shrank during the heavy satin stitching (Pull Effect).
• Prevention: This is why tight hooping (drum skin) is non-negotiable at step 1. You cannot fix gaps now. If gaps occur, use a matching marker to color the stabilizer in the gap as a rescue hack.

Add the Custom Name in Black: Centering, Density, and Why Vinyl Makes Text Pop

The final step is the text.

Vinyl provides a "loft" (3D effect) that makes text stand out beautifully.

• Font Choice: Avoid thin, seriffed fonts. Vinyl texture can swallow thin lines. Use bold, sans-serif, or slab-serif fonts.
• Size Limits: Don't go smaller than 0.25" tall on vinyl. The needle penetrations will just chew up the material.
• Trimming Jump Stitches: If your machine doesn't auto-trim, trim jump stitches between letters immediately. Don't wait until the end, or they might get sewn over.

The Two-Halves Problem Solved: When to Stop Mid-Design vs. Use One Large Vinyl Piece

The video highlights a choice: Use two scraps or one big sheet?

The "Production" Perspective: If you are making 20 pumpkins for an order, using scraps (Option A) slows you down. Every stop, start, and placement adjustment costs time.

• Recommendation: Use one large sheet of vinyl (Option B) that covers the entire pumpkin area before the first tack-down. While it uses 10% more material, it saves 50% of the placement labor/risk.

Decision tree: which stabilizer approach fits your base fabric?

Choose based on the weakest layer in your sandwich:

• Scenario A: Stiff Cotton Base + Vinyl
  • Stabilizer: Medium Tear-Away (2.0 oz) is acceptable.
  • Risk: Low.
• Scenario B: T-Shirt Knit + Vinyl
  • Stabilizer: No-Show Mesh (PolyMesh) + Medium Cutaway.
  • Why: The heavy vinyl will pull the knit fabric, creating waves. You need the absolute stability of cutaway.
• Scenario C: Textured Towel + Vinyl
  • Stabilizer: Tear-Away (Back) + Water Soluble Topper (Top - over vinyl).
  • Why: The topper keeps the satin stitches from sinking into the towel loops around the appliqué.
• Universal Truth: If you struggle with hoop burns on delicate items, consider investing in a magnetic hoop for brother pe800 equivalent for your specific machine. The "Snap-and-Go" nature reduces friction damage.

Comment-Section Reality Check: “Underrated” Projects Are Often the Best Sellers—If You Make Them Repeatable

This project is "Underrated" because it looks simple, but executing it cleanly is a skill. To turn this into profit:

1. Batch Cut: Cut 50 stabilizer squares and 50 vinyl squares before you turn on the machine.
2. Batch Thread: If you have a single needle, run all the "Green" steps on 5 shirts, then switch to "Orange" for 5 shirts. (This requires re-hooping precision, achieved easiest with a embroidery hooping station embroidery hooping station).

The Upgrade Path That Actually Makes Sense: Faster Hooping, Cleaner Results, Less Hand Strain

Let’s talk briefly about the tools. You can do this with a basic plastic hoop. But if you feel frustration, here is the diagnosis:

1) The "Hoop Burn" or "Painful Wrist" Syndrome

• Symptom: You dread hooping thick items like towels or hoodies because the inner ring won't pop in. You see shiny rings on the fabric.
• Rx Level 1: Use "Float" technique (hoop stabilizer, spray glue, stick fabric on top).
• Rx Level 2 (Tool): Magnetic Hoops (SEWTECH). These remove the friction. You simply place the top frame, and the magnets clamp straight down. It handles mixed thicknesses (like seams) effortlessly.

2) The "It Takes Too Long" Syndrome

• Symptom: You start getting orders for 20+ pumpkins. You spend 5 minutes hooping and 1 minute trimming for every 10 minutes of stitching.
• Rx Level 1: A magnetic hooping station. This standardizes placement so every pumpkin is in the exact same spot on every shirt.
• Rx Level 2 (Machine): SEWTECH Multi-Needle Machines. Moving from single-needle to multi-needle means you don't stop for color changes. You hoop the next shirt while the machine stitches the current one. This is the leap from "Hobbyist" to "Business Owner."

Run It Clean Every Time: Operation Habits That Keep Vinyl Appliqué Looking Premium

Consistency is king.

Operation checklist (use this during the stitch-out)

• Placement: Did I cover the placement line completely?
• Tack-Down: Did I hold/tape the vinyl so it didn't fold over?
• Trim: Did I trim close (1-2mm) without cutting the thread?
• Satin: Is the bobbin tension correct (no loops on top)?
• Finish: Did I trim the jump stitches between text letters?

Final Reveal and What to Look for in a “Sellable” Finish

Inspect your finished pumpkin:

1. The Perimeter: Are there fuzzy white fibers poking out? (Means trimming wasn't clean). Use a lighter (carefully!) or precision tweezers to clean them up.
2. The Shape: Is the pumpkin round, or slightly oval? (Oval means the fabric was stretched too tight in the hoop).
3. The Flatness: Does the fabric lay flat on the table? (If it bowls up, your stabilizer was too light).

Perfecting appliqué is about mastering the balance between tension and material thickness. Once you nail it, this pumpkin design is a reliable, high-margin seasonal favorite.

FAQ

• Q: How do I set up a Brother single-needle embroidery machine for vinyl appliqué so the satin borders do not pucker or gap?
  A: Use firm hooping plus the right stabilizer first, because satin stitches magnify any movement at the edge.
  • Use cutaway stabilizer (about 2.5–3.0 oz) as the go-to for heavy satin appliqué borders on woven bases.
  • Hoop to “drum tight” before stitching; re-hoop if the fabric feels spongy or sounds dull when tapped.
  • Slow down for control: run satin work around 600–700 SPM, and drop to 400–500 SPM for tack-down placement accuracy.
  • Success check: after stitching, the pumpkin edge looks smooth and clamped with no ripples and no vinyl peeking out.
  • If it still fails: upgrade hoop control (float technique or a magnetic hoop) because software settings will not fix a loose hoop job.
• Q: What needle, scissors, and temporary holding method should be used on a Brother single-needle embroidery machine for embroidery vinyl appliqué?
  A: A sharp 75/11 embroidery needle plus proper appliqué scissors and secure holding prevents skipped piercings and jagged trims.
  • Install a size 75/11 sharp embroidery needle; avoid ballpoints if clean piercing through vinyl is inconsistent.
  • Trim with curved appliqué (duckbill) scissors to stay close to the tack-down line without lifting the work.
  • Secure vinyl with spray adhesive or medical tape placed well outside the stitch zone so the vinyl cannot “flag” upward.
  • Success check: the vinyl lies flat during stitching and trims cleanly without tearing or stretching.
  • If it still fails: reduce speed during tack-down and re-check hoop tightness because bouncing material can shred vinyl.
• Q: How can a Brother single-needle embroidery machine user confirm top thread tension and bobbin presentation during the first green vine stitches?
  A: Use the first color as a low-risk tension audit before committing to the heavy satin borders.
  • Listen for a steady, rhythmic sound; harsh clacking often means a dull needle or a hoop strike risk.
  • Flip the hoop briefly after the first color change and inspect the stitch formation underneath.
  • Aim for bobbin thread showing as a thin strip centered in the satin columns (about one-third of the column width).
  • Success check: the underside shows centered bobbin “rail,” not full bobbin takeover and not zero bobbin visibility.
  • If it still fails: adjust tension gradually and confirm the needle is fresh before running the satin edge steps.
• Q: How do I stop vinyl from lifting or “flagging” during the two-half tack-down process on a Brother single-needle embroidery machine?
  A: Hold the vinyl flat before the tack-down runs, because vinyl stiffness can bounce into the presser foot.
  • Tape vinyl corners down with medical tape outside the stitch path, especially when placing left and right halves separately.
  • Verify coverage: the vinyl must extend at least 0.5 inch past the placement line in every direction.
  • Reduce speed to about 400–500 SPM for the tack-down so the stitch tracks precisely around edges.
  • Success check: the tack-down line catches the vinyl smoothly with no wrinkles sewn in and no lifted corners afterward.
  • If it still fails: switch to one larger vinyl piece to reduce stops/starts, or consider a magnetic hoop for more consistent perimeter clamping.
• Q: How close should embroidery vinyl be trimmed to the tack-down stitch line before the satin border runs on a Brother single-needle embroidery machine?
  A: Trim to about 1–2 mm from the tack-down stitches—close enough to cover, not close enough to cut the tack-down thread.
  • Stop the machine fully, lay the hoop flat on a table, and rotate the hoop rather than bending your wrist.
  • Keep the duckbill/paddle of appliqué scissors under the edge to protect the base fabric while cutting vinyl.
  • Avoid “perfectly on the line” cutting; nicking the tack-down thread can cause vinyl peel-up under satin stitches.
  • Success check: the satin border fully covers the trimmed edge with no raw vinyl sticking out and no gaps.
  • If it still fails: re-check trimming distance (too far leaves raw edge; too close breaks tack-down) and confirm hoop is drum-tight.
• Q: What are the key safety rules for placing vinyl pieces near the needle on a Brother single-needle embroidery machine during appliqué?
  A: Keep hands completely out of the needle zone while the Brother single-needle embroidery machine is running—stop the machine before adjusting anything.
  • Stop the machine before smoothing vinyl, removing tape, or repositioning any material inside the hoop area.
  • Use tape or adhesive to reduce the need for fingers near the presser foot during stitching.
  • Work methodically during the placement/tack-down steps since they require the most hands-on handling.
  • Success check: adjustments happen only when the needle is fully stopped and the operator’s hands never enter the active stitch area.
  • If it still fails: slow the workflow down and re-stage materials (pre-cut vinyl and stabilizer) so fewer mid-run corrections are needed.
• Q: What magnetic hoop safety precautions should be followed when using a magnetic embroidery hoop for thick vinyl appliqué jobs?
  A: Treat magnetic embroidery hoops as pinch hazards and keep them away from sensitive medical devices and magnet-sensitive items.
  • Place the top frame straight down—do not slide fingers between the frames where magnets can snap shut.
  • Keep magnetic hoops away from pacemakers and avoid placing magnets near computerized screens and credit cards.
  • Set up a clear, stable surface so the frame does not tilt and snap unexpectedly.
  • Success check: the hoop closes without pinching and clamps evenly around the perimeter without “hoop burn.”
  • If it still fails: use a slower, two-handed placement technique and consider a hooping station to control alignment and reduce sudden snaps.
• Q: When Halloween pumpkin vinyl appliqué orders increase, what is the most practical upgrade path from a Brother single-needle workflow to faster production?
  A: Fix process first, then upgrade tools for hooping speed, and only then consider multi-needle capacity for true throughput.
  • Level 1 (technique): batch-cut stabilizer/vinyl, slow tack-down placement, and keep trimming consistent at 1–2 mm from tack-down.
  • Level 2 (tool): move to a magnetic hoop and/or hooping station to reduce hoop burn, wrist strain, and placement variability.
  • Level 3 (capacity): consider a multi-needle machine when color changes and hooping time become the bottleneck.
  • Success check: hooping becomes repeatable (same placement each time) and cycle time drops without new quality defects.
  • If it still fails: time each step (hooping, trimming, stitching) to identify the real bottleneck before investing in the next upgrade.
