Split-Frame Appliqué Digitizing in Wilcom-Style Software: Clean Placement Lines, Smart Tack-Down, and a 4 mm Satin Border That Actually Stitches Well

Split-frame appliqué designs look simple on screen—clean lines, cute bunnies, perfect satin borders. But the screen is a liar. It doesn't account for gravity, fabric pile, or the brutal physics of a needle penetrating a towel 800 times a minute.

When you stitch a split-frame design on a plush towel or a basket liner, the "screen perfect" file often fails. The border wavers, the tack-down stitches peek out like ugly teeth, or the machine trims create a bird's nest on the back.

This guide rebuilds the workflow from the video, but applies production-grade engineering to it. We will manually trace the bottom section, create a fail-safe "sandwich" of placement and tack-down layers, and dial in a final satin border at a robust 4 mm.

Along the way, I will expose the "invisible" variables: node philosophy, the exact density needed to hold fabric without cutting it, and why professional shops stop fighting with traditional hoops and upgrade their tooling to handle bulk.

The “Don’t Panic” Primer: Split-Frame Appliqué Files Only Look Scary Because They’re Layered

A split-frame appliqué is not magic; it is a controlled stack of three distinct events. If you understand the stack, you remove the fear.

1. Placement Line (The Map): A running stitch that tells you, "Put your fabric here."
2. Tack-Down (The Anchor): A zigzag or open satin that says, "Stay put while I trim you."
3. Final Satin (The Finish): The dense column that covers the raw edges.

The video’s core strategy is the "Clonable Master": Trace the shape once perfectly, then duplicate it. This ensures that your Placement, Tack-down, and Satin share the exact same DNA. If you trace them separately, you introduce "drift," and on a finished product, drift looks like a mistake.

The “Hidden” Prep Before You Click a Single Node: Graphic Check + Fabric Reality Check

Before you digitize, you must audit your environment. The best file in the world will fail if the substrate (fabric) isn't respected.

Artwork Check (The Definition Rule)

In the video, the creator intentionally deviates from the original graphic near the bunny's paw. She opens up the gap between the limb and the body.

• Why? Thread has physical width (approx. 0.4mm for 40wt thread). If you trace a narrow gap exactly as drawn, the satin columns will collide, creating a "blob."
• The Rule: If a gap looks tight on screen, it will be invisible in thread. Exaggerate your separations.

Fabric Reality Check (The Texture Factor)

Split frames are destined for texture: towels, fleece, and basket liners.

• The Physics: High-pile fabrics (terry cloth) will push the needle off course.
• The Fix: You need a wider satin column (4mm+) and an underlay that creates a "road" for the satin to sit on.
• The Tooling: If you are fighting with thick towels, a standard plastic hoop is your enemy. It creates "hoop burn" (crushed pile) and often pops open mid-stitch. This is why a hooping station for machine embroidery is not just a luxury—it locks the garment in a consistent position, ensuring your split design aligns perfectly every time.

Prep Checklist: The Go/No-Go Audit

• Hoop Check: Is the artwork scaled to fit within the safety margins of your target hoop (e.g., 20mm buffer)?
• Gap Check: Have you exaggerated the negative space between limbs/ears?
• Center Plan: Do you know the font size of the name going in the middle? (Don't leave a tiny gap for a long name).
• Software Readiness: Are your "snapping" tools turned on for easy node alignment?

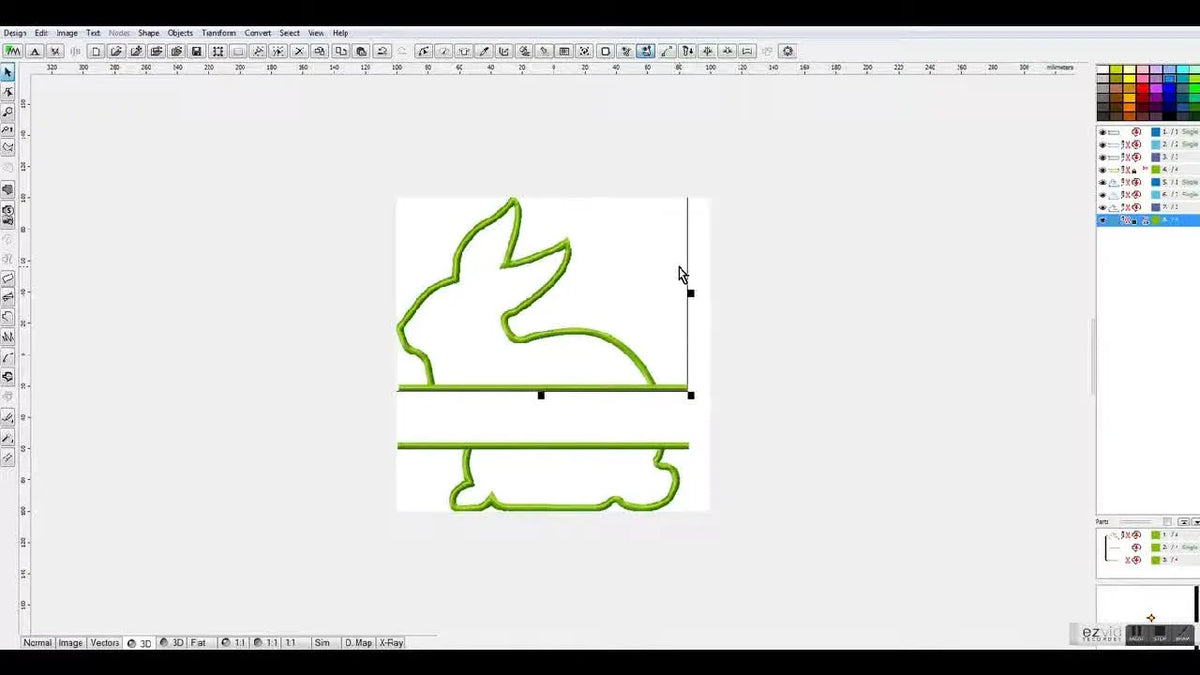

Trace the Bottom Bunny Outline with the Digitize Line Tool—But Don’t Trace Like a Printer

The video demonstrates the bottom section trace using a manual input method. This is critical. Auto-digitizing tools often create hundreds of unnecessary nodes, which results in "jittery" satin borders later.

How to Drive the Tool (Sensory Guide)

• Left Click: Creates a sharp corner (Hard Point). Use this for tips of ears or paws.
• Right Click: Creates a smooth curve (Soft Point). Use this for the belly and head.

The "Less is More" Node Strategy

Beginners click too often. Experience teaches us that every node is a potential kink.

• The Ideal Curve: Should look like a bent wire, not a connect-the-dots puzzle.
• Visual Check: If you see more than 3 nodes on a simple curve, delete one. Does the shape improve? If yes, keep it deleted.
• Modification: As shown in the video, do not follow the paw exactly. Carve out a distinct "U" shape to force visual separation.


Force a Machine Stop the Clean Way: Copy/Paste + Color Changes for Placement and Tack-Down

You have your master outline. Now you need to create the "Appliqué Stops."

1. Placement Layer (Color 1): Assign a high-contrast color (e.g., Medium Blue).
2. Duplicate: Copy (Ctrl+C) and Paste (Ctrl+V) the shape directly on top.
3. Tack-Down Layer (Color 2): Assign a different color (e.g., Soldier Blue/Purple).

Why the Color Change Matters

Modern embroidery machines read color changes as "Stop commands."

• Stop 1: Machine stops. You spray adhesive on your appliqué fabric and lay it down.
• Stop 2: Machine stops. You take the hoop off (or slide it forward) to trim the excess fabric.

If you skip the color change, the machine will sew the placement and immediately start the tack-down, stitching your fingers or ruining the positioning.

Production Note: If you are working with strict constraints, such as sizing a design specifically for a brother 8x8 embroidery hoop, using these forced stops allows you to check your alignment against the hoop's plastic grid before committing to the fabric placement.

The Open Zigzag Trick: Set Tack-Down to Satin with Density 14 (Yes, That Loose)

In the video, the tack-down layer is converted to a Satin stitch with a density settings of 14. (Note: "14" in Wilcom software refers to spacing. In other software, this might differ. The goal is a 2.5mm to 3.0mm spacing).

The Visual Goal

You want a loose Zigzag (think: "Charlie Brown's shirt stripe"), not a solid bar.

• Why Loose? If the tack-down is too dense, it perforates the fabric like a stamp. When you trim, the fabric rips away.
• Why Zigzag? It grabs the raw edge of the fabric effectively without adding bulk.

Troubleshooting Slippage

If your fabric is slippery (like satin or performance polyester), a loose tack-down might allow the fabric to "shimmy" during the final border stitch.

• The Fix: Use a slightly tighter zigzag or spray adhesive.
• The Tool: Slippage is often a clamping issue. Traditional hoops struggle to hold uneven layers (towel + appliqué fabric). A magnetic embroidery hoop excels here because the magnets slap down continuously over the thickness changes, preventing the "bunching" that ruins registration.


The “No Overlap” Move: Reshape the Bottom Satin Border and Delete the Leg Section

Now, paste the master shape a third time. This is your Final Satin Border.

In the video, the creator uses the Reshape Tool to cut away the section of the border that covers the leg/tail separation.

The Engineering of Safety

You simply cannot stack dense satin on top of dense satin.

• The Risk: If you have a Tack-down (Satin) + Bottom Border (Satin) + Top Border (Satin) all overlapping at one node, you create a "bulletproof vest" of thread. The needle will deflect.
• The Consequence: Deflection causes the needle to hit the metal throat plate. This burrs the needle (shredding thread later) or snaps it entirely.
• The Fix: Use the "Cut" or "Reshape" tool to ensure the final satin stops exactly where the next object begins.

Warning (Physical Safety): Needle breaks on multi-layer appliqué can send metal shards flying. Always ensure your layers do not overlap more than 1-2mm for connection purposes. If you hear a loud, rhythmic "thumping" sound, stop immediately—your layers are too dense.

Lock in the Look: Set the Bottom Satin Border Width to 4 mm and Generate Stitches

Go to Object Properties and set the Satin Width to 4mm.

Finding the Sweet Spot

• 3.0mm: Too narrow for towels; the loops will poke through. Suitable for flat cotton only.
• 4.0mm (The Golden Standard): Wide enough to cover raw edges and messy trimming, but not so wide that it loops or snags.
• 5.0mm+: Risks "tunneling" (pulling the fabric in) unless you have heavy stabilizer.

If you are using generic embroidery machine hoops, you must ensure your stabilizer is "drum tight." A 4mm satin column exerts significant pull force on the fabric. If the hoop tension is loose, the satin will curve inward, distorting the intended shape (the "hourglass effect").

Stop Wasting Trims: Add a Running Stitch Bridge Between Satin Segments

The machine is dumb. It will finish one ear, cut the thread, move 2 inches, tie in, and start the next ear.

• The Cost: Trims take time (6-10 seconds per trim) and leave "tails" on the back that need manual cleaning.

The video demonstrates adding a manual Running Stitch that connects the end of the body to the start of the "Bar."

• Logic: Be the GPS for your machine. Drive the needle through an area that will be covered by satin later.
• Result: One continuous sewing motion. Faster, cleaner, professionals only.


Repeat the Same System on the Top Section: Trace Head/Ears, Then Duplicate for Placement + Tack-Down

We repeat the exact logic for the top bunny section.

1. Trace Outline (with exaggerated gaps).
2. Duplicate for Color 1 (Placement).
3. Duplicate for Color 2 (Tack-down).

Critical Check: Ensure your top placement line overlaps the bottom section by at least 1-2mm to prevent a gap, but do not overlap the dense satin areas.

Keep Your Stops Predictable: Match Top Colors to Bottom Colors So Stitching Feels “Scripted”

The video makes a subtle but vital move: She matches the color indices of the Top Section to the Bottom Section.

• Placement: Always Medium Blue.
• Tack-Down: Always Soldier Blue.

The Rhythm of Production

Your machine doesn't care about color, but you do. By standardizing your indicators:

• Color 1 ALWAYS means: "Place fabric."
• Color 2 ALWAYS means: "Trim fabric."

This reduces cognitive load. In a production environment, this consistency prevents the catastrophic error of starting the final satin before you have trimmed the appliqué fabric. If you are using a machine embroidery hooping station to prep multiple hoops, this rhythm allows you to get into a "flow state," moving hoops on and off the machine efficiently.

Dial the Top Tack-Down the Same Way: Satin + Density 14 for a Loose Zigzag Anchor

Consistency is quality. Set the top tack-down to Satin / Density 14.

Visual Check: Zoom in to 100%. Does the tack-down look like a rick-rack trim? If yes, it's correct. If it looks like a solid line, decrease density (increase spacing number).

Smooth the Ear Like a Pro: Reshape Nodes for “Nice Smooth Points,” Then Apply 4 mm Satin

Ears are notoriously difficult. A sharp point often results in "knotty" stitching where thread builds up.

• The Video Fix: She uses the Reshape tool to round the tip slightly and ensures the angle isn't too acute.
• Width: Lock in that 4mm satin width.

Sensory Touch Test: After stitching, run your finger over the ear tip. If it feels hard or sharp, your satin nodes are too crowded. In the software, shorten the stitch slightly or taper the width at the tip to reduce bulk.

Group the Layers So the File Behaves: Placement + Tack-Down + Satin as One Controlled Unit

Finally, group your objects.

• Bottom Group: Placement + Tack + Satin.
• Top Group: Placement + Tack + Satin.

This protects you from accidental nudges. If you drag the satin border 1mm to the left but leave the placement line behind, your entire design is ruined. Grouping locks the registration.

The Final Reality Check: Confirm the Design Fits an 8x8 Hoop (and Resize with Caution)

The video notes the design fits an 8x8 hoop. This is a large design.

Caution on Resizing:

• You cannot just shrink this design by 20% to fit a 5x7 hoop.
• Why? The 4mm satin becomes 3.2mm (acceptable). But the spacing between the paw and body shrinks, potentially touching.
• The Fix: If you resize, you must re-check your gaps.

If you struggle with hoop sizes—forcing large towels into standard frames—this is a common friction point. Many users begin looking into hooping for embroidery machine alternatives that offer more throat space or easier clamping mechanisms for these maximalist designs.

Troubleshooting the Two Most Common Split-Frame Appliqué Failures

Even with a perfect file, things go wrong. Here is your diagnostic table.

Symptom 1: The "White Gap" (Placement line visible outside satin)

• Likely Cause: The fabric shifted during the tack-down phase, or you trimmed too aggressively.
• Immediate Fix: Use a matching marker/pen to color the exposed fabric/stabilizer.
• Prevention: Ensure your hooping tension is drum-tight. If the fabric is slippery (minky/satin), use temporary spray adhesive (like Odif 505) before the tack-down stitch.

Symptom 2: The "Bird's Nest" (Thread wad under the throat plate)

• Likely Cause: Flagging. The fabric is lifting up and down with the needle because it's not hooped tightly enough.
• Immediate Fix: Cut the nest carefully. Do not yank. Change the needle (it's likely bent).
• Prevention: Better stabilization. Use a Cut-Away stabilizer for split frames, never Tear-Away alone.


A Stabilizer Decision Tree for Towels, Pillows, and Basket Liners

The choice of stabilizer determines if your 4mm satin border lies flat or curls up like a potato chip.

1. Is the fabric stretchy (Tee, Minky, Fleece)?

• YES: Use Cut-Away Stabilizer (2.5oz or heavier). No exceptions.
• Choice: If stitching on pile (towel), add a Water Soluble Topper (Solvy) to keep stitches from sinking.

2. Is the fabric stable (Woven Cotton, Canvas, Denim)?

• YES: You can stick with Tear-Away, but for a heavy split frame, a layer of Cut-Away provides better longevity.

3. Is the item bulky/un-hoopable (Thick Towel, Tote Bag)?

• YES: You are in the danger zone for standard plastic hoops. The inner ring often pops out.
• Solution: This is the primary use case for embroidery hoops magnetic. The magnets clamp through the thick fabric without requiring you to force a plastic ring shut, preserving the texture of the towel and saving your wrists.

Warning (Magnet Safety): If you opt for magnetic hoops, be aware they are powerful industrial tools. Keep them away from pacemakers. Watch your fingers—they snap together with crushing force.

The Upgrade Path That Actually Saves Time: When Better Hooping Beats “More Tweaking”

Once you master the file (the nodes, the density, the 4mm border), the remaining failures are usually physical. The struggle to hoop a thick towel straight, the pain in your wrists, or the fear of a hoop pop-out.

Here is the professional progression for solving these physical bottlenecks:

Scenario A: "I can digitize it, but I can't hoop it straight."

• Trigger: You spend 10 minutes hooping one towel.
• Level 1 Fix: Mark your stabilizer with a crosshair using a water-soluble pen.
• Level 2 Upgrade: Adopt a Hooping Station. This holds the hoop static while you align the garment. It turns a standard plastic magnetic embroidery hoop into a precision instrument.

Scenario B: "I have an order for 50 towels and my hands are cramping."

• Trigger: The physical force required to hoop thick items is causing fatigue.
• Level 1 Fix: Switch to lighter hoops or thinner stabilizer (risky quality).
• Level 2 Upgrade: Magnetic Hoops. They eliminate the "push-and-screw" motion entirely. You simply lay the fabric and snap the magnets.
• Level 3 Scale: If you are consistently running orders of 20+ units, a single-needle machine is your bottleneck. SEWTECH Multi-Needle Machines combined with magnetic frames allow you to load the next garment while the current one stitches, doubling your hourly output and turning a hobby struggle into a profitable workflow.

Operation Checklist (The Final Flight Check)

• Bobbin: Is there enough thread to finish the satin border? (Running out mid-satin is a nightmare).
• Needle: Are you using a fresh 75/11 or 90/14 Sharp needle? (Ballpoints can deflect on heavy satin).
• Stabilizer: Is it Cut-Away for knits? Is there a Topper for towels?
• Clearance: Does the hoop have room to move freely without hitting the wall/table?
• Hooping: Tap the fabric. does it sound like a drum? (Good). Is it squishy? (Re-hoop).

FAQ

• Q: How do I set placement line, tack-down, and final satin for a split-frame appliqué design so the machine stops at the right times on a Brother embroidery machine?
  A: Use separate color blocks for Placement and Tack-down so the Brother embroidery machine reads them as intentional stop points.
  • Assign Placement Line as Color 1 and Tack-down as Color 2 (different colors on purpose).
  • Duplicate the exact same master outline (copy/paste) so Placement, Tack-down, and Satin stay perfectly registered.
  • Pause at Stop 1 to place appliqué fabric (spray adhesive may help), pause at Stop 2 to trim excess fabric.
  • Success check: The Brother embroidery machine clearly pauses twice before any final satin border begins.
  • If it still fails… confirm the objects are truly different color indices (not just different shades inside the same color block).
• Q: What tack-down settings should I use for split-frame appliqué on towels in Wilcom EmbroideryStudio to prevent fabric ripping when trimming?
  A: Set the tack-down to a very open zigzag by using Satin with Density 14 in Wilcom (loose, not solid).
  • Convert the Tack-down object to Satin, then set Density to 14 (aim for roughly 2.5–3.0 mm spacing in other software).
  • Trim after the tack-down stop, not before, to avoid fraying and shifting.
  • Add temporary spray adhesive if the appliqué fabric “shimmies” during the final border.
  • Success check: The tack-down looks like a loose zigzag (not a filled bar) when viewed at 100% zoom.
  • If it still fails… slightly tighten the zigzag or improve clamping/hooping because slippage is often a holding issue.
• Q: How wide should the final satin border be for split-frame appliqué on terry towels to cover raw edges without tunneling?
  A: Use a 4.0 mm satin border as the reliable starting point for towels and other high-pile fabrics.
  • Set Satin Width to 4 mm for the final border after placement and tack-down are confirmed.
  • Avoid going too narrow on towels because pile can poke through and expose edges.
  • Keep fabric and stabilizer “drum tight” in the hoop to resist pull from the satin column.
  • Success check: The satin fully covers the trimmed appliqué edge, and the border stays smooth without hourglass-shaped pull-in.
  • If it still fails… check stabilizer choice (cut-away is often needed for demanding split-frame work) and re-hoop for tighter tension.
• Q: How do I prevent needle deflection and needle breaks when satin layers overlap in a split-frame appliqué border on a multi-needle embroidery machine?
  A: Do not stack dense satin on dense satin; reshape/cut the border so satin segments stop before the next dense area begins.
  • Duplicate the master outline for the final satin, then use Reshape/Cut to remove sections that would overlap another satin border.
  • Limit dense overlap to only what is needed for connection (keep it minimal).
  • Stop immediately if a loud rhythmic “thumping” starts—this is a common warning sign of excessive density/overlap.
  • Success check: The machine runs the satin border with a smooth sound and no repeated pounding at the same spot.
  • If it still fails… reduce overlap further and inspect/replace the needle because a burr or bend can cause repeated thread issues afterward.
• Q: How do I troubleshoot a “white gap” where the placement line shows outside the satin border on a split-frame appliqué towel design?
  A: Treat a visible placement line as fabric shift or over-trimming; stabilize and hold the layers more firmly before the final satin.
  • Re-hoop with drum-tight tension and add temporary spray adhesive before the tack-down stitch.
  • Trim more conservatively so the fabric edge remains under the final satin coverage.
  • Use a matching marker as an emergency cosmetic fix if the item is already stitched.
  • Success check: After the final satin, no placement stitches are visible outside the border when viewed in normal lighting.
  • If it still fails… upgrade stabilization (cut-away is recommended for heavy split-frame work) and address clamping/hooping consistency.
• Q: What causes a “bird’s nest” thread wad under the throat plate during split-frame appliqué, and what is the safest recovery method?
  A: Bird’s nesting during split-frame appliqué is commonly caused by flagging from insufficient hooping tension; stop and clear it without yanking.
  • Stop the machine, cut the nest carefully, and do not pull the threads aggressively.
  • Change the needle because it is often bent after a jam.
  • Re-hoop tighter and use better stabilization (cut-away instead of tear-away alone for split frames).
  • Success check: The fabric stays flat (no up-down bouncing) and stitches form cleanly without looping underneath.
  • If it still fails… re-check that the hooping is truly drum tight and confirm the fabric is not lifting during needle penetration.
• Q: When should I upgrade from standard plastic embroidery hoops to magnetic embroidery hoops or a SEWTECH multi-needle machine for split-frame towel orders?
  A: Upgrade when the file is correct but physical hooping and handling time keep causing misalignment, fatigue, or hoop pop-outs on bulky towels.
  • Level 1 (technique): Mark crosshairs and standardize the “placement/trim” stop rhythm so every hoop is aligned the same way.
  • Level 2 (tooling): Use magnetic embroidery hoops when thick towels crush (hoop burn), slip, or the inner ring pops out; magnets clamp through thickness changes more consistently.
  • Level 3 (production): Move to a SEWTECH multi-needle machine when you are repeatedly running 20+ items and single-needle changeovers become the bottleneck.
  • Success check: Hooping time drops, registration stays consistent across repeats, and the operator is not fighting the hoop for each towel.
  • If it still fails… add a hooping station for repeatable positioning and re-audit stabilizer/topper choices for high-pile materials.
• Q: What safety precautions are required when using magnetic embroidery hoops for thick towels and basket liners?
  A: Treat magnetic embroidery hoops as industrial clamping tools—keep fingers clear and keep magnets away from pacemakers.
  • Keep hands out of the pinch zone; the magnets can snap together with crushing force.
  • Store and handle magnets deliberately so they cannot jump together unexpectedly.
  • Do not use magnetic hoops around pacemakers (follow medical guidance and machine/hoop instructions).
  • Success check: The hoop closes in a controlled way with no finger pinches and the fabric remains evenly clamped after closing.
  • If it still fails… slow down the closing motion and consider a hooping station to stabilize the hoop while positioning bulky items.
