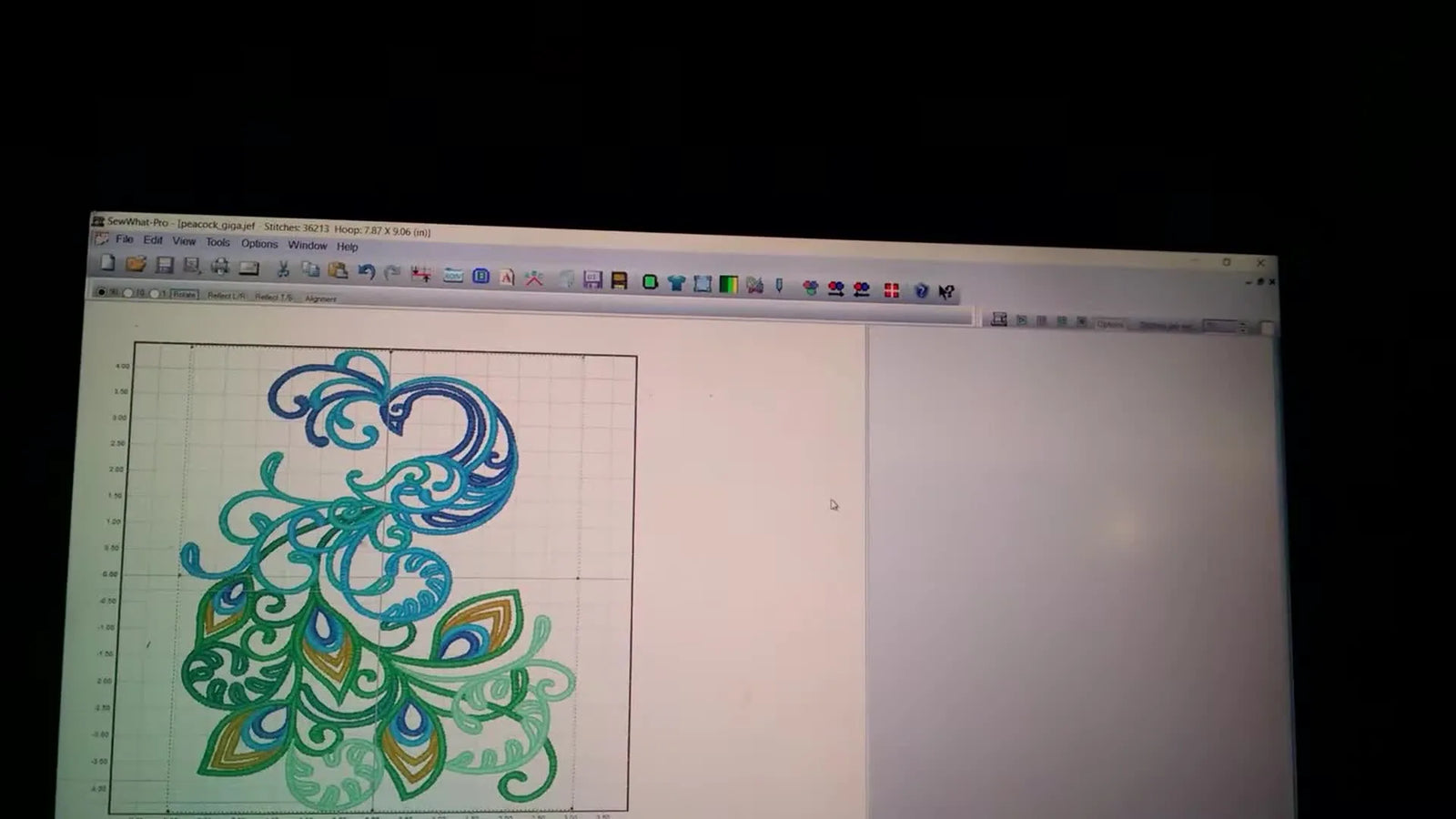

Split a Large Design for the Janome Giga Hoop in SewWhat-Pro (Without Ruining Your Alignment)

To the uninitiated, the Janome Giga Hoop looks like a miracle: a massive field for a fraction of the price of an industrial machine. But to the veteran embroiderer, it represents a specific kind of anxiety known as "alignment panic."

If you’ve ever tried to stitch a “too-big” design in a multi-position hoop, you know the feeling. You aren't worried about the software—you’re worried about the second hooping. One tiny alignment mistake on the rotation, and the whole project looks homemade.

This SewWhat-Pro workflow is the one I teach because it uses the software’s own boundary checks to tell you exactly what must be split. More importantly, it reinforces the one habit that separates clean multi-position results from heartbreak: cut on travel stitches whenever you can.

The Janome Giga Hoop Reality Check: Two 5x7 Fields, Side-by-Side, and a 180° Flip

The Janome Giga Hoop utilizes a logic different from the "stacking" style you may have seen on Brother multi-position hoops. In the video, the narrator contrasts it with the Brother PE770 style where fields stack vertically; the Giga Hoop creates two 5x7 areas side-by-side, and the physical hoop must be rotated 180 degrees between positions.

That 180° flip is the source of most errors because your brain wants “left then right,” but the machine stitches each side in an opposite orientation relative to the needle bar. The fix isn’t complicated, but it must be disciplined: you mark centers for P1 and P2, and you verify the needle is centered before you press Start.

When mastering multi hooping machine embroidery, you must treat the Giga Hoop like a two-stage manufacturing setup where the second stage is a calibration, not just a "re-hoop and go" sprint.

The “Hidden” Prep Pros Don’t Skip: Marking Centers, Stabilizing Smart, and Planning for Re-Hooping

The video calls out a key habit from the narrator’s earlier multi-position work: mark the fabric at the center for each section so you can place P1 and P2 consistently. This is not busywork—it is the only way to make the split invisible to the naked eye.

Here is what experienced shops do before they ever touch the Cut tool in the software:

1. Decide on "Alignment Success":
   • For a peacock-style design with flowing elements, your goal is to avoid a visible “step” where lines disconnect.
   • Sensory Check: Run your fingernail across the join. If it catches hard, the alignment is off. If it glides, you have succeeded.
2. Stabilize for Hooping Physics:
   • The Consensus: If you are flipping a hoop 180 degrees, gravity and fabric weight will pull differently in the second position.
   • The Recommendation: Use a fusible stabilizer or a temporary spray adhesive (like Odif 505) to bond the fabric to the stabilizer. This creates a "plywood effect," making the fabric rigid so it cannot shift during the rotation.
3. Ergonomics of the Flip:
   • If you fight the hoop, you stretch the fabric. When doing repeated re-hoops, using a hooping station for embroidery can significantly reduce handling time and keep your fabric plane flat while you mark and load, preventing the "hoop burn" that often ruins delicate garments.

Prep Checklist (Do this before opening the Cut toolbar)

• Identify the Hoop: Confirm you are using the Janome Giga Hoop (requires 180° rotation), not a standard large hoop.
• Mark the Axis: Use a water-soluble pen or tailor's chalk to mark the center crosshairs for both P1 and P2 directly on the fabric.
• Secure the Sandwich: Ensure your stabilizer is bonded to the fabric (spray or fuse) so it acts as one solid unit.
• Handoff Strategy: Decide where you want the split to happen visually (avoid placing it through a bold satin border or a face).
• Safety Clearance: Verify your machine has clearance for the full Giga Hoop rotation without hitting a wall or extra table.

Warning: Keep fingers clear when test-positioning the Giga Hoop. The carriage moves rapidly to the extreme edges. Even a “quick check” can turn into a needle strike if the machine is accidentally jogged. Follow your machine manual’s safe positioning procedure.

Set SewWhat-Pro Up Correctly: Selecting “Giga Hoop” So the Workspace Tells the Truth

In the video, the first software move is simple but non-negotiable: go to the Hoops menu, open Hoop Properties, and select the Giga Hoop configuration. The visualizer changes to show the Giga Hoop layout, including the positional zones.

This matters because every decision you make next—resize, save, cut—depends on the software calculating the correct "Dead Zone" (the area where the fields simply do not overlap).

If you are coming from a repositionable embroidery hoop workflow on another machine brand, do not assume the logic is identical. The Giga Hoop’s side-by-side layout changes where boundary violations occur, and if the software doesn't see the Giga Hoop, it won't warn you about the un-stitchable gap in the middle.

Setup Checklist (Software + File Hygiene)

• Properties Check: In SewWhat-Pro, ensure Hoop Type is set specifically to Giga Hoop.
• Grid Verification: Visually confirm the grid displays two fields side-by-side with an overlap region.
• Centering: Keep the design centered in the workspace before attempting any resize.
• Backup: Save a "Master Copy" of your file before cutting. Once you split a design, it is very difficult to merge it back perfectly.
• Format Logic: Ensure your target output format matches your machine (the video uses Janome .jef).


Resize Without Regret: The 130% Move (and Why “Lock Aspect Ratio” Is Sacred)

The narrator enlarges the peacock design to 130% and explicitly keeps Lock Aspect Ratio checked so the design enlarges evenly.

That “lock” checkbox is one of those small things that prevents big pain.

• The Physics: If you stretch a design only vertically to fill a hoop, you distort the stitch angles. A 45-degree satin fill might become a 60-degree fill, which can cause the thread to twist or the fabric to pucker aggressively.
• Density Danger: Resizing up by 30% usually requires density recalibration. If the stitches look too sparse on screen, they will look cheap on fabric. Most modern software adjusts the stitch count, but always check the visual preview.

Expert Rule of Thumb: Resize to fit the hoop as much as you reasonably can, but leave a 5mm safety buffer from the absolute edge to prevent needle-bar collisions.

Use the Save-As Error Like a Diagnostic Tool: “Color Blocks Must Be Cut” Is Actually Helpful

This is the clever part of the video workflow: the narrator intentionally tries File → Save As in .jef format, expecting an error. SewWhat-Pro responds with a yellow warning listing exactly which blocks violate the hoop boundaries: "Blocks 1, 3, and 4 must be cut."

Treat that message like a pre-flight mechanic's report:

1. You don’t have to guess which parts cross the boundary.
2. You don’t have to eyeball the whole design and hope.
3. You execute a surgical strike on the blocks the software identified.

This same “file won’t show up on the machine” anxiety appears in the comments too. One viewer mentions a design that won’t appear after being put on a flash drive. While the video is SewWhat-Pro specific, the underlying lesson applies to your janome embroidery machine: the machine can only display what matches its expected hoop and format constraints. If a single stitch falls outside the writable area, the machine often refuses to acknowledge the file exists.

Read P1/P2 Like a Map: Spot the Boundary Crossers Before You Cut Anything

After the error identifies blocks 1, 3, and 4, the narrator clicks through the tabs showing P1 and P2 zones.

• Red Zone: Position 1 (P1).
• Blue/Other Zone: Position 2 (P2).
• The Problem: Some color blocks wander across the border between these zones.

This is where intermediate users make a costly mistake: they cut too aggressively. Do not just slice the design down the middle.

• Bad: Cutting a solid satin column in half. (Results in thread nests and visible gaps).
• Good: Finding the thin running stitch that connects the column to the next object.


The Clean-Split Rule: Cut Travel Stitches, Not Satin Stitches

The narrator picked this peacock design for a reason: it contains obvious travel stitches—single running stitches that connect elements. The video’s advice is absolute: it’s easy to cut travel stitches; it’s very hard to cut satin stitches and have them turn out nicely.

Here is the "why" from a production perspective:

• Satin Stitches: These create a bold, continuous edge (like 3D printing with thread). If you split them, you lose the tension that holds the shape, creating a "dog bone" effect at the cut.
• Travel Stitches: These are just connector logic. Removing or splitting them usually doesn’t change the visual mass of the design.

The Golden Rule: Always try to hide the seam in the "air" between objects, rather than through the object itself.

Do the Actual Split in SewWhat-Pro: Cutting Toolbar, Split Points, and Deliberate Removal

In the final section, the narrator activates the Cutting Toolbar and selects points to split the design—specifically targeting the bottom half and choosing to completely cut out the middle travel stitches because they’re not necessary once the design is being stitched in two parts.

This is a critical mindset shift: You’re not obligated to preserve every connector stitch. When a design becomes two files/positions, the connector that bridged them is now redundant waste.

Step-by-Step Execution (With Sensory Checks)

1. Open the Cutting Toolbar:
   • Action: Click the "Split" icon.
   • Check: Cursor should change to a crosshair or knife tool.
2. Zoom in to the "Surgical Level":
   • Action: Zoom until you see individual needle penetrations.
   • Check: You must clearly distinguish between a running stitch (thin line) and a satin column (zigzag block).
3. Place Split Points:
   • Action: Click on the travel stitches in the bottom half as shown in the video.
   • Check: A split line should appear. Ensure it does not slice through any major design element.
4. Delete the Connector:
   • Action: If the software creates a loose thread between the two new halves, delete it.
   • Check: The P1 design end point and the P2 design start point should be clean, with no "tails" hanging in the empty space.
5. Save Again (.jef):
   • Action: File -> Save As.
   • Success Metric: The yellow warning box does not appear. The software splits the file into Name_1.jef and Name_2.jef.

Operation Checklist (The Physical Stitch-Out)

• Load P1: Load the first file. Stitch it completely.
• The Flip: Remove the hoop (do not un-hoop the fabric!). Rotate the physical hoop 180 degrees. Re-attach to the machine.
• Center Check: Use the machine's jog keys to align the needle directly over your P2 center mark on the fabric.
• Trace: Run a trace/baste function to ensure the design sits where you expect.
• Start P2: Watch the first 100 stitches closely. If the alignment is wrong, stop immediately to minimize thread ripping.






A Stabilizer Decision Tree for Multi-Position Hoops

The video focuses on software splitting, but stitch-out quality lives or dies on fabric control. If your fabric shifts 1mm during the rotation, your perfectly split design will fail. Use this decision tree:

Which Stabilizer should I use for a Giga Hoop?

• Is the fabric a stable woven (Denim, Canvas, Twill)?
  • Recommendation: Medium Tearaway (if secured well) or Cutaway.
  • Key: Ensure the hoop is tightened until the fabric sounds like a drum skin when tapped.
• Is the fabric a stretchy knit (T-shirt, Performance Wear)?
  • Recommendation: Fusible Mesh Cutaway.
  • Why: Knits stretch when you rotate the hoop. A fusible backing freezes the fabric dimensions.
• Is the fabric lofty (Towel, Fleece)?
  • Recommendation: Heavy Cutaway + Soluble Topper.
  • Why: The topper prevents stitches from sinking, making the split line less visible in the pile.
• Is the fabric slippery (Silk, Rayon)?
  • Recommendation: No-Show Mesh + Spray Adhesive.
  • Why: Prevents the "slinky" effect where fabric slides out of the hoop frame.

Troubleshooting the Scary Stuff: When the File Won’t Save or Show

Here are the most common failure modes tied directly to the Giga Hoop workflow.

Symptom 1: SewWhat-Pro acts frozen or keeps giving the "Must Be Cut" error

• Likely Cause: You missed a tiny stitch segment that crosses the barrier, often a hidden jump stitch.
• Quick Fix: Use the "Split by Color" function first to isolate layers, then inspect the boundaries again.
• Prevention: Always check your file in "Stitch Simulator" mode before editing.

Symptom 2: Design P1 and P2 have a visible gap on the shirt

• Likely Cause: "Hoop drift" or poor stabilization. The fabric relaxed/stretched during the rotation.
• Quick Fix: There is no quick fix for a gap. You may need to hand-stitch a filler or add a decorative crystal over the gap.
• Prevention: Use a Fusible Stabilizer (Iron-on) next time. It creates a rigid paper-like stiffness that prevents drift.

Symptom 3: Machine LCD says "File Error" or shows nothing

• Likely Cause: The file name is too long, or the USB drive is too large (older Janomes dislike 64GB+ drives).
• Quick Fix: Rename file to "TEST1.jef" and use a 2GB or 4GB USB stick formatted to FAT32.

The Upgrade Path: Faster Hooping, Cleaner Re-Hoops, and Profitability

Once you can split designs reliably, your bottleneck becomes physical handling: hooping, re-hooping, and keeping fabric tension consistent.

• If you’re hooping one-off gifts, you can muscle through with standard hoops.
• If you’re doing customer work (50+ shirts), the time cost of screwing and unscrewing the Giga Hoop multiplies fast, and the physical strain can lead to wrist fatigue.

For operators producing volume, upgrading to magnetic embroidery hoops for janome is a practical solution. Unlike traditional screw-tight hoops, magnetic hoops clip on instantly and automatically adjust for fabric thickness, reducing "hoop burn" marks and making the re-hooping/rotation process significantly faster and more precise.

Warning: Magnetic Safety
Magnetic hoops use strong industrial neodymium magnets.
* Pinch Hazard: They snap together with enough force to bruise fingers. Handle with care.
* Medical Safety: Keep them at least 6 inches away from pacemakers and implanted medical devices.

The Bottom Line: Split Smarter, Stitch Calmer

This workflow is effective because it removes the guesswork. You set the correct hoop in software, you use the error message as a checklist, and you cut only on travel stitches.

If you are constantly battling hooping issues, consider upgrading your tools—better stabilizers and magnetic frames turn a struggle into a process. But regardless of your gear, the secret to the Janome Giga Hoop is simple: Trust the software boundary check, and verify your center manually.

Start with a test scrap (use felt—it's cheap and forgiving), run the P1/P2 split, and once you hear that rhythm of a perfectly aligned second half, you'll never fear the "Big Design" again.

FAQ

• Q: How do I prevent Janome Giga Hoop multi-position embroidery misalignment after the 180° flip between P1 and P2?
  A: Treat P2 as a calibration step: mark both centers and re-center the needle before stitching P2.
  • Mark: Draw center crosshairs for P1 and P2 directly on the fabric with a water-soluble pen or tailor’s chalk.
  • Verify: After rotating the Janome Giga Hoop 180° (without un-hooping the fabric), jog the machine so the needle sits exactly over the P2 center mark.
  • Trace: Run a trace/baste check before pressing Start on P2.
  • Success check: The join line visually “disappears,” and a fingernail glides across the seam without catching.
  • If it still fails: Increase stabilization (fusible or spray-bonded backing) to reduce hoop drift during the flip.
• Q: Why does SewWhat-Pro show “Color blocks must be cut” when saving a Janome .jef file for the Janome Giga Hoop?
  A: The warning usually means at least one stitch crosses the Giga Hoop boundary, so SewWhat-Pro is correctly flagging blocks that must be split for P1/P2.
  • Set: Confirm Hoop Properties is set to “Giga Hoop” so the boundary zones are calculated correctly.
  • Use: Read the warning list (example: specific block numbers) as the cut-to-do list instead of guessing.
  • Inspect: Click through the P1 and P2 zone views and look for tiny segments crossing the border.
  • Success check: Saving as .jef completes without the yellow warning and generates separate P1/P2 files.
  • If it still fails: Split by Color first, then re-check for a small hidden jump/travel stitch still crossing the boundary.
• Q: Where should I split a Janome Giga Hoop design in SewWhat-Pro to avoid visible seams and thread nests?
  A: Split on travel stitches whenever possible, and avoid cutting through satin columns or bold borders.
  • Zoom: Magnify until individual needle penetrations are visible so travel stitches are unmistakable.
  • Place: Put split points on thin running connectors between objects (not through satin stitch areas).
  • Delete: Remove any redundant connector travel stitches that become “waste” after the design becomes two positions.
  • Success check: The seam lands in “air” between elements, with no obvious step, gap, or distorted satin edge.
  • If it still fails: Reposition the handoff strategy so the split avoids faces, heavy satin outlines, and high-contrast borders.
• Q: What stabilizer setup helps prevent hoop drift when using the Janome Giga Hoop for multi-position embroidery?
  A: Use stabilization that locks fabric and backing into one rigid unit to resist shifting during the 180° rotation.
  • Bond: Fuse a stabilizer or use temporary spray adhesive to attach fabric to stabilizer before hooping (a safe starting point for reducing drift).
  • Choose: Match stabilizer to fabric—stable wovens (medium tearaway or cutaway), knits (fusible mesh cutaway), towels/fleece (heavy cutaway + soluble topper), slippery fabrics (no-show mesh + spray adhesive).
  • Tighten: Hoop until the fabric feels taut and “drum-like” when tapped.
  • Success check: After the flip, the fabric grain and center marks stay square and do not creep relative to the hoop.
  • If it still fails: Switch to a more supportive option (often a fusible backing on knits) and reduce handling/stretch during re-hooping.
• Q: What is the safest way to test-position and trace the Janome Giga Hoop to avoid needle strikes and finger injuries?
  A: Keep hands out of the hoop path and use the machine’s safe positioning/trace procedure before stitching.
  • Clear: Keep fingers away from the extreme edges while test-positioning; the carriage can move rapidly.
  • Verify: Confirm the machine has physical clearance for the full Giga Hoop travel (no wall/table collisions).
  • Trace: Run trace/baste to confirm the design stays inside the stitchable area before pressing Start.
  • Success check: The trace completes without contacting the hoop or forcing you to “catch” the hoop by hand.
  • If it still fails: Stop immediately and re-check hoop selection in software and the design’s 5 mm safety buffer from the edge.
• Q: Why does a Janome embroidery machine LCD show “File Error” or display nothing for a Janome .jef file made for the Janome Giga Hoop?
  A: The most common causes are file/USB naming and compatibility limits, or stitches still outside the writable hoop area.
  • Rename: Use a short name like “TEST1.jef” to avoid filename length issues.
  • Swap: Try a smaller USB drive (older Janome models often dislike very large drives) and format it to FAT32.
  • Recheck: Confirm the design truly saves as two clean Giga Hoop position files and no stitch crosses the boundary.
  • Success check: The file appears in the machine’s design list and loads without an error.
  • If it still fails: Re-save after confirming Hoop Properties is set to Giga Hoop and repeat the boundary-check/cut process.
• Q: When should embroidery operators upgrade from standard Janome Giga Hoop re-hooping to magnetic embroidery hoops or a multi-needle embroidery machine for production work?
  A: Upgrade when re-hooping time, hoop burn, or repeat alignment errors become the bottleneck—fix technique first, then tools, then capacity.
  • Level 1 (technique): Mark P1/P2 centers, bond stabilizer to fabric, trace before P2, and cut only on travel stitches.
  • Level 2 (tooling): Consider magnetic hoops when repeated screw-tight hooping causes hoop burn, slow handling, or inconsistent tension during re-hoops.
  • Level 3 (capacity): Consider a multi-needle machine when order volume makes manual handling (multiple re-hoops and color changes) the limiting factor.
  • Success check: Setup time per piece drops and alignment consistency improves across multiple garments.
  • If it still fails: Track where time is lost (hooping vs. editing vs. retries) to choose the next upgrade step logically, not emotionally.
