Split a Large Appliqué for a Brother 4x4 Hoop in Embrilliance Essentials—Without the Ugly Border Surprise

If you have ever stared at that red “out of bounds” line in your software and felt your stomach drop, you are not alone. I have watched this exact moment—often called "The 4x4 Panic"—derail more small business deadlines than any thread break ever could. You have the perfect apple appliqué design for a teacher's gift, but your machine’s embroidery field is physically too small to stitch it.

In this "White Paper" grade tutorial, we are dissecting the exact workflow required to split a large design using Embrilliance Essentials so it can be stitched on a machine limited to a 100x100mm (4x4) field.

However, software is only half the battle. As someone who has overseen thousands of production runs, I can tell you that splitting a design introduces physical risks: alignment shifts, hoop burns, and "gapping." We will cover the software steps, but we will also cover the physics required to pull this off safely.

You will leave with:

• A clean split design (Top and Bottom .PES files).
• A reusable .BE working file (so you don't have to re-do the work for the next teacher).
• A safety-first workflow that prevents the "dreaded shift."


The 4x4 Hoop Panic (Brother 4x4 Hoop Users): Why That Red Line Isn’t the End of Your Project

The project in question is a classic tiered design: a large apple appliqué for a sweatshirt, paired with a long cursive name ("Ms. Quinnine"). The moment you type that name, the design exceeds the standard 100mm stitch field, and Embrilliance throws up a red boundary warning.

If you are working with a brother 4x4 embroidery hoop, that red line isn't an error message; it is a physical reality check. It is the software telling you: "The needle cannot travel this far without hitting the plastic frame."

The solution isn't to shrink the design (which ruins the appliqué aesthetic). The solution is Multi-Position Hooping. This strategy tells the software to slice the data into two separate files—a "Top" segment and a "Bottom" segment—that you stitch sequentially by moving the hoop's attachment clips, not the fabric itself.

The “Hidden” Prep Before Embrilliance Essentials Multi-Position: Set Yourself Up Like a Pro

Amateurs jump straight into the software. Professionals start with their physical environment. Splitting a design creates "File Chaos"—you go from one file to three or four. If you are not organized, you will load the wrong file, and your needle will crash.

The "Hidden Consumables" You Need

The video shows the basics (USB drive, scissors), but for a split design on a sweatshirt, you need to add these to your arsenal to prevent shifting:

1. Water Soluble Topper: To keep the stitches from sinking into the sweatshirt fleece.
2. Temporary Spray Adhesive (e.g., Odif 505): Essential for floating fabric or securing stabilizer.
3. Fresh Needles: A split design requires precision; a dull needle causes drag, which shifts fabric.

Warning: Mechanical Safety. Keep scissors, snips, and needles organized in a magnetic tray or designated zone. When you are swapping hoop positions (taking the hoop off and on the carriage repeatedly), your hands are moving fast near the needle bar. I have seen operators puncture their fingers because they were rushing the re-attachment changeover. Slow down.

Prep Checklist (Do this before opening software)

• Folder Protocol: Create a specific folder on your PC named Client_Name_Date (e.g., Apple_Quinnine_OCT24). NEVER save split files to your desktop; you will lose them.
• Fabric Stabilization Plan: For sweatshirts, use a Cutaway Stabilizer (Mesh). Tear-away is not strong enough to hold the alignment between the Top and Bottom split.
• USB Hygiene: Delete old files from your "Geek Stick" (USB drive) so you don't accidentally load last week's project.
• Hoop Check: Inspect your hoop. If the inner ring is loose or oily, clean it. Slippage equals failure in multi-position projects.

Import the Apple Appliqué in Embrilliance Essentials, Then Add Text That Actually Connects

The workflow begins in Embrilliance Essentials. Import your base design (the Apple) using the file folder icon, then select the "A" tool to type the teacher's name.

The "Physics" of Cursive Text

In the video, the creator types "Ms. Quinnine" and selects a script font. Here is the critical step: Manual Spacing Adjustment.

Machine embroidery is not like printing on paper. Thread has tension. As it stitches, it pulls fabric inward (the "Pull Compensation" effect). If your cursive letters merely touch on screen, they will likely have gaps when stitched.

The Sensory Check: Look at the green control dots (anchors) on each letter. Drag them closer until the tail of the first letter overlaps the start of the next letter by about 1mm—roughly the width of a credit card edge.

• Too loose? You get gaps and a "homemade" look.
• Just right? The satin stitches blend into a seamless stroke.

If you are just starting out with an embroidery machine for beginners, mastering this overlap is the single fastest way to make your work look expensive.

Make Embrilliance Multi-Position Hoop Settings Do the Heavy Lifting (Large Hoop 2 + Rotate 90°)

Once the red boundary line appears, do not panic. We simply need to change the digital canvas to match the physical multi-position hoop.

The Exact Parameter Set:

1. Open Preferences (File folder icon with gear).
2. Navigate to Multi-Position.
3. Select 100 x 172 Large Hoop 2 (This is the standard size for most Brother multi-position hoops).
4. Vital Step: Check Rotate 90 degrees. Most 4x4 machines stitch side-to-side; the multi-hoop is long vertically. We rotate the virtual hoop to match the machine's arm.
5. Click Apply > OK.


The Visual Check: The workspace will stick overlapping rectangles on your screen. Use the Zoom Out button immediately. You need to see the entire grid. This grid represents the physical reality of multi hooping machine embroidery—you aren't stretching the machine's limits; you are tiling the design across two valid stitch zones.

Resize and Center the Apple and Name So the Split Looks Intentional (Not Like a Mistake)

Now that you have the grid, you must place the design. This requires strategic thinking. You want the "split line" (where the machine stops and you move the hoop) to happen in a discrete area—ideally not through the middle of a complex letter.

The Strategy:

1. Apple Placement: Select the apple. Drag the corner handles to enlarge it. Stop before it touches the outer black boundary lines. Give yourself a 2mm safety buffer.
2. Centering: Click the Center Design button to align the apple to the mathematically vertical center.
3. Text Adjustment: Enlarge and center the text. Use the Down Arrow key on your keyboard to nudge the text vertically.

Pro Tip: If the text is split exactly horizontally through the middle of a letter, try to nudge it up or down so the split happens between letters or at a natural break point.

The Commercial Upgrade: Aligning fabric straight in the hoop for split designs is difficult. If you find your text is constantly crooked on the sweatshirt, consider a hooping station for embroidery. These tools use placement guides to ensure your garment is square before you clamp it, which is critical when matching two halves of a split design.

Setup Checklist (Software Configuration)

• Zoom: Can you see the full "Double Hoop" grid on screen?
• Safe Zone: Is there at least 2mm of white space between your design elements and the outer hoop lines?
• Centering: Did you use the software's alignment tool (don't eyeball it)?
• Split Logic: Does the split occur in a "forgiving" area of the design?

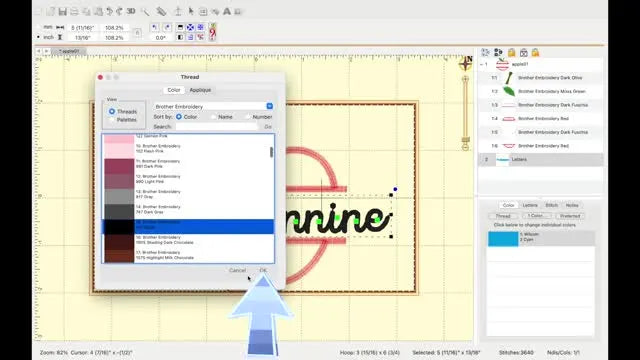

Change Thread Color in the Object Pane (Letters to Black) Without Guessing

Colors on the screen translate to "Stops" on the machine. If your Apple outline is black, and your Text is dark grey, the machine will stop and force a change.

1. Click the "Letters" object in the right-hand Object Pane.
2. Click the Color tab.
3. Select standard Black (or match the exact code of your thread).

Why this matters: Reducing color stops reduces the chance of misalignment. The less you touch the machine during a split-hoop process, the better.

Save Stitch File As .PES and Let Embrilliance Split It—Then Verify the Files Immediately

This is the moment of truth. Go to File > Save Stitch File As. Name it clearly, e.g., Apple_Quinnine.

Because "Multi-Position" is active, Embrilliance detects the size and automatically performs the surgery. It splits the data into two files.

The Verification: Check your desktop. You should see:

1. Apple_Quinnine_Top.pes
2. Apple_Quinnine_Bottom.pes

If you are running a business, file management is where profit is lost. Moving files back and forth is tedious. If you own a specialized hoop for brother embroidery machine, ensure your file names include the size (e.g., _MultiHoop) so you don’t load this file into a standard 4x4 hoop later by mistake.

The Border You Didn’t Add: Delete the Automatic Alignment Layer in Each Split File

CRITICAL FAILURE POINT: This is where 90% of beginners fail.

When Embrilliance splits a file, it sometimes adds a "basting box" or alignment rectangle around the design to help machines line up. However, on many home machines, simply stitching this box creates a visible, unwanted border.

The Clean-Up Protocol:

1. Open the newly generated ...Bottom.pes file.
2. Look at the Object Pane. You will likely see a "Color 1" layer that looks like an outline.
3. Select that first layer.
4. Press DELETE.
5. Save the file (Overwrite it).


Repeat this exact process for the ...Top.pes file.

Why? If you skip this, your beautiful apple will have a random black rectangle stitched around it. Always audit the auto-generated files.

Save a .BE Working File Now—Because Editing Split .PES Later Really Is a Nightmare

You have saved the Stitch files (.PES) for the machine. Now you must save the Working file (.BE) for yourself.

Go to File > Save Working File As -> Split_Apple_Master.be.

The Long-Term Value: A .PES file is like a flattened PDF—you cannot easily change the text spelling or font later. A .BE file is like the original Word document—it keeps the text editable. Next year, when you need a gift for "Mr. Smith," you open the .BE file, change Quinnine to Smith, and hit save. You just saved yourself 20 minutes of work.

Decision Tree: When to Split in Software vs Upgrade Your Hooping Setup

Splitting designs is a vital survival skill, but it is not efficient for high volume. Use this logic gate to decide your next move:

A) The Hobbyist Path:

• Scenario: You make 1–5 gifts a year.
• Action: Stick with the Multi-Position hoop and the software splitting method taught above. It costs $0 and works perfectly for low volume.

B) The "Side Hustle" Frustration:

• Scenario: You are doing 10+ shirts a week. Your wrists hurt from tightening screws. You are getting "Hoop Burn" (shiny rings) on delicate fabrics.
• Trigger: Hoop burn destroys profit because you have to replace the garment.
• Solution: This is the criteria for a magnetic embroidery hoop. Magnetic hoops clamp instantly without friction, eliminating hoop burn and reducing wrist strain. They allow you to re-hoop much faster, which is critical when doing split designs.

C) The Production Scaling Path:

• Scenario: You are turning down orders because you can't stitch fast enough. The 4x4 limit is killing your ability to bid on jacket backs.
• Action: Evaluate a productivity jump. Moving to a multi-needle machine (like the SEWTECH series) gives you huge stitch fields (no need to split!) and automatic color changes.

Warning: Magnetic Hazard. If you choose to upgrade to Magnetic Hoops, handle them with extreme respect. These are industrial-strength magnets. They can pinch fingers severely and must be kept away from pacemakers and sensitive electronics.

Troubleshooting the Two Most Common Split-File Problems

If things go wrong, consult this diagnostic table:

Operation Checklist: From Desktop to Geek Stick to Brother Machine—No Mix-Ups

You are ready to stitch. Transfer the Cleaned Top and Cleaned Bottom files to your USB drive.

Operation Checklist (The "Pre-Flight" Check)

• File Identity: Double-check that you transferred the without-border versions of the files.
• Needle Check: Is a fresh 75/11 embroidery needle installed?
• Hoop Alignment: When you attach the multi-position hoop to the machine, ensure the clips are locked.
• Stitch Order: Load the file named BOTTOM first (usually stitched first in this workflow, though order can vary—check your specific design).
• Physical Watch: Do not walk away during the transition. Watch the needle clear the hoop mechanism.

The Upgrade Path That Doesn’t Feel Like a Sales Pitch: Fix the Bottleneck You Actually Have

Splitting designs allows you to say "Yes" to projects your machine "shouldn't" be able to do. It is a superpower for the 4x4 user.

But keep an eye on your friction points.

• If your struggle is hoop marks, look into brother embroidery machine hoops with magnetic upgrades to save your fabric.
• If your struggle is speed and size, recognize when you have graduated from "hacking" the 4x4 limit to needing a dedicated larger field machine.

The goal isn't just to finish the apple; it's to enjoy the process enough to make the next one.

FAQ

• Q: In Embrilliance Essentials, why does the red “out of bounds” line appear when using a Brother 4x4 (100x100mm) embroidery hoop with long cursive text?
  A: The design exceeds the physical needle travel of the Brother 4x4 field, so Embrilliance is warning that the hoop frame would be hit if stitched as-is.
  • Switch: Open Preferences and enable Multi-Position so the workspace matches a multi-position hoop grid.
  • Select: Choose “100 x 172 Large Hoop 2” and check “Rotate 90 degrees,” then Apply.
  • Re-check: Zoom out to confirm the entire multi-position grid is visible before placing the design.
  • Success check: The design fits inside the multi-position rectangles without crossing the outer boundary lines.
  • If it still fails: Reconfirm Multi-Position is actually active and that “Rotate 90 degrees” is checked (missing rotation is a common cause).
• Q: What consumables should be prepared before splitting a sweatshirt design in Embrilliance Essentials Multi-Position hooping to prevent fabric shift and gaps?
  A: Prepare stabilizing and control items first, because split designs amplify small handling errors during re-hooping.
  • Add: Use water-soluble topper to prevent stitches sinking into sweatshirt fleece.
  • Secure: Use temporary spray adhesive (for example Odif 505) to stabilize layers and reduce shifting during hoop moves.
  • Replace: Install a fresh needle to reduce drag that can pull fabric out of alignment.
  • Success check: The fabric feels firmly supported (not “springy”), and the first stitches do not ripple or sink.
  • If it still fails: Upgrade the stabilization plan by using cutaway (mesh) stabilizer rather than tear-away for better hold between Top and Bottom.
• Q: How can Embrilliance Essentials cursive text be adjusted so script letters connect cleanly instead of stitching with gaps on a sweatshirt?
  A: Manually overlap cursive letters slightly on-screen so pull compensation does not open gaps during stitching.
  • Select: Click the script text and display the green control dots (anchors) on each letter.
  • Drag: Move letters closer until the tail of one letter overlaps the next by about 1 mm.
  • Avoid: Do not leave letters merely “touching” on screen—touching often becomes a gap when stitched.
  • Success check: The satin stitches blend into one continuous stroke with no visible white breaks between letters.
  • If it still fails: Re-check stabilizer choice (cutaway holds better) and confirm the fabric is not shifting during hoop position changes.
• Q: Why does Embrilliance Essentials sometimes create an unwanted black rectangle border after splitting into Top and Bottom .PES files, and how can the border be removed?
  A: Embrilliance may add an automatic alignment/basting layer during splitting, and that layer must be deleted in each split file if it stitches visibly.
  • Open: Load the generated “..._Bottom.pes” file (and later the “..._Top.pes” file) back into the software.
  • Identify: Look in the Object Pane for the first layer (often “Color 1”) that appears as an outline/box.
  • Delete: Select that layer and press DELETE, then save/overwrite the file.
  • Success check: A preview of the stitch sequence shows no rectangle/box layer before the design stitches.
  • If it still fails: Confirm the correct cleaned file was copied to the USB (it is common to transfer the unedited version by mistake).
• Q: What is the safest way to handle repeated hoop re-attachment during Brother multi-position hooping to avoid needle-bar injuries?
  A: Slow down and keep tools controlled, because multi-position workflows require repeated on/off hoop changes near the needle area.
  • Organize: Keep scissors, snips, and needles in a magnetic tray or designated zone before starting.
  • Pause: Stop and visually confirm the hoop clips are aligned and locked before reattaching to the carriage.
  • Control: Keep hands clear of the needle bar area during re-attachment changes—do not rush the swap.
  • Success check: Hoop attachment feels “locked” with no wobble, and hands never need to reach under the needle bar to force parts into place.
  • If it still fails: Stop the process, re-check the hoop mechanism for interference, and do not continue until attachment is smooth and repeatable.
• Q: What is the correct file-handling workflow to prevent loading the wrong Embrilliance split file (Top vs Bottom) onto a Brother embroidery machine from a USB drive?
  A: Use strict naming and a pre-flight check so only the cleaned split files reach the USB, and stitch in the intended order.
  • Save: Confirm Embrilliance produced two files named with clear suffixes like “_Top.pes” and “_Bottom.pes.”
  • Verify: Open each file once to ensure the unwanted alignment border layer was deleted, then re-save.
  • Transfer: Clear old USB files and copy only the final cleaned Top/Bottom files onto the drive.
  • Success check: The machine screen shows the expected segment name (Top or Bottom) and the preview matches the intended half of the design.
  • If it still fails: Return to the PC folder (not the desktop), confirm which files were last modified, and re-copy to USB to avoid stale versions.
• Q: When recurring hoop burn, slow re-hooping, and alignment drift happen during split designs, when should embroidery users move from technique fixes to magnetic hoops or to a multi-needle machine upgrade?
  A: Start with technique and stabilization, move to magnetic hoops when hooping friction and marks become the bottleneck, and move to a larger-field multi-needle machine when size and throughput become the bottleneck.
  • Level 1 (Technique): Use cutaway stabilizer for sweatshirts, secure layers with temporary spray adhesive, and minimize color stops to reduce handling during split hooping.
  • Level 2 (Tool): Consider magnetic hoops when hoop burn (shiny rings) or wrist strain from tightening screws becomes frequent and costly.
  • Level 3 (Capacity): Consider a multi-needle machine with a larger stitch field when splitting is limiting order size (for example jacket backs) or you are turning down work due to speed/field limits.
  • Success check: Re-hooping becomes repeatable with fewer touchpoints, and split alignment remains consistent without visible shifting.
  • If it still fails: Reassess the core constraint—if the main issue is physical field size and volume, reducing friction will not replace the need for a larger stitch field.
