Spark PhotoStitch in Wavenet Spark: Turn a Phone Photo into a Stitch File (and Avoid the “Looks Great on Screen” Trap)

If you’ve ever converted a photo to stitches and thought, “Wow… that looks amazing,” then hit Start on your machine and immediately regretted it—take a breath. Photo-to-embroidery is absolutely doable, but it’s also where beginners accidentally create the densest, slowest, most break-prone files in their whole library.

In this lesson, you’re working inside Wavenet Spark using the PhotoStitch module to turn a bitmap photo into an embroidery design, then finishing it with a decorative frame and lettering. I’ll walk you through the exact on-screen workflow, but more importantly, I’ll add the missing “shop-floor reality” checks that keep your machine from jamming and your needles from snapping.

Calm the Panic: What Spark PhotoStitch Can (and Can’t) Do for a Real Embroidery Machine

PhotoStitch is fast—sometimes too fast. In the video, the design is generated “done in a minute,” and that’s true on the software side. But your embroidery machine still has to physically punch every stitch, manage thread tension, and handle fabric movement.

Here’s the mindset that saves projects:

• PhotoStitch is a conversion tool, not a guarantee of stitchability.
• Density is the enemy. A photo has millions of pixels; you cannot have millions of stitches.
• Fabric dictates everything. A dense photo design that works on denim will turn a t-shirt into a bulletproof vest.

If you are using magnetic embroidery hoops for faster setup, remember that speed only helps if the file itself is stitch-friendly. A bad file allows physics to win—causing puckering or thread nests regardless of how well you hooped it.

The “Hidden” Prep Pros Do First: Pick the Right Photo Before You Touch PhotoStitch

The video jumps straight into the module, but in production, the photo choice is where you win or lose.

A few practical rules (based on years of trial and error):

• High Contrast: A crisp face with clear light/dark separation converts better than a soft, moody photo.
• Clean Backgrounds: PhotoStitch will happily turn background noise into random "confetti" stitches. Crop tight before importing.
• Avoid Gradients: Smooth color shifts often become dense "mud" or jump-stitch nightmares.

Hidden Consumables: Before you start, ensure you have Water Soluble Topping (Solvy). For photo stitch, laying this on top prevents stitches from sinking into the fabric pile, keeping the image crisp.

Prep Checklist (Pre-Software)

• Image Audit: Is the subject distinct from the background? (High contrast = better stitching).
• End-Use Decision: Is this for a wall hanging (can be dense) or a wearable (must be lighter)?
• Hoop Area Check: Do you actually have a hoop large enough for the detail you want?
• Machine Maintenance: Photo designs have high stitch counts. Clean your bobbin case and change to a fresh needle (75/11 Sharp) now.


Open PhotoStitch in Wavenet Spark and Choose the Image Source Without Wasting Time

In the video, the workflow starts on the Spark home screen:

1. From the main menu, select PhotoStitch.
2. Choose the image source from the dropdown—Spark shows options like Camera, Device, and Web.
3. For this demo, the source is Device, meaning you browse local files.

Pro Tip: You can also launch PhotoStitch from your phone’s photo viewer using Share—this saves time hunting through file folders.

Confirm Design Dimensions (198.1 mm × 247.6 mm) Before You Generate a Stitch Monster

The video selects a bitmap image named “3 Photostitch girl.bmp” and Spark displays the detected design size:

• 198.1 mm × 247.6 mm (Approx 7.8 x 9.7 inches)

Stop and process this number. A nearly 10-inch block of photo-density stitching is heavy. It will pull hard on your fabric.

The "Drum Skin" Test: When hooping for a design this large, your fabric must be tight. Tap it—it should sound like a drum. If using a standard hoop leaves "hoop burn" (crushed fabric marks) on delicate items, many pros switch to a repositionable embroidery hoop. Magnetic options grasp the fabric firmly without the friction burn of traditional inner/outer rings, which is critical when you have to re-hoop such a large design.

Choose Filling Technique in Spark PhotoStitch: Rectangular vs. Running (This Choice Changes Everything)

In the configuration popup, the video demonstrates two different filling techniques. This is your most critical decision.

Option A — Rectangular + Color Fill (The safer bet)

The video selects:

• Filling technique: Rectangular
• Stitch Count: 96,941 stitches

Rectangular fill creates structured blocks. It stitches somewhat like a tatami fill, providing better stability on the fabric.

Option B — Running (The risky artist)

Later, the video selects:

• Filling technique: Running
• Stitch Count: 179,528 stitches

Reality Check: 179,000 stitches is massive. On a commercial high-speed machine, this takes hours. On a home single-needle machine, this could take all day.

My Veteran Advice:

• Rectangular is your default for predictable results.
• Running creates a "sketchy" artistic look but generates extreme density. Only use this on heavy canvas or denim with strong Cutaway stabilizer.

If you are setting up a hooping station for machine embroidery for a production run, avoid "Running" fill unless you are charging a premium, as the machine runtime will kill your profit margin.

Warning: Mechanical Safety
High stitch counts (like 179k) generate significant heat.
* Listen: If you hear a rhythmic "thump-thump," your needle is struggling to penetrate.
* Touch: The needle bar may get hot.
* Action: Slow your machine speed down (e.g., from 1000 SPM to 600 SPM) to prevent thread breaks and needle deflection.

Let Spark Process to 100%—Then Inspect Like a Digitizer, Not Like a Tourist

The video shows the processing screen. Wait until it reaches 100%.

Once the design appears, zooming in is not optional. You need to look for "Stitch Mud"—areas where black, dark brown, and navy blue overlap creates a solid lump of thread.

The Physical Consequence: If you stitch "mud," your needle creates a perforation line, literally cutting a hole in your fabric.

If you are using a magnetic hooping station to ensure perfect vertical alignment, that precision is wasted if the design itself chews a hole in the shirt. Always inspect the file first.

Toggle Normal vs. Realistic View in Spark to Spot Density Problems Before You Stitch

The video toggles view modes:

• Normal (Line view)
• Realistic View (3D thread simulation)

Use Realistic View to audit texture.

• Visual Check: Look for areas that look like a solid carpet.
• Prediction: If it looks solid on screen, it will be stiff on the shirt. If it's stiff, it will drape poorly on a lightweight garment.


Re-Run PhotoStitch with Running Fill Only If You’re Ready for 179,528 Stitches

The video’s Running fill example produces that massive 179k stitch count.

When to use Running Fill:

• You are stitching on a heavy jean jacket back.
• You are making a framed art piece on stiff felt.
• You have industrial-grade SEWTECH multi-needle embroidery machines that can handle long run times without overheating.

When to avoid it:

• T-shirts, Polos, Towels.
• If you are in a rush.

For shops trying to optimize workflow, a hooping station for embroidery helps you load garments quickly, but you must pair that efficiency with files that don't take 3 hours to sew.

Resize the PhotoStitch Design to 80% (Scale X/Y) Without Distorting the Aspect Ratio

In the video, the resize tool is opened:

• Scale X/Y: 80%

Crucial Lesson: When you shrink a photo-stitch design, the software might recalculate stitches (good) or it might just squish them closer together (bad). In Spark PhotoStitch, because you are in the generation phase, it usually recalculates.

However, be careful. If you make a photo design too small, the details blur. Photo embroidery needs space to "breathe."

Setup Checklist (Design Phase)

• Fill Selection: Did you choose Rectangular (Safe) or Running (Artistic/Dense)?
• Density Check: Does the stitch count seem realistic for the size? (e.g., 50k-100k is normal for large photos; 200k+ is danger).
• Consumable Match: If using high stitch counts, ensure you have Heavy Weight Cutaway Stabilizer. Tearaway will not hold this many stitches.
• Scaling: Did you lock the Aspect Ratio? Distorted faces look terrible in thread.


Add Frame 028 from the Spark Library So the Border Centers Cleanly

The video selects Frame 028. Spark automatically centers it.

The Physics of Framing: The frame creates a visual "fence." If your hooping is crooked by even 2 degrees, the geometric frame makes the error obvious.

This is where tools matter. Professional shops use a magnetic embroidery frame because it allows for micro-adjustments. You can slide the magnets slightly to square up the fabric after placing it on the hoop, ensuring the frame stitches exactly parallel to the grain of the fabric.

Add Text in Spark Lettering Tool: Amazone Font at 10.0 mm (Then Place It Like a Finisher)

In the video:

• Text: “My beautiful photo”
• Font: Amazone
• Size: 10.0 mm

The "Sinking" Problem: 10mm text is small. On a photo-stitch background or a towel, these letters will disappear.

• The Fix: This is another reason to use the Water Soluble Topping mentioned in the prep section. It keeps the text floating on top of the texture.

Hooping for Text: Text at the bottom of a hoop is prone to distortion because the fabric can "flag" (bounce) near the hoop edge. A strong magnetic hoop clamps the fabric all the way to the rim preventing this flagging, ensuring your text stays straight.

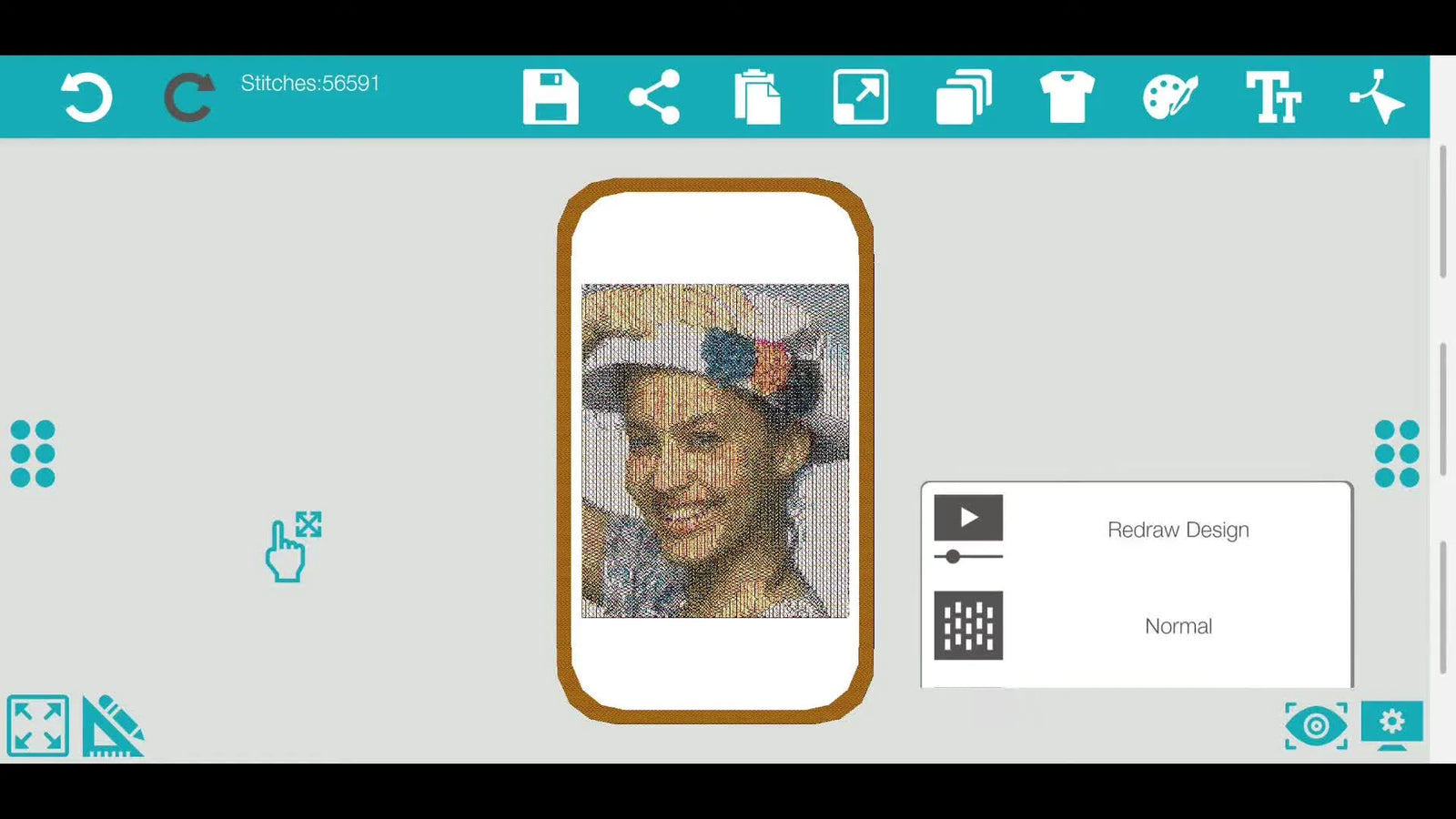

Final Preview: Check the PhotoStitch + Frame + Lettering as One Composition (Not Three Separate Parts)

The video ends with the final result.

Operation Checklist (Pre-Flight)

• Tension Check: Pull your top thread. It should feel like pulling dental floss through teeth (slight resistance). Loose tension causes loops in photo designs.
• Bobbin Check: Do you have a full bobbin? Photo stitch eats thread. You do not want to run out of bobbin thread in the middle of a complex face gradient.
• Stabilizer: Are you using Cutaway? (Yes, you should be).
• Needle: Is it new?
• Hooping: Is the fabric "drum tight" but not stretched out of shape?

Warning: Magnet Safety
If upgrading to magnetic sets: Strong magnets can pinch fingers severely. Keep them away from pacemakers, insulin pumps, and credit cards. Always slide magnets apart; do not try to pull them straight off.

A Simple Decision Tree: Choose Fill & Stabilizer Based on Fabric

Confused about settings? Use this logic path:

1. Fabric: Stretchy (T-shirt/Polo)

• Fill: Rectangular (Medium Density).
• Stabilizer: No-Show Mesh or Medium Cutaway.
• Needle: Ballpoint (75/11).
• Hoop: Magnetic (to prevent stretching while hooping).

2. Fabric: Stable (Denim/Canvas/Tote)

• Fill: Running (High Density Allowed) OR Rectangular.
• Stabilizer: Tearaway is okay, but Medium Cutaway is better for photo density.
• Needle: Sharp / Jeans (90/14).

3. Fabric: Texture (Towel/Fleece)

• Fill: Rectangular (High contrast).
• Stabilizer: Cutaway (Back) + Water Soluble Solvy (Top).
• Critical: Use a lighter density so the towel doesn't become a stiff brick.

The Upgrade Path That Actually Makes Sense: Speed Up Hooping Only After the File Is Under Control

PhotoStitch is fun because it’s fast to generate—but the bottleneck is usually the 2-hour stitch time and the stress of hooping.

Here is how you scale from hobby to pro:

1. Level 1: Better Materials. Stop using Tearaway on everything. Buy high-quality Cutaway Stabilizer and Madeira or similar quality thread.
2. Level 2: Better Workflows. If you are fighting with thick items (towels, jackets) or getting hoop burn, invest in embroidery hooping system tools like SEWTECH Magnetic Hoops. They save your wrists and save the fabric.
3. Level 3: Better Capacity. If you love the result but hate that it ties up your single-needle machine for 3 hours, this is the trigger to look at SEWTECH Multi-needle Machines. You can set the photo design to run on the big machine while you digitize the next one, instantly doubling your profit per hour.

Master the file first, then upgrade your gear to handle the volume.

FAQ

• Q: In Wavenet Spark PhotoStitch, how do I choose between the Rectangular fill and the Running fill to avoid an un-stitchable high-density photo design?
  A: Use Rectangular fill as the safe default, and only use Running fill when the fabric and stabilizer can handle extreme stitch counts.
  • Choose Rectangular + Color Fill when the goal is stable stitching and predictable density (the example shows ~96,941 stitches).
  • Choose Running only for an intentional “sketchy” look on heavy fabrics, because it can jump to extreme counts (the example shows ~179,528 stitches).
  • Success check: In Realistic View, the photo should look textured—not like a solid “carpet” of thread.
  • If it still fails: Re-run PhotoStitch with Rectangular fill and reduce density expectations (avoid trying to pack photo detail into a small area).
• Q: In Wavenet Spark PhotoStitch, what should I check when the detected design size is around 198.1 mm × 247.6 mm so the fabric does not pucker or distort during stitching?
  A: Treat a near-10-inch PhotoStitch as a heavy pull design and hoop for maximum stability before pressing Start.
  • Hoop the fabric “drum tight” and avoid stretching the garment out of shape.
  • Use a hooping method that grips firmly without crushing delicate fabric if hoop marks are a problem (magnetic-style clamping often helps).
  • Success check: Tap the hooped fabric; it should sound and feel like a drumhead with no loose zones.
  • If it still fails: Lighten the file (choose Rectangular over Running) and switch from tearaway to a cutaway stabilizer for high stitch-count photos.
• Q: For Wavenet Spark PhotoStitch photo embroidery on towels, fleece, or textured fabric, what supplies prevent detail and small text from “sinking” into the pile?
  A: Use water-soluble topping on top and cutaway stabilizer on the back to keep stitches sitting on the surface.
  • Place Water Soluble Topping (Solvy) over the fabric before stitching the photo and any small lettering.
  • Use Cutaway stabilizer underneath; photo designs commonly overwhelm tearaway.
  • Success check: After stitching, the photo details and 10.0 mm lettering remain crisp and readable instead of disappearing into the nap.
  • If it still fails: Reduce density (avoid Running fill) and re-check hoop tightness to prevent the fabric pile from “swallowing” stitches.
• Q: For high stitch-count Wavenet Spark PhotoStitch designs, what machine prep should be done (bobbin, needle, cleaning) to reduce thread breaks and mid-design stoppages?
  A: Do basic maintenance before running the file because photo designs stress the machine for a long time.
  • Clean the bobbin case before starting.
  • Install a fresh needle (the lesson calls out a 75/11 Sharp as a prep step; follow the machine manual if it specifies otherwise).
  • Start with a full bobbin because PhotoStitch consumes thread quickly.
  • Success check: The machine runs smoothly without repeated thread breaks, and the stitch formation stays consistent from start to finish.
  • If it still fails: Slow the machine speed and re-check thread path/tension, because long dense runs amplify small setup issues.
• Q: How do I judge correct embroidery top thread tension before running a dense Wavenet Spark PhotoStitch design to prevent looping and thread nests?
  A: Do a quick hand-feel tension check first; PhotoStitch will punish loose tension fast.
  • Pull the top thread by hand; it should feel like dental floss through teeth (slight resistance, not free-spinning).
  • Verify the bobbin is properly seated and the thread path is correctly threaded before committing to a long run.
  • Success check: The start of the design does not form loose loops on the surface and does not create a thread nest under the fabric.
  • If it still fails: Stop early, re-thread completely, and slow the stitch speed so the machine can form stitches cleanly under load.
• Q: During a high stitch-count Wavenet Spark PhotoStitch run, what signs mean the needle is struggling or overheating, and what is the safest immediate action?
  A: If the machine starts “thump-thump” punching or the needle area feels hot, slow down immediately to prevent breaks and damage.
  • Listen for a rhythmic “thump-thump” sound that suggests penetration resistance.
  • Touch-check carefully (with the machine stopped) if the needle bar area is getting unusually warm during long dense stitching.
  • Reduce speed (the lesson example is dropping from about 1000 SPM to 600 SPM) to reduce heat and needle deflection.
  • Success check: The thumping reduces, thread breaks decrease, and the stitch line resumes smoothly.
  • If it still fails: Stop the job, change to a new needle, and reassess density (Running fill at ~179k stitches may be too much for the fabric/setup).
• Q: What magnet safety rules should be followed when using a magnetic embroidery hoop or magnetic hooping setup for long Wavenet Spark PhotoStitch projects?
  A: Treat embroidery magnets as pinch hazards and keep them away from sensitive medical devices and magnetic cards.
  • Slide magnets apart to separate them; do not pull straight up with fingers in the pinch zone.
  • Keep magnets away from pacemakers, insulin pumps, and credit cards.
  • Success check: Hooping is secure and repeatable with no finger pinches and no uncontrolled magnet snapping.
  • If it still fails: Switch to a slower, two-hand placement method and reorganize the work surface so magnets cannot jump onto tools or machine parts.
• Q: If Wavenet Spark PhotoStitch designs take 2–3 hours to stitch and keep bottlenecking production, what is a practical upgrade path from workflow fixes to equipment upgrades?
  A: Fix the file and materials first, then speed up hooping, and only then consider adding machine capacity.
  • Level 1 (Technique/Materials): Use cutaway stabilizer for photo density, use quality thread, and avoid ultra-dense Running fill unless the job demands it.
  • Level 2 (Workflow Tooling): Add a magnetic-style hooping system if hoop burn, thick items, or slow loading is the main pain point.
  • Level 3 (Capacity): Move long photo runs to a multi-needle setup when single-needle runtime is blocking other work.
  • Success check: Hooping time drops and the machine spends more time stitching sellable output rather than rehooping, fixing puckers, or restarting after breaks.
  • If it still fails: Re-audit stitch count versus size in PhotoStitch and reject files that create “stitch mud” in Realistic View before they hit the machine.
