The "Clean Void" Quilt Technique: How to Add Background Stitching to Finished Embroidery (A Solaris & IQ Designer Masterclass)

If you’ve ever finished an embroidery design and thought, “This needs quilting around it—but I strictly do not want to re-digitize a whole block,” you are standing at a very common crossroads.

Most beginners stop here because of Cognitive Friction: the fear that adding stitches later will ruin the expensive hour of embroidery you just completed.

This guide will dismantle that fear. We are going to prioritize a workflow built on safety margins and repeatable physics. The Solaris (and similar high-end machines) offers a workflow based on one simple architectural concept: create a clean void (barrier) around the embroidery, then fill everything outside that void with a low-density quilting pattern.

Done right, the result looks intentional, lies flat, and mimics the drape of free-motion quilting. Done wrong, it looks like "cardboard"—stiff, bulletproof, and wrinkled.

Below is the expert-calibrated process, moving from the Baby Lock Solaris screen to the physical reality of hooping, including the sensory cues you need to watch (and listen) for.

The Strategy: Don’t Panic, Just "Zone" It

The moment you realize you want background quilting after the embroidery is stitched, do not reach for your seam ripper.

Your machine's ecosystem (IQ Designer on Baby Lock / My Design Center on Brother) allows you to:

1. Scan/Load the design you already stitched.
2. Generate a "Keep-Out" Zone (Boundary) around it.
3. Flood Fill the remaining space with a texture.

The difference between a pro finish and a "messy" finish is the Safety Gap. We need to ensure the fill stitches don't creep into the tiny, high-risk areas of your design (like the space between a bee's wing and its body).

Step 1: The "Clean Void" Setup (0.060" Safety Margin)

We start on the Embroidery Editing side of the machine. Select your stitched design (in this case, the "Henny Jenney" design).

1. Select the Outline Tool

Tap the Edit key and look for the icon resembling a flower with a border. This is the auto-outline generator.

2. Diagnose the Gaps

Look at the preview. Initially, the outline might trace inside small details (gaps between letters or legs).

• The Risk: If you leave it like this, the machine will try to force tiny, knot-like fill stitches into these 1mm gaps. This causes thread nests and ugly texture.

3. Establish the Buffer Zone

Increase the Distance setting to 0.060 inches (approx. 1.5mm).

• Why 0.060"? This is the "Goldilocks" zone. It pushes the boundary outward just enough to bridge those tiny, dangerous gaps, creating a smooth, continuous silhouette.
• Visual Check: The line should look like a bubble wrapping the design, not a jagged map tracing the coast.


4. Save to Memory

Save this shape. You will need to recall it inside IQ Designer later.

Warning: Do not set the distance closer than 0.040" for quilting actions. If the quilting fill "kisses" your satins, the needle penetration creates tension drag, potentially distorting your original beautiful embroidery.

Step 2: The Physical Prep (Hoop Physics & Stabilizer Reality)

Before touching the screen again, we must address the physics of the hoop. Quilting fills are heavy. They create thousands of new needle penetrations that pull the fabric inward (the "drawstring effect").

The "Stitch-Ready" Setup

• Hoop: 9.5" x 9.5" (Match the hoop closest to your quilt block size).
• Stabilizer: Tear-away (Used as a floating base). Pro Tip: If your fabric is stretchy (like a T-shirt quilt), you must use a fusible woven backing or cutaway to prevent distortion.
• Batting: Pre-cut to the exact finished size (e.g., 9.5").
• Backing Fabric: Cut 1 inch larger (e.g., 10.5") to effectively "float" and tape.

Hidden Consumables

• Painter’s Tape (Blue or Purple): For securing the back layers.
• New Needle: Size 80/12 or 90/14 Topstitch. Dull needles push batting through the fabric, creating beard-like fuzz.

Prep Checklist: Pre-Flight Safety

• Hoop Taughtness: Tap the stabilizer. It should sound like a drum skin (Thump-Thump), not a loose sheet (Flap-Flap).
• Clearance: Ensure your hoop size allows at least 1 inch of clearance around the final quilt block size to avoid hitting the frame.
• Bobbin: Is it full? Running out of bobbin thread halfway through a lattice fill is a nightmare to repair invisibly.

Step 3: Building the Placement Square

Now, enter IQ Designer.

1. Tap the Stamp icon (Shapes).
2. Choose the Hoop Outline shape (usually an icon of a frame with a red plus).
3. Select 9.5" x 9.5" to match your physical hoop.


4. Assign Properties: Set the Line Property to Straight Stitch and the color to Green (or any distinct color #1).
5. Pour: Use the Fill Cup (Bucket) to tap the line.


The Logic: This Green line will be your Placement Guide. It stitches directly onto the stabilizer so you know exactly where to lay your batting.

Step 4: The Metric Switch (2.5mm Stitch Length)

By default, the machine might set runs to 2.0mm. We need to loosen this up.

1. Navigate to Settings (Page 9 on Solaris).
2. Change units to mm.
3. Increase run stitch length to 2.5 mm.


Why 2.5mm?

• Visual Anchor: Longer stitches are easier to see when placing fabric.
• Removal: If you make a mistake, a 2.5mm stitch is much easier to rip out than a tight 1.8mm stitch.
• Perforation Risk: Tighter stitches perforate the stabilizer like a postage stamp, increasing the risk of it popping out during the heavy quilting phase.

Step 5: The "Two-Line" Workflow (Placement & Tack-Down)

We need two distinct passes: one to show us where to put the fabric, dry, and one to sew it down.

• Copy the Square: Save the Green square to memory or stamp it again.
• Change Color: Make this second one Purple (or color #2).
• Function: This is your Tack-Down Stitch.

Pro Workflow Tip: If you are producing these blocks in volume, the "Hoop Flip" dance becomes exhausting. This is the exact friction point where professional shops switch to hooping station for embroidery setups. A station holds the hoop stable while you tape the back, reducing the wrist strain of balancing a heavy hoop with one hand.

Step 6: The Barrier & The Fill

Now we construct the quilting sandwich.

1. Recall the Square: Bring up the square shape one more time.
2. Set to "No Stitch": In Line Properties, select the "No Sew" button.


This defines the Outer Limit of your quilting.

1. Recall the Embroidery Outline: Retrieve the "Safe Zone" shape we saved in Step 1.
2. Set to "No Stitch": This defines the Inner Limit.

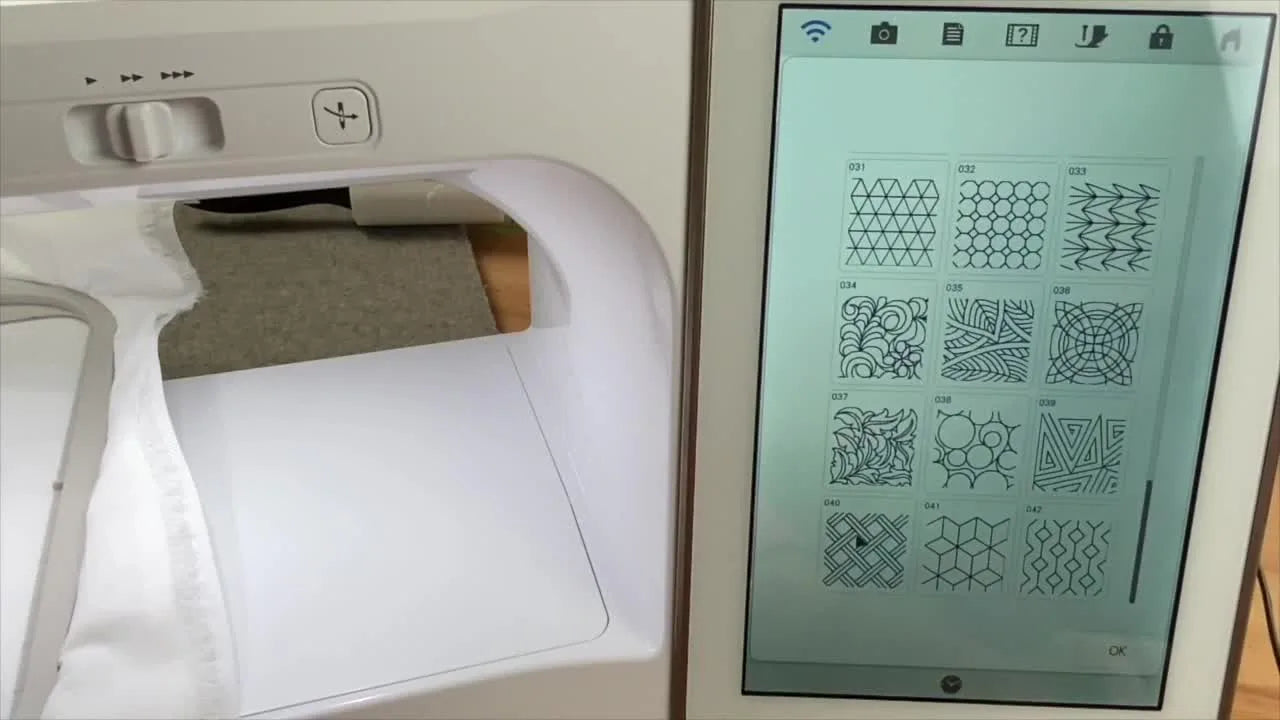

3. Select Fill: Choose a decorative fill (Pattern #040 Lattice is a classic).


4. Pour the Fill: Tap the space between the inner embroidery outline and the outer square boundary.

Success Metric: You should see the lattice pattern appear only in the background, leaving your embroidery perfectly clear.

Step 7: Density Control (The "Cardboard" Factor)

Default settings in digitizing software are often too dense for quilting.

• Action: Go to the Fill properties.
• Adjustment: Select "Less Stitch Intensity" (often visualized as a thinner line icon) or increase the scale of the pattern to 120-130%.


Sensory Check: Dense stitching feels stiff and board-like. We want the fabric to remain pliable. Opening up the pattern reduces thread build-up and keeps the quilt soft.

Step 8: The Projector Audition (The "Heartbreak" Prevention)

Before stitching, use the greatest safety feature of modern machines: the Projector.

1. Turn on the Projector.
2. Project the Quilting Fill onto your hooped fabric.
3. Visual Verification: Look closely at the edges. Does the projected light touch your embroidery stitches?


If it touches, nudge the placement slightly or increase the outline scale by 1-2%. Fixing this now costs 10 seconds. Fixing it after stitching takes 2 hours of picking.

Workflow Note: Precision alignment requires a stable hoop. If you find your standard hoop slips or moves while you are trying to project, this is often a trigger to investigate magnetic hoops for babylock embroidery machines. The magnet's vertical clamping force prevents the "slide" common in screw-tightened hoops during adjustments.

Step 9: Floating the Layers (The "Tapioca" Technique)

Stitch the Placement Line (Green) directly onto your stabilizer. Now, remove the hoop (but leave the embroidery arm attached if possible, or support the hoop carefully).

1. Flip: Turn the hoop over.
2. Batting: Place your batting square inside the stitched box.
3. Backing: Place backing face up over the batting.
4. Secure: Use Blue Painter’s Tape on the corners.


Tactile Tip: Burnish the tape. Rub your fingernail hard over the tape ends. You should feel heat from the friction. If you don't burnish, the tape will lift when the machine moves, creating a disaster inside the machine arm.

To reduce "hoop burn" (the permanent ring marks left on delicate fabrics) during this float method, many users eventually migrate to a floating embroidery hoop system or magnetic frames which clamp without the friction-burn of inner/outer rings.

Warning: Danger Zone. Ensure your tape handles and scissors are completely clear of the sewing field. A needle hitting a piece of hidden tape residue is annoying; a needle hitting a forgotten scissor tip is a shrapnel hazard.

Step 10: The Stitch-Out Sequence

1. Placement: (Already done).
2. Tack-Down: Run the Purple line. This secures your batting/backing sandwich.


3. Pause & Remove: Remove the tape! Do not stitch the final fill over the tape, or you will pick bits of blue adhesive out of your stitches forever.
4. Quilt: Run the Lattice fill.


Operation Checklist (The Final 30 Seconds)

• Tail Check: Are all thread tails trimmed to <5mm? Long tails get whipped into the fill.
• Back Check: Is the backing smooth? Run your hand under the hoop one last time.
• Speed Limit: Reduce machine speed to 600-700 SPM. Long decorative fill stitches perform better with lower tension forces at moderate speeds.

Troubleshooting: "Why Can I See My Bobbin Thread?"

A common panic moment: You see the bobbin thread pulling up to the top (or top thread pulling to the bottom).

The Diagnosis: Quilting fills move in all directions (multidirectional stitching). This puts unique stress on tension disks.

The Fixes (Level 1 to 3):

1. Match Colors (Level 1): The "cheat" code. Use the same color thread in the bobbin as the top. Tension issues become invisible.
2. Slow Down (Level 2): High speed creates whip. Slowing to 600 SPM often settles the tension.
3. Check Path (Level 3): Floss the thread path. A small piece of lint in the tension disk prevents the disks from closing, causing zero tension.

Stabilizer Decision Tree: What to Use When?

Your choice of foundation determines if the quilt block puckers.

• IF Fabric = Standard Quilting Cotton:
  • Result: Stable.
  • Recommendation: Tear-away stabilizer + Batting + Backing is sufficient.
• IF Fabric = T-Shirt Jersey (Stretchy):
  • Result: High distortion risk.
  • Recommendation: You MUST iron on a fusible stabilizer (like Shape-Flex) to the back of the shirt before hooping. Use Cutaway stabilizer in the hoop.
• IF Project = Already Finished Quilt (Thick):
  • Result: Hoop popping risk.
  • Recommendation: Do not force thick layers into a screw hoop. This is the primary use case for magnetic hoops for brother luminaire or Solaris machines, as they snap over thick layers without forcing them.

The Professional Upgrade: Why Magnetic Hoops?

If you make one quilt block a month, the tape and standard hoop method is fine. However, if you are planning a 20-block quilt, the "Hoop -> Screw -> Tighten -> Tug -> Re-tighten" cycle will hurt your wrists and slow you down.

Terms like magnetic embroidery hoops are not just buzzwords; they are ergonomic solutions. By using high-strength magnets to clamp the Sandwich instantly:

1. Zero Hoop Burn: No friction rings to mark the fabric.
2. Speed: Hooping takes 5 seconds instead of 2 minutes.
3. Thickness: Easily clamps over bulky seams where standard hoops fail.

Warning: Magnet Safety. Magnetic hoops use industrial Neodymium magnets. They snap together with enough force to pinch fingers severely. Keep them at least 6 inches away from pacemakers and media storage devices.

Final Thought

You’ve now controlled the space, the density, and the physics. The result is a block where the quilting highlights the embroidery rather than fighting it.

Remember, the machine provides the precision (0.060" outlines), but you provide the judgment (stabilizer choice and speed). Start with a test scrap, listen for that rhythmic "thump-thump" of a happy hoop, and enjoy the process of turning simple embroidery into complex textile art.

FAQ

• Q: What is the safest “Clean Void” outline distance to keep quilting stitches away from finished embroidery on a Baby Lock Solaris IQ Designer workflow?
  A: Use a 0.060 inch (about 1.5 mm) outline distance as a safe starting buffer for background quilting around finished embroidery.
  • Increase the Outline Tool “Distance” until small interior gaps (between letters/legs) stop being traced.
  • Save the outline shape to machine memory so the same boundary can be recalled inside IQ Designer.
  • Success check: The outline preview looks like a smooth “bubble” silhouette around the design, not a jagged line diving into tiny details.
  • If it still fails… Avoid going closer than 0.040 inch for quilting actions and re-audition with the projector before stitching.
• Q: How can a Baby Lock Solaris user tell if hooping tension is correct before stitching heavy quilting fills (to prevent puckers and drawstring effect)?
  A: Hoop tightness must be “drum-tight” before quilting fills, because fills add thousands of penetrations that pull fabric inward.
  • Tap the hooped stabilizer before sewing and listen for a firm “Thump-Thump,” not a loose “Flap-Flap.”
  • Confirm the hoop provides clearance around the block so the frame does not interfere during stitching.
  • Check the bobbin is full before starting a large lattice or texture fill.
  • Success check: The hooped surface feels evenly tight and sounds consistent across the whole area.
  • If it still fails… Re-hoop with better stabilizer support (especially on stretchy fabrics) before adjusting any design settings.
• Q: Why should Baby Lock Solaris IQ Designer placement and tack-down lines use 2.5 mm run stitch length instead of 2.0 mm for quilting sandwich setup?
  A: Set run stitches to 2.5 mm so placement lines are easier to see and remove, and so the stabilizer is less likely to perforate during prep.
  • Switch machine units to mm in Settings (Solaris Page 9 workflow) before changing the run length.
  • Stitch the first line as a placement guide, then stitch the second line as tack-down in a different color pass.
  • Success check: The placement line is clearly visible and can be removed cleanly if repositioning is needed.
  • If it still fails… If the stabilizer starts tearing like a “postage stamp,” re-check stitch length and avoid overly tight, short runs.
• Q: What stabilizer setup should be used for IQ Designer background quilting on standard quilting cotton vs T-shirt jersey (stretch fabric)?
  A: Match stabilizer to fabric stability: quilting cotton can often use tear-away as a floating base, but T-shirt jersey needs fusible support and cutaway to prevent distortion.
  • Use tear-away stabilizer + batting + backing for standard quilting cotton blocks.
  • Iron on a fusible stabilizer to the back of T-shirt fabric before hooping, then use cutaway in the hoop.
  • Success check: After stitching, the block stays flat without wavy edges or stretched shapes around the embroidery.
  • If it still fails… Stop and change the foundation approach (more support) before trying to “tension-fix” puckering.
• Q: How do you prevent blue painter’s tape from lifting during a Baby Lock Solaris floating backing/batting method (and avoid a machine-arm mess)?
  A: Burnish painter’s tape aggressively so it bonds before stitching, and remove the tape before the final quilting fill.
  • Flip the hoop, place batting inside the stitched placement box, then place backing face up and tape the corners.
  • Burnish the tape ends with a fingernail until friction heat is felt so the tape does not lift during movement.
  • Remove all tape after the tack-down pass and before running the final fill.
  • Success check: Tape stays flat through the tack-down pass and no adhesive is stitched into the quilting fill.
  • If it still fails… Re-tape with better burnishing and verify all tape handles are fully outside the sewing field.
• Q: Why can a Baby Lock Solaris quilting fill show bobbin thread on the top (or top thread on the bottom) during multidirectional lattice stitching, and what fixes work first?
  A: This is common in multidirectional quilting fills; start by hiding the issue with color matching, then reduce stress by slowing down, then clean the thread path.
  • Match top and bobbin thread colors to make minor tension imbalance visually disappear.
  • Slow machine speed to about 600–700 SPM for long decorative quilting fills.
  • Floss the thread path to clear lint from tension disks so the disks can close properly.
  • Success check: Stitches look balanced during the fill, without obvious bobbin “dots” on top or top thread pulled to the underside.
  • If it still fails… Pause and re-check threading/cleanliness before continuing the fill, because quilting patterns amplify small tension problems.
• Q: What needle and safety checks should be done before running heavy background quilting fills on a Baby Lock Solaris quilt block (to avoid fuzz, needle hazards, and heartbreak)?
  A: Use a fresh 80/12 or 90/14 Topstitch needle and run a final “clear field” safety sweep before the quilting fill starts.
  • Replace the needle if it is dull, because dull needles can push batting fibers through fabric and create beard-like fuzz.
  • Trim thread tails to under 5 mm so tails do not get whipped into the fill stitches.
  • Remove tape and confirm scissors/tape handles are completely out of the sewing field before stitching the fill.
  • Success check: The machine runs without striking anything, and the surface stays clean without batting fuzz poking through.
  • If it still fails… Stop immediately and inspect for leftover tape, stray tools, or a needle that needs replacing before continuing.
