The Definitive Guide to Smartstitch S1501 Sock Embroidery: Mastering the Kit, The Math, and The Workflow

Sock embroidery is deceptive. It looks like a small, simple task, until you ruin three pairs in a row: the design arrives twisted, the sock fabric creeps, or the machine jumps to a second position you didn't expect, snapping a needle. If you are running a Smartstitch S1501, the good news is that the dedicated sock kit is highly repeatable—but only if you respect the physics.

Machine embroidery is an experience-based science. It’s not just about pushing buttons; it’s about mechanical alignment (the strict 6th-hole mount) and software parameters (frame count + interval).

This guide rebuilds the workflow from the ground up. We will cover the hardware assembly, the critical "sweet spot" settings, and the sensory details—how the machine should sound and how the sock should feel—that keep your production smooth and your profits high.

1. Calm First: The Physics of the Sock Kit (Why It Feels Unforgiving)

To master this process, you must understand what you are fighting against. A sock is a tube under tension. It wants to shrink, twist, and distort. The Smartstitch S1501 Sock Hoop Kit forces that chaotic tube into a controlled, "flat-ish" embroidery surface by doing three specific things:

1. Uniform Tensioning: It holds the sock opening stretched over a jig cylinder so the knit grain is open but not distorted.
2. Mechanical Locking: It traps the fabric and stabilizer between a plastic frame and the jig, preventing the "fabric walk" that ruins outline alignment.
3. Automated Offsets: It uses a modified driver bar on the pantograph rail. This allows the machine to stitch one sock, then automatically shift exactly 300mm to the next position when you set Frame count: 2.

The Shift in Mindset: If you are new to sock fixtures, understand this: Your physical hooping technique matters more than your digitizing. A slightly imperfect design can safe a good hoop job; but even a world-class digitized file will look terrible on a poorly hooped sock.

Note on Terminology: You will often see professionals searching for a sock hoop for embroidery machine or specific fixtures. Regardless of the brand, the engineering goal is identical: converting a stretchy tube into a stable plane.

2. Tools & Parts: The "Pre-Flight" Inspection

Before you touch a screw, layout your kit. We need to stage the environment. The video shows the kit on a clean white surface. This isn't just for aesthetics; it's to ensure you don't lose the tiny grub screws that hold the system together.

The Essential Hardware:

• Smartstitch S1501 (The Machine).
• Sock Driver Bar (The aluminum arm that bridges the pantograph).
• Metal Alignment Plates (Crucial for spacing).
• Plastic Frame Holders (The clips that hold the hoop).
• Plastic Frames (The actual hoops).
• 3mm Allen Wrench (Your primary tool).
• Hooping Station/Jig (Must be mounted to a table).
• Table Mounting Screws & Screwdriver.

The "Hidden" Consumables (Don't start without these):

• Adhesive Spray (Temporary): Vital for keeping the stabilizer attached to the sock during the loading phase.
• Water Soluble Topper (Optional): If sewing on thick, rib-knit winter socks, a topper prevents stitches from sinking.
• Spare Needles (75/11 Ballpoint): Socks are knits; sharp needles can cut fibers and cause runs. Use ballpoints.


3. The "Don't Put Backwards" Moment: Assembling the Driver Bar

This is the single most common point of failure. The video starts with assembly using a 3mm Allen wrench. Do this slowly. If these plates are reversed, your frames will not slide in, or they will bind and snap the plastic clips.

Step-by-Step Assembly:

1. Identify Orientation: Look at the metal pieces/plates. They have a specific lip that must face the correct way to receive the frame holder.
2. Fasten Gently: Use the 3mm Allen wrench to attach plates to the aluminum arm. Do not crank them down yet.
3. Align the Holders: Attach the plastic frame holders to the ends of the bar. Make sure they are perfectly parallel with the arm.
4. The "Slide Test": Before final tightening, take a loose plastic frame and try to slide it into the holder.
   • Sensory Check: It should click in with a firm snap but slide out with moderate thumb pressure. If you have to force it, your alignment is off.
5. Final Torque: Once aligned, tighten the screws firmly.

Warning: Keep your fingers clear when seating frames and tightening hardware. The gap between the driver bar and the machine head is a "pinch zone." A slip with an Allen wrench here can gouge the pantograph rail or your hand.

4. The 6th-Hole Rule: Mechanical Calibration

Software cannot fix hardware placement. The machine expects the sock to be in a specific physical coordinate. On the Smartstitch S1501, this coordinate is defined by the 6th hole on the pantograph rail.

The Mounting Procedure:

1. Locate the Anchor: Look at the X-axis pantograph rail (the moving beam).
2. Count Manually: Count from the left edge. Locate the 6th hole.
3. Secure the Bar: Insert the mounting screw of the driver arm into this 6th hole.
4. Lock it Down: Tighten securely with the 3mm Allen wrench.

Why Precision Matters: If you mount on the 5th or 7th hole, the machine will still sew the first sock. However, when it shifts to the second position (Frame 2), it will overshoot or undershoot the second frame, likely breaking a needle on the plastic hoop rim. There is no "close enough" here.

5. Unlocking Sock Mode: The "Secret" Menu

The S1501 needs to be told it is no longer looking for a flat T-shirt hoop. We need to activate "Sock Mode" to enable the automatic frame shifting.

Software Input Sequence:

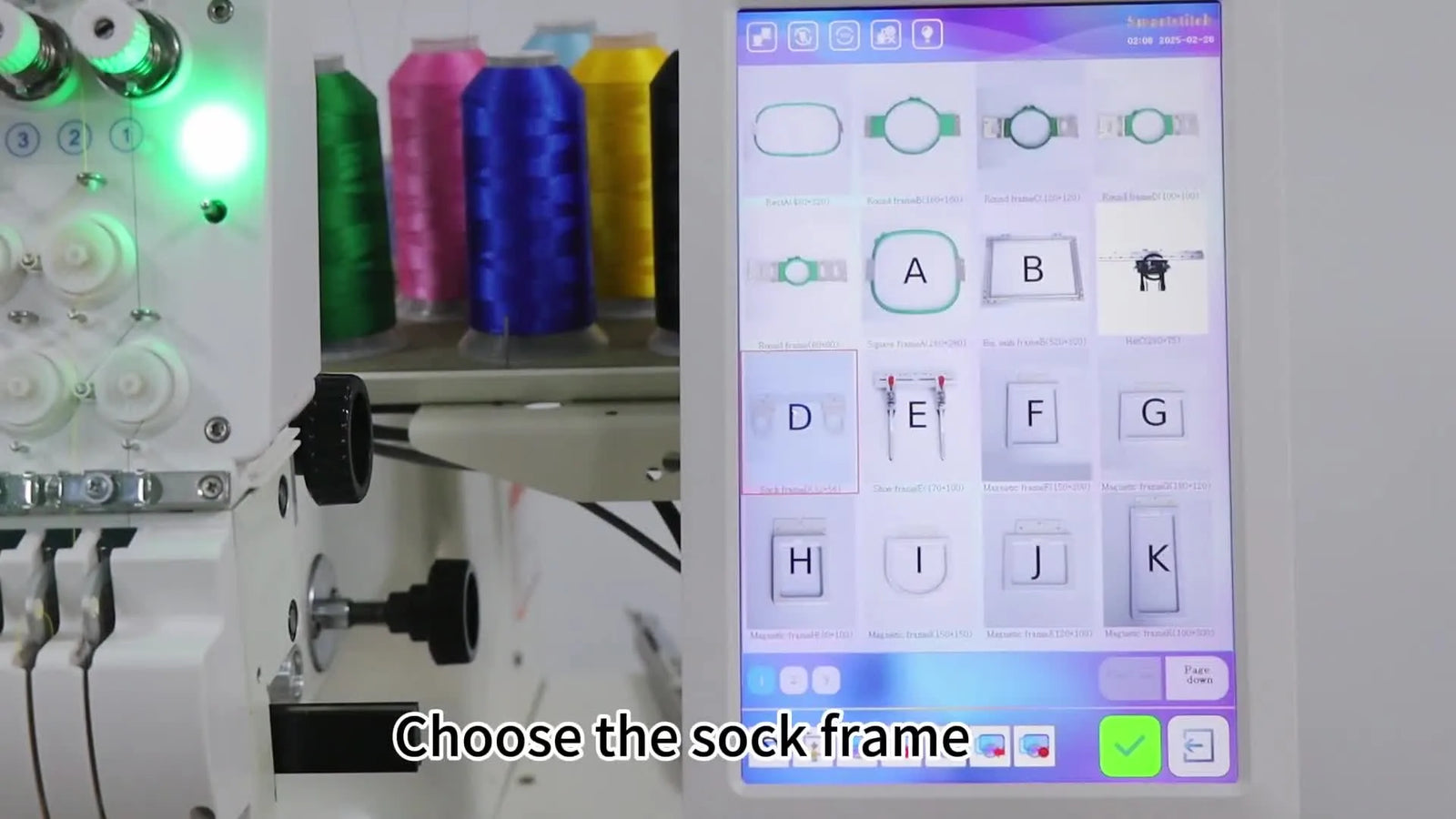

1. Access Hoop List: On the control screen, tap the hoop selection icon.
2. Select Icon "F": This represents the Sock Frame.
3. Authorize Access: The system may request an admin password to change factory parameters. Enter 87181066.

Troubleshooting the Interface: If you do not see Icon F, or the password is rejected, stop. Do not try to maintain "Cap Mode" or "Flat Mode." Your machine firmware may need an update file. Contact support immediately.

6. The Holy Grail Parameters: 2 Frames, 300mm Interval

Once inside the parameter screen, you are defining the machine's "choreography." You must enter two specific values that match the physical length of the driver bar you just installed.

The Golden Numbers:

• Frame count: 2 (This tells the machine: "After sock #1, move to sock #2, then stop.")
• Frame interval: 300 (This is 300mm—the exact distance between the centers of the two hoop holders.)

Action: Click the green check mark to save.

The Beginner's Safety Zone: If you are nervous, you can set Frame count to 1 for your first run. This forces the machine to stop after the first sock. You can then manually move to the next design. Once you trust the setup, switch back to 2 for efficiency.

7. The Foundation: Mounting the Hooping Station

You cannot hoop a sock in mid-air. The video shows screwing the white plastic hooping base directly into the workbench. Do not skip this.

The Anchoring Process:

1. Position the Jig: Place it on a solid table edge where your arm has a full range of motion.
2. Fasten Down: Use a screwdriver to drive screws through the base into the tabletop.
3. The "Shake Test": Grab the jig and shake it. The table should move, not the jig.

The Business Logic: If the jig wiggles by 2mm every time you pull a sock, by the time you do 50 socks, you have 50 slightly different placements. In the embroidery business, consistency is the product. Professionals often search for a heavy-duty embroidery hooping station because they realize that stable tooling is the secret to speed.

Prep Checklist: The "Go / No-Go" Decision

• Driver Bar: Mounted on the 6th hole? (Yes/No)
• Software: Icon F selected? Password entered?
• Parameters: Frame Count = 2, Interval = 300?
• Needle: Is a Ballpoint (BP) needle installed?
• Jig: Is it screwed down tight?

8. The Art of Hooping: Tension without Distortion

This is the manual skill that requires "feel." Your goal is a taut drum skin, not a stretched rubber band.

The Workflow:

1. Stabilizer First: Place a pre-cut sheet of tear-away or cut-away stabilizer over the jig opening. Pro Tip: A light mist of adhesive spray helps it stick to the jig.
2. Load the Sock: Stretch the sock opening over the stabilizer and the jig cylinder.
   • Visual Check: Ensure the ribbing is straight. If the vertical knit lines (wales) look like waves, the sock is twisted.
3. The Press: Place the plastic hoop frame over the sock. Press down firmly and evenly using both hands.
   • Sensory Anchor: You should feel a solid "thud" as the frame bottoms out.

Avoiding the "Smile" Effect: If you stretch the sock too aggressively before clamping, the fabric will snap back after you unhoop it. This causes your straight text to curve into a frown or smile. Stretch only enough to remove wrinkles, no more.

Commercial Insight: If you find this manual clamping painful for your wrists after 20 pairs, this is naturally where businesses begin to look for upgrades. Many eventually transition to faster fixtures or research terms like hooping station for machine embroidery to find ergonomic solutions that reduce operator fatigue.

9. Loading the Machine: The "Click" and The Check

Action:

1. Slide the hooped sock frame into the holder clips on the machine driver bar.
2. Sensory Check: Wiggle the frame gently. It should feel locked. If it rattles, it will vibrate during sewing, causing blurry edges.

Orientation Verification: Look at the screen. Is the design right-side up relative to the sock cuff? Socks are often hooped "toe down" or "toe up" depending on the shop. Confirm the "Top" of your design points to the Cuff of the sock.

10. The Run: Speed, Sound, and Safety

The video shows the machine running at 750 SPM (Stitches Per Minute).

• Expert Advice: For your first week, cap your speed at 600 SPM. Socks are small targets. High speed increases the risk of "flagging" (fabric bouncing up and down), which causes birdnests.

What to Watch (The First 30 Seconds): Start the machine. Watch the needle penetrate.

• Auditory Anchor: You want a rhythmic, hum. A sharp "slap-slap-slap" sound means the stabilizer is too loose or the sock is flagging.
• Visual Anchor: Watch the fabric in front of the needle. Does it "crawl" or wave? If so, stop. Your hoop tension is too loose.


11. The Two-Frame Payoff & Commercial Scaling

Why did we set Frame count: 2? Efficiency. While the machine stitches Sock A, you are prepping Sock B. But with this kit, you can load two frames.

1. Machine sews Sock 1.
2. Machine auto-jumps 300mm.
3. Machine sews Sock 2.
4. You unload both, load two fresh ones.

The Upgrade Path: When to Switch Gear As your business grows, you will encounter bottlenecks.

• Level 1 (Technique): Use the S1501 Sock Kit for batches of 10-50.
• Level 2 (Tooling): If you struggle with hoop burn (ring marks) on delicate dress socks, consider upgrading to different clamping systems. Many shops explore magnetic options. Safety Note: If you buy magnetic hoops, terms like how to use magnetic embroidery hoop become relevant—magnets prevent hoop burn but require careful handling near electronics.
• Level 3 (Machinery): If you are printing 500 socks a day, a single-head machine is no longer viable. This is when you look at SEWTECH Multi-Needle systems to run 4, 6, or 8 socks simultaneously.


12. Decision Tree: Sock Fabric vs. Stabilizer

Don't guess. Use this logic flow to prevent ruined socks.

A. The Sock is THIN (Dress Sock / Bamboo):

• Risk: Needle holes, puckering.
• Stabilizer: Cut-away (2.5oz). You need permanent support.
• Needle: 70/10 Ballpoint.

B. The Sock is MEDIUM (Cotton Athletic / Nike Crew):

• Risk: Distortion.
• Stabilizer: Tear-away (Heavyweight) OR light Cut-away.
• Needle: 75/11 Ballpoint.

C. The Sock is THICK (Wool / Terry Cloth):

• Risk: Stitches sinking (disappearing).
• Stabilizer: Tear-away (Backing) AND Water Soluble Topper (On top).
• Needle: 75/11 or 80/12 Sharp (to penetrate thick loops).

13. Troubleshooting: The Cheat Sheet

Even experts have bad days. Here is your structured rescue guide.

14. Conclusion: Efficiency is a habit

The video ends with a finished black sock stitched with "lucky." Getting that result consistently isn't luck; it's protocol.

1. Mount on the 6th hole.
2. Set Interval 300.
3. Hoop tight.
4. Listen to your machine.

If you are exploring alternative systems, you might see market terms like hoop master embroidery hooping station or the brand hoopmaster. These represent the industry standard for consistency. Whether you use stock kits or premium stations, the goal remains the same: precise repeatability.

Operation Checklist (Post-Run)

• Inspect: Check back of the sock. Are threads trimmed? Is the bobbin tension balanced (1/3 white center)?
• Reset: Clear the screen for the next run.
• Maintenance: After 4 hours of sock lint, blow out the bobbin case.

If you are running this setup on a smartstitch s1501 (or searching for the smartstitch 1501), you now have the blueprint to turn a frustrating accessory into a profit center.

Final Safety Warning: If you upgrade to magnetic hoops for other garments, remember they carry risks. Maintain a "Safe Zone" on your table. Keep magnets away from pacemakers, credit cards, and screens. Never let two magnets snap together without a separator layer—they can pinch skin severely.

FAQ

• Q: What are the must-have consumables before running the Smartstitch S1501 sock embroidery hoop kit?
  A: Do not start a Smartstitch S1501 sock run without temporary adhesive spray, the correct ballpoint needles, and spare needles ready.
  • Use: Apply a light mist of temporary adhesive spray to keep stabilizer from shifting during loading.
  • Install: Choose a 75/11 ballpoint needle as the default for knit socks (use 70/10 ballpoint for very thin dress socks).
  • Prep: Keep water-soluble topper available for thick rib-knit or terry socks to prevent stitches sinking.
  • Success check: During the first stitches, the sock should not “crawl,” and you should not hear a sharp “slap-slap-slap.”
  • If it still fails: Re-check stabilizer choice (tear-away vs cut-away) and slow the machine speed to a safer starting point.
• Q: Why is the Smartstitch S1501 sock driver bar required to mount on the 6th hole, and what happens if the Smartstitch S1501 sock kit is mounted on the 5th or 7th hole?
  A: Mount the Smartstitch S1501 sock driver bar on the 6th hole only, because the auto-shift to Frame 2 depends on that exact mechanical coordinate.
  • Count: Locate the X-axis pantograph rail holes and count from the left edge to the 6th hole.
  • Secure: Tighten the driver bar mounting screw firmly after confirming the hole position.
  • Test: Run a cautious first cycle with Frame count set to 1 if confidence is low, then switch to 2 after verification.
  • Success check: When Frame count is 2, the machine shift lands cleanly at the second frame without the needle contacting the hoop rim.
  • If it still fails: Stop immediately and re-check the 6th-hole mount before touching frame interval settings.
• Q: What are the correct Smartstitch S1501 sock mode settings for two socks, including frame count and 300mm frame interval?
  A: Set Smartstitch S1501 Sock Mode to Frame count = 2 and Frame interval = 300mm, then save with the green check mark.
  • Select: Open the hoop list and choose the sock frame icon “F.”
  • Enter: Set Frame count to 2 and Frame interval to 300.
  • Start safe: Set Frame count to 1 for the very first test run if uncertainty is high, then return to 2 for production.
  • Success check: After finishing sock #1, the machine auto-jumps once and stops after sock #2 with no extra unexpected move.
  • If it still fails: If icon “F” is missing or the password is rejected, stop and request firmware/support rather than using Cap Mode or Flat Mode.
• Q: How can Smartstitch S1501 operators tell if the sock hoop frame is seated correctly in the sock kit holder clips before stitching?
  A: Slide the frame in until it clicks and feels locked; any rattle means the frame is not fully seated and will vibrate during sewing.
  • Insert: Push the hooped sock frame into the holder clips until a firm snap/click is felt.
  • Wiggle: Gently wiggle the frame to confirm it is locked, not loose.
  • Verify: Confirm the design orientation is right-side up relative to the sock cuff before starting.
  • Success check: The frame feels solid (no rattling) and the design “top” aligns with the cuff direction you intend.
  • If it still fails: Inspect driver bar assembly alignment and confirm the metal plates are not installed backwards.
• Q: How can Smartstitch S1501 sock embroidery operators prevent wavy designs and the “smile effect” caused by sock hooping tension?
  A: Stretch the sock only enough to remove wrinkles, then clamp evenly; over-stretching before clamping causes curved text after unhooping.
  • Align: Load the sock so the knit ribs run straight (no “wavy” vertical lines) before clamping.
  • Clamp: Press the plastic frame down evenly with both hands until a solid “thud” is felt.
  • Control: Use stabilizer first and a light mist of adhesive spray to reduce fabric walk during loading.
  • Success check: The sock fabric in front of the needle stays flat (no crawling or waving) during the first 30 seconds.
  • If it still fails: Reduce pre-stretch further and consider an adhesive stabilizer method for more control.
• Q: What should Smartstitch S1501 operators do if the sock frame will not slide into the Smartstitch S1501 sock kit holder clips?
  A: Stop and re-check driver bar assembly orientation; backward metal plates commonly cause binding and can snap the plastic clips if forced.
  • Inspect: Confirm the metal alignment plates face the correct direction to receive the frame holder.
  • Perform: Do a “slide test” with a loose frame before final tightening—do not tighten first and hope it improves.
  • Tighten: Once the frame slides in with a firm snap and moderate thumb pressure to remove, then torque screws firmly.
  • Success check: The frame clicks in and can be slid out with moderate pressure, without scraping or sticking.
  • If it still fails: Do not force the frame; damaged clips may need replacement if they were previously forced.
• Q: What are the key safety steps for Smartstitch S1501 sock kit setup to reduce pinch-zone injuries and needle/hoop strikes?
  A: Keep hands out of the driver-bar gap during seating/tightening and stop immediately if the needle path looks like it will contact the hoop rim.
  • Avoid: Treat the space between the driver bar and machine head as a pinch zone when using the 3mm Allen wrench.
  • Confirm: Match the physical sock frame you installed with the on-screen sock frame selection (“F”) before running.
  • Reduce: Limit speed to about 600 SPM for the first week to lower the chance of flagging and birdnesting.
  • Success check: The machine sound is a steady rhythmic hum (not a sharp slap), and the needle never approaches the hoop rim during motion.
  • If it still fails: Re-check the 6th-hole mount and stop the run rather than “letting it finish” through a suspected hoop strike.
