Snapback Hat Embroidery on the Ricoma MT-1501: The No-Scratch, Dead-Centered Workflow That Actually Holds Up in Production

If you have ever tried embroidering a structured snapback and thought, “Why is this exponentially harder than a flat T-shirt?”, you represent the silent majority of embroiderers. You are not imagining the difficulty.

Caps fight you in three distinct physical dimensions: they refuse to lie flat, they resist staying centered, and—if given the chance—they will aggressively rub against your machine until the bill is scratched ruined.

As someone who has trained operators on everything from single-head home machines to 100-head factory floors, I treat cap embroidery not as "art," but as engineering. It is about controlling variables.

This workflow is reconstructed around a real, verifiable production run on a Ricoma MT-1501. We will walk through cutting the backing, locking the hat, centering with zero-guesswork tools, and sewing at speeds that prioritize profit over ego.

Keep Your Ricoma MT-1501 Cap Job Calm: What You’re Trying to Control (Before You Touch the Hat)

A structured snapback is essentially a pre-formed architectural shell. That buckram-stiffened front is excellent for the customer, but for the embroiderer, it means the fabric cannot “relax” into the hoop like a sweatshirt does.

To succeed, you must mentally separate the process into controlling three specific forces. If you lose control of any one of these, you lose the hat.

1. Lateral Shift: The hat creeping left or right by 2mm while you engage the latch. This makes your perfectly centered logo look crooked.
2. Volumetric Distortion: The front panel bending, bubbling, or “oil-canning” under uneven clamp pressure. This causes "flagging," where the fabric bounces up and down, leading to birdnesting and thread breaks.
3. Mechanical Friction: The stiff bill rubbing against the metal cap driver during the sew-out, creating permanent scuff marks.

When those three forces are neutralized, the rest is routine. Your trace clears, your design lands exactly where you marked it, and your stitch quality remains dense and crisp.

If you are currently running a ricoma mt 1501 embroidery machine, the good news is the hardware is fully capable. 90% of “cap failure” is actually hooping failure, not machine error.

The Supply Stack That Makes Structured Snapbacks Behave (Stabilizer, Tape, Gauge, and a Few “Optional-but-Real” Tools)

In embroidery, your output is only as stable as your consumables. From the video workflow and industry best standards, here is the non-negotiable list:

• Tear-away Stabilizer (2.5 oz): The industry standard for structured caps.
• Tape: You need two types.
  • Process Tape: (Sublimation or masking tape) to hold backing to the station.
  • Protection Tape: (Blue painter's tape) to protect the bill.
• Sliding Sewing Gauge: A physical T-ruler to verify placement height. Eyeballing is for amateurs; measuring is for pros.
• Water-Soluble Pencil: For marking the absolute center.
• Physical Reference: A printed template or a spare patch to visualize the design.

The "Hidden" Consumables: You rarely see these listed, but they save the day:

• Basting Spray (Optional): A light mist can help the backing stick to the cap interior if you are struggling with slippage.
• Fresh Needles (75/11 Sharp): Caps are tough. If your needle has run more than 8 hours, change it before a cap run.

A quick reality check from a production standpoint: Structured hats are unforgiving. The video highlights using inexpensive hats for practice. This is vital advice. You need to learn the tactile feel of the latch and the centering rhythm without burning $15 premium blanks.

The Backing Cut That Prevents 80% of Cap Headaches: 2.5 oz Tear-Away at 7" × 4.5"

The dimensions of your stabilizer are not a suggestion; they are a mechanical requirement. The video specifies:

• Width: 7 inches
• Height: 4.5 inches
• Weight: 2.5 oz Tear-away

Why not bigger? If the backing is too wide, it will bunch up near the "ears" of the cap driver, causing the cap to sit unevenly. Why not smaller? It must cover the entire rotation area of the sewing field. If the needle perforates the edge of the backing, you will lose tension instantly.

Expert Calibration: Why tear-away? Because structured hats already have a "skeleton" (the buckram). The stabilizer’s job here is simply to prevent the stitches from sinking and to provide a friction layer against the needle plate. If you were sewing an unstructured "dad hat," you would switch to a Cutaway stabilizer to provide the structure the hat lacks.

Prep Checklist (Do This Before You Load the Cap Station)

• Cut Stabilizer: Verify 2.5 oz tear-away cut to exactly 7" x 4.5".
• Prepare Anchors: Have two strips of tape ready on the edge of the table (one for backing, one for the driver).
• Marking Tool: Sharpen your water-soluble pencil.
• Reference Ready: Have a physical sample or paper printout of the logo at 100% scale.
• Needle Check: Run your finger specifically over the tip of the needle. If you feel any burr or hook, replace it immediately.

Warning: Mechanical Safety. Keep fingers, loose jewelry, and tools away from the needle area when the machine is powered. During a cap trace or stitch-out, the frame rotates rapidly and unpredictably. A cap driver can break a finger in a fraction of a second. Stay deliberate and keep hands outside the "Red Zone."

Lock the Stabilizer to the Cap Station So It Can’t Creep Mid-Run

The video demonstrates a subtle but critical technique:

1. Slide the cut stabilizer under the metal tab on the cap station.
2. Tape the stabilizer to the station cylinder.

Sensory Check: Run your hand over the taped backing. It should feel smooth and tight against the metal curvature. If you hear a "crinkle" or feel a bubble, redo it.

The Logic: This step prevents "Backing Walk." If the backing shifts while you are sliding the hat on, you might end up sewing on a single layer of fabric, which guarantees a thread break or a puckered design. If you find yourself constantly re-taping, this is where commercial shops often upgrade to magnetic embroidery hoops or specialized framing stations where magnets hold the backing automatically, eliminating the need for tape entirely.

Win the “Tricky Part”: Hooping a Structured Snapback on a Mechanical Cap Hoop Without Warping the Front Panel

This is the moment that defines your success. It is where beginners lose time and shop owners lose profit.

Follow the biomechanics of the video workflow:

1. Sweatband Management: Pull the sweatband completely OUT. Do not sew through it; do not let it fold under the brim.
2. Slide & Seat: Slide the hat onto the driver. Push it back, but do not crush it against the back stop.
3. Strap & Latch: Wrap the metal strap over the bill area. Engage the latch connecting the strap to the post.

The "Tactile" Sweet Spot: Detailed in the video as "the tricky part," this requires developing a feel for the tension.

• Too Loose: You can wiggle the hat after latching. Result: Registration errors.
• Too Tight: You have to use two hands and white-knuckles to close the latch. Result: You will distort the mesh or leave permanent pressure marks (hoop burn) on the bill.

Expert Calibration: The hat needs to be "drum tight" across the front face, but the latch should close with a firm snap, not a struggle. If you are fighting it, loosen the thumb screw on the latch mechanism. Do not force the physics.

Center the Snapback Seam on the Cap Station Red Line (Before You Tighten for Real)

Do not tighten the strap fully until you verify alignment. The video utilizes the most reliable anchor you have:

• Align the center seam of the snapback strictly with the red center line marker on the cap station.
• Use your hands to smooth the side panels down away from the center.

The Visual Checkpoint: Stand directly behind the cap station (or look straight down). Is the seam forming a straight line with the red mark?

• Common Error: The seam matches at the top (button) but drifts left at the bill.
• Correction: Twist the entire hat on the station until the entire length of the seam is aligned with the red line.

This is why many forums are filled with "Why is my logo crooked?" The answer is rarely the machine; the answer is that the hat was clamped crooked before the machine was even turned on.

The “Physical Sample + Pin” Trick for Design Placement That Saves You From Guessing

Software grids are great, but physical reality is better. The video suggests a tactile method for ensuring your design hits the "forehead" of the hat correctly:

1. Take a previously embroidered sample (or a paper printout).
2. Place it on the hooped hat where it looks visually balanced.
3. Pin it through the center.
4. Lift the bottom edge of the sample and mark the hat fabric directly with your water-soluble pencil.

Why this works: Structured caps have a curve. A ruler can sometimes lie to you because it bridges the curve. A physical sample conforms to the curve, showing you exactly how the final embroidery will sit relative to the bill and the crown.

Verify Height With a Sliding Sewing Gauge So Every Hat Matches (Not Just the First One)

Once you have your mark, verify it with data.

• Use a sliding sewing gauge.
• Measure the distance from the bill seam to your center mark.
• Write this number down. (e.g., "1.5 inches from bill").

This number is your "Production Standard." For the next 11 hats in the dozen, you don't need to pin the sample again. You just mark at 1.5 inches. This is how you transition from "crafting" one hat to "manufacturing" a dozen identical ones.

Stop Scratching the Underside of the Bill: Tape the Ricoma Cap Driver Face Before You Mount

This is a low-tech solution to a high-cost problem. During embroidery, the hat moves rapidly. The stiff brim can vibrate against the metal face of the cap driver (the part attached to the machine), scratching the plastic or fabric on the underside of the bill.

The Fix:

• Apply a strip of blue painter’s tape vertically to the metal front face of the cap driver.

Expected Outcome: The tape acts as a sacrificial friction barrier. The bill rubs the tape, not the steel.

Warning: Magnetic Field Safety. If you upgrade your workflow later to use magnetic embroidery hoops or magnetic cap driver systems, you must treat them with extreme caution. These magnets are industrial strength. They can pinch skin severely (blood blisters) and can interfere with pacemakers or other medical implants. Never place magnetic hoops near control panels or magnetic storage media.

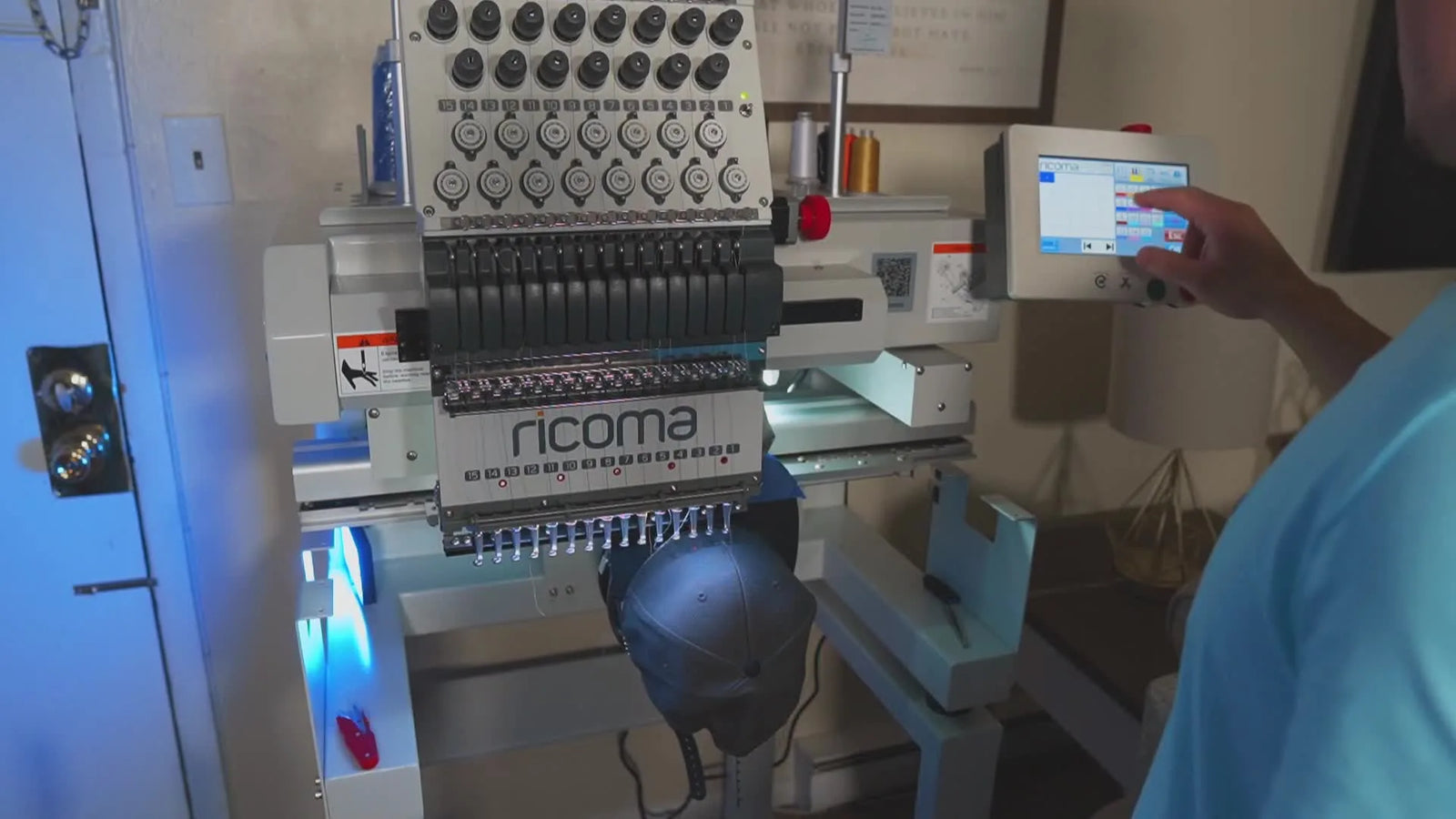

Mount, Rotate, and Trace on the Ricoma MT-1501: Your Last Chance to Catch a Collision

The hat is hooped. Now you must introduce it to the machine.

1. Snap the hooped hat into the machine driver. Listen for the distinct click of the locking pins engaging.
2. Rotate the hat ensuring the bill clears the needle bar.
3. Trace: Use the control panel to run a design trace.

The Sensory Trace: Do not just watch the screen; watch the needle.

• Look: Does the presser foot come dangerously close to the bill or the metal clamp?
• Listen: Do you hear the motors straining at the corners?
• Fix: If the trace touches the metal, you must move the design up or resize it. Do not "hope" it will miss. It won't.


Needle #6, Yellow Thread, 500 SPM: The Simple Ricoma Panel Setup From the Video

The video makes specific choices regarding machine settings:

• Needle: #6 (Yellow thread).
• Speed: 500 SPM (Stitches Per Minute).

Expert Calibration on Speed: Why 500 SPM? Modern machines can go 1000+ SPM. However, on a cap, the "flagging" (bouncing) of the fabric increases with speed.

• Beginner Safe Zone: 450 - 600 SPM. This ensures the best registration and minimizes thread breaks.
• Expert Zone: 700 - 850 SPM. Only use this if you have dialed in your tension perfectly and are using high-quality backing.

Why Needle #6? On a multi-needle machine, always organize your colors to minimize head movement. But critically, ensure the actual needle installed in position #6 is a Sharp point (Titanium coated is best). Ballpoint needles (often used for knits) can struggle to penetrate the buckram of a specific snapback, leading to needle deflection.

Setup Checklist (Right Before You Hit Start)

• Stability: Tug on the hat. Is it locked into the driver with zero wiggle?
• Clearance: Did the trace complete without the presser foot touching the hoop or bill?
• Obstruction: Is the sweatband verified to be pulled back and clear of the sewing field?
• Protection: Is the painter's tape verified on the driver face?
• Speed: Is the machine speed capped at 600 SPM or lower for the first run?
• Thread Path: Check the thread tree. Is the yellow thread caught on anything?


What “Good” Looks Like: Consistent Placement Across Multiple Hats (And Why That’s the Real Goal)

The video concludes by displaying multiple finished hats. They look identical.

In the embroidery business, consistency is the only metric that matters. A customer will not notice if the logo is 1mm higher than the proof. They will notice if Hat #1 is 1mm higher than Hat #2.

Commercial Scalability Note: If you are doing this for profit, calculate your "Cycle Time" (Hooping time + Sewing time). The sewing time is fixed. The hooping time is where you bleed money. If you are struggling with the manual latch system described here, or if your wrists hurt after 20 hats, this is the trigger point to investigate specialized hooping stations or upgraded ergonomic frames. These tools exist to transform hooping from a variable art into a fixed mechanical process.

Troubleshooting Cap Embroidery on a Mechanical Cap Hoop: Symptoms, Causes, Fixes

When things go wrong, use this diagnostic logic. Always fix the physical issue before changing software settings.

Pro Shop Tip: If you are using a standard cap hoop for embroidery machine and are seeing random registration errors (white gaps between borders and fill), it is almost always "Hoop Movement." Check that your backing is taped securely and hasn't slipped.

The Upgrade Path When You’re Done Wrestling: Faster Hooping, Cleaner Results, Better ROI

Once you master the manual method, your next bottleneck will be volume. You cannot scale a business if you are fighting the equipment.

Here is a practical decision framework for upgrading your tooling:

Decision Tree: When to Upgrade Your Cap Workflow

• Scenario A: The Hobbyist / Occasional Order (1-10 hats/week)
  • Strategy: Stick to the manual method above. It is free and effective.
  • Upgrade: Buy high-quality Titanium needles and premium thread.
• Scenario B: The Side Hustle (10-50 hats/week)
  • Pain Point: Variation in placement; slow setup time.
  • Strategy: Invest in a placement system. A dedicated hooping station for embroidery machine helps holding the hat shell open and stable, reducing checking time by 50%.
  • Consider: If "hoop burn" is rejecting 5% of your orders, look at low-profile or magnetic clamping systems.
• Scenario C: Production Mode (50+ hats/week)
  • Pain Point: Hand fatigue (Carpal Tunnel risk) and cycle time.
  • Strategy: Magnetic hooping becomes an ROI calculation, not a luxury.
  • Tooling: Evaluate systems like the mighty hoop for ricoma or similar magnetic drivers. These clamp automatically using magnetic force, removing the need for hand strength and reducing wrist strain to zero.
  • Workflow: Many professional shops standardize on the hoopmaster hooping station combined with magnetic frames to ensure that Hat #1 and Hat #1000 are indistinguishable.

Operation Checklist (Continuous Quality Control)

• First Article Inspection: Always run the first hat on scrap or a reject blank if possible.
• Bobbin Check: Every 30,000 stitches or 5 hats, check your bobbin supply. Don't let it run out in the middle of a 3D puff letter.
• Heat Check: Touch the motor housing occasionally. If it's extremely hot, let the machine rest or check lubrication.
• The "Eye-Test": Hold the finished hat at arm's length. Does the logo look level relative to the bill (not the floor)? The bill is the visual anchor for the customer.

FAQ

• Q: What stabilizer size and type should be used for structured snapback cap embroidery on a Ricoma MT-1501 cap station?
  A: Use 2.5 oz tear-away stabilizer cut to exactly 7" × 4.5" for structured snapbacks on the Ricoma MT-1501.
  • Cut: Trim backing to 7 inches wide × 4.5 inches tall (not bigger, not smaller).
  • Load: Slide backing under the metal tab on the cap station, then tape it to the station cylinder.
  • Avoid: Don’t let backing bunch near the “ears” of the driver (too wide) or let the needle hit the backing edge (too small).
  • Success check: Backing feels smooth/tight on the cylinder with no “crinkle” sound or bubbles when you rub your hand over it.
  • If it still fails… Re-check that the backing did not shift while sliding the cap on (backing walk), then re-tape and re-hoop.
• Q: How do I stop a structured snapback from shifting or warping while closing the Ricoma MT-1501 mechanical cap hoop latch?
  A: Close the latch with a firm snap (not a struggle) and keep the cap “drum tight” across the front without crushing the shell.
  • Pull: Pull the sweatband completely OUT so it cannot bunch under the brim area.
  • Seat: Slide the hat onto the driver and push it back without crushing it into the back stop.
  • Adjust: Loosen the latch thumb screw slightly if the latch takes white-knuckle force to close—do not force it.
  • Success check: After latching, the cap has zero wiggle left/right, and the front panel looks smooth (no bubbling/oil-canning).
  • If it still fails… Re-check strap alignment and sweatband position, then re-latch before touching any software settings.
• Q: How do I prevent a logo from sewing crooked on a Ricoma MT-1501 cap embroidery job when using the cap station red center line?
  A: Align the snapback center seam with the cap station red center line BEFORE fully tightening the strap.
  • Align: Match the entire seam length to the red line (not just near the button at the top).
  • Smooth: Smooth side panels down and away from the center seam to keep the shell from twisting.
  • Correct: Twist the hat on the station until the seam stays straight to the red mark from top to bill.
  • Success check: Looking straight down/behind the station, the seam forms one straight line with the red center line with no drift near the bill.
  • If it still fails… Use the “physical sample + pin” placement method to confirm the design looks level relative to the bill (the customer’s visual anchor).
• Q: How can I standardize design placement height on Ricoma MT-1501 cap embroidery across a dozen hats without guessing each time?
  A: Measure from the bill seam to the center mark using a sliding sewing gauge and repeat the same number on every hat.
  • Place: Use a physical sample or printed template on the curved cap front, pin through center, then mark the fabric with a water-soluble pencil.
  • Measure: Set a sliding sewing gauge from the bill seam to the center mark and write the distance down (your production standard).
  • Repeat: Mark every next hat using that same measurement instead of re-pinning the sample.
  • Success check: Finished hats look identical in placement when held at arm’s length, level relative to the bill.
  • If it still fails… Re-check that the cap was centered on the red line before tightening, then re-measure from the bill seam.
• Q: How do I stop the underside of a snapback bill from getting scratched by the Ricoma cap driver during embroidery?
  A: Add blue painter’s tape to the metal front face of the cap driver so the bill rubs tape, not steel.
  • Apply: Stick one vertical strip of blue painter’s tape to the driver’s metal face where the bill contacts.
  • Verify: Rotate the hooped cap by hand to confirm the bill clears and contacts the taped area, not bare metal.
  • Trace: Run a trace and watch clearance at corners before stitching.
  • Success check: After the sew-out, the bill underside shows no new scuff marks; tape shows the wear instead.
  • If it still fails… Stop and re-check trace clearance—move or resize the design if the presser foot or hardware comes too close.
• Q: What is the safest way to run a trace and prevent a collision when mounting a hooped cap on a Ricoma MT-1501?
  A: Treat the trace as the final collision test—mount, rotate for clearance, then trace while watching the needle area (not just the screen).
  • Snap: Lock the hooped cap into the driver and listen for the distinct click of the locking pins.
  • Rotate: Turn the cap to confirm the bill clears the needle bar before running anything at speed.
  • Trace: Run a design trace and watch whether the presser foot approaches the bill, strap, or metal clamp.
  • Success check: Trace completes with no contact, no near-miss at corners, and no motor “strain” sound.
  • If it still fails… Move the design up or resize it immediately—do not attempt a sew-out “hoping it will miss.”
• Q: What safety precautions are required when using magnetic embroidery hoops or magnetic cap driver systems for cap embroidery?
  A: Handle magnetic embroidery hoops as industrial-strength magnets that can pinch severely and may affect pacemakers or medical implants.
  • Keep: Keep fingers out of pinch zones when magnets clamp—close deliberately and slowly.
  • Separate: Keep magnetic hoops away from pacemakers/medical implants and avoid placing them near sensitive control areas.
  • Store: Store magnets so they cannot snap together unexpectedly during handling.
  • Success check: No skin pinches/blood blisters during clamping, and the hoop closes in a controlled, predictable way.
  • If it still fails… Stop using the magnetic system until handling technique is corrected; revert to the mechanical cap hoop method for safety.
