SmartStitch System Upgrade on the 12-Inch Touchscreen: Unlock Text Labels, Inches, Color Flash, and Accurate Thread Codes (Without the “Why Didn’t It Save?” Panic)

The SmartStitch System Upgrade: An Engineer's Guide to Eliminating Operator Error

When your SmartStitch screen settings don’t “take,” it’s easy to feel like you’re doing everything right—and the machine is gaslighting you. In my 20 years of managing embroidery production floors, I’ve watched experienced operators second-guess themselves over one tiny detail: the restart timing.

It’s not just about a software update; it’s about the psychological friction of interacting with a complex industrial tool. This guide rebuilds the update process for SmartStitch multi-needle machines (specifically those with the 12-inch touchscreen) into a clean, repeatable workflow. We won’t just click buttons; we will systematically eliminate the "ambiguity zones" that cause production errors.

We will cover downloading the correct system upgrade file, and then enabling four high-impact features that reduce mistakes on the floor: text labels, inch/mm standardization, color-flash verification, and precise thread color codes.

Calm the Panic First: What a SmartStitch System Upgrade Changes (and What It Doesn’t)

A SmartStitch system upgrade modifies the machine’s interface logic and parameter behavior—what you confirm visually, what you can toggle, and how the screen communicates with the mainboard.

It is not a magic fix for mechanical stitch-quality issues. It won’t replace good hooping technique, correct stabilizer usage, or proper tension habits. However, it is the foundation of a "Zero-Error" workflow.

What it will do (based on the documented process):

1. Stop "Icon Guessing": Enable on-screen button text labels so the interface is harder to mis-tap during a rush.
2. Align with Your Brain: Switch the display unit from metric (mm) to British display (inches) if that’s how you think.
3. Visual Verification: Make the selected color “flash” in the design preview so you can confirm placement before a needle moves.
4. Inventory Matching: Expand display colors and assign specific thread serial numbers (e.g., Isacord 900) to match your physical racks.

If you run a shop, these are not “cosmetic” changes. Clear labels and reliable verification reduce operator hesitation, wrong-hoop selection, and wrong-thread loading—small errors that quietly eat profit.

The “Hidden” Prep Pros Do Before Any SmartStitch Firmware Download (So You Don’t Waste an Hour)

Novices rush to download. Pros prepare the environment. The video starts with the download, but if you skip the pre-flight check, you risk downloading the wrong driver or failing the install due to a bad USB stick.

Pre-Flight Protocol

Hidden Consumables You Need:

• A clean USB stick: 8GB or smaller is often safer for industrial boards; format it to FAT32.
• A stylus: For precision tapping on resistive touchscreens.
• A physical thread spool: To verify color matching later.

Prep Checklist (Complete BEFORE touching the computer):

• Verify Model ID: Confirm you are working with a SmartStitch multi-needle machine using the 12-inch interface.
• Network Stability: Use a hardwired PC or stable Wi-Fi; a corrupted file download can cause boot loops.
• Schedule Downtime: Plan for 20 minutes of non-production time. Rushing a reboot is the #1 cause of failure.
• Shop Standard Decision: Decide now—is your shop a "Metric Shop" or an "Imperial Shop"? Mixing these later is fatal for hoop selection.

Warning: Mechanical Safety. During the restart step, the machine will recalibrate X/Y pantographs and needle cases. Keep fingers, tools, and loose items away from moving parts and pinch points. Do not reach through the frame area during a power cycle.

Download the SmartStitch Upgrade File from smartstitch-official.com (Pick the Right Model on Purpose)

Getting the right file is a binary pass/fail test.

1. On your computer, open a web browser.
2. Type the official site address: smartstitch-official.com.
3. Scroll to the bottom (footer area).
4. Click “Embroidery System Upgrade.”
5. Critical Decision: Choose the upgrade file that matches your exact machine model (e.g., "1501 upgrade").

The "Universal" Myth: A common question arises: "Is this only for the 15-needle model?" While the file you pick must be specific, the process is universal. Whether you run a compact single-head or a heavy-duty 12 needle embroidery machine, the logic of the operating system remains consistent. The file tells the specific mainboard how to behave, so never cross-load files between different model numbers.

Turn On SmartStitch Button Text Labels (The Setting That Stops Mis-Taps on Busy Days)

Icons are pretty; text is fast. In cognitive psychology, "dual-coding" (icon + text) brings recognition time down to milliseconds. This is “Upgraded function one.”

The Goal: Change Main interface button text display to Yes.

Action Path:

1. From the Main Interface, tap Setting.
2. Tap User Parameters.
3. Tap Embroidery Assistant Parameters (Button 3).
4. Listen: You should hear the distinct beep of the page turning. Page down to Page 2.
5. Tap Button 6 (Main interface button text display).
6. Toggle the value to Yes.
7. Crucial: Return to the home page to save the state.


The Part Everyone Skips: The 30-Second Capacitor Rule

The video is explicit, but I will give you the engineering reason. Industrial machine boards have capacitors that hold a charge even after the switch is flipped off. If you flip it off and on instantly, the board doesn't fully reset—it just "blinks."

The Protocol: Power off. Count slowly to 30. Power on.

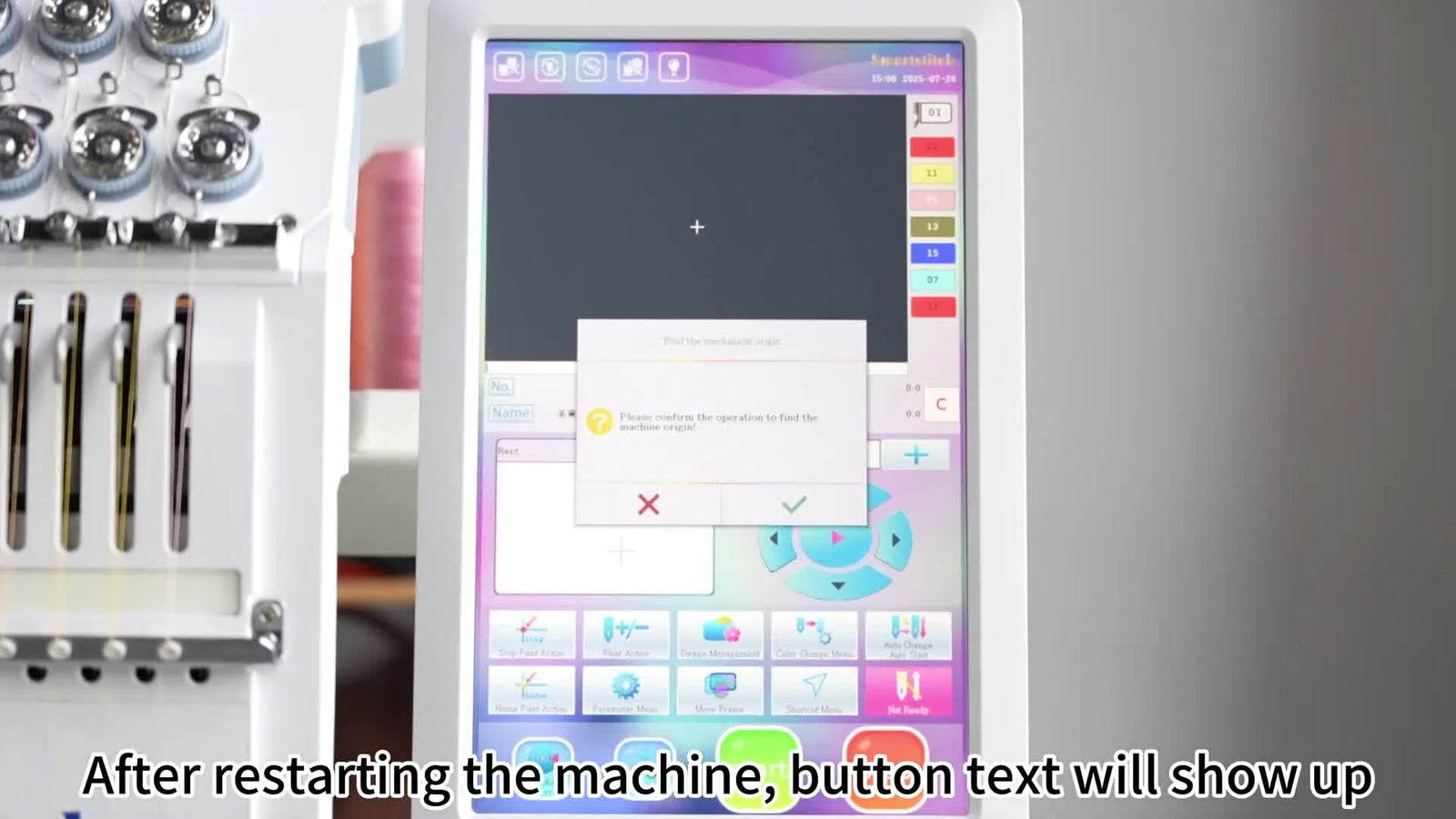

Expected Outcome: After the restart, the main interface icons will have clear text labels beneath them.

Warning: Electrical Stress. Do not "rapid toggle" the power switch. Aside from failing to apply settings, rapid cycling sends power spikes to the mainboard and servo motors. Respect the 30-second silence.

Field Note: If your screen looks unchanged, 99% of the time it is because the reboot was too fast. Do not redownload the file. Just perform the "Long Reboot" again.

Switch SmartStitch from Millimeters to Inches (So Hoop Sizes Like 5.3in Make Sense at a Glance)

This is “Upgraded function two.” This is where you align the machine with your customer's language. In the US market, customers order "4-inch left chest logos," not "100mm logos."

Action Path:

1. Tap Setting.
2. Tap User Parameters.
3. Tap Embroidery Assistant Parameters (Button 3).
4. Navigate to Page 3.
5. Tap Button 8 (Display unit).
6. Toggle from Metric display to British display.
7. Return to the home page.


Visual Check: The interface should now clearly display hoop dimensions in inches.

In the video, the "Round FrameB" changes to 5.3in × 5.3in.

Why Consistency Matters: If you set the machine to inches, ensure your physical hoops are labeled in inches. If you are building a hoop library for a generic model or a specific smartstitch 1501, consistency is your safety net. Nothing causes needle breaks faster than a digitizer working in mm, an operator thinking in inches, and a design hitting the plastic frame.

Use SmartStitch Selected-Color Flashing to Verify Design Placement (Catch the Wrong Area Before You Stitch)

This is “Upgraded function three.” It transforms the screen from a static picture into an active verification tool.

The Drill:

1. On the main embroidery screen, look at the color sequence bar on the right.
2. Tap a specific color block (e.g., the red lettering).
3. Look: Watch the preview area. The corresponding part of the design should flash/blink rhythmically.


Success Metric: The flashing area must match exactly where you expect the thread to go.

The "Cost of Confusion" Calculation

On multi-needle machines, a mistake here is expensive. If you are about to stitch a company logo, tap the color block.

• Does the flash happen where the pocket is? Good.
• Does it flash near the neck line? Stop. You have the wrong design or the wrong orientation.

This feature is critical when using aftermarket accessories. If you often search for embroidery machine hoops to find specialized sizes, this visual check ensures your design actually fits inside that new, unfamiliar frame boundary.

Assign Exact Thread Color Codes in the SmartStitch Spool Library (So ‘Black’ Isn’t a Guess)

This is “Upgraded function four.” It moves you from "Red" to "Isacord 1902."

Action Path:

1. Go to Setting → User Parameters.
2. Tap Embroidery Assistant Parameters (Button 3).
3. Navigate to Page 3.
4. Tap Button 3 to enable "More display colors."


The Assignment Workflow:

1. Tactile Step: Pick up your thread cone. Turn it over. Read the specific serial number (e.g., 900).


2. On screen, double-tap the needle position corresponding to that cone (e.g., Needle #1).
3. Enter 900 on the keypad.
4. Press Enter.


Expected Outcome: The screen now displays the precise shade associated with that manufacturer code.

The Business Value: If you run repeat orders, this prevents "shade drift." When a client reorders in 6 months, you aren't guessing which "Blue" you used. You know it was color 900.

For operators comparing holding methods, such as a smartstitch mighty hoop versus standard clamps, this level of software precision complements the hardware precision. You want strict control over what stitches (thread) and where it stitches (hoop).

Setup Habits That Make These SmartStitch Features Actually Pay Off (Not Just Look Nice)

You have upgraded the machine. Now upgrade the operator.

Setup Checklist (Post-Upgrade Validation):

• Text Check: Are labels visible under icons?
• Unit Check: Go to the "Frame Select" screen. Are sizes in inches?
• Flash Check: Load a test design. Tap Color 1. Does it blink?
• Library Check: Assign one real thread code. Does the color update?

Decision Tree: The Unit Standardization Protocol

Use this logic to set your shop rules once and for all.

• Scenario A: You serve US Corporate Clients.
  • Input: Designs requested in inches.
  • Setting: British Display (Inches).
  • Hardware: Label all hoops with inch markers using a label maker.
• Scenario B: You are a Digitizer/Technical Shop.
  • Input: You think in stitch counts and millimeters.
  • Setting: Metric Display (mm).
  • Hardware: Use standard factory names (e.g., 150x150).
• Scenario C: Mixed Inputs.
  • Rule: Pick ONE. Force convert all job tickets to that unit before they hit the production floor.

Note: If you are embroidering caps, a specialized smartstitch hat hoop has a curved field. In these cases, verifying the design area using the "Flash" feature is vital because the margin for error on a hat forehead is less than 0.5 inches.

Troubleshooting the “It Didn’t Change” Moment: SmartStitch Text Labels Still Not Showing

Symptom: You changed the setting to "Yes," but the icons are still naked. Likely Cause: The "Rapid Toggle" mistake. The Fix:

1. Turn machine OFF.
2. Walk away. Get a glass of water. (Ensure 30+ seconds pass).
3. Turn machine ON.

If this fails, re-verify the path: User Parameters → Embroidery Assistant → Page 2 → Button 6.

The “Why” Behind the 30-Second Wait (So You Don’t Fight the Machine Again)

Why 30 seconds? Industrial machines use capacitors to smooth out power fluctuations. When you cut power, these small batteries take time to drain. If you turn it back on while they still hold a charge, the volatile memory (RAM) where temporary settings live doesn't get flushed.

Treat the 30-second count as a "Palate Cleanser" for the machine's brain.

Turning These Screen Upgrades into Real Speed: Hooping, Ergonomics, and the Upgrade Path

We have optimized the software workflow. But if your production is slow, the bottleneck is rarely the touchscreen—it is the hooping station.

The "Pain" Trigger: If you find that your screen is set up perfectly, but your wrists hurt and you have "hoop burn" (shiny rings) on client shirts, you have hit a hardware ceiling.

The Solution Hierarchy:

1. Level 1 (Technique): Use the new Inch setting to pick the smallest hoop possible for the design (better tension).
2. Level 2 (Tool Upgrade): Eliminate hoop burn and wrist strain by upgrading to a Magnetic Hoop. Many professionals adopt terms like magnetic embroidery hoop to describe frames that snap together automatically. These allow for faster hooping of thick items (backpacks, jackets) without adjusting screws.
   • Why: They decouple the "clamping force" from your wrist strength.
   • Note: Ensure compatibility with your specific SmartStitch arms.
3. Level 3 (System Upgrade): If you are spending hours swapping hoops because you can't keep up with orders, investigate a dedicated hooping station for machine embroidery to standardize placement.
4. Level 4 (Scale): If a single-head machine—even one with perfect firmware—can't meet your deadlines, recognize that efficiency has a limit. High-volume shops eventually move to multi-head setups or cost-effective workhorses like SEWTECH multi-needle machines to parallelize production.

Warning: Magnetic Safety. Strong magnetic hoops can pinch fingers severely. They can also interfere with pacemakers. Store them with spacer tabs inserted, and never let them snap together uncontrollably.

Operation Checklist: The 60-Second Loop

Before you press start on any job, run this mental loop:

1. Unit Check: Screen says Inches? Frame says Inches?
2. Flash Check: Tap the first color. Does the preview flash in the correct zone?
3. Thread Check: Does Screen Color #1 match the physical spool on Needle #1?
4. Hardware Check: Is the hoop locked? Is the trace clear?

By locking down these software settings, you stop fighting the interface and start trusting the machine. That confidence is the difference between a stressful hobby and a profitable business.

FAQ

• Q: What prep items are required before downloading a SmartStitch system upgrade for a SmartStitch multi-needle machine with a 12-inch touchscreen?
  A: Use a clean, correctly formatted USB and prep the machine environment first to avoid failed installs and wasted time.
  • Format: Format an 8GB-or-smaller USB stick to FAT32 and use it only for the upgrade file.
  • Gather: Prepare a stylus for accurate tapping and one physical thread cone for later color-code verification.
  • Verify: Confirm the machine is a SmartStitch multi-needle model with the 12-inch interface and plan ~20 minutes of downtime.
  • Success check: The upgrade file copies to the USB cleanly and the machine is ready for a calm, uninterrupted restart.
  • If it still fails: Re-check USB format/capacity and re-download the file using a stable network to avoid corruption.
• Q: How do I download the correct SmartStitch embroidery system upgrade file from smartstitch-official.com for the exact SmartStitch machine model (example: SmartStitch 1501)?
  A: Choose the upgrade file that matches the exact SmartStitch model number—this is a pass/fail step.
  • Open: Go to smartstitch-official.com in a browser.
  • Navigate: Scroll to the footer and click “Embroidery System Upgrade.”
  • Select: Pick the upgrade file labeled for the exact model (for example, “1501 upgrade”).
  • Success check: The file name/model selection matches the machine model you confirmed before downloading.
  • If it still fails: Do not cross-load files between different model numbers; go back and re-confirm the model ID before trying again.
• Q: Why do SmartStitch main interface button text labels not show after enabling “Main interface button text display = Yes” on a SmartStitch 12-inch touchscreen?
  A: This is common—the SmartStitch reboot was too fast, so the setting did not fully apply.
  • Set: Setting → User Parameters → Embroidery Assistant Parameters → Page 2 → Button 6 → set to “Yes,” then return to the home page.
  • Power cycle: Turn OFF, wait a full 30 seconds, then turn ON (do not rapid-toggle).
  • Repeat: If needed, do the “long reboot” again—most cases are fixed by the correct wait time.
  • Success check: After restart, the main interface icons display clear text labels beneath them.
  • If it still fails: Re-verify you changed Page 2, Button 6 (not a similar-looking option) and then return to home to save state.
• Q: How do I switch SmartStitch display units from millimeters to inches (British display) so hoop sizes like 5.3in × 5.3in appear on a SmartStitch 12-inch touchscreen?
  A: Change the SmartStitch “Display unit” to British display and keep the whole shop on one unit standard.
  • Navigate: Setting → User Parameters → Embroidery Assistant Parameters → Page 3.
  • Toggle: Tap Button 8 (Display unit) and switch from Metric display to British display.
  • Standardize: Label physical hoops in inches if the machine is set to inches to prevent wrong-hoop selection.
  • Success check: In the frame selection area, hoop/frame sizes show in inches (example shown: 5.3in × 5.3in).
  • If it still fails: Go back to Page 3 and confirm Button 8 actually saved, then perform a proper 30-second power cycle if the screen does not update.
• Q: How do I use SmartStitch selected-color flashing to verify embroidery design placement before stitching on a SmartStitch multi-needle machine?
  A: Use the SmartStitch color-sequence bar to make the selected color flash on the preview—this catches wrong orientation/placement before the needle moves.
  • Tap: On the main embroidery screen, tap a specific color block in the right-side color sequence bar.
  • Watch: Confirm the corresponding design area flashes/blinks in the preview window.
  • Stop: If the flashing area is not where it should stitch (pocket vs neckline, etc.), stop and correct design/orientation before running.
  • Success check: The flashing region matches exactly the expected stitch zone for that color.
  • If it still fails: Reload the design and repeat the tap-to-flash check before starting, especially when using unfamiliar hoop sizes.
• Q: How do I assign exact thread serial numbers in the SmartStitch spool library (example: Isacord 900) after enabling “More display colors” on a SmartStitch 12-inch touchscreen?
  A: Enable more display colors, then enter the real thread serial number per needle position so “black/blue” stops being a guess.
  • Enable: Setting → User Parameters → Embroidery Assistant Parameters → Page 3 → Button 3 to turn on “More display colors.”
  • Read: Pick up the actual thread cone and read the serial number from the label (example: 900).
  • Input: Double-tap the on-screen needle position, enter the serial number, and press Enter.
  • Success check: The screen updates to show the precise shade tied to that code for that needle position.
  • If it still fails: Re-confirm “More display colors” is enabled on Page 3 and re-enter the code on the correct needle position.
• Q: What are the key safety risks during a SmartStitch system upgrade restart and when using strong magnetic embroidery hoops in a production shop?
  A: Treat restarts and magnetic hoops as pinch-point hazards—slow down and keep hands clear.
  • Keep clear: During restart, the machine may recalibrate X/Y pantographs and needle cases—keep fingers, tools, and loose items away from moving parts.
  • Avoid stress: Do not rapid-toggle power; wait the full 30 seconds to reduce electrical stress and incomplete resets.
  • Handle magnets: Strong magnetic hoops can pinch fingers severely; store with spacer tabs inserted and never let them snap together uncontrollably.
  • Success check: The machine completes restart without anyone reaching into the frame area, and magnetic hoops are separated/controlled during handling.
  • If it still fails: Stop operation and follow the machine’s manual safety guidance; generally, do not continue if any motion path or pinch point cannot be kept clear.
