SmartStitch Socks Hoop Setup That Actually Stays Aligned: Driver Bar Assembly, 6th-Hole Install, and Soft Limit Settings

Sock embroidery is the ultimate stress test for any embroiderer. It is deceptive; the item is small, yet it combines every variable that makes our job difficult: cylindrical geometry, high-elasticity fabric, and a ribbed texture that fights alignment at every stitch.

In my 20 years on the production floor, I have seen more tears shed over ruined socks than complex jacket backs. Why? Because a sock is unforgiving. If your hoop driver is 1mm off-center, the design wraps around the ankle. If your tension is wrong, the ribbing swallows the logo.

If you are running a SmartStitch multi-needle machine with the dedicated socks hoop system, you have the hardware to succeed. However, hardware is only as good as the hands setting it up. This guide is your "Industry White Paper" for converting that pile of loose metal parts into a repeatable, profitable production line. We will move beyond basic instructions into the "feel" of the machine—the sensory details that separate a clear stitch-out from a bird's nest.

The “Don’t Panic” Primer: Why SmartStitch Socks Hoop Jobs Go Sideways So Fast

Before we touch a screw, let’s understand the enemy. Socks move. Unlike a denim jacket or a canvas tote, a sock is designed to stretch and recover. When you force it into a rigid hoop, you are fighting physics.

In a commercial environment, sock jobs usually fail for two reasons:

1. Mechanical Tolerance Stacking: A tiny gap in your driver bar assembly multiplies over the length of the hoop, resulting in a crooked frame.
2. Fabric "Creep": As the needle penetrates the ribbing, the fabric micro-shifts. If the clamping pressure isn't uniform, the design distorts.

The method detailed below treats the setup as a precision engineering task, not a craft project. We are going to lock down variables so that when you press "Start," you know exactly where that needle will land.

The Hidden Prep Pros Do First: 3mm Allen Wrench, Clean Screws, and a Quick Fit Check

Professional embroidery is 90% preparation and 10% stitching. To ensure zero cognitive friction during assembly, stage your workspace like a surgical tray. You do not want to be hunting for a tool while holding a tensioned spring clip.

You will need the 3mm Allen wrench (hex key) and the socks hoop components shown in the manual. But experienced operators always keep a few "hidden consumables" nearby that manuals forget to mention.

The "Hidden" Consumables List:

• Ballpoint Needles (75/11): Socks are knits. Sharps cut the fibers; ballpoints slide between them.
• Temporary Adhesive Spray (e.g., ODIF 505): Essential for keeping backing fused to the ribbed knit.
• Water-Soluble Pen: For marking the true center on the first test sock.

If you are currently sourcing a sock hoop for embroidery machine, remember that stiffness matters. We are building a rigid structure here.

Prep Checklist (Go/No-Go):

• 3mm Allen Wrench is in hand (check the tip for rounded edges; a worn wrench strips screws).
• Fastener Surface Check: Wipe the mating surfaces of the aluminium driver bar and plastic holders with a clean cloth. Oil or lint here creates slippage.
• Lighting: Position a task light to shine across the worktable, not just down. This reveals gaps in assembly.
• Spare Sock (Sacrificial): Have one sock ready that you don't mind ruining for the test run.


Warning: Mechanical Safety Hazard. When assembling driver bars and tightening screws, keep your fingers clear of the pinch points between the aluminium bar and plastic holders. If the Allen wrench slips under torque, it can puncture skin. Always pull the wrench toward you, never push away.

Lock the Socks Hoop Driver Bar Straight: The Half-Tighten Trick That Prevents Crooked Frames

This is the failure point for 50% of users. If you simply insert the screws and crank them tight one by one, you will introduce torque twist. The plastic holder will sit slightly unparalleled to the metal bar. You won't see it, but your machine will feel it.

We use the "Torque Sequence" method adapted from automotive mechanics.

The "Half-Tighten" Protocol

1. Position: Place the plastic hoop holders onto the aluminium driver bar.
2. Engage: Insert the screws by hand first to ensure you aren't cross-threading. Use the 3mm Allen wrench to turn them until they just make contact.
3. The Half-Tighten: Tighten the screws only 50%. The parts should hold together but still wiggle slightly if forced.
4. The Flip & Squeeze (Crucial): Flip the entire assembly over. Look at the seam where the plastic meets the aluminium. Squeeze the two parts together with your thumb and forefinger. You are forcing the alignment surfaces to mate perfectly.
5. Final Torque: While squeezing, tighten the screws fully.

Sensory Check: Run your fingernail across the joint between the plastic and metal. It should feel seamless. If your nail catches on a lip or ledge, loosen and reset. A seamless joint means a straight hoop.

Why this works (Physics)

Embroidery machines operate on X/Y coordinates. If your hoop driver is skewed by even 0.5 degrees, that error amplifies at the far end of the hoop, causing your design to look rotated. By eliminating the gap at the source, you ensure the hoop is mathematically parallel to the machine arm.

The 6th-Hole Install on the SmartStitch Pantograph Rail: Mount It Once, Stop Chasing Placement

Now we mount the driver bar to the machine's pantograph (the X-axis drive rail). Precision here defines your center point for years to come.

The SmartStitch system uses numbered holes for repeatability. The video and industry standard for this specific setup is the 6th hole.

Install Workflow

1. Locate: Count the holes on the drive rail. Do not guess; point and count to 6.
2. Align & Engage: Line up the driver bar screw with the 6th hole. Insert the Allen wrench vertically.
3. Half-Tighten (Again): Do not lock it down yet. Tighten it enough so it doesn't fall, but can still move micro-amounts.
4. Repeat: Move to the other side of the rail. Find the corresponding 6th hole.
5. The "Shimmy" Test: Before final tightening, gently wiggle the bar. It should feel settled into the grooves.
6. Lock Down: Tighten both sides securely.

Sensory Check: Verification is auditory. When you tighten the screw, it should stop with a solid "thud" feeling, not a spongy resistance. Sponginess implies cross-threading or debris in the hole.

Pro Tip: The "Why" of the 6th Hole

Why hole 6? This position is calibrated to the specific arm length of the SmartStitch socks hoop. If you use hole 5 or 7, the hoop center will not match the software's geometric center, leading to needle strikes on the frame.

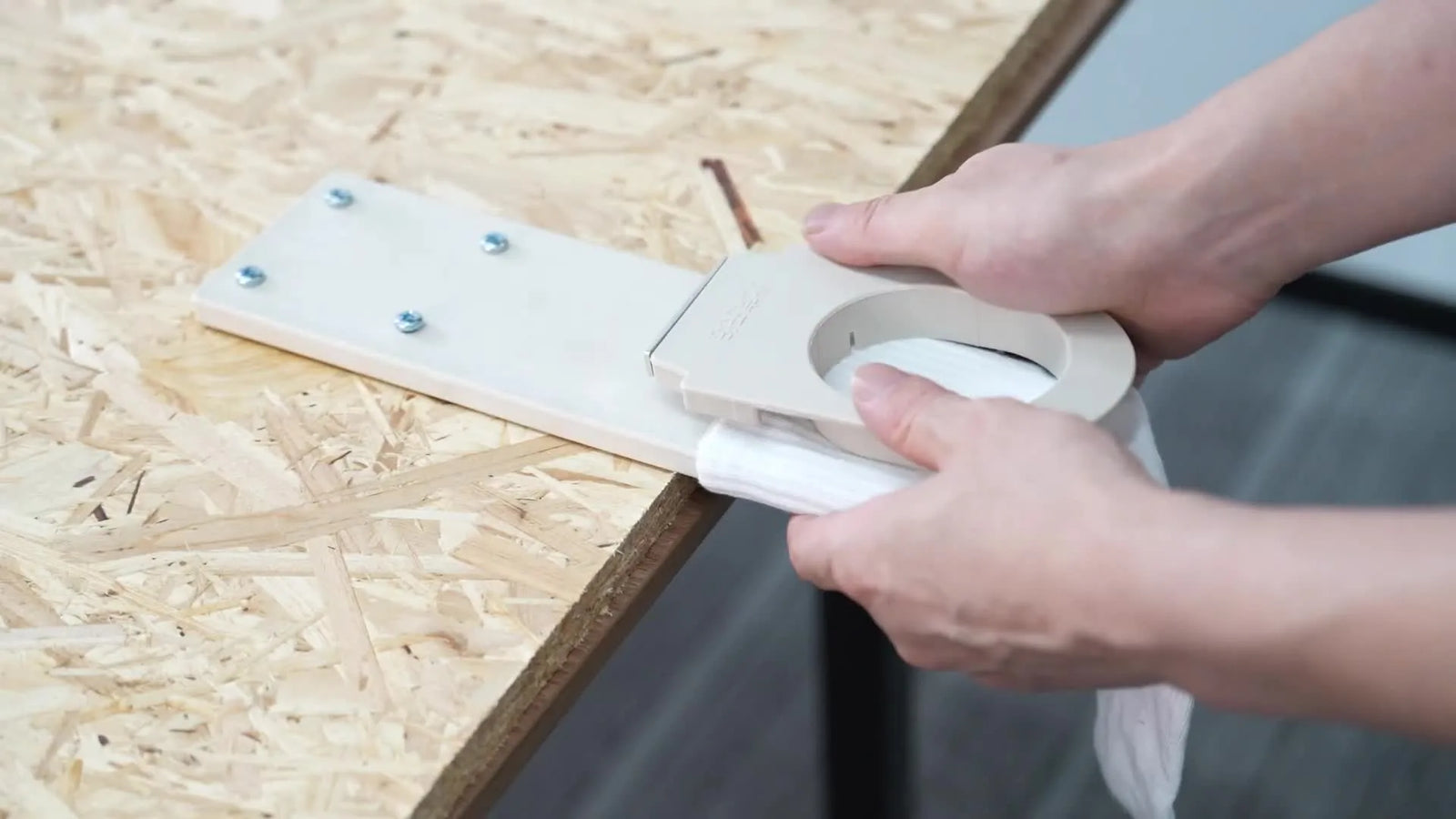

Bolt Down the Sock Station Jig: The One-Minute Step That Saves You 30 Minutes of Re-hooping

You cannot hoop a sock securely in mid-air. The elasticity of the sock requires two hands for stretching and a third hand (the station) to hold the hoop.

In a professional shop, a hooping station for embroidery machine is treated like a fixture—it is bolted down.

Stability Protocol

1. Edge Alignment: Hook the lip of the sock station board over the edge of your heavy worktable.
2. Secure: Use a screwdriver and wood screws to drive through the pre-drilled holes into the table.
3. The Shove Test: Push the station hard with your hip. If it moves, screw it down tighter.

If you are hooping 50 socks, a loose station means Sock #1 and Sock #50 will have different center placements because the jig shifted 2mm every time you applied pressure.

Setup Checklist (Before Hooping):

• Station Rigidity: The hooping jig does not budge under heavy pressure.
• Component Access: Inner rings and top frames are stacked within arm's reach (avoid twisting your spine).
• Screen Check: Manufacturer's film is removed from hoops to ensure a tight snap-fit.
• Visual Aid: A centerline is marked on the station board with tape for visual reference.

Hoop the Sock Without Wrinkles: Stabilizer First, Then Stretch, Then Clamp Like You Mean It

This is the moment of truth. Tensioning a sock is about finding the "Goldilocks Zone": too loose, and you get puckering; too tight, and you distort the ribbing permanently.

The "Drum Skin" Hooping Method

1. Stabilizer: Place your pre-cut backing (tear-away is standard for cotton socks) over the station cutout.
2. Inner Ring: Place the inner ring on top of the stabilizer.
3. The Stretch: Pull the sock opening over the station platform.
   • Sensory Anchor: You want to stretch the sock until the ribs look like "open train tracks"—parallel but not splayed out.
   • Alignment: Ensure the heel and toe are centered vertically.
4. The Smooth: Run your palms over the hooping area. It must be perfectly flat.
5. The Clamp: Press the top frame (with connector bracket) down. You should hear a distinct SNAP or solid click as it locks over the inner ring and sock.

Sensory Check: Tap the hooped area of the sock. It should sound dull and tight, like a heavy fabric drum. If it ripples under your finger, un-hoop and start over. Do not hope the machine will fix loose fabric—it won't.

The "Hoop Burn" Reality

Standard mechanical clamps work by crushing the fabric between two plastic rings. On delicate or thick socks, this leaves "hoop burn" (shiny compression marks).

Commercial Insight: If you are battling hoop burn or wrist fatigue from hundreds of "snap" motions, this is the trigger point to consider Magnetic Hoops. Brands like SEWTECH offer magnetic frames compatible with multi-needle machines that hold strong without the crushing mechanical friction. They are the industry standard for high-volume, burn-free hooping.

Warning: Magnet Safety Hazard. If you upgrade to a magnetic system, be aware that industrial magnets (Neodymium) are incredibly powerful. They can pinch skin severely and erase credit cards. Crucially: Keep powerful magnetic hoops away from individuals with pacemakers, as the magnetic field can interfere with medical device operation.

SmartStitch Soft Limit Sitting (Menu 8): The Exact Frame Count and Interval That Make the Hoop Behave

Mechanical alignment is useless if the computer thinks the hoop is somewhere else. We need to tell the SmartStitch brain exactly what geometry we just installed.

The video highlights specific integrity settings in Menu 8.

The Programming Sequence

1. Navigate to Shortcut Menu.
2. Select Soft limit sitting (Option 8).
3. Input these exact values (do not improvise):
   • Frame count: 2 (This tells the machine it is dealing with a specific split-field or dual-hoop logic).
   • Frame interval: 300 (This sets the spacing parameter).
4. Return to Main Screen.
5. Select the Socks Hoop Preset Icon (Preset D).
6. Verify Center Coordinates on screen: X: 53.9 / Y: 38.2.

If you own a smart stitch embroidery machine 1501 or similar model, these coordinates are your safety net. If your screen reads differently, your machine is not zeroed to the socks hoop. Stop and reset.

Why these numbers matter

"Frame count 2" and "Interval 300" are not random. They define the "Soft Limits"—the electronic walls that prevent the pantograph from slamming the metal hoop frame into the needle bar. Ignoring this setup is the fastest way to break a $50 reciprocating bar.

Run the Stitch-Out Like a Production Operator: Color Choice, First Stitches, and What to Listen For

With the machine prepped, load your design. For socks, stick to designs with moderate density. Heavy, bulletproof fills on a flexible sock will result in a hard "patch" that is uncomfortable to wear.

The Auditory Audit

Start the machine. I recommend a "Beginner Sweet Spot" speed of 500 - 600 SPM (Stitches Per Minute). Pros run faster, but socks tend to "flag" (bounce up and down) at high speeds, causing looped stitches.

Listen:

• Good Sound: A rhythmic, dull thump-thump-thump. This indicates the needle is penetrating cleanly and the socks are held tight.
• Bad Sound: A sharp slap-slap sound. This means the sock is "flagging" lifting up with the needle.
  • Fix: Increase hoop tension or use a water-soluble topping to hold the knit down.


Operation Checklist (Quality Control):

• Centering: Design is aligned with the vertical ribs (not crossing them diagonally).
• Registration: Outlines line up with fills (no white gaps).
• Surface: No loops or wire-like thread sitting on top of the sock.
• Backing: Tears away cleanly without distorting the font/logo.


When Things Look “Off”: Fast Troubleshooting for Crooked Socks Hoop Alignment

Even with perfect prep, things happen. Use this tiered Troubleshooting Guide. Start with the "Low Cost" checks before moving to "High Cost" tearing apart of the machine.

The most common issue I troubleshoot is the first one: the Driver Bar Gap. If you skipped the "half-tighten & squeeze" step, go back. It solves 90% of rocking issues.

Stabilizer Decision Tree for Socks: Tear-Away Is the Baseline, But Not Always the Best Choice

The video uses tear-away, which is fine for heavy cotton sports socks. However, "fine" isn't always "best." Use this logic flow to decide.

Decision Tree: Fabric vs. Function

1. Is the sock a standard, heavy cotton crew sock?
   • Yes: Use Tear-Away (2.5oz). Easy cleanup, adequate stability.
   • No: Go to Step 2.
2. Is the sock a thin dress sock or high-stretch athletic performance wear?
   • Yes: Use Cut-Away (poly-mesh).
   • Why: Tear-away will disintegrate under the stretch of a running foot, causing the embroidery to eventually distort or fall apart. Cut-away provides permanent structural support.
   • No: Go to Step 3.
3. Is the sock texture a "waffle" knit or very lofty wool?
   • Yes: Use Tear-Away + Water Soluble Topping. The topping prevents stitches from sinking into the waffle texture.

Keep a logbook. Record the brand of sock, the stabilizer used, and the result. This data is your intellectual property.

The Upgrade Path That Makes Socks Profitable: Faster Loading, Less Rework, and Smarter Tool Choices

If you follow this guide, you will master sock embroidery. But eventually, you will hit a ceiling: Volume.

Manual clamping is slow. Wrists get tired. Production bottlenecks appear. This is where business owners leverage tools to solve physical limits.

1. Level 1: The Stability Fix (Stations).
   If your alignment is still varying, your fixture is the culprit. Comparing a generic setup against a pro-grade hoopmaster hooping station or similar hooping stations reveals the difference: pro stations have zero flex. They are an investment in consistency.
2. Level 2: The Speed Fix (Magnets).
   If hoop burn or loading speed is your pain point, look at magnetic systems. In the SmartStitch ecosystem, you will hear about the smartstitch mighty hoop or a mighty hoop for smartstitch.
   • The Value: Magnetic hoops self-align. You place the top, it snaps to the bottom magnetically. No screwing, no forcing, no burn marks. They are the single biggest efficiency upgrade for tubular items.
3. Level 3: The Scale Fix (Multi-Needle).
   If you are trying to run 50 socks on a single-needle home machine, you are losing money on labor. Moving to a dedicated multi-needle platform (like SEWTECH machines) allows you to queue colors without thread changes and use these robust tubular hoop systems. It turns a "favor for a friend" into a "purchase order."


The Result Standard: What “Good” Looks Like Before You Call It Done

The video concludes with a pristine pair of socks sitting on the table. This is your visual benchmark.

The "Sellable Quality" Standard:

1. Centering: The design sits exactly on the outer ankle, centered between heavy rib lines.
2. Smoothness: The knit around the design is not puckered or waved.
3. Density: The embroidery feels flexible, not like a piece of cardboard glued to the sock.

If you hit this standard twice in a row—Left Sock and Right Sock—you have graduated from "hoping it works" to "knowing it works."

FAQ

• Q: What “hidden consumables” should be staged before assembling and running a SmartStitch socks hoop system?
  A: Stage knit-safe needles and holding aids first, because sock jobs fail more from prep gaps than stitching mistakes.
  • Use a 75/11 ballpoint needle for knit socks (sharps often cut fibers).
  • Keep temporary adhesive spray available to bond stabilizer to ribbing.
  • Mark a true center on a sacrificial test sock with a water-soluble pen.
  • Success check: the stabilizer stays flat on the sock with no creeping when you handle the hooped area.
• Q: How do you stop a SmartStitch socks hoop driver bar from producing a crooked frame during assembly?
  A: Use the “half-tighten, flip, squeeze, then final torque” sequence to prevent twist from screw torque.
  • Start all screws by hand, then tighten only to 50% so parts can still wiggle slightly.
  • Flip the assembly, squeeze plastic holder and aluminum bar together at the seam, then fully tighten while squeezing.
  • Run a fingernail across the plastic-to-metal joint to feel for a lip; reset if the nail catches.
  • Success check: the joint feels seamless and the hoop does not rock when mounted.
• Q: What is the correct SmartStitch pantograph rail hole position for installing the socks hoop driver bar to avoid needle strikes?
  A: Mount the SmartStitch socks hoop driver bar using the 6th hole on both sides for repeatable center alignment.
  • Count holes to #6 on the rail (do not eyeball), then align and engage the screw vertically.
  • Half-tighten both sides first, do a gentle “shimmy” to feel it settle, then lock down securely.
  • Listen/feel for a solid stop when tightening (spongy resistance can indicate cross-threading or debris).
  • Success check: the bar feels seated with no micro-shift and placement is repeatable job-to-job.
• Q: How do you hoop a sock on a SmartStitch socks hoop without wrinkles, puckering, or rib distortion?
  A: Stabilizer first, then stretch to a controlled “open train tracks” rib look, then clamp until a solid snap is heard.
  • Place pre-cut backing over the station cutout, set the inner ring, then pull the sock opening over the platform.
  • Stretch only until ribs look parallel (not splayed), smooth the hooping area flat with your palms, then clamp the top frame.
  • Avoid “hoping it will sew out” if fabric ripples—un-hoop and redo immediately.
  • Success check: tapping the hooped sock sounds dull/tight like a heavy fabric drum, with no visible ripples.
• Q: What SmartStitch Menu 8 “Soft limit sitting” settings should be used for the socks hoop preset to prevent frame hits?
  A: Set SmartStitch Menu 8 Soft limit sitting to Frame count 2 and Frame interval 300, then verify the socks hoop preset coordinates.
  • Navigate: Shortcut Menu → Soft limit sitting (Option 8) → enter Frame count: 2 and Frame interval: 300.
  • Return to the main screen, select Socks Hoop Preset icon (Preset D), then verify X: 53.9 / Y: 38.2.
  • Stop and reset if the displayed center coordinates do not match, because the machine is not zeroed to the socks hoop.
  • Success check: the preset shows X 53.9 and Y 38.2 before stitching begins.
• Q: How do you troubleshoot SmartStitch socks hoop embroidery when the hoop wiggles or the stitched design is consistently tilted?
  A: Start with the driver bar flushness and hole positioning, because small mechanical gaps amplify into visible tilt.
  • Re-tighten driver bar screws using the half-tighten-and-squeeze method to eliminate any gap.
  • Confirm both sides of the driver bar are installed in the 6th hole (not #5 or #7).
  • Check the hooping station is rigid/bolted down so the jig does not shift under stretch pressure.
  • Success check: the hoop no longer rocks and repeated stitch-outs keep the same angle and center placement.
  • If it still fails: inspect plastic holders for cracks/wear and re-seat the rail assembly if needed.
• Q: What are the key safety precautions when assembling a SmartStitch socks hoop driver bar and when using industrial magnetic hoops?
  A: Protect fingers from pinch points during tightening, and treat magnetic hoops as high-force tools that can injure skin and affect medical devices.
  • Keep fingers clear between the aluminum bar and plastic holders; pull the Allen wrench toward you to reduce slip risk.
  • If using magnetic hoops, keep hands out of the closing zone to avoid severe pinching and keep magnets away from credit cards.
  • Keep powerful magnetic hoops away from individuals with pacemakers due to potential interference.
  • Success check: assembly can be tightened without hand position entering any pinch point, and magnets are handled with controlled placement.
• Q: When should a sock embroidery shop upgrade from technique fixes to a magnetic hoop system or to a multi-needle platform like SEWTECH machines?
  A: Upgrade when the recurring pain is hoop burn, wrist fatigue, or throughput limits after basic setup is already consistent.
  • Level 1 (Technique/fixture): bolt down the sock station and standardize hooping to eliminate placement drift.
  • Level 2 (Tool upgrade): switch to magnetic hoops when hoop burn and loading time are the bottleneck (magnets reduce crushing and speed loading).
  • Level 3 (Capacity): move to a multi-needle setup when thread-change labor makes sock runs unprofitable at volume.
  • Success check: rework rate drops and loading/stitching becomes repeatable across large batches (Sock #1 matches Sock #50).
