SmartStitch S-1001 10-Needle Machine: The Specs That Matter, the Hoops You’ll Actually Use, and the Setup Mistakes That Cost Orders

If you have ever stared at a specific embroidery machine listing and thought, “Will this actually make my workflow faster—or just give me bigger problems at higher speed?” you are thinking like a professional.

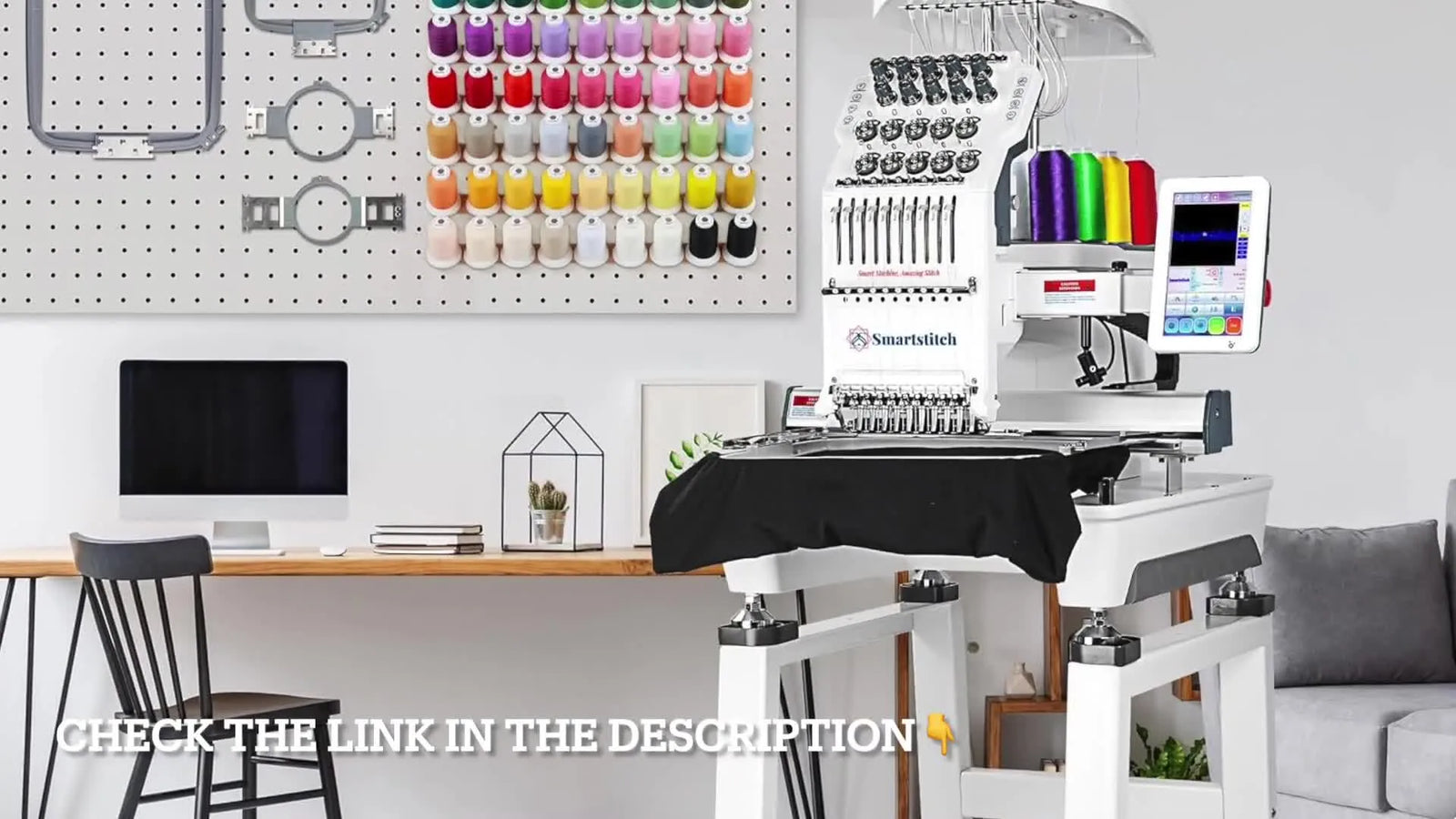

The SmartStitch S-1001 is presented in the video as a compact commercial powerhouse built around three core promises: 10 needles, 1200 stitches per minute (SPM), and a 7-inch full-color touchscreen—plus the requisite attachments to move between caps, flats, and garments without completely rebuilding your workspace.

However, specs on a screen and performance on a chaotic shop floor are two different things. As someone who has spent two decades diagnosing why “perfect” designs fail on actual machines, I am going to translate the video’s slideshow specs into a battle plan you can act on. We will cover how much space you really need (versus what the brochure says), which hoops matter for the jobs that actually pay bills, and—crucially—where hooping and stabilization mistakes quietly destroy quality.

Don’t Panic About “Commercial Speed”: What the SmartStitch S-1001 Is Actually Promising at 1200 SPM

The video positions the SmartStitch S-1001 as a 10 needle embroidery machine that can run up to 1200 stitches per minute while maintaining stitch integrity across cotton, denim, polyester, and heavier materials like canvas.

Here is the calm, experienced reality check: Speed is a variable, not a setting.

While the machine can hit 1200 SPM, speed is only “free” when your hooping tension, stabilization choice, and thread path are flawless. If any one of those is marginal, higher SPM doesn’t just stitch faster—it fails faster, creating birdnests or breaking needles with more force.

The Beginner’s Sweet Spot

If you are new to multi-needle machines, ignore the 1200 number for your first month.

• Start at 600–750 SPM: This is the “Sweet Spot” where you can visually track the needle and hear issues before they become disasters.
• Scale to 850–1000 SPM: Once you trust your stabilizer combinations on standard flats.
• Reserve 1200 SPM: For optimized production runs on stable fabrics (like canvas or heavy twill) where you have dialed in every variable.

What I appreciate about the S-1001 concept (based on the video) is that it is built around production-friendly features: multi-needle color loading reduces downtime, automatic thread trimming cleans up the back of the work, and the reinforced frame is intended to dampen the physical violence of high-speed stitching.

Warning: Respect the Kinetic Energy. High-speed stitching generates significant needle heat and impact force. Keep fingers, scissors, and loose clothing (drawstrings!) well away from the needle bar area. Never reach under the head to clear a thread while the machine is running or coasting to a stop—a 1200 SPM needle moves faster than your reflex.

Measure Your Space Like a Shop Owner: SmartStitch S-1001 Stand Dimensions That Decide Your Workflow

The video gives clear stand measurements. These are not just “nice-to-know” numbers—they determine whether you can hoop comfortably, load caps without bumping walls, and service the machine without dragging it around the room.

From the slideshow measurements:

• Stand base width: 18.9 inches
• Stand top width: 23.6 inches
• Stand height: 30.3 inches

It also shows the machine head height at 29.5 inches, bringing the total working height to roughly 5 feet.

The Real-World Planning Rule (What the Slideshow Doesn’t Say)

In a working studio, the footprint is never just the stand. You need “Kinetic Clearance.”

1. Rear Clearance: You need at least 12–18 inches behind the machine for the cap driver shaft to swing and for the hat brim to rotate without hitting a wall.
2. Operator Zone: You need 24 inches in front to stand square to the machine. If you have to twist your torso to see the needle because of a tight corner, you will develop back pain within a week.
3. Staging Area: You need a table immediately to your left or right for hooping. Hooping on your lap is a recipe for crooked designs.

If you are running paid orders, layout is money. Every time you have to rotate the stand, move a cart, or re-hoop because you couldn’t align comfortably, you are burning margin.

The “Hidden” Prep Before You Stitch Anything: Thread Paths, Needles, Backing, and a Reality Check on Orders

The video highlights 10 needles loaded with multiple colors. This efficiency is real, but it shifts the workload from "during the stitch" to "before the stitch."

Commercial embroidery is 80% preparation and 20% execution. Here is what I would have on the table before the first design transfer.

The Hidden Consumables

New operators often buy the machine but forget the "oil" that keeps production moving. Ensure you have:

• Temporary Adhesive Spray (505): Crucial for floating patches or appliqué.
• Water Soluble Topping (Solvy): Essential for towels and fleece to prevent stitches from sinking.
• 75/11 Ballpoint Needles: The standard for knits (polos/t-shirts).
• 75/11 Sharp Needles: The standard for wovens (caps/canvas/denim).

Prep Checklist (Do this *before* you touch the screen)

• Check the Bobbin: Is it full? A “low bobbin” alert mid-design is annoying; running out completely can cause registration loss.
• Needle Inspection: Run your fingernail down the needle tip. If you feel a tiny burr (scratch), throw it away. A $0.50 needle can ruin a $50 jacket.
• Thread Path Check: Pull the thread from the needle eye. It should flow with consistent resistance (like flossing teeth). If it jerks or snags, check the upper tension discs.
• Stabilizer Match: Don't just grab "tearaway." Match the backing to the fabric's stretch. (See the Decision Tree below).
• Sequence Loading: Place your thread cones on the rack in the order of the next job, not just by rainbow color.

If you are trying to scale, this is where a supply partner matters. We support global embroidery users with thread and dedicated stabilizer options because matching the backing to the fabric is the single biggest factor in quality.

Cap Driver + Cap Hoop + Cap Stand: The SmartStitch S-1001 Hat Setup That Makes (or Breaks) Your Reputation

The video isolates the hat embroidery hardware as three distinct parts: cap driver with shaft, cap hoop, and cap stand.

If you want hats to look professional, the cap setup is not optional/modular—it is a rigid system that controls curvature, seam placement, and stability.

A lot of “my hat embroidery looks crooked” problems are not digitizing problems. They are hooping physics problems. Caps are curved and springy; the front panel can be soft or structured, and the center seam creates a literal “speed bump” for the needle.

What Experienced Operators Watch For on Caps

• The "Drum" Sound: When hooped, tap the front of the cap. It should sound relatively hollow and firm, not dull and loose.
• The Sweatband: Ensure the sweatband is pulled back and clamped or pinned out of the way. Stitching the sweatband to the forehead panel is the classic rookie mistake.
• The Center Reference: Always mark your center with chalk or a specific pen before hooping. Do not trust your eye alone.

If you find yourself doing hats daily, this is where you might eventually consider a workflow split. Many high-volume shops accept that cap drivers are fussy to install and remove. They often eventually buy a second machine or dedicate their multi-needle to caps while using magnetic embroidery hoops on a flat machine for garments. Why? Because the time spent swapping drivers costs money.

Warning: Magnetic Safety. Newer operators often upgrade to magnetic frames for speed (which we will discuss later). Note that commercial-grade magnets are powerful enough to pinch skin severely or affect pacemakers. Never pry them apart with your fingertips; slide them off the edge of a table. Keep them at least 12 inches away from medical implants.

The Hoop Inventory Slide Isn’t Just “Accessories”: It’s Your Job Menu

The video shows three standard tubular hoops:

• 9.4" x 9.4" square hoop
• 7.9" hoop
• 4.7" hoop


As a beginner, you might think bigger is always better. As a pro, you know: Use the smallest hoop that fits the design.

Here is your practical breakdown:

• 4.7" Hoop: This is your profit center. It fits left-chest logos, sleeve initials, and pocket designs. It holds fabric tightest because there is less surface area to sag.
• 7.9" Hoop: The flexible middle ground for tote bags, towel headers, and onesies.
• 9.4" x 9.4" Hoop: The "Jacket Back" starter size. Use this for larger collegiate letters or center-chest designs.

If you are shopping for accessories, you will see terms like embroidery machine hoops and smartstitch embroidery hoops used interchangeably online. What matters is fit and grip.

Setup Checklist (Right after you choose the hoop)

• Size Logic: Does the design fit with at least 0.5" clearance on all sides? If the presser foot hits the hoop, it can knock the machine out of alignment.
• The "Hand Tug" Test: Hoop your scrap fabric. Gently tug perfectly horizontal to the hoop. The fabric should barely move. If it slides, tighten the screw before you clamp (not after).
• Inner Ring Orientation: Ensure the inner ring isn't upside down (a common error on round hoops). Look for the "L" and "R" or arrow markings.
• Attachment Click: When sliding the hoop onto the machine arms, listen for a sharp "Click". If you don't hear/feel it lock, the hoop will fly off at stitch #500.

Flat Embroidery Table + 14.4" x 9.6" Frame: Where Production Work Starts to Feel Commercial

The video shows a flat embroidery table attachment and the largest rectangular frame at 14.4" x 9.6".

This combination is a productivity feature that often goes unexplained. Why use the table?

Gravity is your enemy. When you embroider a heavy Carhartt jacket or a thick blanket on a standard tubular arm, the weight of the fabric drags downward. This drag pulls against the pantograph motors, causing:

1. Registration errors (outlines not lining up).
2. Flagging (fabric bouncing up and down).

The flat table supports that weight. It makes the friction neutral. If you plan to sell patches (which are done in large batches on a single sheet of fabric) or uniform work, the table is mandatory.

A Scalability Mindset Shift

This is also the point where you assess your tools.

• Hobby Mode (1 item): You can struggle with the hoop, adjust constantly, and accept slow handling.
• Production Mode (50 items): You need flow.

This is where multi-needle machines like our SEWTECH line become a logical upgrade path for many studios. It’s not just about "more needles"—it’s about the chassis stability required to run heavy items all day without the machine "walking" across the table.

The 7-Inch Touchscreen: Use Pattern Memory and Color Change Controls Like You’re Running Orders, Not Demos

The video highlights the 7-inch full-color touchscreen and calls out specific interface functions:

• Pattern Memory Key
• Color Change Mode Key
• Floating Key


It also shows a right-side menu area including Color Sequence, Needle Switch, and Status Key.

Do not just look at the screen; learn the workflow it enables.

• Pattern Memory: This is your insurance. Save your optimized files here. If a customer returns three months later for "5 more shirts," you don't want to re-download and re-program the colors. You want to load the proven file.
• Floating Key: This usually controls "Float Mode" or "High/Low" speed for 3D Foam embroidery. It tells the foot to hover higher so it doesn't smash the foam flat.
• Needle Switch/Color Sequence: This allows you to map the design colors to the actual cones on your machine.
  • Pro Tip: Create a standard "Rack Map." For example, Needle 1 is always Black, Needle 10 is always White. This muscle memory reduces setup time for 90% of jobs.

The video also mentions USB and Wi-Fi design transfer. Wi-Fi is superior in a shop environment—USB sticks are easily lost or corrupted by static thread dust.

What the Finished Goods Slide Is Really Telling You: Product Mix, Fabric Behavior, and Stabilizer Choices

The video shows example outputs like embroidered tennis balls, thick towels, structured caps, and later a grid including canvas shoes.

These examples represent radically different physics.

• Tennis Balls: High curvature, very thick rubber/felt. Requires a specialized jig (clamping frame), not a standard hoop.
• Towels: High pile (loops). Requires a water-soluble topping so the stitches don't disappear into the loops.
• Shoes: Impossible to hoop with standard plastic rings; requires a clamping system or high-clearance frame.

This brings us to the most critical decision you will make for every job: The Stabilizer Strategy.

Decision Tree: Fabric → Stabilizer/Backing Choice (Practical Shop Logic)

1. Is the fabric stretchy? (Performance Polo, T-Shirt, Beanie)
   • YES: CUTAWAY Stabilizer. Why? Knits need permanent support. If you use tearaway, the design will distort after the first wash.
   • NO: Go to Step 2.
2. Is the fabric unstable/lofty? (Towel, Fleece, Velvet)
   • YES: TEARAWAY (Firm) + SOLVY TOPPING. Why? The topping keeps stitches on top; the tearaway provides rigidity during the stitch but removes cleanly.
   • NO: Go to Step 3.
3. Is the fabric stable but visible from the back? (Napkin, Woven Shirt)
   • YES: TEARAWAY or WASH-AWAY. Why? You want a clean backside.
   • NO: (e.g., Denim Jacket) CUTAWAY or strong TEARAWAY.

If you are frequently fighting hoop marks on tricky fabrics, a compatibility check for smartstitch embroidery frame options—specifically magnetic ones—can be a massive productivity unlock.

The Hooping Physics Nobody Mentions in Product Videos (But It’s Why Jobs Fail)

Most promotional showcases focus on speed and screen size. The failures that cause unmatched outlines or puckering usually come from Hooping Physics.

1. Over-Tensioning aka "The Drum Skin Myth": Beginners pull fabric until it screams. When you unhoop, the fabric relaxes, and the embroidery puckers like a raisin.
   • Correct Feel: The fabric should be taut but neutral. It should not look stretched out of shape.
2. Hoop Burn: Clamping standard plastic hoops onto delicate velvet or performance wear leaves a crushed ring (burn) that never washes out.
3. The Wrist Fatigue Factor: Tightening screws 50 times a day leads to Carpal Tunnel issues.

The Solution: Upgrade Technology This is why almost every production shop eventually adopts Magnetic Hoops (like the Mighty Hoop system) for flat garments.

• They clamp automatically (no screws).
• They adjust to fabric thickness instantly (no burn).
• They are faster.

If you are comparing options, you might see searches for tools like the smartstitch mighty hoop. While brands vary, the mechanism is what matters. If you are serious about volume, plan budget for magnetic frames eventually.

“Quiet Motor” and “Reduced Vibration” Are Not Just Comfort Features—They Protect Quality

The video claims a reinforced frame to reduce vibration and a quiet motor to keep the workspace calm.

Why does vibration matter?

• Thread Path: Vibration can cause the thread to whip around the tension posts, leading to inconsistent tension.
• Camera/Laser: If the machine shakes, your tracing laser shakes.
• Longevity: Vibration loosens screws.

Sensory diagnosis: Learn the sound of your machine. A healthy machine has a rhythmic "Chug-Chug-Chug." A machine in trouble has a metallic "Clack-Clack" or a grinding noise. If the sound changes, STOP. Check the needle path immediately.

The Upgrade Path That Actually Makes Sense: When to Add Magnetic Hoops, and When to Move Up to Multi-Needle Production

The S-1001 is a bridge machine. It sits between home single-needle units and massive industrial multi-heads.

So the real question is: What is your bottleneck?

Scenario A: "My wrists hurt and I hate hooping."

• Diagnosis: Your machine is fine; your fixturing is the bottleneck.
• Prescription: Do not buy a new machine yet. Upgrade to embroidery machine hoops that use magnets. The ROI on a magnetic hoop is usually 2–3 weeks of saved labor.

Scenario B: "I can't finish orders because I'm changing colors manually."

• Diagnosis: You have outgrown single-needle technology.
• Prescription: The S-1001 (or a SEWTECH equivalent) is the correct fix. Moving from 1 needle to 10 needles saves roughly 15–20 minutes per complex design in stoppage time.

Operation Checklist (End-of-Run Habits that Protect Profit)

• The "First Article" Rule: Never run a batch of 50 without stitching one on a scrap of the exact same fabric first.
• Thread Tail Hygiene: Trim the long tails after the machine stops. If you don't, they will get sewn into the next design.
• Bobbin Check: Check the bobbin before starting the last shirt. Running out 90% of the way through is a nightmare.
• Oiling Schedule: One drop of oil on the rotary hook race every 4–8 hours of running time. Do not over-oil (it will stain the fabric).


A Quick Reality Check on “Business Potential”: What You Can Sell Fast (and What Usually Eats Beginners Alive)

The video shows a marketing slide with an operator next to two machines, framing the S-1001 as a business-ready investment.

Here is the grounded advice from 20 years in shops:

• Fast Sellers (High Margin/Low Risk): Left-chest corporate logos, simple text on beanies, personalized towels, pet collars.
• Margin Traps (High Risk/Time Sinks): Full-back jacket designs (huge stitch counts, takes 2 hours), complex multi-layer appliqué, cheap thin t-shirts (pucker nightmare).

Start with the fast sellers. Build a "Repeatable Menu" of products you have tested.

And if hats are your core product, obsess over your cap system. People often search for specific terms like smartstitch hat hoop or a specialized cap hoop for embroidery machine because hats are the hardest item to master. If strict cap quality is your goal, ensure your digitizing is specifically set up for caps (center-out sequencing) to match the hardware.

The Bottom Line: The SmartStitch S-1001 Looks Capable—But Your Results Will Be Won (or Lost) in Hooping and Prep

From the video, the SmartStitch S-1001 package is built around solid fundamentals:

• 10 needles for efficiency.
• 1200 SPM (use 800!) for throughput.
• A 7-inch touchscreen for workflow control.
• Essential attachments for pivoting between flats and caps.

If you treat it like a production tool—space planning, disciplined prep, correct stabilization, and repeatable hooping—you will get the “commercial” consistency the video promises.

If you treat it like a faster hobby machine and ignore the physics of hooping and stabilization, it will simply let you make mistakes faster.

Respect the machine, master the hoop, and the speed will follow.

FAQ

• Q: What is a safe starting speed on the SmartStitch S-1001 10-needle embroidery machine to prevent birdnesting and needle breaks at 1200 SPM?
  A: Run the SmartStitch S-1001 at 600–750 SPM first, then increase only after hooping, stabilizer, and thread path are consistent.
  • Start: Set 600–750 SPM for the first weeks so problems are visible and audible before they escalate.
  • Increase: Move to 850–1000 SPM only after the same fabric + backing combination stitches cleanly multiple times.
  • Reserve: Use 1200 SPM for stable production runs where hooping tension, backing choice, and thread path are already proven.
  • Success check: Stitching sounds rhythmic (no sudden “clack/clack”), and there is no sudden thread piling (nesting) under the hoop.
  • If it still fails… Slow down and re-check hoop grip, stabilizer match, and thread flow resistance through the tension discs (snags/jerks = problem).
• Q: What SmartStitch S-1001 pre-run checklist prevents mid-design problems like “low bobbin,” burr-related thread breaks, and tension snags?
  A: Do a 60-second SmartStitch S-1001 prep check before touching the touchscreen to prevent avoidable stoppages.
  • Check: Verify the bobbin is adequately filled before starting (running out can cause registration loss).
  • Inspect: Feel the needle tip with a fingernail; replace immediately if any burr/scratch is felt.
  • Pull-test: Pull thread from the needle eye; it should move with consistent resistance, not jerk or snag—then check tension discs if it does.
  • Success check: Thread pulls smoothly like flossing teeth, and the first stitches form cleanly without sudden snapping.
  • If it still fails… Re-thread the entire path carefully and confirm the stabilizer matches fabric stretch (cutaway for knits is a safe starting point).
• Q: How can SmartStitch S-1001 operators tell if hooping tension is correct without over-tensioning and causing puckering after unhooping?
  A: Hoop fabric on the SmartStitch S-1001 “taut but neutral,” not stretched like a drum skin, to avoid post-release puckering.
  • Hoop: Tighten so the fabric is firm and flat, but not distorted or stretched out of shape.
  • Test: Perform a gentle horizontal “hand tug” test; fabric should barely move inside the hoop.
  • Verify: Keep at least 0.5" design clearance from hoop edges to avoid presser foot strikes and alignment issues.
  • Success check: After unhooping, the embroidered area stays flat (no raisin-like puckering) and outlines stay aligned.
  • If it still fails… Reduce hoop tension slightly and reassess stabilizer choice; instability often comes from backing mismatch, not “more tightening.”
• Q: What stabilizer strategy should be used on the SmartStitch S-1001 for knits, towels/fleece, and clean-back woven items?
  A: Match stabilizer to fabric physics on the SmartStitch S-1001: cutaway for stretch, tearaway + topping for lofty, and clean-back options for visible reverses.
  • Choose: Use CUTAWAY for stretchy knits (performance polos, t-shirts, beanies) so the design stays stable after washing.
  • Combine: Use firm TEARAWAY + water-soluble topping for towels/fleece/velvet so stitches don’t sink into pile.
  • Clean: Use TEARAWAY or WASH-AWAY for stable items where the back must look neat (napkins, woven shirts).
  • Success check: Satin stitches sit on top (especially on towels) and circles/outlines close cleanly without waviness.
  • If it still fails… Re-run a “first article” on the exact same fabric and adjust backing type before changing speed or blaming digitizing.
• Q: What causes crooked results with the SmartStitch S-1001 cap driver + cap hoop setup, and what are the fastest hooping checks?
  A: Most SmartStitch S-1001 crooked hat embroidery is hooping physics—fix cap tension, sweatband position, and center referencing before changing the file.
  • Tap-test: Hoop the cap and tap the front panel; aim for a firm, hollow “drum-like” feel (not dull/loose).
  • Clear: Pull back and secure the sweatband so it cannot get stitched into the design.
  • Mark: Always mark the cap centerline before hooping; do not rely on eyeballing the seam.
  • Success check: The design lands centered relative to the marked reference and does not drift as the brim rotates.
  • If it still fails… Stop and re-hoop rather than “nudging” in software; center seam bumps and soft panels often require stricter hooping discipline and cap-optimized sequencing.
• Q: What safety rules should be followed around the SmartStitch S-1001 needle bar area when running high speed up to 1200 stitches per minute?
  A: Treat the SmartStitch S-1001 needle area as a high-energy hazard—keep hands, tools, and loose clothing away until the head fully stops.
  • Keep-clear: Do not reach under the head to clear thread while the machine is running or coasting to a stop.
  • Secure: Remove dangling items (drawstrings, loose sleeves) and keep scissors away from the needle bar area during operation.
  • Pause-first: Stop the machine completely before making any adjustment near needles, thread path, or hoop attachment.
  • Success check: No hands enter the needle zone unless the machine is fully stopped and stable.
  • If it still fails… Follow the machine manual’s safety procedure and slow the machine during learning; faster speed amplifies mistakes and risk.
• Q: What magnetic embroidery hoop safety rules should SmartStitch S-1001 owners follow to prevent pinched fingers and medical implant risks?
  A: Use commercial magnetic embroidery hoops with slide-separation technique and strict distance rules to avoid injury and implant interference.
  • Separate: Slide magnets off the edge of a table—never pry magnets apart with fingertips.
  • Protect: Keep fingers out of the closing gap; magnets can pinch severely.
  • Distance: Keep magnets at least 12 inches away from pacemakers or other medical implants.
  • Success check: The frame is installed/removed without finger pinches and without “snap” closures near skin.
  • If it still fails… Stop using the magnetic frame until a safer handling routine is established, and follow the hoop manufacturer guidance for handling and storage.
• Q: When should SmartStitch S-1001 users upgrade workflow tools from standard hoops to magnetic hoops, and when is a multi-needle production machine the correct next step?
  A: Upgrade based on the real bottleneck: hooping labor points to magnetic hoops, while color-change downtime points to multi-needle production.
  • Diagnose: If wrists hurt or hooping time dominates the job, prioritize magnetic hoops (fixturing problem, not a machine problem).
  • Diagnose: If manual color changes prevent finishing orders on time, a multi-needle workflow is the correct fix for stoppage time.
  • Operate: Apply a “first article” test on scrap of the same fabric before running batches to avoid repeating bad settings at scale.
  • Success check: Setup time drops measurably (less screw-tightening / fewer re-hoops) or order throughput increases (less stoppage per design).
  • If it still fails… Re-map thread rack order and standardize needle color positions; inconsistent setup habits often erase the benefits of upgrades.
