SmartStitch Multi-Needle Setup That Actually Works: Threading, Touchscreen, Hoops, and the “Trace Before You Stitch” Habit

If you just unboxed a SmartStitch multi-needle and your brain is screaming, “I’m going to break something,” you’re not alone. As someone who has spent two decades training operators, I’ve watched hundreds of first-time owners freeze right after setup. The machine looks industrial, the thread paths look like complex circuitry, and technical anxiety sets in.

Here’s the truth: Machine embroidery is a science of variables—tension, stability, and speed. The workflow in this video is solid, but to guarantee success, we need to add "safety buffers" and sensory checkpoints. By following these veteran-level steps, you will turn your first week from chaotic to predictable.

Two-Person Lift, Zero Regrets: Placing the SmartStitch Machine on the Stand Without Twisting Anything

The physics here are simple: these machines are top-heavy and dense. The "I can do it myself" mindset is the fastest way to torque the chassis or crush a foot. The video shows the correct protocol: get a second person and lift from the structural base.

The Action Plan:

1. Stage the Area: Ensure the stand is locked and level before you lift.
2. The Grip: Do not lift by the thread rack or tension knobs. Lift from the metal base/crate points.
3. The Drop: Lower it slowly. You want to hear a solid, single thud—not a rocking noise.

Warning: CRUSH HAZARD. This is a critical pinch-point moment. Keep fingers strictly away from the gap between the machine base and the stand top. Coordinate your countdown ("1, 2, 3, Down") to avoid crushing a fingertip, which is a far more common injury than needle punctures.

Success Metric: The machine sits flush on the stand. If you push gently on the corner, the stand moves with the machine; the machine does not rock on the stand.

The “Tie-and-Pull” Threading Trick on the SmartStitch Thread Rack (Fast, Clean, Beginner-Friendly)

Threading a multi-needle machine from scratch is a rite of passage, but you don't need to do it on day one. The machine arrives pre-threaded. Use the "Tie-and-Pull" method, which is the industry standard for rapid color changes.

The Sensory Workflow:

1. The Knot: Cut the old thread at the spool. Place your new cone. Tie the new thread to the old tail using a Square Knot (not a granny knot). Trim the tails of the knot short so they don't catch.
2. The Pull: Grip the thread near the needle bar. Pull gently. You should feel resistance similar to flossing your teeth—smooth but firm.
3. The Stop: Pull until the knot passes through the tension disks and thread break sensors, but STOP before the knot hits the needle eye.
4. The Threading: Cut the knot off and thread the needle eye manually (or use the auto-threader if applicable, though manuals are often faster).

Pro Tip: Never pull a knot through the eye of a needle. It will bend the needle or burr the eye, which causes shredded thread later.

Pre-Flight Check: Do one needle path entirely by hand. Trace the route: Rack → Pre-tension → Tension Disk → Take-up Lever → Guide → Needle. This teaches your muscle memory what "correct" looks like.

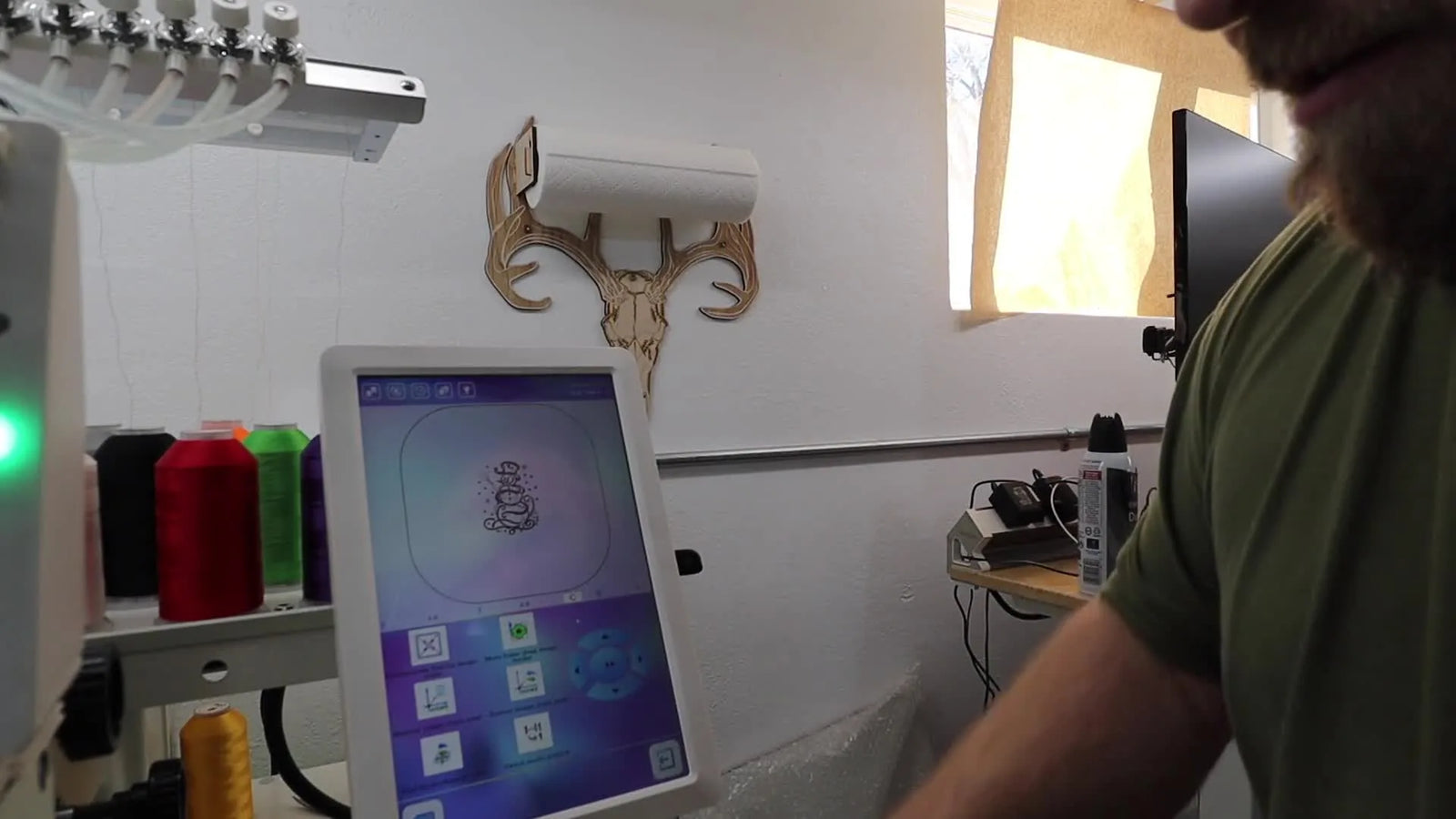

The Touchscreen Workflow on SmartStitch: Pick a Design, Flip/Rotate with “F,” and Confirm Like You Mean It

The touchscreen is where 90% of "operator error" happens. It’s easy to tap a button and assume the machine understands your intent. It doesn't. It only knows coordinates.

The "Safety First" Sequence:

1. Select: Tap your design thumbnail (e.g., “Frosty”).
2. Load: Hit the checkmark.
3. Orient: Tap the “F” icon to rotate.
   • Visual Anchor: Look at your physical hoop and garment. If the neck hole of a t-shirt is at the bottom of the hoop, your screen design must be upside down.
4. Lock In: Tap the checkmark to confirm.


Expert Insight: Most ruined caps happen because the operator trusted the thumbnail. Ignore the thumbnail. Only trust the final preview screen. If it looks wrong on screen, it will stitch wrong on the product.

Hoop Mapping on the SmartStitch Screen: Match Hoop Letter/Shape to the Green Tubular Hoop in Your Hand

Your machine has a "Safe Zone" for every hoop size. If you tell the machine it's using a giant jacket back hoop, but you actually attached a small 4-inch hoop, the needle will slam into the plastic frame. This is a catastrophic mechanical failure.

The Matching Protocol:

1. Physical Check: Look at the hoop in your hand. Is it the round 15cm? The square 30cm?
2. Digital Check: Tap the hoop icon. Select the letter code (e.g., Hoop "D") that corresponds to your physical hoop.
3. Visual Confirmation: Does the distinct shape on the screen match the shape in your hand?


Compatibility Note: As you grow, you might explore third-party options. If you are researching the specific fit for a smartstitch mighty hoop, treat it like a serious equipment integration. You must verify the brackets fit the arm width of your specific SmartStitch model to avoid play or vibration.

Needle 1 + Arrows + Trace: The SmartStitch Centering Routine That Saves Hats (and Your Mood)

This step is the difference between "I hope this works" and "I know this will work." We use Needle 1 as our laser pointer.

The Precision Routine:

1. Select Needle 1: Tap the icon to move the head. Needle 1 is now your center reference.
2. Jog: Use the arrows to move the pantograph until Needle 1 hangs exactly over your desired center point on the fabric.
3. The Trace: Press the Trace icon.
   • Sensory Check: Watch the presser foot. Does it travel inside the hoop walls? Do you see it getting dangerously close to the plastic ring? If it touches the ring, stop. Resize or re-hoop.


Expected Outcome: You have visual confirmation that the design fits physically within the frame.

Warning: KEEP HANDS CLEAR. During the Trace and Start phases, never reach under the needle case. The pantograph moves fast and unpredictably. A collision with a moving hoop arm can cause bruising or fractures.

The “Hidden” Prep Pros Do Before the First Stitch (Thread, Needles, Blanks, and a Plan)

Amateurs rush to stitch. Pros rush to prepare. Before you even load a design, you need to assemble your "hidden consumables."

Prep Checklist: The "Mise-en-place"

• Spare Needles: Size 75/11 is standard, but have 90/14 ready for thick caps.
• Consumables: Adhesive spray (light tack), appliqué scissors, and a lighter (for thread tails).
• The Reject Bin: Have a dedicated box for "learning experiences."
• Bobbins: Pre-wound magnetic core bobbins (highly recommended) or standard spun bobbins. Ensure you have 5 ready.
• Practice Blanks: Flour sacks, old denim, or felt. Never test on the final customer garment.

Psychological Safety: You will break a needle this week. You will get a bird's nest. This is data, not failure.

Practice Material That Won’t Break Your Heart: Flour Sacks, $2 Tests, and the Shrinkage Trap

The video suggests flour sacks ($2), which are excellent for checking tension because the fabric is stable but thin.

The Shrinkage Reality: Embroidery is thousands of tiny knots pulling fabric together. If the fabric shrinks later in the wash, the embroidery won't, resulting in the dreaded "bacon neck" or puckering.

The Fix: Always pre-wash cotton items. But more importantly, choose the right stabilizer.

Decision Tree: Fabric Type → Stabilizer Choice

Stop guessing. Use this logic flow:

If you are struggling with specific setups, ensuring you have the correct smartstitch hat hoop setup combined with aggressive tearaway backing is usually the cure for registration errors on caps.

Physical Hooping on the Green Tubular Hoop: The Click You Must Feel (and What Taut Really Means)

The manual process of hooping for embroidery machine often becomes the bottleneck in production and the source of frustration for beginners.

The Tactile Technique:

1. Loosen: Open the outer ring screw enough that the inner ring fits with friction, but not force.
2. Square Up: Align fabric grain.
3. Press: Push the inner ring into the outer ring.
   • Sensory Check: You must feel/hear a mechanical CLICK or lock.
4. Tautness Check: Tap the fabric. It should sound like a bongo drum (deep thud), not a high-pitched snare drum. If it's too tight ("trampoline"), you will stretch the fabric fibers, which will snap back and pucker later.


When Magnetic Hoops Make Sense (and When They Don’t): Faster Hooping, Less Hoop Burn, Better Throughput

Standard tubular hoops work, but they rely on friction and hand strength. If you are facing "hoop burn" (shiny marks on fabric) or wrist fatigue, this is a clear signal to upgrade your tooling.

This is the practical moment to consider magnetic embroidery hoops for your workflow.

The Upgrade Logic:

• Level 1 (Technique): Use better backing and float techniques.
• Level 2 (Tooling): Switch to SEWTECH Magnetic Hoops.
  • Why? They clamp instantly without friction. No "unscrewing," no "pushing." They reduce hoop burn to near zero because they hold texturized fabric without crushing the fibers.
• Level 3 (Production): If you are doing runs of 50+ items, the time saved per hoop change (approx. 30 seconds) adds up to hours of profit.

Warning: MAGNET SAFETY. Industrial magnetic hoops are incredibly powerful. Keep them away from pacemakers. Never place your fingers between the magnets as they snap shut.

Take the time to learn how to use magnetic embroidery hoop on scrap fabric first—they require a sliding motion to remove, not a pulling motion.

Color Selection on the SmartStitch Screen: Keep It Simple Until Your Workflow Is Stable

In the video, the operator selects Black.

The Beginner Rule: For your first 5 tests, use One Color using a high-contrast thread (e.g., Black thread on White fabric).

• Why? It isolates variables. If the unexpected happens, you know it's tension or pathing, not a color-change glitch.
• Action: Confirm the screen color matches the spool on Needle 1.

Bobbin Maintenance on SmartStitch: The Lever Flip, the Seat, and the Lint You Can’t Ignore

The bobbin is the "heartbeat" of the machine. If it skips, the machine stops.

The Bobbin Ritual:

1. Clean: Blow out the bobbin area with air or a brush. Lint is the enemy of tension.
2. Insert: Place the bobbin so the thread pulls off in a clockwise direction (usually).
3. The Case Click: When inserting the metal bobbin case into the rotary hook, push until you hear a sharp, metallic CLICK.
   • Sensory Anchor: If you don't hear the click, the case will fly out at 800 RPM and break a needle.

Troubleshooting "Bird's Nests": If you get a massive knot under the throat plate, 99% of the time, the bobbin case was not clicked in, or the top thread was not in the take-up lever.

The Setup Checklist That Prevents 80% of First-Week Mistakes (Design, Hoop, Trace, Start)

Before you press the green button, run this mental flight check.

Setup Checklist: The "Green Light" Sequence

• Design Orientation: Is the design rotated correctly for the garment?
• Hoop Selection: Does the screen hoop match the physical hoop?
• Needle 1 Centered: Have you jogged the design to the starting point?
• Trace Complete: Did the presser foot stay safely inside the hoop walls during the trace?
• Bobbin Check: Is the bobbin case clicked in?
• Speed Limit: For your first week, set the max speed (SPM) to 600-700. Do not run at 1000+ until you trust your hooping.

Digitizing Reality Check: Why $7–$20 Files Can Save You More Than They Cost

Beginners often blame the machine for bad stitching when the culprit is the map (the digitized file).

The Economics of Quality:

• You cannot just "save a JPEG as DST."
• Professional digitizing assigns stitch angles, density, and underlay based on the fabric.
• The Pro Move: Outsource your first logos ($7-$20). Tell the digitizer exactly what fabric you are using. A file digitized for a hat stiches poorly on a towel.

Uploading Designs and Software Questions: What the Video Confirms (and What to Verify)

The machine accepts USB input. The creator mentions using Hatch software, which is industry standard but expensive.

Recommendation: Start by buying pre-made designs or outsourcing digitizing. Do not try to learn the machine and complex digitizing software in the same week. It is cognitive overload. Focus on machine operation first.

Production Mindset: One-Offs vs Bulk Runs (and When to Upgrade Tools)

The creator notes the ability to "walk away." This is the goal of multi-needle embroidery.

If you find yourself scaling up, look for bottlenecks. If hoop consistency is your problem, people often ask about a hooping station for embroidery machine to standardize placement. A station ensures every logo is exactly 3 inches down from the collar, every single time.

For cap lovers, once you master flats, a dedicated cap hoop for embroidery machine workflow is essential. Caps require different needle plates and drivers on some machines—always switch everything over before switching power on.

The Operation Checklist: Press Start With Confidence (Not Hope)

You pressed start. Now what?

Operation Checklist: Monitoring the Run

• The First 15 Seconds: Watch the "tie-in" stitches. hold the thread tail gently (if not auto-cut) so it doesn't get sucked under.
• Sound Check: Listen for a rhythmic Chug-Chug-Chug. A loud Clicking or Grinding means PAUSE immediately.
• Sight Check: Is the fabric flagging (bouncing) up and down? If so, your hooping is too loose. Pausing and re-hooping saves the garment.
• The "Walk Away": Only walk away after the first color change proves successful.

Troubleshooting the Three Beginner Nightmares: Needle Breaks, Shrinkage Pucker, and Birds-Nest “Rats Nest”

When things go wrong, use this Logic Table to fix it fast.

The Upgrade Result: From “Terrified Beginner” to Repeatable Workflow (and a Clear Path to Scale)

By following the video’s basics and layering these expert safeguards—Tracing, Sensory Checks, and Proper Prep—you minimize the variables that cause failure.

Embroidery is a journey of accumulation. You start with one needle and a flour sack. You master tension. Then you hit a volume wall. That is when you upgrade your tools (Magnetic hoops, specialized clamps) to match your new skills.

FAQ

• Q: How do I safely lift and place a SmartStitch multi-needle embroidery machine onto the stand without twisting the chassis or crushing fingers?
  A: Use a two-person lift and only lift from the structural metal base—never from the thread rack or tension parts.
  • Stage: Lock the stand and confirm the stand is level before lifting.
  • Grip: Lift from metal base/crate points; coordinate a “1, 2, 3, down” countdown.
  • Lower: Set the machine down slowly aiming for one solid “thud,” not a rocking landing.
  • Success check: Push a corner gently—the stand should move with the machine and the machine should not rock on the stand.
  • If it still fails… Re-seat the machine and re-check the stand lock/level before powering on.
• Q: How do I use the “Tie-and-Pull” threading method on a SmartStitch multi-needle embroidery machine without damaging the needle or causing thread shredding later?
  A: Tie new thread to the old with a square knot, pull it through the path, and stop before the knot reaches the needle eye.
  • Tie: Make a square knot (not a granny knot) and trim knot tails short.
  • Pull: Pull from near the needle bar with smooth, firm resistance (like flossing teeth).
  • Stop: Stop pulling before the knot hits the needle eye, then cut the knot off and thread the needle manually (or use the auto-threader if applicable).
  • Success check: One full path traces cleanly from rack → pre-tension → tension disk → take-up lever → guides → needle with no snag points.
  • If it still fails… Rethread that needle path by hand to confirm the thread is seated correctly in the tension disks and take-up lever.
• Q: How do I prevent a SmartStitch embroidery machine needle from striking a hoop due to incorrect hoop selection on the SmartStitch touchscreen?
  A: Always match the hoop letter/shape on the SmartStitch screen to the exact physical hoop installed before pressing Start.
  • Verify: Identify the physical hoop size/shape in hand first (round vs square, small vs large).
  • Select: Tap the hoop icon and choose the correct hoop letter code that corresponds to the installed hoop.
  • Confirm: Compare the on-screen hoop outline to the hoop shape in your hand—do not guess.
  • Success check: The on-screen “safe zone” outline clearly matches the physical hoop, reducing the risk of frame collision.
  • If it still fails… Run a Trace with Needle 1 and stop immediately if the presser foot travels too close to hoop walls.
• Q: What is the SmartStitch Needle 1 + arrows + Trace centering routine to confirm a design fits inside the hoop (especially for hats) before stitching?
  A: Use SmartStitch Needle 1 as the center reference, jog to the true center point, then run Trace to verify physical clearance.
  • Select: Choose Needle 1 so it becomes the positioning reference.
  • Jog: Use arrow keys to move the pantograph until Needle 1 is exactly over the intended center on the fabric.
  • Trace: Press Trace and watch the presser foot travel path for hoop-wall clearance.
  • Success check: During Trace, the presser foot stays fully inside the hoop boundaries and does not approach or touch the frame.
  • If it still fails… Resize/reposition the design or re-hoop, then Trace again before pressing Start.
• Q: What is the correct SmartStitch bobbin case insertion routine to prevent “bird’s nest” tangles and bobbin case ejection at high speed?
  A: Clean lint, insert the bobbin in the correct unwind direction, and push the bobbin case in until a sharp metallic “click” confirms it is seated.
  • Clean: Brush or blow out lint from the bobbin area before inserting the case.
  • Insert: Load the bobbin so thread pulls off in the specified direction (often clockwise) and route it through the case correctly.
  • Seat: Push the metal bobbin case into the rotary hook until you hear/feel a firm click.
  • Success check: A distinct metallic “CLICK” is heard; the case does not feel loose and does not shift during the first stitches.
  • If it still fails… Re-seat the bobbin case and recheck top threading—many “rats nests” also happen when the top thread misses the take-up lever.
• Q: How do I fix a “rats nest” (bird’s nest) underneath on a SmartStitch multi-needle embroidery machine during the first week of use?
  A: Stop the run, remove the hoop, clear the nest, then correct the two most common causes: bobbin case not clicked in or upper thread not seated in tension/take-up.
  • Stop: Pause immediately and remove the hoop to avoid tightening the knot further.
  • Clear: Cut away the nest carefully and reinsert the bobbin case until it clicks.
  • Rethread: Rethread the upper thread path and ensure the thread is between the tension disks and through the take-up lever.
  • Success check: On restart, the first tie-in stitches form cleanly without a growing wad under the throat plate.
  • If it still fails… Slow the machine to a beginner-safe speed (the blog recommends 600–700 SPM for the first week) and repeat the bobbin click + full rethread check.
• Q: When should an operator switch from standard tubular hoops to SEWTECH magnetic embroidery hoops to reduce hoop burn and increase hooping throughput?
  A: Upgrade when hoop burn (shiny marks), wrist fatigue, or inconsistent hooping becomes the bottleneck—start with technique fixes, then move to magnetic hoops if the pain persists.
  • Level 1 (Technique): Improve backing choice and use float techniques when appropriate to reduce crushing and distortion.
  • Level 2 (Tooling): Switch to magnetic hoops for fast clamping without friction-driven over-tightening (often reduces hoop burn and speeds hoop changes).
  • Level 3 (Production): If the job volume is high (for example, repeated runs where saving ~30 seconds per hoop change matters), consider scaling tools and/or machine capacity.
  • Success check: Hooping becomes consistent and fast, with fewer shiny marks and less operator strain while maintaining stable stitching.
  • If it still fails… Review magnetic hoop handling—removal typically uses a sliding motion (not pulling), and confirm safe handling to avoid finger pinch injuries and keep magnets away from pacemakers.
