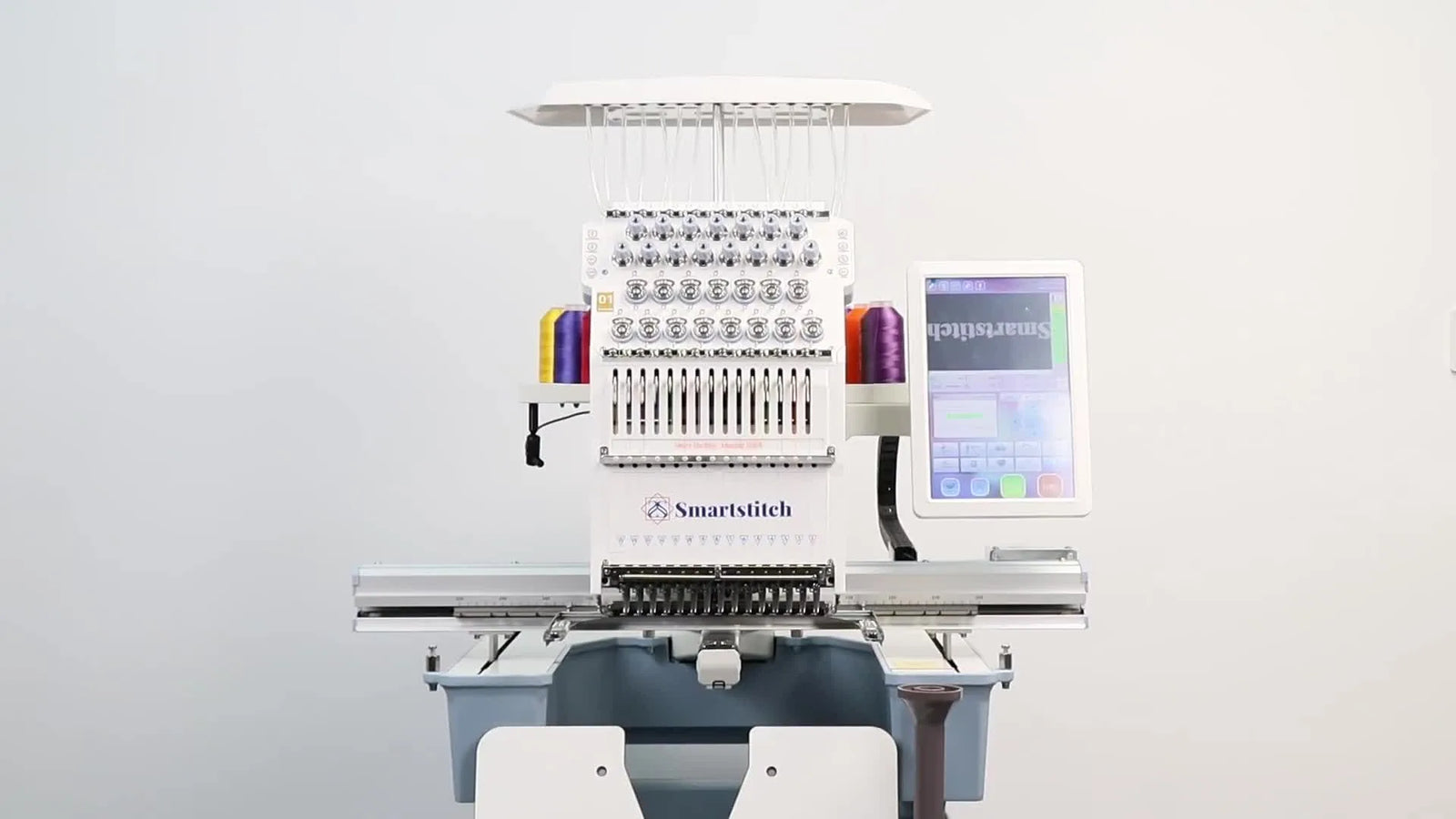

Smartstitch Extended Table + Aluminum Sash Frame Install: The No-Drama Swap from Hoops to Border Work

The Sash Frame Conversion Protocol: A Field Guide for Smartstitch & Multi-Needle Operators

Large border designs are where a commercial multi-needle machine truly earns its ROI—but they are also where minor setup errors compound into expensive disasters. If you have ever swapped from standard hoops to a sash (border) frame and felt a spike of panic—wondering, "Did I just misalign my entire pantograph?"—you are experiencing a very common friction point in the transition from hobbyist to professional.

In my 20 years of managing embroidery floors, I’ve seen operators treat the sash frame installation like a gamble. They force screws, ignore torque patterns, and pray the registration holds. Today, we play by different rules.

This guide acts as your "flight manual" for the hardware conversion. We will follow the Smartstitch tutorial logic but layer it with proprioceptive cues (what it should feel like), auditory checks (what it should sound like), and safety protocols that prevent you from damaging your machine or your hands.

The Calm-Down Check: Physics, Not Surgery

First, let’s lower the cognitive load. A sash frame installation feels invasive because you are dismantling the pantograph area (the machine’s X-Y drive system) and installing a massive table.

Here is the reality: You are not touching the timing, the needle bars, or the electronics. This is a purely mechanical conversion.

However, what changes is leverage. A large frame and extended table act as amplifiers for tiny errors:

• A table that is 1mm off-level becomes a drag break on the X-axis.
• A frame mounted one screw-hole off shifts your design center by inches.
• A support rod that "floats" creates vibration, leading to those jagged, ugly satin stitches.

If you are currently running standard smartstitch embroidery hoops, think of this upgrade as moving from "forgiving, localized clamping" to "precision-guided, wide-area travel." The machine is capable—your job is simply to provide a rigid, square foundation.

Warning: Pinch Point Hazard. When the machine is initializing or stitching, the pantograph rail and sash frame move fast and with significant torque. Keep hands, loose sleeves, and jewelry at least 6 inches away from the moving arm and frame brackets.

The "Hidden" Prep: Tools, Consumables, and the Zero-State

The video tutorial is direct, using a 4mm Allen wrench for almost everything. But in a professional shop, we don't start until the environment is right. The difference between a 15-minute swap and a 2-hour struggle is usually preparation.

The "Invisible" Consumables List

Before you start, gather these items that aren't usually listed in the manual but are essential for a smooth workflow:

• 4mm Allen Wrench: Preferably a T-handle for better torque control.
• Magnetic Parts Bowl: To "park" screws instantly so they don't roll under the machine.
• White Lithium Grease (Optional): If screw threads feel dry or gritty, a tiny dab protects the threads.
• Spirit Level: To verify the table is actually flat.

Prep Checklist: The "Zero-State"

• Tools Ready: Confirm the 4mm Allen wrench is in hand.
• Clearance Zone: Clear the table area completely so the extended table can slide in without snagging cables or fabric scraps.
• Screw Parking: Place your magnetic bowl within arm's reach.
• Pantograph Health Check: Move the pantograph arm left and right by hand (with the machine off). Listen. It should sound like a smooth "whoosh." If you hear grinding or feel a "stutter," clean the rails before adding the heavy sash frame.
• Scheduling: Do not attempt this swap 10 minutes before a deadline. Block out 30 minutes of uninterrupted time.

Phase 1: Removing the Standard Arms (Sensory Focus)

The first physical step is clearing the deck. We are removing the standard hoop arms (frame holders).

• The Tool: 4mm Allen wrench.
• The Action: Loosen the two screws securing the metal frame holders to the pantograph bar.
• The Feel: You will feel a simplified "break" in tension. Once loose, do not unscrew them all the way out if you don't have to—just loosen enough to slide them off.
• The Move: Slide the holders off the rail completely.


Checkpoint: Look at the pantograph bar (the black horizontal rail). It must look "naked"—no plastic or metal attachments remaining.

Expected Outcome: You have a clean, obstruction-free mounting rail.

Pro Tip: If a screw feels "mushy" or stuck, do not force it. Ensure your Allen key is fully seated (wiggle it deep into the socket) before applying pressure. Stripping a screw head here turns a quick swap into a drilling operation.

Phase 2: Exposing the Anchors

Next, we prepare the machine base to accept the heavy table.

• The Tool: 4mm Allen wrench.
• The Action: Unscrew the vertical bolts from the four table supports on the chassis.
• Storage: Place these four screws immediately in your magnetic bowl. You will need them in exactly 3 minutes.






Checkpoint: You should see four support posts (metal pillars) exposed with open threaded holes on top.

Expected Outcome: The chassis is ready for the table drop-in.

Phase 3: The Table Drop & Counter-Sink Logic

This step causes the most confusion for beginners. The table must be oriented correctly, or your fabric will snag on screw heads.

• The Move: Slide the large white extended table into place. The U-shaped cutout wraps snugly around the machine’s sewing arm.
• The Visual Cue: Align the holes in the table with the support posts you just exposed.


Crucial Detail: Look at the screw holes on the white table. One side of the hole is wider (beveled/countersunk); the other is narrow.

• Rule: The large opening (countersunk side) must face UPWARD.


Checkpoint: Drop a screw into the hole. Does the head sit inside the table, flush with the surface?

• YES: Correct.
• NO (Stick out): The table is upside down. Flip it.

Expected Outcome: A completely smooth surface where fabric can glide without catching on metal screw heads. This is critical for preventing "hoop drag" which ruins design registration.

Phase 4: Torque Discipline (The Star Pattern)

Do not tighten the first screw you insert! If you tighten one corner fully, you warp the table and the other three holes won't line up. We use the "Half-Tighten" rule found in automotive mechanics.

1. Insert Screw 1. Turn it 3 rotations only (loose).
2. Insert Screw 2 (diagonal from #1). Turn it 3 rotations.
3. Insert Screws 3 and 4. Turn them 3 rotations.
4. Sensory Check: Wiggle the table slightly. It should move a fraction of a millimeter. This ensures it is centered.
5. Final Torque: Now, fully tighten all four screws with the 4mm Allen wrench.




Checkpoint: Run your hand over the screws. They must be flush (sub-flush is even better).

Expected Outcome: The table is rigid, square, and smooth.

Setup Checklist (Mid-Point)

• Flush Hardware: No screw heads protruding above the white surface.
• Squareness: The U-cutout is evenly spaced around the sewing arm, not touching it.
• Rigidity: Press down on the corners. There should be zero "rocking."

Phase 5: Troubleshooting Misalignment (The Under-Table Fix)

A common panic moment: "My table holes don't line up with the machine posts!" Do not force the screw at an angle (cross-threading). The Smartstitch design allows for this variance.

• The Fix: Locate the under-table support brackets (the metal arms connecting the posts to the machine body).
• The Action: Loosen the screws holding these brackets slightly.
• The Adjustment: Wiggle the bracket until the post aligns perfectly with the table hole.
• The Lock: Tighten the table screw first, then re-tighten the under-bracket screws.


Checkpoint: The screw threads in smooth as butter. If you feel "crunchy" resistance, stop and realign.

Phase 6: The Support Rod (The Anti-Vibration Anchor)

A sash frame hangs a lot of weight far from the center of gravity. The telescoping support rod is not optional—it is the difference between a clean satin stitch and a jagged mess.

• The Move: Place the rod under the front-center of the table.
• The Adjustment: Rotate the tube to extend it until it hits the floor.
• The Sensory Cue: You want the table to be level, not jacked up. Extend the rod until it touches the floor firmly, then give it a tiny extra twist to take the weight, but do not lift the table so high that it tilts backward.




Checkpoint: Kick the bottom of the rod gently with your foot. It should not slide. It should feel planted.

Expected Outcome: A triangulation of support that kills vibration.

Phase 7: Mounting the Sash Aluminum Frame

Now, we mount the actual frame to the drive rail. Precision here is non-negotiable.

1. Place the aluminum sash frame onto the drive rail.
2. The Visual Anchor: Look for the numbered arrows or holes on the mounting bracket.
3. The Rule: The correct mounting position is usually the 4th hole from the edge (refer to your specific machine manual, but the video explicitly uses hole #4).
4. The Action: Use the "Half-Tighten" method again. Get both sides started before locking them down.






Checkpoint: You are in the 4th hole. The frame is square to the machine.

Expected Outcome: When you move the pantograph, the entire aluminum square moves as one solid unit with no "play" or wiggle.

Many operators get confused here regarding terminology. You might hear people refer to the smartstitch embroidery frame and "border sash" interchangeably. In this context, they refer to this aluminum chassis system that allows you to clamp restricted textiles like table runners, sheets, or uncut fabric rolls.

Decision Tree: When to Use Which Tool?

Stop and evaluate your workflow. Just because you installed the sash frame doesn't mean you should use it for everything.

Scenario A: Left-Chest Logos / Hats / Patches

• Mechanism: Standard Hoops.
• Pain Point: If you have "Hoop Burn" (shiny rings) on delicate polos.
• Upgrade Path: Switch to Magnetic Hoops. They clamp without forcing fabric into a ring, eliminating burn marks.
• Action: Remove the sash table and reinstall standard arms.

Scenario B: Large Towels / Jacket Backs / Sheets

• Mechanism: Sash Frame (The setup you just built).
• Why: Gravity. The table supports the weight of the heavy jacket/towel, preventing drag on the pantograph.
• Action: Use clips or sticky stabilizer to secure the item to the aluminum frame.

Scenario C: High Volume Production (50+ items)

• Mechanism: magnetic embroidery hoops (like the Mighty Hoop).
• Why: Speed. Screwing and unscrewing standard hoops takes 45 seconds. Snapping a magnet takes 5 seconds.
• Commercial Reality: If the bottleneck is human labor, magnetic frames pay for themselves in one week.
• Upgrade Path: If you are physically capped on speed, consider our SEWTECH multi-needle embroidery machines to increase needles and stitches-per-minute.

Warning: Magnetic Hazard. Magnetic frames use industrial-grade neodymium magnets. They snap together with enough force to crush fingers. Never place them near pacemakers. Keep them away from credit cards and machine screens.

Shop-Floor Hygiene: Troubleshooting the "Perfect" Install

Even with a perfect install, issues arise. Use this matrix to diagnose "ghost" problems.

Moving Forward: The Efficiency Mindset

You have now successfully converted your machine. The "fear factor" of the large frame usually stems from lack of stability. By strictly following the Countersunk Logic, the Half-Tighten Rule, and the 4th Hole alignment, you have eliminated the mechanical variables.

Now, look at your loading process. If you find yourself struggling to hold garments straight while clamping, search for terms like how to use magnetic embroidery hoop videos or consider a hooping station for embroidery. These aren't just accessories; they are standardization tools.

For owners of specific models like the smartstitch 1501, compatibility is key. Whether you are looking for a smartstitch mighty hoop adapter or simply stocking up on backing, the goal is consistent, repeatable production.

Final Pre-Flight Checklist (Do this before pressing Start)

• Table Check: Rub hand over screws—smooth?
• Stability Check: Kick the support rod—solid?
• Rail Check: Move pantograph by hand—smooth travel?
• Clearance: Ensure the frame won't hit the wall or needle bar at max travel.
• Emergency Tool: Is the 4mm Allen wrench safely stored away from the moving parts?

You are cleared for production. Go make something beautiful.

FAQ

• Q: Which Smartstitch embroidery machine parts are affected when installing a Smartstitch sash (border) frame conversion table?
  A: The Smartstitch sash frame conversion is a mechanical pantograph-area change, not a timing/needle-bar/electronics adjustment.
  • Focus on: Removing standard hoop arms, installing the extended table, adding the support rod, then mounting the aluminum sash frame.
  • Avoid: Treating the swap like internal machine service—keep hands away from moving rails during initialization.
  • Success check: The pantograph still travels by hand with a smooth “whoosh,” with no grinding or stutter.
  • If it still fails: Clean the pantograph rails before reinstalling the heavy sash table and frame.
• Q: What “hidden” prep items should Smartstitch multi-needle operators gather before installing a Smartstitch sash (border) frame?
  A: Use a simple prep kit so the Smartstitch sash frame swap stays controlled and fast.
  • Gather: 4mm Allen wrench (preferably T-handle), magnetic parts bowl, spirit level, optional white lithium grease for dry/gritty screw threads.
  • Clear: The entire table area so the extended table slides in without snagging cables or scraps.
  • Check: Move the pantograph left/right by hand (machine off) and listen before adding weight.
  • Success check: All removed screws are “parked” immediately in the magnetic bowl, and the pantograph travel feels smooth before the table goes on.
  • If it still fails: Stop and clean the rails if any “crunchy” sound or stutter is present.
• Q: How can Smartstitch operators confirm the Smartstitch extended sash table is installed right-side-up so fabric will not snag on screw heads?
  A: Install the Smartstitch extended table with the countersunk (beveled, wider) screw openings facing upward so screw heads sit flush.
  • Inspect: Each table hole—identify the wider/beveled side versus the narrow side.
  • Test: Drop a screw into a hole before tightening anything.
  • Fix: Flip the table if the screw head sits proud above the surface.
  • Success check: Run a hand over the installed screws—no screw head should protrude; the tabletop feels smooth for fabric glide.
  • If it still fails: Recheck every corner because one incorrect corner can still snag fabric and cause hoop drag/registration issues.
• Q: What is the correct tightening sequence for the Smartstitch sash table screws to prevent warped alignment during installation?
  A: Use the Smartstitch “half-tighten” star pattern so the table centers before final torque.
  • Insert: Screw #1 and turn only about 3 rotations.
  • Insert: The diagonal screw #2 and turn about 3 rotations, then add screws #3 and #4 the same way.
  • Wiggle: Nudge the table slightly to confirm it can self-center, then fully tighten all four screws.
  • Success check: Press down on table corners—there should be zero rocking, and screw heads are flush/sub-flush.
  • If it still fails: Loosen and restart the sequence; fully tightening one corner first commonly prevents the other holes from lining up.
• Q: What should Smartstitch operators do if the Smartstitch extended sash table holes do not line up with the Smartstitch chassis support posts?
  A: Do not force angled screws on the Smartstitch table—loosen the under-table support brackets and realign the posts to the holes.
  • Stop: Avoid cross-threading by never driving a screw in at an angle.
  • Loosen: The screws on the under-table support brackets slightly.
  • Wiggle: Adjust the bracket until the post aligns perfectly, then tighten the table screw first and re-tighten the bracket screws.
  • Success check: The table screw threads in “smooth as butter,” not crunchy or resistant.
  • If it still fails: Back the screw out and realign again—any crunchy feel usually indicates misalignment or cross-thread risk.
• Q: How tight should the Smartstitch sash table support rod be to prevent vibration without tilting the Smartstitch table?
  A: Seat the Smartstitch telescoping support rod so it firmly bears weight, but do not jack the table up and change its level.
  • Place: The rod under the front-center of the table.
  • Extend: Rotate to touch the floor firmly, then give a tiny extra twist to take the weight.
  • Avoid: Over-extending until the table lifts or tilts backward.
  • Success check: Gently kick the rod base—it should feel planted and not slide, and stitching vibration/noise should drop.
  • If it still fails: Re-seat the rod; a “floating” rod is a common cause of vibration and noisy running.
• Q: What safety rules should Smartstitch multi-needle operators follow around the Smartstitch pantograph rail and sash (border) frame during stitching and initialization?
  A: Treat the Smartstitch pantograph rail and sash frame brackets as high-torque pinch points—keep hands and loose items well away during motion.
  • Keep: Hands, sleeves, and jewelry at least 6 inches away from the moving arm, rail, and frame brackets.
  • Store: The 4mm Allen wrench away from moving parts before pressing Start.
  • Verify: Clearance so the sash frame will not hit walls or the machine at maximum travel.
  • Success check: The machine can initialize and move the pantograph through full travel without any near-contact or obstruction.
  • If it still fails: Stop immediately and recheck clearance and mounting rigidity before running again.
