Smartstitch Array & Repeat Done Right: Dial In X/Y Offsets, Trace Safely, and Stitch 9 Logos Without a Hoop Strike

Running repeats is where commercial embroidery starts paying you back—until one wrong offset turns a “9-up” into a thread-break festival or, worse, a hoop strike.

In the video, Smartstitch demonstrates a clean, repeatable workflow: load a design, set a 3×3 array, calculate X/Y intervals using a simple formula, select the frame so the machine centers the layout, trace the boundary, then lock in the confirm state and stitch.

What I’m adding here (from 20 years on production floors) is the part operators usually learn the hard way: how to choose spacing that actually sews clean, how to keep the fabric stable across the whole grid, and how to sanity-check the layout before you burn time and stabilizer.

Don’t Panic—The Smartstitch Array Screen Is Simple Once You Know What It’s Really Asking For

The Smartstitch parameter interface can look “busy,” but for arrays, you’re really answering only two questions to define your clear zones.

1. How many copies? (X repeats and Y repeats)
2. How far apart are the centers? (X interval/offset and Y interval/offset)

That second one is where most mistakes happen. The machine isn’t asking for the "gap between designs." It’s asking for the center-to-center distance. Imagine sticking a thumbtack in the center of one design and measuring to the center of the next—that is your interval.

If you’re working inside a smartstitch embroidery frame, treat the on-screen layout as a draft—your real proof is the trace movement on the actual hooped fabric.

The “Hidden” Prep That Keeps a 3×3 Repeat From Turning Into Puckers and Misalignment

Arrays magnify everything: a little slack in hooping becomes nine crooked logos, and a stabilizer choice that was “fine” for one logo can ripple across the whole grid.

Here’s what I want set before you touch repeats:

• Fabric + stabilizer are married as one unit. Use a temporary spray adhesive if necessary. If the fabric floats above the stabilizer, the registration will drift by the time you hit logo #9.
• Hoop tension is even. Tap the fabric. It should sound like a dull thrum on a drum skin—taut, but not stretched to the point of distortion.
• Thread path is clean. Repeats mean longer run times (often 30+ minutes). Check your bobbin area for lint; a small friction point will cause breaks when the machine heats up.

Warning: Keep fingers, snips, and any loose tools (like hex keys) away from the needle area during trace and stitch-out. Commercial heads move deceptively fast and can pinch or puncture before your reflexes kick in.

Prep Checklist (do this before you load the file)

• Consumables: Fresh needle (75/11 recommended for standard wovens) and full bobbin installed.
• Hardware: Confirm the correct hoop is locked in; you should hear a solid click.
• Tension: Pull the upper thread gently; you should feel smooth, steady resistance (like flossing teeth), not a loose slide or a hard yank.
• Clearance: Ensure the pantograph arm has clear space to move for the full array.


Load the Design File (EA001) and Get to the Parameter Page Without Guessing

From the main file selection screen, the video selects the design file labeled EA001 (the Armani-style eagle logo) and highlights it before moving into parameters.

This matters because Smartstitch will only show repeat controls once you’re in the correct parameter interface. Do not try to set this up in the general settings menu; it must be done within the specific file parameters.

Set X Repeats = 3 and Y Repeats = 3 (This Is Your “Batch Mode” Switch)

In the repeats section:

• Tap the X repeat field and enter 3
• Tap the Y repeat field and enter 3

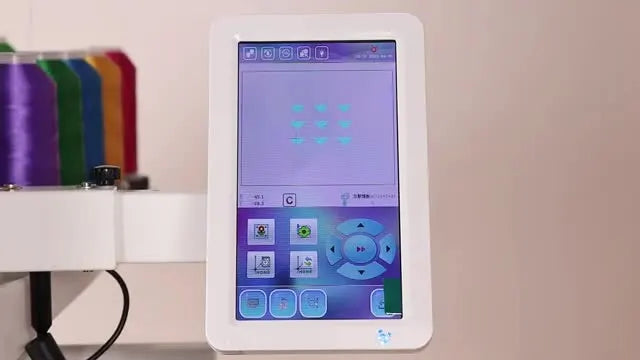

You should now see the layout preview update to a 3×3 grid (9 total designs).

If you’re planning to scale beyond hobby output, this is the moment to think like production: one hooping, nine logos, one trace, one run. This reduces your downtime by 80% compared to hooping nine separate times.

Use the Only Offset Formula That Never Lies: Design Size + Desired Gap = Interval

Smartstitch’s interval fields are center-to-center distances. The video teaches the correct approach for calculation:

• X interval = design width + desired spacing gap
• Y interval = design height + desired spacing gap

That’s it. No mystery.

Where operators get burned is choosing a “gap” that looks fine on-screen but sews poorly in real fabric. If a design has heavy satin edges or simple underlay, the physical stitches effectively widen the design.

A practical rule: Stitching pulls fabric in, making gaps seem wider, but satin borders push out. For safety, always add 2–3mm extra to your desired gap calculation for your first test run.

Dial In the X Interval: 30 mm Width + 20 mm Gap = 50 mm

In the video example:

• Design width is 30 mm
• Desired spacing gap is 20 mm
• So X interval = 30 + 20 = 50 mm

Enter 50 into the X interval/offset field and confirm.

If you’re shopping for embroidery machine hoops to speed up hooping, remember: faster hooping only helps if your spacing math is correct—otherwise you’re just making mistakes faster. Accuracy first, speed second.

Dial In the Y Interval: 15 mm Height + 20 mm Gap = 35 mm

In the video example:

• Design height is 15 mm
• Desired spacing gap is 20 mm
• So Y interval = 15 + 20 = 35 mm

Enter 35 into the Y interval field.

At this point, the on-screen grid should look evenly spaced in both directions. Visually verify the grid; if the rows look crushed together on screen, re-check your math before proceeding.

Pick Frame Option “3” and Let Smartstitch Auto-Find Center (Then Verify It Like a Pro)

The video taps the hoop/frame selection menu and chooses frame option 3. Smartstitch then automatically recalculates the center point based on the array size.

This is a big deal: when you change repeats and intervals, the “footprint” of the design changes. Selecting the correct frame tells the controller what boundary it must respect so it centers the entire group, not just the first design.

If you’re running a smartstitch 1501-class multi-needle machine in a shop setting, centering correctly is what keeps you from wasting the outer columns of a hoop due to fear of hitting the plastic frame.

Trace the Boundary to Prevent Hoop Strikes (The 20-Second Check That Saves a Day)

The video presses the Trace/Contour function and watches the hoop move along the outer margin of the pattern.

This is not optional in production. Trace is your last safe checkpoint before the machine commits to speed.

What you’re looking for:

• Visual: The presser foot stays inside the hoop’s safe area (typically 1/4 inch from the edge).
• Auditory: No grinding sounds or plastic-on-metal clicks.
• Clearance: No part of the motion approaches the hoop edge closely enough to risk contact.

Warning (Magnetic Safety): If you upgrade to magnetic hoops, ensure you keep the strong magnets away from pacemakers or implanted medical devices. Also, avoid snapping your fingers between the rings—magnetic clamping force on industrial frames is powerful enough to pinch severely.

If you’re doing a lot of repeats, a magnetic hooping station can reduce hooping time and wrist strain, but only if it’s compatible with your machine and frame style.

Lock the Origin, Confirm State, Choose Needle/Color Sequence, Then Start

The video’s finishing sequence is straightforward:

1. Confirm the origin point (Ensure the needle is over the center of your fabric).
2. Exit parameters and change to Embroidery Confirm State.
3. Select the needle/color sequence number (example shown: Needle 5).
4. Press the green Start button.

Expected outcome: The machine begins stitching the first logo in the array. Ideally, start specifically at a lower speed (around 600 SPM) for the first logo to verify quality before ramping up.

Setup Checklist (right before you press Trace and Start)

• Math Check: X interval = 50 mm / Y interval = 35 mm.
• Volume Check: X repeats = 3 / Y repeats = 3.
• Safety Check: Correct frame selected (Option 3).
• Clearance: Trace path stayed safely inside the hoop boundary.
• Thread: Needle/color sequence matches the spool actually on the machine.


Why Arrays Fail in Real Shops (and How to Stop the Same Problem From Repeating 9 Times)

The video doesn’t list problems, but in the field, array issues usually come from four root causes. Use this table to diagnose "mystery" defects before they ruin 9 garments.

This is where smartstitch embroidery hoops upgrades can be a real workflow improvement—especially magnetic styles that clamp evenly and eliminate the "hoop burn" marks often left by traditional plastic rings on sensitive fabrics.

A Stabilizer Decision Tree for Repeated Logos (Fabric → Backing Choice)

Use this quick decision tree when you’re planning arrays; it keeps you from under-supporting the fabric.

• Is the fabric a stable woven (Canvas, Denim, Aprons)?
  • Solution: 1 Layer Tearaway or Medium Cutaway.
  • Hooping: Standard tightness.
• Is the fabric a stretchy knit (Polos, T-shirts)?
  • Solution: Must use Cutaway (2.5oz or ideally 3.0oz). Tearaway will cause the array to distort.
  • Hooping: Do not stretch the fabric; lay it neutral in the hoop.
• Is the fabric slippery or thin (Performance wear, Satin)?
  • Solution: No-Show Mesh (Cutaway) + Soluble Topping.
  • Hooping: Use magnetic hoops if possible to avoid crush marks.

When in doubt, test one hoop first. If the first logo puckers, the ninth logo will be a disaster.

The Upgrade Path: When a 3×3 Array Is Your Sign to Improve Hooping Speed and Consistency

If you’re running repeats regularly, your bottleneck usually isn’t the Smartstitch menu—it’s the manual labor of hooping.

Here’s a practical way to decide what to upgrade without wasting money:

Scenario-Triggered Upgrades

1. Pain Point: Wrist Fatigue & Slow Setup
   • Trigger: You spend more time struggling to close hoops than stitching.
   • Upgrade: Consider a workflow like the hoop master embroidery hooping station setup, or switch to Magnetic Hoops. Magnets snap shut instantly, saving your wrists.
2. Pain Point: Hoop Burn on Delicate Shirts
   • Trigger: You see a permanent shiny ring where the plastic hoop crushed the fibers.
   • Upgrade: Magnetic Frames. They hold by vertical force rather than friction, protecting the fabric texture.
3. Pain Point: Need More Capacity
   • Trigger: You have orders for 50+ shirts and single-needle changes are killing your profit.
   • Upgrade: A SEWTECH Multi-Needle Machine. Combined with the array settings above, you can run large batches with zero thread-change downtime.

If you’re comparing options like mighty hoops for smartstitch embroidery machine, judge them by three standards: repeatable clamping force, frame compatibility, and how reliably they hold registration across long runs.

Operation Checklist (after the first logo starts stitching)

• Watch the First: Do not walk away until logo #1 is finished.
• Listen: Listen for rhythmic "thump-thump." A clicking or grinding sound means stop immediately.
• Start Slow: Run the first logo at 600-700 SPM. If it looks good, bump up to production speed (800-1000 SPM).
• Check the Gap: Before row #2 starts, visually confirm the spacing matches your design.


The Result You’re Chasing: Nine Clean Logos, One Hoop, Zero Drama

When you follow the exact video workflow—3×3 repeats, X interval 50 mm, Y interval 35 mm, correct frame, then trace—you get what commercial embroidery is supposed to look like: high-quality, predictable output.

And once arrays become routine, that’s when tool upgrades start making financial sense. If your day is full of repeats, a better hooping workflow and the right machine platform don’t just feel nicer—they buy back hours you can spend stitching, packing, and invoicing.

FAQ

• Q: In Smartstitch array settings, what does the X interval/offset and Y interval/offset actually mean for a 3×3 repeat?
  A: Smartstitch X/Y interval fields are center-to-center distances, not the empty gap between designs.
  • Measure: Use design width/height as the base, then add the spacing gap to get the interval.
  • Enter: Set X interval = design width + desired gap; set Y interval = design height + desired gap.
  • Success check: The on-screen grid looks evenly spaced and the physical trace stays comfortably inside the hoop safe area.
  • If it still fails: Add a safe extra 2–3 mm to the planned gap for the first test run to account for stitch “push” on borders.
• Q: What is the most reliable Smartstitch interval formula for a 3×3 logo array to avoid crowded columns?
  A: Use the simple interval rule: interval = design size + desired spacing gap (and add a little safety margin on first tests).
  • Calculate: X interval = design width + gap; Y interval = design height + gap.
  • Adjust: Increase the interval by 2 mm if satin edges or heavy borders make designs “grow” visually.
  • Success check: Adjacent logos do not touch after stitching, and the space between columns looks consistent from logo #1 through logo #9.
  • If it still fails: Re-check that the numbers entered are intervals (center-to-center), not edge-to-edge gaps.
• Q: What prep steps prevent puckers and misalignment when running a Smartstitch 3×3 repeat (9-up) embroidery array?
  A: Lock fabric and stabilizer together and remove slack before starting repeats, because arrays amplify small hooping errors.
  • Bond: Use temporary spray adhesive if fabric can float over the stabilizer.
  • Hoop: Set even hoop tension; keep fabric taut but not stretched or distorted.
  • Clean: Clear lint from the bobbin area and ensure the thread path is smooth for long run times.
  • Success check: Fabric feels like a dull drum “thrum” when tapped, and the first logo stitches cleanly without shifting by the time the run reaches later logos.
  • If it still fails: Change stabilizer strength (heavier cutaway or add a second layer) before re-running the full 9-up.
• Q: What is the Smartstitch “Trace/Contour” success standard for preventing hoop strikes on a 3×3 array?
  A: Always run Trace/Contour and confirm the outer boundary stays safely inside the hoop before pressing Start.
  • Trace: Run the boundary trace after repeats and intervals are set.
  • Watch: Keep the presser foot well inside the hoop safe area (commonly about 1/4 inch from the edge).
  • Listen: Stop if any grinding, clicking, or plastic-on-metal contact is heard.
  • Success check: The full trace completes with clean motion and clear clearance, with no near-misses at the hoop edge.
  • If it still fails: Re-select the correct frame option after setting repeats/intervals so Smartstitch re-centers the full array footprint.
• Q: Why does a Smartstitch array stitch perfectly on the top row but go crooked on the bottom row?
  A: Uneven hoop tension or fabric distortion usually shifts registration across the grid, so later rows drift.
  • Re-hoop: Align fabric grain straight and re-clamp with even tension across the entire hoop.
  • Stabilize: Keep fabric and stabilizer moving as one unit (use temporary spray adhesive if needed).
  • Consider: Magnetic frames may help maintain consistent clamping force across repeated runs.
  • Success check: Logo placement stays square from top row through bottom row, and the spacing between rows remains consistent.
  • If it still fails: Reduce speed for the first logo (around 600–700 SPM) to verify stability before running production speed.
• Q: What stabilizer choice prevents Smartstitch repeated logos from puckering on knits, wovens, and slippery fabrics?
  A: Match stabilizer to fabric type before running arrays, because total stitch density across 9 logos increases distortion risk.
  • Choose: For stable wovens (canvas/denim/aprons), use 1 layer tearaway or medium cutaway.
  • Choose: For stretchy knits (polos/T-shirts), use cutaway (2.5 oz or ideally 3.0 oz); avoid tearaway for arrays.
  • Choose: For thin or slippery fabrics (performance wear/satin), use no-show mesh cutaway plus a soluble topping.
  • Success check: The fabric lies flat between logos with no rippling and the edges of each logo stay smooth after stitching.
  • If it still fails: Float a second stabilizer layer under the hoop or move to a heavier cutaway for the full 9-up run.
• Q: What are the key safety rules during Smartstitch Trace and stitch-out on a multi-needle embroidery head, and what extra safety applies to magnetic hoops?
  A: Keep hands and tools out of the moving area during trace/stitch, and treat magnetic hoops as pinch and medical-device hazards.
  • Clear: Remove snips, hex keys, and loose tools from the needle/hoop area before Trace.
  • Guard: Keep fingers away from the head path because commercial heads move faster than expected.
  • Magnet-safety: Keep strong magnets away from pacemakers or implanted medical devices and avoid snapping fingers between magnetic rings.
  • Success check: Trace and stitch-out run without any close hand/tool calls, and the hoop closes securely without pinching.
  • If it still fails: Pause the machine, reset the workspace clearance, and only resume after the full motion path is verified.
