Small Text Embroidery That Actually Reads: The 5mm Rule, 60wt Thread, and the Hooping Stability Most People Skip

Small lettering is where embroidery stops being forgiving. It is the ultimate stress test for your skills, your supplies, and your patience.

At 5mm tall, one extra needle penetration, one tiny bounce in the hoop, or one “normal” density setting can turn crisp text into a filled-in blob—or worse, a permanent hole in the garment.

The good news: small text is absolutely doable when you treat it like a system (digitizing + consumables + stability), not a single setting.

Lock in the hard limits: the 5mm text height rule and the 1mm satin column reality

The most common question I hear is: “What’s the smallest my text can be?” The practical baseline from the video—and industry consensus—is 5mm minimum height for standard small-text rules to work reliably.

But height alone is not the real limiter—column width is.

• Absolute minimum satin column width: 1mm (with 1.2mm ideal when you can get it).
• Why 5mm shows up so often: the video uses the letter E as the simplest proof—tiny letters need multiple 1mm strokes and gaps to still look like letters.

If you try to force a font that has hairline strokes under 1mm, you’re not “pushing your machine”—you’re asking thread to behave like ink. Thread has physical volume; it cannot hide.

Pro tip from the floor: A lot of viewers said this was the most detailed explanation they’ve found. That’s because small text isn’t one trick—it’s a stack of small wins.

The “hidden” prep that saves you from wasted test runs (needle, thread, contrast, and a sanity check)

Before you touch density or underlay, do the prep that experienced digitizers do automatically. Most failures happen before the start button is even pressed.

Prep checklist (do this before digitizing changes)

• Review specs: Text height ≥ 5mm and thinnest strokes ≥ 1mm.
• Define the goal: Do you need sharpness (readability) or boldness (visual weight)? This dictates thread choice.
• Check contrast: Pick thread/fabric colors with high contrast. Small text disappears fast on low-contrast combos (e.g., navy thread on black fabric).
• Identify fabric type: Is it a strict knit (polo), a curved cap, or a stable woven?
• The Stability Plan: Select the smallest hoop that fits the design plus correct backing (details below).

One comment asked about “stitch length.” The video doesn’t give a stitch-length rule, and that’s intentional: for small satin lettering, geometry (width/spacing) and stability usually dominate the outcome more than chasing a single stitch-length number.

Choose the needle like a micro-drill bit: 70/10 for polos, 65/9 for extreme detail

Small text fails when the fabric gets punched too aggressively. Think of your needle as a drill bit: a large bit creates a large hole that can swallow the surrounding fibers.

The video’s needle guidance is straightforward and safe:

• Standard Default: Many start with 75/11, but this is often too large for micro-text.
• The Sweet Spot (Polos): The host’s favorite is 70/10. It balances strength with precision.
• Extreme Detail: Step down to 65/9. Note: 65/9 needles are fragile; ensure your machine tension is dialed in to avoid deflection.
• Hats: The video references a heavier needle (often 75/11 or 80/12) because caps are thick and require penetration power over subtlety.

Sensory Check: When handling a 65/9 needle, it should feel significantly thinner than your standard stock needle. If you can’t tell the difference by touch, double-check the shank marking.

Also noted in the video:

• Use ballpoint needles for knits (unless you’re working on caps/structured items).

Warning: Needles are sharp, and small-text jobs often tempt you to "just run one more test" quickly. Power down before changing needles, keep fingers clear of the needle bar area, and never reach under the presser foot while the machine is energized.

Thread weight is your “resolution” knob: why 60wt looks sharper than 40wt

The video compares 40wt vs 60wt and calls out a key point. Think of thread weight like screen resolution: higher numbers mean finer detail.

• 60wt thread is about 25% thinner, which can make small text look sharper.
• 40wt stitches are thicker, which looks bolder but can crowd small letters, making them harder to read.

This is a judgment call, but here’s the practical way to decide:

• Use 60wt if your letters are already near the minimum width (1mm) and you need to keep counters (holes) open.
• Use 40wt if the text is readable but looks weak or "anemic," and you need more visual presence.

A clean way to remember it: 60wt improves edge definition; 40wt improves fill presence.

If you’re building a small-text workflow, consistency is key. Many shops keep a dedicated "micro-text kit" with 60wt thread and specific hoops. If you're shopping for that kind of stability-focused setup, a 5.5 mighty hoop starter kit is the type of bundle people look at because it keeps the “micro text” tools together—ensuring you have the right clamp size exactly when you switch to finer threads.

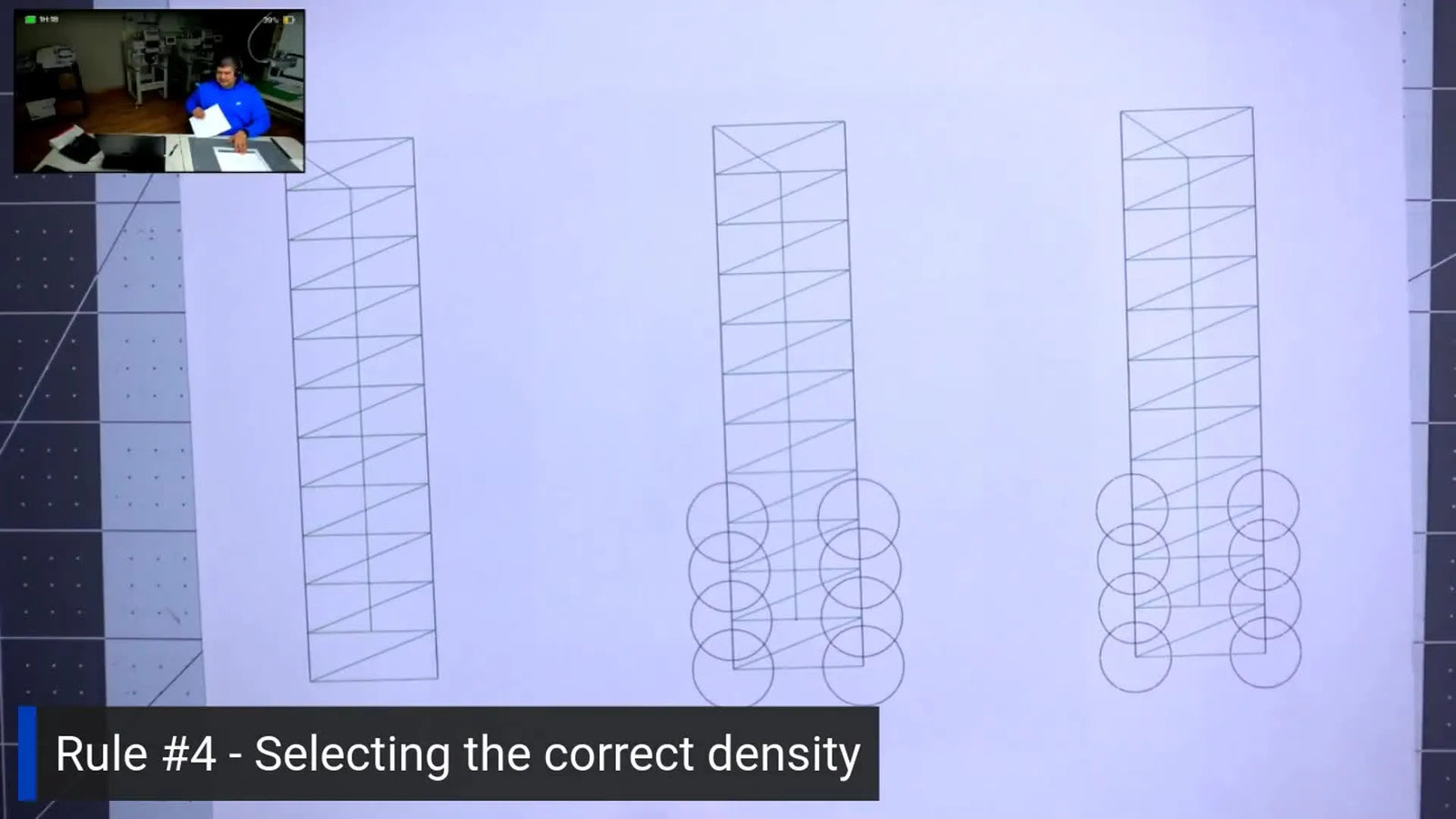

Fix the #1 cause of holes and blobs: open density to 0.40–0.50mm

This is where most designs die.

The video explains density in a way every embroiderer should internalize: when your columns are tiny, your needle penetrations start stacking on top of each other. That creates a "cookie cutter" effect:

• Visible holes (fabric shredded).
• Filled-in counters (the loops inside 'e' and 'a').
• Thread buildup that makes edges look fuzzy.

Video’s density starting point for small text:

• Open spacing to 0.40mm–0.50mm.
• Compare this to the typical 0.36mm/0.38mm default. You are essentially telling the machine to "breathe."

Also from the video:

• Don’t start tie-ins at corners; start from a place where the tie-in can hide inside the column.

This is one of those “less is more” moments. Small text often looks cleaner with fewer penetrations because the thread has room to lay flat.

Underlay that behaves: center run only, avoid edge run

Underlay is the foundation, but in a tiny house, you don't use massive steel beams.

The video calls out a common failure:

• Thread sticking out of letters is often underlay, especially Edge Run underlay on thin columns. When the column is only 1-1.5mm wide, an edge run has nowhere to go but out.

Video’s recommendation:

• Use a single Center Run underlay.
• Avoid Edge Run underlay for small columns completely.
• For extremely tight turns (the video mentions a small “B”), you may need to remove underlay entirely.

The Tradeoff:

• Underlay adds stability and lift using the fabric.
• But underlay also adds bulk.

If you digitize in Wilcom, this is the moment where you stop trusting “auto settings” and start treating each letter like a custom job.

Keep counters open: the 1mm clearance rule for holes inside letters

The video highlights the letters that cause the most complaints: a, e, s, b, d, p, q.

Rule from the video:

• Aim for 1mm clearance inside counters (holes).

Sensory/Visual Check: Look at your preview on screen. Does the hole inside the 'e' look like a pinprick? If so, it will close up on the machine. Open it until it looks deliberately large.

What happens when you ignore it:

• The hole closes and the letter changes shape (an “e” reads like an “o”).
• Density stacks up and creates a hard "knot" in the fabric.

Watch out (common production mistake): Customers love lowercase script and calligraphy, but tiny lowercase counters are the first thing to fail. If readability is the priority, push the client toward ALL CAPS or a simpler sans-serif font.

Make stitch direction flow like handwriting: avoid sharp pivots

Small text is where the machine’s motion mechanics show up in the final product.

The video’s guidance:

• Avoid sharp 90-degree pivots in stitch direction.
• Keep direction changes smooth and consistent (vertical-to-vertical when possible).
• Slow down machine speed.

Why this matters: When the machine is running at 1000 spm and forces a hard pivot in a 2mm area, the pantograph (the arm moving the hoop) generates inertia. The fabric and stabilizer system can’t recover instantly. This causes distortion aka "wobbly columns."

Safe Speed: For micro-text, drop your speed to 600-700 SPM. If you run a multi-needle machine, this feels slow, but re-stitching a ruined polo takes 20 minutes. Slowing down takes 2 minutes.

Stop overlapping: butt segments together so tiny text doesn’t bulk up

This is a digitizing mindset shift.

For regular text (25mm+), overlaps help prevent gaps caused by the push/pull effect. But the video makes a strong point:

• In small text (5mm), overlaps create bulges and visual imperfections that get magnified.

Video’s rule:

• Don’t overlap segments—butt them together.

Because the text is so small, pull compensation prevents gaps naturally. Your biggest enemy here isn't gaps; it's bulk.

If you’re working in Wilcom digitizing tutorial mode, this is where you zoom in to 600%, check intersections, and deliberately remove the overlap logic you’d normally rely on.

Don’t trim inside tiny lettering: use jump stitches

The video is blunt here, and I agree:

• Avoid trims in small lettering—aim for zero unnecessary trims.

Why?

• Trims add stops/starts.
• Trims require tie-ins/tie-offs (knotting).
• In micro text, those knots are often bigger than the letter strokes themselves.

The video shows an example where jump stitches between letters are essentially invisible unless you’re inspecting extremely close. If you must have trims, do them only between words, not letters.

Comment-inspired reassurance: If you are intimidated by cleaner patches or micro-detail work, this “no trims” rule is the fastest confidence booster. Your stitchout gets cleaner immediately because you aren't burying knots everywhere.

Stabilization is the make-or-break: smallest hoop + two layers of cutaway

If your small text looks perfect in software but fails on fabric, assume movement until proven otherwise.

The video’s stabilization rules:

• Use the smallest hoop possible (example shown: 5.5 inch).
• Use two layers of cutaway stabilizer.
• Tactile Check: The fabric should be drum-tight. If you push on it, it shouldn't effortlessly sag.

The Commercial Solution: Traditional hoops can be difficult to tension evenly without causing "hoop burn" (shiny marks) on the fabric. This is where magnetic hoops shine. They automatically adjust to the fabric thickness and provide consistent clamping pressure around the entire perimeter, which is critical for preventing the 1mm shift that ruins 5mm text.

If you’re exploring that route, the mighty hoop 5.5 is the standard size professionals use for left-chest logos and small text. It fits the job perfectly without leaving extra "bounce area" for the fabric to ripple.

Warning: Magnetic hoops are powerful. Keep fingers clear of the snapping zone when closing the frame. Keep magnets away from pacemakers, implanted medical devices, and sensitive electronics. If you’re new to magnetic frames, practice closing them on scrap fabric first.

Decision tree: choose stabilizer + hoop strategy

Use this as a practical starting point (always defer to your machine manual):

• If you’re stitching on Polos/Knits:
  • Backing: 2 layers Cutaway (Non-negotiable—tearaway will fail).
  • Needle: Ballpoint (70/10).
  • Hoop: Smallest possible (5.5" or smaller).
• If you’re stitching on Stable Woven (Denim/Twill):
  • Backing: 2 layers Cutaway (preferred for text) or 1 strong Cutaway + 1 Tearaway.
  • Hoop: Smallest possible.
• If you’re stitching on Caps/Hats:
  • Needle: Structured cap needle (75/11 or 80/12).
  • Hoop: Cap driver/frame; Slow down to 500-600 SPM.

And if you’re constantly fighting hooping consistency across many items, moving to magnetic embroidery hoops is often the first “tool upgrade” that pays back in fewer rejects and faster setup times.

Setup checklist (right before you run the design)

• Hoop: Smallest size selected?
• Stabilizer: 2 layers of Cutaway loaded?
• Needle: 70/10 (Polos) or 65/9 (Detail) installed?
• Thread: 60wt (Sharpness) or 40wt (Boldness) threaded?
• Software Settings Verified:
  • Density: 0.40–0.50mm.
  • Underlay: Center Run only.
  • Counters: ~1mm clearance.
  • Connection: Butt joints (no overlap).
  • Trims: None inside words.
• Hidden Consumable: Do you have temporary spray adhesive or a water-soluble topper (Solvy) to prevent stitches sinking into the polo pique material?


Troubleshooting small text embroidery: symptom → cause → fix

Here are the video’s most important failure modes, translated into a shop-floor diagnostic. Always check Physical (Thread/Needle) before Digital (Software).

1) Symptom: Holes closing up in letters (e, a, s)

• Likely cause: Density too high / Spacing too tight.
• Quick Fix: Ensure 1mm clearance in counters; reduce density / open spacing to 0.45mm.

2) Symptom: Thread tails sticking out of letters

• Likely cause: Edge Run underlay is poking out of thin columns.
• Quick Fix: Switch underlay to Center Run or remove it entirely for that letter.

3) Symptom: Noticeable holes punched in fabric

• Likely cause: "Cookie Cutter" effect—too many needle penetrations in a tiny area.
• Quick Fix: Open density to 0.40–0.50mm. Check if needle is too large.

4) Symptom: Text looks “wobbly” or misregistered

• Likely cause: Fabric bounce / Hoop too large / Speed too high.
• Quick Fix: Re-hoop tight (use magnetic hoops if available); slow machine to 600 SPM.

5) Symptom: Tiny knots, bumps, or messy starts inside letters

• Likely cause: Tie-ins starting at the corners of letters.
• Quick Fix: Move start points so tie-ins hide in the middle of the column.

If you’re trying to solve this at scale (multiple garments, repeat orders), the stability piece is where you win. Tools like mighty hoops magnetic embroidery hoops are popular in production because they reduce the “human variable” where one operator hoops tighter than another.

The upgrade path: stability first, then speed

Once you can reliably stitch readable 5mm text, your next bottleneck is usually time and consistency. Here is the logical path for growing your capability:

1. Stability Upgrades (Level 1):
   If hooping is slow, inconsistent, or causing hand strain, magnetic frames are the solution. For many workflows, magnetic hoops for embroidery machines are less about “fancy gear” and more about repeatable clamping pressure and faster setup.
2. Process Upgrades (Level 2):
   Standardize a “small text recipe” (Needle 70/10 + 60wt Thread + 0.45mm Density) so you’re not reinventing the wheel for every job.
3. Production Upgrades (Level 3):
   If your volume increases (e.g., team orders, corporate logos), the single-needle machine becomes the bottleneck because of thread changes. Moving to a SEWTECH multi-needle machine allows you to set up multiple colors (and backup needles) once and run continuous production. This is often the point where small-text jobs become profitable instead of stressful.

And if your hooping station is the slowest part of the day, professionals often pair magnetic hoops with a hoopmaster hooping station-style alignment workflow to reduce placement errors—especially when you’re doing the same logo 50 times.

Operation checklist (while the machine is running)

• Sound Check: Is the machine running smoothly (rhythmic hum) or struggling (clunking)?
• Speed Check: Are you running at a safe 600-700 SPM?
• Visual Check: Watch the fabric edge. If you see it "bouncing" or "flagging" up and down, stop immediately and re-stabilize.
• Quality Check: Inspect the first letter. Are the counters open? Is underlay peeking out?
• The "No-Trim" Limit: If you must choose between "perfectly clean file" and "no trims," choose no trims inside tiny lettering. It is always cleaner to trim a jump stitch by hand than to bury a knot in 5mm text.

If you’re new to magnetic frames and want to avoid the common beginner mistake (pinched fabric or misalignment), learn the closing technique first—how to use mighty hoop is the kind of query people search when they’re trying to get consistent clamping without stretching sensitive knits.

FAQ

• Q: What is the minimum lettering size for small text embroidery on a SEWTECH multi-needle embroidery machine to stitch readable letters on polos?
  A: Use 5mm text height as the reliable baseline and keep the thinnest satin strokes at least 1.0mm wide (1.2mm is safer when possible).
  • Verify in software: Measure the narrowest column; do not rely on overall letter height alone.
  • Choose a simple font: Avoid hairline scripts when readability matters; consider ALL CAPS for tiny text.
  • Plan stability early: Use the smallest hoop that fits so the fabric has less “bounce area.”
  • Success check: On-screen preview shows clear gaps/strokes, and counters do not look like pinpricks.
  • If it still fails: Switch to 60wt thread and open density to 0.40–0.50mm to prevent columns from filling in.
• Q: Which needle size should be used for 5mm small lettering embroidery on polo knits when running a SEWTECH embroidery machine?
  A: Start with a 70/10 ballpoint needle for polos, and step down to 65/9 only for extreme detail when the setup is stable.
  • Install the right point type: Use ballpoint for knits (polo pique) to reduce fabric damage.
  • Step down carefully: Use 65/9 only if the columns are very fine and the machine is running cleanly (65/9 needles can be fragile).
  • Avoid “too big by habit”: 75/11 is a common default, but it is often too large for micro-text on knits.
  • Success check: The fabric shows no “cookie-cutter” holes and the satin edges look crisp, not chewed.
  • If it still fails: Open density to 0.40–0.50mm and re-check hooping tightness (movement can mimic needle damage).
• Q: How do I stop small satin letters from turning into blobs or punching holes when digitizing small text for a SEWTECH embroidery machine?
  A: Open stitch spacing (density) to 0.40–0.50mm as a safe starting point for 5mm text to prevent stacked needle penetrations.
  • Change density first: Move away from typical 0.36/0.38mm defaults for micro-text.
  • Keep starts smarter: Avoid starting tie-ins at corners; place starts where tie-ins can hide inside the column.
  • Reduce bulk sources: Butt segments together instead of overlapping them in 5mm lettering.
  • Success check: Counters stay open and the fabric surface is not visibly shredded or perforated after stitchout.
  • If it still fails: Confirm the thinnest column is ≥ 1.0mm and switch to 60wt thread for sharper, less crowded detail.
• Q: What underlay settings should be used to prevent underlay thread from sticking out on 1.0–1.5mm satin columns in small text embroidery on a SEWTECH machine?
  A: Use Center Run underlay only and avoid Edge Run underlay on thin columns, because Edge Run often has nowhere to hide at 1–1.5mm widths.
  • Switch underlay type: Set underlay to a single Center Run for small satin lettering.
  • Remove underlay selectively: For extremely tight turns (small “B”-type shapes), remove underlay entirely for that letter if needed.
  • Re-test one word: Stitch a short sample rather than the whole design to confirm underlay behavior.
  • Success check: No underlay “whiskers” peek outside the satin edges when viewed at normal reading distance.
  • If it still fails: Open density slightly (toward 0.50mm) and reduce speed to limit distortion that can expose underlay.
• Q: How can I prevent wobbly or misregistered 5mm lettering caused by hoop bounce when using standard hoops or magnetic embroidery hoops on polo shirts?
  A: Eliminate movement by using the smallest hoop possible, two layers of cutaway stabilizer, and slowing the machine to about 600–700 SPM for micro-text.
  • Downsize the hoop: Choose a hoop close to the design size (example baseline shown: 5.5").
  • Stabilize aggressively: Use two layers of cutaway on knits (tearaway is unreliable for this use).
  • Slow the stitchout: Run 600–700 SPM so direction changes do not yank the fabric.
  • Success check: The hooped area feels drum-tight and the fabric edge does not “bounce/flag” while stitching.
  • If it still fails: Re-hoop (inconsistent clamping is common); consider magnetic hoops for more even, repeatable pressure.
• Q: What is the safety procedure for changing embroidery needles on a SEWTECH embroidery machine during small text testing?
  A: Power down before changing the needle and keep hands clear of the needle bar and presser foot area—small-text work tempts rushed changes.
  • Turn power off: Do not rely on a pause button when hands are near moving parts.
  • Keep fingers out of the strike zone: Never reach under the presser foot while the machine is energized.
  • Inspect before running: Confirm the installed needle matches the intended size (70/10 or 65/9) before pressing start.
  • Success check: The needle change is completed with the machine fully de-energized, and the first stitches run smoothly without deflection.
  • If it still fails: Stop immediately and re-check installation and stability (a bent or wrong-size needle can mimic digitizing issues).
• Q: What magnetic embroidery hoop safety precautions should be followed when using magnetic hoops for stabilizing 5mm small lettering on garments?
  A: Treat magnetic hoops as pinch hazards and keep them away from pacemakers, implanted medical devices, and sensitive electronics.
  • Close deliberately: Keep fingers clear of the snap zone when bringing the magnets together.
  • Practice on scrap first: Learn the closing technique before hooping a customer garment to avoid pinched fabric or misalignment.
  • Control the workspace: Store magnets away from electronics and anyone with implanted medical devices.
  • Success check: The hoop closes without finger pinch and the fabric is clamped evenly with no sudden shifting.
  • If it still fails: Re-hoop and verify the smallest hoop size and two layers of cutaway—magnet strength cannot compensate for the wrong stabilization plan.
• Q: When small text embroidery keeps failing on polos, what is a practical upgrade path from technique changes to magnetic hoops to a SEWTECH multi-needle embroidery machine?
  A: Fix stability and settings first, upgrade hooping consistency next (magnetic hoops), and upgrade production capacity last (multi-needle) when thread changes become the bottleneck.
  • Level 1 (Technique): Standardize a “micro-text recipe” (70/10 needle + 60wt thread + 0.40–0.50mm spacing + Center Run underlay + no trims inside words).
  • Level 2 (Tool): Move to magnetic hoops when hooping is inconsistent, slow, or causing rejects from tiny shifts.
  • Level 3 (Capacity): Move to a SEWTECH multi-needle machine when volume grows and single-needle color changes are killing throughput.
  • Success check: 5mm text stitches readable on the first run with open counters and no fabric bounce.
  • If it still fails: Stop and diagnose by symptom (density/counters, underlay type, hoop movement, speed) before changing multiple variables at once.
