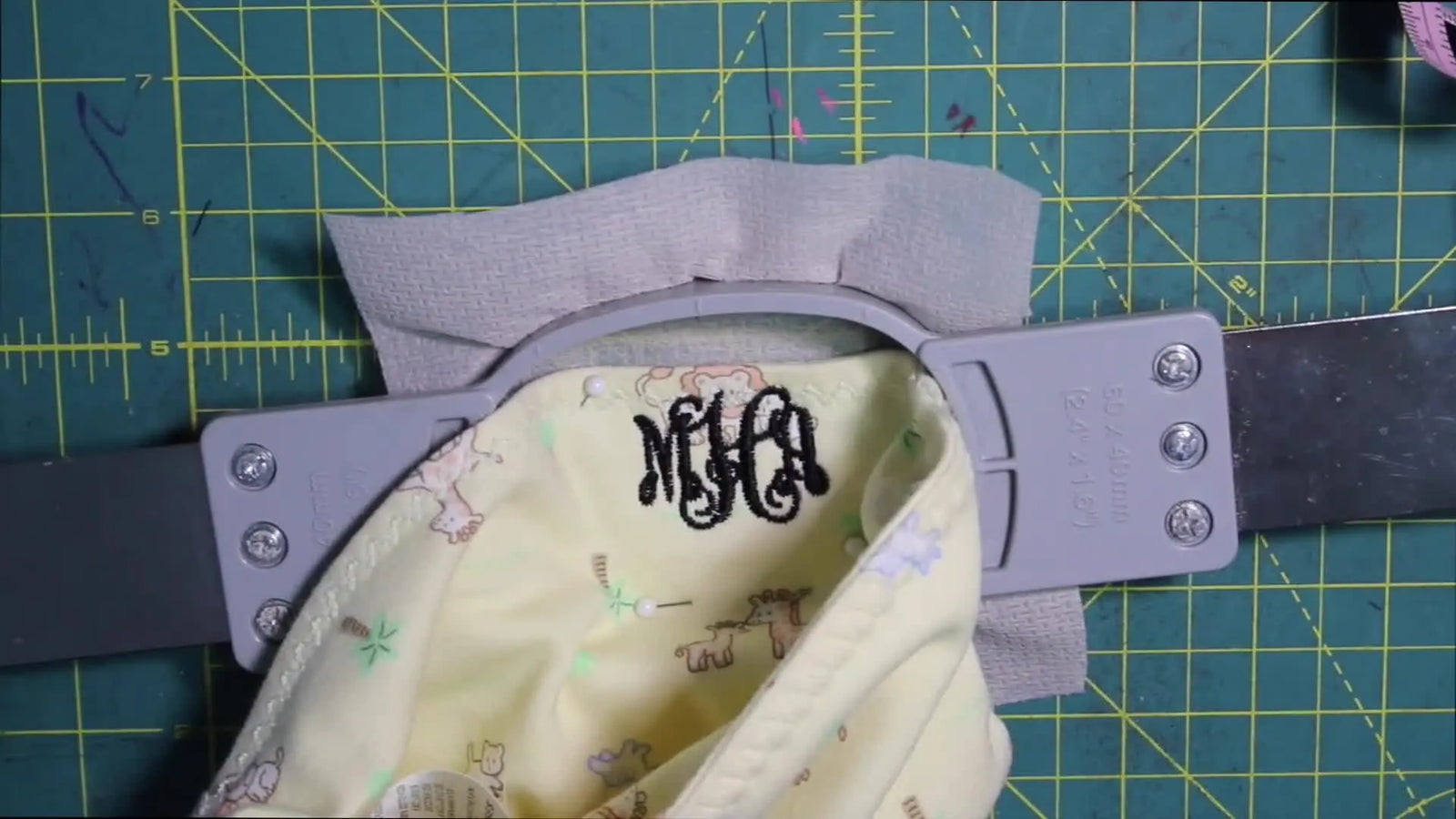

Small Hoop, Thick Knit, Zero Hoop Burn: Floating a 60x40mm Brother Hoop for a 1-Inch Baby Beanie Monogram

The Ultimate Guide to Monogramming Chunky Knit Beanies: A Professional Protocol for Small Hoops

If you have ever tried to hoop a thick, double-layer baby beanie in a standard plastic screw hoop, you know the struggle: the inner ring pops out, the fabric stretches into a distorted mess, or the screw tightens so much it leaves "hoop burn" that ruins the texture of the knit.

Embroidery on thick knits is a game of physics, not just design. You are asking a vibrating needle to deposit thousands of stitches onto a surface that wants to move, stretch, and bounce.

In this comprehensive guide, we will break down the professional workflow for mastering beanie embroidery using a 60x40mm small hoop. We will move beyond basic instructions into the "experience zone"—covering specific machine speeds, sensory checks, and the critical tooling upgrades that transform this from a frustrating hobby into a profitable production line.

The Core Challenge: Why New Embroiderers Fail with Beanies

The number one reason for failure on knit beanies isn't the design file—it’s the tension mismatch.

• The Hoop: Wants to be rigid.
• The Beanie: Wants to stretch.
• The Needle: Wants to push the fabric down (flagging).

To solve this, we do not hoop the beanie. Hooping thick knits forces the fibers open, causing the design to shrink and pucker once removed from the hoop. Instead, we use the Floating Method: hooping only the stabilizer drum-tight and securing the beanie on top. This preserves the structural integrity of the knit.

Phase 1: Preparation – The "Hidden" Steps Professionals Don't Skip

Before you even touch the machine, four physical variables must be controlled. If you skip this, no amount of software compensation will fix the result.

1. The Anatomy Check & The "De-Tack"

Most cuffed beanies come from the factory with "tack stitches"—small threads holding the folded cuff in place. You must remove these. If you try to embroider through the tack, the cuff cannot lay flat, creating a "speed bump" for the presser foot. This leads to skipped stitches and registration errors.

• Action: Use a seam ripper to gently slice the 3-4 tack stitches.
• Result: The cuff opens fully, providing a flat surface for the hoop.


Warning: Measurement Safety
When using a seam ripper on knits, slice away from the fabric body. One slip can sever the yarn loop, creating a hole that will unravel the entire hat. Always work under bright light.

2. Needle & Thread Selection (The Data Points)

Standard needles will destroy a knit beanie. You need a needle that slides between the fibers, not one that cuts them.

• Needle: Ballpoint (BP) 75/11. The rounded tip preserves the elasticity of the knit.
• Thread: 40wt Polyester (standard).
• Consumables: Have Water Soluble Topper ready if the knit is very chunky (to keep stitches from sinking), and Temporary Spray Adhesive (like Odif 505) for extra security.

3. Template "Auditioning"

Never guess placement on a baby item. Space is limited, and seams are dangerous.

• Action: Print a 1:1 paper template of your design.
• Placement Rule: Place the center of the design exactly 1.5 to 2 inches from the bottom edge of the cuff (unfolded). Ensure it is at least 0.5 inches away from any thick side seams. Side seams can deflect the needle, causing it to hit the throat plate.


Prep Checklist (Pre-Flight)

• Factors tack stitches removed; cuff lays flat.
• Ballpoint 75/11 needle installed.
• Paper template printed and placement marked with a water-soluble pen or chalk.
• Stabilizer cut to size (approx. 2 inches larger than hoop on all sides).


Phase 2: Stabilization Science

The choice of stabilizer determines if your beanie survives the wash. Because a baby beanie is worn against sensitive skin, we have a conflict: we need stability, but we cannot use scratchy "Cutaway" stabilizers.

The Solution: No-Show Mesh (Poly-Mesh). This is a type of cutaway stabilizer that is soft, sheer, and creates a permanent bond with the fabric without the bulk.

Decision Tree: Stabilizer Selection for Headwear

• Is the item a structured baseball cap?
  • YES → Tearaway (2 layers).
• Is the item a stretchy knit beanie?
  • YES → No-Show Mesh (1-2 layers).
    • Check: Is the knit very loose/chunky?
      • YES → Add a layer of Water Soluble Topper on top.
      • NO → Just Mesh is sufficient.
• Is the design very dense (high stitch count)?
  • YES → Use 2 layers of Mesh, floated at opposing angles (0° and 45°) for maximum stability.


Phase 3: The "Drum-Tight" Hooping Technique

This is the moment of truth. You are using a 60x40mm hoop (or similar small hoop).

1. Hoop the STABILIZER ONLY. Do not put the beanie in the hoop.
2. Loosen the thumb screw nicely.
3. Insert the inner ring.
4. Sensory Check (Auditory/Tactile): Tap on the stabilizer. It should sound like a drum—thump, thump. It should not ripple.
5. The "Finger-Tight" Myth: On plastic hoops, finger-tight isn't enough for mesh. Use the included screwdriver/key to give it one extra half-turn. The stabilizer must not slip 1mm.

Commercial Insight: If you find yourself struggling with wrist pain from tightening screws, or if the hoop pops open constantly, this is known as "Hoop Fatigue." In a production environment, this is solved by using a magnetic embroidery hoop. These systems use powerful magnets to clamp the stabilizer instantly without mechanical screws, reducing strain and "hoop burn" marks.

Setup Checklist (Hoop Ready)

• Stabilizer is hooped "Drum Tight" (no ripples).
• Inner ring is seated slightly below the outer ring lip (preventing pop-out).
• Center point is marked on the stabilizer.
• Template is removed from the beanie before floating.


Phase 4: Floating, Pinning, and Safety Zones

Now, we marry the fabric to the stabilizer.

1. Float: Slide the beanie over the hoop (or lay it flat on top if using a flatbed machine). Align your center mark on the beanie with the center mark on the stabilizer.
2. Pinning Strategy: This is high-risk. You must pin the beanie to the stabilizer to prevent shifting, but pins are the enemy of your embroidery machine.
   • Rule: Pins stay in the Safe Zone—the absolute perimeter of the hoop, far outside the stitching field.
   • Technique: Pin horizontal to the hoop edge.
   • Sensory Anchor: You should feel the pin bite into the stabilizer stiffly. If it wiggles loosely, the fabric will shift.






Warning: Magnetic Field Safety
If you decide to upgrade your workflow with a magnetic embroidery hoop, be aware that they carry a pinch hazard. The magnets are industrial strength and can snap together with enough force to bruise fingers. Always slide them apart rather than pulling them apart, and keep them away from pacemakers or sensitive electronics.

Phase 5: The "1-Inch Rule" and Stitch Execution

For a 60x40mm hoop, your physical limit is tight.

• Design Size: Do not exceed 1 inch (25mm) in height for a standard monogram.
• Reason: You need "buffer instructions." If the design goes to the edge, the presser foot will hit the hoop frame, potentially knocking the machine out of alignment.

Operation Checklist (Before Pressing Start)

• Trace Function: Run the trace/outline. Watch the presser foot. Does it clear all pins? Does it hit the plastic frame?
• Speed Control: Reduce machine speed to 600 SPM (Stitches Per Minute).
  • Why? High speed creates drag on knits. Slowing down reduces distortion.
• Fabric Management: Ensure the rest of the beanie is grouped behind or away from the needle bar so it doesn't get sewn to the hoop.


Phase 6: Finishing & Quality Control

Once the machine stops:

1. Remove the hoop.
2. Remove pins immediately (count them—ensure none are left in the hat).
3. Trim: Turn the beanie inside out. Use Double-Curved Appliqué Scissors.
   • Technique: Pull the stabilizer gently up and rest the "bowl" of the scissors against the mesh. Clip close to the design (about 2-3mm), but be careful not to snip the yarn loops of the beanie.




4. Re-Tack: Hand stitch the cuff back into place with a needle and thread. This restores the factory look and hides the back of the embroidery inside the fold.

The Production Grade: When to Upgrade Your Tools

If you are making one beanie for a grandchild, the method above is perfect. However, if you are fulfilling 50 orders for an Etsy shop, the friction of manual hooping will destroy your profit margins.

Here is how experienced professionals analyze their "Pain Points" effectively to decide on upgrades:

Level 1 Pain: "I spend too much time measuring and my designs are crooked."

• The Fix: You need a Placement Station.
• Tool: A machine embroidery hooping station (like HoopMaster or similar) allows you to set the jig once and hoop every subsequent beanie in the exact same spot without measuring.

Level 2 Pain: "My hands hurt and I have 'Hoop Burn' marks."

• The Fix: You need to eliminate the screw mechanism.
• Tool: A floating embroidery hoop system or specifically a magnetic embroidery hoop. The magnetic force clamps the floating stabilizer instantly. For Brother users, searching for compatible brother embroidery hoops with magnetic alignment is a game-changer for thick items.

Level 3 Pain: "The machine takes too long to change colors."

• The Fix: You have outgrown the single-needle machine.
• Tool: A multi-needle machine (like the SEWTECH commercial lineup).
  • Benefit: You can load 15 colors at once.
  • Benefit: The tubular arm allows the beanie to hang naturally (no stretching flat), which drastically improves quality.
  • Benefit: High-speed operation (1000+ SPM) becomes safe because the machine is built for vibration control.

Troubleshooting: The "Quick Fix" Matrix

Final Thoughts from the "Lab"

Embroidering on beanies is less about the machine and more about fabric control. By using the floating technique, the correct needle stiffness, and checking your tension, you can achieve results that look like they came from a factory.

Remember: Start slow. Master the "drum-tight" stabilizer feel. And when the volume of your orders starts to hurt your hands, listen to that signal—it’s time to let better tools carry the load.

FAQ

• Q: For a 60x40mm plastic screw embroidery hoop, how can thick chunky knit beanie embroidery avoid hoop burn and hoop pop-out?
  A: Use the floating method and hoop only the stabilizer drum-tight, not the chunky knit beanie fabric—this prevents hoop marks and distortion.
  • Action: Hoop No-Show Mesh stabilizer only, then give the thumb screw one extra half-turn with the screwdriver/key (not just finger-tight).
  • Action: Seat the inner ring slightly below the outer ring lip to reduce pop-out risk.
  • Success check: Tap the hooped stabilizer and listen/feel for a “drum” sound (thump, thump) with zero ripples.
  • If it still fails: Switch to pinning the beanie in the hoop perimeter safe zone and slow the machine to reduce drag-related shifting.
• Q: When embroidering a chunky knit beanie, which needle type and size prevents holes around the embroidery on knit fabric?
  A: Install a Ballpoint (BP) 75/11 needle to push between knit fibers instead of cutting them.
  • Action: Replace any sharp/standard needle with a Ballpoint (BP) 75/11 before starting.
  • Action: Re-run the job only after confirming the cuff lays flat (no “speed bump” from factory tack stitches).
  • Success check: After stitching, the knit loops around the design look intact with no puncture holes spreading outward.
  • If it still fails: Reduce speed to about 600 SPM and avoid pulling the knit tight while floating, because stretch can amplify damage.
• Q: For a stretchy knit beanie monogram, what stabilizer is recommended to keep the design stable but soft against baby skin?
  A: Use No-Show Mesh (poly-mesh) as the primary stabilizer, adding layers and topper only when the knit or design demands it.
  • Action: Use 1–2 layers of No-Show Mesh; go to 2 layers for dense stitch counts.
  • Action: Add Water Soluble Topper on top when the knit is very loose/chunky to prevent stitch sinking.
  • Success check: The finished monogram stays flat after unhooping, with minimal puckering and clear satin edges.
  • If it still fails: Float two mesh layers at opposing angles (0° and 45°) and re-check hoop tightness for slippage.
• Q: For embroidery placement on a baby knit beanie cuff, where should a 1-inch monogram be positioned to avoid seams and presser-foot problems?
  A: Place the design center 1.5–2 inches from the bottom edge of the unfolded cuff and keep it at least 0.5 inches away from thick side seams.
  • Action: Print a 1:1 paper template and mark the center with a water-soluble pen or chalk.
  • Action: Avoid side seams because they can deflect the needle and cause hardware contact.
  • Success check: During trace/outline, the presser foot clears the hoop frame and any pins without touching.
  • If it still fails: Reduce design height to ≤1 inch (25 mm) to maintain a safety buffer inside a 60x40mm hoop.
• Q: When floating a knit beanie over hooped stabilizer, how should pins be used to prevent shifting without breaking the embroidery needle?
  A: Pin only in the hoop perimeter safe zone, keep pins horizontal to the hoop edge, and always trace the design path before stitching.
  • Action: Align center marks first, then pin outside the stitching field at the absolute perimeter.
  • Action: Pin horizontally so the presser foot is less likely to collide if something shifts.
  • Success check: Pins feel like they “bite” stiffly into the stabilizer and do not wiggle loosely when touched.
  • If it still fails: Remove pins and re-pin farther out, then re-run trace—needle breaks usually mean a pin is too close.
• Q: When embroidering a chunky knit beanie in a 60x40mm hoop, what machine speed and pre-start checks reduce knit distortion and needle strikes?
  A: Slow the machine to about 600 SPM and always run the trace/outline to confirm clearance from pins and the hoop frame.
  • Action: Run trace and visually watch the presser foot for any contact risk with pins or the plastic hoop edge.
  • Action: Manage excess beanie fabric behind/away from the needle bar so it cannot get stitched into the hoop area.
  • Success check: The trace runs cleanly with no contact and the fabric stays relaxed (not being dragged or stretched).
  • If it still fails: Re-check stabilizer tightness (no slipping 1 mm) and reduce design size to restore buffer space.
• Q: What is the safe handling procedure for an industrial-strength magnetic embroidery hoop to avoid finger injury and device interference?
  A: Treat magnetic embroidery hoops as pinch hazards—slide magnets apart instead of pulling, and keep magnets away from pacemakers and sensitive electronics.
  • Action: Place magnets deliberately and keep fingertips out of the closing gap as magnets snap together.
  • Action: Separate magnets by sliding sideways, not by lifting straight apart.
  • Success check: Magnets clamp securely without sudden finger contact, and setup stays stable without screw-tightening strain.
  • If it still fails: Stop and reposition calmly—rushing is when pinches happen; consider using fewer magnets at a time during setup.
• Q: For an Etsy beanie embroidery workflow using small hoops, when should the process upgrade from technique tweaks to magnetic hoops or a multi-needle SEWTECH machine?
  A: Upgrade based on the specific bottleneck: fix placement first, then eliminate screw-hoop fatigue, then address color-change time with a multi-needle machine.
  • Action: Level 1 (crooked/slow placement): Use a hooping/placement station to repeat the same position without re-measuring.
  • Action: Level 2 (hand pain/hoop burn/hoop fatigue): Move to a magnetic hoop system to clamp stabilizer quickly without over-tightening screws.
  • Action: Level 3 (production speed limits): Consider a multi-needle SEWTECH machine when color changes and throughput become the main constraint.
  • Success check: Output becomes consistent (repeatable placement, fewer rejects) and hooping time drops without extra fabric distortion.
  • If it still fails: Track which step consumes the most time (placement, hooping, or color changes) and upgrade only that constraint first.
