Small Font Embroidery on Plush Vests Went Wrong? Save the Job with a Twill Patch Overlay (Clean, Fast, Customer-Proof)

The "Patch Rescue" Protocol: Saving Plush Vests from Small Text Disasters

When a customer insists on tiny lettering on a high-loft plush vest, you are entering a danger zone. You can execute the digitizing perfectly, use the correct stabilizer, and still end up with text that looks like illegible green fuzz sinking into quicksand.

If you run a shop, this moment—pulling the hoop off and seeing the letters swallowed by the fabric pile—triggers a cold spike of adrenaline. It’s not just a ruined garment; it’s lost margin and potential reputation damage.

Jeanette’s solution is the "Emergency Brake" protocol I’ve taught for two years: stop fighting the fabric. When direct embroidery fails, switch tactics. Create a crisp twill patch and sew it directly over the failed stitch-out. No unpicking (which destroys plush fabric). No arguing. Just a clean, readable result that looks like a premium upgrade.

The Hard Truth About Small Font Embroidery on Plush Vests (and Why It’s Not Your Fault)

Jeanette demonstrates the issue with two vests—heather gray and black. The small green lettering is technically "there," but it is completely unreadable. Even after increasing the font size, the plush texture acts like tall grass hiding a golf ball.

The Physics of the Failure: Plush fabrics have "loft" (vertical pile height). Standard embroidery stitches sit inside this loft rather than on top of it. When your satin column width for small text drops below 3mm, the pile wraps around the thread, blurring the edges.

Jeanette recommends 60 weight thread for small fonts.

• Empirical Rule: Standard thread is 40wt. 60wt is thinner (about 25% finer). It allows for smaller needles (size 65/9 or 70/10) and tighter density without bulletproofing.
• The Limit: On smooth twill, 60wt works wonders for text down to 4mm. On plush? It only helps if you use a knockdown stitch first. If you skip the knockdown stitch, even 60wt will fail.

But if the garment is already stitched and ruined? You need the patch overlay.

Pick the Right Twill Color for Patch Embroidery—Because Show-Through Will Humiliate You

Jeanette highlights a critical error: she initially tried using silver twill as a base for a patch that required a black background, relying on black fill stitching to cover it. The result? The silver twinkled through the black stitches, making the patch look threadbare and cheap.

The "Base Match" Rule:

• Black Background Plan: Use Black Twill.
• Silver/Light Background Plan: Use Silver or White Twill.

In a production environment, choosing the wrong base material turns a $5 patch into a rejection. Jeanette confirms she uses Stahls Poly-Twill Fabric (51 Rolls).

Hidden Consumable Alert: Keep a basic stock of Black, White, Navy, and Red twill. These four colors cover 80% of corporate patch needs.

The “Hidden” Prep Before You Iron Anything: Patch Backing, Heat Control, and a No-Regrets Test Pull

To attach the patch, Jeanette applies Heat n Bond Lite to the back.

• Why "Lite"? You need enough adhesion to hold the patch while sewing, but you want it pliable enough for the needle to penetrate without gumming up. Heavy-duty adhesives can make hand-sewing or topstitching a nightmare of skipped stitches.


The goal isn't a permanent fuse (that's what the sewing is for); the goal is mechanical stabilization. You want to "ignite" the adhesive just enough to prevent the patch from "walking" under the presser foot.

PREP CHECKLIST: Do this BEFORE the Ironing Board

1. Material Check: Does the patch background twill match the thread fill? (Don't let silver show through black).
2. Adhesive Check: Is Heat n Bond Lite applied to the back of the patch? Peel the paper backing off now, revealing the shiny adhesive side.
3. Tool Check: Do you have a Teflon sheet? (Without this, you risk melting the synthetic vest fibers).
4. Geometry Check: Place the patch over the ruined embroidery. Does it fully cover the mistake with at least 3mm clearance on all sides?

The Teflon Sheet + Gentle Ironing Method That Prevents Burned Stitches and Glossy Marks

Jeanette positions the patch directly over the failed embroidery. She then covers the entire area with a Teflon sheet. This sheet acts as a thermal buffer, distributing heat evenly and preventing the iron from scorching the delicate polyester pile of the vest.

The Sensory Anchor: Iron lightly. You are not pressing a dress shirt. You are tacking.

• Heat Setting: Start at Medium (Wool/Silk setting). Synthetics melt instantly under High (Linen) heat.
• Tactile Test: After pressing for 3-5 seconds, let it cool for a moment. Then, perform the "Gentle Corner Pull."
  • If it lifts easily: It’s not stuck. Add heat/time.
  • If it resists: It’s ready for the machine.


Warning: Heat Safety
Never iron directly on the embroidered patch or the plush vest surface. Synthetic pile can "crush" and turn irreversibly glossy (heat shine) if touched by metal. Always use a Teflon sheet or a pressing cloth.

Troubleshooting Adhesion Issues

On the black vest, the first press didn’t stick. Jeanette increased the iron heat slightly (from Medium toward High).

• The Variable: The patch + thick embroidery underneath creates an insulation layer. You may need slightly more heat to penetrate through the patch to the adhesive layer. Increase heat in small increments.

SETUP CHECKLIST: At the Ironing Board

1. Positioning: Is the patch straight? (Use a ruler; eyes lie).
2. Protection: Is the Teflon sheet covering the entire area the iron will touch?
3. Adhesion: Did the Corner Pull Test confirm the patch is tacked down?
4. Cool Down: Let the adhesive set for 30 seconds before moving the garment. Hot adhesive shifts; cool adhesive holds.

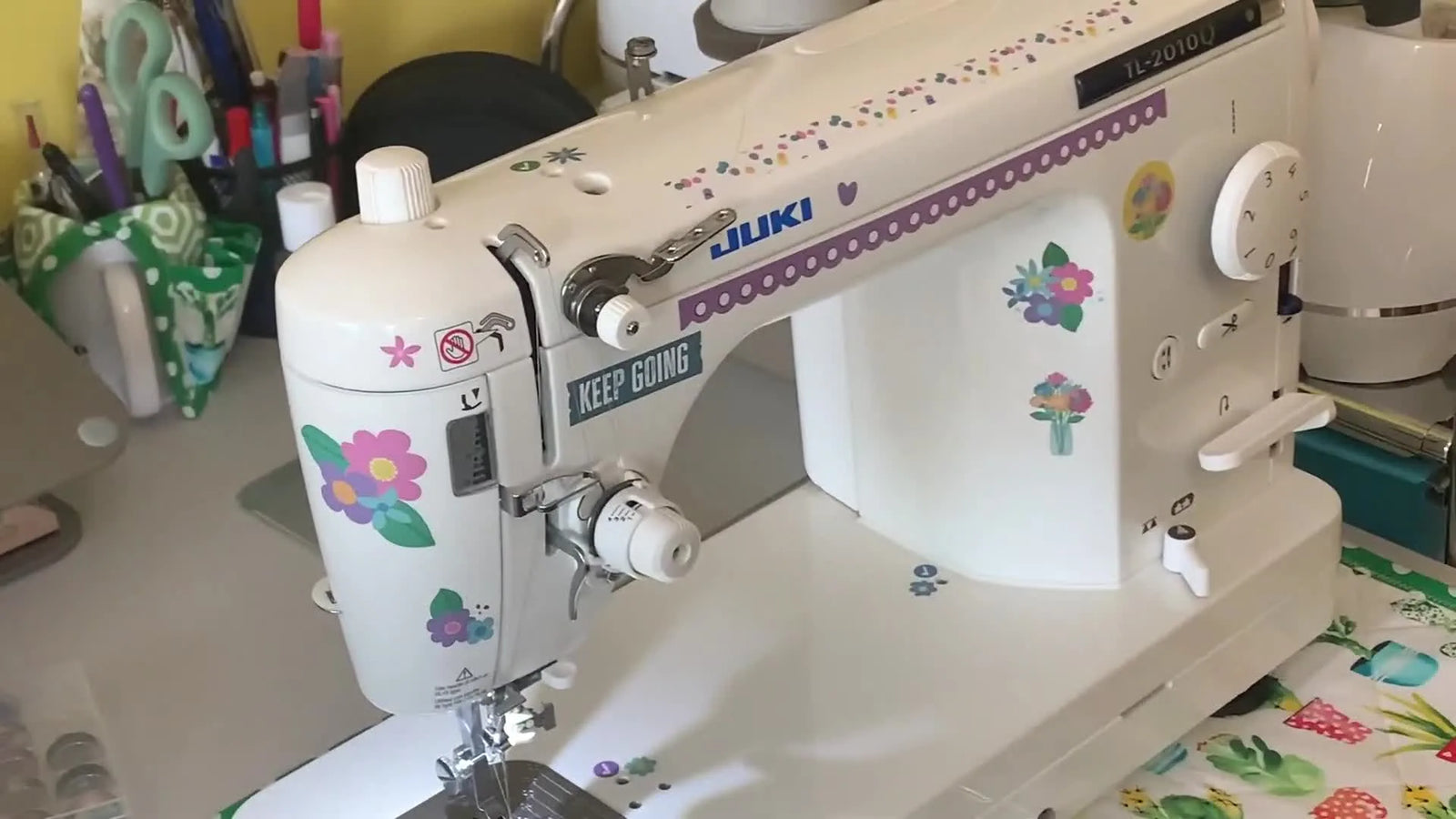

Dial In the Juki TL-2010Q for Patch Topstitching: Narrow Foot, Matching Thread, and Slow Control

Jeanette moves to a Juki TL-2010Q, a straight-stitch workhorse. She installs a narrow zipper foot.

• Visual Logic: A standard foot is wide and blocks your view of the patch edge. A narrow foot allows you to stitch exactly 1-2mm from the edge with perfect visibility.




Machine Settings for Success:

1. Top Thread: Must match the patch border color exactly.
2. Stitch Length: Set to 2.5mm - 3.0mm. (Too short creates perforation holes; too long looks loose).
3. Speed: Low. This is a precision operation, not a race.

If you struggle with alignment before this rescue stage—for example, if your team constantly hoops garments crooked, forcing you to use patches to fix placement—investigating a machine embroidery hooping station is your Level 1 fix. These tools mechanically force the garment to align straight, stopping the error before a needle ever drops.

Sew the Patch Edge Like a Pro: Needle-Down Corners, Handwheel Turns, and Clean Pivots

Jeanette’s technique separates "Homemade" from "Commercial Repair."

• The Path: Stitch on the extreme edge of the patch border.
• The Speed: Crawl. Use the foot pedal gently.
• The Pivot: This is the secret.




How to Execute the Perfect Corner (The 90° Turn):

1. Sew until you are one stitch length away from the corner.
2. Stop.
3. Use the Handwheel to manually lower the needle into the fabric at the exact corner point.
4. Lift the Presser Foot. (With the needle down, the garment is anchored).
5. Pivot the Garment 90 degrees.
6. Lower the Presser Foot.
7. Resume sewing.

Sensory Cue: You should feel a rhythmic "thump-thump" of the machine. If it sounds like a buzz saw, you are going too fast.

Warning: Physical Safety
When using the handwheel and guiding fabric close to the needle, keep fingers at least 1 inch away from the foot. Do not get distracted by the patch alignment and sew your finger.

OPERATION CHECKLIST: The Sewing Phase

1. Needle Status: Is the "Needle Down" function active (if your machine has it)?
2. Fabric Management: Is the rest of the thick vest bunched up away from the needle path so it doesn't drag?
3. Corner Protocol: Are you manually wheeling the corners?
4. Lock Stitch: Did you backstitch 2-3 stitches at the end to lock the thread?

Trim Thread Tails and Inspect the Edge—Because “Good Enough” Is How Returns Happen

After removing the vest from the machine, Jeanette trims the tails flush.

• Quality Standard: Hold the vest at arm's length. Can you see the topstitching thread? You shouldn't. It should blend into the patch border.




The result on the gray vest is seamless. The text is crisp (because it's on twill), and the patch looks intentional, as if the customer ordered a "Badge Style" logo from the start.

The “Why” Behind This Fix: Material Behavior, Readability, and When to Stop Fighting Plush

Jeanette didn't fail; she adapted. The principle here is Substrate Control.

• The Problem: Plush fabric is a chaotic substrate.
• The Solution: Twill is a stable substrate.
• The Patch: You are simply mounting a stable substrate onto a chaotic one.

If you find yourself constantly patching because of hoop burn or placement errors, look at your mechanical holding method. "Hoop burn" on plush happens when standard friction hoops crush the fibers. Professional shops often upgrade their hooping for embroidery machine process by using magnetic frames, which hold without crushing.

Troubleshooting: Symptoms → Likely Cause → Fix

If things go wrong during your patch rescue, consult this matrix.

A Practical Decision Tree: When to Patch vs. When to Risk It

Jeanette’s video focuses on the how, but as a business owner, you need the when.

Step 1: Analyze the Fabric

• Is it High Pile (Fleece, Sherpa, Plush)? -> Go to Step 2.
• Is it Low Pile (Polo, T-shirt)? -> Direct Embroidery likely safe.

Step 2: Analyze the Detail

• Is text height < 5mm? -> Risk High. Recommend Patch.
• Is text height > 8mm? -> Direct Embroidery possible with Knockdown Stitch + Water Soluble Topping.

Step 3: Analyze the Volume

• One-off Custom: Manual Patch (Jeanette's method).
• 50+ Uniforms: Standardize! Use a hoopmaster hooping station to ensure every patch lands in the exact same coordinate on every vest, reducing measuring time.

Comment-Driven Reality Checks: Fonts, Software, and Customer-Supplied Logos

Regular viewers raised excellent points that mirror daily shop life:

1. "Can I just pick a better font?" Jeanette notes this was a customer-supplied logo.
   • Reality: You often can't change the font. You have to change the technique (Patch).
2. "What software makes the patch?" Jeanette used the Merrowly function in Embrilliance.
   • Tip: Most pro software (Wilcom, Hatch) has "Auto-Applique" or "Patch" tools. Use them to generate the running stitch line for your patch cutter.
3. "Show the patch making!" Many struggled with the creation of the patch. If you are doing volume, ensure you treat patch-making as a separate manufacturing line with its own QC.

The Upgrade Path: Turn This Rescue Trick into a Repeatable Shop Service

Jeanette’s method uses a standard sewing machine and an iron. This works for 1-10 garments. But if "Patching" becomes a core offering (e.g., for local police/fire departments or corporate badges), you need to upgrade your infrastructure to protect your body and your profits.

Level 1: Stability Upgrade For thick vests, standard hoops pop off or leave burn marks. Magnetic Hoops are the industry solution here.

Warning: Magnet Safety
Strong magnetic hoops (like MaggieFrame) can pinch fingers severely and interfere with pacemakers. Handle with respect and keep away from sensitive electronics.

Level 2: Workflow Upgrade Stop measuring by hand. A hooping station for embroidery machine allows you to place a patch or hoop a garment in 15 seconds with perfect repeatability. If you are eyeing a hoopmaster, you are looking at the industry standard for consistency.

Level 3: Production Upgrade If you are tired of changing threads for every patch border, or if you want to embroider the patches and sew them onto hats/bags in one go, a SEWTECH Multi-Needle Machine offers the clearance and color capacity to run production badges efficiently.

Review your machine embroidery hoops inventory. Do you have the right size for patch work? Using a giant hoop for a small patch wastes stabilizer and reduces accuracy.

Final Reality Check: The Patch Route Isn’t a Compromise—It’s a Professional Save

Jeanette’s finished vests prove a vital point: The customer doesn't care how you did it; they care that it looks readable and professional.

When you use this patch method, you aren't "covering up a mistake." You are engineering a solution. By combining the right consumables (Heat n Bond Lite, Teflon sheet) with patience (Slow Speed, Needle Down), you transform a disaster into a deliverable.

Keep your cool, grab your Teflon sheet, and execute the rescue.

FAQ

• Q: Why does small satin text embroidery on a plush vest turn into unreadable fuzz even with perfect digitizing and stabilizer?
  A: Plush pile hides narrow satin columns, so small lettering can sink into the loft and lose edge definition—this is common on high-loft vests.
  • Switch tactics: embroider the lettering on twill as a patch instead of fighting the plush surface.
  • Use a knockdown stitch first if direct embroidery must be attempted on plush.
  • Consider 60wt thread with a 65/9 or 70/10 needle only as a helper step, not a guarantee on plush without knockdown.
  • Success check: the letter edges look crisp at arm’s length, not like green “fuzz” blending into the pile.
  • If it still fails: stop re-stitching on plush and move to a twill patch overlay to recover the garment without unpicking.
• Q: How do I stop silver twill from showing through black fill stitching when making an embroidery patch?
  A: Match the twill base color to the background plan—do not rely on fill stitches to fully hide a contrasting twill.
  • Choose black twill for any black-background patch design.
  • Stock core twill colors (black, white, navy, red) to cover most common orders without risky substitutions.
  • Test visually under good light before committing to production.
  • Success check: the black background looks solid with no metallic “twinkle” or threadbare shimmer from the base.
  • If it still fails: remake the patch using a matching twill color (or add an extra dark layer behind) rather than increasing fill and risking stiffness.
• Q: How do I attach a twill patch onto a polyester plush vest using Heat n Bond Lite without shifting during sewing?
  A: Use Heat n Bond Lite only to tack the patch for sewing, and confirm adhesion with a gentle corner pull before going to the machine.
  • Peel the paper backing to expose the shiny adhesive side before positioning.
  • Cover the area with a Teflon sheet and press lightly for 3–5 seconds at a Medium (Wool/Silk) setting.
  • Let the area cool about 30 seconds before moving the garment so hot adhesive does not “walk.”
  • Success check: the patch resists a gentle corner pull but does not feel rock-hard or over-fused.
  • If it still fails: increase heat slightly in small steps (the patch plus thick embroidery can insulate) and re-test with the corner pull.
• Q: How do I prevent heat shine, crushed pile, or melted fibers when ironing a patch onto a synthetic plush vest?
  A: Never place the iron directly on the vest or patch—always use a Teflon sheet (or pressing cloth) and start at Medium heat.
  • Cover the entire contact area with the Teflon sheet before the iron touches anything.
  • “Tack” instead of pressing hard; use short presses and check between attempts.
  • Increase heat only gradually if the adhesive is not activating through the thickness.
  • Success check: the plush surface stays matte and lofty (no glossy square, no flattened nap).
  • If it still fails: stop and reassess protection coverage and heat level—direct metal-to-fiber contact is the usual cause of permanent shine.
• Q: What Juki TL-2010Q settings and presser foot setup work best for topstitching an embroidery patch edge cleanly?
  A: Use a narrow zipper foot for visibility, matching top thread to the border, and sew slowly with a 2.5–3.0 mm stitch length.
  • Install the narrow zipper foot to keep the patch edge in clear view.
  • Set stitch length to 2.5–3.0 mm to avoid perforation holes or a loose-looking seam.
  • Reduce speed and guide the patch edge at about 1–2 mm from the border for a professional look.
  • Success check: at arm’s length, the topstitch thread blends into the border and does not “outline” the patch.
  • If it still fails: slow down further and re-check thread color match and edge distance before adjusting anything else.
• Q: How do I sew perfect 90° patch corners on a straight-stitch machine without rounded or messy pivots?
  A: Pivot only with the needle planted at the corner—use needle-down (or the handwheel) to anchor the work before turning.
  • Sew to one stitch length before the corner, then stop.
  • Turn the handwheel to drop the needle exactly at the corner point.
  • Lift the presser foot, pivot the garment 90°, lower the foot, and continue.
  • Success check: corners look sharp and square, not curved or “chewed.”
  • If it still fails: confirm you are not pivoting with the needle up (that is the main cause of rounded corners) and reduce speed to a crawl.
• Q: What should I do if a magnetic embroidery hoop pinches fingers or if a staff member has a pacemaker near strong magnetic frames?
  A: Treat magnetic hoops as high-force tools—keep hands clear during closing and keep magnetic frames away from pacemakers and sensitive electronics.
  • Close the hoop deliberately and keep fingers at least 1 inch away from the closing edge.
  • Train staff to separate and align magnets carefully rather than letting them snap together.
  • Establish a shop rule: anyone with a pacemaker should not handle strong magnetic hoops.
  • Success check: the hoop closes without sudden snapping, and no one’s fingers are in the pinch zone.
  • If it still fails: stop using magnetic hoops for that operator or station and switch to a safer handling procedure or different holding method.
