Singer Studio Built-In Lettering That Actually Stitches Clean: Fonts, Cursor Tricks, Color Stops, and Centered Monograms

Mastering Lettering on the Singer Studio: From "Home Made" to "Pro Grade"

Lettering looks deceptively “easy” on a digital screen. You type a name, press start, and expect perfection. But the reality of machine embroidery is often a sinking feeling: the stitched name lands off-center, the fabric ripples like bacon, or your second letter overwrites the first, creating a thread nest.

If you own a Singer Studio embroidery machine, let me be clear: the built-in fonts are absolutely capable of producing commercial-grade monograms. The difference between a "hobby" result (puckered, crooked) and a "pro" result (crisp, flat, aligned) is rarely the machine itself. It is your setup discipline, your hooping physics, and your cursor habits.

I have spent 20 years in embroidery production, and I treat lettering as an engineering challenge, not just a design task. This guide will walk you through the Singer Studio lettering workflow with the rigor of a flight manual, ensuring you land safely every time.

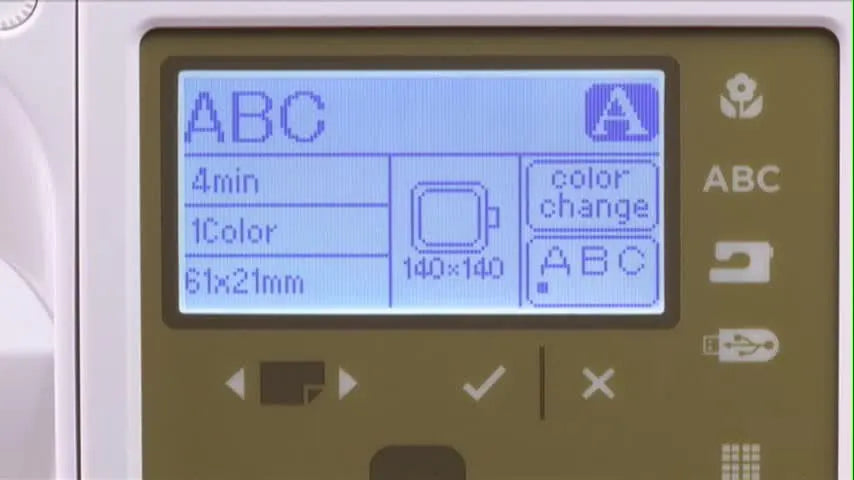

Don’t Panic—The "Pilot's View" of the LCD Screen

The Singer Studio includes three built-in fonts. The machine allows you to program lettering directly from the LCD without external digitizing software. This convenience is a double-edged sword: it makes it easy to skip the boring safety checks.

Here is the calm truth: if your text is wrong, you can fix it before a single stitch is formed. If your text is crooked on the physical garment, that is a physics issue (hooping), not a software issue.

When you reach the “Ready to Sew” screen, treat it like a pre-flight checklist. Do not hit "Start" until you have mentally verified the data: sewing time (e.g., 4 minutes), color changes (e.g., 1), and most importantly, the hoop size requirement (140x140).

The "Hidden" Prep Pros Do Before Touching the LCD

Lettering is the most unforgiving type of embroidery. Unlike a large floral fill pattern which stitches over a stable base, lettering consists of narrow satin columns that pull the fabric in multiple directions. A tiny shift of 1mm will make a name look like it is "sliding downhill."

The Physics of Stability

1. Lettering Hates Stretch: If you are stitching on a knit (baby bib, t-shirt), you must use a Cutaway stabilizer. Tearaway stabilizer will disintegrate under the needle penetrations of satin stitches, causing the letters to distort or separate.
2. Hooping Tension - The "Drum Skin" Test: Hooping is not about brute strength; it is about even tension. When hooped, tap the fabric. It should sound like a dull drum—taut, but not stretched so tight that the weave is distorted. Use the grid on the inner hoop to align the grain of the fabric.
3. The Small Text Danger Zone: If your text is smaller than 6mm (1/4 inch), you need to slow your machine down and use a smaller needle (e.g., size 65/9 or 70/10) to prevent the fabric from being "punched out."

The Tool Upgrade Point

If you are struggling to hoop thick items (like hoodies) or delicate items (like silk) without leaving "hoop burn" (friction marks from the outer ring), this is where your tools may be failing you.

Standard clamp hoops rely on friction. If you find yourself constantly re-hooping to get it straight, or your wrists hurt from tightening screws, professional shops switch to magnetic embroidery hoops. These use powerful magnets to sandwich the fabric without forcing it into a recess, eliminating hoop burn and significantly speeding up the process.

Prep Checklist: The "Go/No-Go" Decision

Before you touch the screen, ensure you have:

• Needle Check: Is the needle fresh? A burred needle causes "fuzzy" edges on text.
• Stabilizer: Selected based on fabric stretch (Rule: If it stretches, Cutaway. If it doesn't, Tearaway).
• Consumables: Temporary spray adhesive (to bond fabric to stabilizer) and a water-soluble topper (if stitching on towels/fleece to keep stitches elevated).
• Hoop Strategy: If frequent hooping is causing alignment fatigue, consider if a magnetic embroidery hoop is necessary to maintain production speed and save your wrists.

Warning: Keep fingers, hair, and loose sleeves away from the needle area during stitching, and never reach under the presser foot while the machine is running—lettering involves frequent stops/jumps, and the pantograph moves unpredictably.

Use the Singer Studio “Flower/ABC” Lettering Button

To start, press the Lettering button (the Flower/ABC control). You will see four icons: three font styles and a library of border elements.

Pro Tip: For small text (under 10mm), choose the simplest block font available. Serif fonts (with the little feet) or script fonts are beautiful but require 100% perfect stabilization to look clean at small sizes.

The Grouped-Letter Keyboard Trick: The "Click-Wait-Click" Rhythm

The Singer Studio uses a "multitap" style keyboard similar to old cell phones. Letters are inside grouped icons (e.g., "AB CDE").

The Rookie Mistake: Tapping wildly and hoping the right letter sticks. The Pro Method:

1. Identify the group containing your letter.
2. Press the icon once. The first letter appears.
3. Press it again slowly to cycle to the next.
4. Stop when your letter appears in the top text bar.


The Cursor-Arrow Habit: Avoiding the "A-B-C" Overwrite Trap

This is the number one frustration for beginners on this machine. If you want to type the name "ABBA," and 'A' and 'B' are in the same group, the machine doesn't know you want a new letter—it thinks you are still selecting the first letter.

The Mandatory Protocol: You must manually advance the cursor. Watch the underline (_) on the screen—that is your insertion point.

1. Select A.
2. STOP. Look for the underline.
3. Press the Right Arrow cursor button. The underline moves to the right.
4. Now select B.
5. Press Right Arrow again.

If you do not move the cursor, selecting the next letter will simply replace the one you just typed.

Clean Edits: Surgical Deletion

Did you mistype? Don’t hit "Clear All."

1. Use the arrow keys to move the underline directly under the wrong character.
2. Press the Clear icon (delete symbol).
3. Enter the correct letter.

Note: Be careful not to leave "phantom spaces" at the end of a name, as this can throw off your centering logic later.

The "Ready to Sew" Reality Check: Centering and Physics

After pressing OK, you arrive at the Ready to Sew screen. This is your final verification point.

By default, the machine may set justification to Left. To ensure your text lands exactly in the middle of your hoop's crosshairs:

1. Toggle the justification setting.
2. Select Center (Setting B).

The Physical Reality of Alignment: The machine can only center the design in the hoop. It cannot center the design on the shirt. If you hooped the shirt crooked, the text will be crooked.

Many users search for embroidery machine hoops looking for a magic fix for alignment. The truth is, while better hoops hold fabric more securely, alignment comes from marking your garment. Use a water-soluble pen to mark the center crosshair on the fabric, and align that mark with the hoop's inner grid.

Setup Checklist (Pre-Stitch)

• Hoop Check: Screen confirms 140x140.
• Justification: Set to Center (Setting B).
• Spelling: Read the text on the screen backwards to catch typos (e.g., "NOSNJOH" instead of "JOHNSON").
• Obstruction Check: Ensure the hoop attachment arm is clear of objects.

Multi-Color Lettering: To Trim or Not To Trim?

The Color Change icon (spool symbol) instructs the machine to stop after every character.

• Turn it ON: If you want a "School Days" look where every letter is a different color.
• Turn it OFF: For standard names.

The "Jump Stitch" Trade-off: If you turn it OFF, the machine will sew the name continuously. Depending on the distance between letters, it may leave a "jump stitch" (a thread connecting two letters).

• Action: Get small, curved embroidery scissors. Trim these jumps close to the fabric after the design is finished (or during a stop if they are long). Do not pull them; snip them.

If you are running a small business, trimming threads is non-billable time. Using a hooping station for machine embroidery ensures that your placement is perfect so you don't waste time ripping out stitches, allowing you to focus on the finishing touches like trimming.

Font Size S/M/L: The Density Danger

Critical Rule: Select your size (S/M/L) before you type the letters. Resizing afterwards can sometimes lead to density issues where stitches pile up.

Empirical Advice on Sizing:

• Size S (Small): Use for pocket logos. Requires a 65/9 or 75/11 needle. Risk: High. Watch for thread nests if tension is loose.
• Size L (Large): Use for sweatshirt chests. Risk: Low, but placement errors are more obvious.


Lowercase and Special Characters

Use the Page Forward button to access lowercase letters, numbers, and punctuation.

Workflow:

1. Type the Uppercase first letter.
2. Press Page Forward to find lowercase.
3. Type the rest of the name.

If you are new to this and researching embroidery machine lettering, limit your variables. Start with a solid, medium-sized font on denim or woven cotton. Master the workflow before attempting script fonts on slippery silk.

The Stitch-Out: Sensory Monitoring

When you press specific start, do not walk away. The first 10 seconds are critical.

Sensory Anchors - What to look and listen for:

• Sound: You want a rhythmic, humming "thump-thump." A sharp, metallic "clack-clack" means a needle is hitting the needle plate or the hoop is hitting the foot. STOP IMMEDIATELY.
• Sight: Watch the fabric. Is it "flagging" (bouncing up and down with the needle)? If yes, your hooping is too loose.
• Touch: (After stitching) Run your finger over the back. You should feel a smooth balance. If you see loops of top thread on the bottom, your top tension is too loose.

For those doing production runs, using a embroidery hooping station system allows you to hoop the next garment while the first one stitches, maximizing your machine's uptime.

Operation Checklist (During Stitching)

• First 20 Seconds: Watch for bird-nesting (bunching thread) under the plate.
• Speed Control: For beginners, do not run at max speed. Set the slider to Medium (approx 400-600 stitches per minute). This reduces friction and thread breakage on delicate satin columns.
• Emergency Stop: Know exactly where your Start/Stop button is.

Decision Tree: Fabric to Stabilizer Pairing

Using the wrong stabilizer is the #1 cause of distorted lettering.

Start Here:

1. Is the fabric a Knit (Stretchy)? (T-shirts, Hoodies, Polos)
   • YES: Use Cutaway Stabilizer. (No exceptions for beginners).
   • NO: Go to step 2.
2. Is the fabric Heavy Woven? (Denim, Canvas, Towel)
   • YES: Use Tearaway Stabilizer.
     • Check: Is it a towel/pile fabric? If yes, add a Water Soluble Topper (Solvy) on top.
   • NO: Go to step 3.
3. Is the fabric Sheer/Delicate? (Silk, Organza)
   • YES: Use Mesh (No-Show) Cutaway or Water Soluble backing to avoid bulk.

If you struggle with hoop marks on delicate items in Step 3, switching to a magnetic hooping station setup with magnetic frames is often the only way to hold these fabrics securely without crushing the fibers.

Warning: Magnetic hoops contain strong magnets (neodymium). Keep them away from pacemakers, credit cards, and mechanical watches. They can pinch fingers severely if allowed to snap together—handle with respect.

Troubleshooting: The "Quick Fix" Matrix

If you encounter persistent "wavy" text despite good stabilizer, the issue is often inconsistent fabric tension during the hooping process. A embroidery hooping station embroidery hooping station provides a mechanical jig to ensure the same tension every single time, which solves the waviness at the source.

The Commercial Upgrade Path: When to Scale Up

As your skills improve, you will hit a ceiling. It’s not your skill—it’s the physics of the tool.

1. The "Hooping" Ceiling: If you spend more time hooping than stitching, or if you ruin expensive jackets with hoop burn, upgrading to Magnetic Hoops is the Level 2 solution. It buys you speed and safety.
2. The "Placement" Ceiling: If you cannot get logos straight on 50 shirts in a row, a Hooping Station is the answer.
3. The "Volume" Ceiling: If you are turning down orders because your single-needle machine takes too long to change colors or has to stop for thread trims, this is the trigger to move to a Multi-Needle Machine (like the SEWTECH series). These machines allow you to set up 10+ colors at once and run continuously, turning your hobby into a profitable production line.

Master the Singer Studio first. Use the checklists. Respect the physics. When you outgrow it, you'll know exactly why.

FAQ

• Q: Why do letters overwrite each other when typing names on the Singer Studio embroidery machine LCD keyboard?
  A: This is almost always a cursor-position issue—move the Singer Studio cursor with the Right Arrow between letters from the same key group.
  • Pause after each character and watch the underline (insertion point) on the Singer Studio screen.
  • Press the Right Arrow once to advance the underline before selecting the next letter.
  • Use the “click–wait–click” rhythm on grouped keys instead of rapid tapping.
  • Success check: The top text bar shows ABBA (not a single character changing) and the underline advances one space at a time.
  • If it still fails: Slow down between taps; the machine may still be cycling within the same grouped key.
• Q: How do I center lettering on a shirt using the Singer Studio embroidery machine 140x140 hoop?
  A: Centering requires both Singer Studio screen settings and correct hooping—set justification to Center (Setting B) and align fabric marks to the hoop grid.
  • Confirm the Singer Studio “Ready to Sew” screen shows 140x140 as the required hoop.
  • Toggle justification and select Center (Setting B) before stitching.
  • Mark a center crosshair on the garment with a water-soluble pen, then match it to the hoop’s inner grid/crosshair.
  • Success check: The stitched name lands on the garment’s marked center and reads level (not “sliding downhill”).
  • If it still fails: Re-hoop—if on-screen centering is correct but the shirt is off, it is a hooping mechanics problem, not a Singer Studio software problem.
• Q: What stabilizer should I use for Singer Studio embroidery machine lettering on T-shirts, hoodies, or other knit fabrics?
  A: Use Cutaway stabilizer for stretchy knit fabrics on the Singer Studio—tearaway commonly breaks down under satin-lettering penetrations and causes distortion.
  • Choose Cutaway anytime the fabric stretches (T-shirts, hoodies, polos).
  • Bond fabric to stabilizer (often spray adhesive helps) so the layers do not shift during stitching.
  • Add a water-soluble topper when stitching on high-pile fabrics (like towels/fleece) to keep stitches from sinking.
  • Success check: Letters stitch flat and crisp with no “wavy” edges or gaps opening between satin columns.
  • If it still fails: Re-check hooping tension (too loose causes flagging) and reduce variables by using a simple block font at medium size.
• Q: How can I tell if Singer Studio embroidery machine hooping tension is correct for clean lettering (and not causing puckering or waviness)?
  A: Use the “drum skin” standard—Singer Studio lettering needs fabric taut and even, but not stretched out of shape.
  • Tap the hooped fabric and aim for a dull drum feel: firm and even, not floppy.
  • Align fabric grain using the inner hoop grid so the garment is not hooped crooked.
  • Watch for fabric “flagging” (bouncing) during the first seconds of stitching; re-hoop if it moves.
  • Success check: During stitching, the fabric stays stable (minimal bounce) and the finished letters look flat without bacon-like ripples.
  • If it still fails: Switch to a more supportive stabilizer choice for the fabric (knits need cutaway) and slow the Singer Studio speed to a medium range.
• Q: Why does the Singer Studio embroidery machine stop after every letter when stitching a name?
  A: The Singer Studio Color Change (spool icon) is turned ON—turn it OFF for single-color names.
  • Open the lettering settings and locate the spool/color change control.
  • Turn Color Change OFF to stitch the whole name continuously in one color.
  • Plan for possible jump stitches between letters and trim them with small curved embroidery scissors (snip, don’t pull).
  • Success check: The Singer Studio stitches the full word without stopping after each character.
  • If it still fails: Re-check the icon status before starting; if stops persist, confirm the design truly is single-color lettering.
• Q: What needle size and speed should I use on the Singer Studio embroidery machine for small lettering under 6 mm?
  A: For Singer Studio lettering under ~6 mm, slow the machine and use a smaller needle (65/9 or 70/10) to reduce fabric damage and distortion.
  • Install a fresh needle; worn/burred needles often create fuzzy letter edges.
  • Reduce speed to a medium setting (a safe starting point is about 400–600 spm if the Singer Studio speed control allows).
  • Choose the simplest block-style font for very small text to minimize density risk.
  • Success check: Satin columns stay intact (not “punched out”), and edges look clean without excessive fuzz.
  • If it still fails: Increase text size or switch to a less demanding fabric/stabilizer combo for practice (woven cotton/denim is more forgiving).
• Q: What safety precautions should I follow when stitching lettering on a Singer Studio embroidery machine, especially during frequent stops and jumps?
  A: Keep hands, hair, and loose sleeves away from the needle area on the Singer Studio—lettering has frequent stops/jumps and the pantograph can move unpredictably.
  • Keep fingers away from the presser foot area and never reach under the foot while the machine is running.
  • Monitor the first 10–20 seconds closely and be ready to hit Start/Stop immediately.
  • Stop immediately if you hear a sharp metallic “clack-clack,” which can indicate a needle strike or hoop contact.
  • Success check: The machine runs with a steady humming/thump rhythm and no unexpected collisions or sudden thread bunching.
  • If it still fails: Power down and re-check hoop attachment clearance and needle condition before resuming.
