Singer Legacy SE300/SE340 Embroidery Setup: The Calm, Correct Way to Swap Feet, Snap on the Unit, and Avoid a First-Day Thread Nest

The Singer Legacy SE300/SE340 is a "gateway" machine. It sits right on the fault line between a casual hobbyist tool and a precision instrument.

If you are unboxing this machine, you likely feel a mix of excitement and a very specific type of fear: the fear of the "Bird’s Nest"—that catastrophic tangle of thread under the needle plate that locks the machine and ruins your garment.

I have spent 20 years in embroidery education, and I can tell you this: 90% of “machine failures” in the first week are actually simple setup errors. Embroidery is not just "sewing with a computer." It is physics. It requires a different mindset, different needle geometry, and a rigid adherence to setup protocols.

This guide rebuilds the setup process shown in the owner’s manual, but filtered through the eyes of a production manager. We will move beyond "insert Tab A into Slot B" and focus on why each click matters, how it should feel, and how to prevent the errors that cause new owners to quit.

The Mindset Shift: From Sewing to Structural Engineering

Your Singer Legacy is two machines sharing one chassis. In Sewing Mode, you facilitate the feed. You guide the fabric. In Embroidery Mode, the machine is a blind robot. It moves exactly where the digital file tells it to, regardless of whether your fabric is bunched up or your hoop is hitting a coffee cup.

If you rush the conversion between these modes, you create a "mechanical conflict." The machine tries to move, but the physical setup resists. This causes layer shifting, broken needles, and motor strain.

The Golden Rule: Never force a part. If it doesn't click, snap, or slide effortlessly, stop. You are fighting the geometry.

The "Hidden" Prep: Safety and Clearance

Before you pick up a screwdriver, we need to secure the environment.

1. Power Down. This is non-negotiable. You will be working millimeters from the needle bar. If you accidentally step on the foot pedal while your fingers are near the needle clamp, the torque of the motor can drive a needle through your nail.
2. Establish the "Swing Zone." The embroidery arm needs about 12 inches of clearance to the left and rear. Clear your table. The arm does not have sensors to detect obstacles; it will push your scissors, coffee mug, or spare bobbins onto the floor, potentially jamming the gears in the process.

Warning: Pinch Point Hazard. When swapping feet or attaching the unit, keep your fingers away from the needle bar shaft. Even with the power off, turning the handwheel can lower the needle bar and pinch skin against the housing.

The Critical Tolerance: Installing the Embroidery Foot

This is the single most common failure point I see in my workshops.

The embroidery foot on the Singer Legacy has a specific mechanical job: it must "hop" over the fabric to allow movement, then press down to stabilize the loop formation. It is driven by a small metal arm that rides on the needle clamp screw.

The Physics of the Error: If that metal arm ends up under the needle clamp screw (or floating beside it), the foot will not lift. It will drag across your fabric, causing puckering, or it will slam into the needle plate, shattering the needle.

The Installation Protocol (Sensory Check)

1. Remove the Sewing Foot: Use the screwdriver to fully remove the shank screw. Do not just loosen it; take the sewing foot completely off.
2. The "Saddle" Approach: Approach the presser bar from the rear. The white plastic clip acts as the saddle.
3. The Visual Anchor: Look at the small metal lever on the right side of the embroidery foot. As you attach the plastic clip, that metal lever must rest ON TOP of the needle clamp screw.
4. The Tactile Check: Hand-tighten the screw first. It should spin freely. If you feel resistance immediately, the threads are crossed. Back it out. Once hand-tight, give it a firm ¼ turn with the screwdriver.
5. The Bounce Test: Gently lift the needle bar using the handwheel. The foot should move in sync with the needle clamp.


Why Precision Matters Here

If you are used to a standard sewing and embroidery machine, you might think "tight is tight." In embroidery, vibration is the enemy. A loose foot allows the needle to deflect (bend) as it enters the fabric. Deflection leads to skipped stitches and trimmed thread tails that are too short. Treat this foot installation like you are changing a tire on your car—it must be secure.

Phase 1 Checkout: The Mechanical Prep

Do not proceed until you can check every box.

• Power: Machine is turned off.
• Environment: 12-inch "Swing Zone" cleared on left and rear.
• Feed Dogs: Dropped (if your specific model manual requires it—most modern machines do this automatically or ignore them, but check your Legacy manual).
• Foot Position: Embroidery foot metal arm is resting on top of the needle clamp screw.
• Security: Foot screw is tightened with a driver, not just fingers.

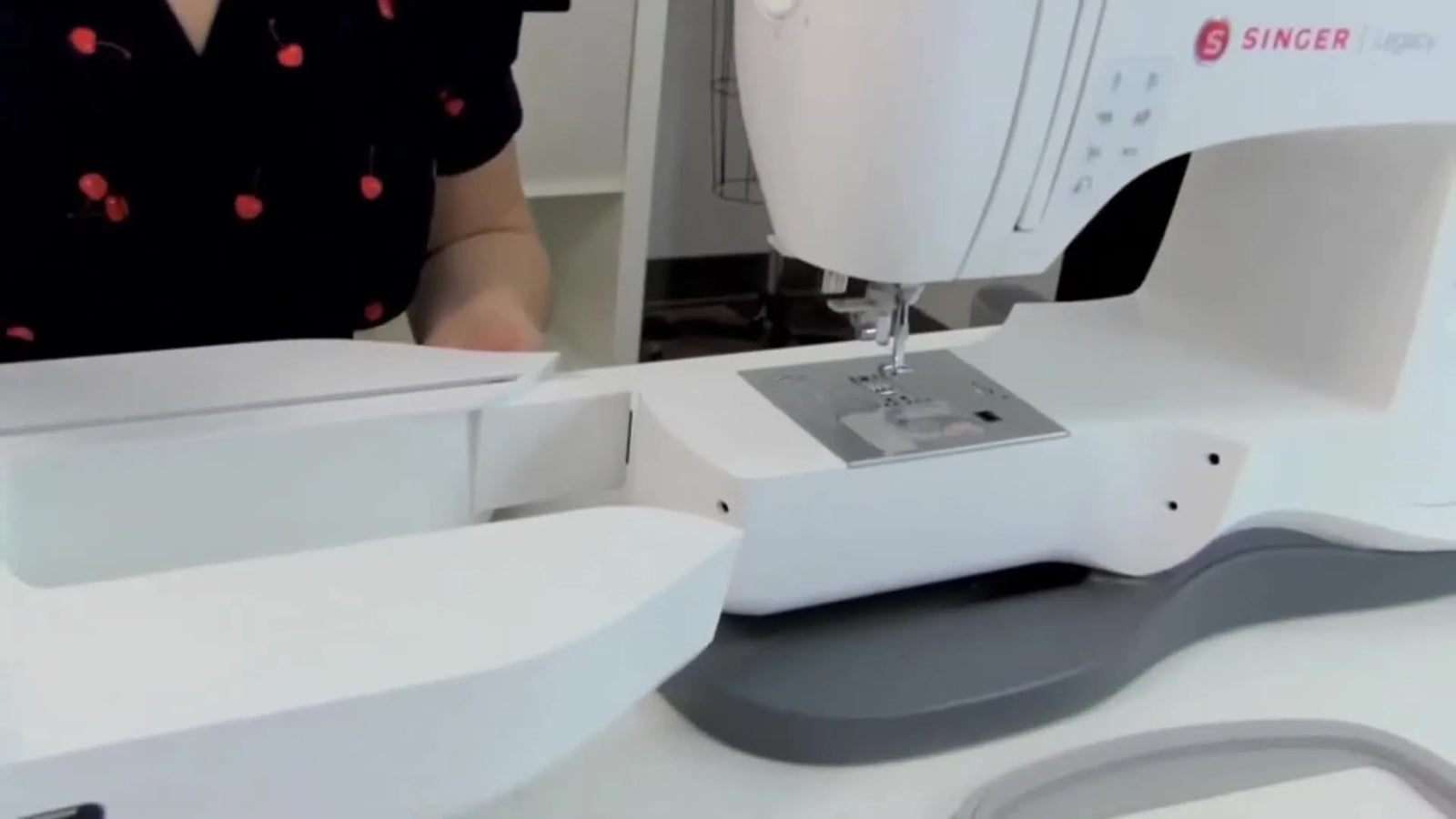

The Connection: Attaching the Embroidery Unit

The embroidery unit contains the X-Y pantograph motors—the "brain" of the positioning system. It connects to the main CPU through a multi-pin connector on the side of the machine.

The Risk: A partial connection. If the pins barely touch, the machine might power up, but the data signal will be noisy. This results in designs that "drift" or lock up mid-stitch.

The "Click" Protocol

1. Remove the Deck: Slide the accessory tray off to the left. Store it immediately—do not leave it on the table where it interferes with the hoop.
2. Align the Rail: Slide the embroidery unit onto the free arm. Keep it parallel to the table.
3. The Auditory Anchor: Push firmly to the left until you hear a sharp "SNAP" or "CLICK."
   • If you feel mushy resistance: You are misaligned. Pull back and try again.
   • If you hear a crunch: Stop immediately. You may be crushing a pin.
   • Success Indicator: The gap between the unit and the machine body should be zero. It should look like one seamless piece of plastic.

If you are researching singer embroidery machines because of their affordability, know that this connector is robust, but it relies on you engaging it fully. A loose unit creates a "shuddering" line quality in your satin stitches.

Removal Safety

To remove the unit, locate the release lever on the underside (left). Squeeze the trigger first, then pull. Never yank the unit without disengaging the lock; you will snap the plastic retention latch.

The Initialization: Calibration Physics

When you turn the machine on, it must "home" itself. It moves the arm to the extreme X and Y limits to verify its physical position.

The Crash Scenario: If you leave a hoop attached during this phase, the hoop creates a massive leverage arm. As the machine swings to find "Home," the hoop can hit the machine body or the needle bar. This collision can knock the sensor alignment out of sync, requiring a technician to recalibrate it.

The "Clean Start" Routine

1. Power On.
2. Wait for the Brain: The LCD screen will initialize.
3. Visual Check: Confirm NO HOOP is attached.
4. Confirm: Press the checkmark on the screen.
5. Observe: Watch the arm move. It should sound smooth—a rhythmic whirring. If you hear grinding or clicking, something is blocking the path.




The Penetration Strategy: Needle Science

You cannot use your standard Universal sewing needles here. Embroidery happens at 600-800 stitches per minute (SPM). The friction generates heat. Standard needles get hot, melt synthetic stabilizers, and cause thread breaks (the "Gummy Needle" effect).

Chromium Is Your Friend

The Singer Legacy requires Chromium (Chrome) Needles. These are harder and smoother than nickel needles, reducing heat friction.

The Decision: Ballpoint vs. Sharp

This is where beginners fail. They use the wrong point for the fabric structure.

• Style 2000 (Sharp/Microtex): Use for Wovens (Quilting cotton, denim, twill). These fabrics have a grid structure. The sharp point pierces cleanly between the threads.
• Style 2001 (Ballpoint): Use for Knits (T-shirts, hoodies, polos). These fabrics are made of loops. A sharp needle will cut the loop, causing the fabric to "ladder" or run. The ballpoint slides between the loops.

My Rule: If you are unsure, gently stretch the fabric. If it stretches, it’s a knit -> Use 2001 (Ballpoint).

If you are struggling with hooping for embroidery machine projects on stretchy knits, the wrong needle will cause holes in your shirt no matter how good your stabilizer is.

The Tension Engine: The Bobbin Myth

The Singer Legacy is tuned for Class 15 Transparent bobbins.

The Physics of Mass: Metal bobbins are heavier. Since the bobbin case relies on the rotation of the bobbin to generate tension, a heavy metal bobbin creates too much drag. This pulls your top thread down, creating "eyelashes" on the top of your design. Conversely, a Class 15J (curved top) bobbin is too loose and will rattle, causing loops.

The "Pre-Wound" Question

Can you use pre-wound bobbins? Yes, professionals do. But they must be Class 15 sized plastic-sided bobbins.

• Cardboard sides: Avoid. They generate lint and drag.
• Sideless: Avoid. They can collapse in the case.

Pro Tip: For your first 10 projects, wind your own bobbins using high-quality embroidery bobbin thread (usually 60wt or 90wt, thinner than top thread). This eliminates variables while you learn the machine.

Workflow: The Professional Setup

The included USB stick isn't just a storage drive; it's your library.

1. Plug into PC.
2. Locate the PDFs.
3. Print the Templates.

Why Print? You cannot judge scale on a small LCD screen. Place the paper printout on your shirt to see exactly where the logo sits. Mark the center point with a water-soluble pen or chalk. This is how pros ensure the design doesn't end up in the armpit of the shirt.

A major frustration for new users involves standard embroidery machine hoops. They are rigid. If you place your fabric slightly crooked, you have to un-hoop and start over. This leads to "Hoop Burn"—that permanent ring mark crushed into delicate fabrics like velvet or performance wear.

The Pain Point: "Why is Hooping So Hard?"

You will quickly discover that hooping is the hardest physical skill to master. You need "drum-tight" tension without stretching the fabric grain.

• Too Loose: The fabric ripples, and the outlines don't match the fill (Registration Error).
• Too Tight: You stretch the fabric; when un-hooped, it snaps back, and the design puckers.

The Criteria for Upgrade (When to switch tools)

If you are doing one-off hobby projects, the standard plastic hoop is fine. However, if you encounter these triggers, it is time to look at solutions:

1. Trigger: Your wrists hurt from tightening the screw.
2. Trigger: You are marking/bruising delicate fabrics ("Hoop Burn").
3. Trigger: You need to hoop thick items like towels or Carhartt jackets, and the plastic hoop pops open.

The Solution Hierarchy

• Level 1 (Skill): Use a "floating" technique (hoop the stabilizer only, use spray adhesive to stick the fabric on top).
• Level 2 (Tool - Stability): Use an embroidery machine hooping station. This board holds your hoop in a fixed position, allowing you to use both hands to smooth the fabric.
• Level 3 (Tool - Speed & Safety): Upgrade to magnetic embroidery hoops.
  • Why? Magnetic hoops (compatible with Singer Legacy) use vertical clamping force rather than friction. They don't drag the fabric, eliminating hoop burn. They snap shut instantly, saving your wrists.
  • Commercial Context: For anyone moving into small business production, searching for magnetic embroidery hoops is usually the first step toward efficiency. They allow you to hoop a shirt in 10 seconds versus 60 seconds.

Warning: Magnetic Safety. These are not fridge magnets. They use industrial Neodymium magnets.
1. Pinch Hazard: They snap together with enough force to bruise skin. Handle by the edges.
2. Electronics: Keep them at least 6 inches away from the machine's LCD screen, credit cards, and pacemakers.

Decision Tree: The "Before You Stitch" Logic

Don't guess. Use this logic flow to ensure success.

The Routine: Connecting the Hoop

The hoop connection consists of two lugs and a release lever.

1. Slide: Slide the hoop connector under the clips on the embroidery arm.
2. Engage: It should click into place.
3. The "Tug Test": Give the hoop a gentle (very gentle) wiggle. If it rattles, it’s not seated.

Pro Habit: Always locate the release lever visually before you start. If you have an emergency tangle, you need to know how to eject the hoop instantly without fumbling.

Troubleshooting: The "Birdnest" Protocol

When (not if) you get a tangle of thread under the plate, do not panic. Do not yank the fabric.

The Hidden Consumables: What You Need to Buy Today

The box contains the basics, but you need these to survive the first week:

1. Curve-tipped Embroidery Scissors: To trim jump threads flush to the fabric.
2. Temporary Spray Adhesive (e.g., 505 / 404): Crucial for "floating" fabrics and keeping knits from shifting.
3. Water Soluble Pen: For marking center points.
4. Spare Needles (75/11 size): You will break them. Have a pack of 5 ready.

Conclusion: From Fear to Production

The Singer Legacy SE300/340 is capable of professional results, but it demands professional respect. The difference between a frustrated user and a happy one is usually the adherence to the checklists below.

If stitches are neat but hooping is your nightmare, look into machine embroidery hoops that use magnets. If you eventually outgrow the single-needle speed and need to run 50 shirts a day, that is when you look at multi-needle machines (like Sewtech's commercial line).

But for today, focus on the "Click," the "Snap," and the "Clearance."

Final Pre-Flight Checklist (The "Go/No-Go" List)

• Foot: Embroidery foot installed, arm ON TOP of screw.
• Unit: Snapped in flush.
• Needle: Fresh Chromium needle installed (Type matched to fabric).
• Bobbin: Class 15 Transparent (Check for low thread).
• Display: Calibrated successfully (No grinding noises).
• Hoop: Attached securely; fabric sounds like a drum when tapped.
• Threading: Machine threaded with Presser Foot UP (Critical!).
• Clearance: Nothing behind or to the left of the machine.

Press Start. Keep your hands away. Welcome to the world of embroidery.

FAQ

• Q: How do I install the Singer Legacy SE300/SE340 embroidery foot correctly so the metal arm does not sit under the needle clamp screw?
  A: Install the embroidery foot so the small metal arm rests on top of the needle clamp screw before tightening.
  • Remove the sewing foot completely (do not just loosen the screw).
  • Attach the embroidery foot from the rear and visually place the metal lever ON TOP of the needle clamp screw.
  • Hand-tighten first, then give a firm 1/4 turn with the screwdriver.
  • Success check: Turn the handwheel slowly—the foot should “hop” in sync with the needle movement.
  • If it still fails: Stop and reinstall—dragging, puckering, or needle strikes usually mean the arm is positioned wrong.
• Q: What is the safe way to attach the Singer Legacy SE300/SE340 embroidery unit so the connector fully seats and designs do not drift?
  A: Slide the embroidery unit on straight and push until a firm “CLICK/SNAP” with zero gap.
  • Remove the accessory tray and clear space to the left/rear before installing.
  • Align the unit parallel to the table and slide it onto the free arm rails.
  • Push firmly until it snaps in and the seam looks flush (no visible gap).
  • Success check: The unit feels like one solid piece and does not wiggle; startup motion sounds smooth, not crunchy.
  • If it still fails: Power off and reseat—mushy resistance or any “crunch” can indicate misalignment or pin issues.
• Q: Why should the Singer Legacy SE300/SE340 start-up calibration be done with NO hoop attached, and what should the homing sound like?
  A: Always power on and let the machine home with no hoop attached to prevent a collision during initialization.
  • Remove any hoop before turning the machine on.
  • Press the on-screen checkmark only after confirming the hoop is not mounted.
  • Watch the arm travel to its limits without anything behind/left to block it.
  • Success check: The homing movement sounds like smooth, rhythmic whirring—no grinding or clicking.
  • If it still fails: Stop and clear the “swing zone” (about 12 inches left and rear) and check for obstructions.
• Q: Which needle type should be used on the Singer Legacy SE300/SE340 for knit vs woven fabric to reduce thread breaks and fabric damage?
  A: Use Chromium embroidery needles and match the point style to fabric: Style 2000 Sharp for wovens, Style 2001 Ballpoint for knits.
  • Choose Style 2000 (Sharp/Microtex) for quilting cotton, denim, twill (woven structure).
  • Choose Style 2001 (Ballpoint) for T-shirts, polos, hoodies (knit loop structure).
  • Replace with a fresh needle early—new owners often break needles in the first projects.
  • Success check: Stitches form cleanly without skipped stitches, runs/laddering in knits, or excessive thread breaks.
  • If it still fails: Recheck hooping stability and threading path; needle choice can’t compensate for fabric shifting or misthreading.
• Q: What bobbin type prevents tension problems on the Singer Legacy SE300/SE340, and can Singer Legacy SE300/SE340 use pre-wound bobbins?
  A: Use Class 15 transparent plastic bobbins; pre-wounds are fine only if they are Class 15 plastic-sided embroidery bobbins.
  • Avoid metal bobbins (extra mass can add drag and distort tension balance).
  • Avoid Class 15J curved-top bobbins (may rattle/fit incorrectly).
  • For learning, wind your own bobbins with embroidery bobbin thread to reduce variables.
  • Success check: The stitch looks balanced (no “eyelashes” pulling through on the top and no loose looping).
  • If it still fails: Reseat the bobbin and rethread the top path—many “tension” issues are actually threading issues.
• Q: How do I fix Singer Legacy SE300/SE340 bird’s nest thread tangles under the needle plate when loops are forming on the bottom of the fabric?
  A: Rethread the Singer Legacy SE300/SE340 with the presser foot UP—bottom nesting is almost always a top-threading/tension-disc issue.
  • Stop immediately and do not yank the fabric; remove the hoop carefully.
  • Raise the presser foot fully, then completely rethread the top thread path.
  • Change to a fresh embroidery needle and confirm the bobbin is seated correctly.
  • Success check: After rethreading, the next test stitches run without the thread building up underneath.
  • If it still fails: Check for a bent needle and confirm the embroidery foot arm is on top of the needle clamp screw.
• Q: When should Singer Legacy SE300/SE340 users switch from a standard hoop to a magnetic embroidery hoop for thick items, delicate fabrics, or small-batch production?
  A: Upgrade when standard hooping causes wrist strain, hoop burn, or the hoop pops open on thick/delicate items—start with technique, then tools, then capacity.
  • Level 1 (Skill): Float the fabric (hoop stabilizer only) and use temporary spray adhesive to reduce shifting.
  • Level 2 (Tool): Use a hooping station to hold the hoop steady so both hands can smooth and square the fabric.
  • Level 3 (Tool): Use a magnetic embroidery hoop to clamp vertically, reduce hoop burn, and speed loading.
  • Success check: Fabric stays drum-tight without bruising, and repeat hooping becomes consistent and fast.
  • If it still fails: Recheck clearance and hoop seating on the arm—design drift can also come from obstruction or fabric slip, not just hoop choice.
• Q: What magnetic hoop safety rules should Singer Legacy SE300/SE340 owners follow to avoid finger injuries and electronic interference?
  A: Treat magnetic hoops as industrial neodymium magnets—handle by edges and keep them away from sensitive electronics and medical devices.
  • Grip the hoop by the edges and keep fingers out of the closing path to avoid pinch injuries.
  • Keep the magnets at least 6 inches away from the machine’s LCD screen, credit cards, and pacemakers.
  • Close the hoop in a controlled motion—do not let it snap freely.
  • Success check: The hoop closes without catching skin, and the machine area stays clear of loose metal tools attracted to the magnets.
  • If it still fails: Stop using the hoop until handling feels controlled; pinch force is normal, but uncontrolled snapping is a technique issue.
