Singer Futura Quartet SEQS 6700 on Thin Muslin: The Pucker-Free Setup (and the One Tension Fix That Saves the Stitch-Out)

Mastering Dense Designs on Thin Fabric: A Field Guide for The Singer Futura SEQS 6700

If you’ve ever unhooped a “perfect-looking” stitch-out only to watch it curl into a rippled potato chip, you are not alone. You aren’t doing anything “wrong”—you are simply fighting physics. Lightweight muslin is an "honest" fabric: it ruthlessly reveals every tension imbalance, every stabilizer shortcut, and every hooping mistake.

In this deep dive, we are analyzing a real-world stitching session on a Singer Futura Quartet SEQS 6700. The mission: embroider a dense (22,000 stitch) Jacobean floral design onto thin muslin without ruining the fabric. We will break down exactly how to keep the fabric flat and how to solve the single most terrifying visual defect in embroidery: the dreaded white bobbin thread showing on top.

The Physics of "Puckering": Why It Happens and How to Stop It

Before we touch a dial, understand your enemy. Puckering isn't random; it is a displacement issues caused by three forces:

1. Displacement: The needle pushes fibers apart thousands of times.
2. Contraction: As stitches form, they pull the fabric inward microscopically.
3. Resistance: Your stabilizer and hoop must provide enough force to counteract the pull.

A Singer Futura Quartet SEQS 6700 creates beautiful stitches, but like many single-needle home machines, it relies on you to manage the physical variables. The video case study proves you can run heavy designs on thin fabric, but only if you treat stabilization and tension as a matched pair.

Phase 1: The "Hidden Prep" Professionals Don't Skip

The secret to success on muslin isn't the machine setting; it's the prep. The video demonstrates a critical technique: Lightweight Muslin fused with Iron-On Tear-Away Stabilizer.

Why Iron-On (Fusible) Matters

Using a fusible stabilizer temporarily alters the physics of the fabric.

• Muslin alone: Fluid, stretchy, unstable.
• Muslin + Fusible Stabilizer: Behaves like cardstock. It resists the "pull" of the needle.

The Hooping Paradox

Here is where beginners fail: they pull the fabric until it screams. Stop doing that. You want "taut," not "stretched."

• The Test: Tap the hooped fabric. It should sound like a dull thud, not a high-pitched ping.
• The Sensation: Run your fingers over the surface; it should feel smooth but not strained.

If you find yourself constantly wrestling with the hoop screw or getting "hoop burn" (shiny rings) on delicate fabrics, this is your trigger to upgrade your tools. A magnetic embroidery hoop creates even pressure around the entire perimeter without the brutal friction of traditional inner rings. It allows you to hold delicate muslin firmly without crushing the fibers.

PREP CHECKLIST: Do This Before Loading the Design

• Fabric Bond: Ensure the iron-on stabilizer is fused completely. Any bubbles will become puckers.
• Consumables Check:
  • Needle: Install a fresh 75/11 Embroidery Needle. (A dull needle pushes fabric into the bobbin plate).
  • Thread: Use quality 40 wt Rayon (e.g., Sulky).
  • Hidden Item: Have small sharp snips ready for jump threads.
• Hooping: Hoop on a flat surface. The inner ring should push slightly past the outer ring.
• Safety: Clear the workspace of scissors or spare bobbins that could rattle into the machine bed.

Warning: Mechanical Safety
Never place your fingers near the needle bar while the machine is running. If you need to trim a thread tail, STOP the machine completely. A 6700 RPM needle does not forgive mistakes.

Phase 2: Software "Reality Check" & Risk Assessment

The video shows the Singer Futura software interface. Don't gloss over this—it contains vital data.

• Total Stitch Count: 21,939 stitches.
• Assessment: That is a heavy load for thin muslin.

Create a mental roadmap. The software displays progress by color blocks. Know where the dense "Tatami" fills are (usually the green foliage or background). These are your high-risk zones for puckering.

If you are doing production runs (e.g., 20 napkins), relying on manual alignment is exhausting. A hooping station for embroidery ensures that every single piece of muslin is hooped at the exact same tension and angle, removing the "human error" variable from your batch.

Phase 3: The Stitch-Out (Sensory Monitoring)

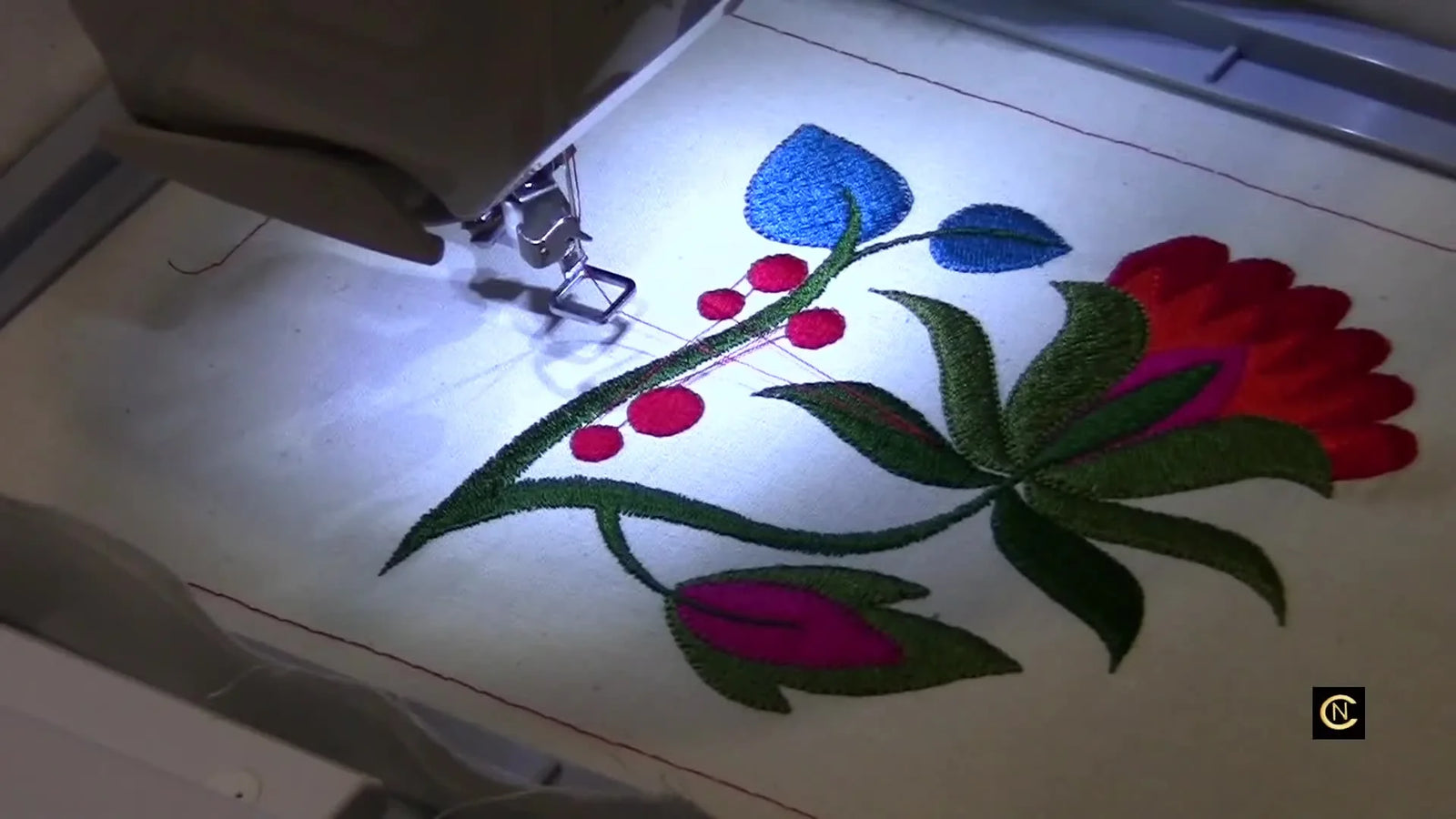

The machine begins the Red Satin Petals.

1. The Auditory Check

Listen to your Singer.

• Good Sound: A rhythmic, low-pitched thump-thump-thump.
• Bad Sound: A sharp click-click (thread catching) or a grinding noise (needle deflection).
• Action: If the sound changes pitch, hit Stop immediately.




2. The Visual Check (Green Foliage)

The machine switches to green Tatami fills. Watch the fabric inside the hoop.

• Good: Fabric stays flat.
• Bad: You see a "wave" of fabric moving in front of the foot.
• Fix: If you see the wave, slight finger pressure (FAR from the needle) on the hoop edge can sometimes stabilize it, but usually, this means your hooping was too loose.




3. Precision Detail (Magenta Center)

Small details stitched last are prone to "Registration Errors" (gaps).

• Why: If the stabilizer shifted during the first 10,000 stitches, this pink dot will land off-center.
• The Fix: This is why magnetic hoops are superior for high-stitch counts—they reduce slippage (flagging) significantly compared to standard plastic hoops.




SETUP CHECKLIST: Pre-Flight Confirmation

• Thread Path: Re-thread the top thread. Ensure the presser foot is UP when threading (to open tension discs) and DOWN when stitching.
• Bobbin: Ensure the bobbin is unwinding counter-clockwise (check your manual, but this is standard for most drop-ins).
• Clearance: Ensure the hoop arm has full range of motion and won't hit a wall or coffee mug.


Phase 4: Troubleshooting "Odd" Machine Behavior

The "Backtrack" Jump

You notice the machine jumping back to a previous area to add a detail.

• The Reality: This is inefficient digitizing/pathing. It creates long jump stitches that can snag.
• The Solution: You cannot fix this at the machine. You must trim these jumps manually. For production, you would edit the file in software to re-order the sequence.

Phase 5: The Critical Fix – White Bobbin Thread on Top

This is the moment of truth. The video captures a classic defect: White specks appearing on top of the blue satin column.

The Diagnosis: Top Tension is too tight relative to the Bobbin Tension. The top thread is dragging the bobbin knot up to the surface.

The Fix (As shown in the Case Study): The user manually adjusts the top tension dial down to Setting "2".

Expert Analysis of Setting "2"

Standard tension on a Singer Futura is usually between 3 and 5. A setting of 2 is very low (loose).

• Why it works here: Rayon is slippery, and the dense design creates friction. Loosening the top allows the stitch to lay flat rather than pulling the fabric.
• The Protocol:
  1. Stop the machine.
  2. Lower tension by 1.0 (e.g., from 4 to 3).
  3. Test for 50 stitches.
  4. Sensory Check: Look at the back. You should see 1/3 white bobbin thread in the center of the satin column. If you see NO bobbin thread, top is too loose. If you see white on top, top is too tight.

Decision Tree: Stabilizer & Hoop Strategy

Don't guess. Use this logic flow to choose your tools for thin fabrics (Muslin, Quilting Cotton, Voile).

The "Commercial Loop": When to Upgrade

If you are a hobbyist, mastering the manual tension dial is a rite of passage. But if you are trying to make money, constant re-adjustments and hoop burns are profit killers.

Terms like magnetic embroidery hoop are your gateway to understanding efficient production. Why?

1. Speed: Hooping takes 5 seconds, not 60 seconds.
2. Quality: No hoop burn means no steaming/washing required after stitching.
3. Consistency: Magnets hold fabric tension automatically.

If you find yourself spending more time fixing the machine than designing, look into singer embroidery machines compared to dedicated multi-needle platforms like SEWTECH. While the Singer is a capable starter, commercial gear removes the "fiddling" factor.

Warning: Magnet Safety
magnetic embroidery frames use powerful neodymium magnets.
* Pinch Hazard: They snap together with immense force. Watch your fingertips!
* Medical Device: Keep at least 6 inches away from pacemakers or insulin pumps.
* Electronics: Do not place directly on laptops or near credit cards.

The Final Verdict: Is the Result Clean?

The final inspection of the muslin shows:

• Flatness: Excellent. No ripples radiating from the flower.
• Edges: Clean scollops.
• Tension: No white specks visible after the adjustment.

This proves that even with entry-level hardware, professional results are possible—IF you respect the physics of the fabric and aren't afraid to touch that tension dial.

Troubleshooting Quick-Reference

Use this table when things go wrong mid-stitch. Always fix from top to bottom (Cheapest fix to Expensive fix).

OPERATION CHECKLIST: The "Pilot's Monitor"

• First 100 Stitches: Watch like a hawk. Adjust tension immediately if knots appear on top.
• Sound: Listen for the "clicking" sound of a burred needle.
• Color Changes: Trim jump threads before the next color starts to prevent them from being stitched over.
• Finish: Remove from hoop immediately. Peel tear-away stabilizer gently to avoid distorting the fresh stitches.

By combining the right consumables (Iron-on), the right settings (Tension 2-3), and the right tools (potentially upgrading to magnetic embroidery hoops for delicate work), you turn a frustrating "Potato Chip" session into a flat, professional masterpiece.

FAQ

• Q: How do I hoop thin muslin on a Singer Futura Quartet SEQS 6700 without puckering or stretching the fabric?
  A: Hoop the muslin “taut, not stretched,” and pair it with fully fused iron-on tear-away stabilizer.
  • Fuse: Iron the fusible tear-away smoothly with no bubbles before hooping.
  • Hoop: Hoop on a flat surface and stop tightening as soon as the fabric is smooth (do not over-pull).
  • Check: Tap the hooped area and aim for a dull “thud,” not a high-pitched “ping.”
  • If it still fails… Re-hoop slightly tighter or upgrade to a magnetic hoop to reduce slippage and hoop burn on delicate fabric.
• Q: What is the correct Singer Futura Quartet SEQS 6700 tension adjustment when white bobbin thread shows on top of satin stitches?
  A: Lower the Singer Futura Quartet SEQS 6700 top tension gradually; the case study fix was dropping the dial down to setting “2.”
  • Stop: Pause the machine before touching the dial.
  • Adjust: Reduce top tension by 1 step (for example, 4 → 3), then stitch ~50 stitches and re-check.
  • Success check: Look at the back—aim to see bobbin thread centered in the satin (about 1/3), with no white specks on the top surface.
  • If it still fails… Clean lint from the bobbin area and re-test; if the top still shows bobbin, continue lowering top tension in small steps.
• Q: How do I prevent loops on the bottom (thread nesting) on a Singer Futura Quartet SEQS 6700 during dense embroidery?
  A: Re-thread the Singer Futura Quartet SEQS 6700 correctly with the presser foot UP, because most nesting is a top-threading failure.
  • Re-thread: Lift the presser foot fully (to open tension discs), then re-thread from spool to needle.
  • Confirm: Make sure the thread is seated in the take-up lever eye (a common miss that causes nesting).
  • Reset: Insert the bobbin correctly and ensure it unwinds counter-clockwise for the drop-in system (verify with the manual if unsure).
  • Success check: The underside should show controlled stitches, not loose “spaghetti” loops accumulating into a nest.
  • If it still fails… Stop immediately, cut the tangle free, and re-thread again—do not keep stitching through a nest.
• Q: What stabilizer should I use for a 21,939-stitch dense design on thin muslin with a Singer Futura Quartet SEQS 6700?
  A: Start with iron-on tear-away stabilizer for muslin, and move to cutaway (mesh) when stitch density increases and puckering risk rises.
  • Use: Fuse iron-on tear-away for a standard run to make muslin behave more like cardstock.
  • Upgrade: Switch to cutaway mesh when high density (over ~15k stitches) keeps pulling the fabric inward.
  • Monitor: Watch the fabric inside the hoop during tatami fills; stop if a “wave” forms ahead of the foot.
  • Success check: After unhooping, the muslin should stay flat (no “potato chip” curling or ripples radiating from the design).
  • If it still fails… Re-check hooping tightness and consider a magnetic hoop to reduce fabric shifting during long stitch-outs.
• Q: What is the Singer Futura Quartet SEQS 6700 pre-flight checklist to avoid thread issues and fabric distortion before pressing Start?
  A: Do a fast “prep + path” check: needle, thread path, bobbin direction, fused stabilizer, and hoop clearance.
  • Replace: Install a fresh 75/11 embroidery needle before a dense run.
  • Re-thread: Thread with presser foot UP, then stitch with presser foot DOWN.
  • Verify: Confirm bobbin orientation (commonly counter-clockwise on drop-in systems) and remove lint if needed.
  • Clear: Ensure the hoop arm can travel freely and won’t hit nearby objects.
  • Success check: The first 100 stitches should sound steady and look clean—no sudden clicks, no top knots, no fabric waviness.
  • If it still fails… Stop early and correct immediately; continuing a bad setup usually creates puckers and hard-to-remove nests.
• Q: What needle-safety rule should beginners follow when trimming jump threads on a Singer Futura Quartet SEQS 6700?
  A: Never trim or reach near the needle while the Singer Futura Quartet SEQS 6700 is running—stop the machine completely first.
  • Stop: Press Stop before trimming any thread tail or removing debris.
  • Keep clear: Keep fingers away from the needle bar and moving take-up area at all times.
  • Prepare: Keep small sharp snips ready so trimming is quick and controlled.
  • Success check: Thread tails are trimmed without the fabric shifting and without hands entering the needle zone.
  • If it still fails… Pause more often and trim at color changes, before the next color stitches over loose jumps.
• Q: What are the key safety rules for using neodymium magnetic embroidery hoops or magnetic embroidery frames?
  A: Treat magnetic embroidery hoops as pinch-hazard tools and keep them away from sensitive medical devices and electronics.
  • Handle: Separate and join magnets slowly; keep fingertips out of the closing gap.
  • Distance: Keep magnets at least 6 inches away from pacemakers or insulin pumps.
  • Protect: Do not place magnetic frames directly on laptops or near credit cards.
  • Success check: The hoop closes without finger pinches and the work area stays clear of devices that magnets can affect.
  • If it still fails… Use a non-magnetic hoop method for that workstation, or change the setup to create a safe, magnet-free zone around electronics/medical devices.
• Q: How do I decide between technique fixes, upgrading to a magnetic hoop, or upgrading to a multi-needle machine when running dense designs on thin fabric with a Singer Futura Quartet SEQS 6700?
  A: Use a tiered approach: optimize setup first, use a magnetic hoop for grip/consistency next, and consider a multi-needle machine only when constant rework is killing output.
  • Level 1 (technique): Fuse iron-on stabilizer, hoop “taut not stretched,” and adjust top tension step-by-step when defects appear.
  • Level 2 (tool): Choose a magnetic hoop if hoop burn, fabric slippage (flagging), or repeat hooping inconsistency is causing puckers or registration gaps.
  • Level 3 (capacity): Consider a multi-needle platform when frequent stops for trimming, re-threading, and tension fiddling make production runs inefficient.
  • Success check: The stitch-out finishes flat with clean edges and stable registration, without repeated mid-run interventions.
  • If it still fails… Track what is consuming time (hooping, tension changes, trimming jumps); upgrade the bottleneck rather than changing everything at once.
