Mastering ITH: The Singer Futura Zipper Bag Workflow

A Field Guide to Precise Digitizing and Stress-Free Stitch-Outs

If you have ever watched an ITH (In-The-Hoop) zipper bag stitch-out and thought, “Why does the zipper line drift?” or “Why does the placement line look like a fat satin stitch instead of a clean guide?”—you are not alone.

The frustration is real. You bought the machine to create, not to fight with geometry. The good news is that 90% of the time, this is a digitizing setup issue, not an operator error.

In this guide, we are going to bypass the guesswork. We will build two separate design elements in Singer Futura software using the Draw Package and Auto Punch Wizard, then merge them into one master file.

The Mission Profile:

1. A Zipper Placement Line (9.00" x 1.00" rectangle): The visual map.
2. A Zipper Stitch Line (9.00" x 0.60" rectangle): The structural anchor.

This method maximizes a 6x10 sized hoop. By the end of this white paper, you will understand not just how to click the buttons, but why the physics of embroidery demands this specific workflow.

The Mental Model: Why "Simple" is Actually "Hard"

When novices see two rectangles, they think, "That's it?" But in the world of ITH, precision is the only metric that matters.

Think of these lines as construction blueprints:

• The Placement Line (Map): This tells you exactly where to tape your zipper. It can be a closed shape because the needle will never touch the zipper teeth here. It is strictly a visual aid.
• The Stitch Line (Anchor): This is the structural weld. It holds the zipper to the fabric. It must be narrower than the zipper tape but wider than the zipper teeth to avoid needle deflection (which breaks needles).

Expert Insight: We separate these into two objects so you can edit one without breaking the other. If you construct this as a single complex object, adjusting the width later becomes a nightmare of node editing.

Phase 1: The "Hidden" Prep & Safety Checks

Before you touch the software, we must address the physical reality of the machine. Software is perfect; fabric and machines are not.

The Physics of Drag

Singer Futura machines (and many home single-needle units) move the pantograph (the arm) while the heavy hoop drags across the machine bed.

• The Risk: If your hoop is heavy or your table is slippery, the drag causes "registration errors" (where the outline doesn't match the fill).
• The Fix: Friction management. Ensure your hoop path is clear.

The Upgrade Path: Stabilization

If you are planning to make these bags more than once, consider your hooping strategy. Traditional hoops require "drum-tight" tension, which often causes "Hoop Burn" (permanent rings on delicate fabrics like velvet or faux leather) and strains your wrists.

This is where terms like magnetic embroidery hoops enter the conversation. Professionals use them not just for speed, but because they hold the stabilizer flat without the "tug-of-war" distortion inherent in screw-tightened hoops. A flatter surface means your 9-inch rectangle actually stays 9 inches long.

Warning: Mechanical Safety
Always keep your workspace clear of scissors and spare bobbins. During high-speed travel stitches, a loose object on the machine bed can be struck by the moving hoop, causing catastrophic alignment failure or physical injury.

Prep Checklist: The "Go/No-Go" Criteria

• Hoop Verification: Confirm you are designing for the 6x10 hoop specifically.
• Unit Discipline: Switch your mindset to Inches. Mixing metric and imperial is the #1 cause of "almost fits" disasters.
• Zipper Inventory: Confirm you have an 11-inch zipper (or longer) for a 9-inch opening. You need clearance for the slider to sit outside the stitch area.
• Software Access: Ensure you can launch both Draw Package and Auto Punch Wizard.
• Consumables Check: Do you have temporary spray adhesive or painter's tape? (Essential for holding the zipper down).




Phase 2: Building the Placement Line (The Map)

The instructor starts in the Draw Package. This is raw vector creation.

Action: Open Draw Package. Tool: Rectangle Tool. Setting: Mid-range line. Sensory Check: Look for a crisp black line.

Critical Instruction: Do not stress about the size yet. Just draw a rectangle. Why? Because dragging a mouse to hit exactly 9.00 inches is frustrating and inaccurate. We will use the software's "brain" (Auto Punch) to force the dimensions later.

Save Strategy: Save this as a bitmap (e.g., zipper_placement_black.bmp).

Phase 3: Auto Punch & The Dimension Lock

Import that black bitmap into the Auto Punch Wizard.

Step 1: Crop. Remove the white space. Step 2: Force Dimensions.

• Unit: Inches.
• Width: 9.00"
• Height: 1.00"

Why 1.00 inch? A standard #3 zipper tape is roughly 1 inch wide. This box creates a perfect footprint. If you tape your zipper exactly inside this line, it is centered.

The Machine Variable: If you are using embroidery machine singer models, you know they can be sensitive. A placement line that is mathematically perfect in software can drift if the fabric isn't stabilized. We use a 1.00" width (matching the tape) so you can visually verify alignment before the permanent stitching starts.

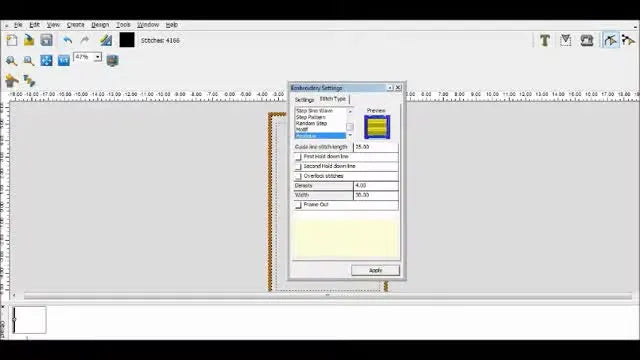

Phase 4: The Clean-Line Trick (Crucial Technique)

This is the "secret sauce" of the tutorial. We need to convert a solid block (Fill) into a simple line (Run).

The Problem: Auto Punch wants to make a Satin stitch (zigzag) or a Fill stitch (tatami). Both are too heavy for a placement line. They add bulk and perforate the stabilizer too many times.

The Solution:

1. Select the object.
2. Change Stitch Type to Applique.
3. DISABLE (Uncheck):
   • First Hold Down
   • Second Hold Down
   • Overlock

The Result: You trick the software into generating a Single Running Stitch. Visual Check: The preview should turn from a solid block to a thin outline.

Expert Note on Density: The video shows a density of 4.10. For running stitches, this is less relevant, but generally, for ITH construction, we want a stitch length of about 2.5mm to 3.0mm. Too short (2.0mm) perforates the paper; too long (4.0mm) is sloppy.

Phase 5: The Stitch Line (The Anchor)

Now, we create the structural line. We use a different color so we can identify it later.

Action: Back to Draw Package. Tool: Rectangle Tool. Color: Red. Save: zipper_stitch_red.bmp.

Why Color Matters: In production environments, color stops are "Stop commands" for the machine. By making this red, the machine will force a stop after the black placement line, giving you time to tape the zipper down.

Phase 6: Precision Sizing & The "Safe Zone"

Import the red bitmap into Auto Punch. Critical Step: Select "No Background" and keep the fill.

Now, go to Transform Design. Action: Unlock the Aspect Ratio (the padlock icon). Input:

• Width: 9.00"
• Height: 0.60"

The Mathematics of Safety:

• Zipper Width = 1.00"
• Stitch Box = 0.60"
• Difference = 0.40" (0.20" buffer on top, 0.20" buffer on bottom).

This 0.20" (approx 5mm) gap is your Safety Zone. It ensures the needle penetrates the zipper tape but stays far away from the nylon/metal teeth. Hitting zipper teeth is a high-velocity event that can shatter a needle and send shrapnel flying.

Production Productivity: If you find yourself constantly re-measuring and re-hooping because things shifted, analyze your setup. An upgrade to a magnetic hooping station allows you to preserve the alignment of your backing while you manipulate these precise layers, drastically reducing the "figgle factor."

Phase 7: The Merge (Synthesis)

We now have two disparate files. We must fuse them.

1. Select the Red Stitch Line object.
2. Copy (Ctrl+C).
3. Open the Black Placement file.
4. Paste (Ctrl+V).

Visual Confirmation: You should see a Red Rectangle floating perfectly centered inside a Black Rectangle.

• Black: Guides you.
• Red: Sews it.




Phase 8: The Physics of ITH Failure (Troubleshooting)

Even with a perfect file, things go wrong. Here is how to diagnose issues based on sensory feedback.

Stabilizer Decision Tree

Bad stabilization creates "Flagging"—where fabric bounces with the needle, causing loops.

• Scenario A: Standard Cotton/Canvas.
  • Rx: Medium Weight Cut-Away (2.5oz). Tear-away is too weak for zippers; the perforated line will rip during turning.
• Scenario B: Stretchy Knit/Jersey.
  • Rx: Heavy Cut-Away + Fusible Interfacing on the fabric. You must arrest the stretch.
  • Tool Tip: Use a magnetic embroidery hoop here. Stretching knit fabric in a standard hoop distorts the weave. When you unhoop, the fabric relaxes, and your perfect rectangle becomes a pucker-fest.
• Scenario C: Vinyl/Faux Leather.
  • Rx: Medium Cut-Away. Do not use aggressive sticky spray; it gums up needles. Use painter's tape.

Warning: Magnetic Safety
Magnetic frames for embroidery machine use powerful neodymium magnets. They can pinch skin severely and damage mechanical watches or pacemakers. Handle with respect. Slide them apart; do not pry them.

Troubleshooting Matrix

Phase 9: Workflow Optimization & Scaling

If you are a hobbyist making one bag, the standard process is fine. But if you are doing a run of 20 bags for a craft fair, efficiency is profit.

The Bottleneck Analysis:

1. Hooping: The physical act of screwing a hoop tight 20 times hurts the wrist.
   • Solution: A hooping station for embroidery ensures the fabric is square every time without measuring.
2. Turnover: Unhooping and re-hooping takes 3-5 minutes per bag.
   • Solution: machine embroidery hooping station combined with magnetic frames reduces this to 45 seconds.

Setup Checklist: Pre-Flight Verification

• Visual: File contains 2 colors (Placement + Tack-down).
• Metric: Placement is 9.00" x 1.00".
• Metric: Stitch line is 9.00" x 0.60".
• Settings: "Applique" mode selected; Hold-down/Overlock OFF.
• Hardware: Bobbin is full (running out mid-zipper is painful).
• Safety: Needle is sharp (Size 11/75 or 14/90 for zippers).

Operation Checklist: The Test Run

• Do not use a real zipper yet.
• Run the file on scrap cotton + stabilizer.
• Take a ruler. Measure the stitched inner box. Is it 0.60" tall?
• If yes, you are cleared for production.

By separating strictly visual guides (Placement) from structural welds (Stitch Line) and adhering to the 1.00" vs 0.60" safety margin, you transform a risky procedure into a repeatable manufacturing process. Happy stitching.

FAQ

• Q: How do I prevent registration drift on an ITH zipper bag stitch-out when using a Singer Futura 6x10 hoop?
  A: Reduce hoop drag and keep the hoop travel path completely clear; most “drift” is physical obstruction or bed friction, not the file.
  • Clear: Remove scissors, spare bobbins, and anything the hoop can strike during travel stitches.
  • Manage: Ensure the hoop is not rubbing the table edge or a slick surface that makes the hoop “grab” and release.
  • Verify: Confirm the design is built specifically for the Singer Futura 6x10 hoop before stitching.
  • Success check: Listen for a smooth motion with no rhythmic “thump-thump” during travel; outlines should land consistently where expected.
  • If it still fails: Re-check stabilization so the fabric is not shifting inside the hoop during stitching.
• Q: How do I make a clean single running placement line in Singer Futura Auto Punch Wizard instead of a satin or fill stitch for an ITH zipper guide?
  A: Use the applique stitch-type trick and disable all applique components so Auto Punch outputs a simple outline run.
  • Select: Click the placement-line object in Auto Punch Wizard.
  • Change: Set Stitch Type to Applique.
  • Disable: Uncheck First Hold Down, Second Hold Down, and Overlock.
  • Success check: The preview should change from a filled block/heavy border to a thin, clean outline.
  • If it still fails: Re-import after cropping the bitmap tightly so Auto Punch is not interpreting extra background as part of the shape.
• Q: What exact dimensions should the Singer Futura ITH zipper placement box and zipper stitch box use for a 9-inch opening in a 6x10 hoop?
  A: Use 9.00" x 1.00" for the placement box and 9.00" x 0.60" for the stitch box to keep needle strikes away from zipper teeth.
  • Set: In Auto Punch Wizard, force the placement rectangle to Width 9.00" / Height 1.00" (in inches).
  • Set: For the stitch rectangle, unlock aspect ratio in Transform Design and input Width 9.00" / Height 0.60".
  • Confirm: Keep the stitch box centered inside the placement box before exporting the final file.
  • Success check: A ruler check on a scrap test should measure the inner stitched box at 0.60" tall.
  • If it still fails: Re-check that units are set to inches everywhere; mixed units commonly create “almost fits” sizing errors.
• Q: How do I stop Singer Futura bird nesting on an ITH zipper bag tack-down line when stitching rectangles?
  A: Rethread the upper thread correctly with the presser foot UP; most nesting is upper threading/tension setup, not the design.
  • Raise: Lift the presser foot before threading so tension discs open.
  • Rethread: Thread the machine again from the start and seat the thread firmly.
  • Feel: Pull the thread and confirm it has noticeable resistance (like flossing teeth).
  • Success check: The underside should not form a loose thread “pile” at the start; stitches should lock cleanly instead of tangling.
  • If it still fails: Stop and inspect for stabilization-related flagging (fabric bouncing can worsen loops) before changing other settings.
• Q: What stabilizer should be used for a Singer Futura ITH zipper bag on cotton/canvas vs knit/jersey vs vinyl/faux leather?
  A: Match stabilizer to fabric behavior; zipper construction needs stability to prevent flagging and distortion.
  • Choose (cotton/canvas): Use medium weight cut-away (2.5oz) because tear-away can rip along the perforated zipper line during turning.
  • Choose (knit/jersey): Use heavy cut-away + fusible interfacing on the fabric to arrest stretch.
  • Choose (vinyl/faux leather): Use medium cut-away and avoid aggressive sticky spray; use painter’s tape instead.
  • Success check: Fabric should not “bounce” with the needle (reduced flagging), and rectangles should remain square after stitching.
  • If it still fails: Re-evaluate hooping method—over-stretching knits in a standard hoop often causes post-unhoop shrink-back and misalignment.
• Q: How can Singer Futura users avoid needle breakage when sewing an ITH zipper stitch line near zipper teeth?
  A: Keep the stitch rectangle at 0.60" tall and centered inside the 1.00" placement box so the needle penetrates tape, not teeth.
  • Measure: Confirm the placement box is 1.00" tall and the stitch box is 0.60" tall before stitching.
  • Align: Tape the zipper so it sits centered inside the placement box before the tack-down runs.
  • Test: Do a scrap run without a real zipper first and measure the stitched inner box height.
  • Success check: No “tick” impacts or sudden needle snap; stitching should sound consistent and smooth.
  • If it still fails: Stop immediately and re-check centering—needle strikes on teeth are high-risk and can cause shrapnel.
• Q: What safety precautions should be followed when using magnetic embroidery frames for ITH zipper bags on a Singer Futura-style setup?
  A: Treat magnetic frames as pinch hazards and keep them away from sensitive medical devices and mechanical watches.
  • Handle: Slide magnets apart; do not pry them open.
  • Protect: Keep fingers clear of closing points to prevent severe pinching.
  • Separate: Keep magnetic frames away from pacemakers and mechanical watches.
  • Success check: The frame closes in a controlled way with no sudden snap onto skin or nearby metal objects.
  • If it still fails: Switch to a safer handling routine (two-hand control, clear bench space) before continuing the stitch-out.
• Q: For a small production run of Singer Futura ITH zipper bags (for example, 20 bags), what is the upgrade path to reduce hooping time and alignment rework?
  A: Optimize technique first, then upgrade tools if hooping and re-hooping is the bottleneck.
  • Level 1 (technique): Run a scrap test first, verify the file has 2 colors (placement + tack-down), and confirm sizes are 9.00" x 1.00" and 9.00" x 0.60".
  • Level 2 (tool): Use a hooping station and/or magnetic frames to keep backing aligned and cut re-hooping time (especially when layers shift).
  • Level 3 (capacity): If repeat runs are frequent and downtime is high, consider stepping up to a multi-needle workflow for higher throughput.
  • Success check: Repeatability improves—less re-measuring, fewer shifted rectangles, and faster hoop-to-hoop turnaround.
  • If it still fails: Identify the true bottleneck (drag, stabilization, or threading) by changing only one variable per test run.
