Simulate First, Stitch Smarter: Pickleball Embroidery Designs on Towels (and the Stabilizer Choice That Saves the Stitch-Out)

Towels are the "bullies" of the embroidery world. They are lofty, they shift under the presser foot, and their textured pile is waiting to swallow your small lettering the moment you look away.

If you have ever watched a digital simulation and thought, "That looks perfect on screen, but I don’t trust it on terry cloth," you are thinking like a pro. Simulation is clean; reality is messy.

In Regina’s demonstration of this Pickleball logo, she highlights two critical instincts that separate hobbyists from production embroiderers: simulating the build order to predict physical stress, and selecting a stabilizer foundation that actually works.

Below, I will guide you through this workflow using the "Physics of Embroidery" approach—helping you see not just what to click, but why specific settings prevent your machine from eating your towel.

Spot the Difference: Connected Text vs. Split Text (The "Island" Effect)

Regina begins by toggling between two versions of the pickleball logo. To the untrained eye, it’s just a style choice. To a machine operator, it’s a stability question.

• Version A: Connected Text. The letters are joined. On a towel, this acts like a raft—a single, solid object that floats on top of the pile.
• Version B: Split Text. The word "PICKLEBALL" is sliced horizontally.

Expert Insight: On flat cotton, split text looks dynamic. On a towel, split text creates "islands." If your stabilization is weak, the gap between the top half and bottom half of the letters can shift. You might end up with a hairline fracture where the fabric peeked through.

• Beginner Recommendation: If you are new to towels, start with the Connected Text. It offers more structural integrity and is more forgiving of minor hooping errors.


The Color Stop Chart: Your Roadmap for tension and Pull

Regina analyzes the stitch sequence: Red → Yellow → Green → White (Netting) → White (Balls) → Blue (Text).

Why does this specific order matter? It dictates the "Pull Compensation" strategy.

1. The Base Layers (Paddles): These large fill areas will mat down the towel pile.
2. The Detail Layers (Netting): These are high-risk. If the pile isn't fully compressed by the time the netting stitches, the loops of the towel will poke through the white thread.
3. The Final Layer (Text): Text is always the most vulnerable to distortion because the fabric has already been pushed and pulled by thousands of stitches before the letters even start.

Sensory Check: Before you start, pull a few inches of thread from your needle. It should unspool with smooth, consistent resistance—like pulling dental floss. If it jerks, your tension is uneven, and on a thick towel, that leads to birdnesting (thread loops) underneath.

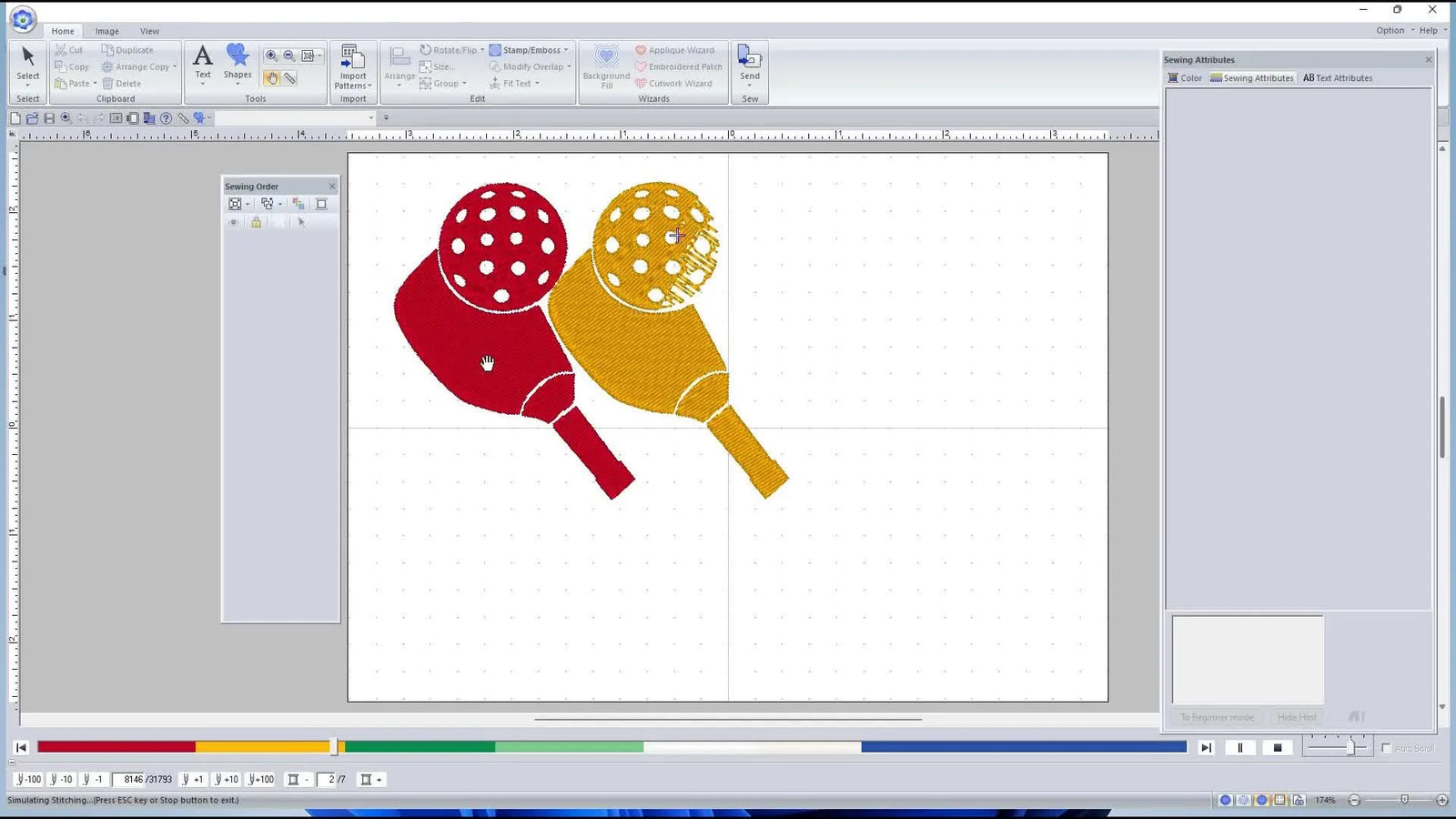

The "Stress Test" Simulation: Using Speed to Predict Pucker

Regina uses the simulator’s speed slider to watch the fill pattern.

Don't just watch the colors; watch the direction. When the simulator runs, look at the angle of the stitches.

• If the red paddle stitches Left-to-Right...
• And the yellow paddle stitches Up-and-Down...
• You have forces pulling the fabric in two different axes.

The Sweet Spot for Speed: While your modern machine might claim 1000 SPM (Stitches Per Minute), towels are heavy.

• Expert Rule: Cap your machine speed at 600-700 SPM for dense towel work.
• Why? The friction of the needle passing through thick loops builds heat. Slower speeds reduce thread breakage and keep the hoop form bouncing. Listen to your machine—a rhythmic "thump-thump" is good; a harsh "clack-clack" means you need to slow down.


The "Burial" Concept: Why Netting and Text Come Last

Regina notes the paddles and balls stitch first, followed by the netting and text. On a towel, this is an architectural necessity known as "Burial."

You are essentially using the first layer of thread to pave a road over the bumpy towel surface. The detailed netting must sit on top of that paved road.

The Risk: If your hoop tension is loose (common with thick towels), the fabric will "flag" (bounce up and down). This causes the base layer to shift. By the time the machine comes back to stitch the white netting, it might miss the red paddle entirely, landing on raw towel loops.

• The Fix: This is why we use distinct machine embroidery hoops or magnetic frames for towels—to endure the fabric is held drum-tight without being stretched out of shape.


Stabilizer Physics: The "No Tearaway" Rule for Heavy Fills

Regina’s command is absolute: "Do NOT use Stitch and Tear Light." She recommends Pellon 806 (a heavy tearaway) or a Cutaway.

Let’s go deeper into the why. A towel is vibrant and alive; it wants to move. A dense logo is heavy and static.

• Light Tearaway: It is essentially paper. When a needle perforates it 10,000 times in a small area (like a paddle), the paper disintegrates into a hole. Your towel is now floating in the hoop with no support.
• Cutaway: This is a non-woven fabric. It does not dissolve or tear. It remains a permanent scaffold for the stitches for the life of the towel.

My Professional Recommendation: For any towel that will be washed (kitchen/bath), Always use Cutaway (Mesh or Medium Weight). It prevents the design from balling up in the laundry. If the back feels rough, you can cover it with a soft fusible backing (like Cloud Cover) later.

Warning (Mechanical Safety): Towels generate lint. A LOT of lint. Before starting a dense project, check your bobbin case. A clump of lint under the bobbin tension spring will cause zero tension on the bottom, leading to massive loops on top. Clean your race area before you hoop.

Pre-Flight Prep: The "Hidden Consumables" You Need

Regina mentions the file was stitched by a group member. To replicate that success, you need a setup that goes beyond just the file.

The "Invisible" Essentials for Towels:

1. Water Soluble Topper (Solvy): Regina focuses on backing, but for any towel, you must place a layer of water-soluble film ON TOP of the towel. This prevents the towel loops from poking through the stitches. It washes away with water later.
2. Topstitch Needle (75/11): Use a sharp or topstitch needle, not a universal one. You need to pierce the loops cleanly, not push them aside.
3. Spray Adhesive: Use a light mist of temporary spray adhesive to bond the towel to the stabilizer before hooping. This prevents the "shifting" that ruins text.


The Hooping Struggle: Friction, Thickness, and Solutions

Regina’s simulation shows a clean design, but getting a thick folded towel into a standard plastic hoop is a wrestling match. You have to unscrew the outer ring almost entirely, force the inner ring in, and pray you don’t get "hoop burn" (crushed pile that never springs back).

The Modern Solution: This struggle is why the industry has shifted toward magnetic embroidery hoops.

• Mechanism: Instead of friction (wedging fabric between plastic rings), magnetic hoops use vertical clamping force.
• Benefit: You can hoop a thick towel in 5 seconds without adjusting screws. The magnets hold the towel firmly against the stabilizer without crushing the surrounding fibers.
• Result: Zero hoop burn and consistent tension across the entire design area.

Warning (Magnet Safety): Industrial magnetic hoops use Neodymium magnets. They are incredibly powerful. Pinch Hazard: Keep fingers clear of the mating surfaces. Device Safety: Keep these hoops at least 12 inches away from pacemakers, insulin pumps, and magnetic storage media.

The "text Check" Scrub: Managing the High-Risk Zone

Regina scrubs the timeline to checking the text. She notes the letters stitch in chunks.

Why check this? Small text on a towel causes the machine to make many "Jump Stitches" (moving from one letter to another).

• Trim Command: Ensure your machine is set to trim jump stitches automatically.
• Pull Compensation: If you scrub the timeline and see the letters look very thin, do not stitch it. Towel pile will swallow thin column stitches. You may need to increase the "Pull Compensation" or "Column Width" in your software by 0.2mm to make the letters "bolder" so they stand out.


Decision Tree: Stabilizer & Topper Selection

Regina suggests Pellon 806 or Cutaway. Here is a definitive decision tree to remove the guesswork.

Scenario: You are stitching the Dense Pickleball Logo on a Towel.

Q1: Is the towel for display only (e.g., hanging in a bathroom, rarely washed)?

• Yes: Use Heavy Tearaway (Pellon 806) + Solvy Topper.
  • Reason: Clean back, sufficient stability for low wear.
• No: Go to Q2.

Q2: Is the towel for daily use (Gym, Kitchen, Hand drying)?

• Yes: Use Medium Weight Cutaway (2.5oz) + Solvy Topper.
  • Reason: Cutaway is permanent. It will prevent the logo from shrinking differently than the towel during drying, keeping the stitching flat forever.

Q3: Is the towel incredibly plush/thick?

• Yes: Add Spray Adhesive to the Cutaway stabilizer to prevent the towel from "swimming" on top of the backing.


Visualizing the Finish: What "Completed" Means Physically

Regina shows the completed blue text.

Real World Reality Check: When the machine finishes, do NOT just rip it out of the hoop.

1. Inspect while hooped: Check the text. If the towel loops are poking through, place a second layer of Solvy topper over the bad area and re-stitch the specific color (backing up the machine). This is your "Undo" button.
2. Tear cleanly: Remove the text jump stitches before washing away the topper. It’s easier to see them against the film.


The Split Text Variant: Advanced Difficulty

Regina returns to the split text file. As mentioned, this introduces "edges."

The Stabilization Challenge: With split text, the machine stitches the top half, cuts, moves, and stitches the bottom half.

• Risk: If your hoop isn't tight—"drum tight"—the towel will relax slightly between these steps. The bottom half might end up 1mm to the right of the top half.
• Solution: This is another scenario where an embroidery magnetic hoop provides superior hold on thick fabrics, preventing that micro-shifting that ruins the alignment of split designs.


Color Swapping: The Thread Weight Factor

Regina confirms you can change colors. However, be aware of thread weight interaction.

• Standard Thread: 40wt Polyester. This is what most designs are digitized for.
• Thicker Thread: If you decide to use a thicker 30wt cotton thread for a "matte" look, the design will become too dense and bulletproof stiff.
• Thinner Thread: If you use 60wt thread for fine text, it will disappear into the towel.

Rule of Thumb: Stick to standard 40wt Rayon or Polyester for towel logos to match the digitizer's intent.

Production Workflow: The "Assembly Line" Mindset

Regina uses the timeline scrubber to plan. If you are doing one towel, speed doesn't matter. If you are doing 50 towels for a Pickleball club, efficiency is everything.

The Bottlenecks:

1. Hooping Time: Wrestling towels into screw-hoops takes 2-3 minutes per towel.
2. Thread Changes: On a single-needle machine, you are stopping 6 times (Red, Yellow, Green 1, Green 2, White, Blue).

The Upgrade Path:

• To solve hooping fatigue: A hooping station for embroidery ensures the logo is in the exact same spot on every towel, every time.
• To solve thread fatigue: This is the trigger point where many hobbyists look at multi-needle machines. A 15-needle machine holds all your colors. You press "Start," and it runs the entire logo without you touching it.


Troubleshooting Guide: The "Why Did It Fail?" Matrix

Even with great files, things happen. Use this table to diagnose towel issues.

Conclusion: From Hope to Certainty

Embroidery on towels shouldn’t be a game of chance. Regina’s video gives us the software foundation—simulation and stitch order—but your physical setup determines the victory.

Your Action Plan:

1. Prep: Select the "Connected Text" file for safety. Load your bobbin with fresh thread.
2. Setup: Hoop a Medium Cutaway stabilizer to your towel using a Magnetic Hoop (if available) or a very secure standard hoop. Apply a Water Soluble Topper.
3. Execute: Run the machine at 600 SPM. Listen for the smooth rhythm.

Start with the right tools. If you find yourself fighting the hoop on every towel, or dreading the 6-step thread change, that is your signal. It might not be your skill that needs upgrading—it might be your gear. Search for terms like hooping stations or multi-needle solutions to see how professionals remove the friction from the process.

Prep Checklist (Do this BEFORE turning on the machine)

• Needle: Insert a fresh 75/11 Sharp or Topstitch needle.
• Bobbin: Clean lint from the bobbin case; insert a full bobbin.
• Software: Simulate the design; check for thin columns.
• Consumables: Cutaway stabilizer + Solvy Topper + Spray Adhesive meant for fabric.

Setup Checklist (Do this WHILE hooping)

• Marking: Mark the center of the towel with a water-soluble pen or stickers.
• Bonding: Lightly spray stabilizer and smooth the towel onto it.
• Topping: Float the water-soluble topper over the design area.
• Hooping: Ensure the towel is taut like a drum skin, not stretched like a rubber band.
• Clearance: Verify the hoop fits the machine arm without hitting the back wall.

Operation Checklist (Do this DURING the stitch)

• Observe: Watch the first 100 stitches. Is the thread catching?
• Listen: erratic "clunks" mean a needle strike or tangle is imminent—STOP immediately.
• Trim: Use curved snips to trim jump stitches between color changes if your machine doesn't do it automatically.
• Finish: Tear away the stabilizer/topper gently to avoid distorting the fresh stitches.

FAQ

• Q: What stabilizer should I use for dense logo embroidery on terry towels to prevent gapping and distortion?
  A: Use a medium-weight cutaway stabilizer with a water-soluble topper for towels that will be washed; use heavy tearaway only for display-only towels.
  • Choose: Daily-use towels → Medium cutaway (mesh or medium weight) + water-soluble topper; display-only towels → Heavy tearaway (e.g., Pellon 806) + topper.
  • Add: Light temporary spray adhesive to bond towel to stabilizer before hooping, especially on plush towels.
  • Avoid: Light tearaway for dense fills because it can perforate and lose support mid-design.
  • Success check: After stitching, the design stays flat with no fabric showing between fill and outline when gently tugging the towel.
  • If it still fails… Switch from tearaway to cutaway and re-check hoop tightness and shifting during the first 100 stitches.
• Q: How do I set machine embroidery thread tension correctly for stitching dense designs on thick towels to prevent birdnesting underneath?
  A: Do a quick “floss test” and clean the bobbin area first—uneven top feed or lint under the bobbin tension spring commonly causes towel birdnesting.
  • Pull: Unspool a few inches of upper thread; aim for smooth, consistent resistance (no jerking).
  • Clean: Remove lint from the bobbin case/race area before hooping a dense towel design.
  • Re-thread: Re-thread the top path completely if resistance feels inconsistent.
  • Success check: The machine runs with a steady rhythm and the underside shows controlled stitches instead of large loose loops.
  • If it still fails… Stop immediately, clean again, and verify threading path matches the machine manual step-by-step.
• Q: What is the correct machine embroidery speed (SPM) for dense towel embroidery to reduce thread breaks and puckering?
  A: Cap towel embroidery speed at 600–700 SPM as a safe starting point for dense designs on terry cloth.
  • Set: Reduce speed before starting dense fills (large paddles/blocks) and small text.
  • Listen: Slow down if the machine sound turns harsh or “clacky,” which often signals stress/heat or instability.
  • Watch: Observe the first 100 stitches for bouncing/flagging and thread catching.
  • Success check: The machine produces a smooth “thump-thump” rhythm and stitches stay registered without visible shifting.
  • If it still fails… Re-check hoop tightness and stabilizer choice; speed reduction cannot compensate for loose hooping.
• Q: How do I hoop a thick towel for machine embroidery without hoop burn and without the towel shifting during stitching?
  A: Use firm, even tension (drum-tight but not stretched), and consider a magnetic embroidery hoop to clamp thick towels quickly without crushing the pile.
  • Bond: Lightly spray stabilizer, then smooth the towel onto the stabilizer before hooping to prevent “swimming.”
  • Hoop: Aim for drum-tight hold (taut like a drum skin, not stretched like a rubber band).
  • Upgrade: Use a magnetic hoop to avoid overtightening screw hoops and to reduce hoop burn on lofty towels.
  • Success check: The towel does not bounce (flag) under the needle, and the pile outside the design area is not permanently crushed.
  • If it still fails… Switch to cutaway + spray adhesive, and re-check that the hoop is not loosening during stitching.
• Q: What is the safest way to use industrial magnetic embroidery hoops with neodymium magnets during towel embroidery?
  A: Treat magnetic hoops as a pinch and device hazard—keep fingers clear and keep magnets away from medical implants and sensitive items.
  • Keep hands clear: Close the hoop slowly and avoid placing fingers between mating surfaces.
  • Keep distance: Store and use magnets at least 12 inches away from pacemakers, insulin pumps, and magnetic storage media.
  • Control: Place the hoop flat on a stable surface when loading thick towels to prevent snap-together accidents.
  • Success check: The hoop closes without sudden snapping, and the towel is held evenly with no localized crushed areas.
  • If it still fails… Use a standard hoop temporarily and focus on stabilizer + adhesive until safe handling is comfortable.
• Q: How do I prevent towel loops from poking through white netting and small lettering in machine embroidery on terry cloth?
  A: Always use a water-soluble topper on top of the towel, and verify the design stitches detail layers after the base layers compress the pile.
  • Place: Lay water-soluble film topper over the stitching area before starting.
  • Verify order: Ensure large base fills stitch before delicate netting/text so the pile is “buried” and flattened first.
  • Check text build: If letters look thin in preview, increase column width/pull compensation slightly (a small adjustment like 0.2 mm may help, depending on software).
  • Success check: Finished lettering edges look clean and readable with minimal towel loops visible between stitches.
  • If it still fails… Add a second layer of topper and re-stitch the problem color area while still hooped (if the machine allows backing up).
• Q: What is the best production upgrade path for stitching 50 towels efficiently when hooping takes too long and single-needle thread changes slow everything down?
  A: Fix technique first, then remove bottlenecks with the right tools: hooping station for placement repeatability, magnetic hoops for fast clamping, and multi-needle machines to eliminate constant color changes.
  • Level 1 (technique): Standardize prep (clean bobbin area, topper on top, cutaway on back) and cap speed around 600–700 SPM for towels.
  • Level 2 (tooling): Use magnetic hoops to cut hooping time and reduce hoop burn; add a hooping station to hit the same logo position every time.
  • Level 3 (capacity): Move to a multi-needle machine when 6+ color stops per towel become the main time sink.
  • Success check: Cycle time becomes predictable—hooping is consistent, alignment repeats, and operator stops per towel drop significantly.
  • If it still fails… Track which step eats time (hooping vs. trims vs. thread changes) and upgrade the single biggest bottleneck first.
