The Science of Mylar Embroidery: A Master Class in Sparkle Without Metallic Thread

Mylar embroidery is often perceived as an "advanced" technique reserved for boutique owners, largely because the finished product looks so intricate. The light dancing off the design suggests a complex interplay of metallic threads and high-tension settings.

However, from an engineering and production standpoint, Mylar embroidery is deceptive. It is actually simpler than working with metallic thread—provided you understand the physics of the materials.

There are two non-negotiable rules that separate a professional result from a crumpled mess:

1. Digitizing Physics: The stitch density must be significantly lower than standard to allow light transmission.
2. Material Suspension: The Mylar film must remain in a state of "relaxed tension"—flat enough to avoid bubbling, but loose enough to prevent pre-tearing—until the very last stitch is locked.

If you are a beginner, this guide will dismantle the anxiety of "ruining the design" and replace it with a repeatable, industrial-standard workflow. We will move beyond "hope it works" into "know it works."

Mylar embroidery designs only work when stitch density is “open” (here’s the non-negotiable reason)

To understand why standard designs fail with Mylar, we must look at the mechanics of thread coverage.

In traditional embroidery, the goal is often Total Coverage. We use satin stitches with densities ranging from 0.40mm to 0.35mm to ensure we cannot see the fabric underneath. If you use a standard design like this over Mylar, the thread acts like a blackout curtain. You are burying the reflective material under a wall of thread. The result is a dull, bulky patch that looks like a mistake.

The "Mylar-Ready" Difference: A design digitized for Mylar utilizes much wider spacing—often 0.8mm to 1.2mm or lighter "scribble" fills. This spacing acts like window blinds rather than a curtain. It structurally holds the film down while offering gaps for light to enter, hit the Mylar surface, and reflect back to the viewer's eye.

The Beginner’s Safety Protocol

To save you from wasted materials and frustration, internalize these two rules:

1. Do Not "Fix" Gaps: When you see the design on your screen or in software, it may look "thin" or "gappy." Do not increase the density. If you crank the density up, you destroy the reflective mechanism.
2. Do Not Use Metallic Thread: This is a common rookie error. The sparkle comes from the substrate (the Mylar), not the filament. Using standard Polyester or Rayon 40wt thread is preferred because it runs smoother, breaks less often, and allows the Mylar to be the star.


The “hidden prep” before you stitch: Mylar, stabilizer, and thread choices that prevent wasted film

Success in machine embroidery is 80% preparation and 20% execution. Before you even approach the machine, you need to assemble a kit that accounts for the specific behaviors of Mylar film.

The Standard Kit (as used in the tutorial):

• Opal Translucent Mylar: This is superior to standard craft foil because it is semi-transparent. It picks up the color of the thread and the fabric, creating an iridescent, color-shifting effect.
• Tear-away Stabilizer: Used here on stable cotton.
• Regular 40wt Embroidery Thread: Poly or Rayon.
• Painter’s Tape or Embroidery Tape: Crucial for the "floating" technique.
• Precision Tweezers: For the final cleanup.

The "Hidden" Consumables (What Pros Add):

• Fresh Needle (75/11 Sharp or Ballpoint depending on fabric): Mylar essentially dulls blades. A burred needle will shred the film rather than perforate it cleanly. Start with a fresh needle.
• Non-Stick Needle (Optional): If you use adhesive sprays, gumming up the needle is a risk.
• Micro-serrated Scissors: For cutting the Mylar sheet cleanly before application.

A Note on Consistency: Mylar is slippery. It has zero friction. If your hooping technique is inconsistent, the Mylar will shift. This is where many hobbyists begin to study hooping for embroidery machine technique seriously. If the fabric below the Mylar is loose (flagging), the Mylar will ripple.

Prep Checklist (Do this BEFORE the hoop goes on the machine)

• Needle Check: Is the needle straight, sharp, and free of burrs? Run your fingernail down the shaft to check for scratches.
• Bobbin Check: Is the bobbin retention spring clean? Is the bobbin at least 50% full? (Running out of bobbin thread mid-Mylar design is a nightmare to fix).
• Material Sizing: Cut fabric and stabilizer at least 1–2 inches larger than the hoop on all sides.
• Mylar Sizing: Cut one piece of Opal Mylar large enough to cover the design area + 1 inch margin.
• Tape Prep: Pre-tear 4 pieces of embroidery tape and stick them to the edge of your table. Do not fumble for the tape roll while the machine is waiting.


Hooping cotton + tear-away stabilizer in a Brother 5x7 hoop: get it taut without stretching it

Standard plastic hoops rely on friction and screw-tension to hold fabric. When working with Mylar, the stability of the foundation (the fabric) is paramount.

The Tactile Goal: "Drum-Skin Tautness"

1. Lay the outer ring on a flat surface.
2. Place stabilizer, then fabric.
3. Press the inner ring down.
4. The Sensory Check: Gently tap the fabric. It should sound like a dull thud. Run your fingers across it—there should be no ripples. However, do not pull the fabric so tight that the weave distorts (look at the grain of the cotton; it should remain square).

The "Hoop Burn" Pain Point & The Tool Upgrade If you are doing one shirt, a standard hoop is fine. However, if you are doing a production run of 20 shirts, you will encounter two issues:

1. Hoop Burn: The friction ring leaves crushed marks on the fabric that are hard to iron out.
2. Hand Fatigue: Constantly tightening screws strains the wrist.

Scenario: When to Upgrade? This is the moment many operators upgrade to magnetic embroidery hoops. Unlike traditional hoops that drag fabric to create tension, magnetic hoops use vertical clamping force.

• The Benefit: They hold the fabric perfectly flat without crushing the fibers (eliminating hoop burn).
• The Workflow: You simply "snap" the top frame onto the bottom frame. For slippery materials or delicate items that support Mylar designs, this tool removes the variable of "did I tighten the screw enough?"


Warning: Hoop Safety. If you use magnetic embroidery hoops, handle them with extreme respect. The magnets are industrial-strength. Keep fingers clear of the "snap zone" to avoid painful pinches, and keep them away from pacemakers, credit cards, or computerized machine screens.

Stitch the placement outline first—this line is your “map” for perfect Mylar placement

Once the machine is loaded, load your design. The first color stop in a Mylar design is almost always a Placement Line.

Why this step matters: This is your "Dry Run." It shows you exactly where the sparkle will be.

Execution:

1. Press Start.
2. Watch the machine trace the outline (e.g., the pumpkin shape).
3. Visual Audit: Look at the stitched line. Is the fabric puckering inside the line? If yes, STOP. Your hooping is too loose. Abort and re-hoop. If you proceed with puckered fabric, the Mylar will look terrible.


Tape down one sheet of opal translucent Mylar—flat, centered, and fully covering the outline

This is the most critical manual intervention in the process. You are introducing a foreign material to the stitch field.

The "Float" Technique:

1. Take your pre-cut Opal Mylar sheet.
2. Place it over the placement line. Ensure you have at least 0.5 inches of overhang past the stitching on all sides.
3. Taping Strategy: Tape the four corners.
   • Tactile Check: The Mylar should be flat, but not stretched tight. If you pull Mylar tight like plastic wrap, the first needle penetration will cause it to split and retract, leaving gaps. It should sit comfortably on the fabric.


The Safety Factor: Tape keeps your fingers out of the "Danger Zone." Never hold the Mylar with your fingers while the machine is running.

Standardizing the Process: If you find that your Mylar is constantly crooked or you struggle to align perpendicular lines, you might benefit from a hooping station for embroidery. A station holds the hoop static and provides a grid reference, allowing you to tape materials with geometric precision. This is overkill for a hobbyist doing one towel, but essential for a shop doing team jerseys.

Setup Checklist (Right before you hits START for the Tack-down)

• Clearance: Is the tape outside the stitch path? (Stitching through tape gums up the needle).
• Coverage: Does the Mylar cover the entire outline?
• Slack: Is the Mylar flat but relaxed (not drum-tight)?
• Obstructions: Are sleeves or excess fabric clear of the pantograph arm?

Run the tack-down stitch: lock the Mylar in place before the fill does the heavy work

The next color stop is the Tack-Down. This stitch traces the outline again (usually a running stitch or a light zigzag) to perforate the Mylar and pin it to the fabric.

The Sonic Check: Listen to your machine. As it stitches through Mylar, the sound will change slightly—a sharper "snap" or "crackle" is normal as the needle punches through the film. If you hear a grinding noise or a loud "thud," stop immediately—you may have hit the hoop or tangled thread.

Efficiency Hack: The video tutorial suggests grouping your colors. If the outline and the tack-down are the same color, you don't need to change threads. However, ensure the machine performs a "Stop" command between them so you have time to place the Mylar.

Stitch the open-density fill over Mylar—then judge color the “Mylar way,” not the normal way

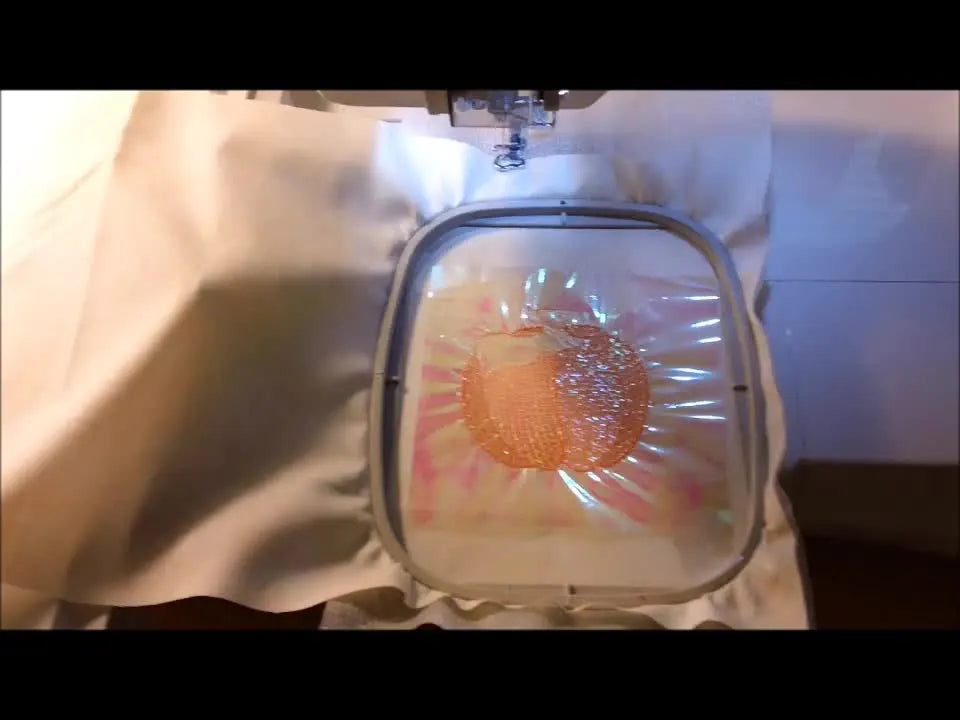

Now the machine begins the fill stitch. This is where the magic (and the confusion) happens.

Managing Expectations: As the fill stitches out (step fill or light satin), you will see significant gaps.

• The Novice Reaction: "Oh no, the thread is running thin! It looks washed out!"
• The Expert Reality: This is calculated. The thread provides the hue, but the Mylar provides the light.


The Color Theory of Mylar: Because the Mylar is opal/translucent, it reflects the thread color and transmits the background fabric color.

• Standard Embroidery: To make a pumpkin darker, you increase density.
• Mylar Embroidery: To make a pumpkin darker, you must use a darker thread shade. You cannot rely on density for saturation. Light orange thread on Mylar will look pastel. Dark orange thread on Mylar will look vibrant.


Production Note on Speed (SPM): While modern machines can run at 1000 Stitches Per Minute (SPM), Mylar behaves better at lower speeds. Friction creates heat, and Mylar can warp with heat.

• Recommended Speed: 600 - 800 SPM.
• Slowing down slightly reduces the risk of the thread shredding against the sharp edges of the perforated Mylar.


Operation Checklist (Mid-Stitch)

• Monitoring: Do not walk away. Mylar can occasionally lift if the tape fails.
• Tension Check: Look at the back of the hoop (if possible) or listen for tension issues. Mylar adds thickness; ensure your top tension isn't creating birdnests below.
• No Touching: Resist the urge to smooth the Mylar with your hand while the needle is moving.

Tear away excess Mylar the clean way: pull back toward the stitches and let perforations do the cutting

Once the design is finished, remove the hoop from the machine. Do not un-hoop the fabric yet. It is easier to remove the excess Mylar while the fabric is still held taut in the hoop.

The Physics of the Tear: The needle has essentially created a "perforated stamp" line around your design.

The Technique:

1. Lift a corner of the excess Mylar.
2. Pull horizontally toward the center of the design.
   • Incorrect: Pulling up/away (This lifts the satin stitches and ruins the edge).
   • Correct: Pulling flat against the fabric, towards the stitching.
3. The Mylar should "unzip" cleanly along the needle holes.






The Cleanup: You will likely have small "flags" of Mylar stuck in tight corners or distinct angles. Do not use your fingers—you will pull the thread. Use your tweezers. Grab the Mylar bit close to the stitch and wiggle it free.

Troubleshooting Mylar embroidery: symptoms → causes → fixes (the stuff comments usually ask next)

Even with perfect prep, things go wrong. Use this diagnostic table to identify issues before you blame the machine.

A stabilizer decision tree for Mylar embroidery (so you don’t guess and waste materials)

The video uses cotton and tear-away, which is the "School Zone" safe combination. But the real world is messy. Use this logic tree to make safe decisions:

Start: Identify Your Fabric

1. Is the fabric stable (No Stretch)? (e.g., Denim, Woven Cotton, Canvas)
   • YES: Use Tear-Away Stabilizer. (Clean finish, easy removal).
   • NO: Go to step 2.
2. Is the fabric unstable (Stretchy)? (e.g., T-shirt, Jersey Knit, Polo)
   • YES: Use Cut-Away Stabilizer.
   • Why? Mylar designs have low density, which offers less structural support. If you use tear-away on a T-shirt, the shirt will stretch around the Mylar, causing gaps. Cut-away provides the permanent skeleton the design needs.
3. Is the fabric textured/fluffy? (e.g., Towel, Fleece)
   • YES: Use Cut-Away (Bottom) + Water Soluble Topping (Top) + Mylar (Middle).
   • Why? You need the topping to prevent the Mylar from sinking into the loops of the towel.

The upgrade path that actually makes sense: when to add a magnetic hoop, a hooping station, or a multi-needle machine

The specific tools you use should match your volume. Do not buy expensive gear for a hobby; do not use hobby gear for a business.

Level 1: The Hobbyist (Occasional Use)

• Tools: Standard Plastic Hoop + Painter's Tape.
• Verdict: Fine for gifts and learning. Low cost, high labor.

Level 2: The "Side Hustle" (Etsy/Craft Fairs)

• Pain Point: Sourcing consistency and speed. "Hoop burn" is ruining inventory.
• The Upgrade: Magnetic Embroidery Hoops.
• Why: If you are making 20 tote bags, the ability to clamp them instantly without unscrewing rings saves hours. Users specifically searching for a brother 5x7 magnetic hoop often find that the time saved pays for the hoop in two jobs.

Level 3: The Production Shop (Bulk Orders)

• Pain Point: Downtime. Thread changes are eating your profit. Hooping causes wrist strain.
• The Upgrade: Hooping Stations + Multi-Needle Machines.
• Why: A system like hoopmaster or a dedicated hoop master embroidery hooping station ensures that every logo is in the exact same spot on every shirt, reducing rejects. Furthermore, moving to a multi-needle machine (like a SEWTECH model) allows you to set up 10+ colors (including your specific Mylar border colors) and walk away while it runs.

Final reveal standards: what a clean Mylar finish should look like

When you present the final product—whether to a grandchild or a paying client—inspect it against this standard:

1. Uniform Sparkle: No dull spots where satin stitches accidentally covered the film.
2. Clean Bounding Box: No jagged Mylar sticking out past the border.
3. Soft Hand: It shouldn't feel like a hard piece of plastic armor. It should be relatively flexible.

If you follow the sequence—Proper Density Design → Fresh Needle → Relaxed Mylar Tension → Tear Toward Stitches—you will achieve that high-end "boutique" look without the headache of metallic thread.

FAQ

• Q: Why does a standard satin-density embroidery design look dull or bulky when stitching Opal Translucent Mylar on a Brother 5x7 hoop?
  A: Use an open-density “Mylar-ready” design (do not increase density), because dense stitches block light and bury the film.
  • Keep spacing wide (often 0.8 mm to 1.2 mm) or use lighter “scribble” fills instead of normal satin coverage.
  • Change thread shade (go darker) instead of “fixing” gaps by adding density.
  • Stitch with regular 40wt polyester or rayon thread, not metallic thread.
  • Success check: The finished area should show intentional gaps with uniform sparkle coming through the stitch field.
  • If it still fails: Recheck whether the file was digitized for Mylar (not a standard fill converted after the fact).
• Q: What is the best needle and pre-check routine to prevent Mylar shredding during machine embroidery on woven cotton with tear-away stabilizer?
  A: Start with a fresh 75/11 needle and do the needle-and-bobbin checks before hooping, because Mylar dulls needles quickly and a burred needle will shred film.
  • Replace the needle (sharp or ballpoint depending on fabric) and feel for burrs by running a fingernail down the needle.
  • Check the bobbin area: confirm the retention spring is clean and the bobbin is at least 50% full.
  • Pre-cut materials: fabric and stabilizer 1–2 inches larger than the hoop; Mylar large enough to cover the design area plus margin.
  • Success check: During stitching, the Mylar should perforate cleanly without early tearing or “shredded confetti” around the needle.
  • If it still fails: Stop immediately and change to another fresh needle (a damaged needle can fail fast on Mylar).
• Q: How do I know if hooping cotton with tear-away stabilizer in a Brother 5x7 hoop is tight enough for Mylar embroidery without stretching the fabric?
  A: Hoop to “drum-skin taut” (flat, no ripples) without distorting the fabric grain, because loose fabric causes flagging and Mylar bubbling.
  • Tap the hooped fabric and feel the surface: aim for a firm, even tension rather than a stretched weave.
  • Run the placement line first and inspect the stitched outline before adding Mylar.
  • Stop and re-hoop if puckering shows inside the placement line—Mylar will amplify that distortion.
  • Success check: The placement outline stitches on a flat surface with no puckers forming inside the line.
  • If it still fails: Reduce variables by re-hooping more carefully and confirming the fabric grain stays square (not pulled off-axis).
• Q: How should Opal Translucent Mylar be taped for the “float” technique after the placement line so the film does not split or shift during the tack-down stitch?
  A: Tape the Mylar flat and centered but in relaxed tension (not stretched tight), because tight Mylar can pre-tear on the first needle penetrations.
  • Place one Mylar sheet over the placement outline with at least 0.5 inch overhang on all sides.
  • Tape down the four corners and keep tape outside the stitch path to avoid needle gumming.
  • Keep hands out of the needle area; do not hold Mylar by hand while the machine runs.
  • Success check: Before pressing start, the Mylar lies smooth with no “plastic-wrap” tightness and fully covers the outline.
  • If it still fails: Re-tape with more slack and confirm the Mylar is not being pulled diagonally (crooked tension invites splitting).
• Q: What machine sound and speed settings help prevent heat warping and thread issues when stitching Mylar embroidery at high SPM?
  A: Run Mylar slower (about 600–800 SPM) and listen for normal “crackle” versus abnormal impact sounds, because friction heat and thickness changes can trigger problems.
  • Slow the machine down from top speed if the film starts to warp or the stitch quality degrades.
  • Listen during tack-down: a sharper “snap/crackle” is normal; grinding or a loud “thud” is not.
  • Watch for lift or tape failure mid-stitch; do not walk away.
  • Success check: The machine runs with a consistent stitch sound and the Mylar stays pinned flat through the fill.
  • If it still fails: Stop immediately to check for a hoop strike risk or a developing thread nest due to thickness changes.
• Q: How do I tear away excess Mylar cleanly after stitching so the border stays smooth and the stitches don’t lift?
  A: Tear the excess Mylar while the fabric is still hooped, pulling flat toward the stitches so the perforations “zip” cleanly.
  • Keep the project in the hoop and lift a corner of the excess film.
  • Pull horizontally toward the design center (not up and away) to avoid lifting edge stitches.
  • Use precision tweezers to remove tiny stuck pieces in corners instead of pulling with fingers.
  • Success check: The Mylar separates along the needle-hole perforations with a clean edge and no jagged film flags outside the border.
  • If it still fails: Use tweezers for cleanup and consider whether the border line had enough penetrations to act like a perforation cutline.
• Q: How do I choose stabilizer for Mylar embroidery on T-shirts, polo knits, towels, or fleece to avoid gaps, ripples, and sinking?
  A: Match stabilizer to fabric stability: tear-away for stable wovens, cut-away for stretch, and add water-soluble topping for textured fabrics.
  • Use tear-away on stable, non-stretch fabrics (denim, woven cotton, canvas).
  • Use cut-away on stretchy fabrics (T-shirt jersey, polo) because low-density Mylar designs need a permanent “skeleton.”
  • Use cut-away (bottom) + water-soluble topping (top) + Mylar (middle) on towels/fleece to prevent sinking into texture.
  • Success check: After stitching, the design holds shape with consistent sparkle and does not open up into gaps when the fabric relaxes.
  • If it still fails: Reassess whether the fabric is stretching in the hoop (re-hoop) and move from tear-away to cut-away on any unstable knit.
• Q: When should an embroidery shop upgrade from a standard screw hoop to magnetic embroidery hoops or a multi-needle machine to reduce hoop burn and production fatigue on repeated Mylar jobs?
  A: Upgrade when hoop burn, hand fatigue, and consistency issues start creating rejects or slowing output—first to magnetic hoops for clamping consistency, then to multi-needle for throughput.
  • Diagnose the bottleneck: if screw-tightening and fabric crushing are recurring, magnetic hoops reduce friction marks and speed up hooping.
  • Standardize placement: if alignment is inconsistent, use a hooping station to keep taping and positioning repeatable.
  • Increase capacity: if thread changes and downtime are the main profit leak, a multi-needle machine reduces stops and operator fatigue.
  • Success check: Re-hooping time drops, hoop burn complaints decrease, and repeat pieces land in the same position with fewer rejects.
  • If it still fails: Track where time is actually spent (hooping vs thread changes vs rework) and upgrade the step that causes the most interruptions first.
