Silk Dupion on a Husqvarna Viking EPIC: The Bobbin-Color Trick That Makes Dark Fabric Embroidery Look Expensive

Dark silk can make embroidery look museum-level—or it can expose every tiny mistake.

If you’ve ever stitched on a deep fabric (brown, navy, black) and suddenly saw pale bobbin "checking" (those tiny white loops) around the edges, you know the feeling. It’s a physical drop in your stomach. You immediately blame tension, waste an hour tweaking screws, and wonder if the project is ruined.

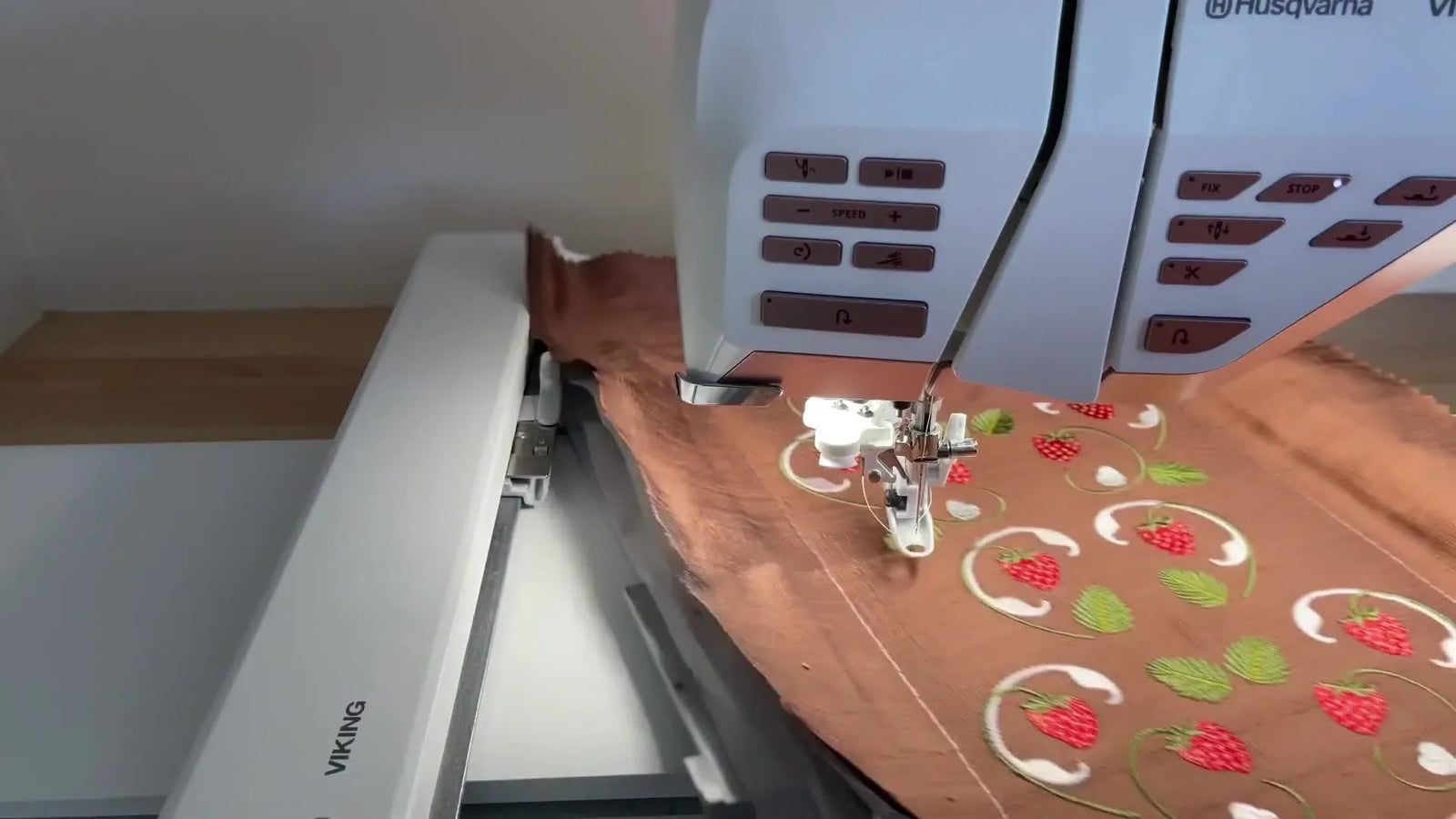

This strawberry border panel on brown silk dupion (88,000 stitches, 11 color changes, stitched in a 360 × 200 mm hoop) is the perfect forensic case study. It demonstrates exactly how to keep dark-fabric embroidery looking intentional and heirloom-worthy—without turning the process into a fragile, stressful ordeal.

Calm the Panic: When Bobbin Thread Shows on Dark Silk Dupion, It’s Usually Not “Your Machine Being Bad”

On dark fabric, contrast is ruthless. A perfectly normal tension setup that looks flawless on ivory cotton can suddenly reveal white bobbin thread along the outer edges of satin stitches—especially around curves and high-contrast shapes.

In the industry, we call this the "Contrast Trap." It is not necessarily a mechanical failure; it is an optical one.

In the case study, Grace describes seeing bobbin show-through around the strawberries and feeling that familiar wave of panic. That reaction is normal. However, the solution isn't to over-tighten your top tension until the thread snaps.

Here is the mindset shift required for dark silk:

1. Don’t Assume Tension Failure: On dark fabric, even "acceptable" mechanical tension allows white bobbin thread to peek through on tight turns.
2. Bobbin Color is a Variable: Treat your bobbin thread as part of your active color palette, not a hidden utility.
3. Density equals Contraction: An 88,000-stitch design acts like a corset; it pulls the fabric inward. Silk shows these stress lines vividly.

If you are setting up a large hoop project and you are already meticulously planning your hooping for embroidery machine, you form the minority of stitchers who succeed. Hooping strategy determines whether dark silk stays flat or puckers into a disappointment.

The “Hidden” Prep That Saves the Stitch-Out: Pressing Silk Dupion the Right Way (Before You Hoop)

Silk dupion has a "memory." It loves to hold creases, and once you stitch over a crease, it becomes a permanent scar in the finished panel.

Sensory Check: Run your hand flat across the silk. If you feel any ridge, the embroidery foot will feel it too, potentially causing a skip or a deflection.

Grace presses her silk before embroidery using a wool pressing mat. Wool grabs the fabric, preventing it from sliding while you steam out stubborn creases. Conversely, for the finished embroidery, she switches to a cushioned pressing mat (like the June Tailor Cut and Press).

Why this matters:

• Wool Mat (Prep): Generates heat from both sides to flatten fibers completely.
• Cushioned Mat (Post): Allows the stitches to sink into the foam so the 3D texture isn't crushed by the iron.

Prep Checklist: The "Zero-Failure" Protocol

• Wool Pressing Mat: Ready for initial fabric prep.
• Cushioned Pressing Mat: Staged for final pressing.
• Silk Inspection: Pressed flat; hold up to light to check for hidden fold lines.
• Stabilizer Strategy: One layer heavy stitch-and-tear + one layer sprayed with temporary adhesive.
• Hidden Consumables: Temporary adhesive spray (e.g., Odif 505) and masking tape/cohesive bandage.
• Tools: Small sharp "squeezers" (snips) for jump stitches.
• Bobbin Supply: Extra empty bobbins ready for color matching.


The Floating + Basting Method in a 360×200 Hoop: How to Hold Silk Without Hoop Burn

"Hoop burn" creates permanent shiny rings on silk where the fibers are crushed. To avoid this, we use the "Float" strategy.

The Physics of Floating: Instead of clamping the delicate silk between the rings, you clamped only the stabilizer tight as a drum. The silk relies on friction (spray) and mechanical anchoring (basting) to stay put.

1. Hoop the stabilizer only (Create the "foundation").
2. Sensory Check: Tap the stabilizer. It should sound like a drum skin. If it sounds like thudding paper, it’s too loose.
3. Apply temporary adhesive spray.
4. Lay the silk on top (float).
5. Run the machine's Fix / Baste function to stitch a perimeter box.
6. Use hoop clips to secure the stabilizer edges from slipping.


Why this works: The stabilizer takes the mechanical punishment of the hoop tension. The silk just rides along.

Warning: Keep fingers and tools strictly away from the needle area when trimming jump stitches or adjusting floating fabric. A 360×200 hoop moves fast. A needle penetration injury can be severe. Always pause the machine completely before reaching in.

However, floating has a limit. On extremely dense designs (50k+ stitches), the fabric can still micro-shift. If you have been researching a floating embroidery hoop technique and find your outlines are still off-register, it is because the adhesive friction wasn't enough to potential the "pull force" of the satin stitches.

The Dark-Fabric Secret: Match Bobbin Thread to the Top Thread

This is the "Pro Tip" that separates commercial quality from hobbyist attempts.

Grace winds bobbins using the exact embroidery thread colors:

• Sulky Rayon 1039 (Red) for the strawberries.
• Sulky Rayon 630 (Moss Green) for the leaves.


The Trade-off: Embroidery thread (usually 40wt) is thicker than dedicated bobbin thread (usually 60wt or 90wt).

• Consequence: Your bobbin will run out faster.
• Benefit: If the tension pulls slightly, red thread showing on a red strawberry against brown silk is invisible. White thread is a lighthouse.

Expert Rule of Thumb: Use this technique when the fabric is darker than the thread, or highly contrasting (e.g., Red Satin on Black Silk).

Stitching the Strawberry Panel: Speed, Jump Stitches, and Density

Grace proceeds to stitch the strawberries, pausing to trim jump stitches between the seeds.

Speed Control (SPM): While modern machines can hit 1000 stitches per minute (SPM), speed kills quality on delicate work.

• Satin Edges: Run at 600-700 SPM.
• Micro Seeds: Slow down to 400-500 SPM.
• Why? High speed increases vibration and whip-lash on the thread, increasing the chance of that dreaded white bobbin loop showing up on the turn.


The Jump Stitch Reality: On a design like this, you must trim. If you leave jump stitches across the dark silk, you risk snagging them later. Grace recommends trimming "progressive"—trim as you go so the foot doesn’t catch a loop on the next pass.

If you are doing frequent re-hooping for borders like this, fatigue sets in. This is where ergonomic setups matter. Many professionals use an embroidery hooping station to ensure consistent placement without straining their wrists or back, turning a chore into a repeatable manufacturing process.

Setup Checklist: The "Pre-Flight"

• Stabilizer Tension: Taut like a drum?
• Fix Box: Stitched and visually square?
• Bobbin Check: Is the correct color bobbin installed for the upcoming block?
• Needle: Is it a fresh Sharp/Microtex 75/11? (Universal needles can blunt silk).
• Speed: Reduced to ~600 SPM for critical detail.


The “Monday Morning Routine” That Prevents Jump-Stitch Stops

Mid-project, your machine might stop unexpectedly or refuse to cut. Grace notes a tendency for lint and thread tails to accumulate under the needle plate on the Husqvarna Viking Designer EPIC series.

The Ritual:

1. Remove the needle plate.
2. Brush out the "lint bunny" colony.
3. Check for stray cut threads interfering with the cutter knife.


Sensory Diagnostic: Listen to your machine.

• Smooth Hum: Healthy.
• Rhythmic "Thump-Thump": Dull needle punching the fabric.
• Sharp "Click" or "Scraping": Thread tail caught in the hook path.
• Grinding: STOP IMMEDIATELY.

Clean before you start a long run (88k stitches), not just when it breaks.

The Final Quality Check: The Re-Baste Test

After the design finishes, Grace runs the basting box again. This is brilliant forensics. She sees a gap between the original baste and the new one.

What happened? The 88,000 stitches pulled the fabric inward (contraction). The "Float" method allowed just enough slip for this to happen.

Grace’s Level 1 Fix: Wrap cohesive bandage (Vet wrap) around the outer hoop ring.

• Why: It adds grip/friction without sticky residue.
• Result: Holds the stabilizer tighter against the pull force.


Decision Tree: Matching Stability to Project Intensity

Use this logic flow to avoid under-stabilizing.

• Scenario A: Low Stitch Count (<15k), Stable Fabric (Cotton)
  • Strategy: Standard Hoop or Float.
  • Stabilizer: Tear-away.
• Scenario B: High Stitch Count (50k+), Slippery Fabric (Silk/Satin)
  • Strategy: Float + Baste + Friction Aid (Cohesive bandage).
  • Stabilizer: Cut-away (preferred) or Heavy Tear-away x2.
• Scenario C: Production Run (50 shirts), Speed Critical
  • Strategy: Commercial Tooling.
  • Tool: magnetic embroidery hoop.

Troubleshooting: Symptoms → Likely Cause → Fix

The "Why" Behind the Results: Color Perception

Grace notes her pale pink thread looks white on brown silk. Physics: Dark backgrounds absorb light, making adjacent light colors appear brighter and washed out. Always test stitch your palette on the actual fabric color, not just white backing.

The Upgrade Path: When Better Tools Pay for Themselves

This project highlights a specific limitation: Floating with standard hoops relies heavily on adhesive/friction which can fail on dense counts.

If you are a hobbyist doing one heirloom piece, the cohesive bandage trick is perfect. However, if you are running a business or battling repetitive strain, this is the trigger point for tool upgrades.

The Solution: Magnetic Hoops A magnetic hoop for husqvarna viking or similar machines changes the physics. Instead of forcing an inner ring into an outer ring (friction), strong magnets clamp straight down.

1. No Hoop Burn: Zero friction drag on the silk.
2. Immovable Grip: The vertical clamp force prevents the "pull in" effect seen in Grace's basting test.
3. Speed: No unscrewing or wrestling.

Warning: Magnet Safety
Magnetic hoops use industrial-grade neodymium magnets.
* Pinch Hazard: They snap together with immense force. Keep fingers clear of the mating surface.
* Medical Devices: Keep at least 6 inches away from pacemakers.
* Storage: Store with the provided spacers to prevent them from locking together permanently.

For anyone searching for husqvarna embroidery hoops that handle delicate fabrics better than standard plastic, magnetic frames are the industry standard for specific problem-solving.

Finishing Touches: Trim, Press, and Don't Overthink the Back

Grace finishes by trimming jump stitches with precision squeezers. She notes the back isn't perfect—and that is okay.

The Reality of Double Satin: The design uses "Double Satin" (two layers of zigzag) for the flowers. It adds lovely 3D height but increases the pull on the fabric. This validates the need for strong stabilization.

Operation Checklist: End-of-Run QC

• Trim Check: All jump stitches removed?
• Border Integrity: Run the basting box one last time to check for alignment shifts.
• Bobbin Check: Flip it over—is the red/green separation clean?
• Clean Up: Remove stabilizer gently.
• Final Press: Face down on the Cushioned Mat. Steam gently; do not drag the iron.
• Record: Note down the settings (SPM, Tension) for next time.


The Takeaway

Making dark silk look "Heirloom" quality is about risk management.

1. Prep: Press correctly.
2. Mitigate: Use the float method to stop hoop burn.
3. Hide: Match bobbin colors to hide tension issues.
4. Maintain: Clean the machine before it fails.

By respecting the material and adjusting your technique (and perhaps upgrading your hoops), what used to be a panic-inducing project becomes a satisfying display of craftsmanship.

FAQ

• Q: On dark silk dupion embroidery, why does white bobbin thread show as tiny loops along satin stitch edges even when tension looks normal on light cotton?
  A: This is common on dark fabric and is often a contrast issue, not a “bad machine”—hide it first by matching bobbin color before over-tightening tension.
  • Wind a bobbin with the same (or very close) embroidery thread color used on top for that area.
  • Install the color-matched bobbin before stitching the next color block that has high contrast edges.
  • Reduce stitching speed for satin edges and tight curves to about 600–700 SPM to reduce pull and whip.
  • Success check: Edges look clean on curves with no “pale halos” or white specks showing around satin borders.
  • If it still fails: Slightly lower top tension and re-check bobbin seating, but avoid cranking tension until thread snaps.
• Q: How can a 360×200 mm embroidery hoop hold brown silk dupion without permanent hoop burn rings?
  A: Use the float method—hoop the stabilizer tight and attach the silk on top with spray + a basting box so silk is not clamped by the rings.
  • Hoop only the stabilizer as the “foundation,” not the silk.
  • Tap the hooped stabilizer and re-tighten until it feels taut.
  • Spray temporary adhesive on the stabilizer, lay the silk on top, then run the machine Fix/Baste perimeter box.
  • Add hoop clips to prevent stabilizer edges from creeping.
  • Success check: No shiny ring marks on the silk after unhooping, and the baste box stays square.
  • If it still fails: Add a friction aid (cohesive bandage) to the outer hoop ring to increase grip during dense designs.
• Q: How can silk dupion be pressed before embroidery so creases do not become permanent scars under stitching?
  A: Press silk dupion flat before hooping using a wool pressing mat so creases are removed before any stitches lock them in.
  • Run a hand over the fabric and locate any ridge or fold line before hooping.
  • Press on a wool pressing mat for prep to keep the silk from sliding while steaming out creases.
  • After embroidery, press face down on a cushioned pressing mat so stitches sink in and do not get crushed.
  • Success check: The fabric feels uniformly flat by touch with no ridge that the presser foot could “ride over.”
  • If it still fails: Stop and re-press before hooping; stitching over a crease will not “wash out” later.
• Q: During a high-density 88,000-stitch embroidery on silk, how can a floating setup be checked for fabric pull-in or micro-shifting after the design finishes?
  A: Re-run the basting box after the stitch-out—any visible gap shows pull-in/slip and signals the hold was not strong enough for the density.
  • Run the basting perimeter again immediately after completion.
  • Compare the new baste line to the original baste line and look for separation or drift.
  • Wrap cohesive bandage around the outer hoop ring to increase friction and repeat the float + baste method next run.
  • Success check: The second baste line lands on (or extremely close to) the first baste line with no noticeable offset.
  • If it still fails: Upgrade the holding method for dense runs (stronger stabilization and/or a magnetic embroidery hoop).
• Q: On a Husqvarna Viking Designer EPIC series, what causes unexpected stops or cutter issues during jump stitches, and what is the fastest maintenance fix before a long run?
  A: Lint and thread tails under the needle plate commonly interfere—clean under the needle plate before starting, not after it jams.
  • Remove the needle plate and brush out lint buildup.
  • Check for stray cut threads around the cutter knife area.
  • Do this cleaning routine before a very long stitch count project, not only when problems appear.
  • Success check: The machine sounds smooth during operation and jump stitch handling improves without random stopping.
  • If it still fails: Listen for sharp clicking/scraping (thread in hook path) or grinding and stop immediately to inspect further.
• Q: What needle and speed settings help reduce edge issues and thread stress when stitching satin borders and tiny details on silk dupion?
  A: Use a fresh Sharp/Microtex 75/11 needle and slow the machine—speed control is a quality tool on delicate silk.
  • Install a fresh Sharp/Microtex 75/11 needle before starting (a dull needle can cause rhythmic “thump-thump” sounds).
  • Run satin edges around 600–700 SPM and slow micro details (like tiny seeds) to about 400–500 SPM.
  • Trim jump stitches progressively so the foot does not catch loops on the next pass.
  • Success check: Satin edges stay crisp on curves and the machine sound remains a smooth hum (no rhythmic thumping).
  • If it still fails: Re-check stabilization and fabric holding method; dense satin can pull fabric even with correct needle and speed.
• Q: What needle-area safety rule should be followed when trimming jump stitches or adjusting floating silk in a fast-moving 360×200 mm hoop?
  A: Always fully pause the machine before reaching near the needle—large hoops move fast and needle injuries can be severe.
  • Pause/stop the machine completely before trimming or repositioning anything.
  • Keep fingers and tools outside the needle travel zone until motion stops.
  • Use small sharp snips for controlled trimming rather than pulling threads near the needle.
  • Success check: Hands never enter the hoop area while the machine is moving, and trimming is done only during full stops.
  • If it still fails: Slow down workflow—trim in planned pauses instead of “quick grabs” during motion.
• Q: What magnetic hoop safety precautions are required when using neodymium magnetic embroidery hoops to prevent pinch injuries and device interference?
  A: Treat magnetic hoops as industrial clamps—keep fingers clear, keep magnets away from pacemakers, and store with spacers.
  • Keep fingers away from mating surfaces; magnets can snap together with high force.
  • Keep magnetic hoops at least 6 inches away from pacemakers or similar medical devices.
  • Store magnetic hoops with the provided spacers so magnets do not lock together.
  • Success check: Magnets are applied and removed without finger contact in the pinch zone, and storage prevents accidental locking.
  • If it still fails: Stop and reset handling—use a deliberate two-hand placement technique and never “slide” magnets near fingertips.
