Silence That Squeak for Good: Replacing the Idle Pulley Gear on a Brother PR620 (Without Creating a Bigger Problem)

The "Death Squeal" Fix: Resurrecting a Brother PR620 (and Saving Your Business from Downtime)

When a multi-needle embroidery machine starts squeaking, it’s not just a noise—it’s the sound of your profit margin grinding to a halt. On a workhorse like the Brother PR620, a loud, rhythm-less squeal during initialization is a classic "red flag." It signals that something deep in the lower drive train is either running dry or, worse, actively destroying itself.

In the reference video, Steve (Bamber Sewing Machines) dissects a real-world nightmare: a PR620 that had never seen a service technician. The result? The idle pulley gear bearings had disintegrated, turning critical steel components into rust dust and iron filings.

The good news? This is fixable. The better news? Understanding why this happens will make you a better, more profitable embroiderer.

The “Don’t Panic” Primer: Decoding the Squeak

First, let's recalibrate your senses. Not every noise is catastrophic, but you need to know the difference between a "cry for help" and a "death rattle."

• The Belt Chirp: A high-pitched, momentary "squeak" usually caused by a loose belt slipping at startup.
• The Metal Grind (The Problem): A harsh, continuous mechanical screech or grinding noise during the initialization cycle (when the pantograph moves). It sounds like metal chewing on metal—because it is.

If you are operating a brother pr 620 embroidery machine in a home studio, treat this specific noise as a "Hard Stop." The PR series is built like a tank; it will try to keep running even when a bearing has exploded. If you force it, a $50 part replacement turns into a $500 shaft repair.

Warning: Mechanical Hazard
Never operate the machine with the covers off unless you are specifically performing a controlled diagnostic test. The shafts and belts move with high torque and can catch loose clothing, hair, or fingers instantly. If you hear grinding, stop immediately. Continued operation spreads conductive metal dust into the electronics.

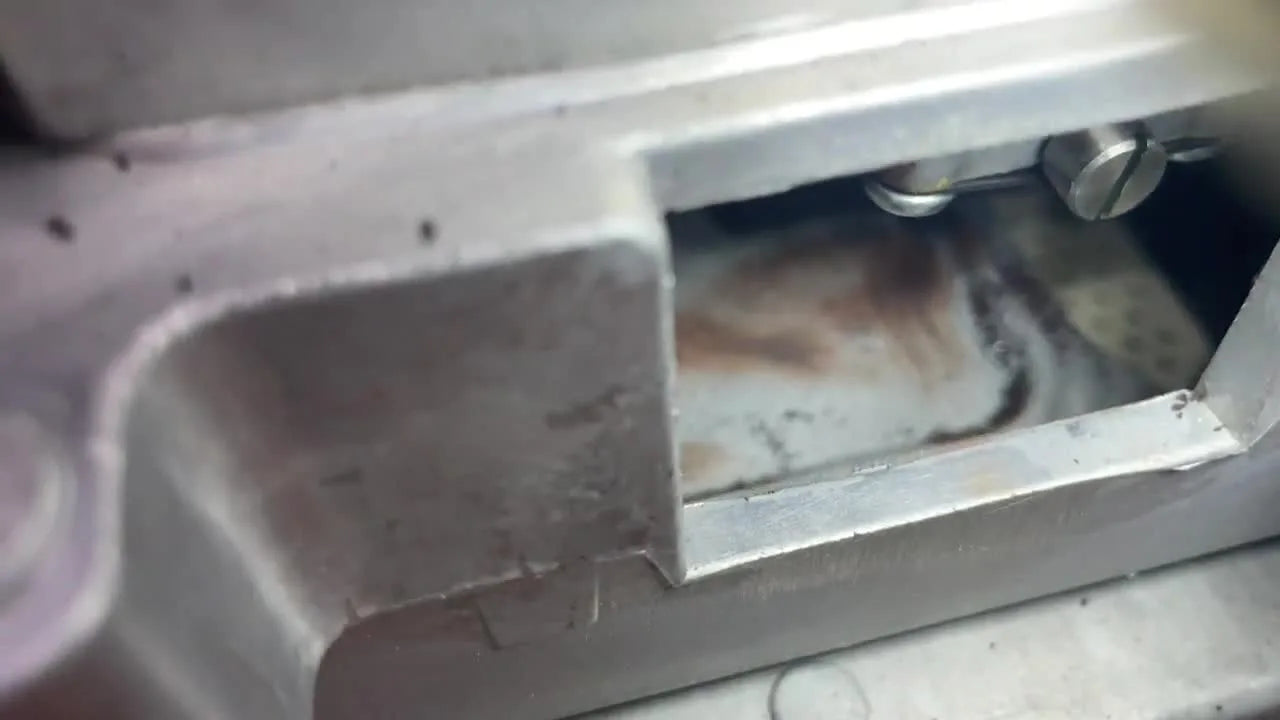

The Forensic Evidence: Spotting the "Cocoa Dust"

Once the covers are off (a process detailed in your service manual), Steve shines a light into the base casting. He identifies two "sensory anchors" that confirm the diagnosis:

1. The "Cocoa" Dust: The timing belt is coated in a fine, brown powder. This is what used to be the grease and metal surface of your bearing.
2. The Glitter Pile: A visible accumulation of iron filings (shiny metal shavings) in the casting.

This combination confirms that the idle pulley gear bearings have failed due to oil starvation.

The "Hidden" Prep: Consumables & Safety

Before you start loosening bolts, you need to prep like a surgeon. Most beginners fail here because they lack the right environment.

Hidden Consumables You Will Need:

• White Lithium Grease: For re-lubricating the new assembly (never use sewing machine oil on gears).
• Compressed Air: To blow out the metal filings.
• Magnetic Parts Dish: To catch tiny screws that will try to roll away.
• Camera/Phone: Take photos of cable routing before you unplug anything.

Prep Checklist (Do this BEFORE touching a screwdriver):

• Audio Check: Power on briefly to confirm the squeak source (as shown in the video), then unplug power.
• Visual Check: Inspect the base casting for brown "rust dust."
• Environment: Clear a 4x4 foot space. You will need room to place the heavy machine head.
• Protection: Put down a rubber mat or heavy cardboard to protect your workbench surface.
• Light: Set up a movable LED work light. Shadows are your enemy here.


Phase 1: The XY Carriage Removal

To access the failed pulley, the XY carriage (the arm that holds your hoops) must be removed. This requires precision, not force.

Steve forces the sliding shafts outward horizontally to release the unit.

Critical Action: Pull these shafts straight out. Do not twist them up or down, or you risk bending the guide rails.

Setup Checklist (The "Pre-Lift" Verify)

• Belts Detached: Verify both X and Y drive belts are unhooked from the carriage.
• Umbilical Disconnected: Ensure the ribbon cable connecting the carriage to the body is unplugged.
• Shafts Clear: Ensure the sliding shafts are fully retracted/removed so they don't snag.
• Body Position: Stand square to the machine. You are about to lift a heavy, awkward object.

Phase 2: The Core Lift (Separating Head from Base)

This is the most intimidating step for new technicians. You are separating the "brains and needle bar" (the Head) from the "motor and drive" (the Base).

Steve disconnects all cables running between the base and the head. Note: These connectors are usually color-coded or sized differently, but taking a photo here is your safety net.

He then removes the final main bolt and lifts the head vertically.

Expert Insight: When lifting, ensure you pull straight up. Tilting the head can bend the strict alignment pins or scrape the electronic boards against the chassis.

Phase 3: The Fix (Replacing the Idle Pulley)

With the head removed, the base casting is exposed. You can now see the idle pulley gear assembly.

The Repair Sequence:

1. Slacken: Loosen the timing belt tensioner. You should feel the belt go slack like a loose rubber band.
2. Remove: Unscrew the bracket holding the gear assembly.
3. Extract: Pull the old unit out.


The "Wiggle Test" (Sensory Verification)

How do you know if your part is actually bad? Steve demonstrates the "Wiggle Test."

• The Bad Part: When you grab the shaft, it wiggles side-to-side. It feels loose, "crunchy," or has gritty resistance.
• The Good Part: The new replacement unit feels solid. It rotates smoothly but has zero side-to-side play. It feels tight, like a drum skin.




Commercial Reality Check: If you rely on a brother multi needle embroidery machine for income, buying this assembly before it fails completely is a smart inventory move. It's a wear item, much like tires on a car.

Phase 4: Reassembly & The "Rejig"

Reassembly is the reverse of removal. But the magic happens when you turn it on.

Steve powers up the machine. The screen lights up, and the machine performs its "initialization dance"—the pantograph moves X and Y to find its center.

The Success Signal:

• Visual: The screen says "OK."
• Auditory: You hear a rhythmic thump-thump of the steppers locking into place, followed by silence. No squealing. No grinding.

Phase 5: The "Stress Test" (Verification)

Never assume a repair is done until thread hits fabric. Steve runs a 6-color test on red felt.

Why Felt? Felt is stable, non-stretchy, and consistent. It removes "fabric variables" so you can test the "machine variables."

Operation Checklist (The Post-Op Exam)

• Acoustics: Is the start-up sound smooth? (Listen for the absence of the squeak).
• Needle Handoff: Do all 6 needles change position without hesitation?
• Trimmer: Does the machine cut the thread cleanly after each color block?
• Tension: Look at the back of the embroidery. Do you see 1/3 white bobbin thread down the center of satin columns?
• Speed: Can the machine run at 600-800 SPM (Stitches Per Minute) without vibration noise?

The Root Cause: The "Oil Starvation" Cycle

Why did this happen? Steve puts it bluntly: Lack of Service.

Bearings are consumable. They require lubrication. When oil dries out, friction increases. Friction creates heat. Heat destroys the metal surface, turning it into the "rust dust" seen earlier.

The Pro Rule: If you run your machine more than 4 hours a day, manual oiling (hook area) is a daily task, and deep lubrication (like this idle pulley) is an annual requirement.

Troubleshooting: From "Weird Noise" to "Action Plan"

Use this logic flow to diagnose issues without panic.

The "After-Care" Strategy: Decision Tree for Stability

Now that your machine is mechanically sound, don't ruins your results with poor technique. Repairing the machine is only half the battle; setting it up for production is the other.

Decision Tree: Optimizing for Success

1. Scenario: You are testing the repair.
   • Action: Use Medium Weight Tear-away + Felt or Denim.
   • Why: Max stability to prove the mechanics work.
2. Scenario: You fight "Hoop Burn" (rings left on fabric).
   • Action: Switch to magnetic embroidery hoops.
   • Why: Traditional hoops rely on friction and friction causes marks. Magnetic hoops use vertical force to hold fabric without crushing the fibers.
3. Scenario: You have repetitive wrist pain from hooping.
   • Action: Invest in a hooping station for embroidery.
   • Why: Ergonomics matter. A station ensures consistent placement and reduces the physical load on your wrists.
4. Scenario: Production speed is your bottleneck.
   • Action: If your brother pr is constantly down for maintenance or too slow for your volume, consider scaling up to a purpose-built industrial multi-needle machine (like Sewtech's line) designed for 24/7 duty cycles.

Warning: Magnetic Field Hazard
If you decide to upgrade to a magnetic hoop for brother, be aware: these magnets are industrial strength.
* Pinch Hazard: Keep fingers clear of the snapping zone; they can pinch skin severely.
* Medical Safety: Keep magnets away from pacemakers and implanted medical devices.

The Professional Upgrade Path

Steve’s video teaches us one crucial lesson: Machines are mechanical, and they will wear out.

The squeak wasn't a ghost; it was physics. To run a professional shop, you must move from "Reactive Repair" (fixing it when it breaks) to "Proactive Production."

1. Level 1 (Maintenance): strict oiling schedules and immediate part replacement when "play" is detected.
2. Level 2 (Workflow): Upgrade your tooling. If you are still struggling with standard plastic brother pr600 hoops, you are losing time on every shirt. Magnetic frames are not just a luxury; they are a speed tool.
3. Level 3 (Scale): When the cost of downtime exceeds the cost of a new machine, look for high-reliability alternatives that offer modern features at a competitive price point.

Listen to your machine. If it squeaks, it’s speaking to you. Fix it right, upgrade your tools, and get back to profitable stitching.
