Side-Seam T-Shirt Embroidery on a Baby Lock Visionary: A Christmas Gnome Appliqué + Mylar “Sparkle Lights” Workflow That Won’t Wreck Your Knit

If you have ever attempted to stitch a design along a T-shirt side seam, you know the specific sinking feeling that comes with it. The fabric is thin, the hoop wants to drift due to the seam bulk, and one microscopic error in hoop tension turns a cute project into a crooked, puckered disaster.

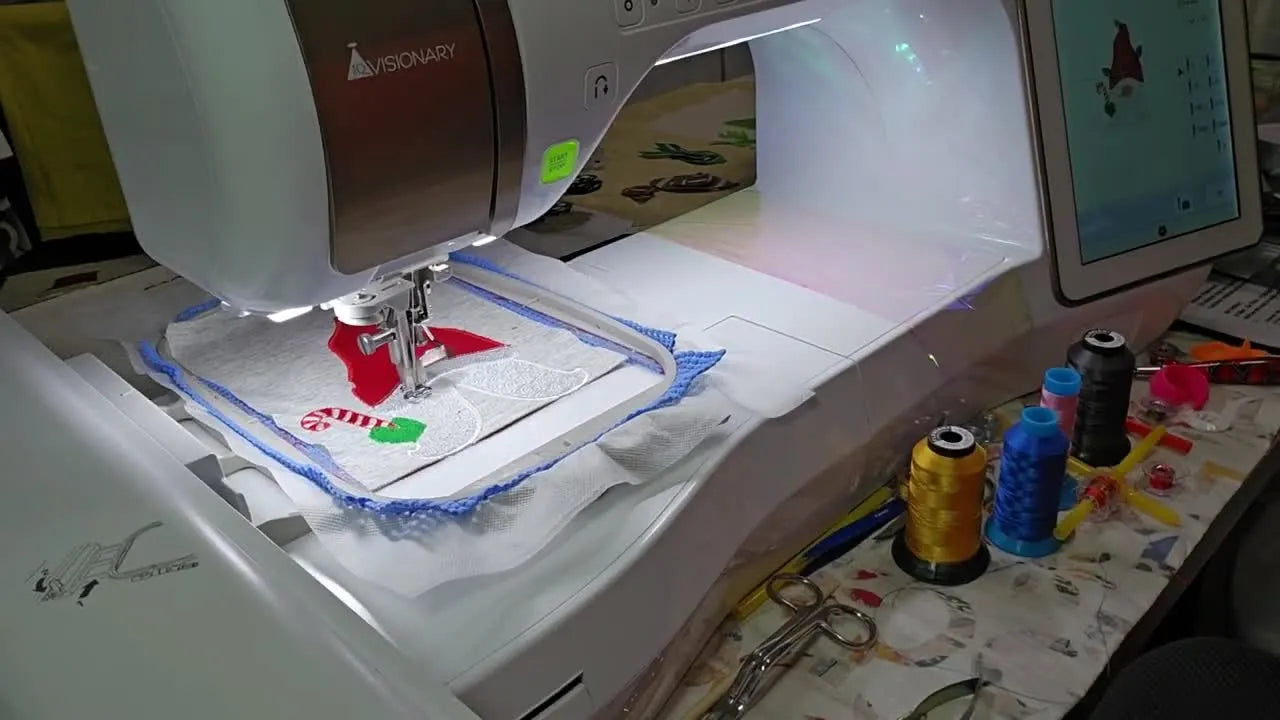

This Christmas gnome side-seam project—stitched here on a Baby Lock Visionary—is the perfect case study for mastering volatile fabrics. It demonstrates how to achieve a clean, soft result on jersey knit without turning the shirt into a stiff piece of cardboard, and without accidentally stitching over your appliqué.

In this white paper, we will deconstruct the three critical skills required for this technique:

1. Kinetic Control: Hooping a small, awkward garment area using water-soluble stabilizer.
2. Sequence Hacking: Using the machine’s skip/forward controls to customize the stitch path.
3. Material Engineering: Using Mylar to create light effects without adding bulk.

We will also calibrate your machine settings using specific "Sweet Spot" data and identify exactly when manual skill hits a ceiling—and where upgrading to specialized tools becomes a business necessity.

The Physics of Knit Distortion: Why "Standard" Hooping Fails

Side-seam embroidery is notoriously difficult because jersey knit does not resist force like woven cotton does. Ideally, fabric in a hoop should be taut like a drum skin, but with knits, achieving that tension often stretches the fibers. When you un-hoop the shirt, the fibers relax, snapping back to their original state and causing the embroidery to pucker or warp.

The approach demonstrated here uses a pressed “fake seam” as a visual centerline and aligns the garment hem to a drawn horizontal line on the stabilizer. This creates a Cartesian coordinate system (X and Y axis) so you aren’t relying on guesswork.

However, if this is more than a one-off hobby project—if you are doing holiday runs, team gifts, or building inventory—the bottleneck is consistency. This is where hooping for embroidery machine transitions from a basic task to a critical production skill. Your method must be repeatable within a millimeter tolerance, every single time.

Phase 1: Preparation & "Invisible" Stabilization

For this project, the tutorial utilizes heavyweight water-soluble stabilizer (WSS).

• The Logic: It washes away completely, leaving the side of the shirt soft and drape-friendly.
• The Risk: WSS provides less support than Cutaway (No-Show Mesh). If your stitch density is high (standard is ~0.4mm spacing), WSS can perforate and tear.
• The Fix: For designs with heavy fills, float a layer of tear-away under the hoop, or sticking to high-quality fibrous WSS.

The "Two-Axis" Alignment Strategy: The presenter draws a vertical centerline and a horizontal hem line on the stabilizer.

1. Vertical: Aligns with the side seam (or pressed crease).
2. Horizontal: Aligns with the hem.

This locks the fabric orientation, preventing the design from "creeping" diagonally during the stitching process.

Pre-Flight Checklist: The "Go/No-Go" Verification

• Stabilizer Integrity: Use a heavy micron water-soluble stabilizer (fibrous type preferred over plastic film) to span the hoop.
• Marking System: Verify your water-soluble pen marks are visible. A disappearing ink pen is useless if it vanishes before you hoop.
• Hidden Consumable Check: Do you have spray adhesive (e.g., 505 or equivalent)? A light mist on the stabilizer is crucial for floating knits.
• Clearance Check: Ensure the presser foot has 2mm clearance over the bulky side seam to avoid collision.
• Needle Selection: Install a fresh Ballpoint (Jersey) Needle (Size 75/11). Sharps will cut knit fibers; ballpoints slide between them.
• Tool Staging: Place curved appliqué scissors and fine-point tweezers right next to the machine.

Warning: The "Sniper" Hazard
Curved appliqué scissors are designed to glide, but they are sharp. When trimming fabric on a T-shirt, never lift the blade tips upward. Slide the flat "duckbill" or curve part horizontally against the stabilizer. If you angle up, you will snip a hole in the T-shirt base, ruining the garment instantly.

Phase 2: Hooping Dynamics & The Magnetic Solution

In the demonstration, the shirt is hooped with a standard screw hoop (likely 5x7). The crucial visual cue is the hem sitting perfectly parallel to the drawn horizontal line.

Here is the veteran reality check: Once the hem is aligned, stop touching it. Every time you tug the jersey to "perfect" the look, you are micro-stretching the knit. When stitched, that stretch becomes permanent distortion.

The Business Case for Tool Upgrades

If you struggle with "Hoop Burn" (shiny rings crushed into the fabric) or inconsistent alignment, recognize that this is often a hardware limitation, not a skill failure. Standard hoops rely on friction and friction requires pressure.

• Scenario: You are embroidering delicate performance wear or thick fleece.
• The Fix: Professional shops utilize magnetic embroidery hoops.
• Why: These hoops clamp straight down using magnetic force rather than mechanical leverage. This eliminates the "drag and distort" effect of inner rings and prevents hoop burn entirely. If you are damaging 1 in 10 shirts, the cost of a magnetic hoop pays for itself in saved inventory.


Phase 3: Smart Sequencing & Texture Control

The design sequence for the gnome beard offers a lesson in adaptation. The file contains a placement line intended for appliqué fabric, but the presenter chooses to run it as a stitch fill.

The Process:

1. Skip: The machine stops for the appliqué placement (Color Stop 3).
2. Action: Instead of placing fabric, you simply press "Start."
3. Result: The machine stitches a curly, textured fill.

Expert Note on Density: If converting an appliqué step to a stitched fill, check the density. A standard tack-down stitch is loose. If you want full coverage, standard fill density is usually 0.40mm. For a "curly" texture that doesn't bulletproof the shirt, aim for a lighter density (0.60mm - 0.70mm) or use a programmed motif fill.

Phase 4: The Hat Appliqué – Precision Trimming

For the hat, the tutorial reverts to classic appliqué:

1. Placement Line (Color Stop 10): Shows where the fabric goes.
2. Placement: Cover the line with red fabric.
3. Tack-Down (Color Stop 11): Stitches the fabric in place.
4. Trim: Cut excess fabric close to the stitches.

The "Hairline" Margin Rule: When trimming on jersey, do not cut flush against the thread. Leave a 1mm - 1.5mm margin. Jersey knits curl when cut. If you cut too close, the fabric may pull away from the tack-down stitches before the final satin border covers it. That tiny margin ensures the satin stitch (usually 3mm - 4mm wide) grabs the fabric edge securely.

The "Ghost" Layer: Skipping the Underlay

After tack-down, the file layout suggests a fill stitch (Color Stop 12) intended for a thread-only version of the design.

• Critical Action: You must skip Color Stop 12 on your touchscreen.
• The Consequence: If you fail to skip this, the machine will hammer a dense fill stitch on top of your appliqué fabric. This will cause massive puckering and likely break a needle due to density deflection. Go straight to the Satin Outline (Color Stop 13).


Setup Checklist: The "Last Look" Protocol

• Appliqué Security: Press the fabric edges down. If they are lifting, use a tiny dot of glue stick; loose fabric catches on the presser foot.
• Sequence Verification: Visually confirm the machine screen shows the Satin Outline, not the Fill Stitch.
• Thread Path: Check the thread cone. Is the thread caught under the spool cap? (A common cause of sudden tension spikes).
• Speed Governor: Reduce machine speed to 600 SPM (Stitches Per Minute) for the satin border. High speed on variable thickness (fabric + appliqué + seam) causes registration errors.

Phase 5: Mylar Engineering & Tension Management

To make the light bulbs sparkle without using metallic thread (which is notoriously temperamental), the tutorial uses iridescent Mylar.

The Density Key: Mylar only works with Open Fills.

• Standard Fill (0.4mm): Will puncture the Mylar into confetti. It won't shine; it will just look messy.
• Open Fill (0.8mm - 1.2mm): Secure the Mylar while leaving enough "windows" for the light to reflect.

Step-by-Step:

1. Place Mylar over the bulb area.
2. Stitch the low-density fill.
3. Tear Away: The needle perforations act like a stamp perforation line. Pull gently; use tweezers for stubborn bits.






Troubleshooting: The "Phantom" Tension Issue

The tutorial identifies a critical mechanical issue: a large thread spool creating drag because it was mounted on a standard pin without the telescoping stand raised.

• Symptom: Thread breaks, bird-nesting underneath, or tight stitching on top.
• Sensory Check: Pull the thread from the needle eye (manual feed). It should flow with consistent, light resistance (like flossing teeth). If it jerks or feels heavy, your feed path is wrong.
• The Fix: Use a telescoping thread stand or a dedicated stand behind the machine. Thread must come off the top of the cone vertically, not pull from the side.

Phase 6: Finishing Touches – Visibility Physics

Thread disappears into knit fabric. To make the "light string" visible:

• Contrast: Silver thread on a dark shirt.
• Structure: Use a Triple Bean Stitch (or heavier run stitch). A single run stitch will sink into the "valleys" of the knit texture and vanish.

Decision Tree: Fabric vs. Stabilizer Choice

Stop guessing. Use this logic flow to determine your setup for specialized knits.

Mastering the Workflow: When to Upgrade

If you are doing a single shirt for a grandchild, a screw hoop and patience are sufficient. However, for those looking to optimize, here is the upgrade path:

1. Level 1 (Technique): Use spray adhesive and correct stabilizers (Mesh).
2. Level 2 (Workflow): If wrist strain or alignment speed is an issue, a hooping station for embroidery ensures your placement is identical across size ranges (S, M, L, XL).
3. Level 3 (Hardware): If you battle hoop marks or fabric distortion, babylock magnetic hoops (or generic equivalents for your machine) provide the even, vertical clamping force that screw hoops cannot achieve. This is the difference between "homemade" and "retail ready."

Warning: Magnetic Field Safety
Professional magnetic hoops utilize high-strength Neodymium magnets.
* Pinch Hazard: Never let the two frames snap together without fabric in between. The force can severely pinch fingers.
* Medical Device Safety: Keep these hoops at least 6 inches away from pacemakers and insulin pumps.
* Electronics: Do not place phones or credit cards directly on the magnet bars.

Operation Checklist: During the Stitch

• Bulk Management: Ensure the rest of the T-shirt is not falling off the table, creating drag weight on the hoop.
• Appliqué Logic: Did you skip the full fill stitch? (Double-check this before pressing start on the hat).
• Mylar Cleanup: Only tear away Mylar after the fill is complete. Use tweezers to clean the edges before the satin stitch seals the border.
• Auditory Check: Listen to the machine. A rhythmic "thump-thump" is good. A sharp "click-clack" or grinding sound means a needle is hitting the plate or the hoop is hitting the foot. Stop immediately.

The Final Result: Quality Assurance

Upon removal, check the side seam. It should lay flat.

• Success: The beard has texture, the Mylar sparkles (because you used an open fill), and the seam is not bunched up.
• Note: You do not need to cut away the seam allowance inside the shirt. Leaving it intact maintains the structural integrity of the garment.


By understanding the "why" behind stabilizer choices, mastering the mechanical alignment, and knowing when to deploy advanced tools like magnetic hoops, you transform side-seam embroidery from a risky gamble into a repeatable, high-value skill.

FAQ

• Q: How do I hoop a T-shirt side seam on a Baby Lock Visionary without knit distortion when using heavyweight water-soluble stabilizer?
  A: Hoop the stabilizer first, then float and align the T-shirt using a two-axis marking system, and stop tugging once the hem is parallel.
  • Draw a vertical centerline and a horizontal hem line on the heavyweight water-soluble stabilizer before hooping.
  • Align the pressed “fake seam” (or the actual side seam) to the vertical line and align the garment hem to the horizontal line.
  • Mist spray adhesive lightly on the stabilizer to hold the knit flat instead of stretching it into the hoop.
  • Success check: The hem stays perfectly parallel to the horizontal line and the fabric looks flat (not “wavy”) before you press Start.
  • If it still fails: Switch to a more supportive stack for knits (for example, No-Show Mesh under the knit with water-soluble topping) or reduce handling that micro-stretches the jersey.
• Q: What is the correct needle choice for embroidering jersey knit T-shirts (side seam projects) on a Baby Lock Visionary to avoid cutting fibers and puckering?
  A: Use a fresh Ballpoint (Jersey) needle size 75/11 for jersey knit to avoid cutting knit loops.
  • Install a new 75/11 ballpoint needle before the project (old needles snag knits and increase thread issues).
  • Avoid sharp needles on jersey because sharps can cut fibers instead of sliding between them.
  • Confirm presser-foot clearance over the bulky side seam (about 2 mm) before stitching.
  • Success check: The needle penetrations do not create runs/holes and the stitching looks smooth without “chewed” fabric around the design.
  • If it still fails: Re-check hooping tension (do not over-tighten) and verify stabilizer support is adequate for the design density.
• Q: How do I prevent hoop burn and side-seam hoop drift when using a standard screw hoop on delicate performance wear or thick fleece?
  A: Reduce reliance on friction pressure—magnetic embroidery hoops clamp straight down and often eliminate hoop burn and reduce distortion.
  • Stop tightening the screw hoop to “force” grip; excessive pressure is what crushes fibers and leaves shiny rings.
  • Clamp with a magnetic hoop when fabric shows hoop marks or when alignment changes after you start stitching.
  • Manage garment drag by keeping the rest of the T-shirt supported on the table so it does not pull the hooped area.
  • Success check: After unhooping, no shiny ring is visible and the seam area lies flat without diagonal “creep.”
  • If it still fails: Add a hooping station for repeatable placement and reduce repositioning that stretches the knit.
• Q: How do I skip the appliqué fill step on a Baby Lock Visionary so the machine does not stitch a dense fill on top of the hat appliqué fabric?
  A: Skip the fill stitch color stop that is meant for a thread-only version and go directly to the satin outline.
  • Watch the machine screen after tack-down and manually advance past the fill step before pressing Start.
  • Trim appliqué fabric with a 1–1.5 mm margin (do not cut flush) so the satin border can fully grab the edge.
  • Slow down for the satin border to around 600 SPM to improve registration across seam bulk and appliqué thickness.
  • Success check: The machine begins the satin outline (not a large-area fill), and the fabric does not pucker aggressively as stitching starts.
  • If it still fails: Stop immediately, back up to confirm the active step on the screen, and check that the appliqué edge is pressed down and not catching the presser foot.
• Q: How do I use iridescent Mylar for sparkle in machine embroidery without shredding the Mylar into confetti?
  A: Only use Mylar under open, low-density fills and tear it away after the fill finishes.
  • Place Mylar over the target area and stitch an open fill (about 0.8–1.2 mm spacing), not a standard dense fill.
  • Avoid standard fill density (about 0.4 mm) because it perforates Mylar too tightly and destroys the reflective effect.
  • Tear away gently along the needle perforations and use tweezers for small stubborn pieces.
  • Success check: The area looks sparkly with clean “windows,” and the Mylar tears off in controlled sections instead of shredding.
  • If it still fails: Re-check the design’s fill density settings and confirm the stitched area is truly an open fill before adding Mylar.
• Q: What causes “phantom” thread tension problems (thread breaks, bird-nesting underneath, tight top stitches) when using a large thread cone on a home embroidery machine?
  A: The most common cause is cone drag from a poor feed path—use a telescoping thread stand so thread feeds vertically off the top of the cone.
  • Pull thread by hand from the needle eye to feel resistance; it should move smoothly with light, consistent drag.
  • Raise the telescoping stand (or use a separate stand behind the machine) so the cone does not unwind from the side.
  • Re-thread the machine after changing the stand position to ensure the path is clean and consistent.
  • Success check: Manual pulling feels smooth (no jerks), and stitching runs without sudden breaks or bobbin nests.
  • If it still fails: Inspect for thread catching under the spool cap and reduce speed when stitching over variable thickness areas.
• Q: What are the safety rules for trimming appliqué on a T-shirt with curved appliqué scissors to avoid cutting a hole in the garment?
  A: Keep the scissor tips flat and sliding—never lift the blade tips upward while trimming on knit garments.
  • Slide the flat “duckbill”/curve portion horizontally against the stabilizer while trimming close to the tack-down stitches.
  • Leave a 1–1.5 mm fabric margin on jersey so curling edges do not pull out before the satin border covers them.
  • Keep tweezers nearby to control small scraps instead of grabbing and stretching the knit with fingers.
  • Success check: No snips or pinholes appear in the base T-shirt fabric, and the appliqué edge stays captured under the satin border.
  • If it still fails: Pause and reposition the garment/stabilizer so the cutting surface is fully supported and visible before trimming again.
• Q: What are the magnetic embroidery hoop safety rules for pinch hazards, pacemakers, and electronics when using high-strength neodymium magnet frames?
  A: Treat magnetic hoops like a pinch tool and a magnet hazard—control closure and keep them away from medical devices and sensitive electronics.
  • Do not let the two magnetic frames snap together without fabric between them; close them slowly to protect fingers.
  • Keep magnetic hoop bars at least 6 inches away from pacemakers and insulin pumps.
  • Do not place phones or credit cards directly on the magnet bars.
  • Success check: Frames close without a sudden “slam,” and hands stay clear of the joining edges during clamping.
  • If it still fails: Use a deliberate two-hand closing method and set the hoop on a stable surface before bringing magnet bars together.
