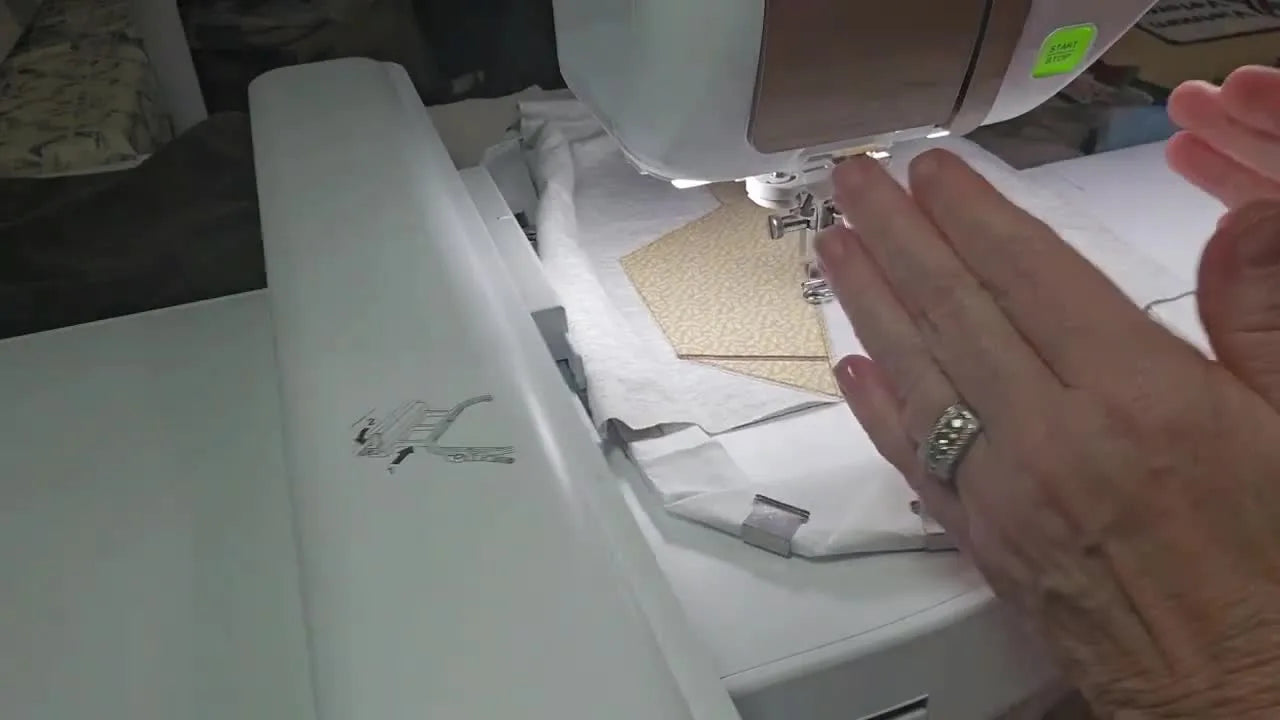

Side Seam Dreidel Appliqué on a T-Shirt: Clean Alignment, Safer Trimming, and a Better Way to “Float” Knits

Side seam designs look “store-bought” when they’re done right—and they look like a wrestling match between you and the machine when they’re not.

In Regina’s stitch-out, the goal is a Side Seam Dreidel that appears to “split” along the T-shirt’s side seam. The technique is clever: you stitch placement lines on the stabilizer, float the shirt on top, stitch a V-shaped cut line, trim the shirt fabric away, then appliqué over the opening and finish with satin borders.

However, if you have ever tried floating a jersey knit and felt your heart rate spike as the fabric starts "scooting" under the foot, you are not alone. Knits are fluid; they want to move. The good news: this is absolutely doable on a home embroidery machine—if you treat alignment, stabilization, and tension like the main event, asking the physics of the machine to work for you, not against you.

Side seam appliqué on a T-shirt: what “side seam” actually means (and why it looks so premium)

A viewer asked a fair question: “I don’t understand the term side seam.” Let’s break this down without the jargon.

A side seam split design is built so the artwork is mathematically centered on the garment’s vertical seam line (or an ironed crease that acts like a seam). The design is digitized to look intentionally “split” down the middle. When you align that split to the seam, the finished embroidery looks integrated into the garment construction—as if the shirt was manufactured that way—rather than just a patch sitting on top.

Regina explains it as centering the split design along the side seam of a T-shirt or sweatshirt. You can even apply the same logic to an ironed seam on the bottom back leg of pants.

That’s why these designs command higher prices in a boutique setting: the seam becomes part of the visual trick, implying a level of custom manufacturing that standard "center chest" logos don't have.

The supply stack Regina used on a Baby Lock machine—plus the hidden prep that prevents knit chaos

Regina stitches this on a Baby Lock embroidery machine and requires a 6x10 hoop size, but she doesn’t have the standard hoop for her machine. Her workaround is a specific frame system held with Super Clips to keep the stabilizer tight.

To replicate success—and avoid the dreaded "puckering"—you need to understand the function of every layer in your stack.

The Visible Stack:

• Stabilizer: Regina uses Tear-away (Note: While she uses tear-away, for heavy wear, I often recommend a fusible Cutaway or Poly-mesh for knits to prevent distortion over time).
• Thread: Light brown top thread (40wt polyester is standard) and regular bobbin thread (usually 60wt or 90wt).
• Garment: A gray, very stretchy T-shirt (Jersey Knit). Expert Note: Treat this like a fluid liquid; it will spill if not contained.
• Appliqué: Gold patterned fabric.
• Hardware: Pins, Curved scissors (Dr. Slick or similar), Appliqué scissors (duckbill), Tweezers.

The "Hidden Consumables" (Don't start without these):

• Ballpoint Needles (75/11): Vital for knits. Sharp needles can cut the elastic fibers, leading to holes that appear after the first wash.
• Temporary Adhesive Spray (Odif 505): When "floating" knits, pins create distortion points. A light mist of spray spreads the holding force evenly.
• Water Soluble Topping: If your knit has a profound rib or fluff, this prevents the satin stitches from sinking.

If you are working with systems like durkee ez frames, the biggest win is that you can still stitch a 6x10 design even when the “official” hoop isn’t on your shelf. However, these frames fundamentally rely on adhesive or clamps rather than the friction of inner/outer rings, so you must compensate with better fabric control.

The “hidden” prep most people skip (and then blame the design)

These steps aren’t glamorous, but they are the difference between a straight line and a wavy disaster:

1. Pre-press the side seam/crease: Do not guess. Iron a crisp crease where you want the center to be. This is your visual anchor.
2. Clear the internal work area: Turn the shirt inside out and back again, ensuring no sleeves or labels are bunching in the stitch zone.
3. Plan your trimming tools: Regina switches scissors mid-project for a mechanical reason: curved scissors for the concave cut inside the V, and appliqué (duckbill) scissors for the convex or flat trimming of the appliqué fabric.
4. Digitizing Triage: Decide now regarding the Hebrew symbols. If your machine struggles with small lettering on knits, skipping them is a valid quality control decision.

Warning: Blade Safety Zone. Trimming inside a stitched cut line is the #1 cause of "Fatal Project Error" (cutting the shirt) or personal injury. Keep your non-cutting hand at least 4 inches away from the blade path. When using magnetic hoops, be aware of the pinch hazard—high-power magnets can snap together with enough force to bruise skin or damage pacemakers.

Prep Checklist (Do this *before* the machine is turned on)

• Needle Check: Is a fresh 75/11 Ballpoint needle installed? (Burrs on old needles cause thread shreds).
• Bobbin Check: Is the bobbin area clear of lint? Is the bobbin at least 50% full? (Running out mid-satin stitch is painful).
• Field Check: Confirm the design fits the 6x10 field and your frame arm has clearance.
• Orientation: Mark the "Bottom" of the shirt with a piece of tape so you don't embroider upside down.
• Tool Staging: Place tweezers, snips, and appliqué scissors on your right (or dominant side).


The crosshair placement lines: your “GPS” for seam alignment (don’t rush this)

Regina runs the first stitch sequence directly on the bare stabilizer: a horizontal and vertical crosshair. This is not decoration—it is your coordinate system.

• The Vertical Line: This represents the side seam of your shirt.
• The Horizontal Line: This prevents vertical drift (design stitching too high/low).

Sensory Check (Auditory/Tactile): Before you put the shirt on, tap the stabilizer in the frame. It should sound like a tight drum. If it sounds loose or flabby, the crosshairs will distort as soon as the needle hits. If the foundation is loose, the house will fall.

Aligning the T-shirt side seam to the stitched vertical line—without stretching the knit out of shape

Regina manually aligns the T-shirt’s side seam to the stitched vertical line and uses straight pins to secure the shirt to the stabilizer.

Here is the nuance that beginners miss: Jersey knit has memory. It will happily stretch as you pull it to the line, pin it, and look perfect. Then, as you stitch, it will try to relax back to its original shape, causing the seam to "walk" off the line.

The "Neutral Hand" Technique: Do not pull the fabric to the line. Instead, lift and place. Smooth the shirt from the center out towards the edges. Think of it like applying a screen protector to a phone—you want contact without tension.

If you are tempted to use a floating embroidery hoop approach on knits, verify that your tacky surface (spray or sticky backing) is fresh. Floating is a controlled compromise: it saves you from "hoop burn" (the shiny ring left by tight hoops), but it sacrifices stability. If the bond fails, the design shifts.

The V-shaped cut line: the moment the “split seam” illusion becomes real

Next, the machine stitches a V-shape outline on the T-shirt. This is the cut guide that creates the split look.

Regina catches a design issue here: an extra stitch line appears due to a digitizing anomaly (clip art printing on the template). In real-time, she stops.

Speed Recommendation: For this outline step on a stretchy knit, slow your machine down. If your machine runs at 1000 SPM (Stitches Per Minute), dial it down to 600 SPM. High speed creates a "flagging" effect where the fabric bounces with the needle, reducing accuracy.

This is a good reminder: Side seam designs are unforgiving. Any stray line near the seam reads as a "mistake" immediately because the eye is drawn to the symmetry.

Trimming the T-shirt fabric inside the V: the safest way to cut close without cutting stitches

Regina trims the shirt fabric inside the V using curved scissors. Her technique is geometrically sound:

1. Tent the Fabric: Hold the fabric straight up with one hand. This separates the layer you want to cut (the shirt) from the layer you must save (the stabilizer).
2. Blade Angle: Use curved scissors (point curving up away from the stabilizer).
3. Action: Cut close to the stitched line, but do not trim thread tails yet.

By lifting the fabric vertical, you change the cutting geometry. You are no longer cutting against the backing; you are cutting in free space.

Warning: Mechanical Safety. Never place your fingers close to the needle path while the machine is running. Often, users try to "hold" the knit flat while the machine stitches. This is dangerous. If you must control shifting knit, STOP the machine, reposition/pin, and then Resume. Hands near a moving needle is a needle-in-finger story waiting to happen.

When the knit starts “scooting”: what’s happening physically (and how to stop it without risking your hands)

Regina hits the classic problem: the T-shirt is stretchy and starts shifting or "scooting" under the foot. She mentions she probably should have sprayed the back of the shirt, and ends up holding the fabric near the needle—effective, but risky.

The Physics of "Scooting":

• Elastic Recovery: As the needle penetrates, it pushes the fabric down. When it retracts, the fabric springs back. This micro-bouncing moves the fabric slightly with every stitch.
• Shear Force: Floating means the garment isn't clamped. The stabilizer is held, but the shirt is only held by friction/pins. They can slide against each other.
• The Pull: Satin stitches create lateral tension, pulling the fabric inward.

Practical Solutions (Low to High Intervention):

1. Adhesive: Use a temporary spray adhesive (like 505) between shirt and stabilizer. This creates a unified "sandwich."
2. Water Soluble Topping: A layer on top adds friction and stability.
3. Tool Upgrade: If you routinely stitch on Baby Lock and are tired of pins and clips, a baby lock magnetic embroidery hoop style upgrade is a workflow changer.

Why upgrade? Magnetic hoops clamp the fabric and the stabilizer together firmly across the entire frame edge, not just at clip points. This eliminates the "shear" effect without handling pins.

Appliqué placement: cover the whole area, but keep the shirt underneath perfectly flat

Regina lays a piece of gold patterned fabric over the entire design area to cover the V opening.

Two details are critical here:

1. Substrate Flatness: The shirt underneath must not be balled up or folded. Feel underneath the hoop with your fingers to ensure the "bed" is flat.
2. Margin for Error: You need enough appliqué fabric coverage to stitch the tack-down line without running off the edge. A generous 1-inch overlap is safer than saving pennies on fabric scraps.

This is where many home embroiderers lose time: they cut the appliqué piece too exact, stitch it, and realize one corner missed the tack-down line.

Tack-down and trimming with Famore appliqué scissors: clean edges are 80% of the final look

After the machine stitches the outline of the dreidel, Regina trims the appliqué fabric close to the stitching line using Famore appliqué scissors (often called Duckbill scissors).

The Trimming Technique:

• Hold Taut: Hold the scrap fabric straight up.
• The Paddle: Rest the "bill" (wide part) of the scissors on the part of the design you are keeping. This acts as a shield, preventing you from cutting the stitches.
• Continuous Motion: Try to make long, smooth cuts rather than tiny snips. Tiny snips create "whiskers" that poke through the final satin stitch.

She notes a reality check: Appliqué trades stitch time for cutting time. Her design stitches fast (17 minutes), but you earn that speed with manual labor.

If you are shopping for tools, a decent hooping station for embroidery can also help here—even for these non-hooped frames—by providing a stable platform to rest the frame on while you trim, rather than balancing it on your lap.

Setup Checklist (Right before the final satin border)

• Seam Centering: Is the shirt seam still dead-center on the V-cut?
• Coverage: Does the appliqué fabric fully cover the tack-down line?
• Bulk Management: Is the rest of the shirt supported (on a table/chair) so its weight doesn't drag the hoop?
• Pins: If you used pins, are they well clear of the satin stitch path?
• Tension Check: Pull a few inches of top thread—does it feel like flossing teeth (smooth resistance)?


Satin stitching the dreidel border: how to keep the rest of the shirt from getting eaten

Regina runs the satin border that finishes the dreidel shape and covers raw edges.

The "Hoop-Eater" Phenomenon: Her most important operational warning is simple: the rest of the T-shirt can flop into the stitching area. A loose sleeve or back panel falling under the needle results in you stitching the shirt closed—a disaster that usually ruins the garment.

Production Protocol:

• Roll and clip: Roll the excess fabric tight and clip it outside the stitch zones.
• Watch, don't walk: Do not leave the machine during the satin stitch.
• Stop and fix: If you see a ripple forming, stop immediately. Float/pin methods are prone to "micro-shifts" as the heavy satin stitch pulls the fabric.

If you are doing this often, a magnetic embroidery hoop helps significantly. Because the magnet sandwiches the material across the entire perimeter, it acts as a barrier, preventing external fabric from easily sliding into the field, and it resists the "pull" of the satin stitch better than pins do.

Stitching the Hebrew symbols: optional details, same alignment rules

Regina stitches the Hebrew letters (Nun, Gimel, Hei, Shin) onto the dreidel faces.

Detail Work on Knits: Small distinct items (like letters) are stress tests for stabilization.

• Visual Check: Look at the letters. Are the columns consistent width? If they look "skinny," your fabric is stretching.
• Tension: If you see white bobbin thread on top (looping), your top tension is too tight, or the bobbin isn't seated. On knits, slightly lower top tension often helps letters sit flatter.


Finishing like a pro: remove stabilizer, then press from the back (always)

Regina removes the stabilizer from the back and presses with an iron from the backside.

The "Pressing" Rule: Never iron directly on polyester thread or textured appliqué from the front. It flattens the thread fibers, killing the sheen and making the embroidery look dull.

1. Tear cleanly: Support the stitches with your thumb while tearing the stabilizer to avoid distorting the knit.
2. Heat: Iron from the inside out. This re-sets the memory of the knit fabric, smoothing out any minor puckering caused by the hoop.

Regina notes that wash-away stabilizer can leave a softer finish than tear-away. For garments worn against the skin (especially kids' clothes), trimming close or using wash-away prevents the "scratchy badge" complaint.

The mid-stitch save: what to do when you cut a thread tail or spot a digitizing flaw

Regina runs into two real-world problems:

1. The "Oops" Snip: She accidentally cuts a thread tail too short.
   • The Fix: Stop. Back up the machine 10-20 stitches using the control panel. Resume. The new stitches will lock over the mistake.
2. The Digitizing Flaw: An extra line appears.
   • The Fix: She stops, snips the jump thread, and continues.

The Takeaway: You don’t need a perfect run to get a sellable result—you need the confidence to intervene. Don't be afraid of the "Stop" button.

Operation Checklist (Keep this beside you while it stitches)

• Eye on the Seam: Watch the seam line alignment during every color change.
• Pin Extraction: Remove holding pins before the foot gets close to them (broken needles are dangerous).
• Fabric Defense: Constantly ensure excess shirt fabric is rolled away from the needle.
• Sound Check: Listen for rhythmic "purring." A harsh "clack-clack" usually means a needle hit a pin or the hoop.
• Trimming Hygiene: When trimming, lift fabric. Cut fabric only. Breathe.

A stabilizer decision tree for side seam appliqué on knits (so you don’t guess)

Use this as a practical starting point; your machine and design density may dictate adjustments.

Decision Tree (Fabric → Stabilizer Approach):

1. Is the garment a very stretchy Jersey Knit (T-shirt)?

• YES → Do you have a Magnetic Hoop?
  • Yes: Use Cutaway (Clamped). Best stability.
  • No (Floating): Use Adhesive Tear-away or Fusible Mesh. You need the adhesive to stop the shifting.
• NO (It's a Sweatshirt/Woven) → Proceed to #2.

2. Is the design density High (Heavy Satin Borders)?

• YES → Cutaway Stabilizer is mandatory. Tear-away will perforate and the design will pop out.
• NO (Light stitching) → Tear-away is acceptable.

3. Is the item worn against sensitive skin (Baby/Sensory issues)?

• YES → Use Wash-away Mesh or cover the back with a fusible soft backing (like Cloud Cover) after stitching.
• NO → Standard finishing applies.

The upgrade path that actually makes sense: when to move from clips/pins to magnetic hoops (and when to scale up)

If you only do one side seam shirt a month for a hobby, Regina’s clip-and-pin method works—just slow the machine down (600 SPM) and be hyper-vigilant about safety.

However, if you are doing these regularly (holiday drops, team shirts, Etsy-style runs), the "time sink" isn’t the 17-minute stitch time—it is the repeated alignment, pinning, and re-smoothing logic.

Here is a practical "tool upgrade" diagnosis:

• Scenario Trigger: You are spending 10+ minutes hooping a shirt, you are fighting "hoop burn" rings, or you are pricking your fingers with pins.
• Judgment Standard: If you have to stop the machine mid-run to re-smooth the fabric more than once per shirt, your holding method is the bottleneck.
• Upgrade Options:
  • Level 1 (Stability): For home single-needle workflows, consider magnetic hoops for babylock embroidery machines. They clamp knits evenly across the whole frame, eliminating the need for pins and reducing the "scooting" effect significantly.
  • Level 2 (Versatility): Many professionals compare brands like durkee magnetic hoops against other aftermarket options (like Sewtech) to find the best fit for their specific machine arms. The goal is a hoop that snaps the fabric tight instantly.

Level 3 (Scaling Production): If your end goal is paid orders and batch work (e.g., 50 shirts), a single-needle machine becomes a liability due to thread change time. In our shop context, we often see studios move to a SEWTECH multi-needle machine. The ability to pre-hoop the next garment while one stitches, combined with specific magnetic embroidery hoop systems for tubular arms, turns a frustrating craft session into a profitable workflow.

The comment-section takeaway: why people love this technique (and why it sells)

One viewer called the stitch-out “absolutely perfect” and wanted to share photos. This is the validation we seek. Side seam designs are high-impact; a simple $5 T-shirt becomes a $35 custom garment because the placement feels unique and technical.

Another viewer noted that seeing the "cutting-away" step made the concept click. It removes the mystery.

That is the real win here. Master the physics of the knit—align it, stabilize it, and cut it cleanly—and you have a repeatable product. If you are currently hunting for an embroidery machine 6x10 hoop solution, start with what fits your budget, but keep your eyes on the magnetic upgrade path—it is the single best investment for preserving your sanity when stitching on stretchy knits.

FAQ

• Q: On a Baby Lock home embroidery machine, what stabilizer setup prevents jersey knit “scooting” during a side seam split appliqué when the T-shirt is floated (not hooped)?
  A: Use an adhesive holding method (temporary spray or adhesive backing) so the T-shirt and stabilizer behave like one layer instead of sliding.
  • Spray: Apply a light, even mist of temporary adhesive between the shirt and stabilizer before pinning.
  • Add: Place water-soluble topping on top if the knit is ribby/fluffy or satin stitches want to sink.
  • Slow: Reduce stitch speed for the outline step (a safe starting point is around 600 SPM if the machine allows).
  • Success check: The side seam stays centered on the stitched vertical placement line without “walking” as the needle runs.
  • If it still fails: Switch from floating to a clamped approach (often a magnetic hoop) and/or move from tear-away to cutaway/poly-mesh for more resistance to stretch.
• Q: On a Baby Lock embroidery machine using a clip-on frame system (not the standard 6x10 hoop), how tight should the stabilizer be before stitching the placement crosshairs for side seam alignment?
  A: The stabilizer must be drum-tight before stitching the crosshair “GPS” lines, or the alignment will distort immediately.
  • Tap: Tap the hooped/framed stabilizer before stitching any lines.
  • Adjust: Re-clip/re-tension until the stabilizer is uniformly tight across the field.
  • Stitch: Run the horizontal and vertical crosshair lines on stabilizer first, then align the garment to the stitched vertical line.
  • Success check: The stabilizer “sounds like a tight drum” when tapped and does not look wavy when the first lines stitch.
  • If it still fails: Inspect for uneven clipping or slack in one edge; restart the crosshair step on a fresh piece of stabilizer.
• Q: When aligning a jersey knit T-shirt side seam to a stitched vertical placement line for a side seam split embroidery design, how do you prevent stretching the knit out of shape?
  A: Do not pull the knit to the line—lift and place the seam onto the stitched vertical line with a neutral hand.
  • Press: Pre-press a crisp side seam/crease so the center reference is visible and repeatable.
  • Place: Lift the fabric and set the seam onto the stitched vertical line rather than dragging it sideways.
  • Smooth: Smooth from the center outward like applying a screen protector—contact without tension.
  • Success check: The seam aligns to the vertical line while the surrounding knit stays relaxed (no ripples or “elongated” look).
  • If it still fails: Add temporary adhesive (instead of relying on pins) because pins can create distortion points on knits.
• Q: During a V-shaped cut line step on a stretchy jersey knit side seam appliqué, why does the fabric start shifting under the presser foot and what is the safest fix?
  A: This shifting is common on floated knits; stop the machine and improve holding (adhesive/topping/clamping) instead of holding fabric near the needle.
  • Stop: Pause immediately if the shirt starts “scooting”—do not keep hands close to the moving needle.
  • Bond: Add temporary spray adhesive between shirt and stabilizer to reduce shear/sliding.
  • Stabilize: Add water-soluble topping on top to increase friction and control satin pull.
  • Success check: The V-outline stitches cleanly with no drift, and the seam remains centered without you touching near the needle.
  • If it still fails: Clamp the garment and stabilizer together (often with a magnetic hoop) to eliminate the floating shear effect.
• Q: What is the safest way to trim the T-shirt fabric inside a stitched V cut line for side seam split appliqué without cutting the stabilizer or stitches?
  A: Tent the shirt fabric straight up and cut in free space with curved scissors angled away from the stabilizer.
  • Lift: Hold the fabric you want to remove straight up to separate it from the stabilizer layer you must protect.
  • Angle: Point curved scissor tips upward/away from the stabilizer while cutting close to the stitched line.
  • Control: Cut fabric only; avoid trimming thread tails in the middle of the risky cut zone.
  • Success check: The opening is clean and close to the stitch line, with no nicks in stabilizer and no cut stitches.
  • If it still fails: Stop and reassess lighting and hand position; keep the non-cutting hand at least 4 inches from the blade path.
• Q: While satin stitching a side seam appliqué border on a T-shirt, how do you prevent the embroidery machine from stitching the shirt closed (“hoop-eater” problem)?
  A: Roll and clip all excess garment fabric away from the stitching field and do not leave the machine during satin stitches.
  • Roll: Roll sleeves/back panel tightly so nothing can flop under the needle.
  • Clip: Clip the roll outside the stitch zone so it cannot creep back in.
  • Monitor: Watch continuously; stop immediately if a ripple forms because satin pull can cause micro-shifts.
  • Success check: No loose fabric enters the needle area and the satin border runs without catching extra layers.
  • If it still fails: Improve perimeter holding (often a magnetic hoop helps) and support garment weight on a table/chair so it cannot drag the frame.
• Q: When should a home embroiderer move from pins/clips to a magnetic embroidery hoop—or from a single-needle workflow to a SEWTECH multi-needle machine—for side seam appliqué on knits?
  A: Upgrade when the holding method becomes the bottleneck: repeated re-smoothing, long hooping time, or frequent mid-run stops are the clear triggers.
  • Diagnose (Level 1): If hooping/alignment takes 10+ minutes, hoop burn is frequent, or you must stop mid-run more than once per shirt, optimize first (adhesive spray, topping, slower speed).
  • Upgrade tools (Level 2): Choose a magnetic hoop when floating causes consistent scooting or pin handling is slowing production; magnetic clamping reduces shear across the whole perimeter.
  • Scale production (Level 3): Choose a SEWTECH multi-needle machine when paid orders/batches make thread-change time the limiting factor.
  • Success check: One shirt completes without emergency stops, and setup time drops enough to feel repeatable rather than stressful.
  • If it still fails: Re-check stabilizer choice using the knit/density decision logic (often cutaway for heavy satin, adhesive support when floating), and confirm the design fits the embroidery field with adequate clearance.
