Side-Panel Cap Embroidery on a Ricoma Cap Driver: The Settings, the Hooping “Feel,” and the Crash-Proof Trace

Side-panel cap embroidery is one of those specific skills that separates the hobbyist from the professional. It looks deceptively simple—until you hear the cap driver get uncomfortably close to the back post, and your stomach drops. If you have ever thought, "My machine interprets this design as out of bounds," or "Why is the needle hovering outside the trace line?" you are encountering a safety limit, not a capability limit.

In this comprehensive guide, I am deconstructing Manny’s workflow for embroidering the side of a structured cap using a standard cap driver on a Ricoma multi-needle machine. However, I am going further: I will overlay experience-based checkpoints, sensory diagnostic cues, and commercial safety protocols to ensure you can replicate this process without breaking needles or ruining inventory.

Don’t Panic: The Ricoma Cap Driver *Can* Reach the Side Panel—If Your Frame X Size Isn’t Choking It

Manny starts with the fundamental truth of machine embroidery geometry: side embroidery on a cap driver is mostly a parameter problem, not a mechanical limitation.

By default, most commercial machines set the cap frame limit to 260 mm on the X-axis. This is a "safety box" designed to keep beginners centered on the front of the cap. However, 260 mm is too narrow to reach the side panel effectively. The fix isn't physical force; it is digital permission. You must expand the frame’s X limit to allow the driver to rotate further along its axis.

If you are currently operating a ricoma em 1010 embroidery machine, Ricoma support has confirmed you can utilize this exact methodology. The machine physics remain identical—you simply need to adjust your parameters to "unlock" the extra travel distance.

The Expert Perspective: Think of the X-axis setting as an electronic leash. By changing the value, you are lengthening the leash, giving the pantograph permission to travel further while the cap driver rotates. That extra travel is exactly what unlocks the side panel.

The “Hidden” Prep Pros Never Skip: Cap Choice, Needle 1, and a Collision Mindset Before You Touch Settings

Before you even touch the interface screen, you must establish a physical environment that favors success. In my 20 years of floor experience, 90% of failures happen during prep, not stitching.

1. Use a Structured Cap for Learning: Manny uses a white structured OTTO cap. Why? Structured caps (buckram-backed) hold their shape under rotational tension. Unstructured "dad hats" are fluid and notoriously difficult to tension on the side panel without distortion. Save those for when you have mastered this technique.
2. Commit to Needle 1 as Alignment Anchor: Manny repeatedly uses Needle 1. This isn't random. On most multi-needle heads, Needle 1 is on the far right (facing the machine). Using it gives you the clearest line of sight to the side panel without the rest of the head blocking your view.
3. Visualize the Back Post Collision: The closer you stitch toward the rear center seam (the adjustable strap area), the closer the needle bar gets to the cap driver’s metal connecting post. You must develop a "Collision Mindset"—constantly calculating the distance between your needle and that metal post.
4. Stabilizer Strategy: Ricoma noted that for this specific stiff cap, Manny might not have used stabilizer. However, generally speaking, caps vary wildly. A flimsy side panel without backing equals puckering.

Prep Checklist: The "Go/No-Go" Pre-Flight

• Equipment: Confirmed use of Cap Driver + Cap Ring (do not attempt this with flat hoops).
• Needle Selection: Identify Needle 1 and ensure it is sharp and unbent.
• Clearance Check: Manually inspect the cap driver’s back post/bracket. Is it bent? Is it secure?
• Consumables: Have binder clips ready, but do not attach them yet. Have your backing (tearaway or cutaway) cut to size.
• Assessment: Perform the "pinch test" on the cap side. If it collapses easily, commit to using stabilizer.


The One Setting That Unlocks Side Embroidery: EMB Parameters → Frame → Cap Icon → Frame X Size 350 (from 260)

This is the technical core of the operation. You are overriding the default safety zone.

Manny’s exact navigation path:

1. Navigate to EMB Parameters.
2. Select the Frame tab/menu.
3. Choose the Cap Frame Icon.
4. Locate Frame X Size.
5. Change value from 260 mm (default) to 350 mm.

Why these numbers matter:

• 260 mm: Covers the front 5-6 inches of a cap (forehead area).
• 350 mm: Extends the rotational range to cover the temporal and side panel areas.

Navigation Note: If you are on a newer touchscreen model (like the SwiftXL with a 10-inch panel), the buttons may look different, but the logic is universal. Look for SETTINGS / EMB PARAMETERS. The setting will always be under "Frame" or "Cap Definition."

Warning: Mechanical Collision Risk
Any time you expand travel limits (X > 260), you are entering a zone where the machine can physically strike the cap driver hardware if you frame poorly.
* Sensory Check: Monitor the machine sound. A sharp metallic "clack" means you hit the limit switch or hoop.
* Keep hands clear during the trace.
* Stop immediately if the head gets within 5mm of the metal back post.

Confirm You’re Not Lying to Yourself: Design Set Must Show 350 × 75 Before You Rotate the Cap Driver

Changing a parameter in the settings does not always immediately apply it to the current job. You must verify the machine has "accepted" the new reality.

After changing the parameter:

1. Enter Design Set (or Operation Monitor).
2. Select the cap hoop visualization.
3. Visually Confirm: The display must read 350 × 75.

If the screen still says 260, the machine will hit a "soft limit" and refuse to move to the side, causing the dreaded "Frame Limit" error.

Expert Note on Y-Axis: Note the "75" in the Y-axis. While you can technically expand Y, doing so on a cap is dangerous due to the brim (visor). Ricoma recommends a safe range of Y = 70mm to 85mm. Going deeper than 85mm increases the risk of the needle bar striking the sweatband or brim base.

Documentation: If you are running a shop, write these numbers down on a whiteboard near the machine. Known good parameters for standard caps are usually X: 300-360 and Y: 70-80.

Rotate to the Side Without Guessing: Use the Arrow Keys Until the Needle Bar Lives Over the Side Panel

With the frame unlocked to 350mm, you now manually move the pantograph.

Manny utilizes the manual arrow keys to actuate the cap driver rotation. Watch as the cap spins on its axis until the needle bar is physically positioned over the side panel.

The Beginner's Fear: This moment often feels wrong to new users. The cap driver rotates dramatically, and the geometry looks aggressive. This is normal.

Sensory & Visual Teching:

• Move Slowly: Do not hold the arrow key down at high speed. Tap it or use slow mode.
• Watch the Crosshair: Glance at your screen. Ensure the crosshair (current needle position) is within your newly expanded 350mm box.
• Watch the Hardware: Look at the metal arm of the cap driver. Is it clearing the needle plate?

If you are performing this action repetitively in a production environment, this is where better fixtures pay off. A stable hooping setup reduces the amount of "micro-adjusting" required at the machine.

The Needle 1 Centering Trick: Drop the Needle Slightly and Split the Seams Like a Surgeon

Software centering relies on perfect math; reality relies on visual confirmation. Manny’s alignment method minimizes variables.

The Workflow:

1. Command the machine to switch to Needle 1.
2. Tactile Action: Manually grab the needle bar thumb-turn (or use the screen function) to lower the needle bar halfway. You want the needle tip hovering just millimeters above the fabric.
3. Visual Alignment: Look at the side panel. There are usually two vertical seams defining the panel.
4. Use the jog keys to place the needle tip exactly in the visual center between those two seams.
5. Adjust Y (Up/Down) until the height looks appropriate relative to the sweatband/air vents.

Why this works: Old-school techniques often beat software automation for on-the-fly corrections.

If you are researching hooping for embroidery machine workflows for your shop, standardize this "Needle 1 Centering" technique for all operators. It eliminates the "he said/she said" of alignment issues.

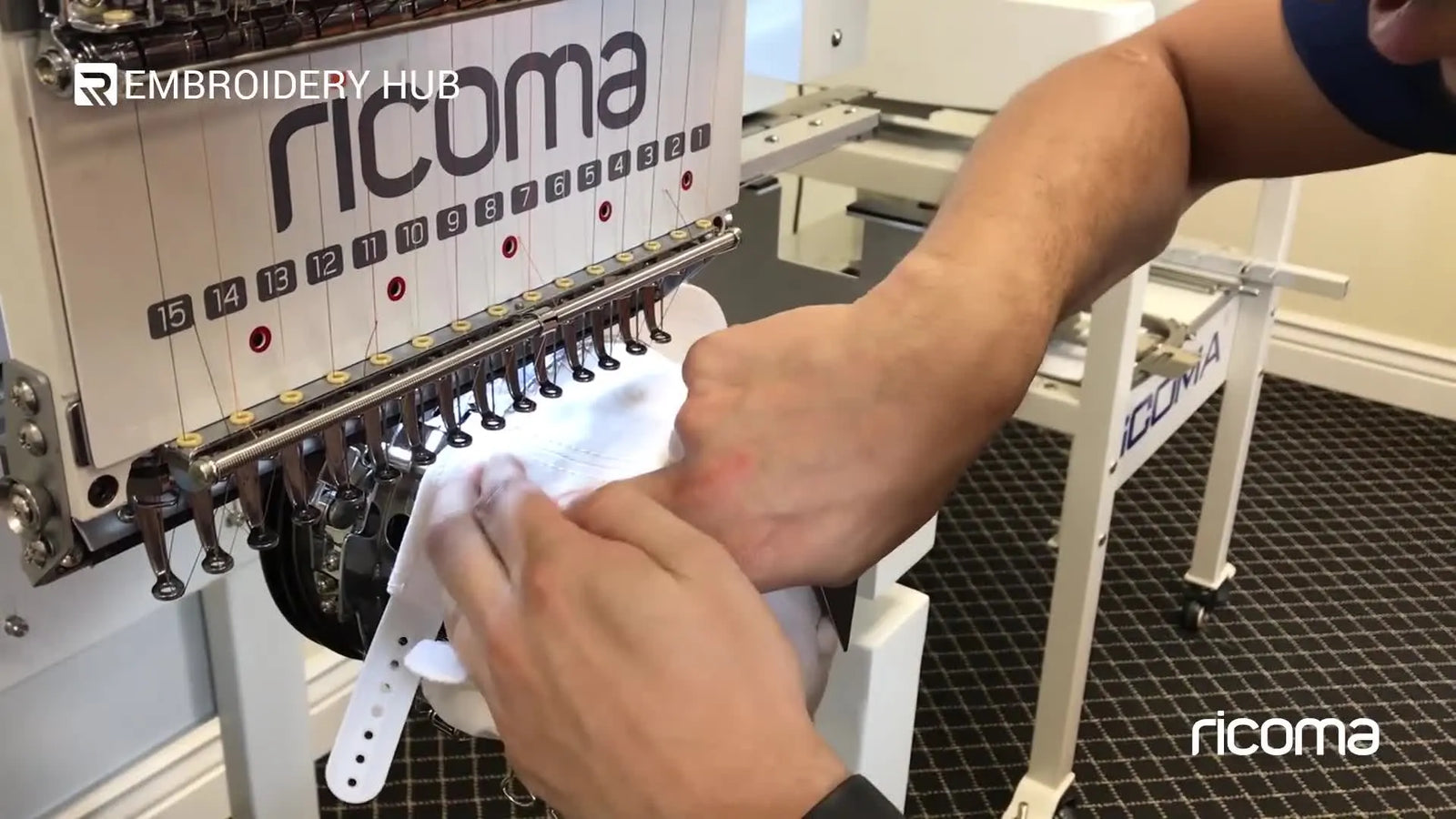

The Make-or-Break Hooping Moment: Stretch the Side Panel First, Then Clip—Never the Other Way Around

This is the single most critical step for stitch quality. Read this twice.

The Common Mistake: Operators rotate the cap, slap a binder clip on the back post to hold the fabric, and then try to smooth it. This traps slack in the embroidery field.

The Manny Method:

1. NO CLIPS YET.
2. Use your hands to pull and smooth the side panel fabric flat against the curvature of the cap driver.
3. Tactile Check: The fabric should feel tight, like the skin of a drum, with no "bubbling" in the center.
4. Hold tension with one hand.
5. Apply Binder Clips to the back latch/post with the other hand to lock that tension in.

Physics Explanation: The side panel is a compound curve. If you clip first, you "freeze" ripples into the fabric. When the needle penetrates, the fabric flags (bounces), causing thread breaks and poor registration.

The "Tool Upgrade" Context: If you constantly fight loose fabric or "hoop burn" (pressure marks) on flat garments, this is where many shops upgrade to Magnetic Hoops. While you cannot use a flat magnetic hoop on a finished cap driver, the principle is identical: Grip without distortion.

• Level 1: Master Manny's manual smoothing technique for caps.
• Level 2: For your flat items (polos, bags), upgrade to Magnetic Hoops to eliminate the manual strain of screw-tightening and hoop burn.
• Level 3: For high-volume cap production, ensure your cap driver cables are tensioned correctly by a technician.


Trace Like Your Order Depends on It: Border Trace to Protect the Brim, the Clips, and Your Sanity

Never press "Start" without a trace on a cap side run.

Run a standard Border Trace (Design Trace):

1. Watch the Needle 1 bar as it travels the perimeter of the design.
2. Clearance Check A: Does it hit the brim (visor)?
3. Clearance Check B: Does it hit the binder clips or the back post?

This step answers the common panic: "How do I ensure the cap is set correctly? I seem to be outside the trace line."

Troubleshooting "Outside the Line": If the machine beeps and says you are out of bounds, check these three culprits:

1. Phantom Parameter: You changed X to 350 in parameters, but the Design Set still thinks it is 260.
2. Physical Drift: You rotated the driver physically further than the software limit allows.
3. Centering Error: Your design is digitized too large for the side panel.

Setup Checklist: The "Ready to Fire" State

• Parameter Verified: EMB Parameters → Frame → Cap Icon shows X = 350.
• System Verified: Design Set display confirms 350 × 75.
• Physical Position: Cap driver rotated via arrow keys; Needle bar is squarely over the side panel.
• Alignment: Needle 1 is visually centered between the two vertical side seams.
• Tension: Side panel was smoothed taut manually before binder clips were attached.
• Safety Trace: Full border trace completed with clear visual clearance at brim and back post.


The “Back Post Crash” Problem: When Your Design Wants the Rear Center Seam, You Must Create Clearance (X=400 + Off-Center Hooping)

Sometimes, a client wants a logo pushed far back, near the snapback/adjustment strap. This is the Danger Zone.

The Issue: The design overlaps with the physical location of the cap driver's central connecting post.

Manny’s Advanced Workaround:

1. Parameter Expansion: Increase Frame X Size from 350 to 400 mm.
2. Physical Offset: Instead of hooping the cap perfectly centered on the driver ring, hoop the cap slightly off-center to the right.

Why this works: By physically shifting the cap on the driver, you move the target embroidery area away from the metal post, creating an artificial buffer zone.

Scalability Start-Up: If you are doing one-offs, this "hack" is fine. If you are doing a run of 500 caps, this is high-risk.

• Production Tip: If your volume justifies it, consider upgrading to a SEWTECH Multi-Needle Machine. These industrial platforms often feature slimmer effective cylinder arms and advanced cap driver geometries designed to handle tighter clearances with less "hacking." Precision machinery reduces the need for dangerous workarounds.


Stabilizer Decision Tree for Cap Side Panels: When “No Backing” Works—and When It Betrays You

In the source video, Manny stitches without backing. Ricoma clarified that for that specific "tough structured" cap, it was acceptable. Do not assume this applies to all caps.

Use this decision tree to ensure specific results:

Decision Tree: To Stabilize or Not?

1. Is the cap "Structured" (Buckram/Hard Front)?
   • NO (Dad Hat/Unstructured): -> MUST USE BACKING (Tearaway + Clip it in).
   • YES: -> Proceed to Question 2.
2. Is the Side Panel Mesh?
   • YES: -> MUST USE BACKING (Soluble or matched color stabilizer to prevent gaps).
   • NO: -> Proceed to Question 3.
3. Is the Design Dense? (Solid fills, large tatami, >5000 stitches)
   • YES: -> USE BACKING. Dense stitches pull fabric; backing resists this.
   • NO (Simple lettering/Line art): -> You can try without backing, provided the cap is stiff.

Consumable Note: Always keep pre-cut squares of cap stabilizer (tearaway) near your machine. It is cheap insurance against a ruined $10 cap.

“Can I Make the Machine Move to the Side Automatically from Digitizing?”—What’s Realistic, and What Still Needs a Human

A common question: "Can I just digitize the design 'on the side' in the software so the machine goes there automatically?"

The Theoretical Answer: Yes. You can create a "Super Template" in your digitizing software that represents the full 350mm width, place the front logo in the center and the side logo to the left/right.

The Practical Answer: Don't rely on it exclusively. Even with a perfect digital template, physical caps vary. The seam on Cap #1 might be 3mm different from Cap #50. The "Human Trace" method (Rotate -> Align -> Trace) accommodates these physical variances better than a rigid software file.

However, precise digitizing is crucial. If you are using hooping stations to ensure consistent cap placement, you can rely more on software positioning. But in a standard shop, always trust your eyes over the coordinates.

Operation Checkpoints: What “Good” Looks Like While It’s Stitching (So You Stop Before It’s Too Late)

Once you press START, your job isn't done. You are now the Pilot in Command.

Sensory Monitoring:

• Sound: Listen for a rhythmic "thump-thump." A "slap-slap" sound indicates the cap is flagging (too loose).
• Sight: Watch the gap between the needle bar and the back post. Does it look like it's getting closer than during the trace? Caps can shift.
• Vibration: Place a hand gently on the table (not the machine). Excessive vibration suggests the cap driver isn't locked down tight.

Warning: Physical Safety
Binder clips, cap driver arms, and rotating metal create pinch points.
* The cap driver moves fast. It can catch loose sleeves, hair, or jewelry.
* NEVER reach behind the cap driver while the machine is running.
* If a clip pops off, hit EMERGENCY STOP. Do not try to grab it mid-stitch.

Operation Checklist: In-Flight Safety

• Trace Confirmed: Full border trace completed with 0 collisions.
• Needle Alignment: Start point aligns with the visual center of the panel.
• Slack Monitor: Watch the first 100 stitches. Is the fabric rippling? If yes, STOP and re-clip.
• Clearance Maintain: Ensure the "X=400" clearance hack (if used) is effectively keeping the needle away from the back post.
• Post-Mortem: After stitching, check the inside of the cap. Are the bobbin tensions even? (Goal: 1/3 white bobbin thread showing).


Smart Upgrade Paths (Without the Hard Sell): When Better Hoops, Better Machines, or Better Workflow Actually Pay You Back

Side-panel embroidery is a precision task that exposes the weak links in your workflow. Identify your pain point below to find the correct solution.

Scenario A: "I struggle with hooping consistency and 'hoop burn' on my flat garments."

• Diagnosis: You are fighting traditional screw-tension hoops.
• Solution: Upgrade to Magnetic Hoops (compatible with Ricoma/Tajami/Brother). They self-adjust to fabric thickness and leave zero marks. This is a workflow speed upgrade.

Scenario B: "I am turning away large orders because my single-head machine is too slow."

• Diagnosis: Capacity bottleneck.
• Solution: It is time to scale. A SEWTECH Multi-Needle Machine system offers the industrial stability required for continuous cap runs, removing the "hobbyist" limits on travel and speed.

Scenario C: "I need to embroider sleeves and pockets, but my hoops don't fit."

• Diagnosis: Tooling limitation.
• Solution: Look into the 8 in 1 hoop ricoma style sets. These specialized fixtures allow you to clamp difficult, small areas without forcing a large hoop into a small space.

And if you are evaluating cap fixtures specifically, always judge them by one standard: Do they reduce distortion?

Warning: Magnetic Safety
If you upgrade to Magnetic Hoops/Frames, be aware they use high-power neodymium magnets.
* Medical Risk: Keep away from pacemakers and insulin pumps.
* Pinch Hazard: These magnets snap together with force. Keep fingers clear of the mating surfaces.
* Electronics: Do not place phones or credit cards directly on the magnets.

Quick Answers to the Most-Asked Questions From the Comments (So You Don’t Have to Dig)

• “Did you use stabilizer?”
  • Verdict: For the video’s stiff cap, no. For your daily work? Start with tearaway. Use the decision tree above. Pattern density dictates backing needs.
• “Can I do this on EM-1010 / TC machines?”
  • Verdict: Yes. Ricoma support verified this workflow applies to EM-1010, TC1500, and similar multi-needle models. The physics of the cap driver are the same.
• “How much can I extend Y?”
  • Verdict: Limit Y expansion to 75mm - 85mm. Going beyond 85mm risks hitting the brim. Always trace to verify.
• “What X/Y coordinates should I use?”
  • Verdict: X=350, Y=75 is the "Gold Standard" for side work. Use X=400 only for extreme rear clearance.
• “Can I embroider the front and side in one go?”
  • Verdict: generally, No. The rotation required is too vast, and the registration will drift. Run the front file, then a separate side file.


The Real Takeaway: Side Caps Are a Settings + Tension Job—Nail Those, and the Rest Gets Easy

Manny’s method works because it respects the two physical realities of machine embroidery:

1. Machine Permission: You must tell the computer (Parameter X=350) that it is safe to travel.
2. Fabric Control: You must manually smooth the tension before locking the binder clips.

Once you build the habit of verifying your parameters, aligning with Needle 1, and tracing religiously, side-panel caps stop being a source of anxiety. They become a profitable, premium add-on you can offer with confidence.

If you are currently piecing together your workflow with mismatched tools, consider standardizing. Whether it is a better cap hoop for embroidery machine setup, fresh needles, or a dedicated multi-needle machine for production runs, the right tools turn "trial-and-error" into predictable profit.

FAQ

• Q: How do I embroider the side panel on a Ricoma multi-needle machine cap driver when the cap frame X limit is stuck at 260mm?
  A: Increase the cap frame Frame X Size from 260mm to 350mm to unlock safe side-panel travel.
  • Go to EMB Parameters → Frame → Cap icon → Frame X Size and set 350mm.
  • Open Design Set/Operation Monitor and confirm the hoop display shows 350 × 75 (not 260).
  • Rotate the cap driver using the arrow keys until the needle bar sits over the side panel.
  • Success check: The machine traces/moves to the side without a “frame limit/out of bounds” stop, and the screen shows 350 × 75.
  • If it still fails: Re-check that the Design Set actually updated (parameter changes don’t always apply to the current job immediately).
• Q: How do I fix a Ricoma cap driver “Frame Limit / out of bounds” warning during border trace on a side-panel cap design?
  A: Treat it as a mismatch between software limits, physical rotation, or design size—verify limits first, then re-trace.
  • Verify EMB Parameters cap frame X = 350 (or the value you intended).
  • Verify Design Set shows 350 × 75 before rotating further.
  • Re-center using Needle 1 and re-run a Border Trace to confirm clearance.
  • Success check: Border trace completes with no beep/stop and the needle path stays inside the allowed travel.
  • If it still fails: Assume the design is digitized too large or placed too far for the side panel and adjust the file/placement rather than forcing rotation.
• Q: What is the safest way to avoid a Ricoma cap driver back post collision when embroidering near the rear seam of a structured cap?
  A: Expand travel only when needed and create physical clearance before starting—rear-seam work is the danger zone.
  • Increase Frame X Size from 350 to 400mm only for extreme rear placement needs.
  • Hoop the cap slightly off-center to the right to move the embroidery area away from the metal connecting post.
  • Run a full Border Trace watching the gap between the needle bar and the back post.
  • Success check: During trace, the head never approaches the back post closer than a “near miss” feel; stop if it gets within about 5mm as noted.
  • If it still fails: Reduce design placement toward the side panel (away from the rear seam) rather than pushing limits.
• Q: How do I align a side-panel cap design on a Ricoma multi-needle machine using Needle 1 so the needle does not hover off the trace line?
  A: Use Needle 1 as the visual anchor and align by seams with the needle tip lowered slightly—do not rely on math alone.
  • Switch to Needle 1 for the clearest line of sight.
  • Lower the needle bar halfway so the needle tip hovers just above the fabric.
  • Jog until the needle tip is centered between the two vertical side seams and adjust height relative to sweatband/vents.
  • Success check: The start point visually lands where intended and the border trace outlines the design centered in the panel.
  • If it still fails: Re-check that the cap driver rotation is correct and the cap is not drifting due to weak clipping/tension.
• Q: How do I prevent fabric slack, flagging, and registration issues when hooping a structured cap side panel on a standard cap ring with binder clips?
  A: Smooth the side panel tight first, then clip—clipping first traps slack and causes stitch problems.
  • Pull and smooth the side panel fabric flat against the cap driver curvature with no bubbling.
  • Hold that tension by hand and apply binder clips to lock it in place.
  • Watch the first stitches for looseness and re-clip immediately if needed.
  • Success check: The fabric feels “drum tight,” and you hear a steady rhythmic stitch sound (not a loose “slap-slap” flagging sound).
  • If it still fails: Add stabilizer (especially on softer caps) and redo the smoothing/clip order.
• Q: When should I use stabilizer for Ricoma cap side-panel embroidery, and when can a structured cap run without backing?
  A: Use a simple decision rule: unstructured/mesh/dense designs need backing; only stiff structured caps with light designs may run without it.
  • Use backing if the cap is unstructured (dad hat) or the side panel collapses in a pinch test.
  • Use backing if the side panel is mesh to prevent gaps and distortion.
  • Use backing if the design is dense (solid fills/large tatami / over ~5000 stitches) because stitches will pull the fabric.
  • Success check: The finished panel stays flat with minimal puckering and clean edges.
  • If it still fails: Try a different stabilizer type (tearaway vs cutaway) as a safe starting point and confirm hooping tension before changing machine settings.
• Q: What are the key safety checks for running a Ricoma cap driver at Frame X Size 350–400mm, especially during trace and start?
  A: Expand travel limits only with strict tracing and collision awareness—this is common, and it’s manageable with checkpoints.
  • Run a Border Trace every time and watch for hits at the brim/visor, binder clips, and the back post.
  • Move with slow/tap jogging on arrow keys when positioning to the side.
  • Stop immediately if you hear a sharp metallic “clack” or see the head closing in on hardware.
  • Success check: Trace completes with clear hardware clearance and no abnormal sound/vibration.
  • If it still fails: Return to a safer range (X = 350, Y around 75) and re-evaluate placement rather than forcing more travel.
