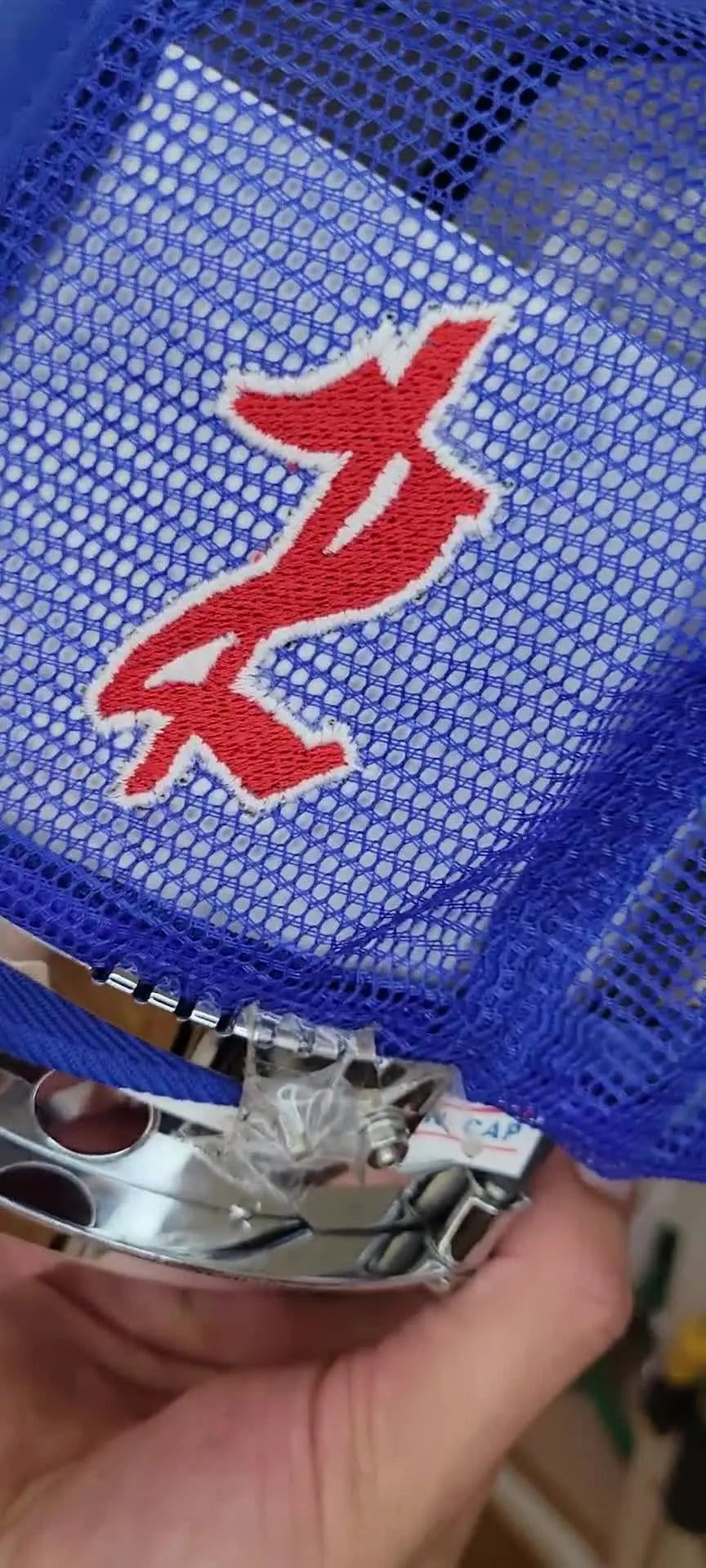

Side Mesh Trucker Hat Embroidery Without Broken Needles: The Groove Alignment Trick, Smart Stabilizing, and a Cleaner Finish

Side embroidery on a mesh trucker hat is the exact moment where "hobbyist luck" separates from "professional consistency." You are dealing with a trifecta of difficulty: a restricted 3-inch canvas, a hidden metal belt that destroys needles, and a fabric structure (mesh) that is essentially 50% air.

If you have ever felt that sinking feeling when a logo distorts, or the heart-stopping "snap" of a needle hitting the frame, you are not alone. This is a precision sport.

This guide reconstructs the workflow into an industrial-standard protocol. We are moving beyond "guessing" to a sensory-based system where you can feel, hear, and see success before you press start. We will cover the specific physics of stabilizing mesh, the tactile "belt-in-groove" alignment, and when it is time to upgrade your tools to stop fighting your equipment.

The 3-Inch Reality: Managing the "Kill Zone"

On trucker hats, your side panel looks spacious, but that is a visual lie. You effectively have a 3-inch safe zone. Beyond this, you risk hitting the cap driver's center belt—a steel component that is invisible once the hat is hooped.

The Fear Factor: Beginners often freeze here because they cannot see the danger. The Solution: We replace fear with a safety buffer. Do not attempt to fill the entire side panel. Leave a 10mm margin from the bottom edge where the belt sits.

If you are running production, the slowest variance is not the stitching speed—it is the human time spent measuring and remeasuring this danger zone. This is why professionals eventually invest in a dedicated embroidery hooping station to mechanize this alignment, ensuring the hat lands on the exact same millimeter every time.

Phase 1: The "Hidden" Prep (Physical Mechanics)

The difference between a frantic setup and a calm one often happens before the hat touches the machine.

The "Under-the-Bar" Technique

In the video, the creator performs a subtle but critical move: sliding the cutaway backing under the metal bar of the cap frame driver.

• The Physics: The cap frame clamp has a limited jaw width. If you stack backing over the bar, you add 1-2mm of thickness. This causes the binder clips to pop off or the clamp to fail mid-run.
• The Action: Slide the stabilizer sheet between the driver cylinder and the frame bar. It should glide freely.

Essential Consumables Checklist (The "Hidden" Tools)

Most beginners fail because they lack one of these items on the table:

• Heavyweight Cutaway Stabilizer (2.5 - 3.0 oz): Never tearaway. Mesh has no structural integrity; the backing provides the "floor."
• Temporary Adhesive Spray (KK100 or similar): To tack backing if needed (optional but helpful).
• Water-Soluble Topping (Solvy): The "elevator" that keeps stitches above the mesh.
• Painters Tape/Masking Tape: For securing the perimeter.
• Curved Scissors: For precise trimming without cutting the mesh.


Pre-Flight Prep Checklist

• Stabilizer Selection: Verify you are using Cutaway. (Tearaway = Distortion on mesh).
• Stabilizer Placement: Confirm stabilizer is slid UNDER the metal bar to reduce bulk.
• Consumable Layout: Tape, topping, and scissors are within arm's reach (you cannot let go of the hat once you start hooping).

Phase 2: Anchoring the Mesh (The Trampoline Effect)

Because mesh is an open grid, it behaves like a trampoline. If it is loose, the needle impact pushes the fabric down, causing registration errors (outlines not matching fill).

The Tactile Standard: When you tape the backing to the frame, it must be drum-tight. When you tap it with your finger, it should not ripple. If the backing is loose, the mesh will be pulled "into" the design, creating a puckered, ugly finish.

When learning hooping for embroidery machine technique on mesh, consistency is your only metric. You must apply the same tension to the tape on the left and right sides every single time.

The "Groove" Alignment: The Critical Anchor Point

This is the single most important step for side hat embroidery.

The cap frame driver has a specific groove designed to seat the hat's sweatband seam.

1. Groove Seating: You must physically feel the hat's seam lock into the metal groove of the driver.
2. Sensory Check: Wiggle the hat slightly side-to-side. If it slides easily, it is not in the groove. It should feel "locked" or offer significant resistance.




The "Hoop Burn" Diagnostic

This clamping process is aggressive. Because you are forcing the hat into a curve against metal grooves, you often get "hoop burn" (shiny rings or crushed texture) on the brim or side panels.

• The Diagnostic: If you see markings on delicate hats, or if you struggle to keep the hat seated without crushing it, this is a hardware limitation.
• The Tool Upgrade: This is the precise scenario where a magnetic embroidery hoop becomes a business necessity rather than a luxury. Magnetic hoops float the material between magnets rather than crushing it into a mechanical groove, eliminating hoop burn and reducing wrist strain.

Warning: Magnetic Safety
Modern magnetic hoops use high-powered Neodymium magnets.
* Pinch Hazard: Keep fingers clear of the snapping zone. The force can break skin.
* Medical Alert: Keep at least 6 inches away from pacemakers.
* Electronics: Do not place directly on consultation tablets or screens.

The Invisible Threat: Needle Strikes & Clearance

The cap frame center belt is necessary for rotation, but it sits directly behind your stitch area. You cannot see it.

The Safe Zone Calculation:

• From the bottom of the visible cap frame area, measure up 10mm. This is your "No Fly Zone."
• If your design is 1.5 inches tall, ensure it is centered in the upper available space, not the geometric center of the frame.


Warning: Physical Safety
A needle striking the metal belt at 600 RPM will shatter. Shards can fly towards your eyes.
* Auditory Cue: If you hear a sharp, metallic "tick-tick" sound, HIT EMERGENCY STOP. This is the sound of the needle tip grazing the metal driver.
* Protection: Always wear glasses when testing new hat files.

Alignment Aids: Good vs. Bad Friction

The video creator uses a small magnet as an edge guide. This is a valid "jig." However, if you are doing production runs of 50+ hats, placing a tiny magnet manually for every hat adds 15 seconds per unit. In a professional workflow, we want to eliminate manual adjustments.

If you find yourself constantly nudging the hat to get it straight, your hooping station or fixture is the bottleneck. A dedicated magnetic hooping station allows you to preset the alignment once, and then drop every subsequent hat into the exact same coordinates without measuring.

The Sweatband Protocol

Classic Rookie Mistake: Stitching the sweatband to the side of the hat. Before you lock the frame, flip the sweatband out. The Tactile Check: Run your index finger under the mounted hat frame. You should feel smooth metal/backing, not the lump of the sweatband.

Setup Checklist (The "Go/No-Go" Decision)

• Belt Check: Connect the cap driver. Listen for the distinct click or lock sound.
• Clearance Check: Trace the design (Trace/Border key). visually confirm the needle bar does not come within 10mm of the bottom metal brackets.
• Sweatband Check: Finger-sweep under the frame to ensure the band is folded back.
• Topping Check: Is the water-soluble topping taped tight over the mesh?

The Mesh Secret: The "Sandwich" Logic

You cannot embroider directly onto mesh holes. The thread has nothing to grab, and your crisp edges will look like a sawtooth blade.

The Recipe:

1. Base: Heavy Cutaway (Under).
2. Core: The Mesh Hat.
3. Surface: Water-Soluble Topping (Over).

The topping creates a temporary solid surface. The needle punctures it, and the stitch forms on top of the plastic film, floating above the mesh holes.

Machine Parameters: The "Sweet Spot" for Mesh

The creator shifts speed from 600 to 680 SPM. Let's calibrate this for safety.

The Beginner Sweet Spot: 500 - 600 SPM. Mesh is unstable. High speeds (800+) cause the hat to flag (bounce), which reduces registration accuracy.

• Start at 500 SPM. Watch the first few outlines.
• Listen: If the machine sounds rhythmic ("thump-thump-thump"), you can increase speed. If it sounds harsh ("clack-clack-grind"), slow down. 600 SPM is usually the limit for high-quality side mesh work.


The Mid-Run Intervention

Never walk away from a hat run. Unlike flats, hats are 3D objects that can shift. The creator pauses to trim a jump stitch. This is mandatory. If you leave a long jump stitch and the machine stitches over it, you cannot remove it later without cutting the hat.

Procedure:

1. Machine creates the first few anchor stitches.
2. Press STOP/PAUSE.
3. Wait for the green light to turn red/off.
4. Trim the tail close to the fabric.
5. Resume.


Quality Control: analyzing the Result

A successful run looks like the design is a "patch" glued onto the mesh. It should sit proud and high.

The Reveal:

1. Remove the hat.
2. Tear away the large chunks of topping.
3. Do not wash yet. Use tweezers to pick out small bits of topping from inside letters. (Water is the final step).








Operation Post-Check

• Registration: Did the outline align with the fill? (If not, your backing wasn't tight enough, or speed was too high).
• Density: Can you see mesh color through the embroidery? (If yes, you need higher stitch density or a second layer of topping).
• Cleanliness: Are there any trapped thread tails underneath the fill?

Decision Tree: Fabric vs. Strategy

How to adapt this guide for different hat types:

Scenario A: Soft Mesh (Unstructured)

• Risk: High distortion.
• Strategy: Use 2 layers of Cutaway backing + Topping. Reduce speed to 500 SPM.
• Tool: Magnetic Hoop is highly recommended to prevent "puckering" caused by mechanical clamps.

Scenario B: Stiff Plastic Mesh (Trucker)

• Risk: Needle deflection/Breakage.
• Strategy: Use a sharp 75/11 Titanium Needle (cuts through plastic better). 1 Layer Cutaway.

Scenario C: Foam Front (Side panel adjacent)

• Risk: Height difference.
• Strategy: Ensure the presser foot height is adjusted up (2-3mm) so it doesn't drag on the foam front while moving to the side.

Troubleshooting: The "Why is this happening?" Table

The Business of Upgrades: When to Spend Money

You can stitch a perfect hat on a single-needle machine with standard frames, but it takes time. In the embroidery business, Time = Margin.

Here is the logic for when to upgrade your toolkit:

1. The "Hoop Burn" & Wrist Pain Trigger:
   • The Problem: You are struggling to clamp thick hats, or your frames are leaving permanent marks on customer goods.
   • The Fix: SEWTECH Magnetic Hoops. They self-adjust to thickness and leave zero marks.
2. The "I hate changing threads" Trigger:
   • The Problem: You spend more time Rethreading colors than running the machine. You are turning down orders of 20+ hats.
   • The Fix: SEWTECH Multi-Needle Machines. Pre-load 10-15 colors. Press start. Walk away to do sales.
3. The "It keeps moving" Trigger:
   • The Problem: Your designs require constant re-centering.
   • The Fix: Magnetic Hooping Station. Standardize your placement geometry.

Final Word: Side hat embroidery is about respecting the "3-inch limit" and the physics of the mesh. Use firm cutaway, use topping, and keep your hands away from that hidden belt. Once you master the safety zone, the speed will follow.

FAQ

• Q: How do I keep a mesh trucker hat side panel drum-tight on an industrial cap frame driver to prevent registration shift?
  A: Tape the backing so tight that the mesh cannot “trampoline” under needle impact—loose backing is the #1 cause of outlines missing fills on side mesh.
  • Pull and tape the cutaway backing evenly on left and right sides before locking the hat in.
  • Re-tape the perimeter if any section lifts or wrinkles while you handle the hat.
  • Success check: Tap the taped area with a finger; it should feel drum-tight with no ripples.
  • If it still fails… slow the machine down toward 500–600 SPM and confirm the hat seam is locked into the driver groove (not sliding).
• Q: How do I slide cutaway stabilizer UNDER the cap frame driver bar to stop clamp failure when embroidering the side of a mesh trucker hat?
  A: Put the stabilizer between the driver cylinder and the frame bar to avoid adding 1–2 mm thickness that can make clips pop off or the clamp fail mid-run.
  • Slide the cutaway sheet under the metal bar so it glides freely before you start taping.
  • Avoid stacking stabilizer over the bar where the clamp jaw needs to close.
  • Success check: The clamp closes firmly without forcing, and nothing “springs” loose when you lightly tug the backing.
  • If it still fails… reduce bulk (single sheet at first) and re-check that tape is not overlapping the clamp contact points.
• Q: What is the correct “cutaway + topping sandwich” for side embroidery on mesh trucker hats to prevent sinking stitches and jagged edges?
  A: Use a sandwich: heavyweight cutaway backing underneath + the mesh hat + water-soluble topping on top, because thread cannot form cleanly over open mesh holes.
  • Place heavy cutaway (2.5–3.0 oz) under the mesh as the structural “floor” (avoid tearaway on mesh).
  • Tape water-soluble topping tight over the mesh to create a temporary surface for crisp edges.
  • Success check: The finished embroidery looks like a raised patch sitting proud above the mesh instead of sinking into holes.
  • If it still fails… add a second layer of topping or increase underlay in the design (often Tatami underlay helps build a floor).
• Q: How do I align a mesh trucker hat side panel using the cap frame driver groove so the design runs straight and does not drift?
  A: Seat the sweatband seam into the cap driver groove by feel—this groove lock is the critical anchor for side hat embroidery.
  • Press the hat seam into the groove until it “locks” rather than floating on the metal.
  • Wiggle the hat side-to-side before clamping to confirm it resists sliding.
  • Success check: The hat feels mechanically “locked” in position and does not slide freely when nudged.
  • If it still fails… stop and reset the seating; do not compensate by pulling harder on tape (that often increases distortion).
• Q: How do I prevent needle strikes on the hidden center belt when embroidering the side of a trucker hat on a cap frame driver?
  A: Keep the design inside the safe zone and trace every time—leave a 10 mm margin up from the bottom edge where the hidden belt sits.
  • Measure up 10 mm from the bottom of the visible cap frame area and treat that band as a no-stitch zone.
  • Use the machine’s Trace/Border function to confirm clearance before stitching.
  • Success check: During trace, the needle path stays clearly above the lower metal brackets and away from the belt area.
  • If it still fails… hit Emergency Stop immediately if any sharp metallic “tick-tick” is heard and re-center or reduce the design height.
• Q: How do I stop “birds nest” thread mess under the throat plate on a multi-needle embroidery machine during hat embroidery?
  A: Fully rethread with the presser foot UP and confirm bobbin seating—most birds nests come from incorrect threading or thread jumping out of the take-up lever.
  • Stop the machine and remove tangled thread before restarting to avoid deeper jams.
  • Rethread the entire upper path with presser foot up, then re-seat the bobbin correctly.
  • Success check: The first outline stitches form cleanly with no looping underneath and no thread pile-up near the needle plate.
  • If it still fails… check upper tension (it may be too loose) and confirm the thread is still in the take-up lever after the first few stitches.
• Q: When should a shop upgrade to a magnetic embroidery hoop, a magnetic hooping station, or a SEWTECH multi-needle machine for side mesh trucker hat embroidery?
  A: Upgrade based on the bottleneck: fix technique first, then add the tool that removes the exact pain point (marks/wrist strain, placement variance, or thread-change time).
  • Level 1 (technique): Standardize drum-tight backing, groove seating, sweatband flipped out, and run 500–600 SPM for control.
  • Level 2 (tool): Choose a magnetic embroidery hoop if mechanical clamping causes hoop burn/marks or requires excessive force and causes wrist pain.
  • Level 3 (production): Choose a magnetic hooping station if you keep nudging alignment hat-to-hat, or choose a SEWTECH multi-needle machine if thread changes are slowing orders of 20+ hats.
  • Success check: Placement becomes repeatable without re-measuring, and rejects drop because hats stop shifting or getting clamp marks.
  • If it still fails… identify the dominant constraint (alignment time vs. clamping damage vs. color-change downtime) and upgrade only that constraint first.
