SewWhat-Pro Snap Tabs That Actually Sell: Clean Lettering, a Smooth Bean Border, and a No-Drama Floating Workflow

Personalized snap tabs are the "gateway drug" of the embroidery world. They look deceptively simple—just a few letters and an outline—but they are unforgiving. One wrong parameter, and you end up with a perforated vinyl border that tears like a postage stamp, or a messy backside that looks amateurish.

In my 20 years of teaching machine embroidery, I’ve seen enthusiasts move from hobby to business using this exact workflow. The secret isn't just knowing which button to click in SewWhat-Pro; it's understanding the physics of how needle, thread, and vinyl interact under tension.

This guide takes a standard workflow and calibrates it for professional consistency. We will move beyond "guessing" to using industry-standard safety margins.

Don’t Panic—SewWhat-Pro Lettering Snap Tabs Are Repeatable (Even If Your Menus Look Different)

Software anxiety is the first hurdle. Updates happen, and buttons move. If you open SewWhat-Pro and your toolbar doesn't look like the screenshots, do not panic. The logic of digitizing remains constant: Select -> Edit -> Clean -> Confirm.

If you are following a tutorial and cannot find the "delete" function, remember this universal truth of embroidery software: you must be in Stitch-Edit Mode (often an icon looking like a node or a needle point) to manipulate individual data points.

The "Ghost" Problem: Sometimes, you attempt to join threads or merge colors, and the options are grayed out.

• The Cause: You might be using a trial version, or the file properties are locked.
• The Fix: Confirm you are running the full paid version of SewWhat-Pro for the features shown below. The free version has saving limitations and color-merge restrictions that will block this specific workflow.


The “Hidden” Prep Before You Touch SewWhat-Pro: Font Choice, Tab Size, and a Backside Plan

Before you click a mouse, you must understand the materials you are fighting. Vinyl and pleather do not forgive needle perforations. Unlike cotton, holes in vinyl are permanent.

The video suggests a 3/4" (approximately 18-20mm) font size. This is the "Sweet Spot" for standard key fobs.

• Larger than 1": You risk running into the border stitches.
• Smaller than 0.5": Text becomes illegible and creates a "bulletproof vest" patch of density that causes vinyl to curl.

The Backside Strategy: Amateurs leave the bobbin thread exposed on the back. Professionals hide it. The method detailed here involves a forced machine stop. You will stitch the lettering, pause, place a backing piece of vinyl, and then stitch the final border. This sandwiches the ugly bobbin work inside the tab.

The Hooping Physics: If you try to hoop thick marine vinyl in a standard plastic hoop, two things happen:

1. Hoop Burn: The plastic ring leaves a permanent crushed ring on the material.
2. Pop-out: The tension causes the heavy vinyl to spring out mid-stitch.

This is where the technique of "Floating" becomes essential. You hoop only the stabilizer, and float the vinyl on top. However, floating introduces risk: shrinking. If your vinyl isn't secured, the design will distort.

Trigger for Tool Upgrade: If you are struggling to keep floating vinyl straight, or if you are tired of using tape that gums up your needle, this is the moment to look at a floating embroidery hoop setup or, for higher volume, Production-Grade Magnetic Frames.

Prep Checklist (Do this BEFORE digitizing)

Hidden Consumables: You need 75/11 Sharp Needles (embroidery needles are too dull for thick vinyl), Odif 505 spray or Painter's Tape, and fray-check liquid.

• [] Hardware Verification: Measure your metal snap hardware or key ring. Is it 0.5" or 0.75"? Your tab width must match this hardware.
• [] Font Height Check: Confirm the font is 0.75" (19mm) or smaller.
• [] Bobbin Check: Use a full bobbin. Running out during a snap tab border is a disaster that is hard to fix invisibly.
• [] Stabilizer Selection: Use a medium-weight Tearaway (1.5oz - 1.8oz). Cutaway is too bulky for key fobs.
• [] Repeatability Rule: If you plan to sell these, write down your font + size settings now. Do not rely on memory.


Build Clean Lettering in SewWhat-Pro by Importing Each Letter (Yes, One by One)

There are two ways to get text: typing it (using mapped fonts) or importing it. The video demonstrates Importing individual .PES files (F-R-I-E-N-D-S).

Why do this the slow way? Pre-digitized embroidery fonts are manually punched by a human digitizer. They have correct underlay and compensation built-in. Typing text using a "TrueType to Stitch" auto-converter often results in thin, messy columns that sink into the vinyl.

The Action:

1. Navigate to your font folder.
2. Select the PES format (industry standard, widely compatible).
3. Select the 0.75 inch size folder.
4. Import letters one by one so they line up in your workspace.


Join Threads in SewWhat-Pro So the Word Becomes One Object (and Stops Fighting You)

Currently, your screen shows 7 separate letters (7 color changes). If you send this to the machine, it might treat them as separate tasks, potentially cutting the thread between every single letter (leaving a mess of "jump stitches").

The Fix: Join Threads. In SewWhat-Pro, select all letters and use the "Join Threads" command to consolidate them into a single "Emerald Green" block.

Why this matters:

• Production Speed: Reduces machine "think time" between letters.
• Alignment: Treating the word as one brick makes centering it inside the tab border much safer.
• Visual Logic: It separates the "Text" layer from the "Border" layer visually for you as the operator.


Dial In the Add Border Tool: 3mm Distance + Bean Outline + “28” Stitch Length

This is the most critical technical section. A snap tab lives or dies by its border.

The Parameters (Calibrated for Safety):

1. Border Distance: 3mm. This provides a safety buffer. If your machine calibration is slightly off, the needle won't pierce the text.
2. Stitch Type: Bean Stitch (Triple Stitch). A standard running stitch is too weak; it will unravel with key fob friction. A satin stitch is too dense; it takes too long. The Bean stitch is the "Goldilocks" zone—strong and fast.
3. Stitch Length: "28" (2.8mm).

The "Perforation Risk" Warning: The video mentions "28" (2.8mm). Do not go lower than 2.5mm.

• Physics: Vinyl is plastic. If you stitch a heavy Bean stitch at 1.5mm or 2.0mm, you are essentially perforating the vinyl like a notebook page. When the customer pulls the key fob, the border will rip off.
• The Safe Range: Keep your length between 2.5mm and 3.0mm.

If you are looking for a reliable embroidery hooping system because your current hoop cannot hold the tension of a heavy Bean stitch without slipping, this border style is where hoop quality becomes obvious.

Warning: Mechanical Safety. When stitching heavy Bean stitches on vinyl, listen to your machine. A rhythmic "thump-thump" is normal. A sharp, loud "CRACK" or grinding noise means your needle is deflecting. Stop immediately. Change to a fresh 75/11 Sharp or Microtex needle. A dull needle on vinyl can shatter, sending metal shrapnel towards your eyes.

The Fix That Separates “Okay” From “Sellable”: Manually Cleaning Border Artifacts in Stitch Edit Mode

Auto-border tools are mathematical algorithms, not artists. They often place nodes in deep crevices between letters (like between an ‘F’ and ‘R’), creating ugly "spikes" or "daggers" of thread.

The Audit Process:

1. Zoom in to 600%.
2. Look for any border point that dips deep between letters.
3. Enter Stitch Edit Mode.
4. Sensory Check: Does the border look fluid? Or does it look jagged?

The Surgical Removal: The creator deletes specific stitch points to flatten the line.

• Tip: Do not just hit "Delete" wildly. Delete one point, then observe how the software "snaps" the line to the next point.
• Goal: You want a smooth, flowing river of thread, not a jagged coastline. This prevents the needle from dwelling in one spot and chewing up the vinyl.






Merge a Snap Tab Template (Pointed/Rounded/Square) Instead of Redrawing the Whole Thing

Do not reinvent the wheel. Use a pre-digitized tab template. Consistency is the hallmark of a brand.

The Template Strategy: The video uses a Pointed Tab designed for 0.75" hardware.

• Width: The tab neck is approx 0.5" wide (fits into 0.75" hardware comfortably).
• Style: Pointed, Rounded, or Square. Match this to your brand aesthetic.

Business Insight: If you plan to scale, use the exact same template for every key fob you sell. This allows you to buy pre-cut backing materials or create your own cutting dies, saving hours of scissor work later.

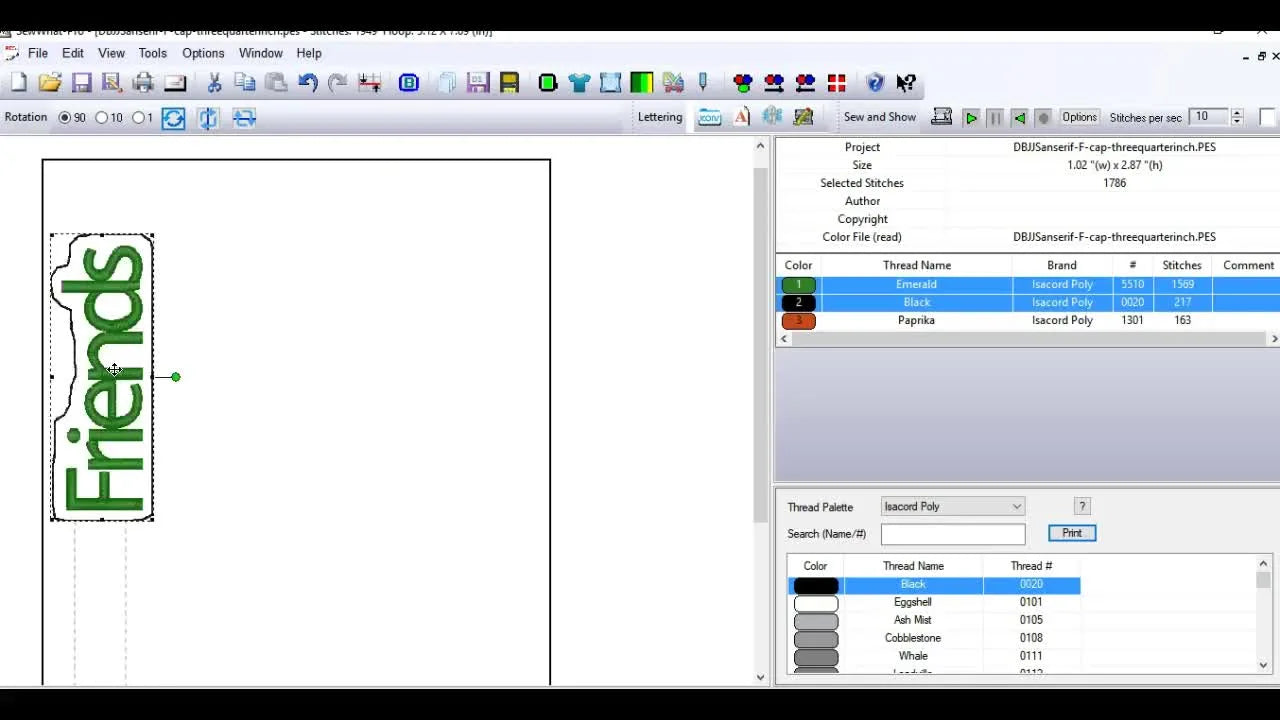

Nail the Alignment: Rotate the Snap Tab 90° and Nest the Text Border Inside

Now you have two objects: your text (horizontal) and your tab (vertical).

1. Select the Snap Tab.
2. Rotate it 90 degrees.
3. The "Nesting" Maneuver: Drag the tab so it encompasses the text.

The "Safe Zone" Check: Look at the space between your text border and the tab's outer die-line.

• Success Metric: You need at least 3mm - 4mm of empty vinyl between the text border and the outer edge.
• Why? You need room to cut the vinyl with scissors after stitching. If the text is too close to the edge, you will accidentally slice through the stitches when trimming.


Final Color Sort in SewWhat-Pro: Join the Border + Tab Outline So They Stitch in One Pass

Efficiency is profit. You currently have a "Text Border" (Green) and a "Tab Outline" (Black).

The Optimization:

1. Change both to the same color (e.g., Black).
2. Use "Join Threads" again.

The Result: The machine will sew the border around the text and immediately flow into the border around the tab without cutting the thread. This saves about 15 seconds per unit. If you are making 100 fobs, that is 25 minutes of saved production time.

The Real-World Stitch-Out Plan: Tearaway + Float Vinyl, Then Add a Backing Layer Before the Outline

Now we move from the screen to the machine. This is where most beginners fail due to "Hoop Drift."

The Professional Workflow:

1. Hoop: Hoop one layer of Tearaway stabilizer tight as a drum.
2. Float: Spray the stabilizer with temporary adhesive (Odif 505). Place your vinyl right-side up.
3. Run Color 1 (Text): Stitch the letters.
4. The Critical Pause: The machine stops. DO NOT UNHOOP.
5. Apply Backing: Remove the hoop from the machine, flip it over. Tape a piece of matching vinyl over the back of the design area. Ideally, use painter's tape on the corners.
6. Run Color 2 (Outline): Stitch the final border, which seals the front and back vinyl together.

The Pain Point: Removing the hoop to add backing, then reattaching it, can cause the design to shift if your hoop is loose. This results in the "Outline" not matching the "Text."

The Solution: This mechanical friction is why professional shops use magnetic embroidery hoops.

• Benefit: They hold thick vinyl sandwiches firmly without "hoop burn."
• Speed: You can float materials faster because the magnets snap the material flat instantly.

Setup Checklist (The "Pre-Flight" Check)

• [] Needle: 75/11 Sharp installed?
• [] Bobbin: Full and tension-checked (pull should feel like flossing teeth)?
• [] Stabilizer: Tearaway hooped tight?
• [] Alignment: Verify the start position. Ensure your needle won't hit the hoop frame.
• [] Adhesion: Is the floating vinyl secure? (Tape or Spray). Use masking tape on the edges if you aren't using spray.

Warning: Magnet Safety. If you upgrade to professional gear, remember that magnetic hoop sets are powerful industrial tools. They can pinch fingers severely. Keep them away from pacemakers, credit cards, and computerized machine screens.

Decision Tree: Vinyl/Faux Leather + Stabilizer Choices for Snap Tabs (So They Don’t Warp)

Use this logic flow to prevent ruined materials.

Scenario A: Thin/Stretchy Vinyl

• Risk: The vinyl stretches during stitching, causing the outline to misalign.
• Rx: Use Cutaway stabilizer (more stability) + Spray Adhesive. Use a lighter density font.

Scenario B: Thick Marine Vinyl / Glitter Vinyl

• Risk: Needle deflection or perforation.
• Rx: Use Tearaway stabilizer. Use a 75/11 Sharp Needle. Set Stitch Length to 3.0mm.

Scenario C: High Volume (50+ units)

• Risk: Wrist fatigue and "Hoop Burn" on materials.
• Rx: Switch to magnetic hoops for embroidery machines. The clamping mechanism saves your wrists and eliminates the ring marks on sensitive vinyl.

“Make the Border Thicker and Curvier” Like a Patch: What to Change (Without Ruining the File)

The video uses a Bean stitch. Some users want a "Raised Patch" look (Satin stitch).

How to modify: In SewWhat-Pro, under the "Add Border" tab, change the style from "Bean" to "Satin."

The Trade-off:

• Satin Pros: Looks premium, like a uniform patch.
• Satin Cons: Takes 3x longer to stitch. Adds significant perforation risk to vinyl.
• Adjustment: If using Satin on vinyl, increase the specific "Spacing" or "Density" value (make it less dense) to prevent cutting the vinyl shape out completely.

Production Reality: Where Snap Tabs Make Money (and Where They Quietly Lose It)

Snap tabs are high-margin items because they use scrap material. But labor kills profit.

The Profit Killers:

1. Trimming Time: If you have to trim jump stitches between every letter, you are losing money. (Fix: Join Threads).
2. Hooping Time: Struggling with screw-hoops for 2 minutes pe piece.
3. Rejects: Designs that shift mid-stitch.

If you find yourself making these in batches of 20 or more, standard plastic hoops become the bottleneck. The friction of unscrewing, placing, and tightening ruins your cycle time. This is where snap hoops or magnetic frames pay for themselves—they turn a 2-minute hooping job into a 10-second "snap."

The Upgrade Path I’d Recommend After You Master This (Tools That Remove Bottlenecks)

Once you have mastered the digitizing file in SewWhat-Pro, your limitation will no longer be software—it will be hardware.

Level 1: Stability Upgrade If you see "Hoop Burn" marks on your vinyl, upgrade to Magnetic Hoops. They clamp flat and leave no trace.

Level 2: Consistency Upgrade If you can't get the vinyl straight every time, look into a Hooping Station. It acts like a logic jig for your materials.

Level 3: Volume Upgrade If you are running a single-needle machine and dread the "Stop-Start" of changing thread colors, consider the SEWTECH Multi-Needle Machines.

• Trigger: When you have orders for 50 branded key fobs.
• Benefit: Set up 6-10 colors at once. The machine handles the text, stops for backing (programmed pause), and finishes the border while you prep the next hoop. This is how you move from "Hobbyist" to "Production Shop."

Operation Checklist (During the run)

• [] Listen: Listen for the "clicking" sound of the bobbin thread catching.
• [] Pause: When the machine stops for the backing step, ensure you don't nudge the hoop arm.
• [] Secure: Tape the back piece flat. If it curls up, it will catch on the machine bed and ruin the registration.
• [] Watch: Keep your hand near the emergency stop button during the outline. If the vinyl starts to "bunch" or "taco," stop immediately and re-secure.

FAQ

• Q: What prep supplies are required for SewWhat-Pro snap tabs on vinyl, and which items are “hidden consumables” that cause failures?
  A: Use a 75/11 Sharp (Microtex-style) needle, medium tearaway stabilizer, temporary adhesive (Odif 505 or painter’s tape), and fray-check before starting.
  • Install: Put in a fresh 75/11 Sharp needle (avoid dull needles on thick vinyl).
  • Verify: Wind/use a full bobbin before running the border step.
  • Hoop: Use medium-weight tearaway (about 1.5–1.8 oz) rather than bulky cutaway for standard key fobs.
  • Success check: The vinyl stays flat during stitching and the border does not tear like a “postage stamp” when flexed.
  • If it still fails: Re-check hardware size (0.5" vs 0.75") and confirm the design has enough clearance before trimming.
• Q: Why are “Join Threads” options grayed out in SewWhat-Pro when consolidating snap tab lettering colors?
  A: The most common cause is using a trial/limited SewWhat-Pro version or a locked file property—confirm the full paid version and file permissions.
  • Confirm: Open the software version info and ensure it is the full paid SewWhat-Pro with the features needed for color merge/join.
  • Reopen: Reload the embroidery file and verify it is not read-only/locked by properties.
  • Retry: Select all letters, then run “Join Threads” to convert multiple letters into one color block.
  • Success check: The lettering becomes one object/color block and the machine will not cut between every letter.
  • If it still fails: Switch to Stitch-Edit Mode and verify you are selecting stitch objects (not just the workspace or a locked layer).
• Q: What are the safest SewWhat-Pro snap tab border settings to avoid perforating vinyl (border distance, stitch type, stitch length)?
  A: Use a 3 mm border distance, Bean (Triple) stitch, and keep stitch length in the 2.5–3.0 mm range (the example uses “28” = 2.8 mm).
  • Set: Choose Border Distance = 3 mm to maintain a buffer from the lettering.
  • Select: Use Bean/Triple stitch for strength without the density of satin.
  • Adjust: Keep stitch length ≥ 2.5 mm; do not reduce below 2.5 mm on vinyl.
  • Success check: The border looks solid but the vinyl edge does not tear along the stitch line when the tab is flexed.
  • If it still fails: Increase stitch length toward 3.0 mm and inspect for border “spikes” that cause repeated needle hits in one spot.
• Q: How do I clean jagged “spikes” or “daggers” created by SewWhat-Pro auto-border tools on snap tab lettering borders?
  A: Zoom in and delete border points surgically in Stitch Edit Mode until the border becomes a smooth, flowing line.
  • Zoom: Increase magnification to around 600% to see border nodes clearly.
  • Inspect: Look between tight letter gaps (for example, between an “F” and “R”) where the border dips too deep.
  • Edit: Enter Stitch Edit Mode and delete single points one at a time, watching how the line snaps to the next node.
  • Success check: The border path looks fluid (not jagged), and the needle does not “chew” one spot on the vinyl during sewing.
  • If it still fails: Re-run the border with safer spacing (3 mm) and re-audit nodes before exporting.
• Q: How do I prevent snap tab outline misalignment when floating vinyl and adding a backing layer mid-run on an embroidery machine hoop?
  A: Hoop only tearaway stabilizer tight, float the vinyl with temporary adhesive, do not unhoop during the pause, and reattach the hoop carefully after adding backing.
  • Hoop: Tighten tearaway “like a drum,” then float vinyl on top using Odif 505 or tape.
  • Stitch: Run the lettering first, then pause at the programmed stop without unhooping.
  • Back: Remove the hoop from the machine carefully, flip it, and tape backing vinyl on the back (corners are usually enough).
  • Success check: The final outline lands evenly around the lettering and seals front/back vinyl without a visible offset.
  • If it still fails: Check for hoop looseness or material slip; consider upgrading the clamping method (magnetic-style frame) to reduce drift.
• Q: What needle safety steps should be followed when stitching heavy Bean stitches on vinyl snap tabs to avoid needle breakage?
  A: Stop immediately if a sharp “CRACK” or grinding occurs, then replace the needle with a fresh 75/11 Sharp and restart only after confirming smooth penetration.
  • Listen: Expect a steady “thump-thump,” but treat cracking/grinding as a stop signal.
  • Replace: Change to a new 75/11 Sharp (or equivalent sharp-point) needle; do not continue with a dull needle on vinyl.
  • Resume: Restart only after confirming the needle is not deflecting and the material is secured.
  • Success check: Stitching sounds rhythmic and consistent with no sudden impact noises or skipped penetrations.
  • If it still fails: Reduce resistance by ensuring the vinyl is properly floated/secured and keep stitch length in the safer 2.5–3.0 mm range.
• Q: What magnetic hoop safety rules should be followed when using industrial-strength magnetic embroidery hoops for vinyl snap tabs?
  A: Treat magnetic hoops as industrial clamps—avoid finger pinch points and keep them away from pacemakers, credit cards, and sensitive electronics.
  • Handle: Place magnets deliberately; do not let magnets snap together uncontrolled near fingers.
  • Protect: Keep magnetic hoops away from pacemakers and magnetic-sensitive items (cards, some screens).
  • Store: Separate and secure magnets when not in use to prevent sudden attraction.
  • Success check: Materials clamp flat quickly without hoop burn, and operators can load/unload without pinched fingers.
  • If it still fails: Reduce handling risk by using a consistent loading routine and a stable work surface before bringing magnets together.
• Q: When snap tab production becomes slow due to hooping time, hoop burn, and rejects, what is a practical upgrade path from techniques to tools to capacity?
  A: Start by optimizing settings and workflow, then upgrade to magnetic hoops for clamping consistency, and consider a multi-needle machine when order volume makes thread changes the bottleneck.
  • Level 1 (Technique): Join threads to reduce trims, keep border settings safe (3 mm + Bean + 2.5–3.0 mm), and float vinyl on hooped tearaway.
  • Level 2 (Tool): Move to magnetic hoops/frames when hoop burn, slipping, or slow hooping becomes repeatable friction.
  • Level 3 (Capacity): Consider a SEWTECH multi-needle machine when frequent color changes and stop-start handling limit throughput (often noticeable around batch orders like 50 key fobs).
  • Success check: Cycle time per tab drops measurably and outline registration stays consistent across a batch.
  • If it still fails: Audit the biggest time sink first (trimming, hooping, or rejects) and address that single constraint before changing multiple variables at once.
