SewWhat-Pro Pull Compensation vs. Density: Make Skinny Satin Fonts Bold (Without Turning Them Into a Brick)

The Satin Stitch Survival Guide: Mastering Pull Comp & Density in SewWhat-Pro

If you’ve ever opened a design in SewWhat-Pro, watched the screen preview, and thought, “Why does this satin lettering look anorexic?” or “Why does the preview look nothing like the stitched result?”—take a deep breath. You are not broken, and neither is your machine.

You are simply encountering the physics of embroidery, where thread tension fights against fabric stability.

In this masterclass, we are analyzing a case study using a simple 2-inch letter “H” to demonstrate the difference between the two most critical variables in digitizing: Pull Compensation and Stitch Density. Mixing these two up is the #1 reason beginners ruin garments with "bulletproof" patches or unreadable text.

The instructor in our reference file sets up three identical letters to prove a point that will save your future projects:

1. Green H: The Control (Untouched).
2. Blue H: Modified with Pull Compensation.
3. Pink H: Modified with Stitch Density.


Pull Compensation vs. Density: The "Lego" Analogy

Before we touch a single button, we must eliminate the cognitive friction of what these terms actually do to your thread.

Imagine you are building a wall with Lego bricks (stitches).

• Pull Compensation is like strictly stretching the bricks you already have. You make the wall wider, but you do not add more plastic. The wall covers more ground, but the weight remains roughly the same.
• Stitch Density is like jamming more loops of thread into the same inch of space. You aren't necessarily making the letter wider; you are making the coverage thicker.

The Crucial Distinction:

• Pull Compensation: Changes Width. Does not change stitch count.
• Stitch Density: Changes Coverage. Drastically increases stitch count.

In the example below, the "Pink H" (Density) jumps from 2,484 stitches to 2,790 stitches. That is 300+ extra needle penetrations in a small area. If you do this on a delicate t-shirt without proper stabilization, you will cut a hole right through the fabric.

Phase 1: The "Hidden" Prep (Pre-Flight Checks)

Novices just start clicking icons. Experts perform a "Pre-Flight Check."

Before editing, you must determine if the problem is Optical (it looks bad on screen) or Physical (it stitched bad on fabric).

The Texture Trap: Beginners often panic because a design looks "sparse" or "gappy" in the software's 3D/Texture view. Do not trust the 3D view implicitly. Software renderers often show gaps that do not exist in real thread.

• The Fix: Toggle "Texture View" off. Look at the grid/wireframe. If the lines are evenly spaced, the gap might just be a rendering glitch.

Diagnostic Criteria:

• Problem A: Skinny Columns. The letters look like spider legs. The structure is too thin.
  • Solution: Pull Compensation.
• Problem B: True Gaps. You can see the fabric color peeking through the satin stitches on the finished garment.
  • Solution: Density (or better Stabilization).

Prep Checklist (Complete BEFORE Editing):

• Verify Object Selection: Are you editing the specific color block (the letter) or accidentally selecting the entire design?
• Record Baseline: Note the current Total Stitches (bottom or side panel).
• Visual Reality Check: Toggle Texture View (Ctrl+T) off to see the raw stitch skeleton.
• Consumable Check: Do you have the right needle? (Ballpoint for knits, Sharp for wovens). A dull needle will create "gaps" that software cannot fix.

Phase 2: Selecting the Target (The Ctrl+Click Method)

Precision is key. We do not want to apply density settings to the entire design—only the text that needs it.

The Action:

1. Locate the Thread Palette on the right.
2. Hold the Ctrl key on your keyboard.
3. Click Color Stop #2 (The Blue H).

Only the Blue "H" highlights in the workspace. This visual confirmation is your safety lock. If you skip this, you risk over-densifying the underlay or background elements, leading to thread nests.

Phase 3: The "Green Icon" Confusion

In SewWhat-Pro, the tool you need has a slightly misleading name. You are looking for the icon labeled Adjust Density, but this single menu actually controls two distinct physical forces.

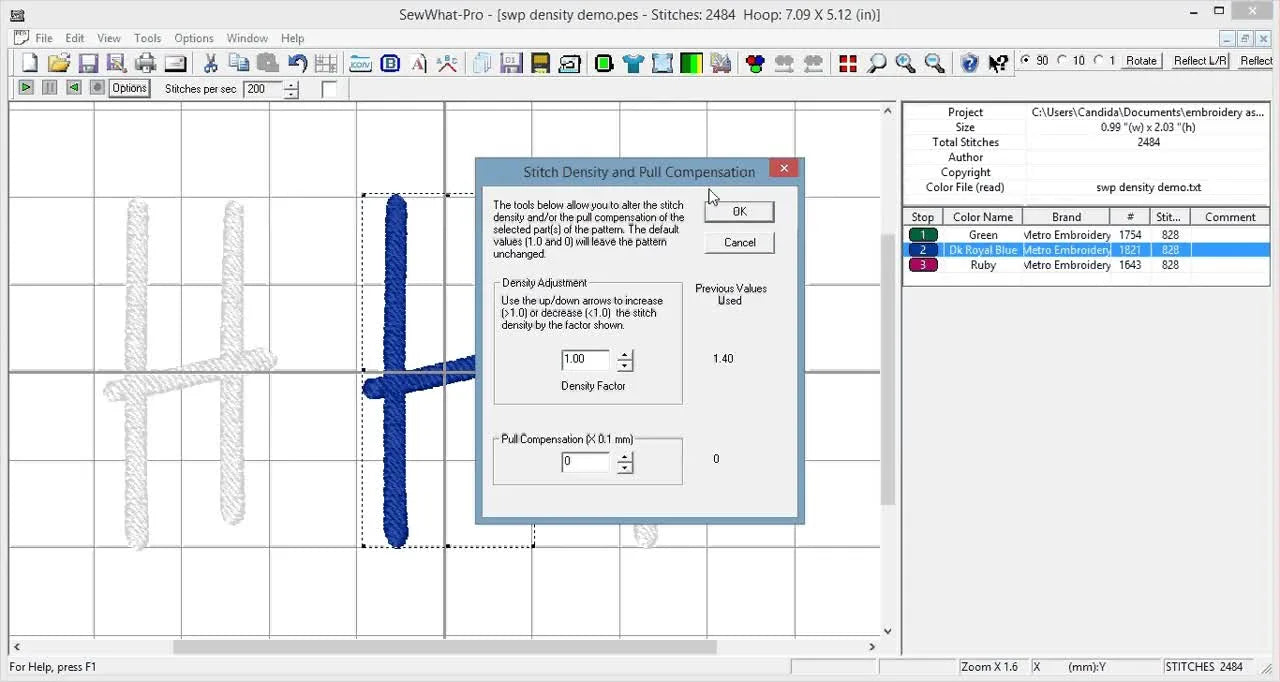

Clicking it opens the “Stitch Density and Pull Compensation” command center.

Phase 4: Validating Pull Compensation (The Blue H)

We are now adjusting the Blue H to fix "skinny letter syndrome."

The Science of "Pull": When your machine runs at 600-1000 stitches per minute, the thread tension pulls the fabric edges inward. A satin column digitized at 3mm wide might end up sewing out at 2.5mm or 2.8mm. This is "Pull." We add "Compensation" to counteract this physics.

The Setting: In the dialog box, look at the bottom section.

• Unit Scale: 1 unit = 0.1 mm.
• The Instructor’s Value: She sets this to 5 (which equals 0.5 mm added width).




The Data Reality Check:

• 0.0 - 0.2 mm (Value 0-2): Minimal change. Used for stiff canvas or caps.
• 0.3 - 0.4 mm (Value 3-4): The Sweet Spot. Standard for cotton tees and polos.
• 0.5 - 0.6 mm (Value 5-6): Aggressive. Use this for thick fleece, towels, or very unstable knits.
• > 0.6 mm: Danger Zone. Letters may start touching each other, closing up loop of 'e' or 'a'.

After clicking OK: The Blue H becomes visibly bolder. Crucially, notice the stitch count—it has not changed. The machine is simply taking longer strides.

Phase 5: The Density Danger Zone (The Pink H)

Now, select the Pink H (Ctrl + Click Color Stop #3). We are going to address "Coverage."

Before applying changes, use the Texture Toggle Trick (Ctrl+T).

With texture off, you see the "Wireframe." This is the X-Ray of embroidery.

The Action:

1. Open the Adjust Density tool.
2. Locate Density Factor (Top section).
3. Default: 1.00 (100%).
4. Adjustment: Change to 1.40.




Expert Interpretation: A 1.40 factor means you are increasing the stitch count by 40%.

• Original: 2,484 stitches.
• New: 2,790 stitches.




When you zoom in on the wireframe, you can visually verify the change. The lines are packed much tighter.

The Sensory Anchor: If you stitch out a design with 1.40 density on a standard t-shirt:

• Sound: You might hear a heavy thud-thud-thud as the needle struggles to penetrate the dense thread pack.
• Touch: The result will feel stiff, like a piece of cardboard glued to the shirt.
• Sight: You might see "ruffling" around the edges because the fabric is being overwhelmed.

Warning: Mechanical Hazard. Increasing density above 1.20 (20%) significantly increases heat friction. On synthetic fabrics, this can melt the thread. On any fabric, it increases the risk of needle deflection—where the needle hits a previous stitch, bends, and shatters. Always wear eye protection when testing high-density files.

The Decision Tree: Which Lever Do I Pull?

When your lettering looks wrong, do not guess. Follow this logic path:

START HERE

1. Is the letter shape too thin/skinny?

• YES: Increase Pull Compensation (Target: 3-5). Does not add stitches.
• NO: Go to step 2.

2. Can you see the fabric color between the stitches (Gapping)?

• YES:
  • Check A: Is your stabilizer suitable? (e.g., Cutaway for knits).
  • Check B: Is your thread tension too high? (Pull test: should feel like checking a spiderweb, not a guitar string).
  • Check C: If Physical setup is good -> Increase Density Factor (Target: 1.05 - 1.15). Avoid jumping straight to 1.40.
• NO: Go to step 3.

3. Does it look bad on screen but okay on fabric?

• YES: Trust the fabric. Software previews are approximations. Stop editing.

Troubleshooting: When Software Isn't the Solution

Sometimes, no amount of Pull Comp or Density tweaking will fix the issue. If you are chasing perfect lettering but getting distorted shapes, the root cause is often Mechanical Stability, not digital settings.

Embroidery is a physical process. If the fabric moves while the needle is moving, the design fails.

Scenario 1: The "Hoop Burn" & Shift

You are stitching a polyester polo. You tighten the standard plastic hoop until your fingers hurt. The result? A permanent ring mark (hoop burn) on the fabric, and the design still shifts because the fabric slipped.

• Diagnosis: The hoop is the bottleneck.
• The Upgrade: This is where professionals switch to magnetic embroidery hoop systems.
• Why: Magnetic frames use vertical clamping force rather than friction. They hold thick or slippery garments firmly without crushing the fibers, eliminating hoop burn and fabric shifting. Many professionals search for how to use magnetic embroidery hoop specifically to solve this fabric-distortion issue.

Scenario 2: Production Fatigue & Misalignment

You have an order for 50 shirts. By shirt #10, your wrists ache, and your alignment is drifting.

• Diagnosis: Human error fatigue.
• The Upgrade: Consistency requires a system. Investing in a hooping station for machine embroidery allows you to pre-measure and clamp every shirt in the exact same spot. When combined with embroidery hoops magnetic, you can reduce load time by 30-40%.

Scenario 3: The "Single Needle" Choke Point

You have perfectly digitized files, but you are spending 10 minutes changing thread colors for every 5 minutes of sewing.

• Diagnosis: Equipment mismatch.
• The Upgrade: If you are running a business, a single-needle machine is a hobby tool. Moving to a SEWTECH multi-needle embroidery machine puts 10+ colors on standby. You push "Go" and walk away.

Warning: Magnetic Safety. Professional machine embroidery hoops magnets are extremely powerful. They can pinch fingers severely. Never place them near pacemakers or magnetically sensitive medical implants. Treat them as industrial tools, not sewing accessories.

Operation Checklist: The "No-Regrets" Workflow

Before you commit to the final stitch-out, perform this final pass.

Operation Checklist:

• Compare Views: Toggle Texture Mode (Ctrl+T) one last time. Does the Wireframe look consistent?
• Stitch Count Audit: Did your density change spike the stitch count unexpectedly?
• Underlay Check: Does the letter have "underlay" (foundation stitches)? Increasing density on a file without underlay is like building a heavy roof on a house with no walls.
• Stabilizer Match: High Density = Heavier Stabilizer. If you bumped density to 1.20+, ensure you are using a strong Cutaway stabilizer.
• Hooping Integrity: Is the fabric "drum tight" but not stretched? If using standard hoops, check the screw. If using hoop master embroidery hooping station compatible frames, ensure the magnets are seated flat.

Real proficiency in embroidery isn't about knowing what every button does—it's about knowing which buttons not to touch. Use Pull Compensation to build structure, use Density sparingly to ensure coverage, and trust your tools to hold the line.

FAQ

• Q: In SewWhat-Pro, how can the SewWhat-Pro Texture View (Ctrl+T) make satin lettering look “gappy” even when the stitch file is fine?
  A: Turn Texture View off and judge the wireframe first—this is common, and the 3D preview can exaggerate gaps.
  • Toggle: Press Ctrl+T to switch from Texture/3D to wireframe/grid view.
  • Compare: Look for evenly spaced satin lines in wireframe before changing any settings.
  • Decide: If wireframe spacing is consistent, avoid increasing density just to “fix” a screen-only issue.
  • Success check: The wireframe shows a clean, consistent stitch “skeleton,” even if the textured preview looks sparse.
  • If it still fails: If the stitched sample shows real fabric show-through, troubleshoot stabilization and tension before increasing Density Factor.
• Q: In SewWhat-Pro, what is the correct way to select only one letter using Ctrl+Click on the Thread Palette before changing Pull Compensation or Density?
  A: Use Ctrl+Click on the specific color stop so only that object highlights—this prevents accidental changes to the entire design.
  • Locate: Find the Thread Palette (color stops) on the right side.
  • Select: Hold Ctrl and click the exact color stop for the target letter/object.
  • Confirm: Verify only that letter highlights in the workspace before opening Adjust Density.
  • Success check: Only one letter/object changes highlight color/selection, not the full design.
  • If it still fails: If multiple parts highlight, cancel and reselect—editing the whole design can cause over-densifying and thread nests.
• Q: In SewWhat-Pro, what Pull Compensation value should be used to fix “skinny satin letters,” and how can users confirm Pull Compensation did not increase stitch count?
  A: Increase Pull Compensation to widen satin columns without adding stitches; a common working range in the example is value 3–5 (0.3–0.5 mm).
  • Open: Click Adjust Density (the dialog also controls Pull Compensation).
  • Set: Use the Pull Compensation units where 1 unit = 0.1 mm; try 3–4 as a sweet spot, or 5 for thicker/unstable fabrics.
  • Verify: Check the total stitch count before and after—Pull Compensation should not change it.
  • Success check: The satin letter looks visibly bolder/wider, and the stitch count stays the same.
  • If it still fails: If letters start touching or small counters close up (like “e/a”), reduce compensation; if gaps are real on fabric, evaluate density and stabilization instead.
• Q: In SewWhat-Pro, why is increasing Density Factor to 1.40 risky for satin lettering on a standard t-shirt, and what is a safer Density Factor starting range?
  A: Avoid jumping to 1.40 on tees because it sharply increases needle penetrations, stiffness, heat, and needle deflection risk; a safer starting point is often 1.05–1.15 if setup is already correct.
  • Check: Confirm the problem is true fabric show-through on the stitched garment, not just a screen preview effect.
  • Stabilize: Match stabilization first (for knits, cutaway is commonly used) and confirm tension is not overly tight.
  • Adjust: Increase Density Factor gradually (example guidance: 1.05–1.15), not straight to 1.40.
  • Success check: The stitched satin covers fabric without feeling “cardboard stiff” and without edge ruffling.
  • If it still fails: If higher density causes heavy “thud” penetration sounds, ruffling, or stiffness, back off and correct stabilization/hooping rather than forcing density.
• Q: What needle type should be used for knit vs woven fabrics to prevent “false gaps” that SewWhat-Pro density changes cannot fix?
  A: Use the correct needle point for the fabric—ballpoint for knits and sharp for wovens—because a dull or wrong needle can create gaps no software setting will solve.
  • Choose: Install a ballpoint needle for knits and a sharp needle for wovens.
  • Replace: Swap out dull needles before editing density/pull comp.
  • Test: Stitch a small sample before making major file changes.
  • Success check: Satin edges look clean and consistent without random skips or visible fabric lines caused by penetration issues.
  • If it still fails: If gaps persist with the correct needle, re-check stabilization and tension, then adjust Density Factor conservatively.
• Q: How can embroiderers diagnose hoop burn and fabric shifting on polyester polos, and when should magnetic embroidery hoops be considered?
  A: If tightening a standard hoop causes ring marks but the fabric still slips, the hooping method is the bottleneck—magnetic embroidery hoops can clamp securely without crushing fibers.
  • Identify: Look for permanent hoop ring marks plus design shift/misalignment during sewing.
  • Reduce: Stop over-tightening traditional hoops (more force can mean more burn, not more grip).
  • Upgrade: Consider magnetic embroidery hoops to apply vertical clamping force and reduce shifting and hoop burn.
  • Success check: The garment holds firmly with no slip during stitching, and hoop marks are minimized after unhooping.
  • If it still fails: If shifting continues, verify the fabric is hooped “drum tight but not stretched,” and re-check stabilizer choice for the fabric.
• Q: What magnetic embroidery hoop safety precautions are required for strong industrial magnets used on machine embroidery hoops?
  A: Treat magnetic embroidery hoops as industrial tools because the magnets can pinch severely and must be kept away from pacemakers and magnet-sensitive implants.
  • Handle: Keep fingers clear when closing magnets—assume a pinch hazard every time.
  • Control: Seat magnets flat and deliberately; do not let magnets snap together uncontrolled.
  • Protect: Keep magnets away from pacemakers or magnetically sensitive medical implants.
  • Success check: Magnets close without finger pinches and the frame sits flat with stable clamping.
  • If it still fails: If magnets feel hard to control, slow down the hooping motion and reposition the garment to avoid fighting the clamp force.
