SewWhat-Pro Lettering on Vinyl Eyelet Tags: The Fast “Icons + Join Threads” Workflow That Won’t Punch Holes in Your Project

Here is the calibrated, experience-driven guide, restructured for clarity, safety, and operational excellence.

Personalized eyelet tags look simple—until your lettering stitches last, your vinyl starts to “perforate” like a postage stamp, or you waste 20 minutes merging letters one at a time.

I have seen thousands of ruined tags in my career, and 90% of the failures happen because of what we call "density mismatch"—treating vinyl like it’s cotton. This workflow is the one I teach when someone needs fast personalization (craft shows, rush orders, last-minute gifts) but requires a clean, professional stitch-out that won't tear.

We’ll follow the exact SewWhat-Pro method shown in the video, but I will layer in the safety margins and sensory checks that software tutorials usually miss. You will learn to merge the first letter to “set” the folder, use Icons to click in the rest, join threads into one object, and conduct a critical "vinyl integrity check" (filter tiny stitches + density to 0.88). Finally, we will reorder the stitch sequence so the name stitches before the finishing enclosure step—a non-negotiable step for professional finishing.

Don’t Panic: The Blank Dog Bone Eyelet Tag Design Is Built to “Hide” Your Lettering Backside

The first time you open this blank dog bone eyelet tag (or ornament) file, it can feel like you’re about to ruin it by adding anything. Beginners often fear they will sew the name through the back of the tag, leaving a messy "bird's nest" of bobbin thread exposed.

Here’s the calming truth: In-The-Hoop (ITH) designs like this are engineering marvels. They are structured with three core mechanical steps visible in the SewWhat-Pro object pane:

1. Placement Stitch (The Map): A quick running stitch directly onto your stabilizer. Sensory Check: Runs fast, minimal noise. Shows you exactly where to lay your vinyl.
2. Hole Placement Stitch (The Guide): Indicates where you’ll punch a hole later (setting an eyelet is optional).
3. Finishing Stitch (The Seal): A satin or triple-bean stitch that runs all the way around and encloses the sandwich (front vinyl + back vinyl).

That third step is the “magic”—it is designed to cover the raw edges and hide the back of your lettering embroidery. Your goal is to insert your text between step 2 and 3.

The video also shows two included sizes:

• Large: 3.9" wide x 2.3" tall (fits a standard 4x4 hoop).
• Small: 1.56" tall (tiny and cute, fits well within scrap material spaces).


The Hidden Prep Pros Do First: Pick the Right Size, Then Decide If Vinyl Needs a Hooping Upgrade

Before you touch the lettering tools, you must make two physical decisions. In a production environment, we call this "Pre-Flight Check."

1) Choose the tag size based on your usable “name window”

The video calls out working within about 1.5 inches of space for the name area and starts with a 1-inch alphabet size so it’s easier to fit and scale.

Expert Rule of Thumb: Leave at least 3mm (1/8 inch) of "breathing room" between your lettering and the final satin stitch border. If the needle hits the border while stitching text, it can break the needle or shred the thread.

2) Decide how you’ll hold vinyl/leather steady in the hoop

Vinyl, leather, upholstery vinyl, and glitter canvas are stable—but they are stubborn to hoop. They are thick, slippery, and prone to "Hoop Burn"—that permanent ring indentation caused by standard pressure frames.

If you are constantly re-hooping because the vinyl popped out, or if you are ruining expensive leather with hoop marks, that is a tool mismatch. Standard hoops are designed for fabric friction, not vinyl thickness.

If you’re doing this on a Brother PE800 (like the commenter who was prepping for multiple craft shows), the industry standard upgrade is a magnetic hoop for brother pe800. These use powerful magnets to clamp the material flat without forcing it into a groove, eliminating hoop burn and drastically speeding up the "load-stitch-unload" cycle.

Warning: Magnetic Safety Hazard. Industrial-strength magnets are not toys. They can snap together with crushing force. Keep fingers clear of the contact zone to avoid painful pinches or blood blisters. distinctively mark your workspace to keep these hoops away from pacemakers or sensitive electronics.

Prep Checklist (Physical & Mental Setup)

• Size Verification: Confirm you are editing the correct file (Large/Small) relative to your physical hoop size.
• Consumables Check: Do you have appliqué scissors (curved tips) or sharp snips nearby? You will need them to trim the back vinyl later.
• Hooping Strategy: If using standard hoops, have you floated the vinyl (using spray adhesive or tape) to avoid hoop burn? If adhering, is the needle gumming up?
• The "Tug Test": Once hooped (or floated), gently tug the corner of the stabilizer/vinyl. It should feel tight like a drum skin. If it ripples, re-hoop.
• Staging: If producing multiples, pre-cut your back pieces now so the machine never waits for you to find scissors.


SewWhat-Pro Icons Button: The Click Order That Saves You From Merging Every Letter

The biggest time-saver shown in the video is a workflow change: you merge only the first letter to establish the path, then use the Icons pane to insert the rest.

If you are merging letters one by one via File > Merge, you are wasting approximately 15 seconds per letter. For a 6-letter name, that's 1.5 minutes of lost production time per tag.

What you’re doing (in plain English)

• Merge: Sets the "directory path" (tells SewWhat-Pro exactly which folder on your computer holds the alphabet files).
• Icons: Turns that folder into a visual palette, allowing you to click-to-type.


Merge the First Letter (Yes, Only One) to Lock in the Alphabet Folder

In the video, the creator navigates to the font folder (remember: these are embroidery alphabet design files, like .PES or .DST, not TrueType system fonts) and merges the first letter—example shown: “S.”

Crucial Detail: Start with a smaller size (the video uses 1 inch). It is much safer to scale a slightly small letter up than to have a giant letter spawn outside your hoop boundary, which can cause software errors or alignment confusion.

Build the Full Name Using the Icons Pane—Then Fix Kerning Like a Human, Not a Robot

Now, click the Icons button. The right-side pane will populate with thumbnails of every letter in that folder.

In the video example, the name is built by clicking letters in sequence (C, R, A, P, P, Y) following the initial S.

Pro tip: The "Squint Test" for Kerning

Auto-placement in embroidery software is mathematical, not optical. It creates equal distance between file boundaries, but because an "A" is shaped differently than an "H," the spacing often looks wrong to the human eye.

The video’s fix is the manual override I use daily:

1. Click an individual letter.
2. Use your keyboard arrow keys to nudge it left or right.

The Squint Test: Lean back from your monitor and squint your eyes until the letters blur slightly. Look at the white space between the letters. The volume of white space should feel equal, even if the physical distance isn't. This prevents the "gap-tooth" look common in amateur embroidery.

If you find yourself constantly battling alignment during large batches, professionals often invest in a hooping station for embroidery. While usually associated with physical alignment, the concept applies here: standardized setups prevent the "drift" that happens when you eyeball everything.

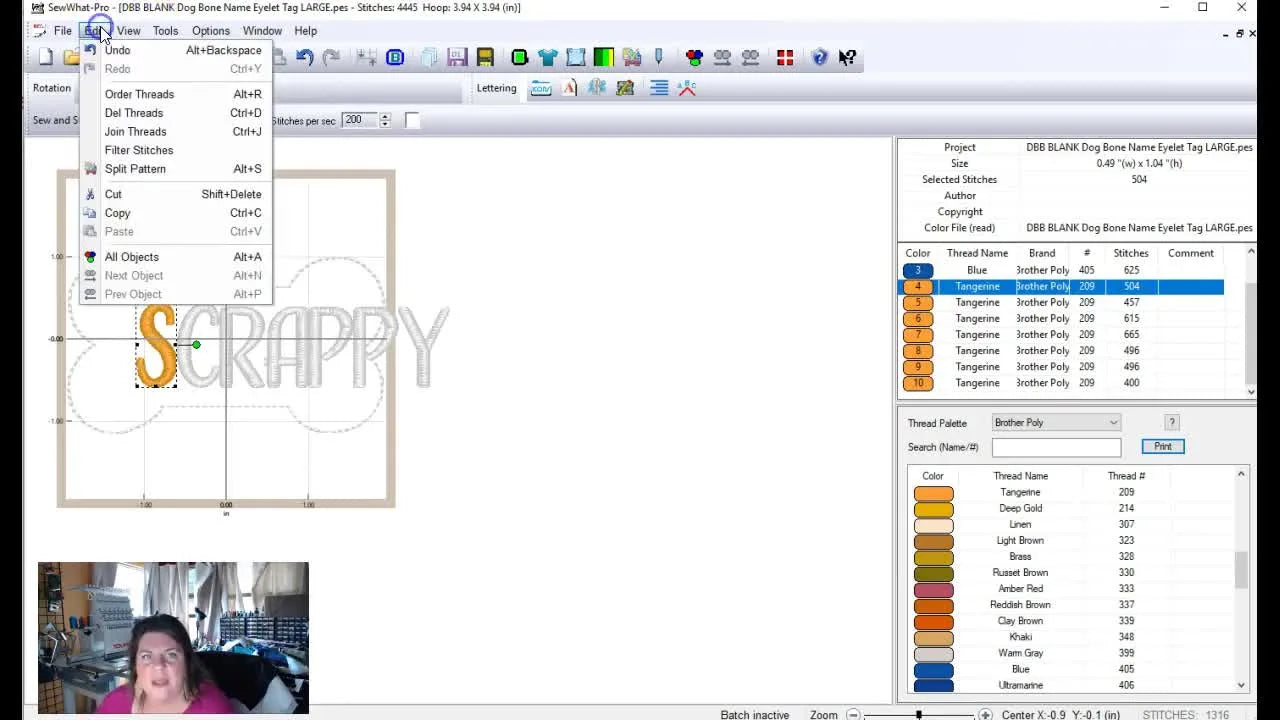

Join Threads in SewWhat-Pro: Turn Individual Letters Into One Object You Can Actually Control

At this stage, your object pane is messy. It shows the base design steps plus a separate step for every single letter (S, C, R, A...). If you try to move the name, you might accidentally leave the "S" behind.

The video’s method:

1. Go to Edit > Join Threads.
2. Choose Join threads of same color.


Warning: Color Hygiene Check. Before joining, ensure all your letters are assigned the exact same thread color in the software. If "S" is assigned thread #1 (Black) and "C" is assigned thread #2 (Dark Grey), the software will NOT join them, and your text will remain fragmented.

Expected Outcome: The object pane collapses the alphabet soup into a single slot. You can now drag, resize, and rotate the entire name as one cohesive unit.

Resize and Center the Lettering Without Warping It (Corner Handles Only)

With the word joined, click and drag it to the visual center of the stitch boundary.

To scale it, the video demonstrates using the corner handle. Dragging a corner handles ensures proportional scaling.

Constraint Check: Ensure the lettering sits comfortably inside the finishing stitch boundary.

• Visual Check: Can you see at least 2mm of empty space between the top of the tallest letter (like 't' or 'h') and the tag's upper border?

Watch out: The "Skinny" Trap

The video demonstrates a common temptation: squeezing the width to make a long name fit. If you use the side handles to squish the text, you increase the density significantly (packing the same number of stitches into a smaller space). On vinyl, this creates a "knife effect" that can slice your material. Always scale proportionally first.

Vinyl-Safe Cleanup in SewWhat-Pro: Filter Tiny Stitches First, Then Drop Density to 0.88

This is the most critical section for vinyl longevity. Vinyl does not "heal." Once the needle punches a hole, that hole is permanent. If stitches are too close together, you are essentially perforating a tear-line.

1) Filter Stitches (Remove the "Dust")

The video goes to Edit > Filter Stitches.

• Why? When you resize embroidery files, tiny "micro-stitches" (under 0.3mm) often appear. These create thread knots and needle penetrations that add zero visual value but increase needle drag. Deleting them is safer for your machine and cleaner for the vinyl.


2) Adjust Density to 0.88 (The Sweet Spot)

Next, the video uses Edit > Adjust Density and sets the factor to 0.88.

The Physics of Density: Standard embroidery density is usually set to 1.0 (or roughly 0.4mm spacing). This provides full coverage for cotton. However, for vinyl, full coverage is dangerous.

• Setting to 0.88 reduces the stitch count by roughly 12%.
• This lowers the "punch count" per square inch.
• It reduces the stiffness of the embroidery, allowing the tag to remain flexible.

If you are searching for a magnetic embroidery hoop mainly because your material is tearing, check your density first. The best hoop in the world cannot save vinyl from a file that is too dense. You need the combination of a stable hold (hoop) + reduced punch count (density).

Thread Order in SewWhat-Pro: Make the Name Stitch Before the Final Enclosure Step

If you save the file right now, your machine will stitch the tag’s border, then try to stitch the name on top of it (or worst case, stitch the name after you've removed the hoop).

We must inject the name into the timeline.

Method shown: Shift + Drag

1. Hold Shift.
2. Click the text object (the name) in the thread list.
3. Drag it up to position #3.


The Sequence Logic:

1. Placement (Base)
2. Hole Guide (Base)
3. YOUR NAME (Inserted Here)
4. Finishing Satin Stitch (Base)

If the drag-and-drop feels clumsy, use Edit > Order Threads to verify the numbers explicitly.

Setup Checklist (The "Save" Protocol)

• Structure: Object pane clearly shows 4 steps (Placement, Hole, Name, Finish).
• Integrity: Lettering is a single object, not a list of letters.
• Safety: You have run 'Filter Stitches' and reduced Density to 0.88 (or 88%).
• Format: You are saving in the correct format for your machine (e.g., .PES for Brother, .jef for Janome).

Decision Tree: Fabric/Substrate → Stabilizer + Hooping Strategy for Eyelet Tags

Use this logic to avoid the "Trial and Error" phase which wastes materials.

A) Substrate: Vinyl / Leather / Faux Leather

• Physics: These materials do not stretch much but can tear if perforated.
• Stabilizer: Use Medium-weight Tearaway (for clean edges) or Cutaway (if the tag will see heavy use/keychain friction choices).
• Hooping: High Risk of Hoop Burn.
  • Solution 1: Float the material (hoop the stabilizer, spray glue the vinyl).
  • Solution 2 (Upgrade): Use embroidery magnetic hoops to clamp directly without marking. This allows for faster production speed.

B) Substrate: Felt (Acrylic or Wool)

• Physics: Soft, compressible, porous.
• Stabilizer: Cutaway is mandatory. Tearaway often leaves felt fuzzy or distorted at the edges.
• Hooping: Low risk of burn, but high risk of stretching. Don't pull felt tight like a drum; lay it flat.

C) Substrate: Woven Cotton / Quilting Fabric

• Physics: Prone to fraying at raw edges.
• Stabilizer: Tearaway is usually fine for these small tags.
• Hooping: Standard hoops work well. Iron interfacing (like SF101) to the back of the cotton before stitching for a professional crispness.

Troubleshooting: The 3 Problems That Show Up in Real Life

When you are under deadline, these are the demons that appear. Here is how to banish them.

Problem 1: The "Cookie Cutter" Effect (Vinyl cuts out or tears)

• Symptom: The letter "O" or "A" falls out of the tag, or the edges look chewed.
• Likely Cause: Density was too high (left at 1.0 or higher) or the font was too small (under 0.5 inch).
• Quick Fix: Re-open SWP, set density to 0.85 - 0.90, and ensure you ran "Filter Stitches." Use a simpler, sans-serif font for tiny text.

Problem 2: "Birdnesting" on the back

• Symptom: A giant wad of thread forms under the throat plate, jamming the tag.
• Likely Cause: Usually not the file. This is almost always a threading error.
• Quick Fix: Re-thread the top thread FIRST. Make sure the presser foot is UP when threading (to open tension discs). Then check the bobbin orientation.

Problem 3: The letters are crooked relative to the tag

• Symptom: The name runs downhill or hits the border.
• Likely Cause: The hoop was not straight, or the material slipped.
• Quick Fix:
  • Prevention: Use the "Trace" or "Trial" button on your machine to see the rectangle boundary before stitching.
  • Hardware: A brother pe800 magnetic hoop acts as a square guide, making it easier to align straight edges visually compared to rounded hoops.

The "Why" Behind Better Hooping: Tension, Time, and Repeatability When You Start Selling

The commenter’s story is the classic "scaling pain." Maximizing a single needle machine for a craft show requires ruthless efficiency. Your bottleneck is rarely the stitch speed (650 stitches per minute is plenty for a tag); your bottleneck is setup time.

If it takes you 3 minutes to hoop a piece of vinyl because you are fighting with screws and trying to avoid marks, you are losing money.

• Manual Hooping: ~2-3 minutes per tag + thumb fatigue.
• Magnetic Hooping: ~15 seconds per tag + no fatigue.

Professionals invest in tools like magnetic embroidery hoops for brother machines not just for luxury, but because avoiding Hoop Burn on 50 keychains saves 50 pieces of scrap material and hours of frustration.

Warning: Sharp Object Safety. When trimming the back of your tag (In-The-Hoop style), you must remove the hoop, trim close to the stitch, and put the hoop back. Do not put your fingers near the needle bar when re-attaching the hoop. One accidental press of the "Start" button while your hand is in the frame is a trip to the ER.

The Upgrade Path: When Tools Pay for Themselves

If you are making tags for fun, the standard workflow works. If you are making them for profit, follow this logical progression:

1. Level 1 (Technique): Master the software naming workflow (Icons -> Join -> Density limit). Cost: $0.
2. Level 2 (Workflow): If you are doing batches of 20+, upgrade to magnetic hoops to eliminate hoop burn and hooping fatigue. Cost: Moderate.
3. Level 3 (Scale): If you are consistently booked and turning away orders, the constriction is likely the single-needle color changes. This is where moving to a multi-needle machine (like SEWTECH) changes the game—allowing you to setup the next hoop while the current one runs.

Operation Checklist (Final "Go/No-Go" Sequence)

• [ ] Sequence Verify: Name is definitely Thread #3 (before the final enclosure).
• [ ] Density Verify: Vinyl lettering is set to < 0.90 density.
• [ ] Bobbin Verify: Can you see at least 30% white bobbin thread? (Ensures good tension).
• [ ] Backing: Have you pre-cut the backing vinyl? (Don't scramble for it while the machine waits).
• [ ] Hoop Check: Is the inner ring tight? Or, if using magnets, is the material clamped across all axes?

Follow this order—Merge 'S', Icons, Kerning (Squint Test), Join Threads, Filter, Density 0.88, Order #3—and you will produce tags that look like they came from a factory, not a struggle.

FAQ

• Q: How do I add a name to a blank In-The-Hoop dog bone eyelet tag in SewWhat-Pro without the lettering showing messy on the back?
  A: Insert the name between the Hole Placement stitch and the Finishing stitch so the final border encloses and hides the lettering backside.
  • Merge only the first letter to set the alphabet folder, then use the Icons pane to click the remaining letters.
  • Join the letters into one object using Edit > Join Threads (join threads of same color).
  • Reorder the thread sequence so the name is Thread #3: Placement → Hole Guide → Name → Finishing Satin.
  • Success check: The object list clearly shows 4 steps with the name sitting directly before the final enclosure/border step.
  • If it still fails: Use Edit > Order Threads to confirm numbering if Shift + Drag reordering feels unreliable.
• Q: What SewWhat-Pro workflow speeds up personalizing multiple vinyl eyelet tags when merging letters one-by-one is too slow?
  A: Merge only the first letter once, then use the SewWhat-Pro Icons pane to click-build the rest of the name quickly.
  • Merge the first letter from the embroidery alphabet folder to “lock in” the directory path.
  • Click Icons to load the full letter palette, then click letters in order to form the name.
  • Nudge letter spacing with keyboard arrow keys using the “Squint Test” to fix kerning visually.
  • Success check: The Icons pane shows thumbnails for the whole alphabet and name-building becomes click-to-type (not File > Merge for every letter).
  • If it still fails: Confirm the files are embroidery letter designs (e.g., PES/DST) and that the correct alphabet folder was selected during the first merge.
• Q: How do I prevent vinyl or faux leather eyelet tags from tearing like a “postage stamp” when lettering is stitched in SewWhat-Pro?
  A: Reduce punch count by filtering micro-stitches first, then set Adjust Density to 0.88 (often vinyl-safe) before saving the file.
  • Run Edit > Filter Stitches to remove tiny “dust” stitches created by resizing.
  • Run Edit > Adjust Density and set the factor to 0.88 (or a safe starting point of 0.85–0.90 for problem cases).
  • Scale lettering proportionally with corner handles only; avoid squishing width with side handles (can spike density).
  • Success check: The stitched name looks clean without “cookie-cutter” cutouts in letters like O/A, and the vinyl does not look perforated along stitch lines.
  • If it still fails: Increase font size (avoid very small lettering) or switch to a simpler sans-serif embroidery alphabet design.
• Q: How do I stop birdnesting under an embroidery machine during In-The-Hoop vinyl tag stitching when the underside jams?
  A: Re-thread the top thread with the presser foot UP first, then verify bobbin orientation—this is commonly threading/tension setup, not the file.
  • Raise the presser foot fully before threading to open the tension discs.
  • Re-thread the upper path completely, then re-seat the bobbin correctly for the machine.
  • Restart and monitor the first seconds of stitching (placement stitch) before committing to the full run.
  • Success check: The placement stitch runs smoothly with no wad forming under the throat plate and the stitch sound stays steady (no sudden thumping/drag).
  • If it still fails: Stop immediately, remove the jam safely, and re-check the entire threading path and bobbin installation against the machine manual.
• Q: What is the fastest way to check correct hooping stability for vinyl eyelet tags before starting the embroidery run?
  A: Use a physical “Tug Test” and confirm the material is held flat and tight enough that it cannot ripple or shift during stitching.
  • Tug a corner of the hooped (or floated) stabilizer/vinyl gently to confirm firm hold.
  • Float vinyl on hooped stabilizer if standard hoops cause hoop burn; secure with spray adhesive or tape as appropriate.
  • Pre-cut backing pieces and stage appliqué scissors/snips so the machine never waits mid-process.
  • Success check: The hooped area feels tight like a drum skin and the vinyl surface stays flat without waves when touched.
  • If it still fails: Re-hoop or change the holding method (float vs clamped) before wasting a full stitch-out.
• Q: What safety steps prevent finger injuries when using embroidery magnetic hoops for vinyl and when trimming ITH tag backs?
  A: Treat magnets and the needle area as pinch/cut hazards—keep fingers out of contact zones and never handle the hoop near an active Start button.
  • Keep fingers clear when magnets snap together; clamp slowly and deliberately to avoid crushing pinches.
  • Keep magnetic hoops away from pacemakers and sensitive electronics; mark a dedicated workspace zone.
  • Remove the hoop to trim the back vinyl, then re-attach the hoop carefully with hands away from the needle bar area.
  • Success check: No “rush handling”—hands stay outside pinch points and outside the needle path during re-attachment and startup.
  • If it still fails: Pause production, reset the workspace layout (tools staged, Start button not bumpable), and proceed only when the handling routine feels controlled.
• Q: When personalizing vinyl eyelet tags for craft shows on a Brother PE800, how do I choose between technique changes, a magnetic hoop upgrade, or moving to a multi-needle machine?
  A: Use a tiered approach: fix file/settings first, then upgrade hooping for speed and material protection, then consider multi-needle only when color-change throughput becomes the bottleneck.
  • Level 1 (Technique): Use Icons → Join Threads → Filter Stitches → Density 0.88 → reorder name as Thread #3 before the finishing enclosure.
  • Level 2 (Workflow): If re-hooping is slow, vinyl slips, or hoop burn ruins material, move to a magnetic hoop to clamp faster and avoid pressure marks.
  • Level 3 (Scale): If orders outgrow single-needle color-change time, a multi-needle machine can improve repeatability by reducing stops and letting prep happen while stitching runs.
  • Success check: Per tag, setup time drops and repeatability improves (straight names, no hoop burn, no tearing) without increasing rework.
  • If it still fails: Time your actual bottleneck (hooping minutes vs stitch minutes vs color-change minutes) and upgrade only the step that is truly limiting production.
