SewArt Color Reduction That Actually Works: Turn a Pixelated JPEG into a Clean 3-Color Embroidery File (Without Losing Your Mind)

From Pixel Chaos to Perfect Patches: The Master Guide to SewArt Digitizing

Introduction: The "Confetti" Panic

If you’ve ever opened a “simple” JPEG in SewArt and thought, “It’s just black, green, and white—why is the preview turning into a mess?”, stop. Take a breath. You are not alone. The panic is real, especially the first time you hit Stitch Image and the preview looks like colorful confetti exploded inside your outline.

I have spent 20 years in embroidery, managing everything from single-head home machines to 50-head industrial production lines. I can tell you this: Machines are dumb. They don’t know what an "Alien Head" is; they only know X/Y coordinates and color commands.

In this masterclass, we are converting a low-resolution alien-head JPEG into a clean embroidery file using SewArt. But the real lesson isn't the alien—it’s the Industry Standard Workflow: reduce colors fast, stop chasing single pixels, and only digitize what you intend to stitch.

1. The Calm-Down Moment: Why SewArt Sees 252 Colors in a "3-Color" Image

Here is the truth that saves beginners hours of frustration: a JPEG is a raster image. Raster images rely on anti-aliasing—those tiny "in-between" pixels that make jagged edges look smooth to the human eye on a screen.

Embroidery software doesn’t see “smooth.” It sees data.

So when you zoom into what looks like a crisp black outline, you’ll find little squares of gray, charcoal, dark green, and light green. SewArt reads each shade as a separate thread color command. That is why the video’s alien image registers 252 colors even though your eyes swear it’s only three (Black, Green, White).

If you try to auto-digitize this raw data, the machine will try to switch threads for every single grey pixel. That causes "bird nesting" (thread tangles) and machine jams.

Expert Concept: If your source art is low-resolution, your goal is Data Simplification, not "Perfect Pixel Retention." You cannot stitch a JPEG. You must interpret it.

2. The "Hidden" Prep: Pre-Flight Safety Checks

The video opens the JPEG directly. That’s fine for a demo, but in my shop, we never start without a safety check. A bad file breaks needles.

The imported alien in the video displays around 1.91 inches wide by 2.75 inches tall. This is a safe "sweet spot" size.

The "Pre-Flight" Checklist (Before You Click a Single Tool)

• [ ] Verify File Type: Confirm your artwork is a JPEG or PNG. (If you designed it in Illustrator/Canva, export as JPEG to flatten layers).
• [ ] Safety Sizing: Look at the design dimensions. For beginners, stay between 2 inches and 4 inches. Anything smaller requires advanced density management; anything larger requires heavy stabilization.
• [ ] The "Blocky" Check: Zoom in to 400%. Do you see jagged squares on the edges? If yes, you must use the Color Reduction tool in the next step.
• [ ] Hidden Consumables Check: Do you have the right needle?
  • Wovens (Denim/Canvas): Use a Sharp 75/11.
  • Knits (T-Shirts): Use a Ballpoint 75/11 to avoid cutting fabric fibers.
  • Adhesive: Do you have temporary spray adhesive (like KK100) or basting spray? You will need this to hold the backing.

Warning (Mechanical Safety): Never ignore the "Max Stitch Count" or physical size limits of your specific machine's hoop. Asking a machine to stitch outside its hoop limits causes the needle bar to crash into the plastic frame—a violent mistake that can cost hundreds in repairs.

3. The Fast Fix: Using Color Reduction to Force 252 Colors Down to 3

This is the core maneuver. It is the difference between a amateur "mess" and a professional file.

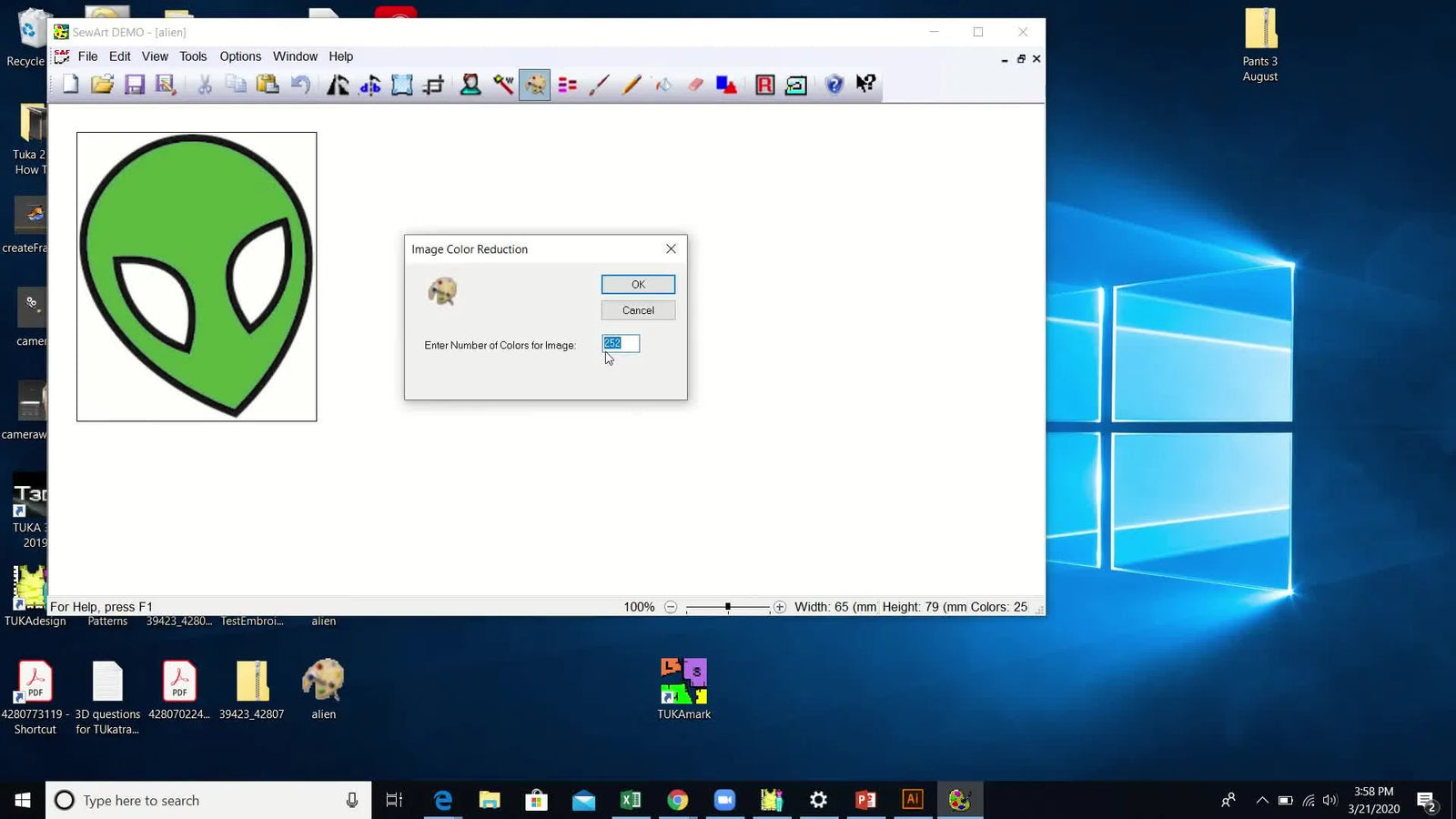

The instructor clicks the Color Reduction tool (the artist palette icon). SewArt reports 252 detected colors. The instructor overrides this by typing 3 into the target box.

Sensory Check: What Just Happened?

• Visual: The image should minimize. Gradients disappear. The image looks "posterized" or flat, like a comic book.
• Data: The color count counter should drop immediately to 3.

Why this works: Color Reduction forces those hundreds of "gray" pixels to decide: "Are you Black or are you White?" It consolidates the data. For embroidery, fewer colors means fewer trims, fewer stops, and cleaner execution.

4. The Time Trap: Manual Cleanup vs. Smart Strategy

After reducing colors, you might still see tiny specks of noise (artifacts). The instructor demonstrates cleaning these with:

• Paint Bucket (Fill Region)
• Eyedropper (holding Ctrl to sample color)
• Pencil (to click individual pixels)






Industry Reality: I forbid my junior digitizers from using the Pencil tool for more than 2 minutes. Failing to recognize the law of diminishing returns is the "Time Trap."

If you are zooming in to 800% to erase a single green pixel in a white background, stop. The machine cannot stitch a single pixel. The thread knot is bigger than that pixel.

When to Clean vs. When to Ignore

• Clean it Manualy If: The artifact is attached to a main line (e.g., a pimple on a straight line).
• Ignore It If: It is floating in empty space (we will bypass this in the next step).

5. The "Selective Stitching" Technique: The Professional Way

This is the smartest part of the tutorial and the technique you must master.

Instead of trying to make the entire image perfect, the instructor switches to Stitch Image mode and assigns stitch types only to the specific shapes they want.

• The Green Face gets a Fill Stitch.
• The Black Outline gets a Fill Stitch (or a Satin Stitch if thin enough).
• The Background Noise gets Nothing.






Step-by-Step: Defining Object Intent

1. Enter Stitch Image Mode: The toolbar changes. You are now an engineer, not an artist.
2. Select Fill Stitch: For an area this size (approx 2" wide), a standard Fill is safer than a Satin stitch (which might snag).
3. Click the Face: The region turns into a texture pattern.
   • Sensory Anchor: Look for a checkerboard or diagonal line pattern overlay. That pattern represents thread.
4. Click the Outline: Ensure it highlights.
5. Leave the Background Alone: If you don’t click the white background or the stray artifacts, they will not exist in the final file.

Setup Checklist (The "Save Your Sanity" Check)

• [ ] One-Click Rule: Did you click the background by mistake? If the white space has texture, hit Undo immediately.
• [ ] Connection Check: Are the eyes separate objects? Ensure they are clicked/assigned individually.
• [ ] Density Safety: For standard fabrics (Cotton/Polyester), use the default density (usually 17-20 points or roughly 4.0mm spacing). Do not increase density (lower the number) hoping for "better coverage"—this causes bulletproof patches that break needles.

6. The Simulation: The Digital Pre-Flight

The instructor opens the 3D Sewing Simulator. This is non-negotiable.

Operation Checklist: What to Look For

• [ ] The "Jumprope" Check: Look for long lines of thread connecting the eyes to the border. These are jump stitches. If they are excessive, you may need to re-order your stitching sequence.
• [ ] Coverage: Do you see white gaps between the black outline and the green face? This is a registration issue.
  • Expert Fix: In the settings, add Pull Compensation (usually 0.2mm - 0.4mm). Thread pulls fabric inward; Pull Comp pushes the stitches outward to compensate.

7. The Physical World: Fabric, Hooping, and Workflow (The Missing Manual)

You have a file. Now you need to stitch it. In my experience, 80% of embroidery failures are physical, not digital. A perfect file on a poorly hooped shirt will look terrible.

The Fabric & Stabilizer Decision Tree

Use this logic to avoid the "puckered mess" effect:

1. Is the fabric stretchy? (T-Shirt, Hoodie, Polo)
   • YES: You MUST use Cutaway Stabilizer. Tear-away will result in a distorted alien head after one wash.
   • NO (Denim, Canvas, Cap): You can use Tear-away, but Cutaway is always cleaner for dense fills.
2. Is the fabric textured? (Towel, Fleece)
   • YES: You need a Water Soluble Topping (film) on top to prevent stitches from sinking into the pile.

The Production Bottleneck: Hooping

If you are just doing one test patch, a standard hoop is fine. But if you are doing 10 shirts for a local club, or if you find yourself constantly re-hooping because the fabric is crooked, you have hit a Tool Limitation.

Standard hoops rely on friction and brute strength. This often leads to "Hoop Burn"—that permanent shiny ring crushed into your fabric.

Level 1 Upgrade: Technique Try "floating." Hoop the stabilizer tight as a drum (tap it—it should sound like a drum), spray it with adhesive, and stick the garment on top. Pin the perimeter.

Level 2 Upgrade: The Magnetic Solution If you are serious about efficiency, professionals move away from friction hoops. We look for tools that improve speed. A magnetic embroidery hoop uses strong magnets to clamp fabric instantly without forcing inner and outer rings together. This eliminates hoop burn and makes adjusting for straightness effortless. When searching for how to use magnetic embroidery hoop tutorials, you'll see that they are compatible with many single-needle machines, effectively upgrading a home setup to near-industrial ease of use.

Level 3 Upgrade: The "Station" Approach For those struggling with wrist pain or alignment, a hooping station for embroidery ensures that every shirt is hooped in the exact same spot, every time. Pairing a machine embroidery hooping station with magnetic embroidery frames is how small home businesses scale from 1 shirt an hour to 10 shirts an hour without fatigue.

Warning (Magnetic Safety): magnetic embroidery hoops use industrial-grade magnets. They are incredibly strong. Pinch Hazard: Keep fingers clear of the snapping zone. Medical: Keep them at least 6 inches away from pacemakers or insulin pumps.

The Scale-Up Reality

If you find that your single-needle machine takes 45 minutes to stitch this Alien because you have to change threads manually between Green, Black, and White, you have reached the limit of "Hobbyist" gear. When your order volume exceeds 50 pieces, the time spent threading justifies upgrading to a multi-needle system, like the SEWTECH line of embroidery machines, which handle color changes automatically.

8. Final Execution: Stitching the File

Setting Your Machine Parameters

• Speed (SPM): Don't be a hero.
  • Beginner Safe Zone: 400 - 600 stitches per minute (SPM).
  • Why: Slower speeds reduce friction and thread breakage. You should hear a rhythmic thump-thump-thump, not a frantic high-pitched whine.
• Tension Check (The "H" Test): Before running the alien, stitch a satin letter "H" on scrap. Look at the back. You should see 1/3 bobbin thread (white) in the center, flanked by the top thread color. If it's all top color on the back, your top tension is too loose.

Summary: Troubleshooting Your Results

By following this workflow, you convert confusion into control. You aren't just clicking buttons; you are engineering a textile product. Happy stitching!

FAQ

• Q: Why does SewArt Color Reduction detect 252 colors in a “3-color” JPEG embroidery design?
  A: This is common—JPEG anti-aliasing creates many in-between pixels, so use SewArt Color Reduction to force the file down to the real thread colors you intend to stitch.
  • Open Color Reduction (palette icon) and set the target colors to the exact number you want (for the alien example: 3).
  • Confirm the preview looks “posterized” (flat areas, no gradients) instead of speckled noise.
  • Re-run Stitch Image only after the color count is reduced.
  • Success check: the color counter drops immediately (e.g., from 252 to 3) and the preview stops looking like confetti.
  • If it still fails… re-check the source image at 400% zoom for jagged/blocky edges and repeat Color Reduction before digitizing.
• Q: What is the SewArt pre-flight checklist before clicking “Stitch Image” to avoid needle breaks and hoop crashes?
  A: Do a quick pre-flight every time—most “mystery” failures come from skipping size and material safety checks.
  • Verify the artwork file type is a flattened JPEG or PNG before importing.
  • Confirm the design size is beginner-safe (about 2–4 inches) and within the physical limits of the machine hoop.
  • Zoom to 400% and look for blocky edges; if present, plan to use Color Reduction before stitching.
  • Match the needle to fabric: Sharp 75/11 for denim/canvas, Ballpoint 75/11 for knits; prepare temporary spray adhesive if floating fabric.
  • Success check: the design fits inside the hoop area on-screen and you can identify the correct needle + stabilizer before any stitches are generated.
  • If it still fails… stop and verify the machine’s hoop boundary in the machine manual—stitching outside the hoop can cause a needle bar crash into the frame.
• Q: How do I use SewArt “Selective Stitching” in Stitch Image mode to ignore background noise and tiny artifacts?
  A: Don’t try to perfect every pixel—assign stitch types only to the shapes that should sew, and leave the rest unassigned.
  • Enter Stitch Image mode and choose a stitch type (commonly Fill Stitch for areas around ~2" wide).
  • Click only the intended regions (e.g., the green face and the black outline), and do not click the white background.
  • Undo immediately if you accidentally texture-fill the background.
  • Success check: only the intended objects show the stitch texture overlay (checker/diagonal pattern), and the background stays plain.
  • If it still fails… stop using the Pencil tool for tiny floating specks—leave them unselected so they do not exist in the final stitch file.
• Q: How can the SewArt 3D Sewing Simulator help identify jump stitches and white gaps before stitching on fabric?
  A: Always simulate first—SewArt’s 3D Sewing Simulator reveals jump stitches and registration gaps before thread and fabric get wasted.
  • Run the 3D Sewing Simulator and watch for long connecting threads between separate areas (excessive jump stitches).
  • Inspect outlines for visible gaps between the black border and the green fill (registration/shift).
  • Apply Pull Compensation as needed (a common starting point is 0.2–0.4 mm) to push stitches outward.
  • Success check: the simulation shows clean edges with no obvious long “jumprope” connectors and reduced gaps at borders.
  • If it still fails… improve the physical setup (stabilizer choice and hooping) because fabric movement can cause the same gaps even with a good file.
• Q: How do I choose cutaway vs tear-away stabilizer (and water-soluble topping) for a SewArt digitized patch on T-shirts, denim, towels, or fleece?
  A: Match stabilizer to fabric behavior—stretch needs cutaway, stable wovens can use tear-away, and pile fabrics need topping.
  • Use Cutaway Stabilizer for stretchy knits (T-shirts/hoodies/polos) to prevent distortion after washing.
  • Use Tear-away for stable wovens (denim/canvas/caps), with cutaway often giving cleaner support for dense fills.
  • Add Water Soluble Topping on towels/fleece to stop stitches from sinking into the pile.
  • Success check: after stitching, the design lies flat without puckering, and satin/fill areas are not swallowed by fabric texture.
  • If it still fails… reduce fabric shifting by hooping tighter or floating with adhesive, and re-check density settings (over-dense files can cause puckers).
• Q: How do I stop “bird nesting” under fabric when stitching a SewArt digitized design (thread tangles and jams)?
  A: Bird nesting is usually threading/tension or over-density—fix the basics first before blaming the file.
  • Re-thread the top thread with the presser foot UP to ensure the thread seats correctly in the tension discs.
  • Verify the design is not overly dense; a typical safe fill spacing is around 4.0 mm (don’t crank density tighter hoping for better coverage).
  • Slow the machine to a beginner-safe speed range (400–600 SPM) while testing.
  • Success check: stitches form cleanly with no wad of thread building on the underside, and the machine sound becomes steady (not frantic).
  • If it still fails… stitch a test satin “H” and evaluate the back: you want roughly 1/3 bobbin thread showing in the center; adjust tension per the machine manual.
• Q: How do I reduce hoop burn and speed up alignment when hooping shirts—when should I switch from standard hoops to magnetic embroidery hoops or a multi-needle SEWTECH machine?
  A: Use a staged upgrade: improve hooping technique first, then switch tools for repeat work, and only upgrade machines when manual thread changes become the bottleneck.
  • Level 1 (Technique): Float the garment—hoop stabilizer drum-tight, spray adhesive, place garment on top, and secure the perimeter.
  • Level 2 (Tool): Use magnetic embroidery hoops to clamp fabric without forcing rings together, reducing hoop burn and making straightening faster.
  • Level 3 (Capacity): If a single-needle workflow is taking too long due to manual color changes (e.g., frequent stops for Green/Black/White), consider a multi-needle system like SEWTECH for automatic color changes when order volume rises.
  • Success check: fabric shows fewer shiny hoop rings, alignment corrections take seconds instead of re-hooping, and repeat pieces look consistent.
  • If it still fails… add a hooping station for repeat placement and re-check stabilizer choice—fabric movement is still the #1 cause of crooked or gapped results.
• Q: What are the safety risks of magnetic embroidery hoops and how do I handle magnetic embroidery frames safely?
  A: Magnetic hoops are very strong—treat them like industrial clamps to avoid pinched fingers and medical-device interference.
  • Keep fingers out of the “snap zone” when magnets clamp down (pinch hazard).
  • Keep magnetic hoops at least 6 inches away from pacemakers or insulin pumps.
  • Separate and store magnets carefully so they do not slam together unexpectedly.
  • Success check: magnets seat smoothly without sudden snapping onto skin, and the hoop can be adjusted without forcing or twisting.
  • If it still fails… stop and reposition with two-handed control—never fight a magnet one-handed near the clamp edge.
