Mastering Micro-Stitches: How to Digitize "Scattered Stars" Without Creating Bulletproof Knots

When you’re digitizing a “simple” scatter of tiny stars, you are entering a danger zone. It is notoriously easy to underestimate how quickly small satin objects can turn into real production nightmares—thread breaks, "crunchy" needle penetration points, or a design that looks balanced on-screen but feels like a chaotic lump of hard plastic on a soft T-shirt.

This Part 5 workflow from Hatch by Wilcom is short, but it contains a critical lesson for anyone looking to move from "hobbyist" to "pro": Unit Engineering. You build one clean star element, stabilize it with the right underlay physics, and then use duplication tools to create variety.

Here is your empirical guide to getting it right, keeping your machine running smooth, and keeping your fabric soft.

Don’t Panic: Why Small Edits Make (or Break) the Stitch-Out

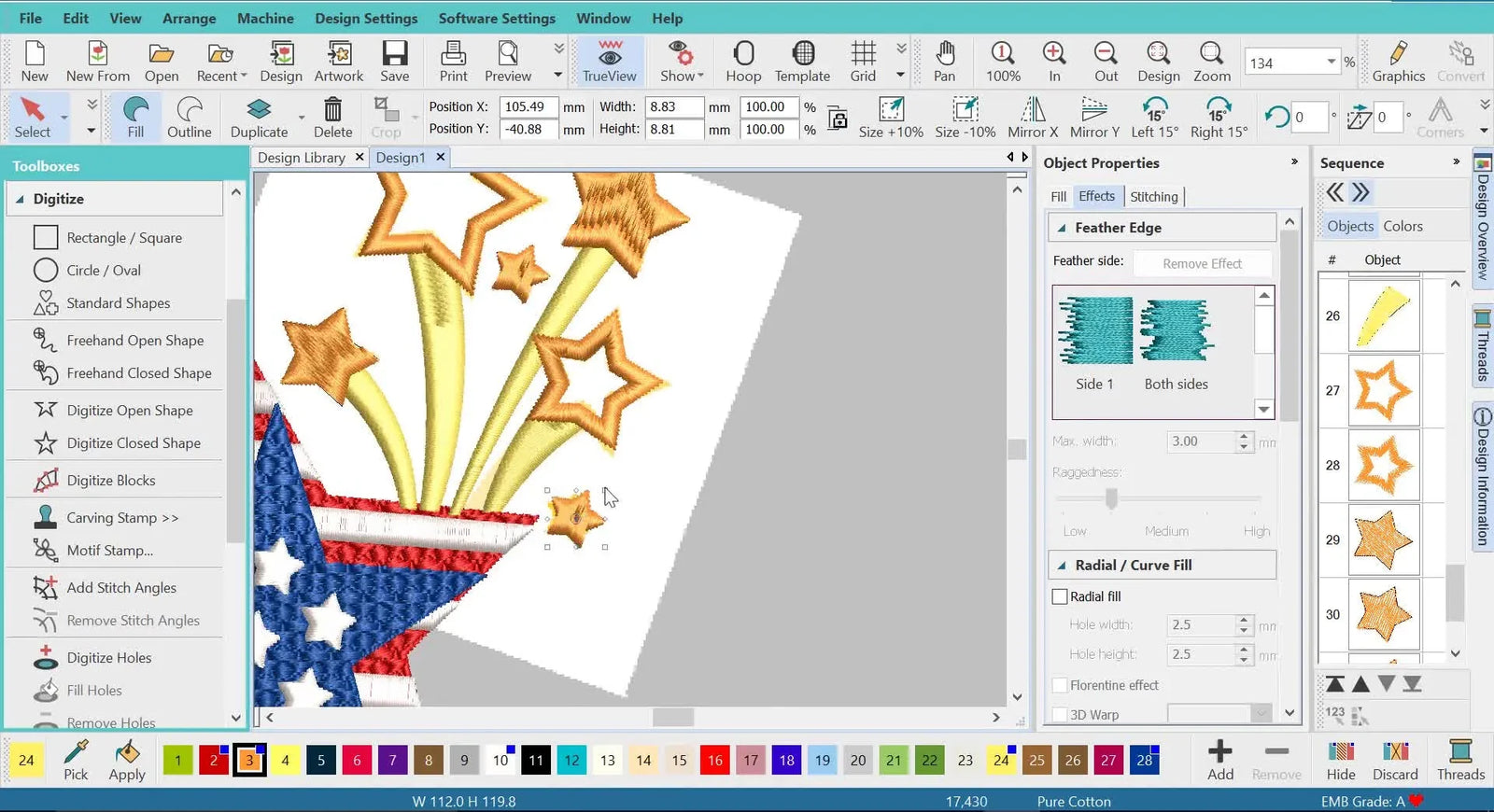

The video’s goal is straightforward: add decorative gold stars around the main Patriotic Star motif, creating a fireworks trail effect. The danger lies in the physics of embroidery: Small satin objects amplify every weakness in your settings.

If your density is too high on a 10mm star, you get a bird's nest. If your underlay is wrong, the points of the star vanish into the knit fabric.

If you are an intermediate Hatch user, you know how to draw shapes. But are you engineering those shapes so they stitch cleanly on a bouncy knit T-shirt at 800 stitches per minute (SPM)? That is the standard we are aiming for today.

The "Hidden" Prep: Verification Before Digitizing

Elites don’t just start clicking. They check the flight plan. Before you touch a digitizing tool, take 60 seconds to set the physical parameters.

1. Confirm the Machine Profile The video selects the Brother Enterprise PR-1000. This matters. Your software calculates jump stitch timming and hoop limits based on this profile. Ensure Hatch is set to your actual machine.

2. Define "Small" (The Safe Zone) In the video, the stars range from:

• Large Scatter: ~15.5mm x 15.25mm
• Small Scatter: ~11.2mm x 10.9mm

Expert Note: stay above 8mm for satin stars if possible. Below 5-7mm, satin stitches overcrowd the center point, creating a "knot" that can break needles. If you must go smaller than 6mm, switch from Satin stitch to a simple Run stitch or Triple Run.

3. The Production Reality Check If you are designing this for a single gift, you can struggle through the hooping. But if you are planning to stitch 50 of these for a customized team order, the "digitizing" isn't the bottleneck—the hooping is.

This is the trigger point for many shops: If you are fighting to align a T-shirt straight for a scatter design, a hooping station for embroidery machine becomes the difference between "profit" and "rage." It ensures that your scatter starts exactly where you designed it, every single time.

Prep Checklist: The "Go/No-Go" Test

• Machine Config: Is the target machine profile selected in Hatch?
• Size Safety: Are my smallest stars >8mm wide? (If <6mm, plan to use Run Stitch).
• Fabric Plan: Do I know what fabric this is going on? (Knits require different pull comp than denim).
• Consumables: Do I have Iron-on Mesh (for knits) or Tearaway (for caps)? Do I have a fresh 75/11 BP (Ballpoint) needle for knits?


Method A: Manual Digitizing (The Control Freak's Approach)

The first method shown (00:11–00:45) is manual. This teaches you control over node placement.

The Steps:

1. Select Digitize Closed Shape from the left toolbar.
2. Sensory Check: Click five points to define vertices. Listen for the mouse click rhythm. You want equidistant clicks.
3. Press Enter to generate.

Quality Control: Look at the yellow outline before generating stitches. Is it symmetrical? If it looks lopsided now, satin stitches will only highlight the error.

Method B: The Speed Route (Standard Shapes Library)

This (01:16–01:25) is what production digitizers actually use. We don't redraw wheels, and we don't redraw stars.

The Steps:

1. Open the Standard Shapes flyout.
2. Navigate to Borders/Shapes > 5-point star.
3. Drag it onto the workspace.

Why this is better for production: It guarantees mathematical symmetry. When you scale a mathematically perfect star, the stitch angles remain predictable. When you scale a hand-drawn star, errors multiply.

The "Secret Sauce": Object Properties for 10-15mm Tatami/Satin

Here is where we prevent the design from sinking into the fabric. The video applies specific settings (01:38–01:50) that we need to validate against real-world physics.

The Configuration:

1. Outline Type: Change from Line to Satin.
2. Underlay 1: Center Run (Length: 2.50mm).
3. Underlay 2: Zigzag (Spacing: 3.00mm).
4. Pull Compensation: 0.20mm.


Why These Numbers? (The Physics Explained)

• Center Run (The Spine): This stitches a line down the middle before the satin. It pins the fabric to the stabilizer. Without this, the satin pulls the fabric, creating puckers.
• Zigzag (The Foundation): This creates a "ladder" for the satin to sit on top of, giving the star volume and loft (the "expensive" look).
• Pull Comp 0.20mm: When a needle goes Down-Up, it pulls fabric in. "Compensation" tells the machine to stitch slightly wider than the screen shows, so when the fabric relaxes, it snaps back to the correct width. Note: For very stretchy pique polos, increase this to 0.30mm - 0.40mm.

Warning: Mechanical Safety
When stitching small stars with Zigzag underlay, the needle works very hard in a small area.
* Visual Check: Watch for "birdnesting" under the throat plate.
* Auditory Check: If you hear a "thud-thud" sound rather than a smooth "hum," your density is too high. Reduce density (increase stitch spacing from 0.40mm to 0.45mm) to save your needle and your fabric.

Setup Checklist: The "Physics" Validation

• Type: Is it definitely Satin? (Tatami is too messy for this size; Run is too thin).
• Foundation: Is Center Run enabled? (Crucial for preventing gaps).
• Loft: Is Zigzag enabled? (Gives the 3D pop).
• Compensation: Is Pull Comp at least 0.20mm? (0.35mm for pique cotton).
• Angles: Have I checked the stitch angles so they don't run parallel to the fabric knit grain?


The "Ctrl+D" Workflow: Scaling Without Chaos

Once your "Master Star" is engineered with the settings above, you stop digitizing and start composing.

The Workflow:

1. Duplicate: Select the Master Star -> Ctrl+D.
2. Transform: Click twice to see rotation handles. Rotate.
3. Scale: Drag corner handles to resize (keep between 11mm - 16mm).
4. Scatter: Place near the main motif.


The Trap: When you shrink a star, the density increases (stitches get closer together). Hatch usually auto-adjusts, but be careful. Visual Check: If the smaller star looks solid black/blue in the software preview (no gaps between lines), it might be too dense.

Composition: How to Scatter Like an Artist

The video creates a "fireworks trail." To make this look organic:

• Vary the Angles: Don't have all pointing up. Rotate them slightly.
• Vary the Size: Mix the 15mm and 11mm stars.
• Physical Spacing: Ensure no two stars are closer than 3mm. If they touch, the machine will perform a tie-off and trim extremely close to another tie-in, which causes thread nests.




The Real World: Why Perfect Files Fail on Shirts (And How to Fix It)

You can have the perfect file, perfect pull comp, and perfect density... and still get a "puckered" ring around your stars.

The Culprit: The Hoop.

Traditional hoops require you to pull the fabric taut ("like a drum skin"). On a T-shirt, this stretches the fibers open. You stitch the star, locking the fibers in that open state. When you unhoop, the rest of the shirt relaxes, but the star area stays stretched -> Puckering.

This is the exact scenario where professionals switch tools. A magnetic embroidery hoop clamps the fabric without forcing you to pull it violently tight. It relies on magnetic force rather than friction and tension. This allows the knit fabric to sit naturally while being stitched, eliminating the "hoop burn" ring and reducing puckering by 50% immediately.

Warning: Magnetic Field Safety
Magnetic hoops use strong industrial magnets.
* Pinch Hazard: Keep fingers clear of the snapping zone.
* Medical Device Safety: Operators with pacemakers should consult their doctor and maintain safe distances.

Decision Tree: The "Scatter Star" Success Logic

Don't guess. Follow this logic path for your next project.

Phase 1: Fabric Diagnosis

1. Is it Stretchy (T-shirt/Polo)?
   • YES: Use Cutaway Stabilizer (2.5oz or 3.0oz). Do NOT use Tearaway (it will explode under the satin stitches). Consider Iron-on Fusible Mesh to stop the stretch.
   • NO (Denim/Canvas): Tearaway is acceptable.
2. Does it have "Loft" (Fleece/Towel)?
   • YES: You MUST use a Water Soluble Topper (Solvy) to keep the satin stitches from sinking into the fluff.
   • NO: No topper needed.

Phase 2: Tooling Choice

1. Is hooping difficult or causing marks?
   • YES: Use embroidery magnetic hoops. They are the industry standard for delicate or difficult garments.
   • NO: Standard hoop is fine, but watch your tension.
2. Are you doing volume (10+ shirts)?
   • YES: A hoop master embroidery hooping station is recommended for placement consistency.


The Commercial Upgrade: From "Making Do" to "Making Profit"

The video ends with a beautiful tri-color design. If you are a hobbyist, enjoy the process. But if you are doing this for clients, "Time" is your most expensive consumable.

The Efficiency Ladder:

1. Level 1 (Software): You use the duplication tricks in Hatch to save design time.
2. Level 2 (Prep): You use a magnetic hoop for brother (if you run the PR-1000 shown) or a compatible brother magnetic hoop to cut hooping time from 2 minutes down to 30 seconds per shirt.
3. Level 3 (Hardware): You realize that changing thread colors manually on a single needle machine is killing your margin. The design in this video has 3+ color changes. On a single needle, that's 5 minutes of downtime. On a Multi-Needle (like the SEWTECH ecosystem or Brother PR series), it is zero downtime.

Final Operation Checklist

• Review: Scan the virtual design. Any stars touching? (Move them 3mm apart).
• Tactile Check: Is the stabilizer firmly attached (or fused) to the fabric?
• Needle: Is the needle straight and sharp? (Run a fingernail down the tip to check for burrs).
• Test: Run one star on a scrap piece of the same fabric. Adjust tension until the white bobbin thread is 1/3 width on the back.
• Go: Run the file.

Master these small stars, and the big designs become easy. Happy stitching.

FAQ

• Q: In Hatch by Wilcom, why do small satin stars (about 5–7 mm) turn into “bulletproof knots” and cause thread breaks on a Brother PR-1000-style workflow?
  A: Don’t force Satin stitches below the safe size—switch tiny stars to Run Stitch/Triple Run or keep satin stars above about 8 mm.
  • Keep satin stars in the ~11–16 mm range when possible, and treat ~8 mm as a safer lower limit for satin stars.
  • Convert stars smaller than ~6 mm from Satin to Run Stitch (or Triple Run) to avoid overcrowding in the center.
  • Reduce density if the preview looks “solid black/blue” after scaling down.
  • Success check: The stitched star should feel flexible (not like hard plastic) and should not cause repeated thread breaks at the center point.
  • If it still fails: Re-test one star on the same fabric/stabilizer and slow down to isolate whether density or hooping/stretch is the real cause.
• Q: In Hatch by Wilcom, what underlay and pull compensation settings help 10–15 mm Satin stars stitch cleanly on knit T-shirts without gaps?
  A: Use the proven combo: Center Run underlay + Zigzag underlay + at least 0.20 mm Pull Compensation as a baseline.
  • Enable Underlay 1: Center Run (Length 2.50 mm) to pin knit to stabilizer before satin covers.
  • Enable Underlay 2: Zigzag (Spacing 3.00 mm) to build a foundation so the star points don’t sink.
  • Set Pull Compensation to 0.20 mm (and generally increase to 0.30–0.40 mm for very stretchy pique polos).
  • Success check: Star points stay sharp (no “vanishing” into the knit) and the satin edges look filled without open gaps.
  • If it still fails: Re-check stitch angles against the fabric grain and confirm the fabric/stabilizer choice matches a knit plan (cutaway + optional fusible mesh).
• Q: When stitching small stars with Zigzag underlay at 800 SPM, what are the warning signs of dangerous density and birdnesting under the needle plate?
  A: If the machine sound turns into a “thud-thud” or you see nesting under the throat plate, density is too high—open the spacing slightly and stop before a jam.
  • Stop immediately and clear any birdnesting before continuing to avoid needle damage.
  • Reduce density by increasing stitch spacing (example given: move from 0.40 mm to 0.45 mm) to ease needle penetration in small areas.
  • Watch the underside during the first few stars—small satins concentrate stress fast.
  • Success check: The machine returns to a smooth “hum,” and the underside shows controlled stitches instead of a growing thread wad.
  • If it still fails: Re-run a single-star test on scrap and confirm the smallest stars are not below the satin-safe size.
• Q: How do you prevent T-shirt puckering and “hoop burn” rings around scattered satin stars when using a standard embroidery hoop?
  A: Don’t over-stretch knit fabric “like a drum”—use stabilizer support and consider a magnetic embroidery hoop to clamp without aggressive tension.
  • Use Cutaway stabilizer (2.5 oz or 3.0 oz) for stretchy shirts; avoid Tearaway on knits because it can fail under satin.
  • Add iron-on fusible mesh on knits when extra stretch control is needed.
  • Avoid pulling the shirt excessively tight in the hoop; let the knit sit naturally.
  • Success check: After unhooping, the area around the stars relaxes flat (no puckered ring and reduced hoop marks).
  • If it still fails: Upgrade the hooping method—magnetic clamping often reduces puckering/marks immediately compared with friction-based hoops.
• Q: What fabric + stabilizer + topper choices prevent satin stars from sinking on fleece or towels, and from tearing out on T-shirts?
  A: Match the support to the fabric: knits need Cutaway; high-loft fabrics need a water-soluble topper.
  • For T-shirts/polos (stretchy): Use Cutaway (2.5 oz or 3.0 oz) and generally add iron-on fusible mesh when the knit is very stretchy.
  • For denim/canvas (not stretchy): Tearaway can be acceptable.
  • For fleece/towel (loft): Add a Water Soluble Topper to keep stitches from sinking into the pile.
  • Success check: Satin coverage sits on top of the fabric (not swallowed by loft) and the backing doesn’t rip or distort around the stars.
  • If it still fails: Re-check star spacing (keep objects separated) and test one star first to confirm the fabric stack is stable.
• Q: What are the placement and spacing rules in Hatch by Wilcom to avoid tie-in/tie-off thread nests when scattering multiple satin stars?
  A: Keep scattered stars physically separated—don’t let satin objects touch, and aim for at least 3 mm spacing to reduce risky trims and tie-ins.
  • Rotate and vary sizes for an organic look, but maintain a minimum gap between stars.
  • Use duplicate/transform from one “Master Star” so every copy shares the same engineered settings.
  • Check smaller scaled stars for auto-density increase (preview shouldn’t look “solid”).
  • Success check: The machine does not repeatedly trim right next to a fresh tie-in, and the back of the design stays clean (no nests at clustered points).
  • If it still fails: Move the closest stars farther apart and re-run a quick test section before committing to a full shirt.
• Q: What are the key safety precautions for magnetic embroidery hoops and for stitching dense small satin areas with a needle working “too hard”?
  A: Treat both as real hazards: avoid pinch zones with magnetic hoops, and stop early if dense stitching creates nesting or harsh impact sounds.
  • Keep fingers clear when magnets snap closed; strong magnets can pinch skin.
  • Follow medical guidance: operators with pacemakers should consult a doctor and keep a safe distance from strong magnets.
  • Monitor for “thud-thud” impact sounds and birdnesting when stitching small stars with Zigzag underlay; stop and reduce density before damage.
  • Success check: Hooping is controlled without finger pinches, and stitching runs smoothly without repeated jams or harsh needle impacts.
  • If it still fails: Pause production and simplify the smallest stars (reduce density or change stitch type) before attempting the full scatter again.
• Q: For a 10+ shirt order with scattered stars and 3+ color changes, when should a shop upgrade from technique tweaks to a magnetic hoop, a hooping station, or a multi-needle machine like SEWTECH?
  A: Use a tiered decision: optimize digitizing first, then fix hooping consistency, then upgrade hardware when color-change downtime becomes the bottleneck.
  • Level 1 (Technique): Build one engineered “Master Star,” duplicate it, and test one star on scrap to lock in density/underlay/pull comp.
  • Level 2 (Tooling): Use a magnetic hoop when standard hoops cause hoop burn/puckering or slow, inconsistent hooping; add a hooping station when placement repeatability is the pain point.
  • Level 3 (Production): Move to a multi-needle platform when manual color changes on a single-needle machine are eating profit on multi-color jobs.
  • Success check: Hooping time drops, placement becomes repeatable, and runtime is dominated by stitching—not re-hooping, rework, or color-change stoppages.
  • If it still fails: Track where minutes are lost (alignment, re-hooping, thread breaks, color changes) and upgrade the specific bottleneck rather than changing everything at once.
