ScanNCut-to-Appliqué That Actually Stitches Flat: The Clean Workflow (and the Stabilizer Choices That Stop Puckering)

If you’ve ever watched a beautiful appliqué quilt-along and thought, “I love the visual texture… but I do not love the hours of cutting, turning edges, pressing, and re-cutting,” you have found your solution.

This workflow is the "Sweet Spot" of modern embroidery: you keep the vintage charm of traditional shapes, but you let a precision cutting machine and embroidery software handle the repetitive labor. The result? Clean edges, consistent repeatability, and far fewer "why is my fabric rushing?" moments.

However, machine appliqué is a physics game. Most frustration comes from three invisible enemies: Fabric Stability (Pull), Hoop Tension (Grip), or Software Interpretation (Nodes).

Using my 20 years in the industry, I have recalibrated this guide to not just tell you what to do, but how it should feel when you do it right.

Will Brother ScanNCut work with a Janome, Viking, Baby Lock, Bernina, or any other embroidery machine?

Becky’s answer is the one I wish every dealer would tattoo on their wall: ScanNCut machines are standalone cutting tools—they don’t "run" your embroidery machine. They simply create the raw material.

Here is the mental model to use: The ScanNCut creates a vector cut file (FCM). Your embroidery software is the "Translator" that turns that vector into a language your specific machine understands (PES, JEF, VP3, etc.).

The Upgrade Path: If you are building a setup around a high-end machine like a Brother Luminaire XP2, you might be tempted by a brother luminaire magnetic hoop. Treat this as a workflow accelerator for the embroidery stage. It doesn't change how the ScanNCut works, but it drastically reduces the time it takes to frame your fabric once the cutting is done.

The paper-to-fabric “Simple Shape” workflow that replaces hours of hand-turning

Becky uses Lori Holt’s “Simple Shapes,” but this method applies to any template—even a hand-drawn napkin sketch.

1) Trace the shape (High Contrast is King)

• Place the plastic template on standard printer paper.
• Trace using a black Crayola marker or a dark #2 pencil.
• The "Guru" Tip: Contrast is everything. The scanner needs a hard, dark binary line to create a clean vector. Fuzzy lines = jagged stitches later.
• Sensory Check: If you look at the line and see gaps or gray areas, the scanner will see "noise." Fill it in.

Warning: Copyright Safety. Always respect pattern licensing. Tracing shapes for personal use from a pattern you purchased is generally acceptable; mass-producing or selling those digital files is a legal violation.

2) Scan the drawing into the Brother ScanNCut

• Feed the drawing into the machine.
• Select "Scan to Cut Data."
• The machine converts the image into an .FCM vector file.

Beginner Anxiety Relief: Don't fear the menus. If you get lost, the "Home" button is your escape hatch. You cannot break the software by clicking the wrong icon.

3) Cut fabric cleanly on the mat (The Physics of Friction)

This is where 90% of failures happen. The blade exerts lateral force (sideways drag). If your fabric isn't stuck down harder than the force of the blade, it will shift.

• The Adhesion Recipe: Use HeatnBond Lite or a similar fusible on the back of the Appliqué fabric. This stiffens the fabric and gives the mat something to grip.
• The Tape Trick: If your mat is losing stickiness (we've all been there), use Scotch tape or painter's tape on the corners of the fabric.

Sensory Check: When you press the fabric onto the mat, use a brayer or a credit card to smooth it out. You should feel zero air bubbles.

Prep Checklist (Do NOT skip before cutting)

• Paper: Standard printer paper (smooth, non-textured).
• Contrast: Fresh black marker (no drying-out felt tips).
• Adhesion: Fabric backed with fusible web (HeatnBond Lite).
• Mat Hygiene: Check the ScanNCut mat for lint; clean if necessary to ensure grip.
• Blade Depth: Test cut a small square first to ensure you aren't slicing through the mat.
• Hidden Consumable: Have a pair of fine-point tweezers ready to lift the intricate cuts.

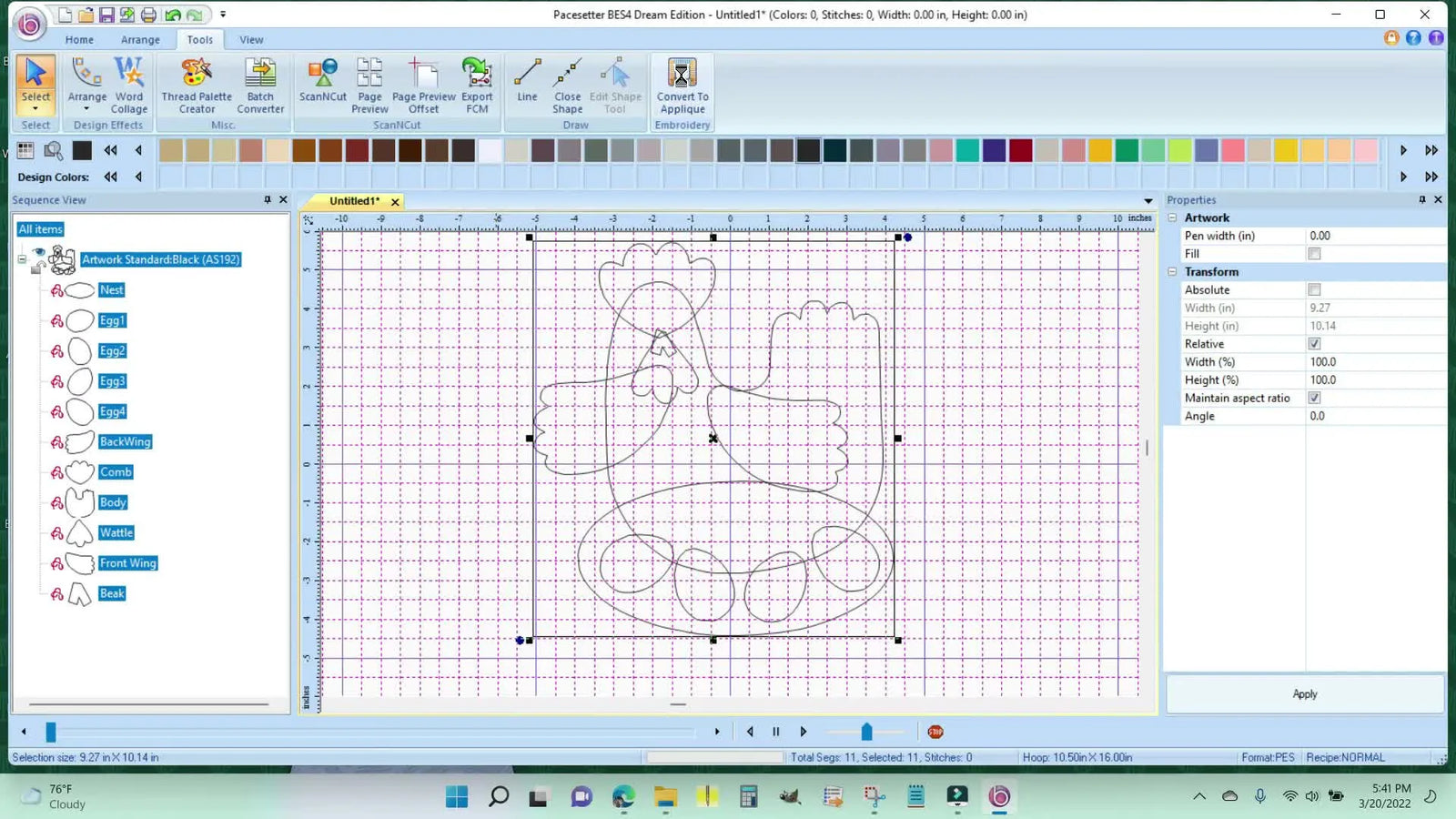

Convert .FCM to real appliqué stitches in BES4 / Simply Appliqué (and why one-click still needs a sanity check)

Once you have the .FCM file, the digital workflow is surprisingly fast:

1. Import: In embroidery software, go to File > Import > FCM.
2. Select: Click your vector artwork.
3. Convert: Click Convert to Appliqué.

The "Black Box" Revealed: That single click generates three distinct events:

1. Placement Line: A loose running stitch to show you where to put the fabric.
2. Tack-down: A zigzag or double-run to lock the fabric in place.
3. Cover Stitch: The pretty satin or blanket stitch that finishes the edge.

The Hardware Connection: Software is only half the battle. If you output a perfect file but use a warped hoop, you will get poor registration. This is why professionals obsess over machine embroidery hoops—the rigidity of the frame determines if the placement line stitches where it's supposed to.

BES4 vs Simply Appliqué vs Embrilliance Stitch Artist 2: what the comments reveal in real life

Real-world feedback clarifies the software maze:

User Scenario: "I own Embrilliance Essentials"

Verdict: You need an upgrade. Essentials is an editor, not a digitizer. To import vector graphics (.FCM) and assign stitch types, you need Stitch Artist Level 2.

User Scenario: "BES4 vs. Simply Appliqué"

Verdict: Simply Appliqué is the "Lite" version of BES4. It is perfect for this specific workflow if you don't need to digitize complex logos from scratch.

User Scenario: "The Glitch - Missing Stitches"

The Problem: Sometimes a complex shape imports, but the "Convert" button creates a mess or ignores part of the shape. The Fix: Don't fight the group. Break the design apart (Ungroup), convert each piece individually, and then merge them back together. It’s the "Turn it off and on again" of embroidery.

The stabilizer truth: why Pellon SF101 stops puckering and 987F can distort blocks

This is the single most important section for quality control. You are fighting Pull Compensation (the thread tightening the fabric).

Pellon SF101 (Shape Flex) = The Foundation

Becky fuses Pellon SF101 to the back of her distinct background block (quilting cotton).

• Why? Cotton is a loose weave. Satin stitches are tight. Without SF101, the stitches pull the threads together, causing puckering. SF101 turns the cotton into a stable, paper-like substrate.

Pellon 987F = The "Trap"

987F allows for stretch and loft.

• The Risk: If you use this as a stabilizer for dense appliqué, your block will distort and warp. Use 987F for loft (like batting) but not for structural stability against embroidery pull.


Decision Tree: Select Your Support System

Q: What is your project?

• A: Standard Appliqué Block (Quilting Cotton)
  • Action: Fuse SF101 to the entire back of the background block.
  • Hooping: Must be drum-tight.
• B: Stretchy T-Shirt or Knit
  • Action: Fuse SF101 (or mesh) to the fabric + hoop with a Cutaway stabilizer.
  • Note: Tearaway is not strong enough for knits.
• C: Lofty Project (Mug Rug/Table Runner)
  • Action: You can use 987F for the "puffy" feel, but ensure you also use a floating tearaway or cutaway underneath to prevent the stitches from sinking.

The no-steam rule: how to press woven fabric without “mystery waves”

Becky’s ironing advice prevents the "Square Block, Round Hole" problem.

The Physics: Woven fabric has a grain. If you introduce steam (heat + moisture) and push the iron diagonally, you stretch the bias. When the fabric cools, it locks into that distorted diamond shape.

The Protocol:

1. Dry Iron Only.
2. Press, Don't Push. Lift the iron up and down.
3. Chemical Assist: Use crisping sprays like Best Press or Faultless. This adds temporary rigidity, making the fabric behave more like paper during hooping.


Multi-part appliqué designs: how to merge pieces and remove overlap stitches cleanly

The Advanced Issue: If you have a flower (Layer 1) and a bee landing on it (Layer 2), you don't want the flower's dense satin stitches running underneath the bee. That creates a "bulletproof" stiff patch that breaks needles.

The Solution:

1. Convert pieces individually.
2. Use the "Merge" function in your software.
3. Ensure "Remove Overlap" is checked in settings. The software effectively "punches out" the stitches hidden underneath the top layer.

Production Tip: When you move from making one block to fifty, your bottleneck shifts. You stop worrying about software and start worrying about how fast you can hoop. This is when professionals look at a heavy-duty hooping station for embroidery to ensure every block is centered exactly the same way, every time.

The blanket stitch direction glitch (turned-in legs on a crab): what’s happening and how to fix it

The Glitch: One leg of a crab stitches inward, the others stitch outward. The Cause: Embroidery software interprets vector lines as having a "direction" (Start Node to End Node). If one line is drawn "backwards," the blanket stitch (which usually forms to the left of the line) will flip.

The Fix:

• Software: Look for a "Reverse Curve" command.
• Brute Force: Convert that specific leg separately and manually flip the stitch angle parameter.
• Always: Test stitch on scrap fabric before ruining your main block.

Single-needle vs multi-needle embroidery machines: the process is the same, the workflow isn’t

Becky notes inherent differences in workflow:

• Single-Needle: The machine naturally stops for every color change. This is "Automatic Pause," giving you time to trim appliqué fabric.
• Multi-Needle (SEWTECH/Brother/etc.): These machines are built for speed. You must program "Force Stop" (or Appliqué Stop) commands in the software, or the machine will happily stitch the satin border right over your untrimmed fabric.

The Alignment Game: For large quilts, alignment varies. A single needle user might use a printed paper template. A multi-needle user often relies on laser crosshairs and multi hooping machine embroidery techniques to grid out large areas efficiently.

The “hidden” hooping prep that prevents puckers, hoop burn, and misalignment

Appliqué lives or dies by the hoop.

The Tension Sweet Spot:

• Too Loose: Fabric flags (bounces), causing registration errors. The outline won't match the fabric.
• Too Tight: You stretch the bias. When unhooped, it snaps back, and the fabric puckers.
• Just Right: "Taut like a drum skin, but not distorted."

The Tool Upgrade: Traditional screw hoops are notorious for "Hoop Burn" (crushing the fibers) and wrist strain. Many embroiderers are switching to magnetic embroidery hoops.

• Why? They hold fabric firmly without "crushing" it into a groove.
• Speed: They snap on instantly.
• Consistency: The tension is uniform every single time.

Warning: Magnetic Safety. These are industrial-strength Neodymium magnets.
1. Pinch Hazard: They snap together with immense force. Keep fingers clear.
2. Medical: Keep away from pacemakers.
3. Electronics: Keep away from magnetic storage media/phones.

If you are a Brother user struggling with the standard frames, investigating magnetic hoops for brother is often the most cost-effective upgrade to improve stitch quality without buying a new machine.

Setup Checklist (The "Pre-Flight" Check)

• Stabilizer: SF101 fused firmly to background (no bubbles).
• Ironing: Block is pressed flat, no steam, squared up.
• File: Design saved in correct machine format (e.g., .PES for Brother).
• Needle: Fresh 75/11 or 80/12 Sharp (Ballpoint is for knits; Sharp is for clean appliqué edges).
• Bobbin: Full bobbin (don't run out mid-satin stitch!).
• Zone: Clear the area behind the machine so the hoop doesn't hit the wall.

Troubleshooting the three most common failures (and the fastest fixes)

1) "The fabric didn't cover the placement line!"

Symptom: You placed your pre-cut crab, but the tack-down stitch missed the edge. Likely Cause: Fabric shifted on the cutting mat OR fabric shifted in the hoop. Physical Fix: Stiffen the appliqué fabric with starch before cutting. Digital Fix: Use the "Inflation" or "Offset" setting in software to make the cut piece 1mm larger than the stitch line.

2) "My block is wavy like a potato chip."

Symptom: The block won't lay flat on the table. Likely Cause: You stretched the fabric while hooping. Fix: Use a magnetic embroidery hoop to allow the fabric to rest naturally while being clamped, rather than being pulled by the inner ring of a traditional hoop.

3) "The satin stitch looks sparse/gappy."

Symptom: You can see fabric peeking through the border. Likely Cause: Density setting is too low. Fix: Adjust density to 0.4mm or 0.45mm. Check: Ensure you are using the correct bobbin tension. Sensory Check: The white bobbin thread should show as a 1/3 strip down the center of the back of the satin stitch.

The upgrade path: From "One Block" to "Production Run"

If you are doing one pillow for a grandchild, stay with your current setup. It works.

However, if you are tackling a 20-block quilt or taking orders for team shirts:

1. Level 1 (Stability): Upgrade to a brother 5x7 magnetic hoop (or size appropriate) to stop fighting the screws and save your wrists.
2. Level 2 (Speed): Use a hoop master embroidery hooping station to guarantee every logo is in the exact same spot without measuring 20 times.
3. Level 3 (Scale): Move to a SEWTECH multi-needle machine. The ability to queue colors and stitch at higher speeds (800-1000 SPM) without constant babysitting is the only way to turn a profit or finish a king-size quilt before next Christmas.

Operation Checklist (While Stitching)

• Watch the Tack-down: If the fabric curls up, use a chopstick (not your finger!) to hold it down.
• Listen: A rhythmic thump-thump is good. A sharp clack usually means a needle is hitting the hoop or a burr.
• Speed: Slow down! For appliqué satin stitches, 600 SPM is the sweet spot for neat corners.
• Trim: If using the "stitched placement" method, trim threads immediately so they don't get trapped under the satin stitch.

By respecting the physics of the fabric and using the right tools—from high-contrast markers to magnetic hoops—you turn "Appliqué Anxiety" into a repeatable, enjoyable engineering process.

FAQ

• Q: Will a Brother ScanNCut work with a Janome, Viking, Baby Lock, Bernina, or other embroidery machines for appliqué cutting?
  A: Yes—Brother ScanNCut is a standalone cutter that creates the fabric pieces; embroidery software then converts the cut data into your machine’s stitch file format.
  • Create the cut file on ScanNCut as an .FCM cut file.
  • Import the .FCM into compatible embroidery software and convert it to appliqué stitches.
  • Save/export in the correct embroidery format for the target machine (PES, JEF, VP3, etc.).
  • Success check: The software generates three clear steps—placement line, tack-down, and a cover stitch—before stitching on the machine.
  • If it still fails… Confirm the software you are using can import .FCM and convert to appliqué (some “Essentials/editor” tiers cannot).
• Q: Why does Brother ScanNCut fabric shift on the cutting mat during appliqué cutting, causing inaccurate pieces?
  A: Fabric shifting usually means the mat grip is weaker than the blade’s sideways drag, so increase adhesion and reduce slippage.
  • Fuse HeatnBond Lite (or similar fusible) to the back of the appliqué fabric before cutting.
  • Tape the fabric corners to the mat with Scotch tape or painter’s tape if mat tack is fading.
  • Smooth the fabric firmly onto the mat with a brayer or a credit card before cutting.
  • Success check: The fabric feels fully bonded to the mat with zero bubbles, and the cut pieces lift cleanly without distorted edges.
  • If it still fails… Clean lint off the mat and run a small test cut before committing to the full shape.
• Q: How do I prevent puckering on quilting cotton appliqué blocks when using dense satin stitches with Pellon SF101 versus Pellon 987F?
  A: Use Pellon SF101 fused to the full background block for structure; avoid using Pellon 987F as the primary stabilizer for dense appliqué because it can allow distortion.
  • Fuse Pellon SF101 firmly to the entire back of the quilting cotton background block.
  • Hoop the prepared block drum-tight without stretching the grain.
  • Reserve Pellon 987F for loft/feel, and add an additional support layer underneath if needed.
  • Success check: After stitching and unhooping, the block lays flat instead of rippling or warping.
  • If it still fails… Re-check hooping tension—too tight (stretched) or too loose (flagging) both cause distortion.
• Q: How do I hoop fabric “drum-tight” for machine appliqué without stretching the bias and creating a wavy block after unhooping?
  A: Aim for taut-but-not-distorted hoop tension: firm like a drum skin, with the fabric grain staying square.
  • Hoop so the fabric is tight enough not to bounce, but do not pull the fabric diagonally while tightening.
  • Press the block flat first using a dry iron (no steam), and press up-and-down instead of pushing.
  • Use a crisping spray (Best Press or Faultless) if the fabric feels too “soft” to control.
  • Success check: The hooped fabric feels taut, and the block remains square and flat after it comes out of the hoop.
  • If it still fails… Consider switching from a screw hoop to a magnetic hoop to clamp evenly without over-stretching.
• Q: What are the fastest fixes when the pre-cut appliqué fabric does not cover the placement line during machine appliqué stitching?
  A: The quickest fix is to stop the fabric from shifting (mat + hoop) or slightly oversize the cut piece in software.
  • Stiffen the appliqué fabric before cutting so it holds shape more reliably.
  • Improve mat grip (fusible backing + smoothing + corner tape) to prevent drift during cutting.
  • Use the software “Inflation” or “Offset” feature to make the cut piece about 1 mm larger than the stitch line.
  • Success check: The tack-down stitch lands fully on the fabric edge all the way around, with no exposed placement line.
  • If it still fails… Re-check hoop tension—fabric “flagging” (bouncing) can also shift the alignment during the tack-down.
• Q: What density should be used when machine appliqué satin stitches look sparse or gappy, and how do I check bobbin tension correctly?
  A: Increase satin density to about 0.4 mm or 0.45 mm and verify bobbin tension by inspecting the back of the satin stitch.
  • Adjust the satin stitch density setting to 0.4 mm or 0.45 mm in the design/software.
  • Stitch a small test on scrap using the same fabric and stabilizer stack.
  • Inspect the underside for balanced tension rather than guessing from the top.
  • Success check: On the back, the white bobbin thread shows as a roughly 1/3-width strip centered down the satin stitch.
  • If it still fails… Re-check hoop rigidity and stabilizer choice, because poor registration and fabric movement can mimic “low density.”
• Q: What safety precautions should be used when handling industrial-strength magnetic embroidery hoops to avoid pinch injuries and device risks?
  A: Treat magnetic embroidery hoops like industrial clamps—keep fingers clear, and keep magnets away from medical devices and sensitive electronics.
  • Separate and reattach magnets slowly and deliberately; never let magnets “snap” together near fingertips.
  • Keep magnetic hoops away from pacemakers and follow medical guidance.
  • Store magnetic hoops away from phones and magnetic storage media.
  • Success check: The hoop closes without a sudden slam, and fingers are never in the closing path.
  • If it still fails… Switch to a controlled setup area (flat table, two-hand handling) before attempting faster hooping.
• Q: What is a practical upgrade path when machine appliqué projects scale from one block to a 20-block quilt or small production runs?
  A: Upgrade in layers: first stabilize and hoop consistently, then speed up positioning, and only then consider higher-output equipment.
  • Level 1 (Technique): Standardize prep—SF101 fused, dry-pressed square, correct needle (75/11 or 80/12 Sharp), and drum-tight hooping.
  • Level 2 (Tooling): Use magnetic hoops to reduce hoop burn, wrist strain, and tension inconsistency.
  • Level 3 (Workflow/Capacity): Add a hooping station for repeatable placement; move to a multi-needle machine when constant color changes and babysitting become the bottleneck.
  • Success check: Repeat blocks land in the same position with fewer re-hoops, and stitch-outs remain flat and aligned across the run.
  • If it still fails… Add “Force Stop/Appliqué Stop” commands for multi-needle workflows so trimming happens before the satin border stitches.
