Scan-to-Stitch in Data 7 EDS: A Clean TWAIN Scan, a Smart Crop, and a Bulletproof Fill A Workflow (Without the Usual Beginner Traps)

When you’re new to digitizing, scanning a hand-drawn or printed template feels like it should be simple—until the scan comes in crooked, the crop is sloppy, and your first fill generates in a way that makes you doubt everything.

This post rebuilds the exact workflow shown in the video (Data 7 Embroidery Design Suite / EDS + a TWAIN scanner driver), then adds the missing “shop-floor” logic I’ve learned after two decades of production digitizing: how to scan just enough detail, how to crop for speed and accuracy, and how to set up Fill A so the software does what you intended the first time.

The Calm-Down Moment: What Data 7 EDS Scanning Is (and What It Isn’t)

The scanning feature inside Data 7 Embroidery Design Suite (EDS) is simply a bridge to your scanner’s own TWAIN interface. That’s good news: you don’t need a separate graphics program just to get a paper template into EDS.

It’s also important to keep expectations realistic. A scan is a background reference—a guide layer you digitize over. It is not automatically “vector art,” and it won’t magically become clean stitch objects without your digitizing decisions.

If your end goal is clean, repeatable embroidery (especially for logos), the scan step is about one thing: giving you a stable template so your stitch objects land where you want them. Think of this layer like the concrete foundation of a house—it doesn’t need to be pretty, it just needs to be solid and straight.

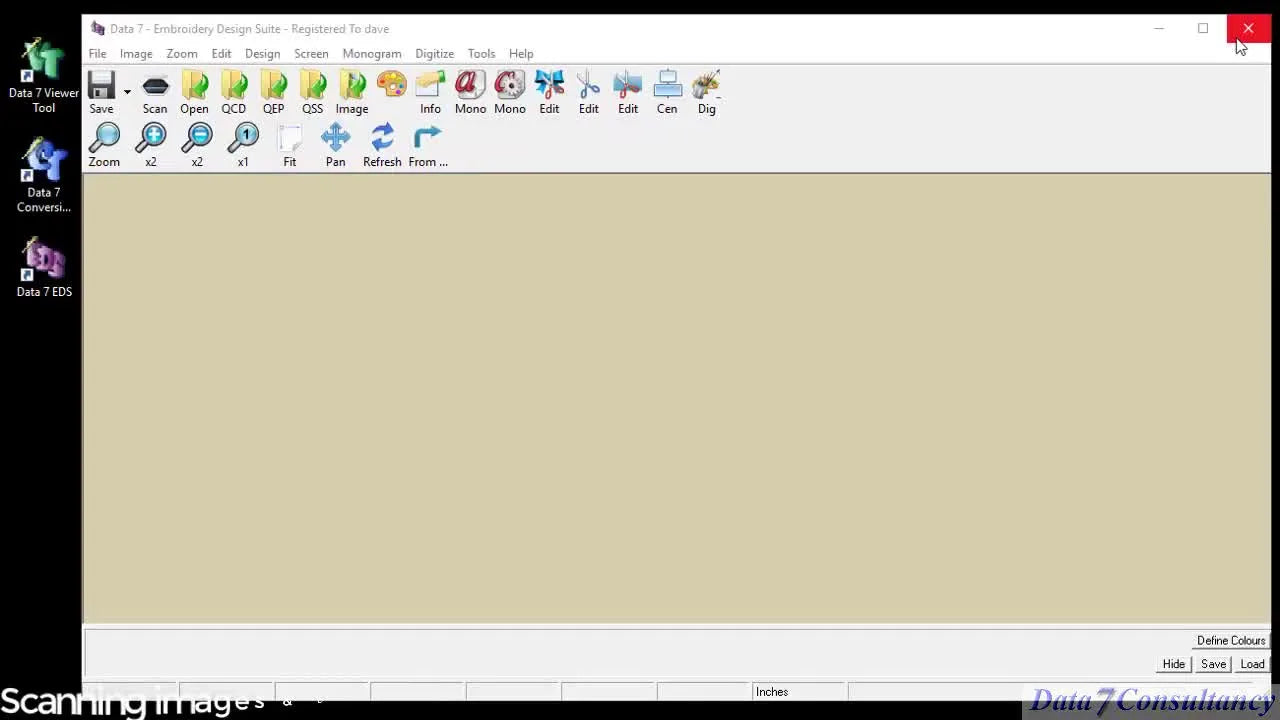

Find the Scan Controls in Data 7 EDS Without Hunting Through Menus

In the video, the instructor shows two ways to reach the scanning workflow. Experienced users stick to the quickest path to reduce "mouse mileage."

• Method 1 (Fastest): Use the Scan icon on the top toolbar. It looks like a small scanner bed.
• Method 2 (Menu): Go through the Image menu and choose Scanner Setup.

The key conceptual shift here is that you’re not importing a file yet—you’re telling EDS to shake hands with your scanner hardware.

The “Hidden” Prep That Prevents Bad Scans and Bad Digitizing Later

Before you click anything in the software, you must perform the physical prep that experienced digitizers do automatically. Skipping this leads to "ghost artifacts" in your scan or skewed angles that ruin your stitch geometry.

Prep Checklist (Do this before opening Scanner Setup)

• Glass Check: Wipe the scanner glass with a microfiber cloth. Smudges create noise that confuses your eye when tracing later.
• Paper Anchor: Place your artwork on an A4 sheet. Use a small piece of matte Scotch tape to hold the artwork flat against the scanner bed if the paper is wrinkled or thick.
• Contrast Boost: If you drew helper lines (arrows, overlaps), go over faint pencil marks with a fine-point dark marker. TWAIN drivers struggle with light graphite.
• Connection Check: Ensure the scanner (video uses HP DeskJet 3630) is on and the USB/WiFi connection is active.
• System Resource Check: Close memory-heavy browser tabs. TWAIN drivers are notorious for crashing on older PCs if RAM is maxed out.

A practical note: Scanning is upstream of stitching. If you’re digitizing for production, the real cost isn’t the scan—it’s the rework when the scan is blurry and you misplace a border by 2mm.

Set Scanner Setup in EDS: Why 72 DPI Works Here (and When It Doesn’t)

In the video, the instructor opens Scanner Setup and explicitly leaves the resolution at 72 DPI.

That number surprises people because we are trained to think "300 DPI is print standard." However, in digitizing, 72 to 150 DPI is often the "sweet spot" for a background tracing reference because:

• Speed: The image loads instantly and panning doesn't lag.
• Clarity: Your scan is only a guide. You don’t need to see the grain of the paper; you need to see the edge of the shape.
• Software Stability: Older digitizing suites like Data 7 handle smaller raster files much better than 20MB high-res scans.

Where beginners get burned is assuming one DPI fits all. If you are tracing a complex seal with tiny text, bump it to 150 DPI. Any higher, and you are just slowing down your zoom function.

If you’re using machine embroidery hoops in a high-volume shop, you know that workflow velocity matters—your digitizing file prep should be as lean and fast as your physical hooping process.

Launch the TWAIN Driver the Same Way the Video Does (and Don’t Panic if Yours Looks Different)

The video’s workflow is:

1. Click Scan Image.
2. EDS launches the scanner manufacturer’s TWAIN driver window.
3. The instructor notes your interface may look different unless you have the same HP model.

Inside the TWAIN window, the instructor verifies:

• Item Type: Photo
• Color Mode: Color

Then clicks Scan.

Visual Anchor: Whether your window is grey, blue, or white, look for the "Preview" or "Pre-scan" button first. Never hit "Final Scan" without a preview—that is flying blind.

TWAIN Settings That Matter Most: Item Type “Photo” + Color Mode “Color”

The video uses Photo and Color, then scans immediately.

Here’s the expert “why” behind that choice:

• Photo Mode vs. Document Mode: "Document" mode often maximizes contrast, turning light greys to white and dark greys to black. "Photo" mode preserves the mid-tones, which keeps the edges of your drawing softer and easier to trace accurately.
• Color Mode: Always scan in color, even if your drawing is black and white. Why? Because Color Mode allows you to see the difference between the black ink of the drawing and any red/blue helper lines you added. Black & White mode flattens everything into a single mess.


Crop Like a Production Digitizer: Trim the A4 White Space Before You Import

After scanning, the instructor uses the pre-scan preview to select only the “ABC” design area and trims off the excess white space of the A4 sheet, then clicks Done.

This crop step is not cosmetic—it is workflow hygiene:

• Zoom Efficiency: Less white space means when you hit "Zoom All," the design fills the monitor.
• Coordinate Hygiene: Your digitizing points land more confidently because the design helps center itself mathematically in the frame.
• Error Reduction: You reduce the chance of accidentally placing a stray node "off to the side" in the white void, which can cause frame-limit errors on the machine later.

A common beginner trap is leaving a huge border. This forces you to scroll endlessly. Crop it tight—leave maybe 10mm of breathing room around the art.

Confirm the Import: EDS Fits the Scan to Screen (and That’s Your First Quality Check)

In the video, once the scan is sent back to EDS, the image loads and is automatically fitted to the screen.

Use that moment as a quick Sensory Quality Check:

• Visually: Is the text readable? Are the edges distinct or fuzzy?
• Orientation: Is the design roughly square? If it scanned skewed by more than 5 degrees, STOP.

Do not try to fix a crooked scan by tilting your head or rotating the image digitally (which degrades quality). In practice, it’s faster to lift the scanner lid, nudge the paper straight, and re-scan. A straight foundation makes for straight satin columns later.

The “Helper Lines” Habit: Why Pros Mark Direction and Overlaps on Paper

The instructor points out hand-drawn helper lines on the physical paper that indicate digitizing direction and overlaps.

This is one of those deceptively simple habits that separates hobby digitizing from production digitizing. Before you scan, grab a red ballpoint pen and mark:

• Flow Arrows: Which way should the thread run? (e.g., following the curve of the 'B').
• Start/Stop Ticks: Where should the segment begin and end to hide the trim?

Even if you later digitize from clean vector art, training your eye to think in stitch flow—before you place the first node—reduces thread breaks and "lumpy" embroidery.

Fill A in Data 7 EDS: The Click Sequence That Makes or Breaks Your First Complex Fill

Now we move into the digitizing portion of the video. The manual "Fill A" tool is powerful but unforgiving if you get the sequence wrong.

The instructor:

• Chooses a green color to start.
• Selects Fill A.
• Explains that the first two stitches define the stitch angle for that fill.

The "Sweet Spot" Strategy: Most beginners mis-click here because they try to trace the shape first. Stop. You must define the physics (angle) before the shape (boundary). Look for the specific prompt or cursor change in EDS that signals it is waiting for angle input.

Lock in a 45° Stitch Angle: Two Points, One Red Vector, and a Lot of Control

In the video, the instructor clicks the first point at the top left and the second point diagonally down, creating a red line that represents the angle vector.

Why this matters:

• Light Reflection: Embroidery thread is shiny. A 45° angle reflects light differently than 90°.
• Fabric Stress: If you stitch perfectly horizontal or vertical on a stretchy knit, you maximize distortion. A 45° bias cut is usually the safest, most stable angle for standard fills.

In the video example, that angle is 45 degrees. When you click these two points, visualize a line connecting them—that is the path every single thread will follow.

Right-Click vs Left-Click in Fill A: Define the Boundary, Then Tell the Machine Where to Exit

The video’s most important operational detail is the mouse-button logic. Unlike modern web apps where "Left Click" does everything, digitizing software distinguishes between "Trace" and "Command."

The Protocol:

• RIGHT mouse button clicks = Define the curve/boundary points.
• LEFT mouse button click = Execute a Command (Set Exit Point / Close Shape).

Specifically, the instructor:

1. Uses RIGHT-clicks along the outer edge (right-hand side) of the letter “B” to define the right boundary. Heal/Feel: Imagine you are dropping breadcrumbs along the path.
2. Uses one LEFT-click at the bottom corner to set the exit point. This tells the machine: "When done, stop needle here."
3. Uses RIGHT-clicks to define the inner edge (left-hand side) boundary.
4. Uses a final LEFT-click to close the shape and generate the fill.

If you swap these clicks, the software will try to connect your boundary point to the exit point prematurely, creating a "bow-tie" mess of stitches.

Warning: Keep your hands relaxed and your workspace clear when digitizing and trimming test-outs. Rotary cutters and seam rippers are sharp tools that cause injury when you rush. Also, ensure your scanner lid is fully closed to avoid blinding yourself with the scanner light repeatedly.

The Instant Result: What “Correct” Looks Like When the Fill Generates

In the video, once the final left-click is placed, the area instantly fills with green stitches running at the 45° angle.

That immediate, clean fill is your expected outcome:

• Visual Check: The fill should touch the boundaries you defined without spilling over.
• Angle Check: The lines of thread must match your initial red vector.
• Exit Check: The faint travel line (if visible) should lead to your defined exit point.

If you don’t get that result, Undo (Ctrl+Z) immediately. Do not add more points to "fix" it. A broken fill is usually caused by a bad sequence, not a lack of points.

The “Why” Behind This Workflow: Stitch Flow, Fabric Stress, and Fewer Production Surprises

Even though the video is software-focused, the reason this method works is physical.

A fill stitch is a dense field of thread that acts like a shrinking net. It pulls the fabric in the direction of the stitch formation. When you:

• Choose a stable stitch angle (45°),
• Define clean boundaries with minimal nodes,
• And control the exit point,

You are engineering the garment to survive the wash. In real production, smart exit points reduce long travel stitches (jump stitches). One extra trim on one design becomes 100 extra trims on a 100-piece run, which adds minutes of downtime.

Setup Checklist: The Fast “Before You Digitize” Routine That Prevents Rework

Do this right before you start placing Fill A points to ensure success.

Setup Checklist

• Crop Check: Confirm scan is cropped tight and centered.
• Zoom Level: Zoom in until the "B" fills 80% of the screen. Do not zoom so close you see pixels.
• Mental Map: Identify the "Start" (Top Left), "Exit" (Bottom Center), and "Angle" (Diagonal).
• Consumable Check: Keep a notepad handy. Write down the angle (e.g., 45°) if you plan to use it for multiple letters to keep the text looking uniform.

A Simple Decision Tree: When to Upgrade Hooping Tools vs When to Fix Digitizing First

Digitizing and hooping problems often look identical (puckering, gaps). Here is a practical way to diagnose the root cause.

Decision Tree (Quality vs Speed):

1. Are your stitch edges wavy or distorted even on stable fabric (like denim)?
   • Yes → This is a Digitizing Issue. Re-check your stitch angles and boundary points in EDS. A better hoop cannot fix bad data.
   • No → Go to #2.
2. Do stitches look perfect on denim but puckered on t-shirts?
   • Yes → This could be a Stabilizer/Hooping Issue. You may be stretching the fabric too much in the hoop.
   • Solution: Try a magnetic embroidery hoop. They hold knit fabrics gently without the "tug-of-war" distortion of traditional screw hoops.
   • No → Go to #3.
3. Are you losing money because hooping takes longer than the actual stitching?
   • Yes → This is a Workflow Issue.
   • Solution: Consider a machine embroidery hooping station. Standardizing your placement reduces measuring time and operator fatigue.

Where Our Tools Fit Naturally (When the Problem Is Hooping, Not Digitizing)

This video teaches you how to create the file, but the finish depends on your equipment.

If your digitizing is solid but you are still struggling with consistency:

• Hoop Burn: If traditional hoops leave shiny rings on delicate fabrics, searching for how to use magnetic embroidery hoop techniques will show you how magnetic frames float the fabric to eliminate these marks.
• Batch Production: For those scaling up to team uniforms, hooping stations are the industry standard for ensuring the logo lands on the Left Chest exactly 4 inches down every single time.
• Capacity: If you have mastered digitizing but your single-needle machine is too slow, a multi-needle platform (like the SEWTECH series) allows you to queue up multiple colors without manual thread changes.

The point isn’t to buy everything. The point is to identify the bottleneck—software or hardware—and fix that.

Warning: Magnetic Hoop Safety. High-end magnetic hoops use industrial-grade magnets. They can pinch fingers severely if they snap shut unexpectedly. Never place them near pacemakers or sensitive electronics. Handle with respect.

Troubleshooting the Most Common “It Didn’t Work” Moments in Fill A (Symptoms → Causes → Fixes)

The video moves fast. Here is what to do when things go wrong in real life.

Operation Checklist: The Exact Fill A Run-Through (Angle → Boundary → Exit → Generate)

Use this as your repeatable routine when digitizing over a scanned template. Print this out and tape it to your monitor.

Operation Checklist

• Select Tool: Click Fill A.
• Set Angle: Click point 1 and point 2 to draw the Red Vector (45°).
• Trace Right: Use RIGHT-clicks to define the entire first boundary.
• Set Exit: Use ONE LEFT-click to drop the exit point.
• Trace Left: Use RIGHT-clicks to define the second boundary.
• Generate: Use ONE LEFT-click to close and calculate stitches.
• Verify: Check that stitch direction matches your Red Vector.

The Upgrade Result: When Your Scan-to-Stitch Workflow Is Clean, Everything Downstream Gets Easier

Once you can reliably scan, crop, and digitize a clean fill over a template, you’ve removed the biggest beginner barrier: uncertainty.

From there, your gains come from optimizing the physical side. Better digitizing minimizes thread breaks; better tools minimize downtime. Whether it is adding magnetic embroidery hoops to save your wrists or upgrading your stabilizer game, the goal is confident, repeatable production.

Master the click sequence in the software, respect the physics of the fabric, and you will find that digitizing is less of a dark art and more of a predictable craft.

FAQ

• Q: In Data 7 Embroidery Design Suite (EDS) scanning, why does a 72 DPI scan look “too low-res,” and what DPI should Data 7 EDS use for digitizing over a paper template?
  A: Use 72–150 DPI for a scan-to-trace background in Data 7 EDS; 72 DPI is a normal speed-first setting, and 150 DPI is the practical bump for small details.
  • Set Scanner Setup to 72 DPI when the scan is only a placement/shape guide and you want fast pan/zoom.
  • Increase to 150 DPI when tracing tiny elements (like small text) that are hard to read at 72 DPI.
  • Crop the scan tightly before importing to keep the file light and stable.
  • Success check: Zoom and pan feels responsive, and the edges of the drawing are clearly traceable without heavy pixelation.
  • If it still fails: Re-scan after cleaning the scanner glass and re-centering the paper to eliminate blur/skew first.
• Q: In Data 7 EDS with a TWAIN scanner driver, what should be checked before opening “Scanner Setup” to prevent crooked scans and tracing problems?
  A: Do the physical prep first—most “bad digitizing” starts with a dirty glass, wrinkled paper, or a skewed placement.
  • Wipe the scanner glass with a microfiber cloth to remove haze/smudges.
  • Anchor the artwork flat on an A4 sheet; use a small piece of matte tape if the paper is curled or thick.
  • Darken faint pencil helper lines with a fine-point dark marker so the TWAIN preview shows usable edges.
  • Close memory-heavy apps/tabs if the TWAIN window tends to crash on older PCs.
  • Success check: The TWAIN preview shows clean edges with no random specks/ghost marks, and the artwork sits square (not rotated).
  • If it still fails: Re-seat the paper and re-scan instead of trying to “live with” a skewed template.
• Q: In Data 7 EDS TWAIN scanning, why should “Item Type: Photo” and “Color Mode: Color” be used instead of “Document” or Black & White?
  A: Start with Photo + Color because it preserves mid-tones and separates ink lines from colored helper marks for cleaner tracing.
  • Choose “Photo” to avoid harsh contrast clipping that can crush light lines into white or thicken edges unnaturally.
  • Choose “Color” even for black drawings so red/blue helper lines remain distinguishable while tracing.
  • Always run a Preview/Pre-scan before the final scan so the crop box can be set accurately.
  • Success check: Helper lines and outline edges are visibly different, making boundary decisions easy when digitizing.
  • If it still fails: Re-mark faint areas on paper with a darker marker and preview again before final scan.
• Q: In Data 7 EDS scan import, how should the scanned image be cropped to avoid slow zooming and “stray node” placement during digitizing?
  A: Crop off the A4 white space tightly in the TWAIN preview—cropping is workflow hygiene, not cosmetics.
  • Drag the preview selection to include only the design area (leave roughly a small breathing margin around the art).
  • Confirm the crop before clicking Done so “Zoom All” frames the actual artwork, not a big white border.
  • Use the post-import fit-to-screen moment to judge if the crop is centered and readable.
  • Success check: When using Zoom All/Fit to Screen, the design fills the monitor and you don’t need to scroll through empty space.
  • If it still fails: Re-scan and re-crop; don’t keep a giant border and try to digitize “inside the void.”
• Q: In Data 7 Embroidery Design Suite (EDS) Fill A, what exact click sequence prevents “bow-tie” or twisted fill stitches when digitizing a letter shape?
  A: Follow the strict protocol: set the angle first, RIGHT-click to trace boundaries, and use LEFT-click only for exit/finish commands.
  • Click two points first to create the red angle vector line (this defines stitch direction before any boundary work).
  • RIGHT-click along the first boundary (for the video example: trace the right-hand edge first) without crossing over.
  • LEFT-click once to place the exit point where the fill should finish.
  • RIGHT-click the second boundary, then LEFT-click once to close and generate the fill.
  • Success check: The fill generates instantly with stitch lines matching the red angle vector and no twist/crossing in the middle.
  • If it still fails: Undo immediately (Ctrl+Z) and redo the sequence—adding extra points usually makes a wrong sequence worse.
• Q: In Data 7 EDS Fill A, why does a fill stitch angle generate vertical/horizontal lines instead of the intended 45° direction, and how do you fix it?
  A: The most common cause is skipping the first two angle clicks—redo the fill and explicitly draw the red vector before tracing.
  • Undo the fill (Ctrl+Z) as soon as the angle looks wrong.
  • Re-select Fill A and click two distinct points to draw the red angle vector line at the intended diagonal.
  • Then trace boundaries using RIGHT-clicks and finish with LEFT-clicks only for exit/close.
  • Success check: The visible stitch direction follows the diagonal you set, not a default straight direction.
  • If it still fails: Verify you did not accidentally start tracing before the software was waiting for angle input (watch for the cursor/prompt change).
• Q: What safety steps should be followed when trimming test-outs and handling magnetic embroidery hoops to avoid injury during an embroidery workflow?
  A: Slow down and control the hazards—sharp tools cut fast, and magnetic hoops can pinch fingers severely if they snap shut.
  • Keep hands relaxed and the workspace clear when using rotary cutters or seam rippers; do not rush trimming.
  • Ensure the scanner lid is fully closed during scanning to avoid repeated exposure to the scanning light.
  • Handle magnetic hoops with two hands and keep fingers out of the closing path; let the magnets seat gently.
  • Keep magnetic hoops away from pacemakers and sensitive electronics; follow the hoop manufacturer’s safety guidance.
  • Success check: No pinches/cuts occur, and the hoop closes under control without snapping onto fingers.
  • If it still fails: Pause the task, reset the work area, and change handling technique before continuing—injury risk rises sharply when frustrated.
• Q: When embroidery shows puckering on t-shirts but looks clean on denim, how should a shop choose between fixing Data 7 EDS digitizing settings, changing stabilizer/hooping, or upgrading to magnetic hoops or a multi-needle machine?
  A: Diagnose in layers: fix digitizing first if distortion appears on stable fabric; if only knits pucker, address stabilizer/hooping; upgrade tools only after the root cause is clear.
  • Test on stable fabric (like denim): if edges are wavy/distorted there, re-check stitch angle and boundary logic in Data 7 EDS first.
  • If denim is clean but t-shirts pucker, reduce fabric stretch during hooping and adjust stabilizer/hooping method; magnetic hoops may help hold knits more gently.
  • If quality is fine but hooping time is the bottleneck, standardize placement with a hooping station; if color changes are the bottleneck, a multi-needle platform may be the next step.
  • Success check: The same design runs cleanly without puckering on the target knit fabric, and operator time per piece drops measurably.
  • If it still fails: Run a controlled test (same design, same fabric) while changing only one variable at a time (digitizing vs hooping vs stabilizer) to pinpoint the cause.
