Appliqué Automation: The PE Design Next to ScanNCut Bridge

If you have ever spent hours hand-cutting complex appliqué shapes—only to have your scissors slip and ruin the edge—you know the specific pain of "scissor fatigue." In professional embroidery, precision isn't just about aesthetics; it's about efficiency.

This guide acts as your "Digital Bridge." We will take a quilt block design, strip it down to its geometry using PE Design Next, and feed it to a ScanNCut machine. The result? Pre-cut fabric pieces that fit your placement lines with mathematical perfection.

This is not just a tutorial; it is a workflow upgrade. It transforms a frustrating manual task into a repeatable "Print → Scan → Cut → Stitch" industrial process, even for home studios.

The Core Objective (The "Why")

In this masterclass, you will bridge the gap between software and hardware to achieve:

• Precision: How to use Divide by Color to isolate appliqué geometry.
• Safety Margins: Why resizing shapes to 101%–102% is the professional secret to preventing "peek-through" gaps.
• Physical Stability: Using the "505 Spray Method" to lock fabric for cutting.
• Scalability: How to prep once and cut fifty times.

1. Software Prep: Preparing the Design in PE Design Next

The first step is mental: stop seeing the "duck" or the "wheel." Start seeing vector paths. We need to tell the software to ignore the pretty satin stitches and focus only on the footprint of the shape.

Step 1: Isolate the Appliqué Shapes

This process protects your original file while creating a designated "cut file."

1. Duplicate: Open your design in PE Design Next and immediately Save As a new file (e.g., Duck_CutFile.pes).
2. Select: Click the design block until you see the black square selection handles.
3. Divide: Navigate to the Attribute tab and select Divide by Color. This explodes the grouped design into editable layers.
4. purge: In the Sewing Order box, identify the fill stitches, satin borders, and decorative details. Right-click and Delete them.
5. Verify: You should be left with only the single run instructions that define the shape (the placement line).

Checkpoint: Your screen should look like a skeletal wireframe of the design on the grid.

Step 2: Organize and Oversize (The 102% Rule)

Fabric is fluid; it relaxes and shifts. If you cut the fabric exactly the same size as the placement line, the satin stitch might miss the edge, leaving a raw gap. We fix this with math.

1. Separate: Drag shapes apart so they don't overlap.
2. High Contrast: Change the line color to Black. We are preparing for a scanner, and contrast is king.
3. The Safety Offset: Select each object and resize it to 101%–102%.
   • Why? This 1%–2% expansion ensures the fabric edge sits under the satin stitch, not next to it.

Expected Outcome: You now have a high-contrast template where the shapes are mathematically calculated to be just slightly larger than the embroidery area.

Warning: Be surgical when deleting layers. Ensure you are preserving the outermost placement line. If you accidentally keep an inner detail line instead, your cut fabric will be too small, ruining the final block.

2. The Physical Bridge: Printing and Scanning

Now we move from the digital screen to physical paper. We are not exporting an SVG; we are using the ScanNCut's optical eye to create the cut data. This is often faster and more reliable for older file formats.

Step 3: Print and Scan to Data

1. Print: Print your black skeletal template on standard white paper.
2. Mount: Place this paper on the Low Tack Mat (Turquoise/Blue).
   • Sensory Check: The paper should lay flat but peel off easily later without ripping.
3. Scan: Load the mat. On the machine screen, select Scan → Scan to Cut Data.

Checkpoint: The machine converts the visual contrast (Black ink vs. White paper) into a digital cut path.

3. Data Hygiene: Cleaning and Resizing on ScanNCut

Scanners are sensitive. They will pick up paper grain, printer dust, or a smudge on the glass. We must "sanitize" the data before cutting expensive fabric.

Step 4: Crop and Clean "Digital Noise"

1. Framing: Use the red arrow stylus tools on the screen to crop the scan area tightly around your shapes.
2. Save: Save this data to the machine memory.
3. Edit Mode: Go to Home → Pattern → Open your saved data.
4. De-speckle: Enter the edit screen (box icon). Look for stray dots or "noise" around your main shapes.
   • Action: Select these artifacts with the red selection box and hit the Garbage Can icon.

Checkpoint: Your screen should show only the clean, continuous path of your appliqué shapes.

Step 5: Final Dimensional Check

If you forgot to resize in PE Design Next, this is your fail-safe.

• Select the shape and use the resize tool.
• Verification: In the tutorial example, the duck height is verified at 4.15 inches.
• Ensure Aspect Ratio is locked (usually default) so you don't distort the duck into a pancake.


4. Fabric Prep: The 505 Spray Method

This is the phase where most beginners fail. If fabric moves under the blade, it shreds. To prevent this, we create a temporary "fabric sticker."

For high-volume production, professionals often seek ways to streamline physical prep. Just as stabilizing fabric cutting is crucial here, optimizing hooping for embroidery machine tasks becomes critical when you move to the stitching phase to avoid bottlenecks.

Hidden Consumables List

• 505 Temporary Adhesive Spray (The industry standard for clean release).
• Fabric Spatula / Brayer (To burnish fabric).
• Isacord Thread (40wt polyester for strength and sheen).
• Size 75/11 or 80/12 Embroidery Needle (Ballpoint for knits, Sharp for woven).

Step 6: Bond Fabric to the Standard Mat

1. Spray: Take your fabric scrap to a dedicated box away from the machine. Spray the wrong side (back) of the fabric with 505.
   • Sensory Check: It should feel tacky like a post-it note, not wet or gummy.
2. Mount: Place the fabric right-side up on the Standard Mat (Purple/Pink).
3. Burnish: Use a spatula or brayer to press the fabric down aggressively.
   • Success Metric: Run your hand over the fabric. If you feel any air pocket or bubble, the blade will catch and tear it. It must be "tight like a drum skin."


Warning — Magnet Logic: While we use sticky mats here, for the actual embroidery phase, sticky stabilizers and tight friction hoops can cause "hoop burn" (permanent ring marks) on delicate quilt blocks. Many pros switch to Magnetic Embroidery Hoops (like Sewtech) for the stitching phase to hold thick quilt sandwiches without crushing the fibers.

Prep Checklist (Pre-Flight)

• Blade Check: Cap is clean, no fabric fuzz inside.
• Mat Check: Standard Mat used (not Low Tack) for fabric.
• Adhesion: Fabric is burnished; 505 spray applied evenly.
• Design: Cut file is clean of artifacts and resized (+2%).
• Safety: Spraying done away from machine electronics.

5. The Cut & Assembly

We now marry the digital file to the physical fabric using the Background Scan feature—a superpower of the ScanNCut.

Step 7: Background Scan & Blade Physics

1. Scan Fabric: Load the mat with your random fabric scraps. Run a Background Scan.
2. Drag & Drop: On the screen, use the stylus to drag your cut shapes (Duck/Wheel) exactly over the image of your fabric scraps.
3. Blade Settings (The Sweet Spot):
   • Blade Depth: 4 (standard blade).
   • Cut Pressure: 3.
   • Note: These are empirical starting points for quilting cotton. If using thicker flannel, test on a scrap first!

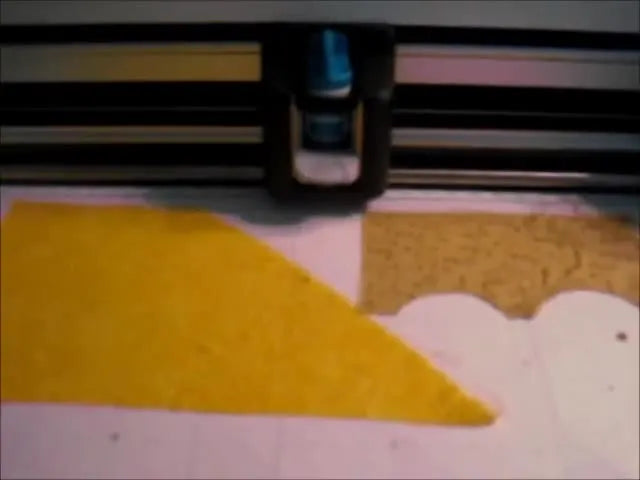

Step 8: Execute the Cut

Press Start. Watch the first few seconds closely. The fabric should remain perfectly flat. If it lifts, pause immediately—your mat isn't sticky enough.

Step 9: The Embroidery Stitch-Out

Now, take your pre-cut pieces to the embroidery machine.

1. Hoop: Hoop your base stabilizer/block fabric. Tip: For repetitive quilt blocks, a hoop master embroidery hooping station ensures every block is centered exactly the same, reducing alignment fatigue.
2. Placement Line: Run the first color (the outline).
3. Align: 505 spray the back of your pre-cut duck. Lay it exactly inside the stitched line.
   • Benefit: Because we resized to 102%, it should cover the line completely.
4. Tack & Finish: Run the tack-down stitch (zigzag) followed by the satin finish.


Commercial Insight: If you find yourself struggling to hoop thick quilt sandwiches, or if your wrists hurt after the 10th block, this is a hardware limitation. Standard hoops rely on friction. Upgrading to Magnetic Hoops allows you to "slap and sew" thick layers instantly. For high-volume shops, combining magnetic frames with hooping stations is the standard for profitability.

Troubleshooting Guide (The "Fix It" Matrix)

Decision Tree: Which Hold Method?

Q1: What are you cutting?

• Paper/Cardstock: Use Low Tack Mat (Blue).
• Fabric: Go to Q2.

Q2: Is the fabric backed (Iron-on) or raw?

• Backed (Stiff): Standard Mat (Purple) usually holds directly.
• Raw/Soft: You MUST use a stabilizer bridge. Use 505 Spray + Standard Mat.

Final Operational Checklist (Post-Flight)

• Clean: Wipe 505 overspray off the mat edges with alcohol-free wipes.
• Verify: Check blade housing for accumulated lint.
• Clear: Delete the "Scan Data" from the machine unless saving for repeat use.
• Safety: Cap the blade holder immediately.

By following this protocol, you stop "guessing" with scissors and start "manufacturing" with precision. Whether you are using a single-needle machine or looking to upgrade your workflow with a hooping station for brother embroidery machine, the principle remains the same: Let the machine do the work; you provide the intelligence.## FAQ

• Q: How do I use Brother PE Design Next “Divide by Color” to create a ScanNCut appliqué cut file without deleting the placement line?
  A: Duplicate the file first, then delete everything except the outermost single-run placement lines.
  • Save As a new file name (example: Duck_CutFile.pes) before editing.
  • Use Attribute → Divide by Color, then delete fills, satins, and decorative details in Sewing Order.
  • Keep only the single-run outlines that represent the appliqué footprint (the placement line).
  • Success check: the design preview looks like a clean “wireframe” with only outline runs—no fill blocks or satin columns.
  • If it still fails: undo and re-check that the remaining line is the outermost outline, not an internal detail line.
• Q: Why does Brother appliqué satin stitch miss the fabric edge after ScanNCut cutting, and how do I apply the 101%–102% oversize rule in PE Design Next?
  A: Resize each cut shape to 101%–102% so the fabric edge tucks under the satin stitch instead of landing right on it.
  • Separate the shapes so they don’t overlap, then set the outline color to Black for clean scanning.
  • Select each appliqué outline and scale to 101%–102% before printing the template.
  • Keep proportions consistent while resizing so the shape stays true.
  • Success check: after stitching, the satin column fully covers the fabric edge with no “peek-through” gaps.
  • If it still fails: verify the cut file was the oversize version (not the original) and confirm the correct outline was preserved.
• Q: How do I stop Brother ScanNCut fabric from lifting or sliding during cutting when using 505 Temporary Adhesive Spray and the Standard Mat (Purple/Pink)?
  A: Treat the fabric like a temporary sticker—apply 505 evenly and burnish hard before cutting.
  • Spray the wrong side of the fabric away from the machine, then wait until it feels tacky, not wet.
  • Mount fabric right-side up on the Standard Mat (not the Low Tack mat for fabric).
  • Burnish aggressively with a spatula/brayer to remove every air pocket.
  • Success check: the fabric feels “tight like a drum skin,” with no bubbles and no edge lift when you rub a hand across it.
  • If it still fails: pause the cut immediately and use masking tape on edges as an emergency hold, then re-apply 505 and re-burnish.
• Q: How do I fix Brother ScanNCut “snow” dots / speckles in scanned cut data when using Scan to Cut Data?
  A: Crop tighter and delete scan artifacts in Edit Mode so only the continuous cut paths remain.
  • Crop the scan area tightly around the shapes using the on-screen framing tools.
  • Open the saved scan data in Home → Pattern, enter the edit screen, and select stray dots.
  • Delete artifacts with the Garbage Can icon until only the intended outlines remain.
  • Success check: the screen shows clean, continuous outlines with no floating specks near the shapes.
  • If it still fails: re-scan after cleaning the scanner glass and re-print the template in high-contrast black.
• Q: What are safe starting Brother ScanNCut blade settings for quilting cotton appliqué shapes using the standard blade?
  A: Start with Blade Depth 4 and Cut Pressure 3 for quilting cotton, then test before committing to a full cut.
  • Run a Background Scan, place shapes over fabric, then set Depth: 4 and Pressure: 3.
  • Watch the first few seconds and pause if any edge lifts or the fabric shifts.
  • Test thicker fabrics (like flannel) on a scrap first; adjustments may be needed depending on fabric and mat condition.
  • Success check: the cut completes with clean edges while the fabric stays perfectly flat on the mat.
  • If it still fails: re-check adhesion (505 + burnishing) and mat tackiness before increasing cutting force.
• Q: How do I safely use 505 Temporary Adhesive Spray around embroidery and cutting equipment to avoid overspray problems?
  A: Spray in a separate box away from electronics, and keep tools clean so adhesive doesn’t contaminate the machine area.
  • Move fabric to a dedicated spray area away from the ScanNCut/embroidery machine before spraying.
  • Apply 505 to the fabric back only, aiming for “tacky” instead of wet/gummy.
  • Wipe overspray from mat edges after the job using alcohol-free wipes and check the blade housing for lint buildup.
  • Success check: the mat stays grippy without sticky residue building up near the blade path or on machine surfaces.
  • If it still fails: stop and deep-clean the mat edges and blade area before continuing to prevent drag and tearing.
• Q: How do I prevent hoop burn ring marks on quilt blocks during embroidery, and when should magnetic embroidery hoops replace tight friction hooping?
  A: Reduce over-tight hooping pressure on delicate quilt blocks, and use magnetic hoops when friction hooping causes permanent marks or wrist strain.
  • Diagnose: if ring marks appear or you must “crank down” to hold thick quilt sandwiches, friction hooping is the bottleneck.
  • Optimize first: hoop only as tight as needed for stability and avoid crushing fibers.
  • Upgrade next: switch to magnetic embroidery hoops to clamp thick layers without the same friction pressure.
  • Success check: the quilt surface shows no visible hoop ring after stitching, and the fabric remains stable without over-tightening.
  • If it still fails: reassess the project’s thickness and workflow—frequent hooping fatigue often signals it’s time to standardize hold methods and consider higher-throughput production equipment.
