Scan, Clean, Stitch: Turning Lori Holt’s “Chicken Salad” Hand-Stitch Lines into Perfect Brother Luminaire / IQ Designer Embroidery (Without the Scale Headache)

The "Wrong Scale" Panic on Lori Holt Chicken Salad Page 11—And the Calm Fix That Actually Works

If you’ve ever opened a quilt kit, followed the instructions to the letter, and still thought, “Why does this not fit?”—you are experiencing a universal frustration known as "tolerance drift." In mass-produced kits like Lori Holt’s Chicken Salad, this hits hardest on printed patterns. Specifically, Becky discovers a distinct problem: the kit’s printed page 11 can be the wrong scale, meaning the belly line and the delicate feet details simply don’t land where the appliqué body intends them to be.

For the traditional sewist, this is a nightmare of tracing, resizing, and guessing.

But here is the good news: if you own a Brother Luminaire (XP1/XP2/XP3) or a Baby Lock Solaris with IQ Designer, you have a digital darkroom sitting on your table. You can bypass the printout drama entirely by scanning your own traced linework directly into the machine, digitizing it instantly, and layering it under your appliqué body so it looks intentional—not like a desperate afterthought.

The Strategy: Why We Don't Fight Bad Paper

Becky’s first move is one I wish every embroiderer would adopt: stop fighting the materials. She notes the kit’s page 11 may be incorrectly scaled even though it shows a 1-inch reference square. Her solution is to download the corrected PDF directly from the blog source instead.

Here is the Golden Rule of Digitizing: Your machine is only as accurate as the artwork you feed it. If the printed sheet is off by even 2%, resizing that on a screen becomes a game of guesswork—especially when you are trying to tuck tiny chicken feet under a pre-cut appliqué body line.

Pro tip (Expert Calibration): If you are hoping there is a "magic hand-embroidery stitch" button hiding in your upgrade menus, stop hunting. The "hand look" isn't a preset; it's a technique. Becky’s method is simpler and more effective: she converts the scanned line to a very thin zigzag. When viewed from a normal distance (arm's length), this reads to the eye exactly like hand stitching, but with machine durability.

The "Hidden" Prep: Scanning Mat, Magnets, and Contrast

Before you touch the LCD screen, you must execute your physical prep like a production shop. Why? Because the machine's camera is sensitive, and rescanning is the single biggest time-waster in this workflow.

Becky uses the dedicated scanning mat and secures the paper pattern with magnets. She also traces the chick feet with a black Crayola marker (or any thick, felt-tip black marker) to create high-contrast lines.

The Science of Scanning: A quick note from 20 years of diagnostics: Scanners do not "see" drawings; they detect Contrast Thresholds. Light pencil, thin ballpoint pen, or the natural texture of paper grain can create a digital "snowstorm" of junk pixels. You want a bold, confident black line on white paper.

Workflow Upgrade (The Physical Setup): If you plan on doing a whole flock of these chickens, you will quickly find that the physical act of securing paper and fabric is where your wrists start to ache. When hooping and re-hooping becomes the bottleneck, a stable, repeatable setup saves your schedule.

If you are already thinking about how to make this process faster and cleaner, consider whether a hooping station for embroidery machine would reduce your handling time. A station keeps your lower frame static, allowing you to focus solely on alignment without chasing the hoop across the table.

Warning: Pinch Hazard. Keep fingers clear of pinch points when handling frames, strong clamps, and cutting tools around the machine. A quick “just hold it here” moment is how people get nipped—especially when rushing to align small details.

Prep Checklist: The "Clean Input" Protocol

• Source Verification: Download/Print the corrected PDF source (do not rely on the kit page if the 1-inch square doesn't measure exactly 1 inch).
• Contrast Tracing: Trace the linework using a fresh black marker (felt tip preferred) for maximum contrast.
• Secure the Asset: Place the paper on the scanning mat. Listen for the 'snap' of the magnets to ensure the paper acts as a single unit with the mat.
• Scope Definition: Decide exactly what you are scanning. Scan one set of feet at a time to keep file sizes manageable.
• Consumables Check: Have a stylus ready (fingers leave oils on screens) and a lint-free cloth.


My Design Center / IQ Designer: The "Line Design" Technique

Becky navigates to My Design Center (Solaris users: IQ Designer), selects the scanning button, and crucially chooses Line Design.

After the scan pass, she performs two critical actions that separate professional results from amateur frustration:

1. Crop Aggressively: She uses the red crop arrows to isolate only the chick feet.
2. Grayscale Detection Drop: She lowers the detection sensitivity to the minimum.


Why this matters: This is the "Noise Floor." By lowering the detection threshold, you are telling the machine: "Ignore the paper grain; ignore the shadow; only see the black marker." Lower grayscale detection means fewer stray artifacts, which means 10 minutes saved in cleanup.

Expert Insight: If your scan looks "speckled" or "dirty," do not try to erase it all manually. Cancel and rescan with better lighting or a darker marker. It is always faster to rescan than to erase 500 tiny dots.

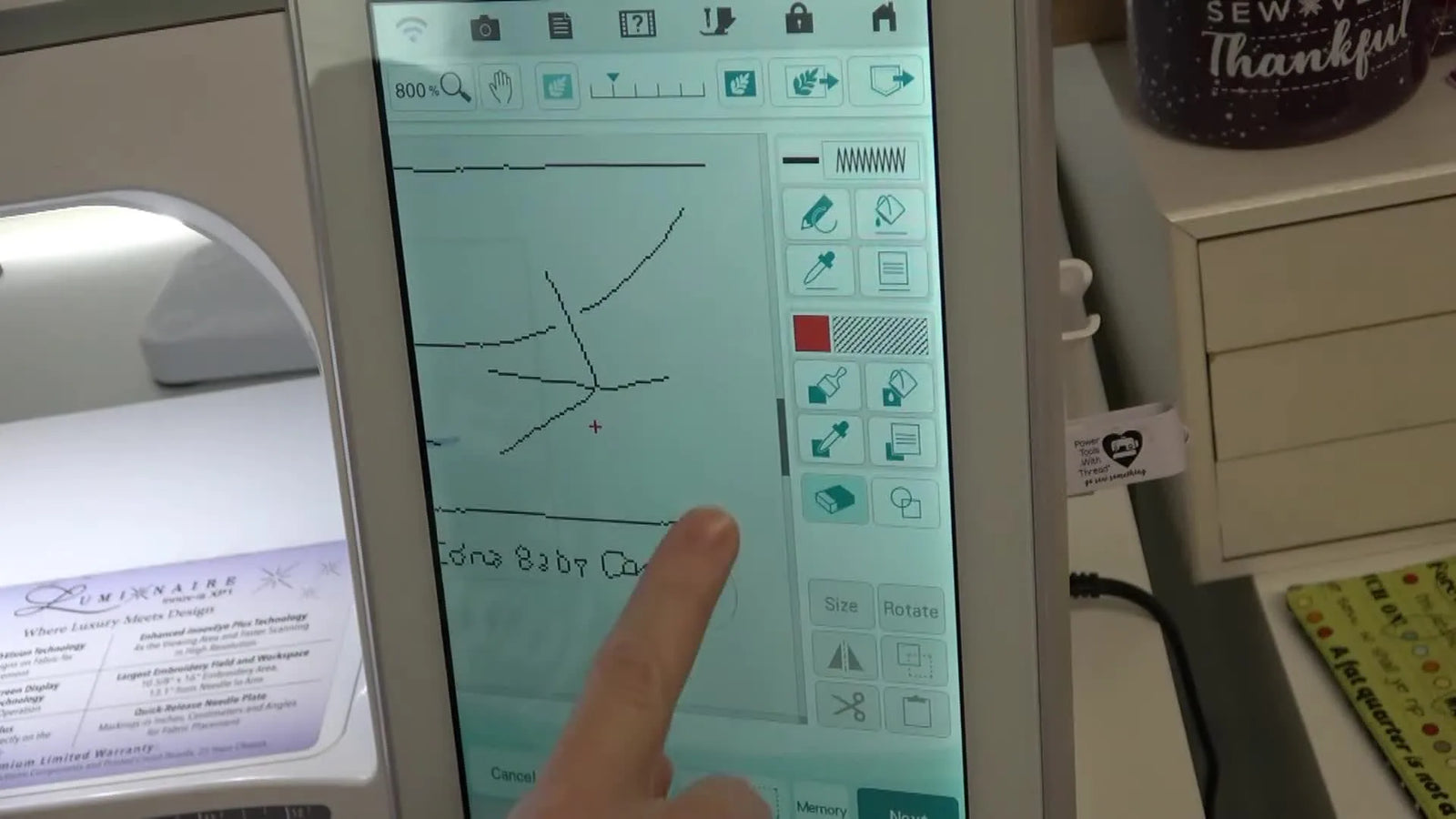

The 800% Cleanup Ritual: Surgical Precision

Becky zooms the screen to 800% and uses the eraser tool.

• Eraser Size 30 (Round): Used for "bulldozing" large areas of background junk.
• Eraser Size 23 (Round or Square): Used for precision work right up against the line art.
• The "Undo" Reflex: If she clips a line, she hits Undo immediately.


This is where tactile tools matter. Becky compares a third-party stylus (like a Mixoo) to the standard Brother stylus, noting a preference for a finer tip control.

Common Pitfall (The "Zoom Trap"): It is easy to get tunnel vision at 800% zoom. You might erase a pixel that looks like dirt, only to zoom out and realize you severed the chicken's toe. Becky’s habit is excellent: periodically zoom back to 100% or 200% to visually verify the integrity of the line.

Setup Checklist: The Digitizing Gate

• Zoom Check: Zoom to 800% and remove purely stray pixels.
• Tool Switching: Use large erasers for the perimeter, small erasers for the detail.
• Continuity Check: Zoom out to 200%. Does the line look unbroken?
• Save Point: If your machine allows, save this state before converting.
• Final Call: Are you satisfied? Once you convert to stitches, you cannot easily sketch/erase.


The "Hand Stitch" Alchemy: Zigzag Width 0.040

Once the linework is clean, Becky converts it to embroidery data. This is where we change the physics of the stitch. She changes the stitch property to Zigzag and reduces the width to 0.040 inches.

Understanding the Parameters (The "Sweet Spot"):

• Stitch Type: Zigzag (Run pitch often looks too mechanical; Satin is too heavy).
• Width 0.040": This is the magic number for "Sketchy." It is wide enough to be visible but narrow enough to look like a single heavy thread.
• Density: Leaving this default is usually fine, but if you want a rougher look, decrease density slightly.

Safety Note: If you go narrower than 0.030", the thread may bury itself into the batting and disappear. 0.040" is a safe, visible baseline.

Becky mentions the feet may digitize as separate segments. You must select each segment and apply these settings universally.

The Hoop Burn Factor: Becky recommends a test stitch-out on a scrap using a standard Brother 4x4 hoop. However, if you are doing a full quilt of 20+ blocks, repeated hooping with standard rings often leaves circular "burn marks" (crushed fibers) that are impossible to iron out.

For production runs or high-value quilt blocks, this is where magnetic hoops for brother luminaire become a logical upgrade. Because they clamp down rather than using friction/tension rings, they eliminate hoop burn and make it infinitely easier to make small adjustments without un-hooping the entire sandwich.

The Sequencing Trap: Why "Feet First" Matters

Becky leaves the design center and enters Embroidery Edit. She loads the newly created feet design first, and then uses the Add function to bring in the main chicken body (the appliqué file).

The Logic: Embroidery machines stitch in the order files are loaded (usually). You want the feet to stitch first so that the appliqué body (when you eventually place it and stitch it down) covers the raw top edge of the legs.

She uses the red bounding box arrows to select the feet layer, then nudges them into position so they look like they are tucking under the chicken's belly.

Using the edit tools, she rotates and centers the chicken to ensure the geometry is perfect.

Finally, she does a visual confirmation of the color sequence. The machine must show the feet (black thread) as step 1.

Operation Checklist: The "Go" Button Protocol

• Order Verification: Confirm Feet are Step 1; Body is Step 2.
• Layer Selection: Ensure you are moving the feet layer, not the chicken layer.
• Visual Tucking: Nudge the feet up until the tops are fully hidden by the body outline.
• Scrap Test: Run the feet file on scrap fabric first.
  • Sensory Check: Rub your fingernail over the zigzag. It should feel slightly raised but not loose.
• Bobbin Check: Ensure you have enough bobbin thread to complete the block (stopping mid-foot is messy).

Stabilizer Decision Tree: Supporting the Line

The video focuses on the digital side, but in the physical world, thin linework is notorious for puckering if the stabilization is weak. Here is a decision tree to help you choose the right foundation:

Q: What is your base fabric?

• Scenario A: Quilting Cotton (Single Layer)
  • Risk: Pucker/Tunneling along the line.
  • Rx: Medium Tearaway + Temporary Spray Adhesive, OR a light Cutaway (Mesh).
• Scenario B: Quilt Sandwich (Top + Batting + Backing)
  • Risk: Drag/Shift.
  • Rx: The batting acts as a stabilizer, but you must float the block securely. Use a "basting box" to fix the layers before the intricate stitching starts.
• Scenario C: Textured/Stretch Fabric
  • Risk: Distortion.
  • Rx: Fusible No-Show Mesh (Cutaway). You must stop the stretch.

If you find that your fabric is distorting simply by trying to force it into a standard hoop, this is a mechanical issue, not a skill issue. Many quilters switch to a magnetic frame for embroidery machine purely for the ability to "float" delicate quilt blocks without forcing them into an inner/outer ring mechanism that distorts the grain line.

Warning: Magnet Safety. Powerful magnetic hoops can pinch skin severely. More importantly, they generate strong magnetic fields. Keep them at least 6 inches away from pacemakers, insulin pumps, and other implanted medical devices.

Troubleshooting: The "Why is this happening?" Guide

The Production Mindset: Speed, Repeatability, and Tooling

If you are making one chicken pillow, you can muscle through any inefficiency. But if you are making a queen-sized quilt with 20 chickens, or producing kits for sale, friction is your enemy.

The friction comes from:

1. Rescanning (because paper shifted).
2. High-maintenance cleanup (because lighting was bad).
3. Hoop burn (requiring ironing/steaming).

This is where we differentiate between skill and tooling.

• Skill is knowing to set the zigzag to 0.040".
• Tooling is using a brother luminaire magnetic hoop so that you can hoop a quilt block in 5 seconds flat without distortion.

If you are running a mixed studio—perhaps a Brother for the main work and a Baby Lock for dedicated tasks—standardizing your workflow is key. Many prosumers utilize magnetic hoops for babylock embroidery machines alongside their Brother setups so the "feel" of hooping is identical regardless of which machine is open.

Ultimately, tools like hooping for embroidery machine aid devices aren't just about speed; they are about consistency. When every block starts flat and square, the digital alignment you worked so hard on in IQ Designer actually pays off on the fabric.

Final Reality Check: Can Other Machines Do This?

A commenter asked a vital question: "Can't I just do this on my PC or ScanNCut?" Becky’s answer is honest: This specific "scan-to-line-design-to-stitch" pipeline is a superpower unique to the top-tier Brother/Baby Lock ecosystem (Luminaire/Solaris/Stellaire).

While you can trace and digitize in software like PE-Design or Palette 11, the ability to do it at the machine, overlaying it visually on your fabric in real-time, is what makes this workflow precise enough for fixing a 1mm gap on a chicken foot.

Follow the protocol: Trace dark -> Scan Line Design -> Crop Tight -> drop Grayscale -> Clean at 800% -> Zigzag 0.040" -> Load Feet First. Do this, and your machine embroidery will carry the soul of hand stitching, with the precision of a robot.

FAQ

• Q: Why do Lori Holt Chicken Salad Page 11 chick feet not match the belly line when digitizing on Brother Luminaire XP1/XP2/XP3 or Baby Lock Solaris IQ Designer?
  A: The quickest fix is to stop resizing the wrong printout and use the corrected PDF source instead.
  • Measure the 1-inch reference square; if it is not exactly 1 inch, do not trust that page.
  • Download/print the corrected PDF from the original source, then retrace the feet with a bold black marker.
  • Rescan using Line Design and crop to only the feet before converting to stitches.
  • Success check: the scanned feet outline visually “lands” under the appliqué body without forced stretching or awkward gaps.
  • If it still fails: cancel the scan and rescan with darker lines and better lighting rather than trying to “scale-fix” on-screen.
• Q: How do Brother Luminaire My Design Center or Baby Lock Solaris IQ Designer scans get “speckled” with paper-grain noise, and how do I fix the dirty scan fast?
  A: Rescan with higher contrast and lower detection sensitivity; erasing hundreds of dots is slower than rescanning.
  • Trace with a thick black felt-tip marker on clean white paper (avoid light pencil/ballpoint).
  • Secure the paper to the scanning mat with magnets so it cannot shift during scanning.
  • Choose Line Design, crop aggressively to only the feet, then drop grayscale detection to the minimum.
  • Success check: the preview shows clean black lines with minimal background “snow” before you start cleanup.
  • If it still fails: change lighting and re-trace darker; do not try to manually erase excessive speckling.
• Q: What are the exact Brother Luminaire / Baby Lock Solaris settings to make scanned linework look like hand stitching, and why is zigzag width 0.040 inches recommended?
  A: Use Zigzag stitch and set the width to 0.040 inches as a safe starting point for a “hand-stitch” look that still shows on fabric.
  • Convert the cleaned linework to embroidery data, then change stitch type to Zigzag.
  • Set zigzag width to 0.040 inches and apply the setting to every segment if the feet digitize in multiple pieces.
  • Test stitch the feet on scrap before committing to the quilt block.
  • Success check: at arm’s length the line reads like hand stitching and feels slightly raised, not loose or disappearing.
  • If it still fails: avoid going too narrow (very thin settings may sink into batting); rescan/clean again if the line itself is broken.
• Q: Why do Brother Luminaire or Baby Lock Solaris chicken feet stitch on top of the appliqué body after using Add in Embroidery Edit, and how do I force “feet first” stitching?
  A: Load the feet design first, then use Add to load the body so the machine stitches feet as Step 1.
  • Delete the current layout if the sequence is wrong, then reload with feet first and body second.
  • Verify the color sequence screen shows the feet (black thread) as Step 1 before stitching.
  • Select the feet layer (not the chicken body) and nudge the feet up so the tops tuck under the belly outline.
  • Success check: the machine shows feet first in the stitch order and the stitched leg tops disappear under the appliqué placement/tackdown area.
  • If it still fails: re-check which layer is selected before moving; mis-selecting the body layer makes alignment look “impossible.”
• Q: How do I stop fabric puckering or shifting when stitching thin scanned linework (zigzag feet) on quilting cotton or a quilt sandwich?
  A: Match stabilizer to fabric and secure the layers before the fine line stitches start.
  • For single-layer quilting cotton, use medium tearaway with temporary spray adhesive, or use a light mesh cutaway as a more supportive option.
  • For a quilt sandwich, float the block securely and run a basting box first to lock the layers.
  • Keep handling minimal so the grainline does not distort during hooping and stitching.
  • Success check: the line stitches lie flat with no tunneling along the feet outline and no visible shifting between layers.
  • If it still fails: treat it as a stabilization/hooping problem (not a digitizing problem) and increase support or improve how firmly the layers are held.
• Q: How do I diagnose and fix top thread loops on top of the fabric when stitching scanned zigzag linework on Brother Luminaire XP series or Baby Lock Solaris?
  A: Rethread with the presser foot up so the thread seats correctly in the tension discs.
  • Raise the presser foot fully, then completely rethread the top path.
  • Confirm there is normal resistance when pulling the thread (it should not feel free-spooling).
  • Run a short scrap test of the feet file before stitching the real block.
  • Success check: the top looks like a clean zigzag line, and there are no loose loops sitting on the fabric surface.
  • If it still fails: stop and verify the thread path again; do not continue a full block while the tension is clearly incorrect.
• Q: What safety precautions should beginners follow when using magnets on a scanning mat or using magnetic embroidery hoops during Brother Luminaire or Baby Lock Solaris projects?
  A: Treat magnets like clamps: keep fingers clear to avoid pinches, and keep strong magnets away from implanted medical devices.
  • Keep fingertips out of pinch points when magnets “snap” onto the mat or frame.
  • Avoid rushing alignment; slow placement prevents sudden pinches.
  • Keep strong magnetic hoops at least 6 inches away from pacemakers, insulin pumps, and other implanted devices.
  • Success check: magnets are fully seated with controlled placement, and no part of the hand is in the closing gap.
  • If it still fails: switch to a calmer setup routine (place one side first, then lower the rest) to reduce snap-force surprises.
• Q: When repeated hooping causes hoop burn on quilt blocks, what is the step-by-step upgrade path from technique fixes to magnetic hoops to a multi-needle setup?
  A: Start by optimizing setup and testing, move to magnetic clamping if hoop burn and rehooping are the bottleneck, and consider a multi-needle machine only when volume demands it.
  • Level 1 (Technique): run a scrap test first, minimize rehooping by verifying sequence (feet Step 1), and stabilize correctly to avoid redo cycles.
  • Level 2 (Tooling): use a magnetic hoop/clamping approach when friction hoops repeatedly crush fibers or when small alignment tweaks force full rehoops.
  • Level 3 (Production): move to a multi-needle workflow when you are producing many blocks and thread-change time plus repeated setups are limiting throughput.
  • Success check: blocks come out flat with no permanent ring marks, and the time per block drops because rescans/rehoops are reduced.
  • If it still fails: identify the true bottleneck first (rescanning vs cleanup vs hooping); upgrading the wrong step will not improve consistency.
