Santa Hat Embroidery That Stays Crisp: Knockdown Stitches in Embrilliance + 5x7 Magnetic Hooping That Won’t Slip

Plush Santa hats are the ultimate "Trap Project." They look deceptively simple—just a quick name on a cuff, right? But then you stitch it, step back, and watch in horror as the faux fur swallows your lettering whole. Or worse, you realize the thick cuff has slipped during stitching, leaving you with a crooked name on a gift meant for fit for a client.

If you have ever sworn off hats after a disastrous attempt, pause. You don't need magic; you need physics.

The "secret" to professional plush embroidery is a two-part equation: Structural intervention (knockdown stitches) + Mechanical stability (the right hooping method). In this whitepaper, we will dismantle the "Fuzz Creep" phenomenon and provide a repeatable, safe workflow for both single-needle hobbyists and multi-needle production shops.

The Faux Fur Problem on Santa Hat Cuffs: Stop the “Fuzz Creep” Before It Ruins Your Letters

To conquer the cuff, you must understand the material. Faux fur and plush velvet have a high "loft" or pile. When you embroider directly onto this, your stitches act like heavy stones thrown into tall grass—they sink.

Even if the lettering looks crisp immediately after stitching, the "memory" of the synthetic fibers will eventually spring back. Over time, the fur pushes through the gaps in your satisfaction, obscuring the text.

The Engineering Fix: The Foundation Layer The video demonstrates the only reliable fix: a Knockdown Stitch. This is not decorative; it is a structural foundation.

1. The Flattener: An underlay of stitching acts as a net, pinning the fur down.
2. The Platform: Your satin-stitch lettering sits on top of this net, not on the fur itself.

This explains why the first color stop is white. It creates a stable, invisible "paved road" through the wilderness of the fur, allowing the red lettering to sit proud and legible.

Dial In Embrilliance Enthusiast Knockdown Stitches (So Your Name Doesn’t Sink Into the Pile)

Creating a functional knockdown stitch requires precise parameters. Too dense, and you create a "bulletproof patch" that stiffens the cuff. Too loose, and the fur pokes through.

The "Sweet Spot" Parameters (Empirically Verified): If you are using Embrilliance Enthusiast (or similar digitizing software), use these verified settings from the workflow:

1. Select Context: Choose your hoop size in Preferences (e.g., a 5x7 Mighty Hoop or SEWTECH magnetic equivalent).
2. Input Text: Type the name (e.g., “Abuela”) and select a bold font. Thin scripts get lost in plush; bold serifs or block fonts are safer.

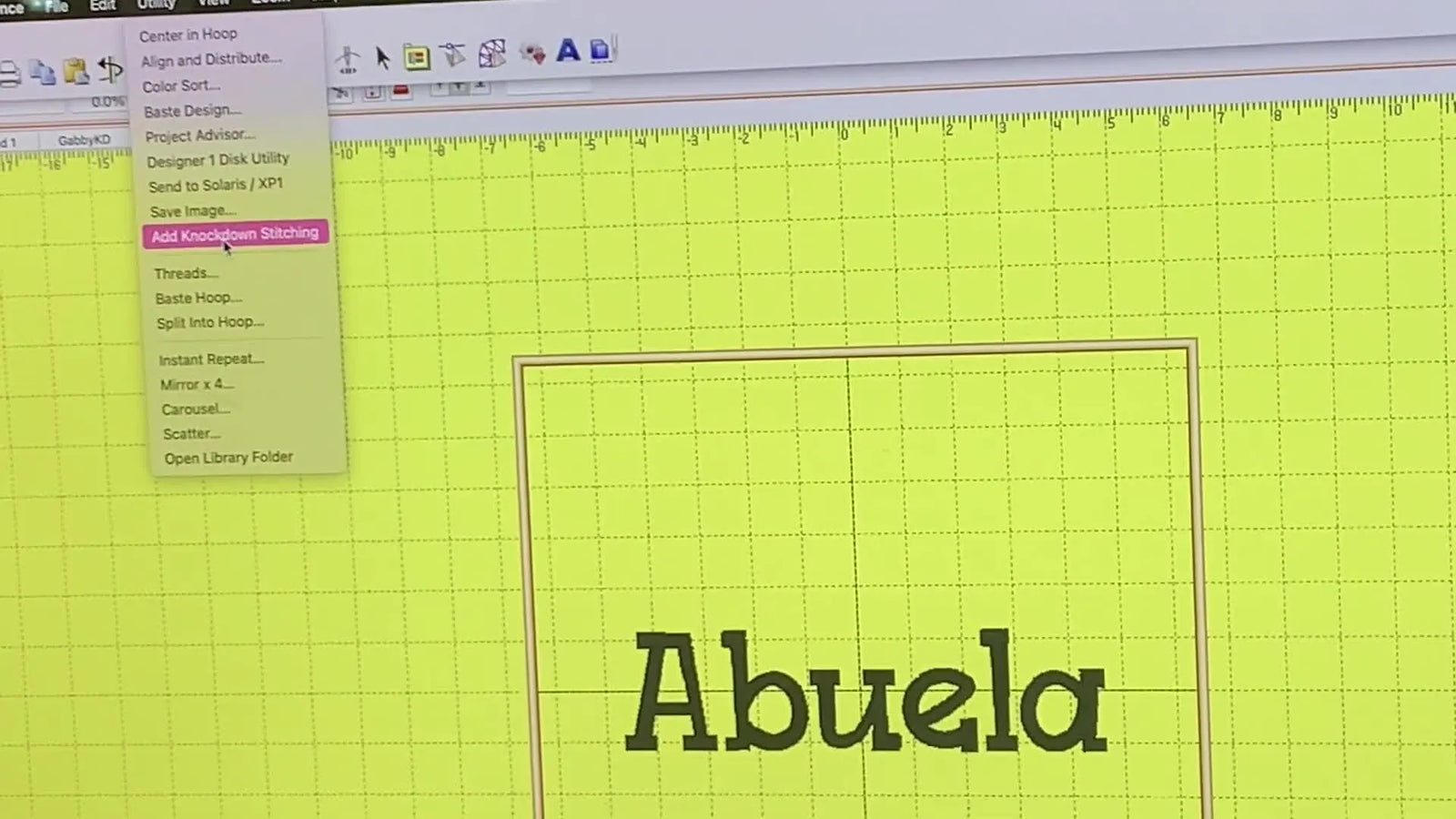

3. Generate Knockdown: Go to Utilities → Add Knockdown Stitching.
4. The Critical Settings:
   • Style: Bi-Directional (Cross-hatch). Why? A single angle allows fur to lean; a cross-hatch traps it.
   • Density: 2.0 mm. Note: Standard fill is often 0.4mm. We want 2.0mm to mat down fibers without creating a solid wall of thread.
   • Stitch Length: 4.0 mm. Longer stitches reduce needle penetrations and keep the fabric soft.
   • Inflation (Margin): 1.0 mm - 2.0 mm. This extends the mat slightly beyond the letters so the edges don't get buried.


Visual Confirmation: On your screen, look for a pale, low-density shape shadowing your text. This is your "Flattening Zone."

Pro-Tip on Software Modules: The video notes that the Enthusiast module automates this. If you lack this module, you can purchase pre-made geometric "embossing" shapes. While shopping for these digital assets, you might find yourself exploring hardware terms like floating embroidery hoop solutions—but remember, software prep is only 50% of the battle. The rest is how you hold the hat.

The “Hidden” Prep Before You Hoop a Plush Santa Hat: What Pros Check in 60 Seconds

Thick cuffs are unforgiving. Unlike a T-shirt, you cannot smooth out wrinkles once the machine starts. A 60-second "Pre-Flight Check" can save you from ruining a $15 blank.

Hidden Consumables list:

• Needle: Switch to a 75/11 Ballpoint or Titanium Ballpoint. Sharps can cut the knit fibers of the cuff, causing holes.
• Bobbin: Ensure you have a full white bobbin. Running out mid-knockdown is a nightmare to align.
• Adhesive: Temporary spray adhesive (if floating) or sticky stabilizer.

Prep Checklist (Complete strictly in order):

1. [ ] Orientation Check: Mark the "Up" arrow on your cuff with a water-soluble pen or masking tape. It is incredibly easy to embroider a name upside down on a cuff.
2. Seam Awareness: Locate the back seam. Do not embroider over the bulky seam if possible; it causes needle deflection. Center your design opposite the seam.
3. Stabilizer Strategy:
   • Single Needle: Sticky Stabilizer (Self-adhesive tearaway).
   • Multi-Needle/Magnetic: Standard Tearaway (tucked inside).
4. Placement Reality Check: Place a ruler on the cuff. Leave at least 15mm-20mm form the bottom edge. If you stitch too close to the edge, the binding will distort.

Warning: Physical Safety
When working with bulky items like hats, keep hands clear of the needle bar and the pantograph arm. The thickness of the material can tempt you to "hold it down" while stitching. Never do this. If the hat is not secure, stop the machine. Helping it with your fingers is a recipe for a needle-through-finger injury.

Single-Needle Brother SE1900 / PE800 Hooping: Float the Santa Hat Cuff on Sticky Stabilizer (Without Fighting the Bulk)

If you are using a flatbed machine (like the Brother SE1900, PE800, or comparable single-needle units), do not try to hoop the cuff. The cuff is too thick; forcing it into the inner and outer rings of a traditional hoop will cause "Hoop Burn" (permanent crushing of the velvet) and likely pop out mid-stitch.

The "Floating" Protocol:

1. Hoop the Destroyer: Hoop a piece of Sticky Stabilizer (adhesive side up) into your standard 5x7 frame. Peel away the protective paper to reveal the sticky surface.
2. Sensory Check: Tap the stabilizer. It should sound like a tight drum. If it sags, the heavy hat will drag it down.
3. Inversion: Turn the hat cuff inside out/upwards so the target area remains accessible, but the body of the hat is out of the way.
4. The Press: Align the center of your cuff with the center of the hoop. Press the plush fabric firmly onto the adhesive.
   • Action: Rub your knuckles over the stitch area.
   • Goal: You need full adhesion to prevent shifting.
5. Template Verification: Use the printed paper template from your software. Place it on the cuff. Align your needle to the template's crosshair.


Why "Floating" is Mandatory for Single-Needle: Standard hoops rely on friction between rings. Thick plush defies this friction—it squishes and slips. Sticky stabilizer acts as a chemical anchor, holding the fabric without crushing the pile.

Many users struggling with this friction battle often search for a magnetic hoop for brother se1900. While true magnetic frames are rare for entry-level single-needle consumer machines, adopting the "floating" technique is the closest bridge to that level of ease.

Multi-Needle Brother PR1055X + 5x7 Magnetic Hoop: The Fast Hooping Move for Thick Santa Hat Cuffs

If you are operating a multi-needle machine (Brother PR series, Babylock, or similar), upgrading to a magnetic hoop is not a luxury—it is a production necessity for this item.

The SEWTECH / Magnetic Hooping Sequence:

1. Base Layer: Place the bottom metal frame of your 5x7 magnetic hoop on your work surface.
2. The Sandwich: Lay the Santa hat cuff flat over the bottom frame.
3. The Insert: Tear a sheet of medium-weight tearaway stabilizer. Slide it inside the cuff (between the cuff fabric and the red hat body).
   • Expert Insight: We don't hoop the stabilizer in the ring; we "float" the stabilizer inside the hat, and the magnet clamps everything together.
4. The Snap: Align the top magnetic frame. Let it snap shut.
5. The "Tug" Test: Gently tug the cuff edges. It should be immovable. If it slides, the magnet has caught a thick seam—re-adjust.


The Production Advantage: Notice there is no screwing, tightening, or forcing rings. This prevents operator wrist fatigue and eliminates hoop burn marks on the velvet. This efficiency is why high-volume shops install a dedicated magnetic hooping station; it transforms a 3-minute struggle into a 10-second "clamp-and-go."

Warning: Magnet Safety
Commercial magnetic hoops possess industrial clamping force.
* Pinch Hazard: Keep fingertips away from the mating surfaces. The "snap" can break skin or nails.
* Electronics: Keep these hoops away from pacemaker implants, credit cards, and machine LCD screens.

The Placement Insurance Policy: Brother PR1055X Camera Scanning So You Don’t Stitch Too Low

Visual perception on plush is tricky. The "fluff" makes the edge look closer than the actual knit fabric edge.

Using Technology to mitigate Risk:

1. Scan: Activate the camera scan on your machine (e.g., brother pr1055x or similar high-end models).
2. Visual Audit: Look at the screen. Ignore the fluff tips; look for the dense fabric fold.
3. Digital Nudge: Drag your design up.
   • Rule of Thumb: Ensure your name is centered vertically between the top fold and the bottom edge, excluding the white pom-pom piping if present.


Why this matters: A design stitched too low will curl under the brim when worn, making the name unreadable. The camera removes the guesswork.

Thread Color Assignment on the Machine: Why White Goes First and Red Goes Second

This step is where logic often fails beginners. You must force the machine to execute the structural work before the aesthetic work.

The Physics of Thread Order:

1. Stop 1: White Thread (Knockdown).
   • Function: Compression.
   • Result: This layer vanishes into the white fur, creating a depressed, flat zone.
2. Stop 2: Red Thread (Lettering).
   • Function: Contrast.
   • Result: Because the fur is now matted down, the red thread sits high and reflects light clearly.


Setup Checklist (The "Save the Hat" Scan):

1. [ ] Rotation: Is the design rotated 180° if the hat is hooped upside down? (Common error on multi-needle machines).
2. [ ] Clearance: Is the presser foot height set to "High" or generic "3-4mm"? If set too low, the foot will drag on the fur and distort the embroidery.
3. [ ] Obstruction: Check under the hoop. Is the rest of the hat body clear of the free arm? Don't stitch the hat closed!


Stitching the Santa Hat Name: What “Good” Looks Like While It’s Running

Press start and monitor the machine. Do not walk away during the knockdown phase.

Sensory Monitoring:

• Sound: Listen for a rhythmic thump-thump. If you hear a sharp slap, the presser foot is hitting the hoop edge or the fabric is flagging (bouncing). Increase presser foot height.
• Sight: The white thread should pull the fur down, creating a visible "crater." If the fur is poking through the white grid immediately, your density (2.0mm) is too loose. Stop and adjust.


Production Reality: If you are batching these (Etsy orders, team gifts), a magnetic embroidery hoop is your greatest asset. It allows you to maintain momentum without the physical strain of re-hooping thick fabric 50 times a day.

Clean Finishing on Plush Cuffs: Unhoop, Tear Away, and Keep the Back Neat

The finish is as important as the start. Rough handling now can distort the knit.

The Release Protocol:

1. Open: Lift the magnetic top frame (or peel hat off sticky stabilizer).
2. Tear: Support the stitches with your left hand. Gently tear the stabilizer away with your right hand.
   • Technique: Pull the stabilizer towards the stitches, not away. This reduces stress on the knit fabric.
3. Trim: Snip any jump threads. Use a lint roller to remove fuzz created by the perforation.




Troubleshooting Santa Hat Embroidery: Symptoms → Causes → Fixes

When things go wrong, use this diagnostic table to fix it fast.

Pro Diagnosis: The "Placement Drift"

If your name looks too low, you likely visually measured from the tips of the fur rather than the root of the fabric. Always compress the fur with your finger to find the true edge of the cuff before measuring.

A Simple Decision Tree: Which Stabilizer + Hooping Method Should You Use?

Don't guess; use this logic flow to choose your setup.

• Q1: What machine are you using?
  • Single-Needle (Flatbed): Go to Path A.
  • Multi-Needle (Free Arm): Go to Path B.
• Path A (Single Needle):
  • Method: Float on Sticky Stabilizer.
  • Why: The hoop cannot close over the cuff without damage.
  • Consumable: Self-Adhesive Tearaway.
• Path B (High Volume / Multi):
  • Method: Clamp with Magnetic Hoop.
  • Why: Speed and elimination of hoop burn.
  • Consumable: Standard Tearaway (tucked inside).

The Upgrade Path: When to Move Beyond "Making Do"

For a single family Christmas, floating on a single-needle screen is perfectly fine. But if you are doing sets—10, 20, or 50 hats—your process is your profit (or your sanity).

The Commercial Tipping Point:

• Trigger: Are your fingertips sore from prying hoops open? Are you rejecting 1 in 10 hats due to crooked placement?
• Diagnosis: You have a Workflow Bottleneck. The machine isn't the problem; the hooping is.
• The Solutions (Level Up):
  1. Level 1 (Technique): Use water-soluble toppers and better templates.
  2. Level 2 (Tooling): If you are on a compatible machine, invest in a SEWTECH Magnetic Hoop. The ability to slide a thick cuff in and "snap" it shut reduces hooping time by 70%. It turns a wrestling match into a hooping station for embroidery style assembly line.
  3. Level 3 (Scale): If you are drowning in orders, the free-arm clearance of a multi-needle machine (like the SEWTECH series or Brother PR) combined with magnetic frames is the only way to scale effectively.

Final Operation Checklist:

• Knockdown set to Bi-Directional / 2.0mm.
• White thread assigned first / Red thread second.
• Cuff is centered (vertically).
• Stabilizer is secure.
• Presser foot height is elevated for plush.
• Go.

Follow this physics-based approach, and your Santa hats will be the ones that actually get worn—clean, legible, and built to last.

FAQ

• Q: What needle type should be used for plush Santa hat cuff embroidery to avoid holes in the knit cuff?
  A: Switch to a 75/11 Ballpoint or Titanium Ballpoint before stitching to reduce the risk of cutting knit fibers.
  • Replace: Install the 75/11 Ballpoint (or Titanium Ballpoint) needle before hooping.
  • Avoid: Do not use sharp needles on the plush cuff if holes are showing up.
  • Success check: The needle penetrations look clean with no torn knit fibers or widening holes around stitches.
  • If it still fails: Re-position the design away from bulky seam areas where needle deflection is more likely.
• Q: How can Brother SE1900 and Brother PE800 users float a thick Santa hat cuff on sticky stabilizer without hoop burn or slipping?
  A: Float the cuff on hooped sticky stabilizer instead of forcing the thick cuff into a standard hoop.
  • Hoop: Hoop sticky stabilizer adhesive-side up, then peel the paper to expose the sticky surface.
  • Press: Turn the cuff so the stitch area is accessible and press it firmly onto the adhesive; rub with knuckles to lock adhesion.
  • Verify: Use a printed template and align the needle to the template crosshair before stitching.
  • Success check: The stabilizer feels “drum tight,” and the cuff does not shift when lightly nudged.
  • If it still fails: Re-hoop the sticky stabilizer tighter; sagging stabilizer can let the heavy hat drag and drift.
• Q: What is the correct magnetic hooping sequence for thick Santa hat cuffs on multi-needle machines like Brother PR1055X to prevent shifting?
  A: Clamp the cuff with a magnetic hoop and float the tearaway stabilizer inside the cuff for a firm, fast hold.
  • Place: Set the bottom metal frame on the table and lay the cuff flat over it.
  • Insert: Slide medium-weight tearaway stabilizer inside the cuff (between cuff fabric and the red hat body).
  • Snap: Align and close the top magnetic frame, then re-seat if a thick seam is trapped.
  • Success check: The cuff passes a gentle “tug test” and feels immovable at the edges.
  • If it still fails: Re-clamp away from bulky seam areas so the magnet closes evenly and grips the fabric consistently.
• Q: What Embrilliance Enthusiast knockdown stitch settings prevent faux fur from swallowing satin lettering on plush Santa hat cuffs?
  A: Use a Bi-Directional (cross-hatch) knockdown at 2.0 mm density with 4.0 mm stitch length and 1.0–2.0 mm inflation as a proven starting point.
  • Set: Choose Bi-Directional style to trap pile from leaning in one direction.
  • Dial: Enter Density 2.0 mm, Stitch Length 4.0 mm, Inflation 1.0–2.0 mm.
  • Confirm: Look for a pale, low-density “shadow” shape behind the text as the flattening zone.
  • Success check: During the white knockdown run, the fur visibly mats down into a shallow “crater” before the lettering starts.
  • If it still fails: Stop and increase control by re-running the knockdown layer again before stitching the lettering.
• Q: Why should plush Santa hat embroidery run white knockdown thread first and red lettering thread second on Brother PR1055X-style multi-needle workflows?
  A: Run white first for compression (knockdown), then red for contrast so the lettering sits on a flattened base instead of sinking into fur.
  • Assign: Set Color Stop 1 to white for the knockdown layer and Color Stop 2 to red for the name.
  • Check: Confirm the design rotation is correct if the hat is hooped upside down to avoid inverted names.
  • Set: Raise presser foot height (high / about 3–4 mm) so the foot does not drag and distort plush.
  • Success check: After the white pass, the stitch area looks flattened and the red satin stitches sit visibly higher and cleaner.
  • If it still fails: If white shows afterward, brush/rough up the fur around the letters to restore the nap direction.
• Q: What should be done if faux fur is poking through letters or the embroidered name looks crooked on a plush Santa hat cuff?
  A: Treat “fur poking through” as a knockdown problem and “crooked text” as a shifting/placement problem, then correct the specific cause.
  • Re-stitch: If fur pokes through, run the knockdown layer again before the text.
  • Re-hoop: If the name is crooked, re-secure using sticky stabilizer (single-needle) or a magnetic hoop (multi-needle) to stop drift.
  • Measure: Compress the fur to find the true cuff edge before placement to avoid “placement drift” from measuring the fur tips.
  • Success check: The finished letters remain readable after the fur springs back, and the baseline aligns with the cuff’s true edge.
  • If it still fails: Rotate the design slightly in software to match the cuff angle and re-check that stitching is not riding over a bulky seam.
• Q: What are the key safety rules for stitching bulky Santa hats and for handling industrial magnetic embroidery hoops?
  A: Keep hands away from moving needle/pantograph parts during stitching, and keep fingertips out of magnetic hoop pinch zones during closing.
  • Stop: If the hat is not secure, stop the machine—do not “hold it down” with fingers near the needle bar or pantograph arm.
  • Check: Before pressing start, feel under the hoop to ensure the hat body is clear so the hat is not stitched closed.
  • Handle: Close magnetic hoops by guiding alignment, then let the frame snap shut without fingers between mating surfaces.
  • Success check: The hoop closes without pinching, the hat body stays clear under the hoop, and the stitch run proceeds without manual “help.”
  • If it still fails: Re-clamp and re-route excess hat fabric away from the free arm area before restarting.
